TOYOTA RAV4 EV 2014 1.G Owners Manual

310
3-4. Other interior features

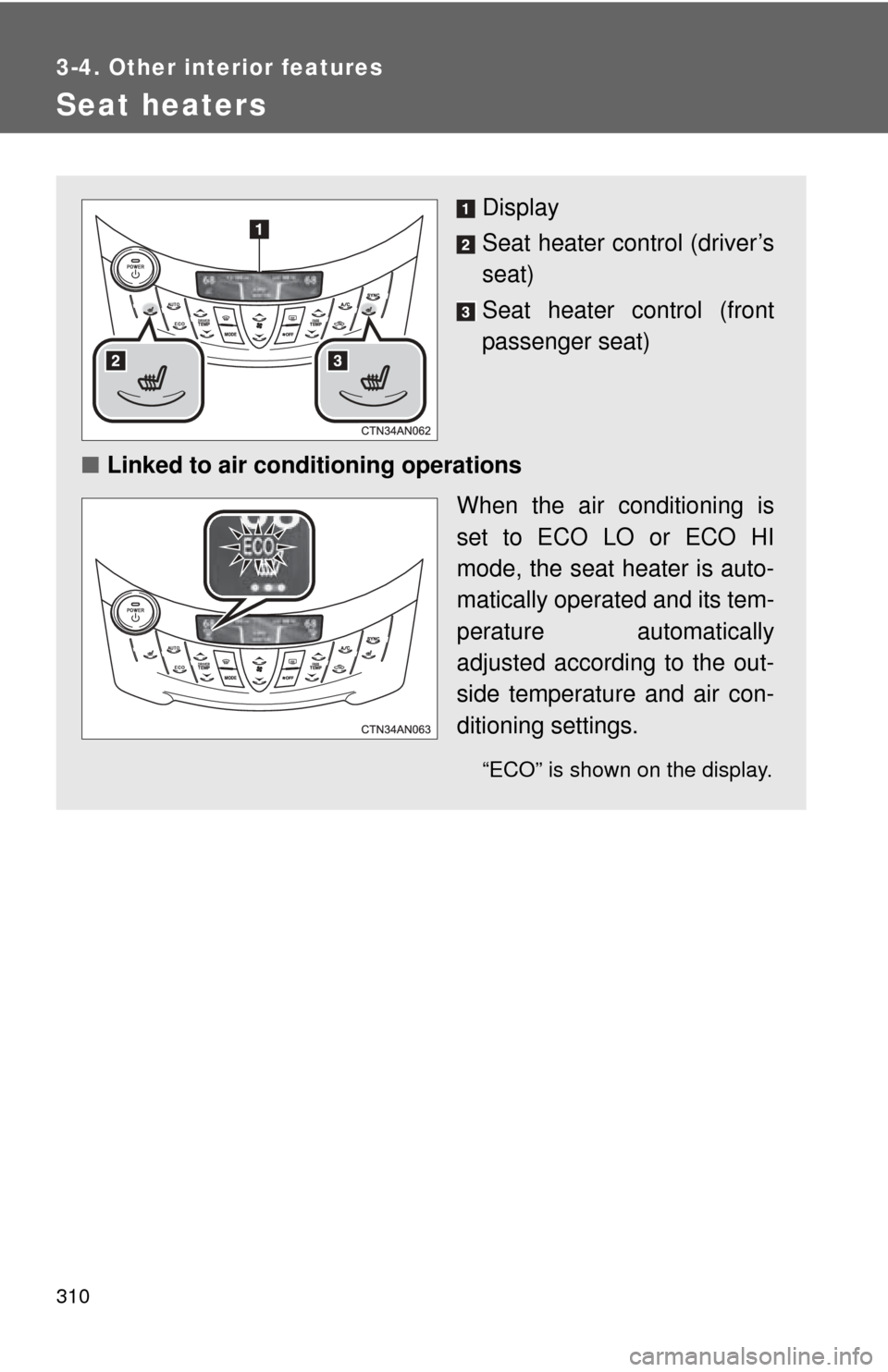

Seat heaters
Display
Seat heater control (driver’s
seat)
Seat heater control (front
passenger seat)
■ Linked to air conditioning operations
When the air conditioning is
set to ECO LO or ECO HI
mode, the seat heater is auto-
matically operated and its tem-
perature automatically
adjusted according to the out-
side temperature and air con-
ditioning settings.
“ECO” is shown on the display.

311
3-4. Other interior features
3
Interior features
■
The seat heaters can be used when
The “POWER” switch is in ON mode.
■ When not in use
Turn the seat heater off.
■ Front passenger seat heater
●When the air-conditioning is in ECO LO or ECO HI mode, the seat heater
automatically turns on/off depending on whether the front passenger seat
is occupied or not.
● When the seat heater is operating in manual mode, it does not automati-
cally turn on/off depending on whether the front passenger seat is occu-
pied or not.
● In order to prevent unintended seat heater operation, do not place lug-
gage on the passenger seat.
The sensor may mistakenly judge the seat to be occupied and turn the
seat heater on.
■ Manual Mode
Each time the seat heater cont rol is touched, the seat heater's
operation or temperature setting changes.
Seat heater off
High
Medium
Low

312 3-4. Other interior features
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
● Do not use the seat heater more than necessary. Doing so may cause
minor burns or overheating.
NOTICE
■To prevent seat heater damage
Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
■ To prevent 12-volt battery discharge
Turn the seat heaters off when the EV system is off.

313
3-4. Other interior features
3
Interior features
Armrest
NOTICE
■To prevent damage to the armrest
Do not place too much strain on the armrest.
To use the armrest, pull the
strap forward and fold down
the center seatback.
To return the rear center seat-
back to its original position, lift
it up until it locks.

314
3-4. Other interior features
Coat hooks
CAUTION
■Items that must not be hung on the hook
Do not hang a coat hanger or other hard or sharp objects on the hook. If the
SRS curtain shield airbags deploy, these items may become projectiles,
causing death or serious injury.
NOTICE
■To prevent damage to the coat hook
Do not place too much load on the coat hook.

315
3-4. Other interior features
3
Interior features
Assist grips
CAUTION
■Assist grip
Do not use the assist grip when getting in or out of the vehicle or rising from
your seat.
NOTICE
■To prevent damage to the assist grip
Do not hang any heavy object or put a heavy load on the assist grip.
An assist grip installed on the cei ling can be used to support your
body while sitting on the seat.

316
3-4. Other interior features
Floor mat
CAUTION
Observe the following precautions.
Failure to do so may cause the driver's floor mat to slip, possibly interfering
with the pedals while driving. An unexpectedly high speed may result or it may
become difficult to stop the vehicle, leading to a serious accident.
■When installing the driver's floor mat
●Do not use floor mats designed for other models or different model year
vehicles, even if they are Toyota Genuine floor mats.
● Only use floor mats designed for the driver's seat.
● Always install the floor mat securely using the retaining hooks (clips) pro-
vided.
● Do not use two or more floor mats on top of each other.
● Do not place the floor mat bottom-side up or upside-down.
■ Before driving
Use only floor mats designed specifically for vehicles of the same
model and model year as your vehic le. Fix them securely in place
onto the carpet.
Fix the floor mat in place using
the retaining hooks (clips) pro-
vided.
The shape of the retaining
hooks (clips) and the fixing
procedure of the floor mat for
your vehicle may differ from
those shown in the illustration.
For details, refer to the floor
mat retention clip installation
instructions supplied with the
clips.
● Check that the floor mat is securely
fixed in the correct place with all the
provided retaining hooks (clips). Be
especially careful to perform this check
after cleaning the floor.
● With the EV system stopped and the
shift position in P, fully depress each
pedal to the floor to make sure it does
not interfere with the floor mat.

317
3-4. Other interior features
3
Interior features

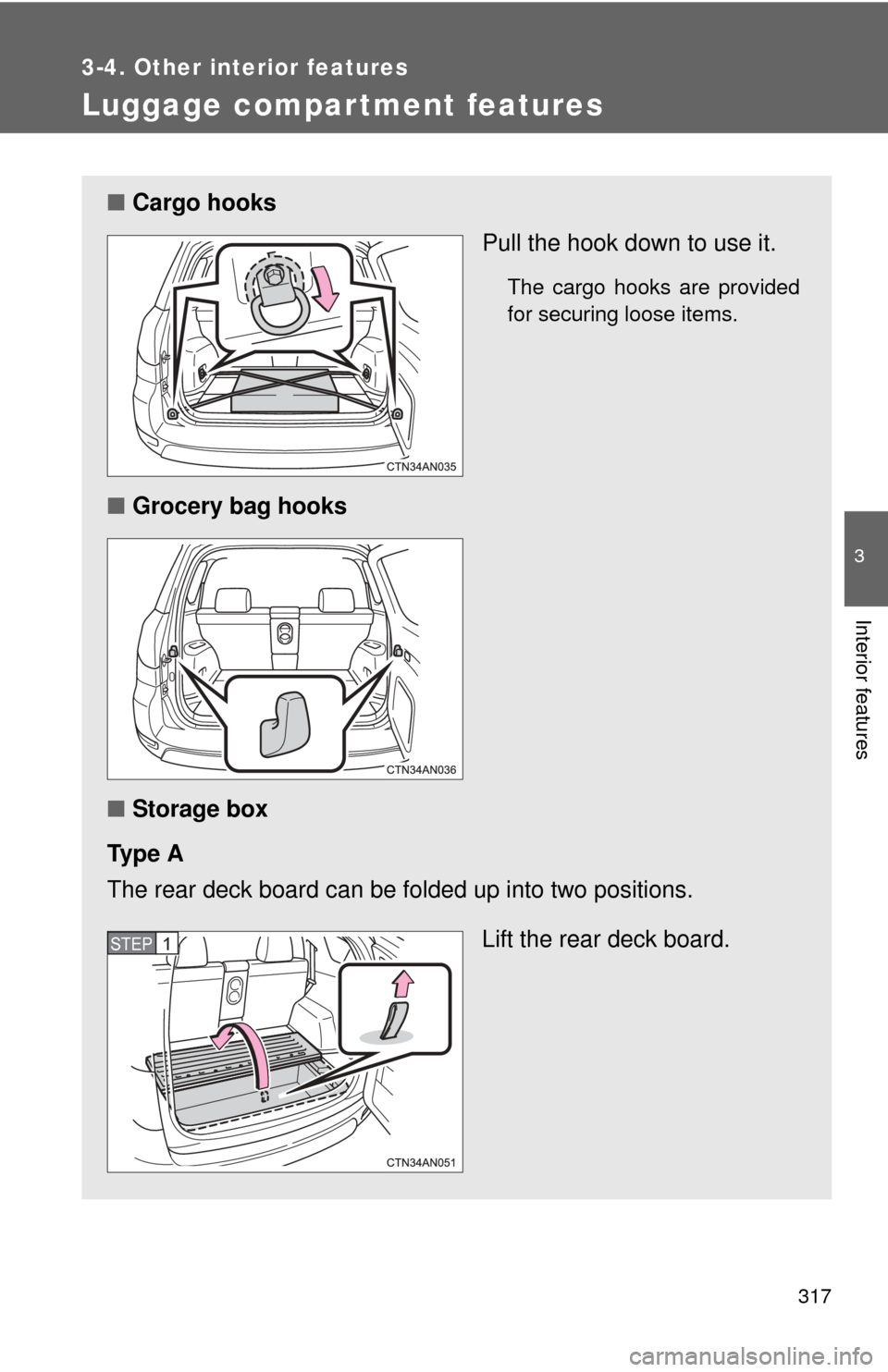

Luggage compar tment features
■Cargo hooks
Pull the hook down to use it.
The cargo hooks are provided
for securing loose items.
■Grocery bag hooks
■ Storage box
Ty p e A
The rear deck board can be folded up into two positions.
Lift the rear deck board.
STEP 1

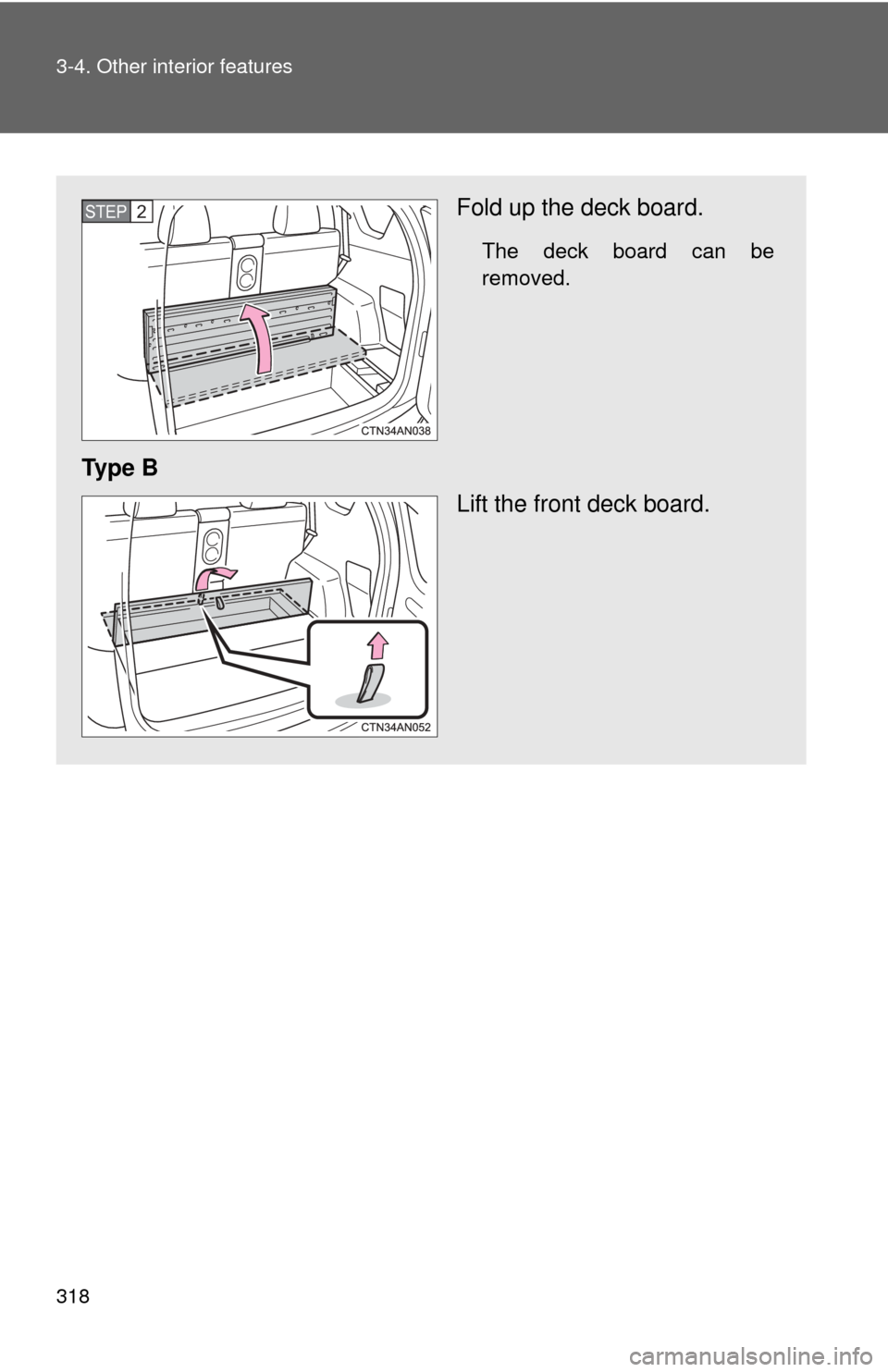

318 3-4. Other interior features
Fold up the deck board.
The deck board can be
removed.
Ty p e BLift the front deck board.
STEP 2

319
3-4. Other interior features
3
Interior features
CAUTION
■
When the cargo hooks are not in use
To avoid injury, always return the cargo hooks to their stowed positions.
■ Caution while driving
Do not drive with any of the deck boards opened. Items may fall out and
cause injury.
NOTICE
■To prevent damage to the grocery bag hooks
Do not hang heavy loads on the hooks.
■ Space unsuitable for storing items
Do not put items in the space behind the
cover on the left side of the luggage com-
partment.
The items may collide with the ECU while
driving, damaging the unit.ECU
