TOYOTA RAV4 EV 2014 1.G Owners Manual

271
2-5. Driving information
2
When driving
CAUTION
■Driving with snow tires
Observe the following precautions to
reduce the risk of accidents.
Failure to do so may result in a loss of vehicle control and cause death or
serious injury.
●Use tires of the size specified.
●Maintain the recommended level of air pressure.
●Do not drive in excess of 75 mph (120 km/h), regardless of the type of
snow tires being used.
●Use snow tires on all, not just some wheels.
●Do not mix tires of different makes, models, tread patterns or tread-
wear.
■Driving with tire chains
Observe the following precautions to reduce the risk of accidents.
Failure to do so may result in the vehicle being unable to be driven
safely, and may cause death or serious injury.
●Do not drive in excess of the speed limit specified for the tire chains
being used, or 30 mph (50 km/h), whichever is lower.
●Avoid driving on bumpy road surfaces or over potholes.
●Avoid sudden acceleration, abrupt steering, sudden braking and shift-
ing operations that cause sudden regenerative braking.
●Slow down sufficiently before entering a curve to ensure that vehicle
control is maintained.

272 2-5. Driving information
NOTICE
■Repairing or replacing snow tires
Request repairs or replacement of snow tires from Toyota dealers or
legitimate tire retailers.
This is because the removal and attachment of snow tires affects the
operation of the tire pressure warning valves and transmitters.
■Fitting tire chains
The tire pressure warning valves and transmitters may not function cor-
rectly when tire chains are fitted.

273
2-5. Driving information
2
When driving

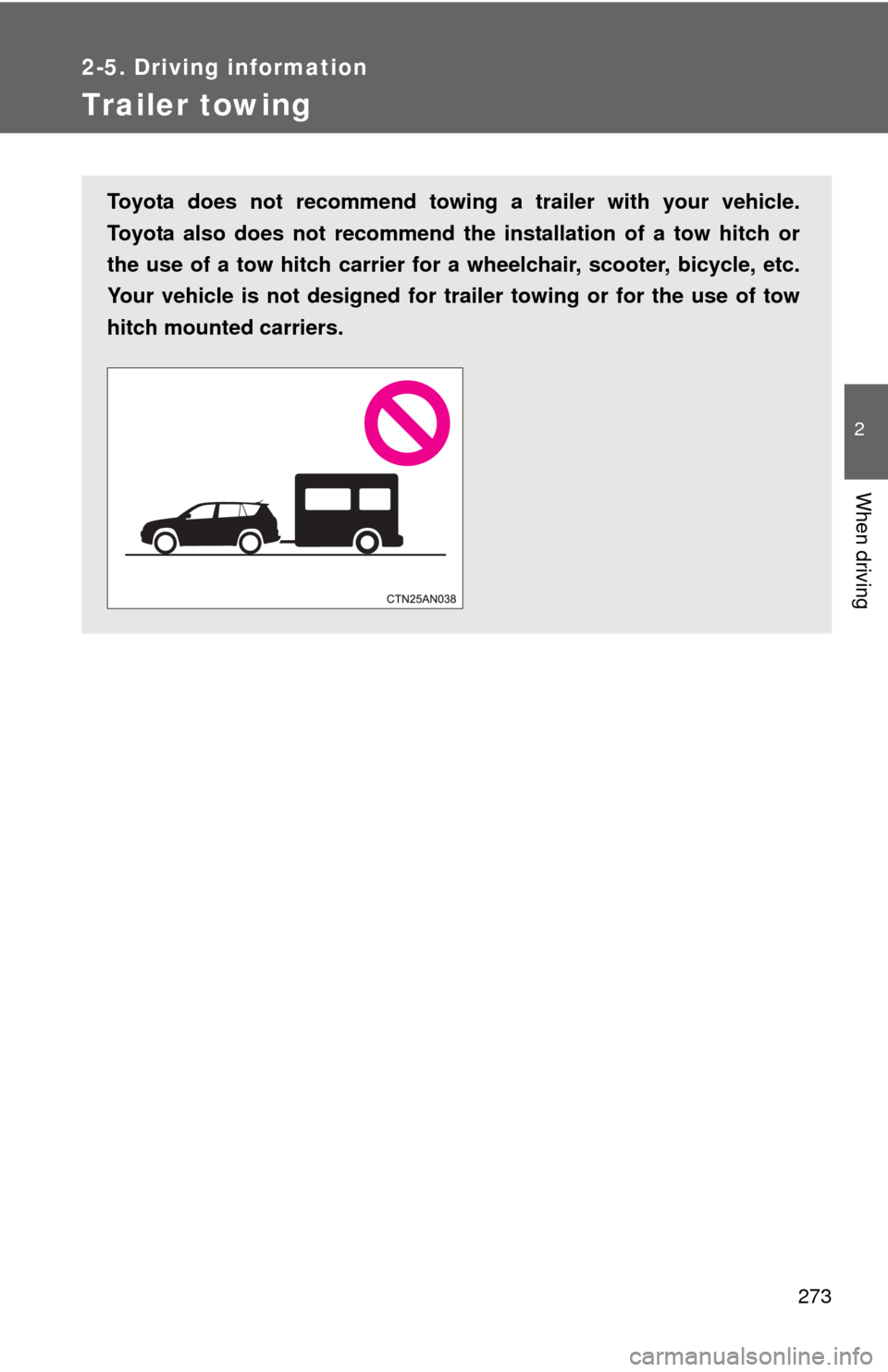

Trailer towing
Toyota does not recommend towing a trailer with your vehicle.
Toyota also does not recommend the installation of a tow hitch or
the use of a tow hitch carrier for a wheelchair, scooter, bicycle, etc.
Your vehicle is not designed for tra iler towing or for the use of tow
hitch mounted carriers.

274
2-5. Driving information

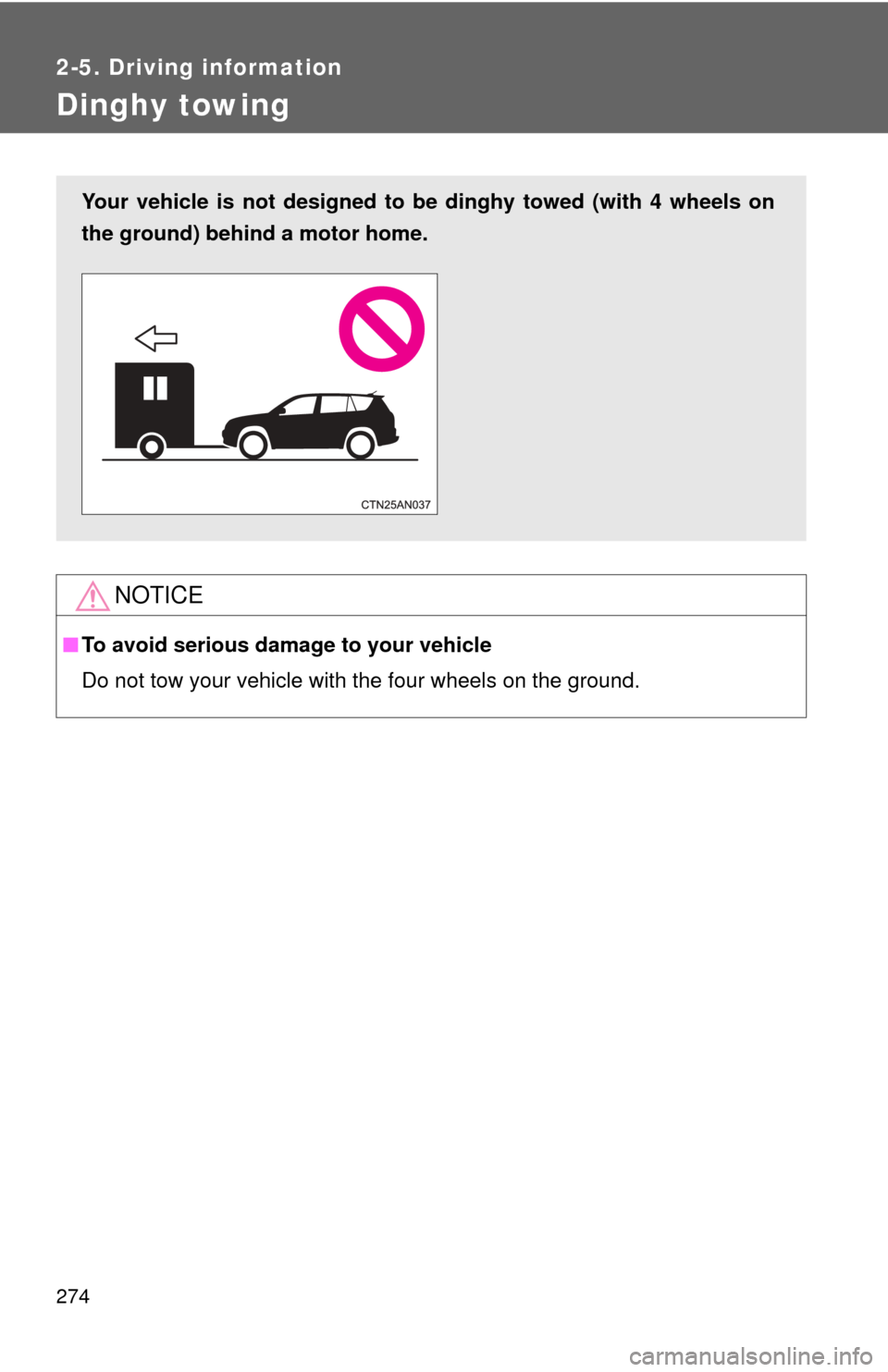

Dinghy towing
NOTICE
■To avoid serious damage to your vehicle
Do not tow your vehicle with the four wheels on the ground.
Your vehicle is not designed to be dinghy towed (with 4 wheels on
the ground) behind a motor home.

275
2-5. Driving information
2
When driving

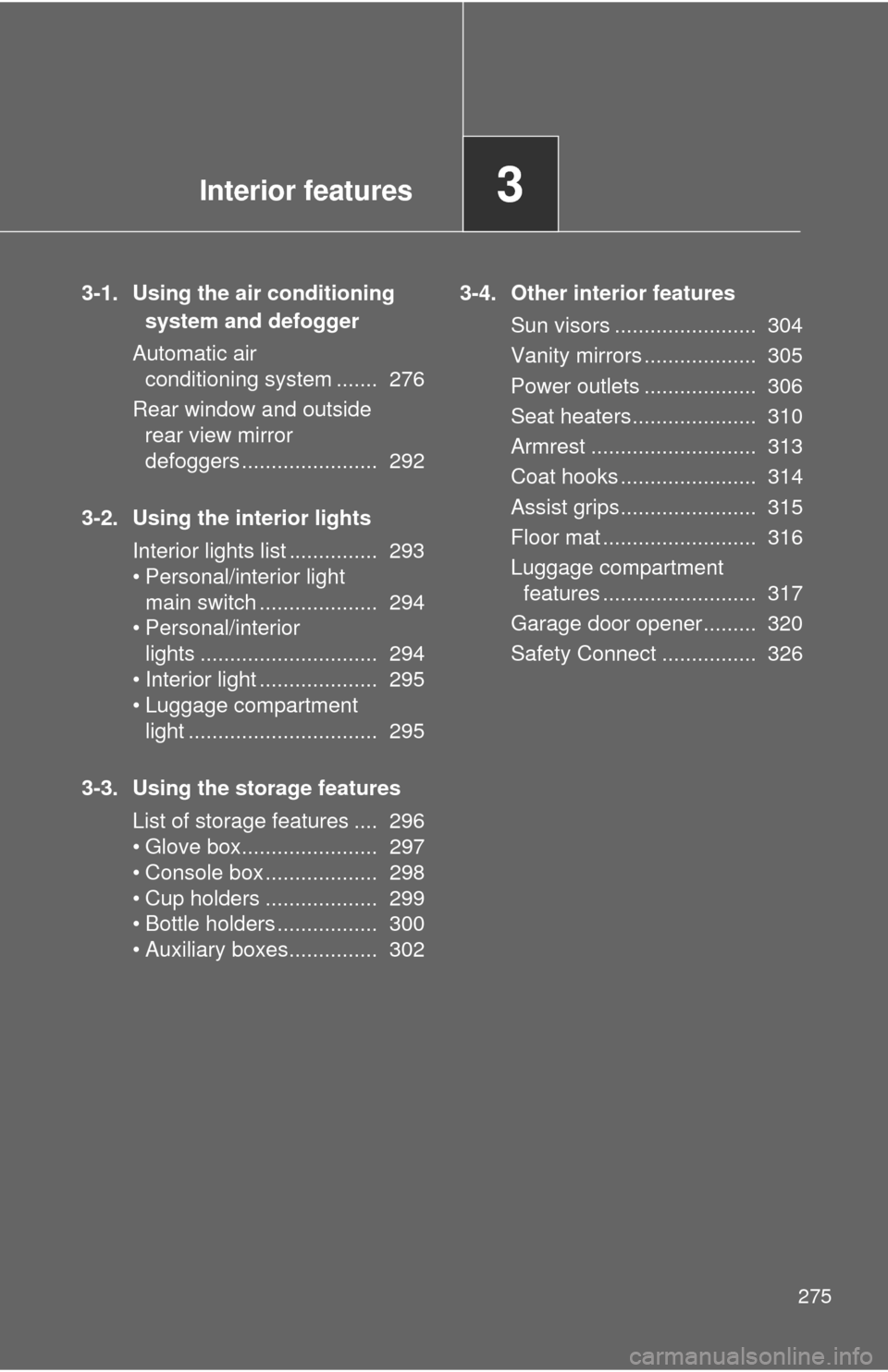

Interior features3
275
3-1. Using the air conditioning system and defogger
Automatic air conditioning system ....... 276
Rear window and outside rear view mirror
defoggers ....................... 292
3-2. Using the interior lights Interior lights list ............... 293
• Personal/interior light main switch .................... 294
• Personal/interior lights .............................. 294
• Interior light .................... 295
• Luggage compartment
light ................................ 295
3-3. Using the storage features List of storage features .... 296
• Glove box....................... 297
• Console box ................... 298
• Cup holders ................... 299
• Bottle holders ................. 300
• Auxiliary boxes............... 302 3-4. Other interior features
Sun visors ........................ 304
Vanity mirrors ................... 305
Power outlets ................... 306
Seat heaters..................... 310
Armrest ............................ 313
Coat hooks ....................... 314
Assist grips....................... 315
Floor mat .......................... 316
Luggage compartment features .......................... 317
Garage door opener......... 320
Safety Connect ................ 326

276
3-1. Using the air conditioning system and defogger

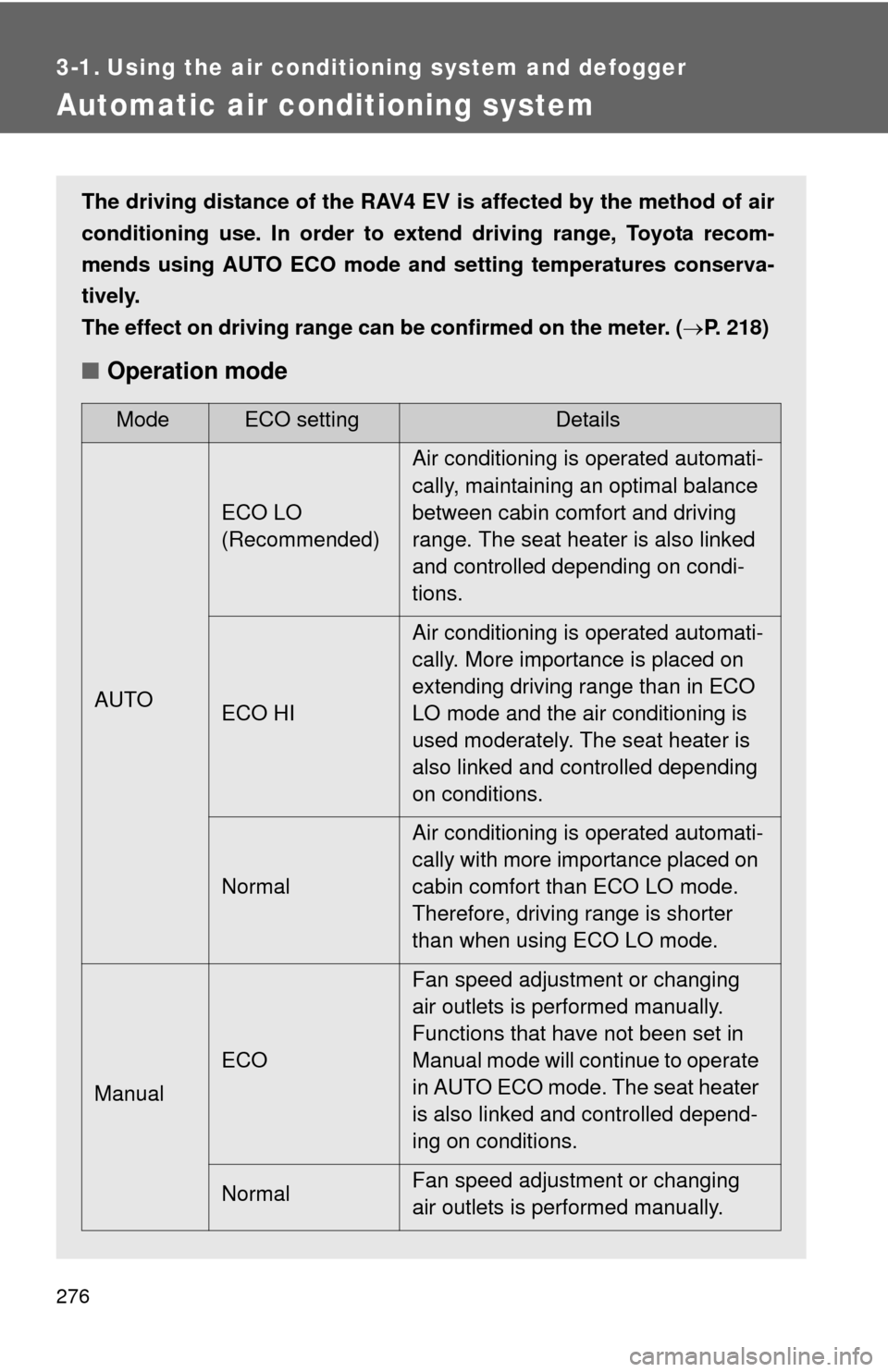

Automatic air conditioning system
The driving distance of the RAV4 EV is affected by the method of air
conditioning use. In order to extend driving range, Toyota recom-
mends using AUTO ECO mode and setting temperatures conserva-
tively.
The effect on driving range can be confirmed on the meter. (P. 218)
■Operation mode
ModeECO settingDetails
AUTO ECO LO
(Recommended)
Air conditioning is operated automati-
cally, maintaining an optimal balance
between cabin comfort and driving
range. The seat heater is also linked
and controlled depending on condi-
tions.
ECO HI Air conditioning is operated automati-
cally. More importance is placed on
extending driving range than in ECO
LO mode and the air conditioning is
used moderately. The seat heater is
also linked and controlled depending
on conditions.
Normal Air conditioning is operated automati-
cally with more importance placed on
cabin comfort than ECO LO mode.
Therefore, driving range is shorter
than when using ECO LO mode.
Manual ECO Fan speed adjustment or changing
air outlets is performed manually.
Functions that have not been set in
Manual mode will continue to operate
in AUTO ECO mode. The seat heater
is also linked and controlled depend-
ing on conditions.
Normal Fan speed adjustment or changing
air outlets is performed manually.

277
3-1. Using the air conditioning system
and defogger
3
Interior features
■Pre-climate (Remote Climate Control)
By setting the sched ule, the air conditioning system can be
turned on before getting in the vehicle. ( P. 5 3 )
Even if the schedule has not been set, for users who own a
smart phone, the air conditioning system can be turned on and
off when away from the vehicle. ( P. 5 8 )

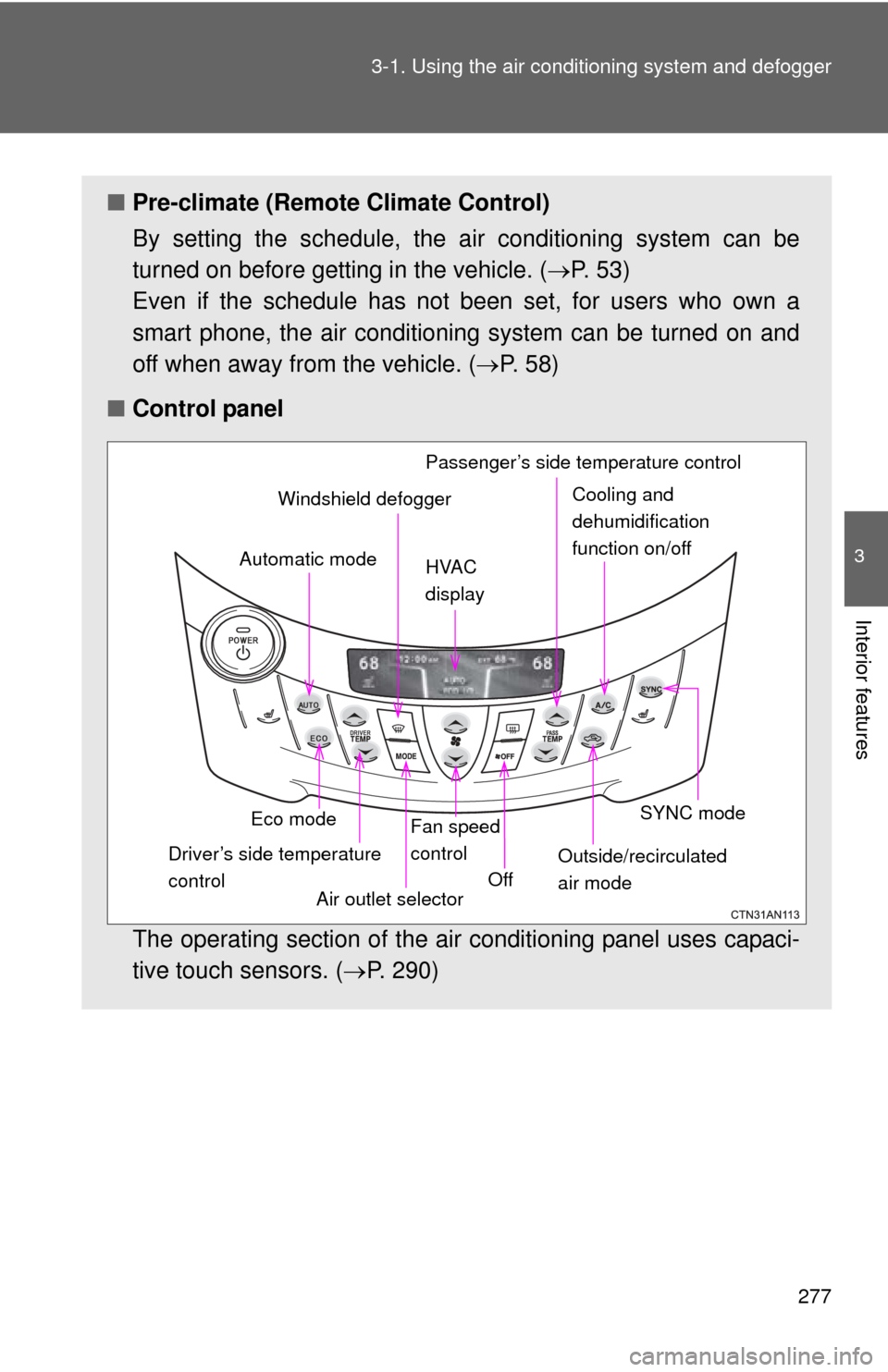

■ Control panel
The operating section of the air conditioning panel uses capaci-
tive touch sensors. ( P. 290)
Eco mode
Driver’s side temperature
control Air outlet selectorFan speed
control
Off SYNC mode
Outside/recirculated
air mode
Automatic mode
Windshield defogger
HVAC
display Passenger’s side temperature controlCooling and
dehumidification
function on/off

278 3-1. Using the air conditioning system and defogger
Using the AUTO ECO mode or AUTO mode
AUTO ECO mode To u c h .
The air conditioning system
begins to operate in AUTO ECO
LO mode. Air outlets and fan
speed are automatically adjusted
according to the temperature
setting.
In AUTO ECO mode, depending
on the outside temperature and
the set temperature, the seat
heater operates, and the seat
heater’s temperature is automati-
cally adjusted. (P. 310)
When in AUTO mode, air condi-
tioning operation status is not
shown.

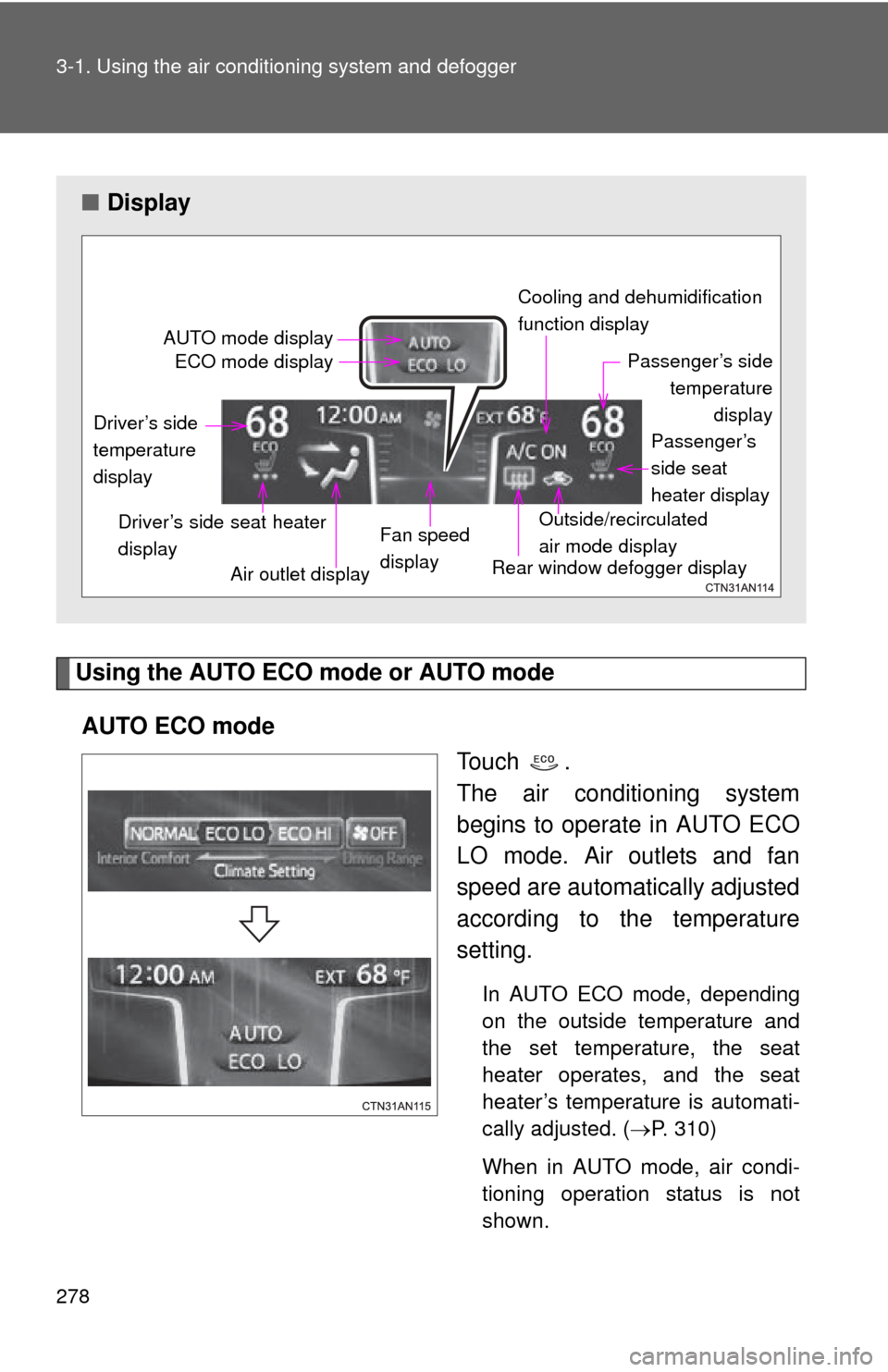

■ Display
AUTO mode display
ECO mode display Cooling and dehumidification
function display
Passenger’s sidetemperature display
Passenger’s
side seat
heater display
Outside/recirculated
air mode display
Rear window defogger display
Fan speed
display
Air outlet display
Driver’s side seat heater
display
Driver’s side
temperature
display

279
3-1. Using the air conditioning system
and defogger
3
Interior features
AUTO mode
Touch .
The air conditioning system
begins to operate. Air outlets and
fan speed are automatically
adjusted according to the tem-
perature setting.
When in AUTO mode, air condi-
tioning operation status is not
shown.

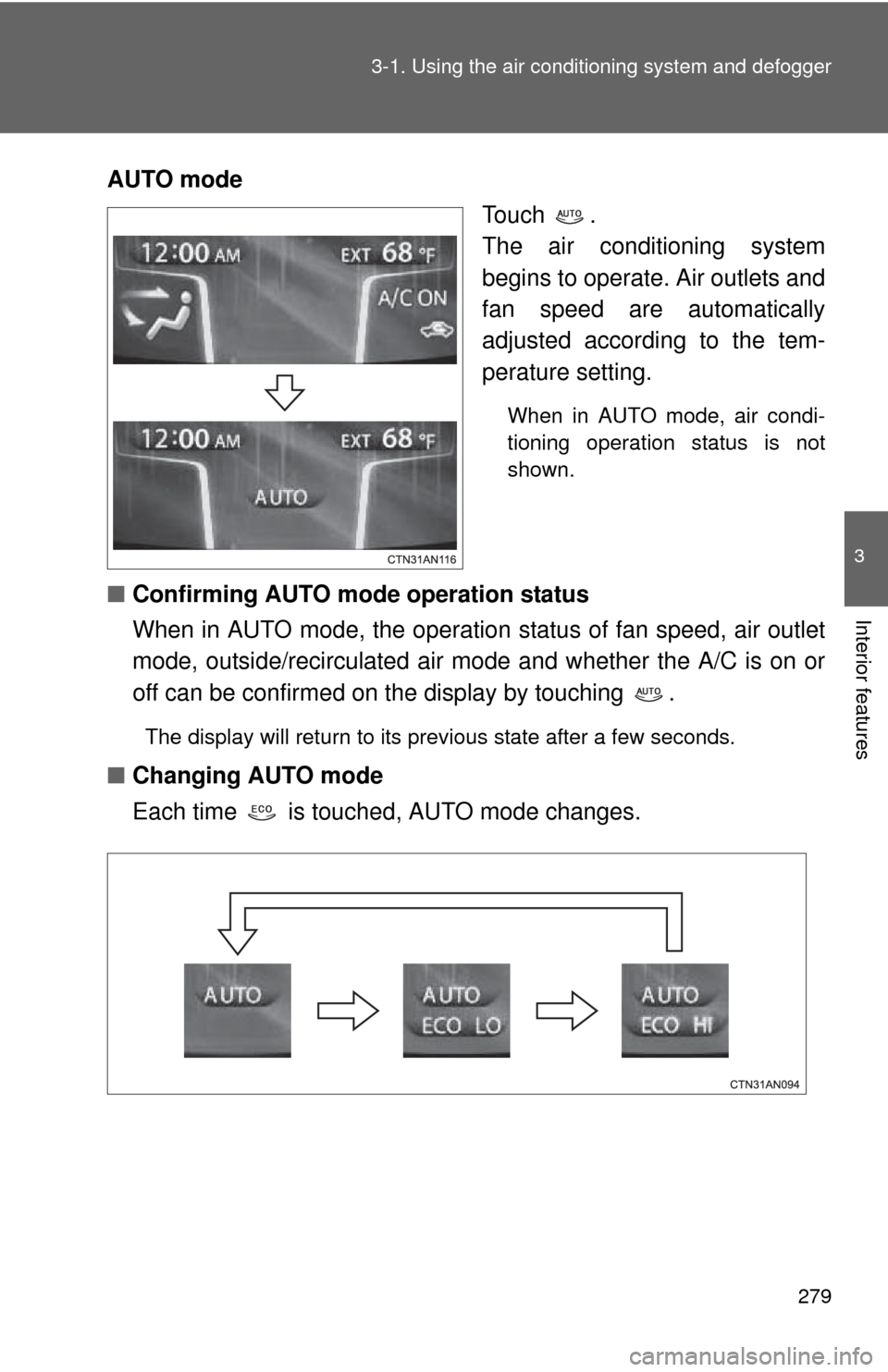

■Confirming AUTO mode operation status
When in AUTO mode, the operation status of fan speed, air outlet
mode, outside/recirculated air mode and whether the A/C is on or
off can be confirmed on the display by touching .
The display will return to its previous state after a few seconds.
■Changing AUTO mode
Each time is touched, AUTO mode changes.
