2. Instrument cluster
2
Instrument cluster
Energy monitor/consumption screen
Multi-information display
Entune Audio screen/Entune
Audio Plus screen/Entune Pre-
mium Audio with Navigation
screen.
Meter control switches
Multi-information display
Press or of the meter control switches and select , and
then press or to select the energy monitor display.
Vehicles with Entune Audio
Press the “CAR” button.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
Vehicles with Entune Audio Pl us or Entune Premium Audio with
Navigation
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Trip Information” or “Past Record” screen is displayed, select
“Energy”.
You can view the status of your vehicle on the multi-information
display and the audio system screen (if equipped).
1
2
3
Energy monitor

102
RAV4-HV_OM_OM42B81U_(U)
2. Instrument cluster
Audio system screenMulti-information display

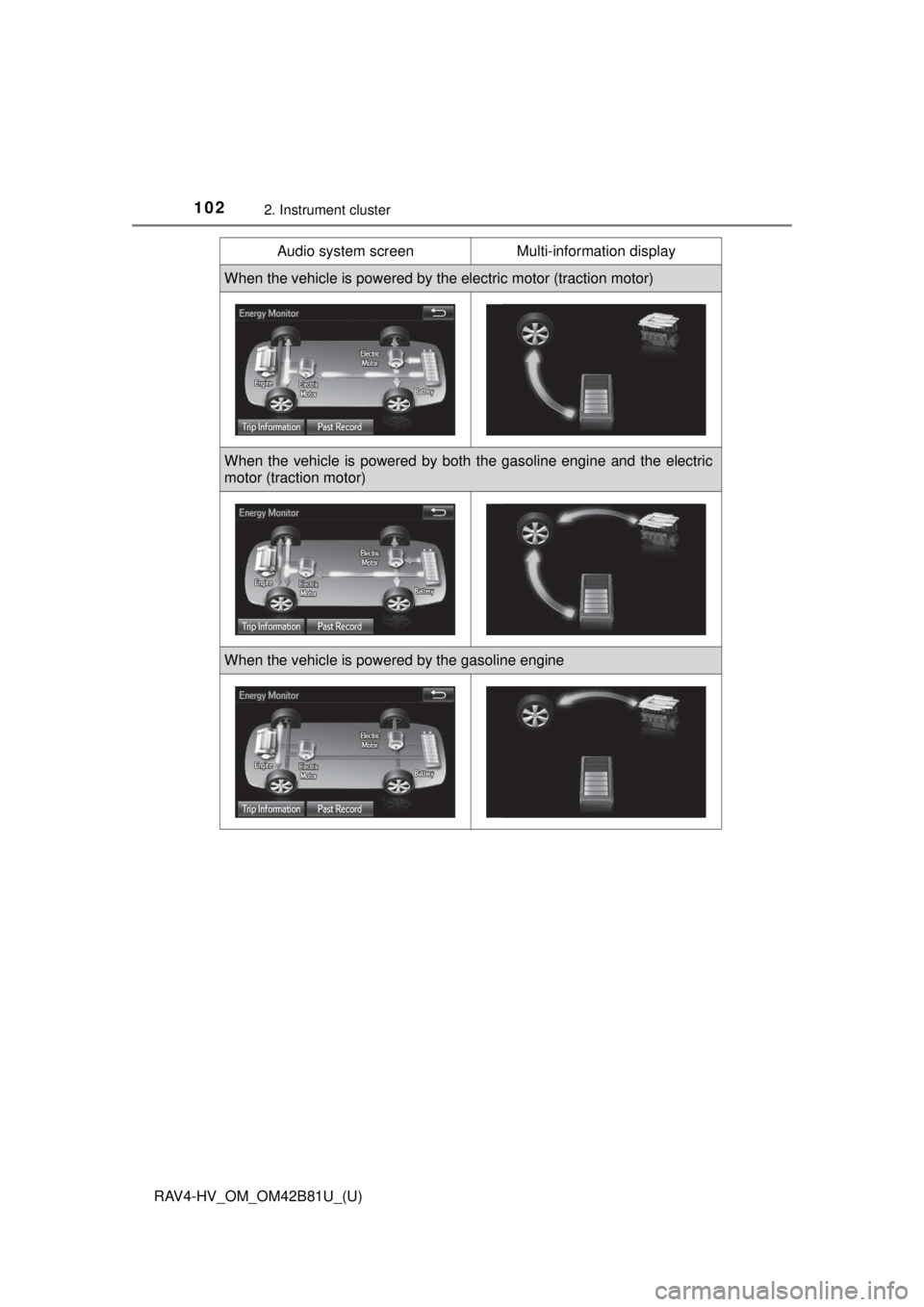

When the vehicle is powered by the electric motor (traction motor)
When the vehicle is powered by both the gasoline engine and the electric
motor (traction motor)
When the vehicle is powered by the gasoline engine

RAV4-HV_OM_OM42B81U_(U)
1032. Instrument cluster
2
Instrument cluster
These images are examples only, and may vary slightly from actual condi-
tions.
When the vehicle is charging the hybrid battery (traction battery)
When there is no energy flow
Hybrid battery (traction battery) status
Audio system screenMulti-information display
LowFullLowFull

104
RAV4-HV_OM_OM42B81U_(U)
2. Instrument cluster
Vehicles with Entune Audio
Press the “CAR” button.
If the “Energy Monitor” screen is displayed, select “Trip Information” or
“Past Record” on the screen.
Vehicles with Entune Audio Pl us or Entune Premium Audio with
Navigation
Press the “APPS” button, and t hen select “Eco” on the screen.
If the “Energy Monitor” screen is displayed, select “Trip Information” or
“Past Record” on the screen.
■

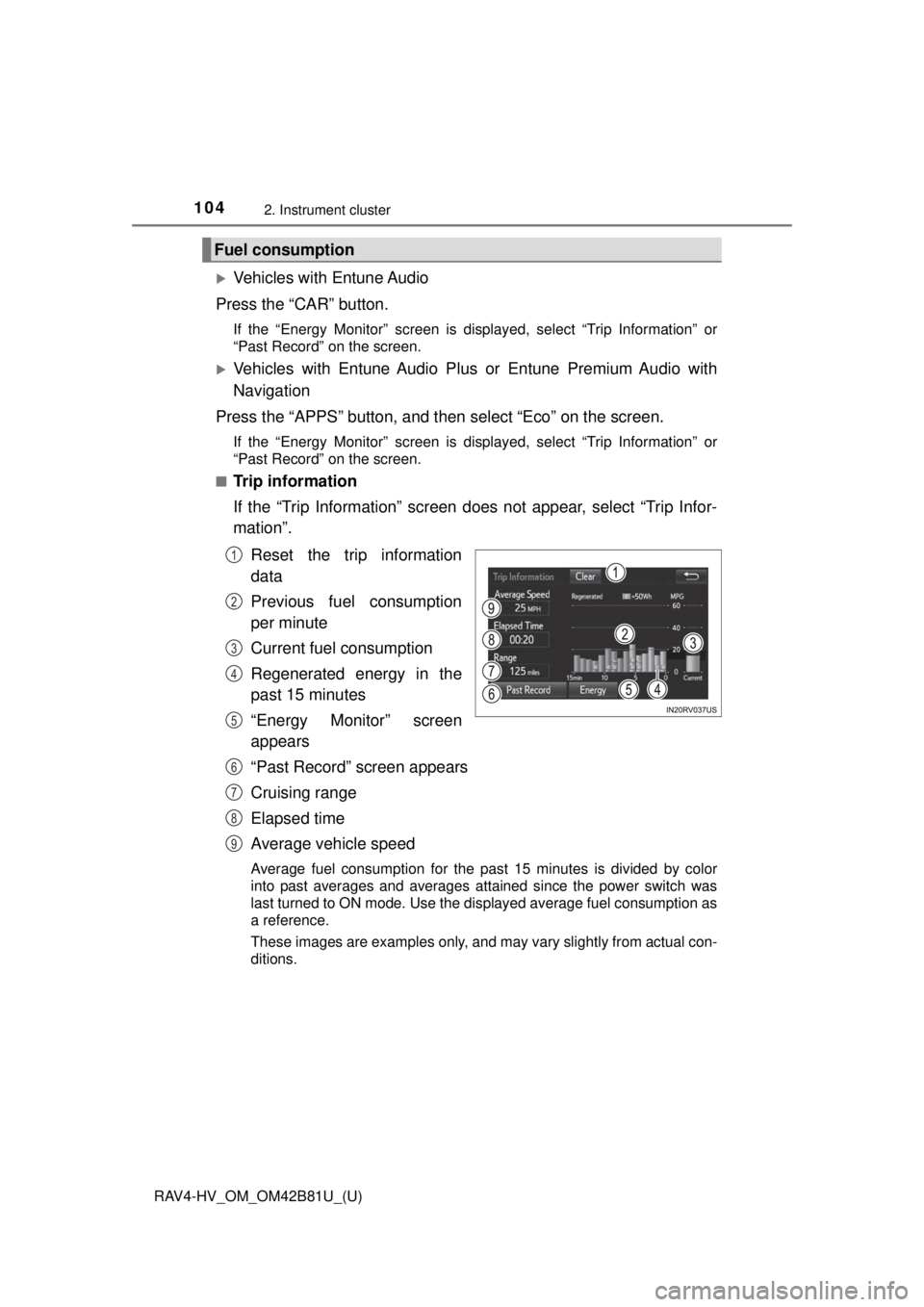

Trip information
If the “Trip Information” screen does not appear, select “Trip Infor-
mation”.
Reset the trip information
data
Previous fuel consumption
per minute
Current fuel consumption
Regenerated energy in the
past 15 minutes
“Energy Monitor” screen
appears
“Past Record” screen appears
Cruising range
Elapsed time
Average vehicle speed
Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the power switch was
last turned to ON mode. Use the displayed average fuel consumption as
a reference.
These images are examples only, and may vary slightly from actual con-
ditions.
Fuel consumption
1
2
3
4
5
6
7
8
9

RAV4-HV_OM_OM42B81U_(U)
1052. Instrument cluster
2
Instrument cluster
■Past record
If the “Past Record” screen does not appear, select “Past Record”.
Reset the past record data
Best recorded fuel consump-
tion
Average fuel consumption (if
equipped)
Previous fuel consumption
record
Current fuel consumption
Update the past record data
“Energy Monitor” screen appears
“Trip Information” screen appears
These images are examples only, and may vary slightly from actual
conditions.
■ Resetting the data
●Selecting “Clear” on the “Trip Information” screen will reset the trip informa-
tion data.
● Selecting “Clear” on the “Past Record” screen will reset the past record
data.
■ Updating the past record data
Selecting “Update” on the “Past Record” screen will update the past record
data.
Also, the average fuel consumption displa yed in the multi-information display
will be reset at the same time.
■ Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.
1
2
3
4
5
6
7
8

106
RAV4-HV_OM_OM42B81U_(U)
2. Instrument cluster

107
RAV4-HV_OM_OM42B81U_(U)
3
Operation of
each component
3-1. Key information
Keys .................................. 108
3-2. Opening, closing and locking the doors
Side doors ......................... 113
Back door .......................... 119
Smart key system ............. 136
3-3. Adjusting the seats Front seats ........................ 145
Rear seats......................... 147
Driving position memory ... 150
Head restraints.................. 152
3-4. Adjusting the steering wheel and mirrors
Steering wheel .................. 155
Inside rear view mirror ...... 157
Outside rear view mirrors ............................. 159
3-5. Opening, closing the windows and moon roof
Power windows ................. 162
Moon roof .......................... 165

108
RAV4-HV_OM_OM42B81U_(U)
3-1. Key information
Keys
The following keys are provided with the vehicle.Electronic keys
• Operating the smart key system(→P. 136)
• Operating the wireless remote control function
Mechanical keys
Key number plate
Locks all the doors ( →P. 1 1 3 )
Unlocks all the doors ( →P. 1 1 3 )
Opens and closes the power
back door
* ( → P. 1 1 9 )
Sounds the alarm ( →P. 109)
*: if equipped
To take out the mechanical key,
push the release button and take
the key out.
The mechanical key can only be
inserted in one direction, as the
key only has grooves on one side.
If the key cannot be inserted in a
lock cylinder, turn it over and re-
attempt to insert it.
After using the mechanical key, store it in the electronic key. Carry the
mechanical key together with the electronic key. If the electronic key bat-
tery is depleted or the entry function does not operate properly, you will
need the mechanical key. ( →P. 595)
The keys
1
2
3
Wireless remote control
1
2
3
4
Using the mechanical key

RAV4-HV_OM_OM42B81U_(U)
1093-1. Key information
3
Operation of each component
■Panic mode
■ If you lose your mechanical keys
New genuine mechanical keys can be made by your Toyota dealer using the
other mechanical key and the key number stamped on your key number
plate. Keep the plate in a safe place such as your wallet, not in the vehicle.
■ When riding in an aircraft
When bringing a key with wireless remote control function onto an aircraft,
make sure you do not press any buttons on the key while inside the aircraft
cabin. If you are carrying the key in your bag etc., ensure that the buttons are
not likely to be pressed accidentally. Pressing a button may cause the key to
emit radio waves that could interfere with the operation of the aircraft.
■ Conditions affecting the operation
→P. 138
■ Replacing the battery
→P. 522
■ Confirmation of the registered key number
The number of keys already registered to the vehicle can be confirmed. Ask
your Toyota dealer for details.
■ If a wrong key is used
The key cylinder rotates freely to isolate inside mechanism.
■ Customization
Settings (e.g. wireless remote control system) can be changed.
(Customizable features: →P. 640)

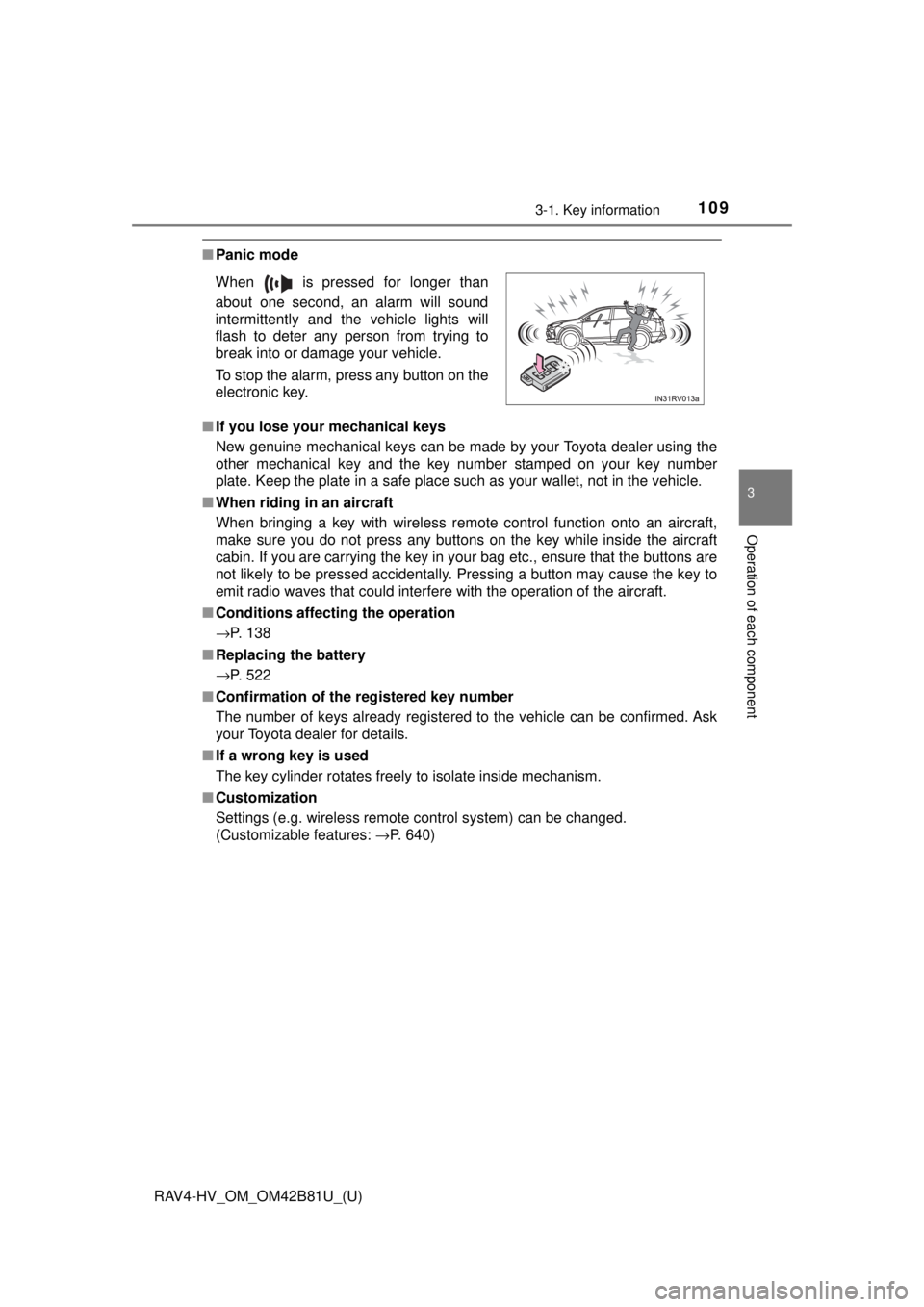

When is pressed for longer than
about one second, an alarm will sound
intermittently and the vehicle lights will
flash to deter any person from trying to
break into or damage your vehicle.
To stop the alarm, press any button on the
electronic key.

110
RAV4-HV_OM_OM42B81U_(U)
3-1. Key information
■Certification for wireless remote control
For vehicles sold in the U.S.A.
