TOYOTA RAV4 HYBRID 2018 Owners Manual (in English)

RAV4-HV_OM_OM42B81U_(U)
6419-2. Customization
9
Vehicle specifications
■Wireless remote control (→P. 108, 113, 119)
*: If equipped
■
Moon roof (if equipped) ( →P. 165)
■Turn signal lever ( →P. 214)
FunctionDefault
settingCustomized setting
Wireless remote controlOnOff——O
Opening operation of power
back door
*
Press and hold
Off
——OOne short press
Press twice
123
FunctionDefault settingCustomized setting
Automatic operationOnOff——O
123
FunctionDefault
settingCustomized setting
Time of flashing of the lane
change signal flashers3
Off
——O
4
5
6
7
123

642
RAV4-HV_OM_OM42B81U_(U)
9-2. Customization

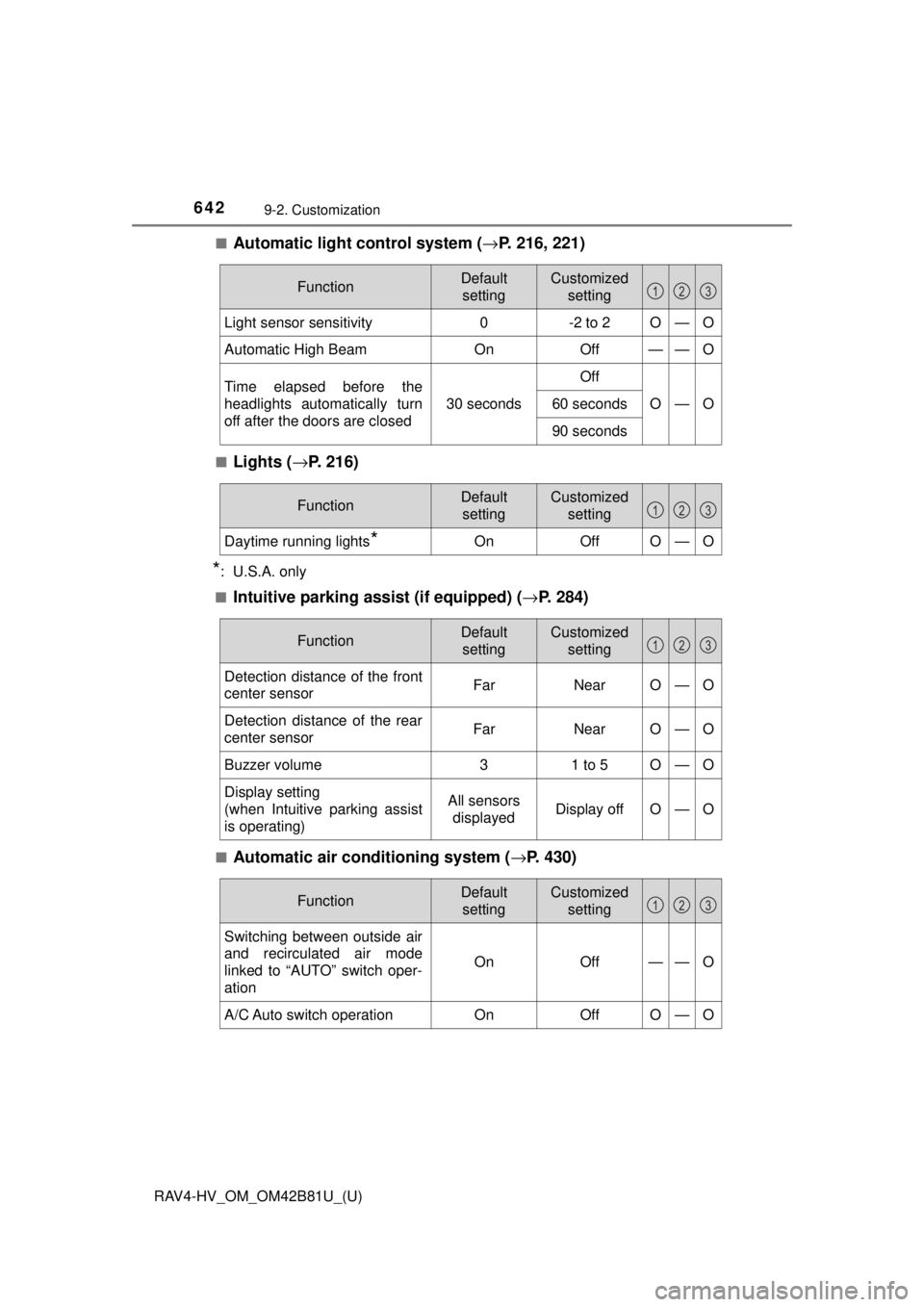

■Automatic light control system (→P. 216, 221)
■Lights (→ P. 216)
*: U.S.A. only
■
Intuitive parking assist (if equipped) ( →P. 284)
■Automatic air condi tioning system (→P. 430)
FunctionDefault
settingCustomized setting
Light sensor sensitivity0-2 to 2O—O
Automatic High BeamOnOff——O
Time elapsed before the
headlights automatically turn
off after the doors are closed
30 seconds
Off
O—O60 seconds
90 seconds
123
FunctionDefault settingCustomized setting
Daytime running lights*OnOffO—O
123
FunctionDefault settingCustomized setting
Detection distance of the front
center sensorFarNearO—O
Detection distance of the rear
center sensorFarNearO—O
Buzzer volume31 to 5O—O
Display setting
(when Intuitive parking assist
is operating)All sensors
displayedDisplay offO—O
123
FunctionDefault settingCustomized setting
Switching between outside air
and recirculated air mode
linked to “AUTO” switch oper-
ation
OnOff——O
A/C Auto switch operationOnOffO—O
123

RAV4-HV_OM_OM42B81U_(U)
6439-2. Customization
9
Vehicle specifications
■Illumination (→P. 440)
*: If equipped
■
Seat belt reminder ( →P. 30)
FunctionDefault
settingCustomized setting
Interior lights illumination con-
trolOnOff——O
Time elapsed before the inte-
rior lights turn off15 seconds
Off
O*—O7.5 seconds
30 seconds
Operation after the power
switch is turned offOnOff——O
Operation when the doors are
unlockedOnOff——O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff——O
123
FunctionDefault settingCustomized setting
Vehicle speed linked seat belt
reminder buzzerOnOff——O
123

644
RAV4-HV_OM_OM42B81U_(U)
9-2. Customization
■Vehicle customization
●When the speed linked door locking function and shift position linked door
locking function are both on, the door lock operates as follows.
• When shifting the shift lever to any position other than P, all the doors will
be locked.
• If the vehicle is started with all the doors locked, the Speed linked door locking function would not operate.
• If the vehicle is started with any door unlocked, the Speed linked door locking function will operate.
● When the smart key system is off, the selecting doors to unlock cannot be
customized.
● When the doors remain closed after unlocking the doors and the automatic
door lock function activates, the signals will be generated in accordance
with the operation signal (buzzers) and the operation signal (emergency
flashers) settings.
WARNING
■During customization
As the hybrid system needs to be oper ating during customization, ensure
that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon monoxide
(CO) may collect and enter the vehicle. This may lead to death or a serious
health hazard.
NOTICE
■ During customization
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while customizing features.

645
RAV4-HV_OM_OM42B81U_(U)
9-3. Initialization
9
Vehicle specifications

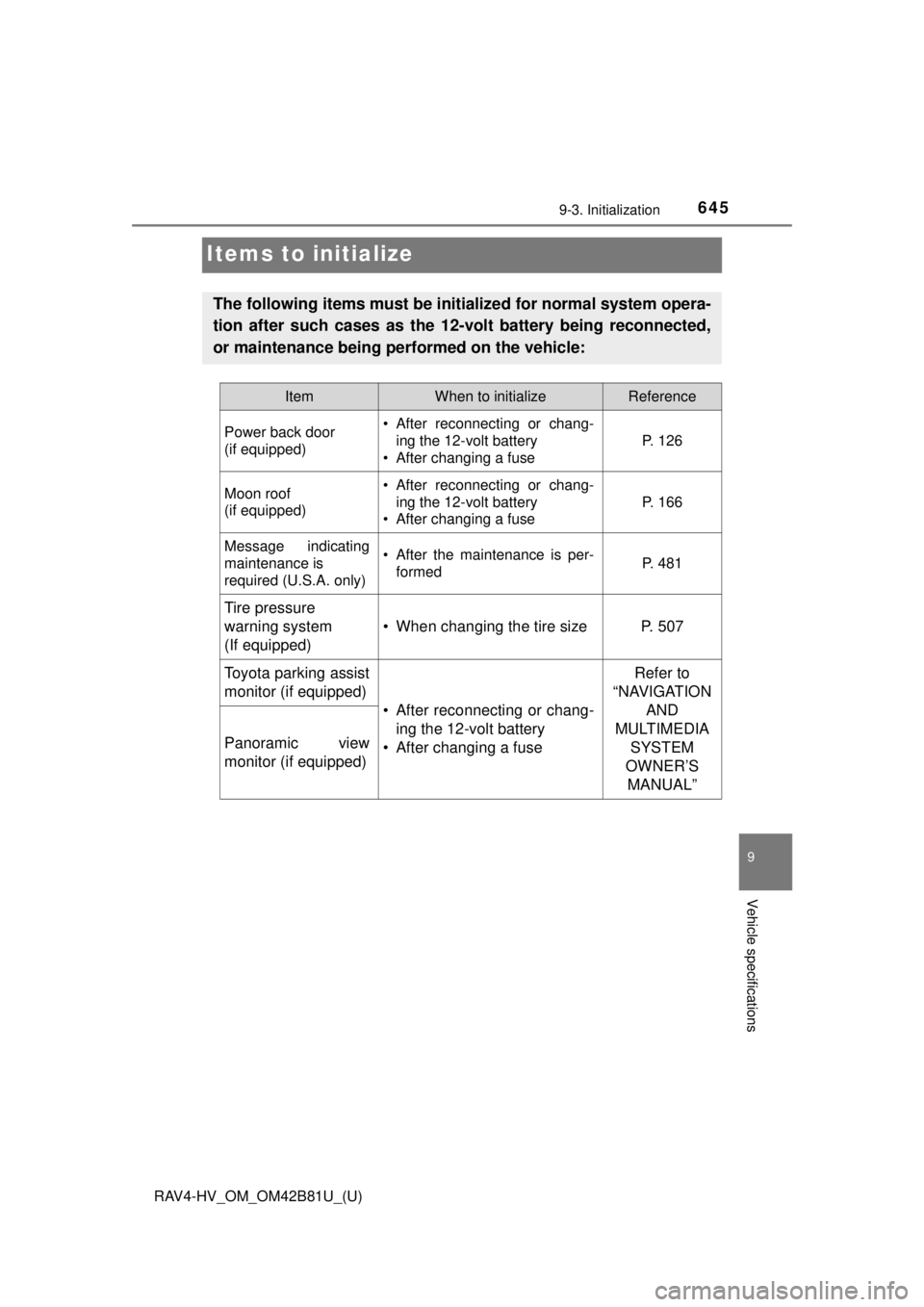

Items to initialize
The following items must be initialized for normal system opera-
tion after such cases as the 12-volt battery being reconnected,
or maintenance being performed on the vehicle:
ItemWhen to initializeReference
Power back door
(if equipped)• After reconnecting or chang- ing the 12-volt battery
• After changing a fuse
P. 126
Moon roof
(if equipped)• After reconnecting or chang- ing the 12-volt battery
• After changing a fuse
P. 166
Message indicating
maintenance is
required (U.S.A. only)• After the maintenance is per-
formedP. 481
Tire pressure
warning system
(If equipped)
• When changing the tire sizeP. 5 0 7
Toyota parking assist
monitor (if equipped)
• After reconnecting or chang-
ing the 12-volt battery
• After changing a fuse
Refer to
“ N AV I G AT I O N AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”
Panoramic view
monitor (if equipped)

646
RAV4-HV_OM_OM42B81U_(U)
9-3. Initialization

647
RAV4-HV_OM_OM42B81U_(U)
For owners10
Reporting safety defects for U.S. owners........................ 648
Seat belt instructions for Canadian owners
(in French) ............................... 649
SRS airbag instructions for Canadian owners
(in French) ............................... 651

648
RAV4-HV_OM_OM42B81U_(U)
Reporting safety defects for U.S. owners
If you believe that your vehicl e has a defect which could cause a
crash or could cause injury or death, you should immediately
inform the National Highway Traffic Safety Administration
(NHTSA) in addition to notifying To yota Motor Sales, U.S.A., Inc.
(Toll-free: 1-800-331-4331).
If NHTSA receives similar comp laints, it may open an investiga-
tion, and if it finds that a safety defect exists in a group of vehicles,
it may order a recall and remedy campaign. However, NHTSA can-
not become involved in individual problems between you, your
dealer, or Toyota Motor Sales, U.S.A., Inc.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-327-4236 (TTY: 1-800-424-9153); go to
http://www.safercar.gov ;
or write to: Administrator, NHTSA, 1200 New Jersey Ave, S.E.,
Washington, DC 20590. You can also obtain other information about
motor vehicle safety from
http://www.safercar.gov.

649
RAV4-HV_OM_OM42B81U_(U)
10
For owners
Seat belt instructions for Canadian owners
(in French)
● Tirez sur la ceinture épaulière
jusqu’à ce qu’elle recouvre
entièrement l’épaule; elle ne
doit cependant pas toucher le
cou ni glisser de l’épaule.
● Placez la ceinture abdominale
le plus bas possible sur les
hanches.
● Réglez la position du dossier. Tenez-vous assis bien au fond du
siège, le dos droit.
● Ne vrillez pas la ceinture de sécurité.
The following is a French explan ation of seat belt instructions
extracted from the seat be lt section in this manual.
See the seat belt secti on for more detailed seat belt instructions in
English.
Utilisation adéquate des ceintures de sécurité
AVERTISSEMENT
■ Lorsque vous utilisez la ceintur e de sécurité centrale arrière
N’utilisez pas la ceinture de sécurité du
siège central arrière si l’une des boucles
est retirée. Attacher une seule boucle
pourrait occasionner des blessures
graves, voire mortelles, en cas de frei-
nage ou de dérapage brusques, ou
d’accident.

650
RAV4-HV_OM_OM42B81U_(U)■
Ceintures de sécurité
Avec un chiffon ou une éponge, nettoyez à l’aide d’un savon doux
et de l’eau tiède. Vérifiez aussi les ceintures régulièrement pour
vous assurer qu’elles ne présentent
pas d’usure excessive, d’effilo-
chage ou de coupures.
Entretien et soin
AVERTISSEMENT
■ Dommages et usure de la ceinture de sécurité
Vérifiez périodiquement le système de ceintures de sécurité. Vérifiez qu’il
n’y a pas de coupures, d’effilochures ni de pièces desserrées. N’utilisez pas
une ceinture de sécurité endommagée avant qu’elle ne soit remplacée. Les
ceintures de sécurité endommagées ne peuvent pas protéger les occu-
pants contre les blessures graves, voire mortelles.
