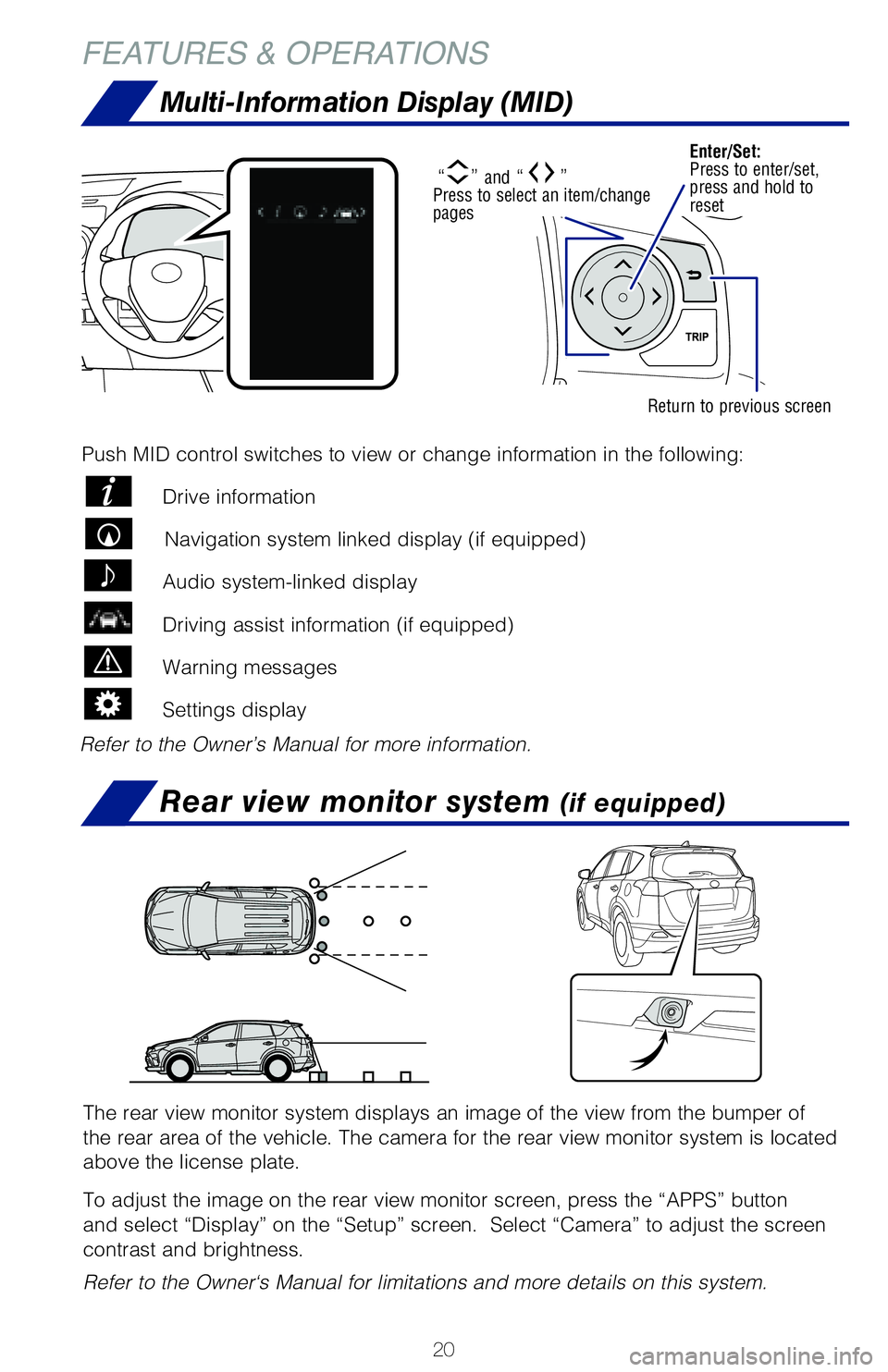

Rear view monitor system (if equipped)
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “APPS”\
button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
FEATURES & OPERATIONS
If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
far
or CMinLing near
. %eQending on your &ntune

21
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Rear view monitor system (if equipped)

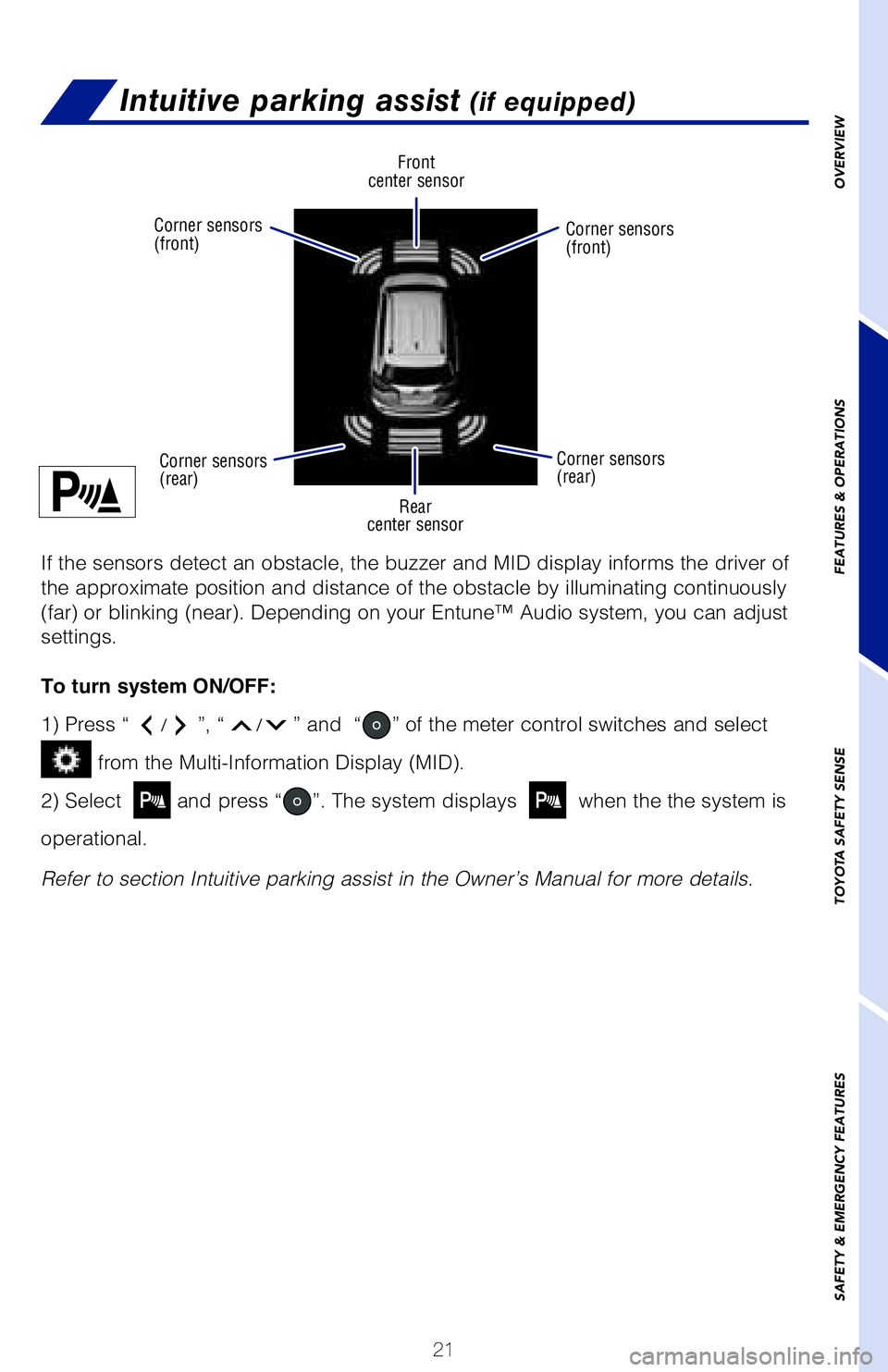

Intuitive parking assist (if equipped)
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “APPS”\
button
and select “Display” on the “Setup” screen. Select “Came\
ra” to adjust the screen
contrast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this \
system.
If the sensors detect an obstacle, the buzzer and MID display informs th\
e driver of
the approximate position and distance of the obstacle by illuminating co\
ntinuously
(far) or blinking (near). Depending on your Entune™ Audio system,\
you can adjust
settings.
To turn system ON/OFF:
1) Press “
/”, “/” and “” of the meter control switches and select
from the Multi-Information Display (MID).
2) Select
and press “”. The system displays when the the system is
operational.
Refer to section Intuitive parking assist in the Owner’s Manual for m\
ore details.
Front
center sensor
Rear
center sensor
Corner sensors
(front)
Corner sensors
(front)
Corner sensors
(rear) Corner sensors
(rear)
Push MID control switches to view or change information in the following\
:

Drive information
Navigation system linked display (if equipped)
Audio system-linked display
Driving assist information (if equipped)
Warning messages
Settings display
Refer to the Owner’s Manual for more information.
Enter/Set:
Press to enter/set,
press and hold to
reset
Return to previous screen
Multi-Information Display (MID)
2018_RAV4-HV_QRG_V2-JA0803.indd 218/4/17 5:27 AM

22
See-through view switch
Rotation pause switch
Moving view switchRotation pause switch
FEATURES & OPERATIONS

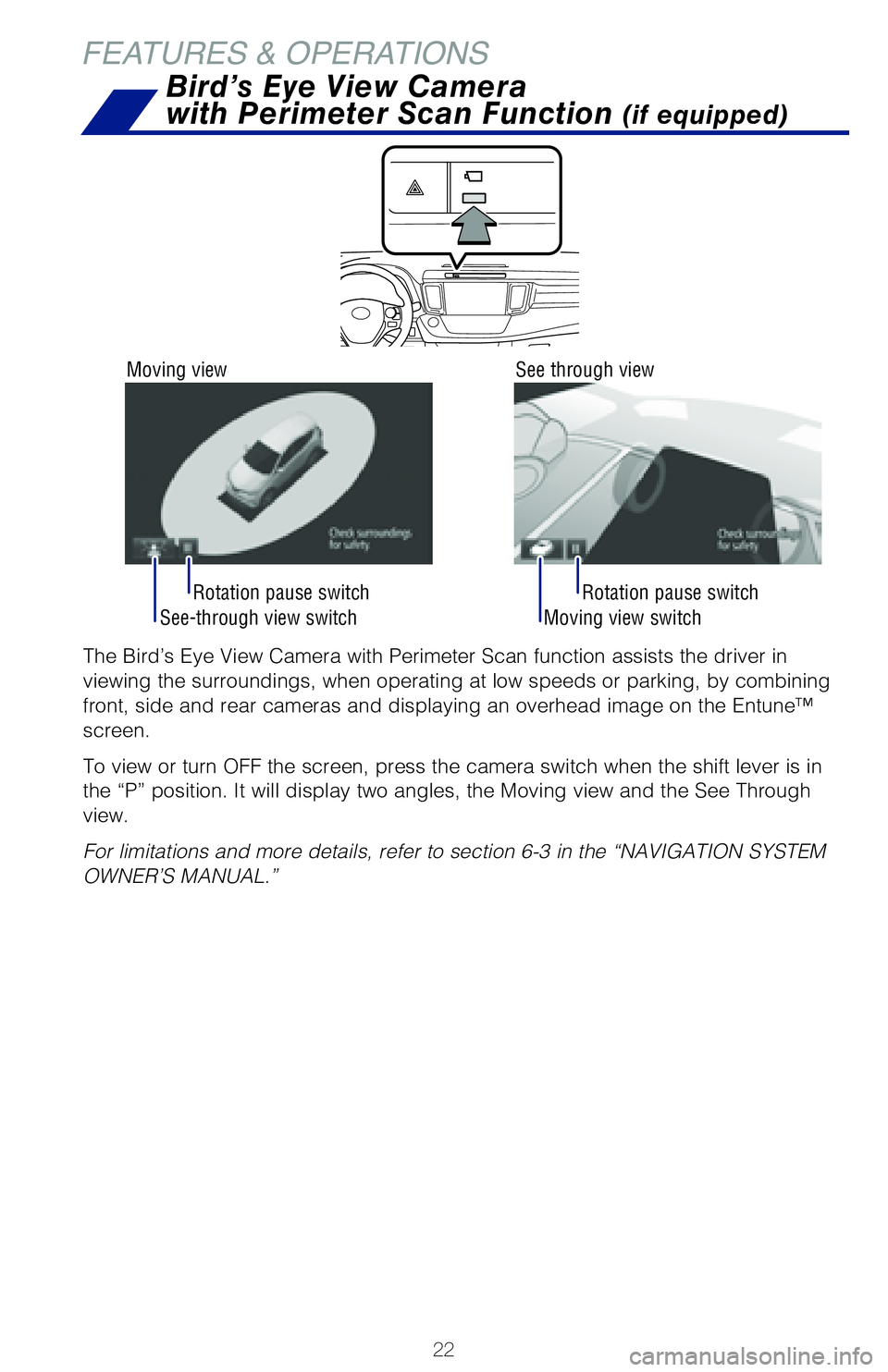

The Bird’s Eye View Camera with Perimeter Scan function assists the d\
river in
viewing the surroundings, when operating at low speeds or parking, by co\
mbining
front, side and rear cameras and displaying an overhead image on the Ent\
une™
screen.
To view or turn OFF the screen, press the camera switch when the shift l\
ever is in
the “P” position. It will display two angles, the Moving view and \
the See Through
view.
For limitations and more details, refer to section 6-3 in the “NAVIGA\
TION SYSTEM
OWNER’S MANUAL.”
Moving view
nav, p 157, 184-200
See through view

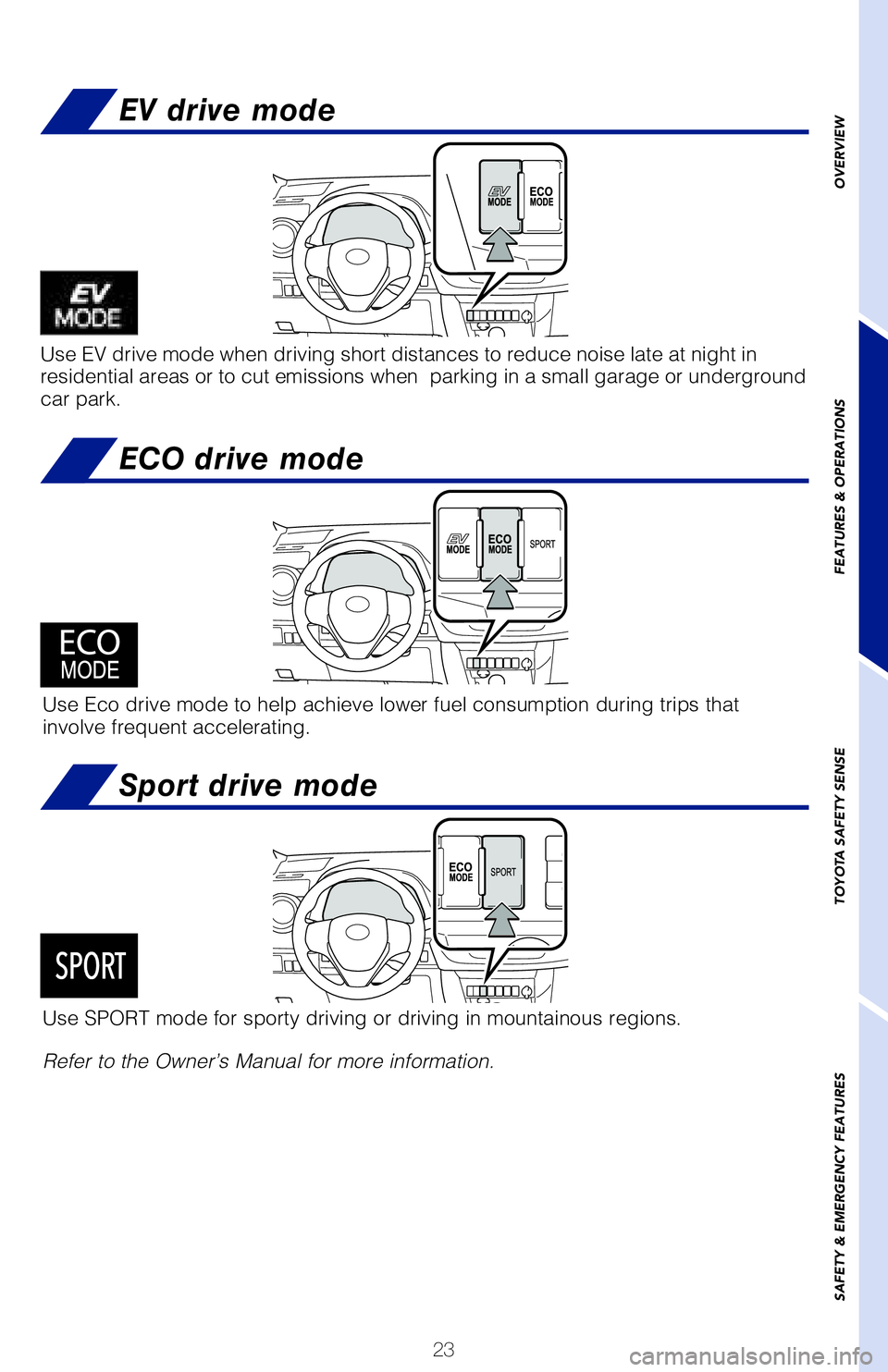

Use SPORT mode for sporty driving or driving in mountainous regions.
Use EV drive mode when driving short distances to reduce noise late at n\
ight in
residential areas or to cut emissions when parking in a small garage or\
underground
car park.
Use Eco drive mode to help achieve lower fuel consumption during trips t\
hat
involve frequent accelerating.
Refer to the Owner’s Manual for more information.
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
2018_RAV4-HV_QRG_V2-JA0803.indd 228/4/17 4:35 AM

23
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Rotation pause switch
The Bird’s Eye View Camera with Perimeter Scan function assists the d\
river in
viewing the surroundings, when operating at low speeds or parking, by co\
mbining
front, side and rear cameras and displaying an overhead image on the Ent\
une™
screen.
To view or turn OFF the screen, press the camera switch when the shift l\
ever is in
the “P” position. It will display two angles, the Moving view and \
the See Through
view.
For limitations and more details, refer to section 6-3 in the “NAVIGA\
TION SYSTEM
OWNER’S MANUAL.”
Sport drive mode
Use SPORT mode for sporty driving or driving in mountainous regions.
Use EV drive mode when driving short distances to reduce noise late at n\
ight in
residential areas or to cut emissions when parking in a small garage or\
underground
car park.
EV drive mode
ECO drive mode
Use Eco drive mode to help achieve lower fuel consumption during trips t\
hat
involve frequent accelerating.
Refer to the Owner’s Manual for more information.
Bird’s Eye View Camera
with Perimeter Scan Function
(if equipped)
2018_RAV4-HV_QRG_V2-JA0803.indd 238/4/17 4:35 AM

24
FEATURES & OPERATIONS

1ush i4&561w neYt to the screen. 5he system disQMays the 4etuQ screen.

4eMect i(eneraMw to access (eneraM settings screen.

4eMect i$MocLw to access settings. To find your system, refer to the Audio section of this guide.

1ush iA114w Cutton neYt to the screen, then seMect i4etuQw on the touch screen.

4eMect i(eneraMw on the touch screen. 5he system disQMays the i(eneraM 4ettingsw
screen.

5hen seMect i$MocLw to access settings.
Engine switch must be in the “ON” position or MID must display the\
“IGNITION ON.”Refer to the Owner’s Manual for more information.
Refer to the Owner’s Manual or the Navigation System Owner’s Manua\
l for more
information. Refer to the Owner’s Manual for more information.

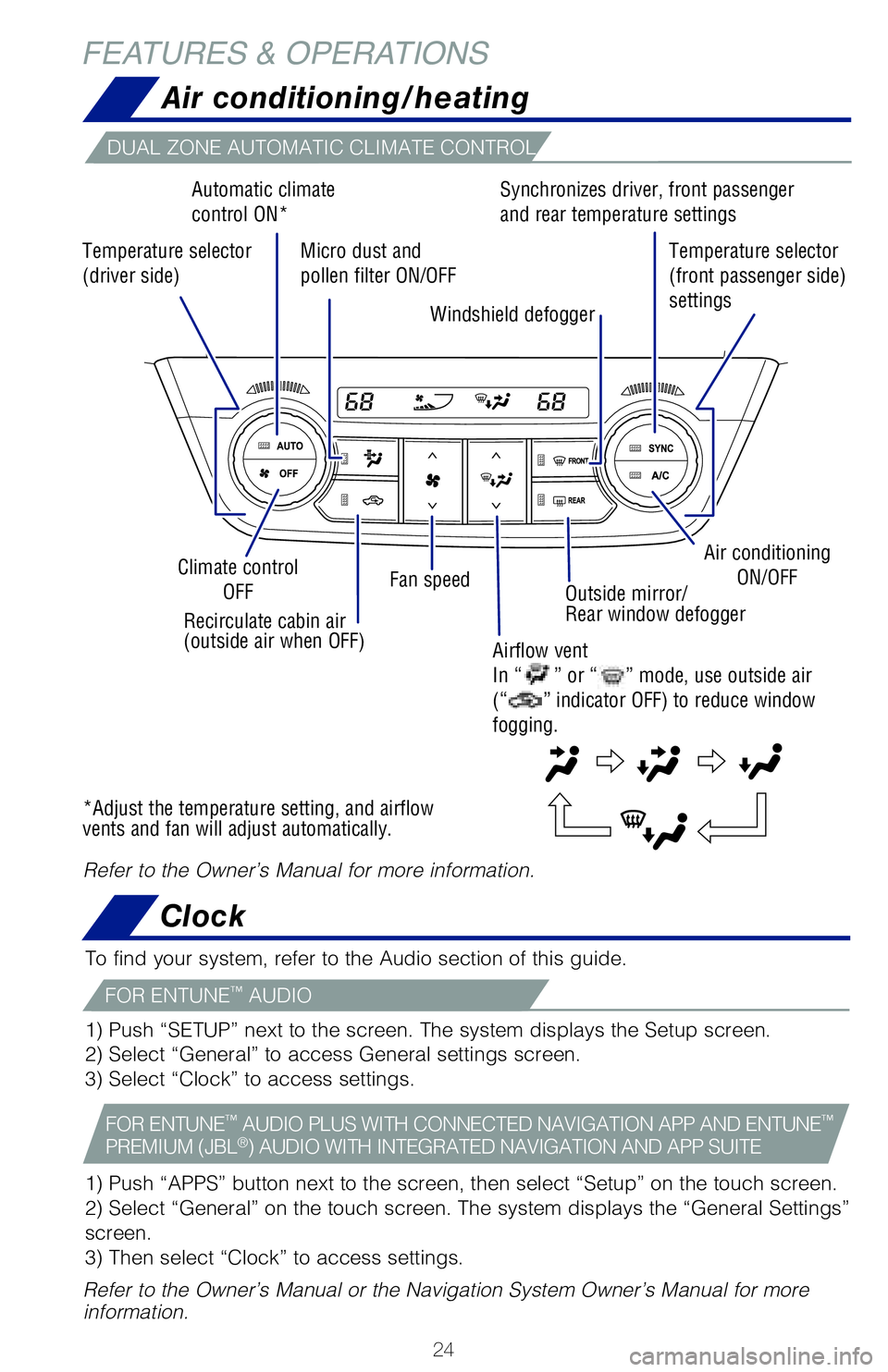

DUAL ZONE AUTOMATIC CLIMATE CONTROL
FOR ENTUNE™ AUDIO
Clock
Air conditioning/heating
FOR ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP AND ENTUNE™
13&.I6. +#-®
A6%I0 8I5) I/5&(3A5&% /A7I(A5I0/ A/% A11 46I5&
Front
Temperature selector
(driver side) Automatic climate
control ON*
*Adjust the temperature setting, and airflow
vents and fan will adjust automatically. Micro dust and
pollen filter ON/OFF
Windshield defoggerSynchronizes driver, front passenger
and rear temperature settings
Temperature selector
(front passenger side)
settings
Air conditioning ON/OFF
Fan speed
Climate control
OFF
Recirculate cabin air
(outside air when OFF) Outside mirror/
Rear window defogger
Airflow vent
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window
fogging.
2018_RAV4-HV_QRG_V2-JA0803.indd 248/4/17 4:35 AM

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
1) Push “SETUP” next to the screen. The system displays the Setup sc\
reen.
2) Select “General” to access General settings screen.
3) Select “Clock” to access settings. To find your system, refer to the Audio section of this guide.
1) Push “APPS” button next to the screen, then select “Setup” \
on the touch screen.
2) Select “General” on the touch screen. The system displays the “\
General Settings”

screen.
3) Then select “Clock” to access settings.
Engine switch must be in the “ON” position or MID must display the “I\
GNITION ON.”
Refer to the Owner’s Manual for more information.
Refer to the Owner’s Manual or the Navigation System Owner’s Manual for\
more
information. Refer to the Owner’s Manual for more information.

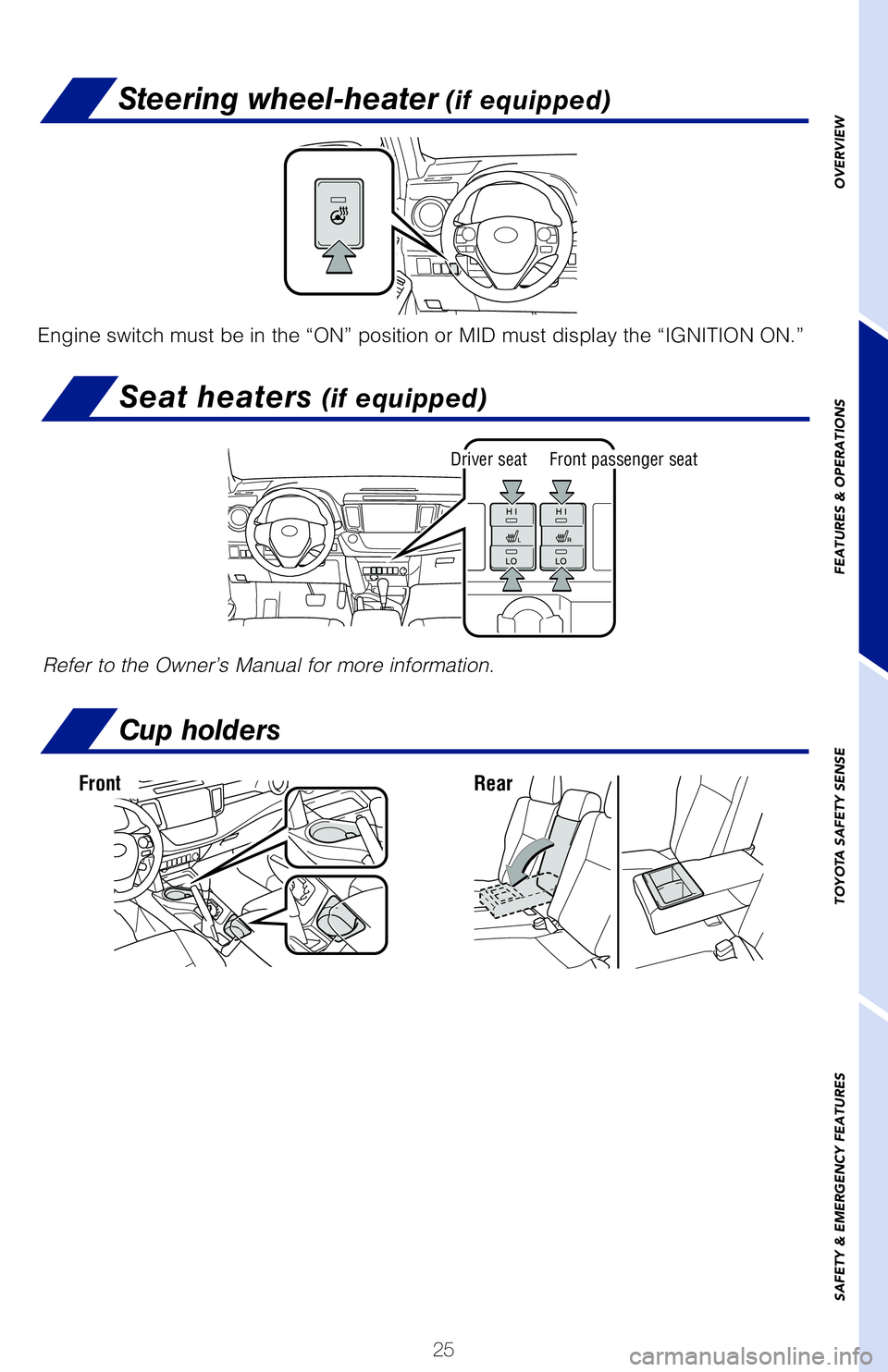

Seat heaters (if equipped)
FOR ENTUNE™ AUDIO PLUS WITH CONNECTED NAVIGATION APP AND ENTUNE™ PREMIUM (JBL®) AUDIO WITH INTEGRATED NAVIGATION AND APP SUITE
Steering wheel-heater (if equipped)
Cup holders
Driver seatFront passenger seat
FrontRear
Temperature selector
(front passenger side)
settings
Air conditioning

ON/OFF
Airflow vent
In “
” or “” mode, use outside air
(“
” indicator OFF) to reduce window
fogging.
2018_RAV4-HV_QRG_V3-JA0804.indd 258/7/17 4:03 PM

26
FEATURES & OPERATIONS
Vehicle Stability Control (VSC) OFF button
The VSC OFF button is used to switch between modes related to the TRAC, \
VSC
and Auto -4% functions 8% and 8% modeMs.

Refer to Section 4-5 of the Owner’s Manual for more information.

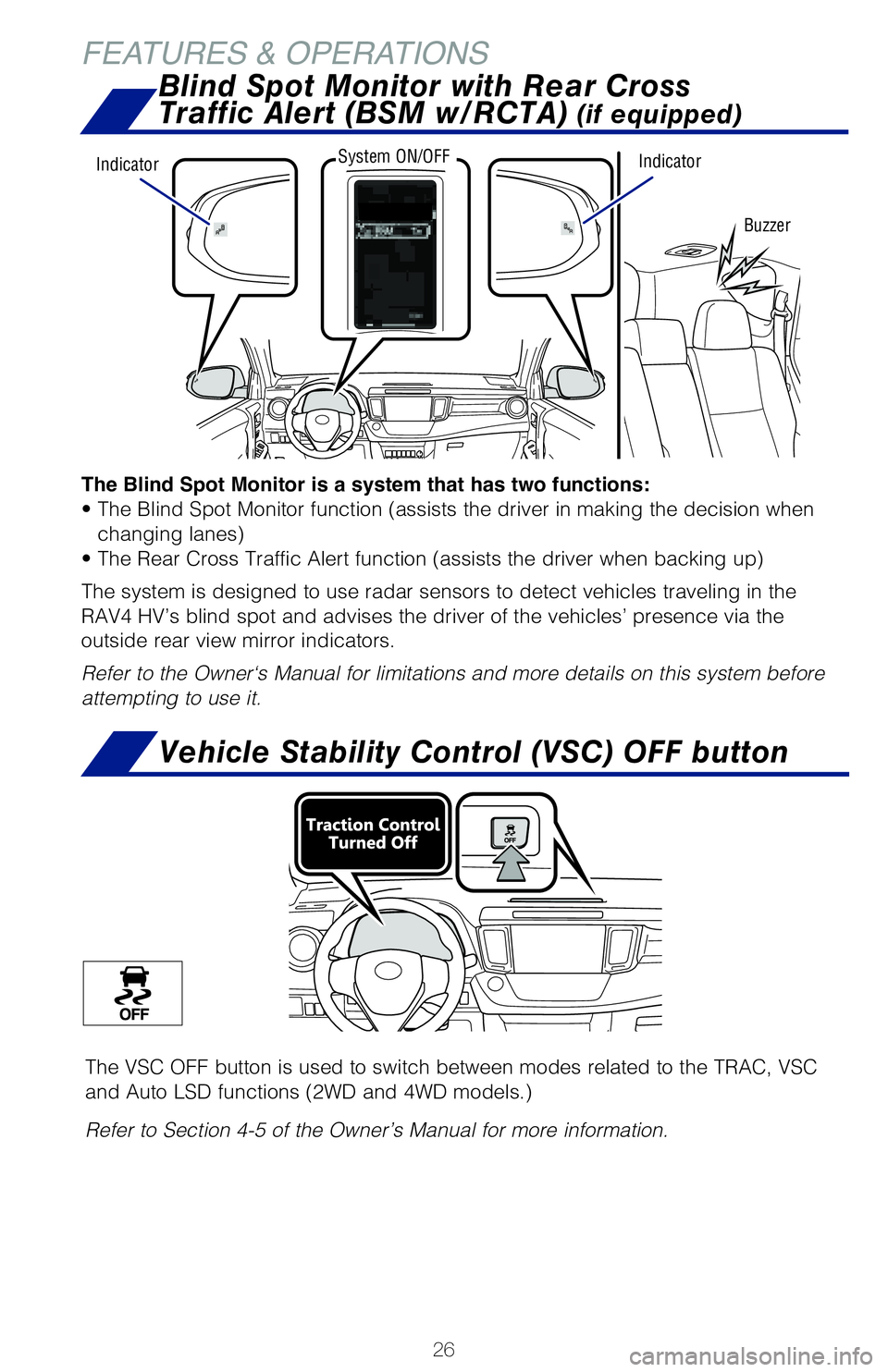

The Blind Spot Monitor is a system that has two functions:
t 5he #Mind 4Qot .onitor function assists the driver in maLing the decision when
changing Manes

t 5he 3ear $ross 5raffic AMert function assists the driver when CacLing uQ

The system is designed to use radar sensors to detect vehicles traveling\
in the
RAV4 HV’s blind spot and advises the driver of the vehicles’ prese\
nce via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.TSS-P combines an in-vehicle camera mounted in front of the inside rear \
view mirror
and a millimeter-wave radar mounted in the front grill. These sensors su\
pport the
driver assist systems.
Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Toyota Safety Sense™ 1 5441
is a set of active safety technoMogies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Buzzer
System ON/OFF
Indicator Indicator
2018_RAV4-HV_QRG_V2-JA0803.indd 268/4/17 4:35 AM

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
The VSC OFF button is used to switch between modes related to the TRAC, \
VSC
and Auto LSD functions (2WD and 4WD models.)
Refer to Section 4-5 of the Owner’s Manual for more information.
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when
changing lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
RAV4 HV’s blind spot and advises the driver of the vehicles’ prese\
nce via the
outside rear view mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this \
system before
attempting to use it.

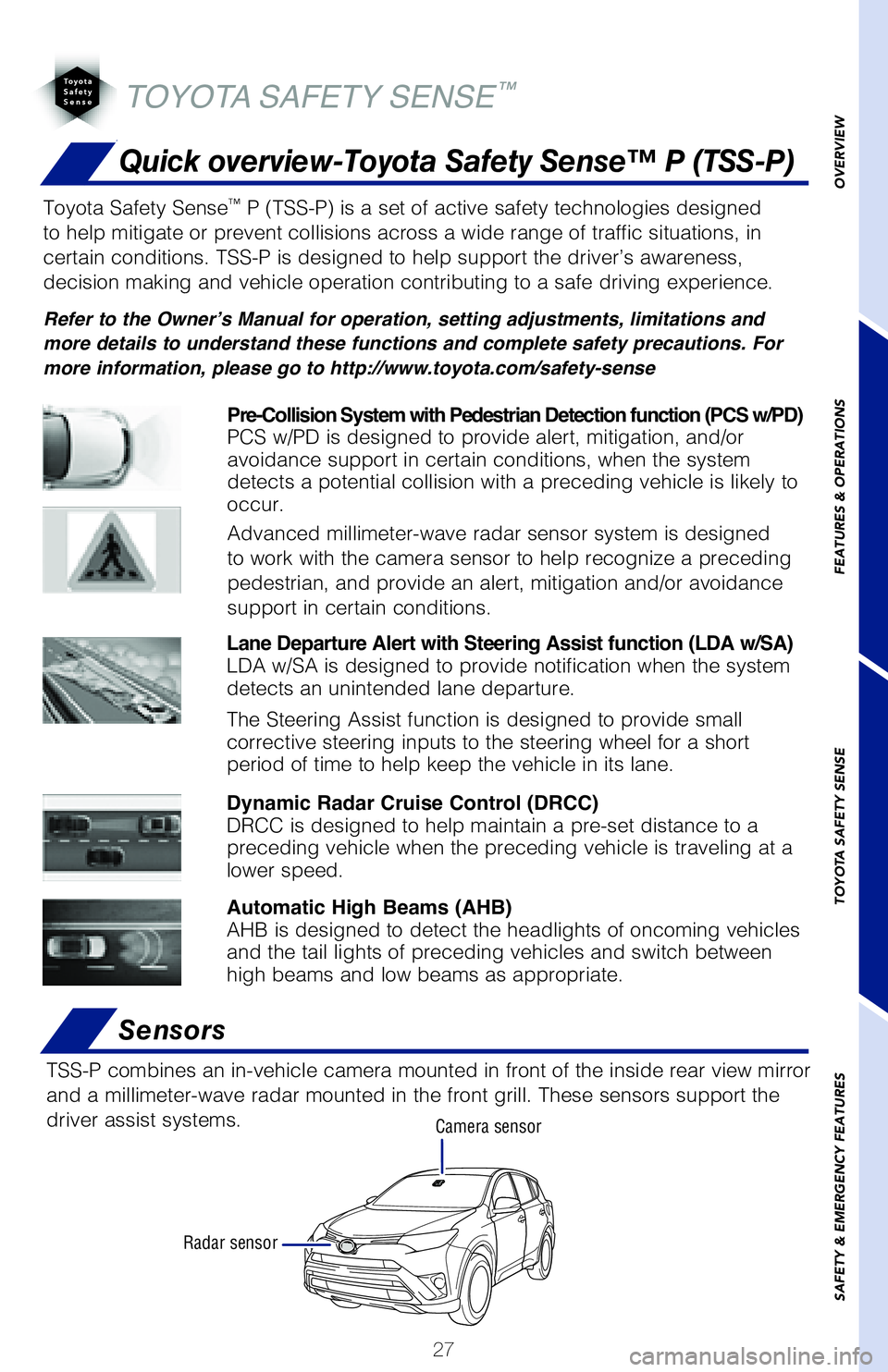

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \
view mirror
and a millimeter-wave radar mounted in the front grill. These sensors su\
pport the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™Blind Spot Monitor with Rear Cross
Traffic Alert (BSM w/RCTA)
(if equipped)
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert with Steering Assist function (LDA w/SA)
LDA w/SA is designed to provide notification when the system
detects an unintended lane departure.
The Steering Assist function is designed to provide small
corrective steering inputs to the steering wheel for a short
period of time to help keep the vehicle in its lane.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles
and the tail lights of preceding vehicles and switch between
high beams and low beams as appropriate.
Pre-Collision System with Pedestrian Detection function (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or
avoidance support in certain conditions, when the system
detects a potential collision with a preceding vehicle is likely to
occur.
Advanced millimeter-wave radar sensor system is designed
to work with the camera sensor to help recognize a preceding
pedestrian, and provide an alert, mitigation and/or avoidance
support in certain conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a
preceding vehicle when the preceding vehicle is traveling at a
lower speed.
Buzzer
2018_RAV4-HV_QRG_V3-JA0804.indd 278/8/17 10:39 AM

28

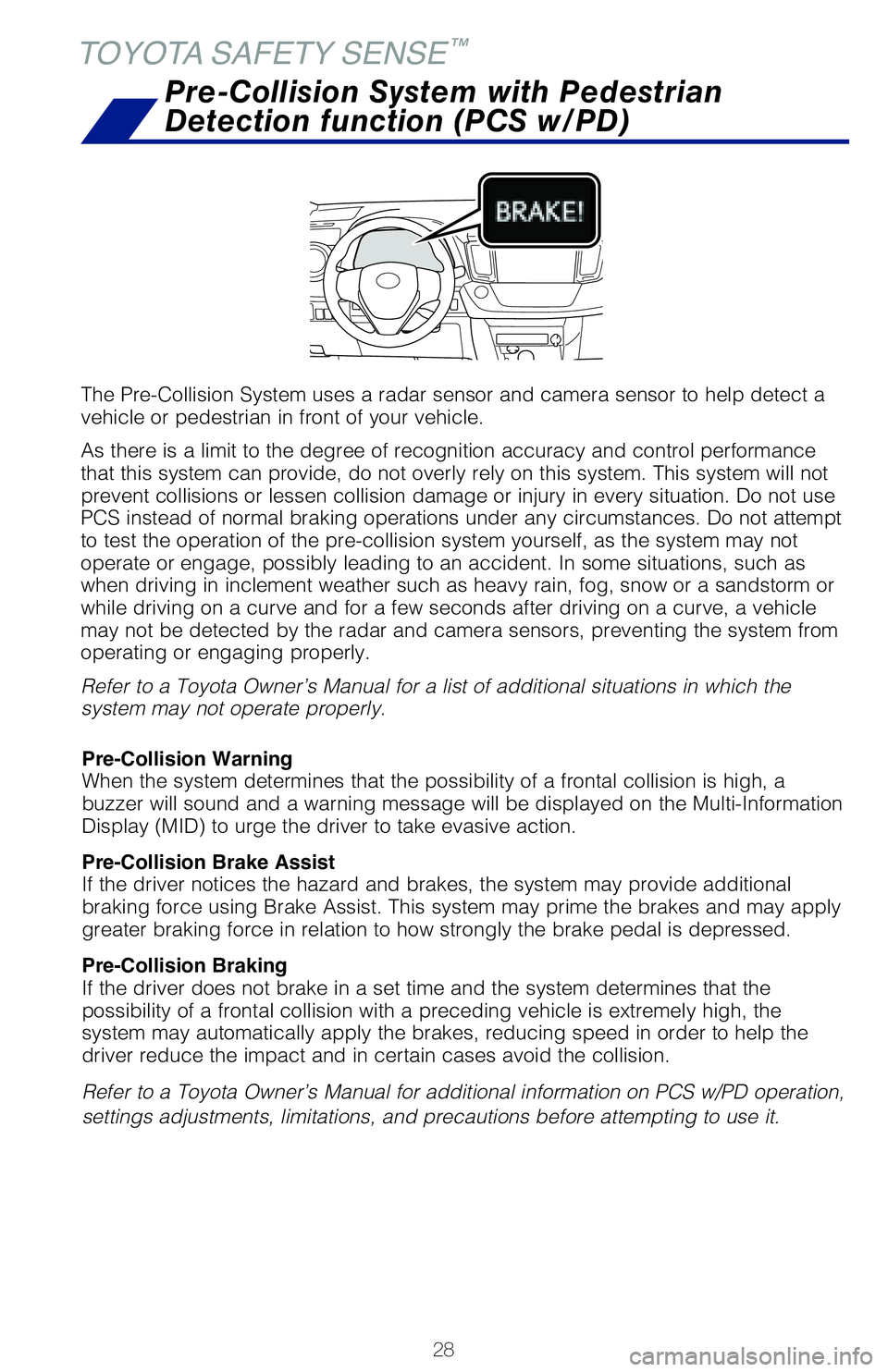

The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle
may not be detected by the radar and camera sensors, preventing the syst\
em from
operating or engaging properly.
Refer to a Toyota Owner’s Manual for a list of additional situations \
in which the
system may not operate properly.Refer to a Toyota Owner’s Manual for additional information on PCS w/\
PD operation,
settings adjustments, limitations, and precautions before attempting to \
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
%isQMay .I%
to urge the driver to taLe evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Pre-Collision System with Pedestrian
Detection function (PCS w/PD)
TOYOTA SAFETY SENSE
™
CHANGING THE PCS ALERT TIMING

1ress i
” switches and select from the .uMtiInformation %isQMay .I%
.

1ress i ” switches and select
from the MID and then press “.”

4eMect i4ensitivityw and then Qress i
.”
Each time “
” is pressed, the response to the PCS alert timing changes as shown
above. You can press “
” to go back to the menu.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
In certain conditions, the PCS system included with the TSS-P package ma\
y also
help to detect a pedestrian in front of your vehicle. With Toyota Safety\
Sense™ P,
PCS uses an in-vehicle camera and front-grill mounted millimeter-wave ra\
dar to
help detect a pedestrian in front of your vehicle in certain conditions.\
The in-vehicle
camera of PCS detects a potential pedestrian based on size, profile, and\
motion of
the detected pedestrian. However, a pedestrian may not be detected depen\
ding
on the conditions, including the surrounding brightness and the motion, \
posture,
size, and angle of the potential detected pedestrian, preventing the sys\
tem from
operating or engaging. Refer to a Toyota Owner’s Manual for additional information.
THE PCS WITH PEDESTRIAN DETECTION FUNCTION
2018_RAV4-HV_QRG_V2-JA0803.indd 288/4/17 4:35 AM
