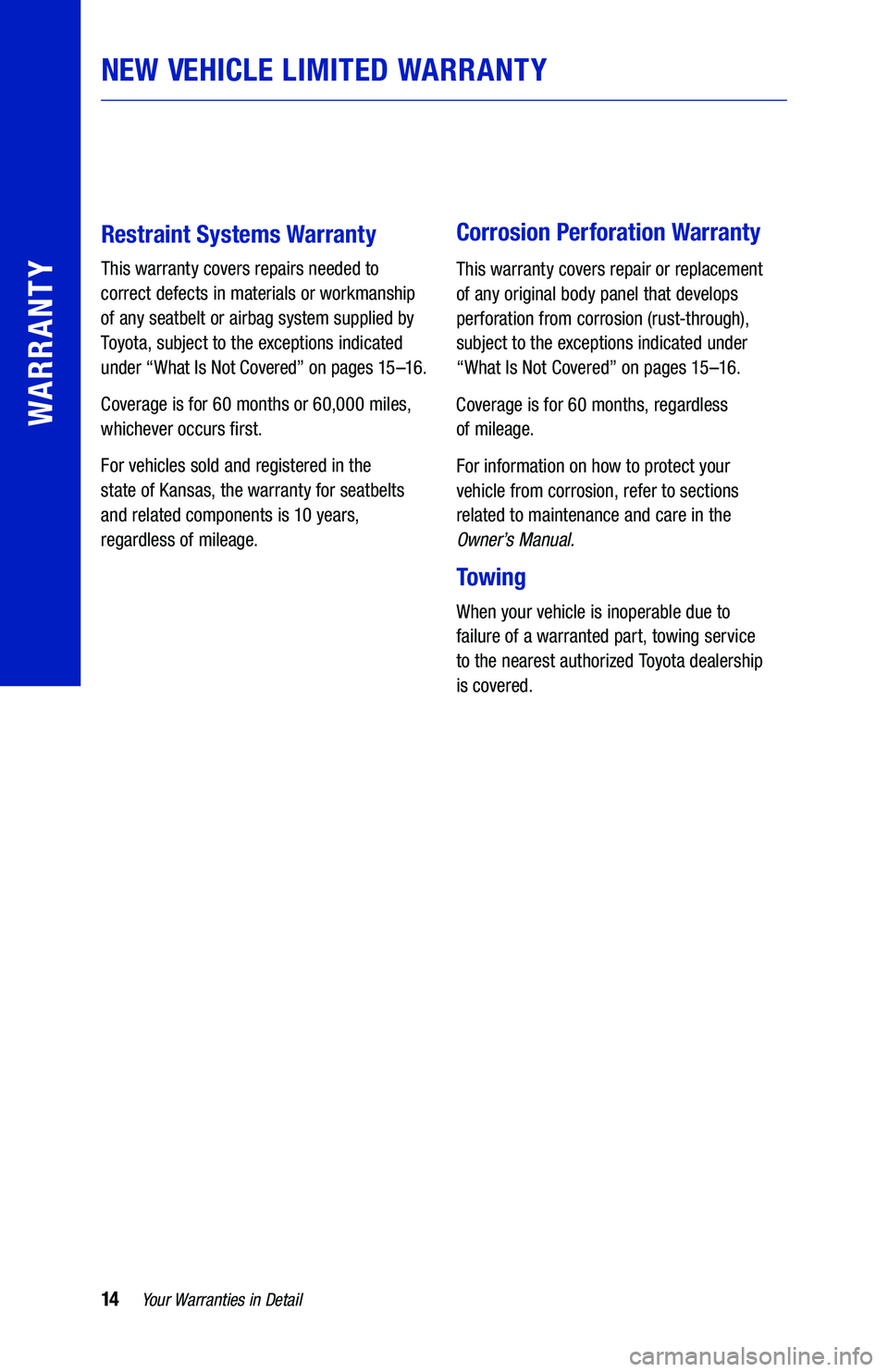

14Yo u r Warranties in Detail
WARRANTY
Restraint Systems Warranty
This warranty covers repairs needed to
correct defects in materials or workmanship
of any seatbelt or airbag system supplied by
Toyo t a , subject to the exceptions indicated
under “What Is Not Covered” on pages 15 –16.
Coverage is for 60 months or 60,000 miles,
whichever occurs rst.
For vehicles sold and registered in the
state of Kansas, the warranty for seatbelts
and related components is 10 years,
regardless of mileage.



Corrosion Perforation Warranty
This warranty covers repair or replacement
of any original body panel that develops
perforation from corrosion (rust-through),
subject to the exceptions indicated under
“What Is Not Covered” on pages 15 –16.
Coverage is for 60 months, regardless
of mileage.
For information on how to protect your
vehicle from corrosion, refer to sections
related to maintenance and care in the
Owner’s Manual.
To w i n g
When your vehicle is inoperable due to
failure of a warranted part, towing service
to the nearest authorized Toyo t a dealership
is covered.
NEW VE HICLE LIMITED WARRANTY

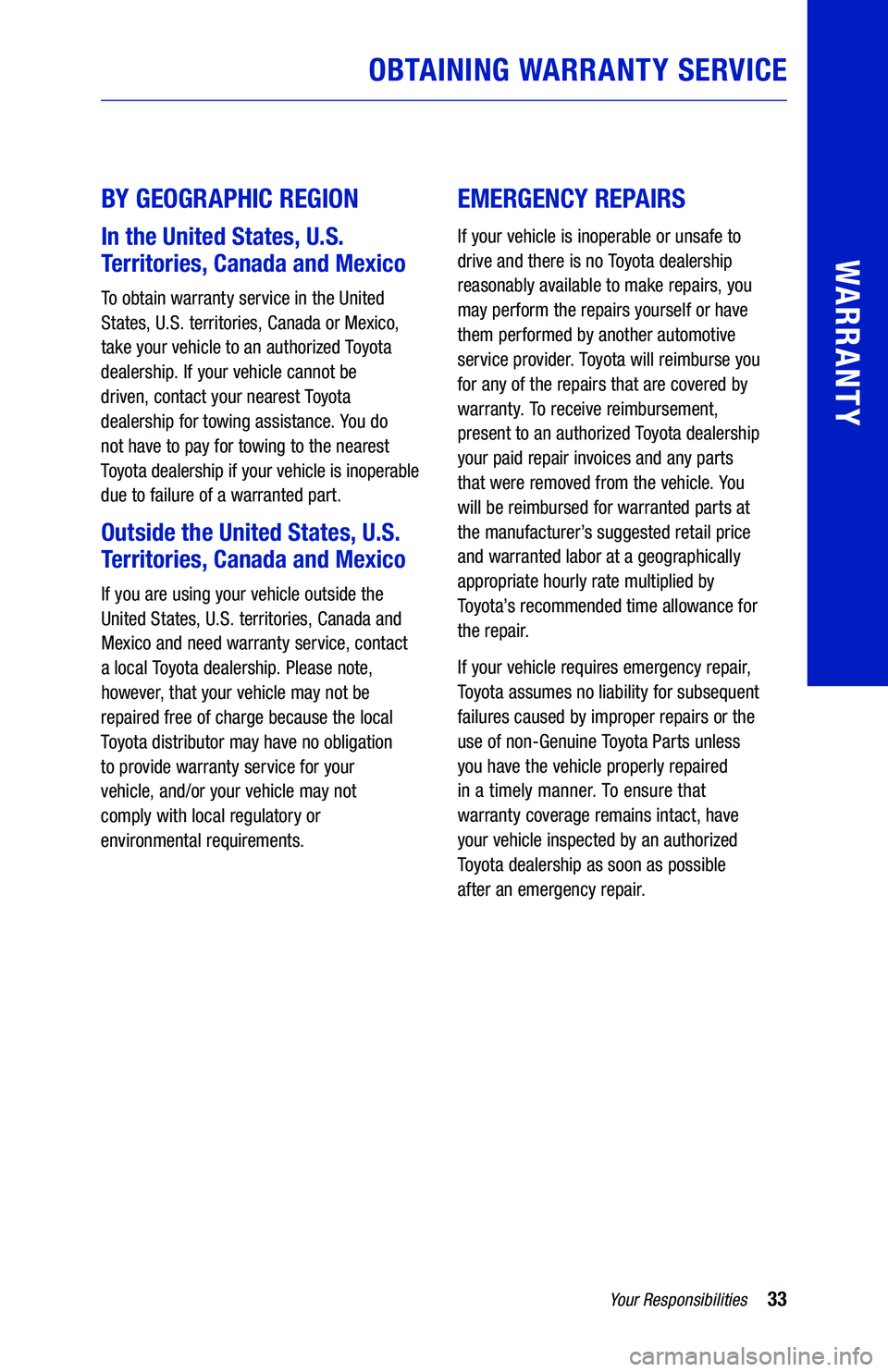

33Yo u r Responsibilities
OBTAINING WARRANTY SERVICE
WARRANTY
BY GEOGRAPHIC REGION
In the United States, U.S.
Territories, Canada and Mexico
To obtain warranty service in the United
States, U.S. territories, Canada or Mexico,
take your vehicle to an authorized Toyo t a
dealership. If your vehicle cannot be
driven, contact your nearest Toyo t a
dealership for towing assistance. You do
not have to pay for towing to the nearest
Toyo t a dealership if your vehicle is inoperable
due to failure of a warranted part.
Outside the United States, U.S.
Territories, Canada and Mexico
If you are using your vehicle outside the
United States, U.S. territories, Canada and
Mexico and need warranty service, contact
a local Toyo t a dealership. Please note,
however, that your vehicle may not be
repaired free of charge because the local
Toyo t a distributor may have no obligation
to provide warranty service for your
vehicle, and/or your vehicle may not
comply with local regulatory or
environmental requirements.
EMERGENCY REPAIRS
If your vehicle is inoperable or unsafe to
drive and there is no Toyo t a dealership
reasonably available to make repairs, you
may perform the repairs yourself or have
them performed by another automotive
service provider. Toyo t a will reimburse you
for any of the repairs that are covered by
warranty. To receive reimbursement,
present to an authorized Toyo t a dealership
your paid repair invoices and any parts
that were removed from the vehicle. You
will be reimbursed for warranted parts at
the manufacturer’s suggested retail price
and warranted labor at a geographically
appropriate hourly rate multiplied by
Toyo t a’s recommended time allowance for
the r ep a ir.
If your vehicle requires emergency r ep a ir,
Toyo t a assumes no liability for subsequent
failures caused by improper repairs or the
use of non-Genuine Toyo t a Parts unless
you have the vehicle properly repaired
in a timely manner. To ensure that
warranty coverage remains intact, have
your vehicle inspected by an authorized
Toyo t a dealership as soon as possible
after an emergency r ep a ir.

38Maintenance Log
MAINTENANCE LOG
MAINTENANCE
5,000 miles or 6 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

10,000 miles or 12 months)
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter



DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE: D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

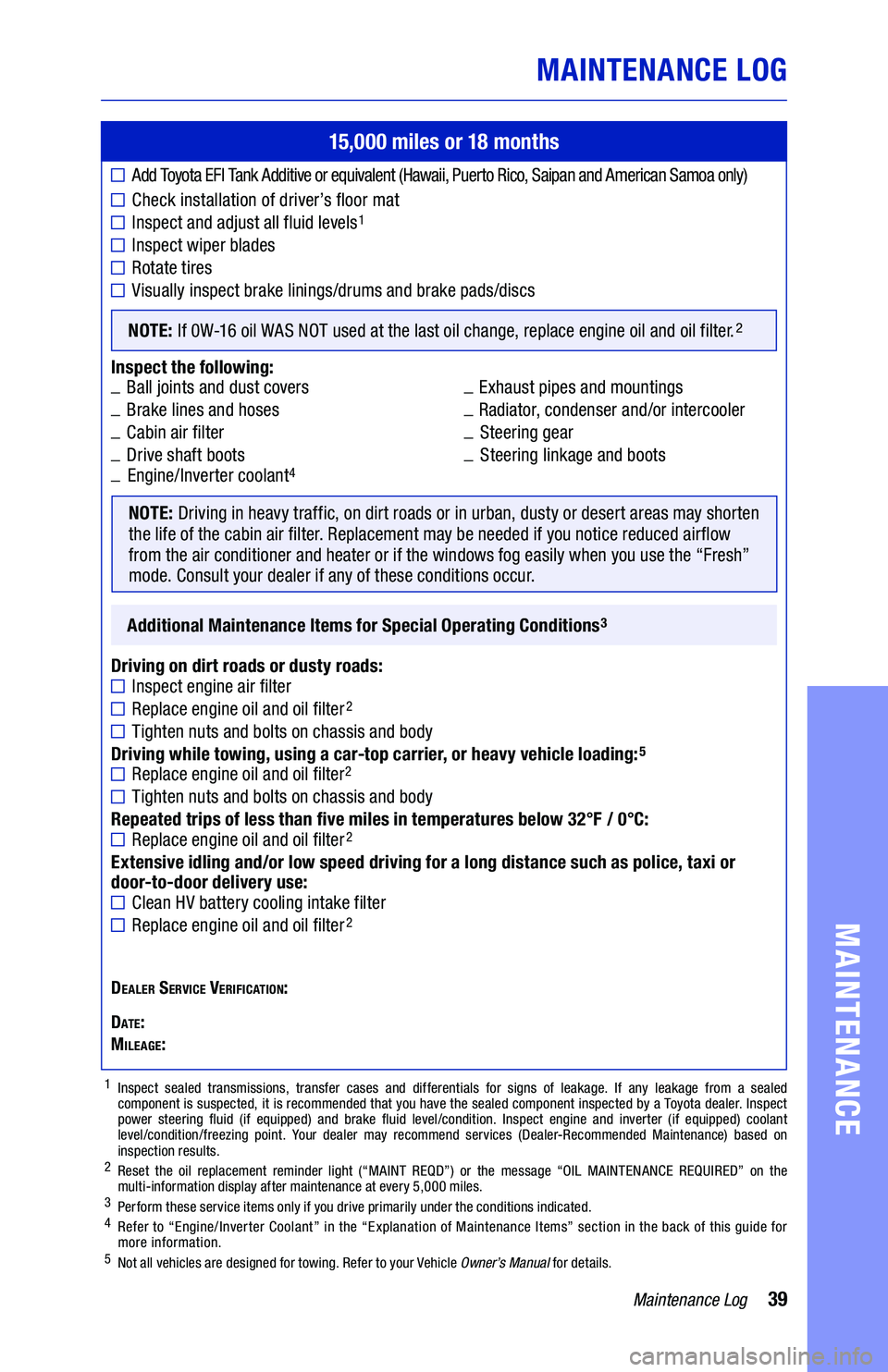

39Maintenance Log
MAINTENANCE LOG
MAINTENANCE
15,000 miles or 18 months
Add Toyo t a EFI Ta nk Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs

NOTE: If 0 W -16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_ Ball joints and dust covers _
Exhaust pipes and mountings
_ Brake lines and hoses _
Radiator, condenser and/or intercooler
_ Cabin air filter _
Steering gear
_ Drive shaft boots _
Steering linkage and boots
_ Engine/Inverter coolant
4




Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:
Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2

DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyo t a dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.4
Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced airflow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.

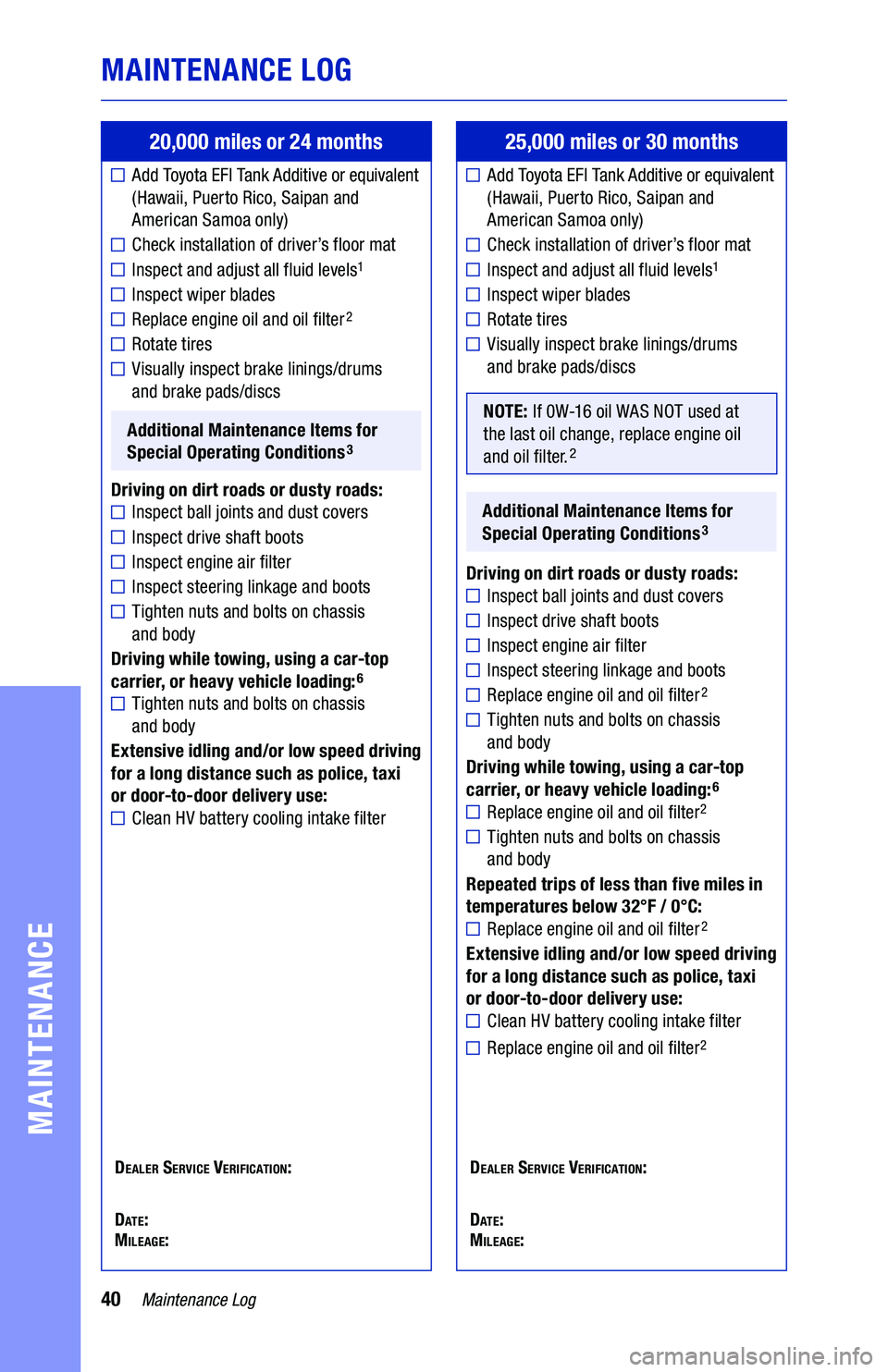

40Maintenance Log
MAINTENANCE LOG
MAINTENANCE
20,000 miles or 24 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter



25,000 miles or 30 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0 W -16 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE: D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

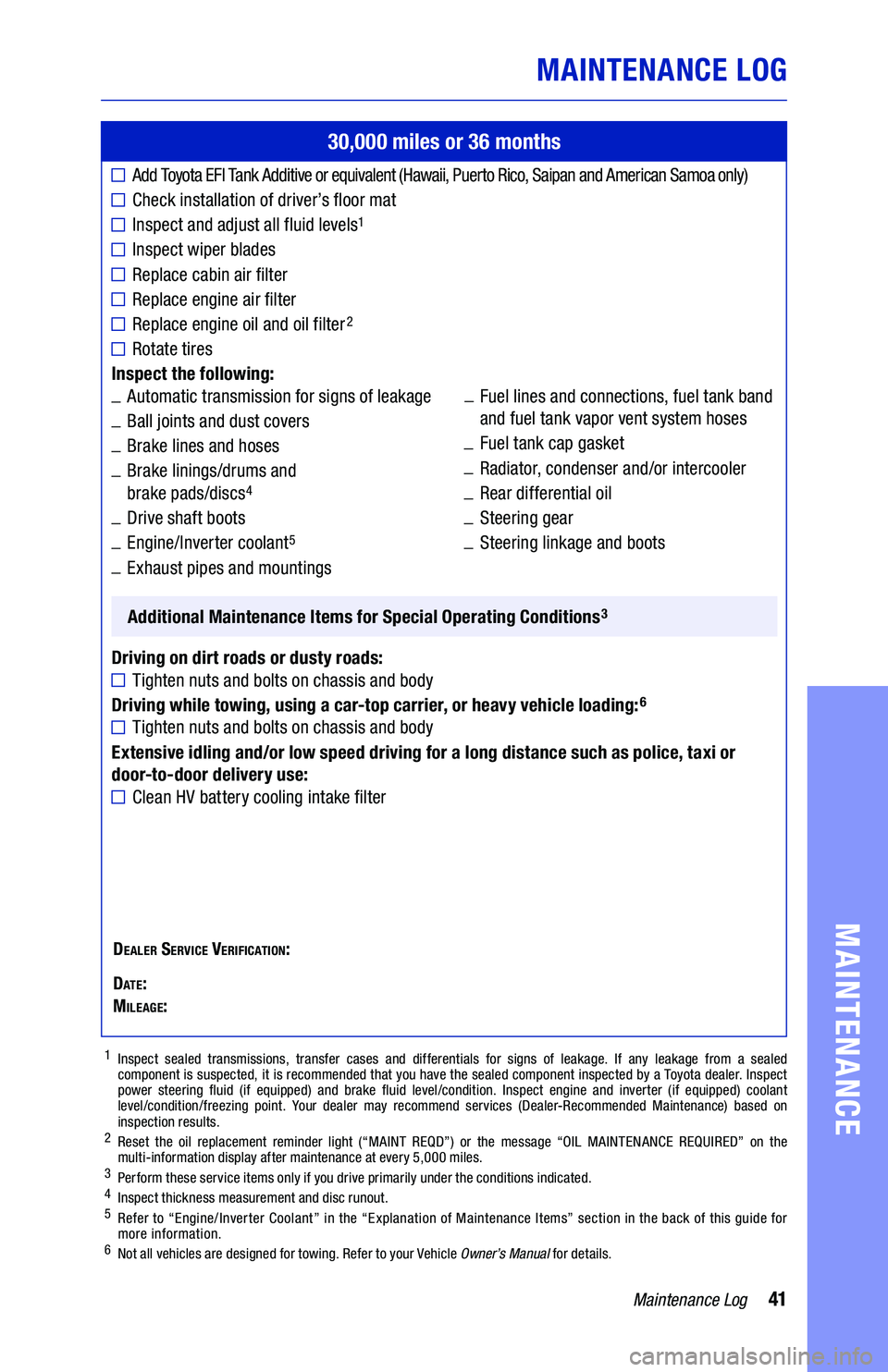

41Maintenance Log
MAINTENANCE LOG
MAINTENANCE
30,000 miles or 36 months
Add Toyo t a EFI Ta nk Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_ Automatic transmission for signs of leakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
4
_ Drive shaft boots
_ Engine/Inverter coolant
5
_
Exhaust pipes and mountings
_Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter




1 Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyo t a dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5

Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
_ Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator, condenser and/or intercooler
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots

42Maintenance Log
MAINTENANCE LOG
MAINTENANCE

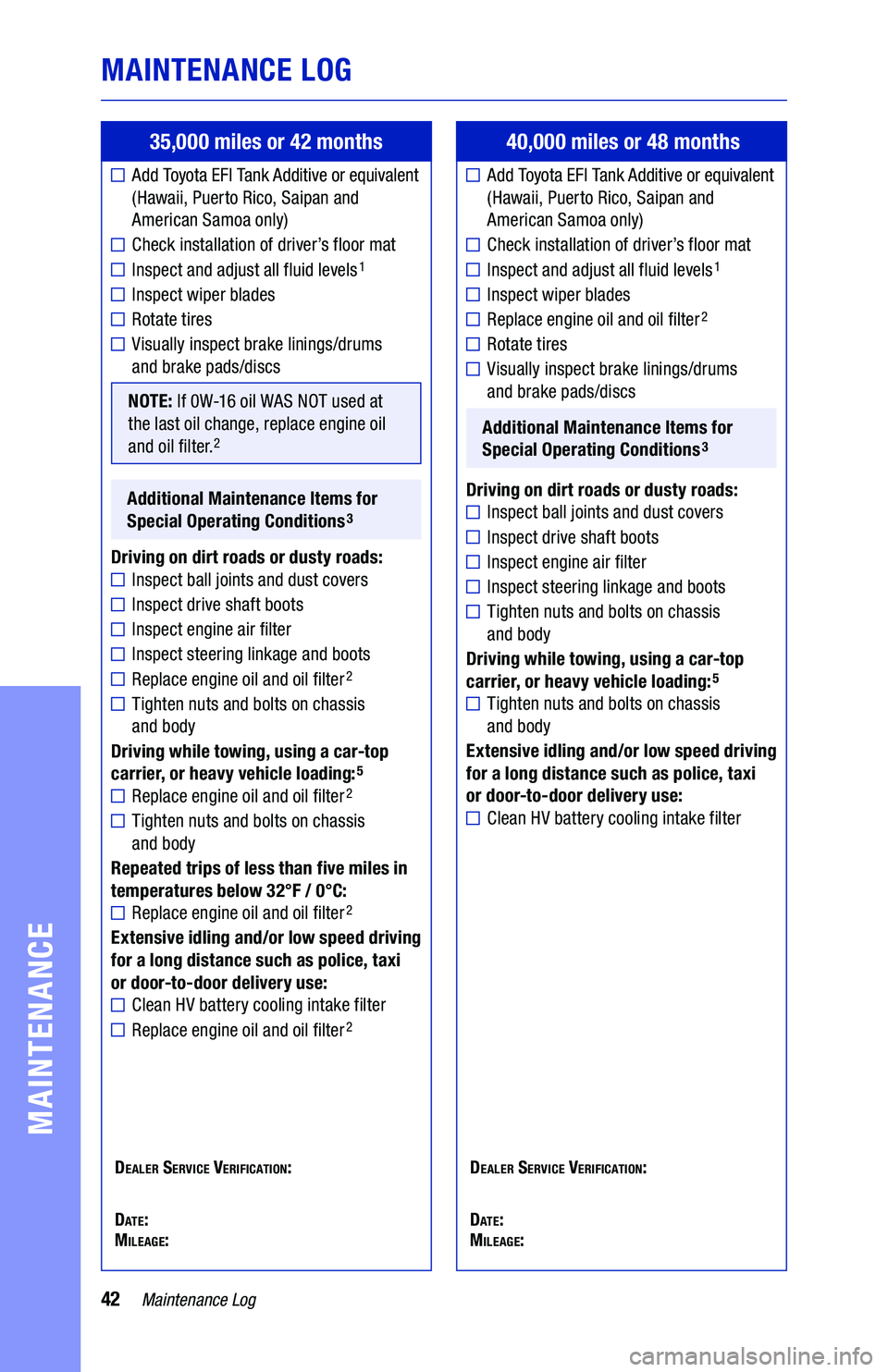

35,000 miles or 42 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0 W -16 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
40,000 miles or 48 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
5
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE: D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

43Maintenance Log
MAINTENANCE LOG
MAINTENANCE
45,000 miles or 54 months
Add Toyo t a EFI Ta nk Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums and brake pads/discs
NOTE: If 0 W -16 oil WAS NOT used at the last oil change, replace engine oil and oil filter.2
Inspect the following:
_ Ball joints and dust covers _
Exhaust pipes and mountings
_ Brake lines and hoses _
Radiator, condenser and/or intercooler
_ Cabin air filter _
Steering gear
_ Drive shaft boots _
Steering linkage and boots
_ Engine/Inverter coolant
4



Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect engine air filter
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:5
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis and body
Repeated trips of less than five miles in temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyo t a dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated.

4 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
5
Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
NOTE: Driving in heavy traffic, on dirt roads or in urban, dusty or desert areas may shorten
the life of the cabin air filter. Replacement may be needed if you notice reduced airflow
from the air conditioner and heater or if the windows fog easily when you use the “Fresh”
mode. Consult your dealer if any of these conditions occur.

44Maintenance Log
MAINTENANCE LOG
MAINTENANCE
50,000 miles or 60 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace engine oil and oil filter2
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Tighten nuts and bolts on chassis
and body
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
55,000 miles or 66 months
Add Toyo t a EFI Ta nk Additive or equivalent
(Hawaii, Puerto Rico, Saipan and
American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Rotate tires
Visually inspect brake linings/drums
and brake pads/discs
NOTE: If 0 W -16 oil WAS NOT used at
the last oil change, replace engine oil
and oil filter.
2
Additional Maintenance Items for
Special Operating Conditions3
Driving on dirt roads or dusty roads:Inspect ball joints and dust covers
Inspect drive shaft boots
Inspect engine air filter
Inspect steering linkage and boots
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Driving while towing, using a car-top
carrier, or heavy vehicle loading:
6
Replace engine oil and oil filter2
Tighten nuts and bolts on chassis
and body
Repeated trips of less than five miles in
temperatures below 32°F / 0°C:
Replace engine oil and oil filter2
Extensive idling and/or low speed driving
for a long distance such as police, taxi
or door-to-door delivery use:
Clean HV battery cooling intake filter
Replace engine oil and oil filter2
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE: D
EALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:

45Maintenance Log
MAINTENANCE LOG
MAINTENANCE

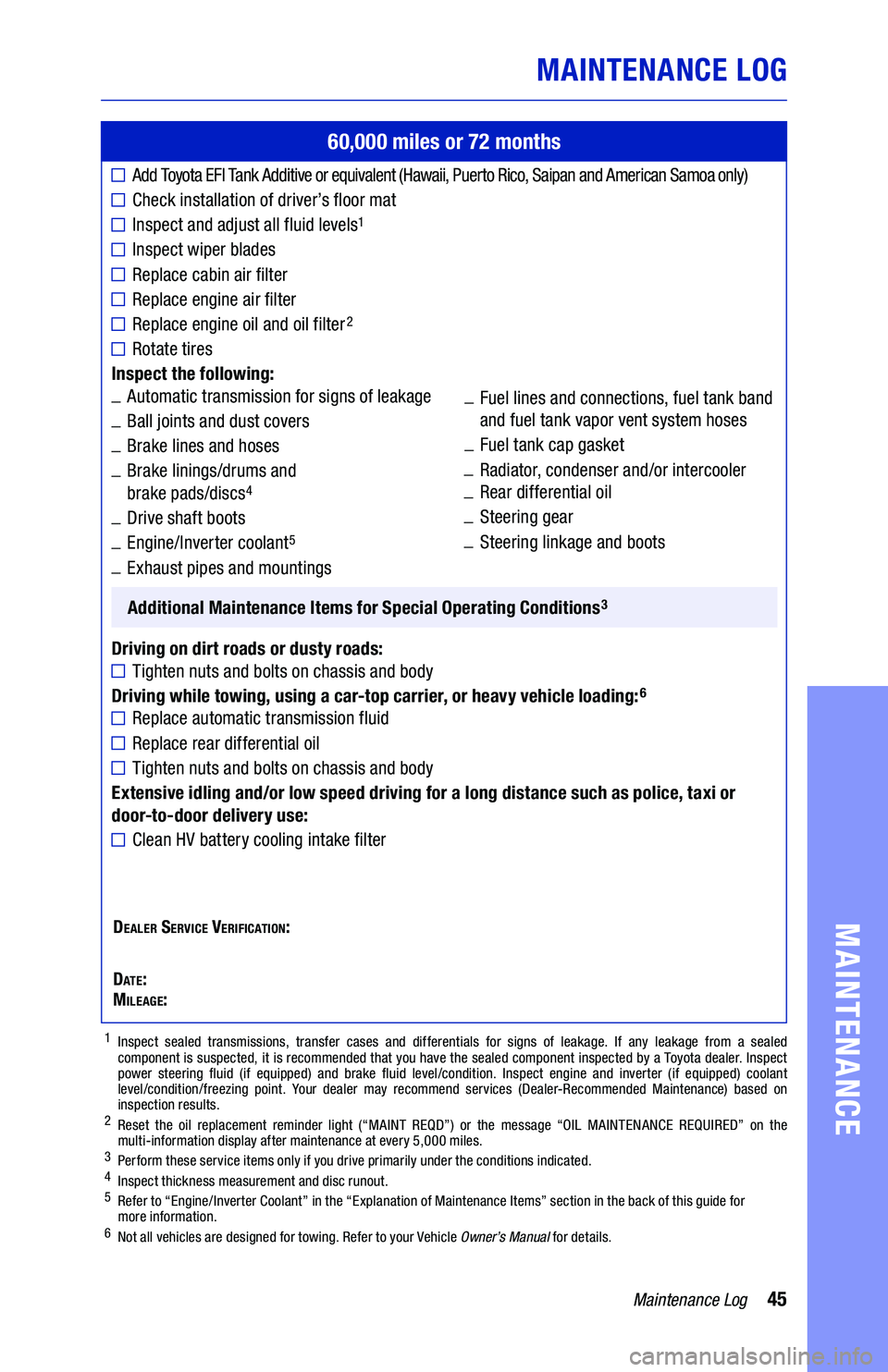

60,000 miles or 72 months
Add Toyo t a EFI Ta nk Additive or equivalent (Hawaii, Puerto Rico, Saipan and American Samoa only)
Check installation of driver’s floor mat
Inspect and adjust all fluid levels1
Inspect wiper blades
Replace cabin air filter
Replace engine air filter
Replace engine oil and oil filter2
Rotate tires
Inspect the following:
_ Automatic transmission for signs of leakage
_ Ball joints and dust covers
_ Brake lines and hoses
_ Brake linings/drums and
brake pads/discs
4
_ Drive shaft boots
_ Engine/Inverter coolant
5
_
Exhaust pipes and mountings

Additional Maintenance Items for Special Operating Conditions3
Driving on dirt roads or dusty roads:Tighten nuts and bolts on chassis and body
Driving while towing, using a car-top carrier, or heavy vehicle loading:6
Replace automatic transmission fluid
Replace rear differential oil
Tighten nuts and bolts on chassis and body
Extensive idling and/or low speed driving for a long distance such as police, taxi or
door-to-door delivery use:
Clean HV battery cooling intake lter

1
Inspect sealed transmissions, transfer cases and differentials for signs of leakage. If any leakage from a sealed
component is suspected, it is recommended that you have the sealed component inspected by a Toyo t a dealer. Inspect
power steering fluid (if equipped) and brake fluid level/condition. Inspect engine and inverter (if equipped) coolant
level/condition/freezing point. Your dealer may recommend services (Dealer-Recommended Maintenance) based on
inspection results.
2
Reset the oil replacement reminder light (“MAINT REQD”) or the message “OIL MAINTENANCE REQUIRED” on the
multi-information display after maintenance at every 5,000 miles.
3
Perform these service items only if you drive primarily under the conditions indicated. 4 Inspect thickness measurement and disc runout.5 Refer to “Engine/Inverter Coolant” in the “Explanation of Maintenance Items” section in the back of this guide for
more information.
6 Not all vehicles are designed for towing. Refer to your Vehicle Owner’s Manual for details.
_
Fuel lines and connections, fuel tank band
and fuel tank vapor vent system hoses
_ Fuel tank cap gasket
_ Radiator, condenser and/or intercooler
_ Rear differential oil
_ Steering gear
_ Steering linkage and boots
DEALER SERVICE VERIFICATION:
D
ATE:
MILEAGE:
