navigation TOYOTA RAV4 PHEV 2021 Owner's Guide

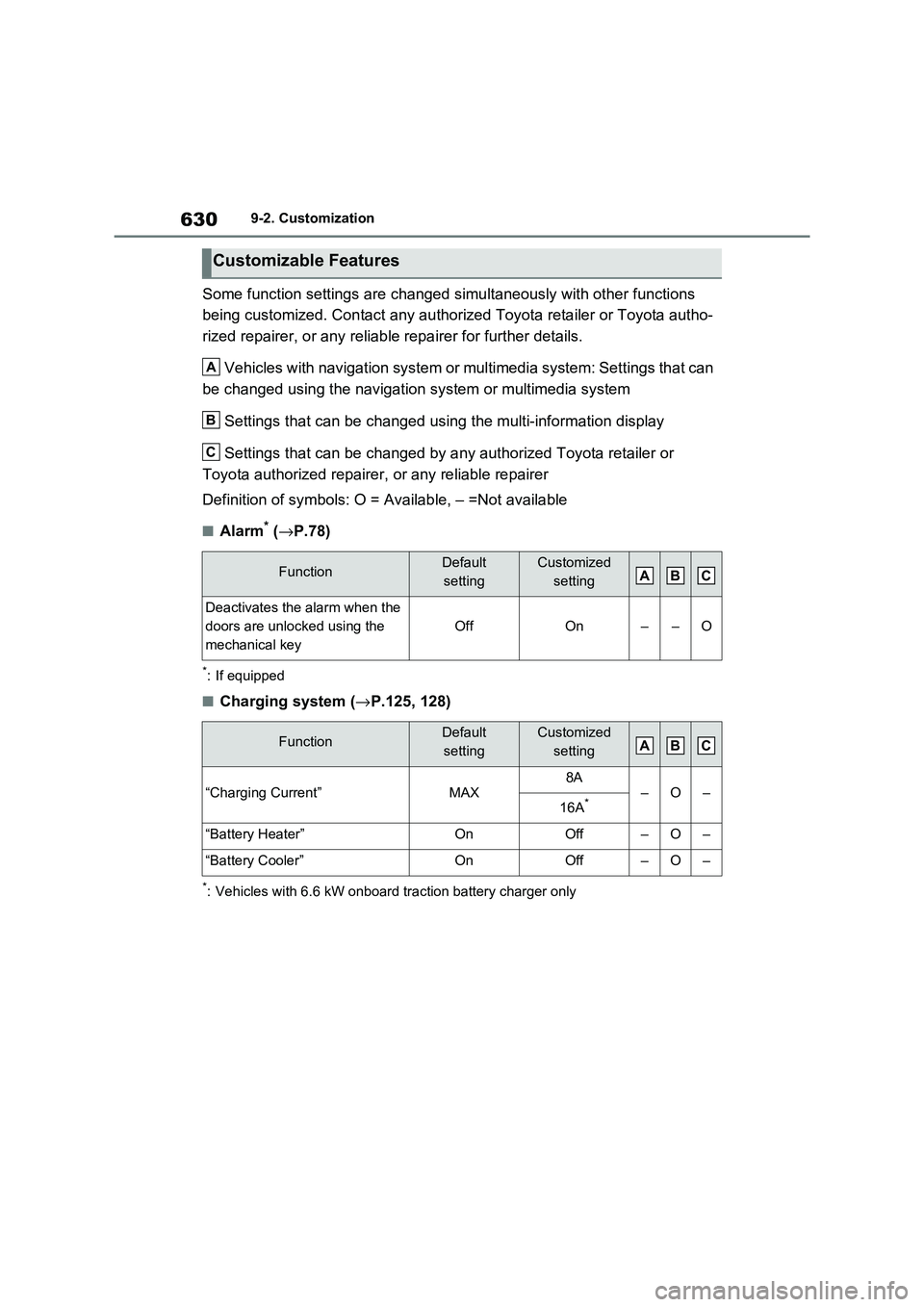

6309-2. Customization
Some function settings are changed simultaneously with other functions
being customized. Contact any aut horized Toyota retailer or Toyota autho-
rized repairer, or any reliable repairer for further details.
Vehicles with navigation system or multimedia system: Settings that can
be changed using the navigation system or multimedia system
Settings that can be changed usi ng the multi-information display
Settings that can be changed by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer
Definition of symbols: O = Available, – =Not available
■Alarm* (→P.78)
*: If equipped
■Charging system (→P.125, 128)
*: Vehicles with 6.6 kW onboard traction battery charger only
Customizable Features
FunctionDefault
setting
Customized
setting
Deactivates the alarm when the
doors are unlocked using the
mechanical key
OffOn––O
FunctionDefault
setting
Customized
setting
“Charging Current”MAX8A–O–16A*
“Battery Heater”OnOff–O–
“Battery Cooler”OnOff–O–
A
B
C
ABC
ABC

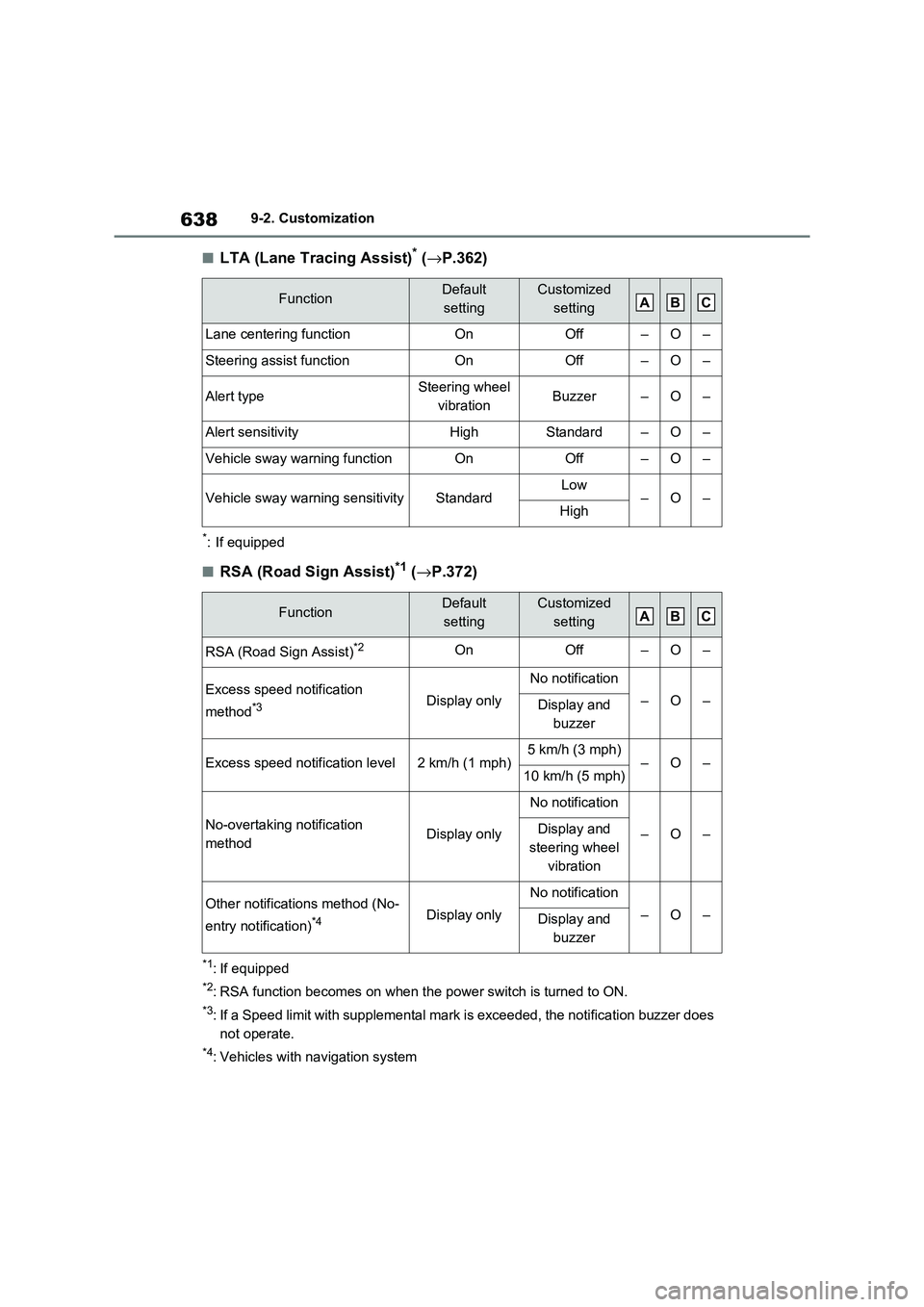

6389-2. Customization
■LTA (Lane Tracing Assist)* (→P.362)
*: If equipped
■RSA (Road Sign Assist)*1 (→P.372)
*1: If equipped
*2: RSA function becomes on when the power switch is turned to ON.
*3: If a Speed limit with supplemental mark is exceeded, the notification buzzer does
not operate.
*4: Vehicles with navigation system
FunctionDefault
setting
Customized
setting
Lane centering functionOnOff–O–
Steering assist functionOnOff–O–
Alert typeSteering wheel
vibrationBuzzer–O–
Alert sensitivityHighStandard–O–
Vehicle sway warning functionOnOff–O–
Vehicle sway warning sensitivityStandardLow–O–High
FunctionDefault
setting
Customized
setting
RSA (Road Sign Assist)*2OnOff–O–
Excess speed notification
method*3Display only
No notification
–O–Display and
buzzer
Excess speed notification level2 km/h (1 mph)5 km/h (3 mph)–O–10 km/h (5 mph)
No-overtaking notification
methodDisplay only
No notification
–O–Display and
steering wheel
vibration
Other notifications method (No-
entry notification)*4Display only
No notification
–O–Display and
buzzer
ABC
ABC

643
9

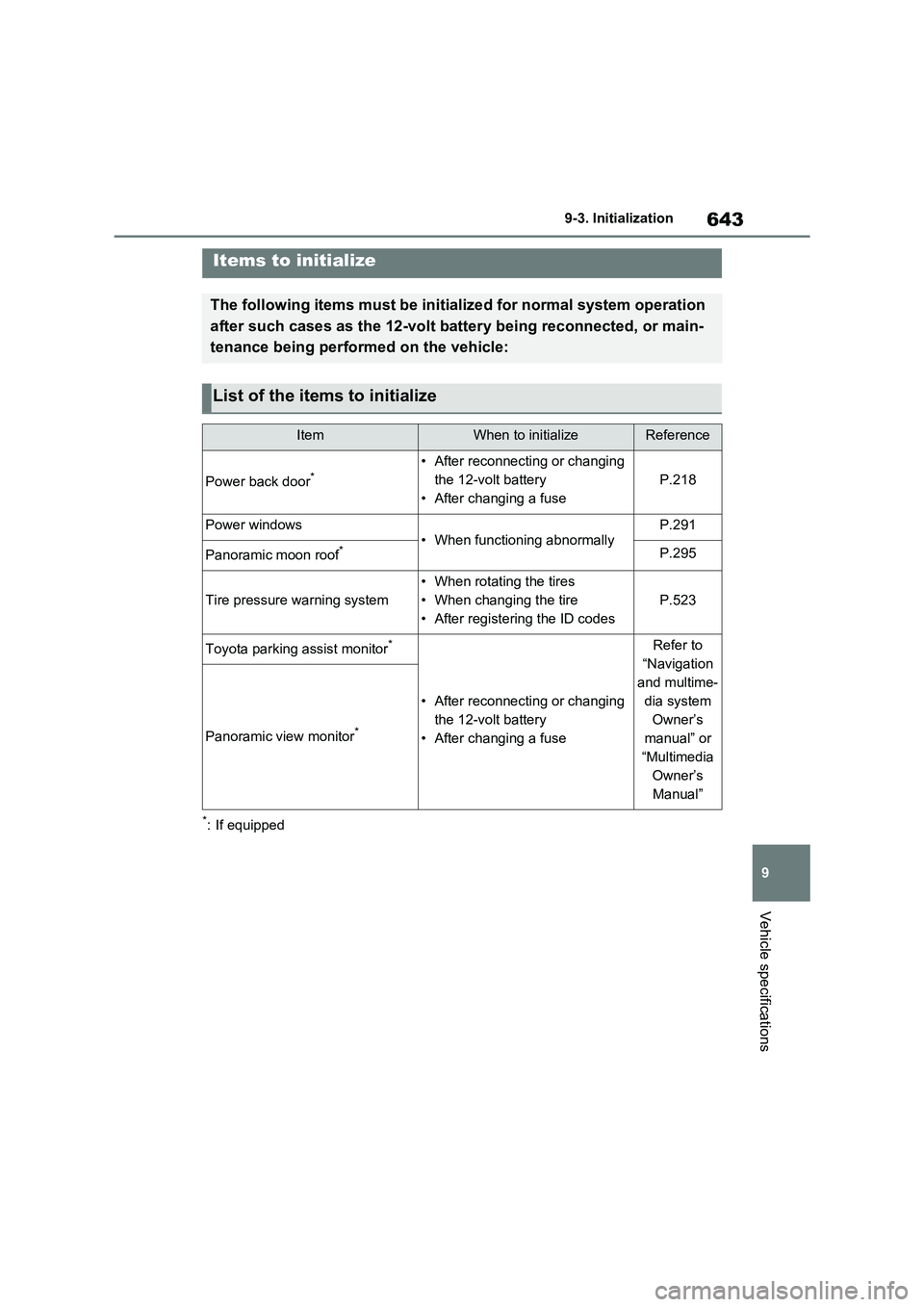

9-3. Initialization
Vehicle specifications
9-3.Initialization
*: If equipped
Items to initialize
The following items must be initialized for normal system opera tion
after such cases as the 12-volt battery being reconnected, or main-
tenance being performed on the vehicle:
List of the items to initialize
ItemWhen to initializeReference
Power back door*• After reconnecting or changing
the 12-volt battery
• After changing a fuse
P.218
Power windows• When functioning abnormallyP.291
Panoramic moon roof*P.295
Tire pressure warning system
• When rotating the tires
• When changing the tire
• After registering the ID codes
P.523
Toyota parking assist monitor*
• After reconnecting or changing
the 12-volt battery
• After changing a fuse
Refer to
“Navigation
and multime -
dia system
Owner’s
manual” or
“Multimedia
Owner’s
Manual”
Panoramic view monitor*

657Alphabetical Index
Vanity mirrors ............................. 476
Multi-information display
Audio system-linked display....... 184
BSM (Blind Spot Monitor) .......... 393
Changing the display ................. 180
Display contents......................... 179
Driving information display ......... 181
Driving support system information
display ..................................... 184
Dynamic radar cruise control with
full-speed range ....................... 376
Energy monitor/consumption screen
................................................. 195
Hybrid System Indicator ..... 177, 631
Language ................ ........... 188, 631
LTA (Lane-Tracing Assist) ......... 368
Menu icons................................. 180
Meter control switches ............... 180
Navigation system-l inked display184
Parking Support Brake function . 422
PCS (Pre-Collision System) ....... 355
Pop-up display ................... 188, 630
RSA (Road Sign Assist) ............. 372
Settings ...................................... 186
Suggestion function ........... 189, 631
Toyota parking assi st-sensor ..... 414
Units ........................................... 188
Vehicle information display ........ 185
Warning message display .......... 189
Warning messages .... ................ 578
“My Room Mode” ......................... 153
N
Normal mode ................................ 434
O
Odometer ...................................... 174
“ODO TRIP” switch .................... 178
“ODO TRIP” switch ...................... 178
Oil
Engine oil ...................................621
Opener
Back door ...........................212, 214
Fuel filler door ....... ..................... 343
Hood...........................................498
Outer foot lights
Replacing light bulbs ..................548
Wattage ......................................626
Outside rear view mirrors ............289
Adjusting and folding ..................289
BSM (Blind Spot Monitor)........... 393
Outside rear view mirror defoggers
.................................................454
Outside temperature display .......177
Overheating ...................................611
P
Paddle shift switches ................... 323
Panoramic moon roof
Jam protection function .............. 295
Operation ...................................294
Warning message ...................... 296
Parking assist sensors (Toyota park -
ing assist-sensor).......................414
Parking brake
Operation ...................................326
Parking brake engaged warning
buzzer ......................................328
Warning light ..............................574
Warning message ...................... 328
Parking Support Brake (PKSB) ... 420
Indicator .....................................171
Parking Support Brake function
(rear-crossing vehicles)............ 430
Parking Support Brake function
(static objects) ..........................424
Warning light ..............................572
PCS (Pre-Collis ion System)
Enabling/disabling the pre-collision
system......................................357
Function .....................................355

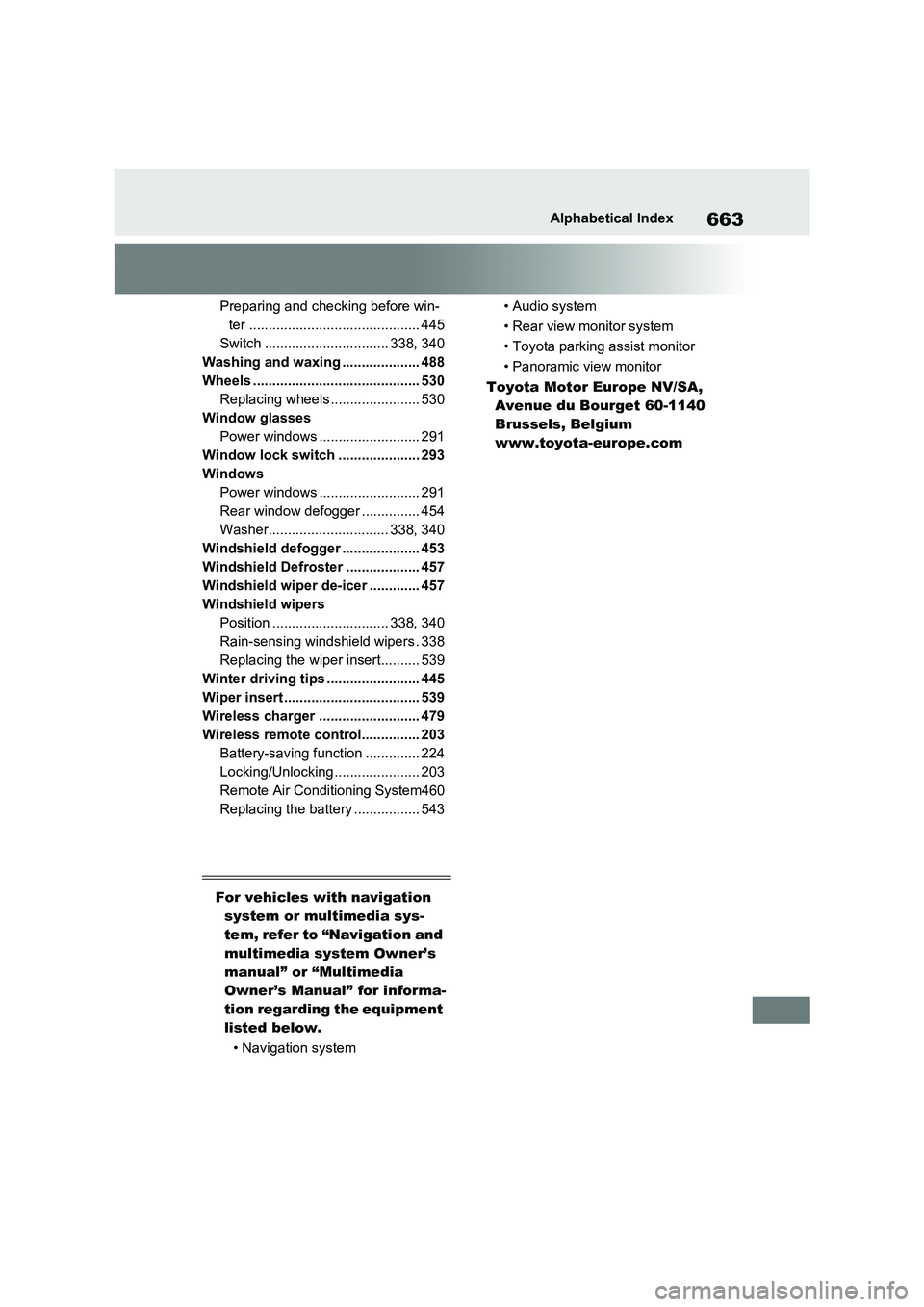

663Alphabetical Index
Preparing and checking before win-
ter ............................................ 445
Switch ................................ 338, 340
Washing and waxing .................... 488
Wheels ........................................... 530
Replacing wheels ....................... 530
Window glasses
Power windows .......................... 291
Window lock switch ..................... 293
Windows
Power windows .......................... 291
Rear window defogger ............... 454
Washer............................... 338, 340
Windshield defogger .................... 453
Windshield Defroster ................... 457
Windshield wiper de-icer ............. 457
Windshield wipers
Position .............................. 338, 340
Rain-sensing windshield wipers . 338
Replacing the wiper insert.......... 539
Winter driving tips ........................ 445
Wiper insert ................................... 539
Wireless charger .......................... 479
Wireless remote control............... 203
Battery-saving function .............. 224
Locking/Unlocking ...................... 203
Remote Air Conditioning System460
Replacing the battery ................. 543
For vehicles with navigation
system or multimedia sys-
tem, refer to “Navigation and
multimedia system Owner’s
manual” or “Multimedia
Owner’s Manual” for informa-
tion regarding the equipment
listed below.
• Navigation system
• Audio system
• Rear view monitor system
• Toyota parking assist monitor
• Panoramic view monitor
Toyota Motor Europe NV/SA,
Avenue du Bourget 60-1140
Brussels, Belgium
www.toyota-europe.com
