■If a warning message is displayed on the multi-information disp lay
A system may be temporarily unavai lable or there may be a malfunction in the sys-
tem.
●In the following situations, perform the actions specified in t he table. When the nor-
mal operating conditions are detec ted, the message will disappear and the system
will become operational.
If the message does not disappear, contact any authorized Toyot a retailer or Toyota
authorized repairer, or any reliable repairer.
SituationActions
When the area around a sensor is cov -
ered with dirt, mois ture (fogged up, cov-
ered with condensation, ice, etc.), or
other fore ign matter
To clean the part of the windshield in
front of the front camera, use the wind -
shield wipers or the windshield defogger
of the air conditioning system ( →P.453).
Page 491 of 666

489
7
7-1. Maintenance and care
Maintenance and care
■Front side windows water-repel -
lent coating (except quarter win - dow)
●The following precautions can extend the effectiveness of the water-repel -
lent coating.
• Remove any dirt, etc., from the front side windows regularly.
• Do not allow dirt and dust to accumu -
late on the windows for a long period. Clean the windows wit h a soft, damp
cloth as soon as possible.
• Do not use wax or glass cleaners that contain abrasives when cleaning the
windows.
• Do not use any metallic objects to remove condensation build up.
■Bumpers
Do not scrub with abrasive cleaners.
■Plated portions
If dirt cannot be removed, clean the parts as follows:
●Use a soft cloth dampened with an approximately 5% sol ution of neutral
detergent and water to clean the dirt
off.
●Wipe the surface with a dry, soft cloth
to remove any remaining moisture.
●To remove oily deposits, use alcohol
wet wipes or a similar product.
WARNING
■When washing the vehicle
Do not apply water to the inside of the
engine compartment. Doing so may
cause the electrical components, etc. to catch fire.
■When cleaning the windshield
Set the wiper switch to off.
If the wiper switch is in “AUTO”, the
wipers may operate unexpectedly in the following situations, and may
result in hands being caught or other
serious injuries and cause damage to the wiper blades.
Off
“AUTO”
●When the upper part of the wind -
shield where the raindrop sensor is
located is tou ched by hand
●When a wet rag or similar is held
close to the raindrop sensor
●If something bum ps against the
windshield
●If you directly touch the raindrop
sensor body or if something bumps
into the raindrop sensor
■Precautions regarding the
exhaust pipes
Exhaust gasses cause the exhaust
pipes to become quite hot.
When washing the vehicle, be careful not to touch the pipes until they have
cooled sufficiently, as touching hot
exhaust pipes can cause burns.
A
B
Page 541 of 666

539
7
7-3. Do-it-yours elf maintenance
Maintenance and care
■Windshield wiper blade
removal and installation
1 While holding the hook portion
of the wiper arm, first lift up
the driver side, and then lift up
the passenger side.
When returning the wiper arms to their original positions, first lower the pas -
senger side, and then lower the driver
side.
2 Lift the stopper using a flat-head
screwdriver as shown in the
illustration.
To prevent damage to the wiper arm,
protect the tip of t he screwdriver with a
NOTICE
●Carefully handle the removed filter
so that it will not be damaged. If the
filter is damaged, have it replaced with a new filter by any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
●Make sure to reinsta ll the filter and
cover to their original positions after
cleaning.
●Do not install anyth ing to the air
intake vent other than the exclusive filter for this vehicle or use the vehi -
cle without the filter installed.
■If “Maintenance required for
DCDC converter cooling parts
See Owner’s Manual” is shown on the multi-information display
If the vehicle is continuously driven
with the warning me ssage (indicating that the cooling performance/capac-
ity of the DC/DC converter may
become limited) d isplayed, the DC/DC converter may malfunction. If
the warning message is displayed,
clean the air intake vent immediately.
Wiper insert replace-
ment
When replacing the wiper
insert, perform the following
procedure to operate each
wiper.
Windshield wipers
A
Page 544 of 666

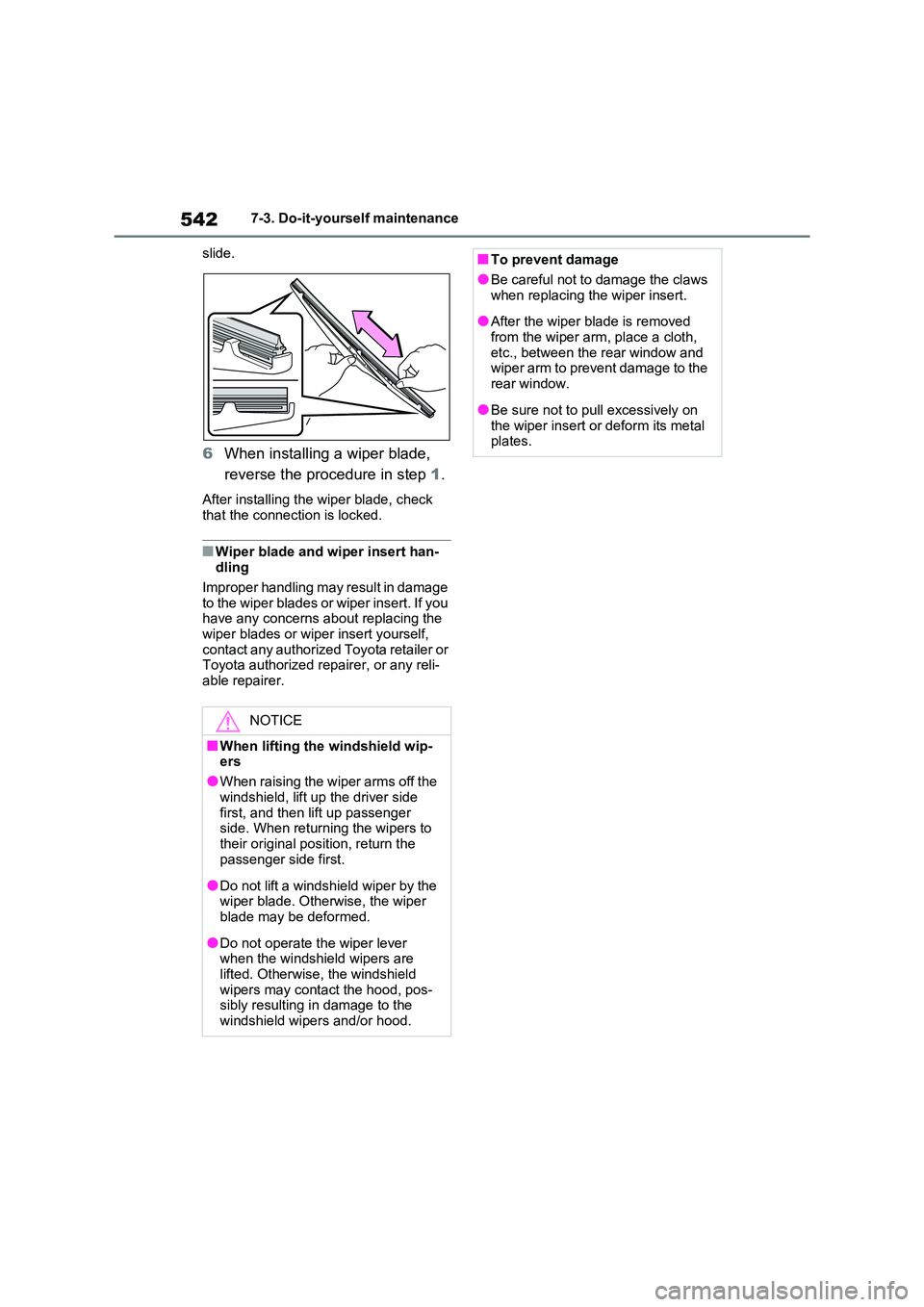

5427-3. Do-it-yourself maintenance
slide.
6 When installing a wiper blade,
reverse the procedure in step 1.
After installing the wiper blade, check
that the connection is locked.
■Wiper blade and wiper insert han- dling
Improper handling may result in damage
to the wiper blades or wiper insert. If you have any concerns about replacing the
wiper blades or wiper insert yourself,
contact any authorized Toyota retailer or Toyota authorized repairer, or any reli -
able repairer.
NOTICE
■When lifting the windshield wip -
ers
●When raising the wiper arms off the
windshield, lift up the driver side
first, and then lift up passenger side. When returning the wipers to
their original position, return the
passenger side first.
●Do not lift a windshield wiper by the
wiper blade. Otherwise, the wiper blade may be deformed.
●Do not operate t he wiper lever when the windshield wipers are
lifted. Otherwise, the windshield
wipers may contac t the hood, pos- sibly resulting in damage to the
windshield wipers and/or hood.
■To prevent damage
●Be careful not to damage the claws
when replacing the wiper insert.
●After the wiper blade is removed
from the wiper arm, place a cloth,
etc., between the rear window and wiper arm to prevent damage to the
rear window.
●Be sure not to pull excessively on
the wiper insert or deform its metal
plates.
Page 661 of 666
