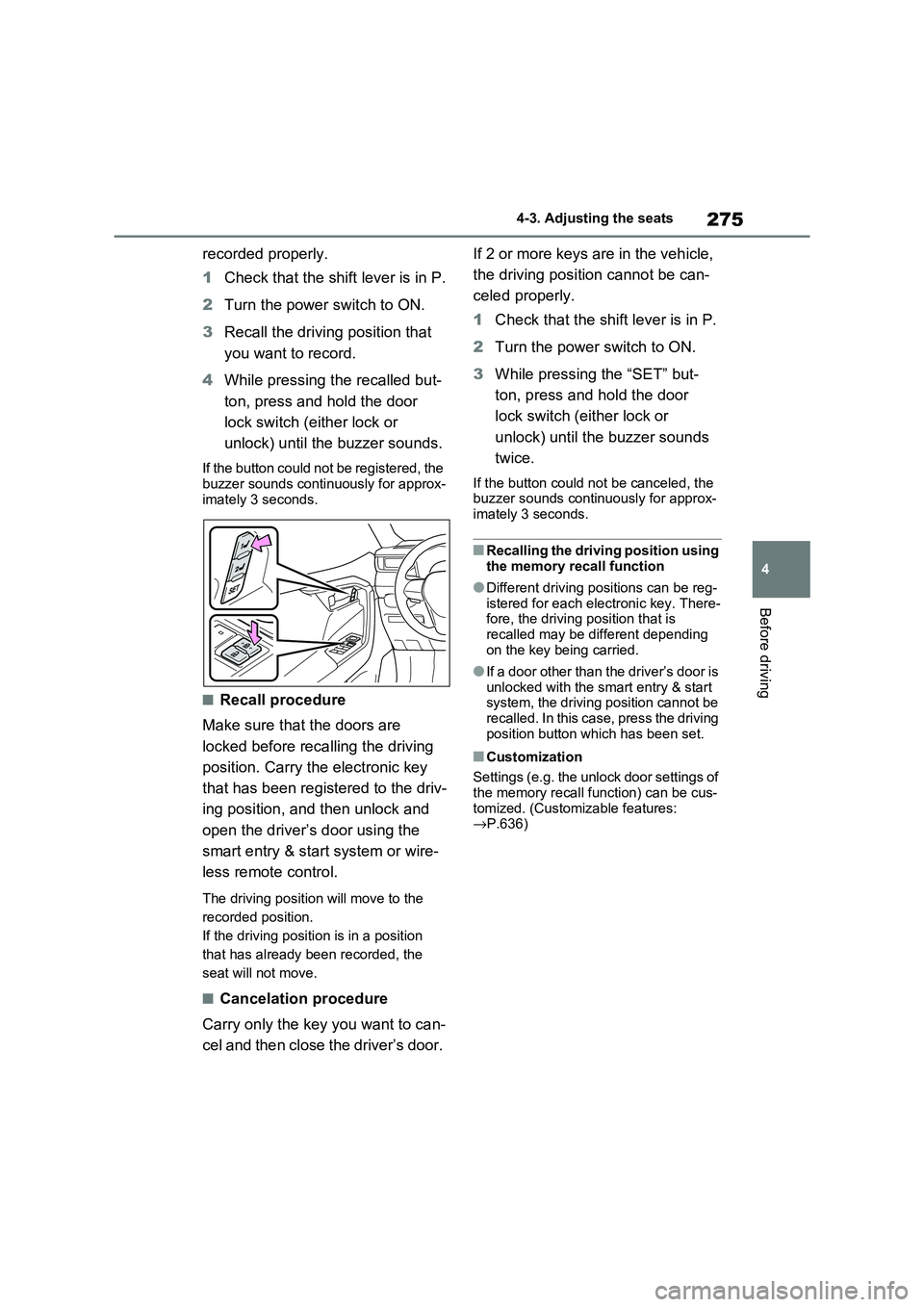

4-3. Adjusting the seats
Before driving
recorded properly.
1 Check that the shift lever is in P.
2 Turn the power switch to ON.
3 Recall the driving position that
you want to record.
4 While pressing the recalled but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer sounds.
If the button could not be registered, the
buzzer sounds continuously for approx -
imately 3 seconds.
■Recall procedure
Make sure that the doors are
locked before recalling the driving
position. Carry the electronic key
that has been registered to the driv -
ing position, and then unlock and
open the driver’s door using the
smart entry & start system or wire -
less remote control.
The driving position will move to the
recorded position.
If the driving position is in a position
that has already been recorded, the
seat will not move.
■Cancelation procedure
Carry only the key you want to can -
cel and then close the driver’s door.
If 2 or more keys are in the vehicle,
the driving positi on cannot be can-
celed properly.
1 Check that the shift lever is in P.
2 Turn the power switch to ON.
3 While pressing the “SET” but-
ton, press and hold the door
lock switch (either lock or
unlock) until the buzzer sounds
twice.
If the button could n ot be canceled, the buzzer sounds continuously for approx -
imately 3 seconds.
■Recalling the driving position using the memory recall function
●Different driving positions can be reg - istered for each ele ctronic key. There-
fore, the driving position that is
recalled may be different depending on the key being carried.
●If a door other than the driver’s door is unlocked with the sm art entry & start
system, the driving position cannot be
recalled. In this case, press the driving position button which has been set.
■Customization
Settings (e.g. the unlock door settings of
the memory recall function) can be cus -
tomized. (Customizable features: → P.636)

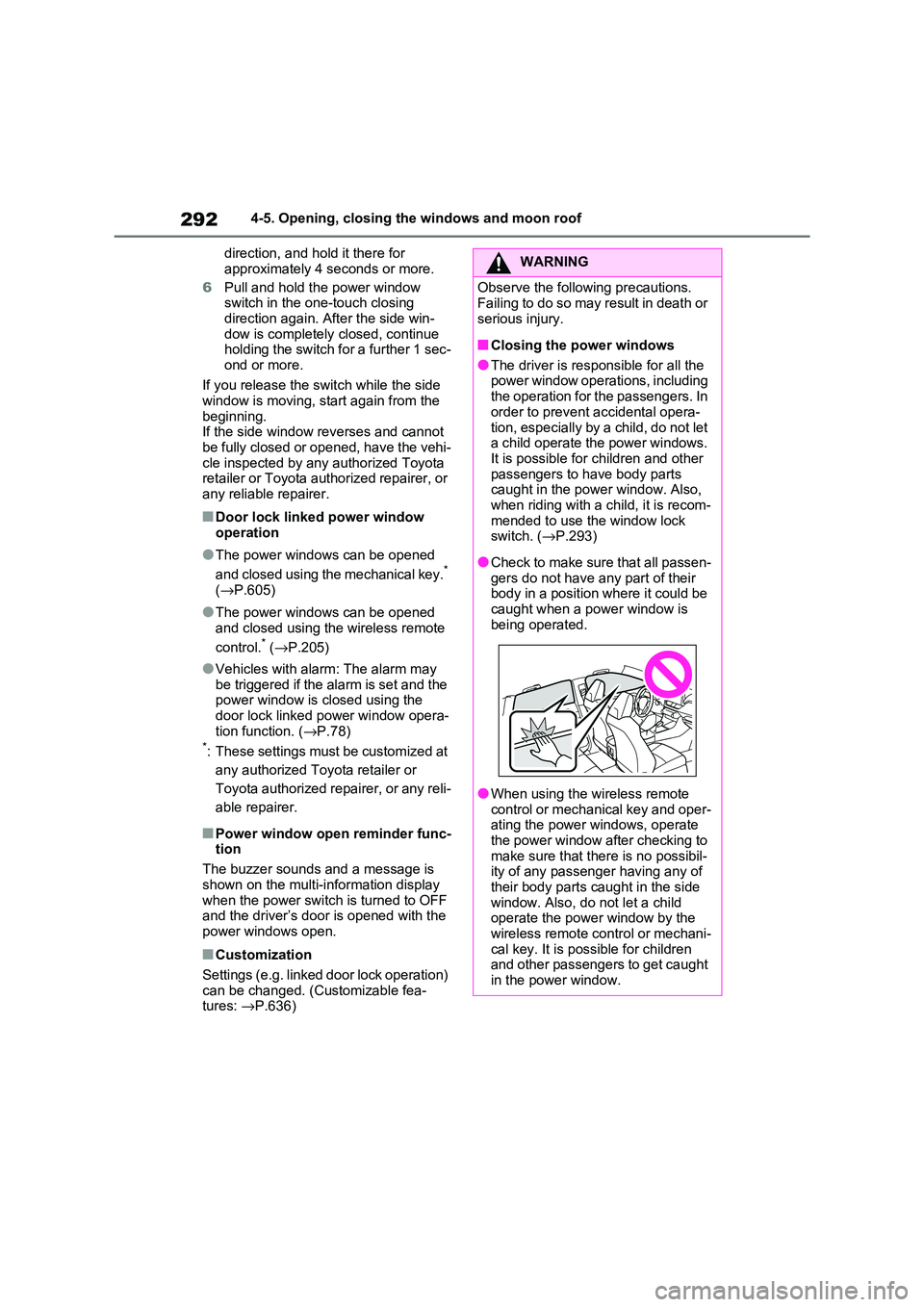

2924-5. Opening, closing the windows and moon roof
direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing
direction again. After the side win -
dow is completely closed, continue holding the switch for a further 1 sec -
ond or more.
If you release the switch while the side window is moving, start again from the
beginning.
If the side window reverses and cannot be fully closed or opened, have the vehi -
cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
■Door lock linked power window
operation
●The power windows can be opened
and closed using the mechanical key.*
( →P.605)
●The power windows can be opened
and closed using the wireless remote
control.* ( →P.205)
●Vehicles with alarm: The alarm may
be triggered if the alarm is set and the
power window is c losed using the door lock linked power window opera -
tion function. ( →P.78)*: These settings must be customized at
any authorized Toy ota retailer or
Toyota authorized repairer, or any reli -
able repairer.
■Power window open reminder func -
tion
The buzzer sounds and a message is
shown on the multi-in formation display
when the power switch is turned to OFF and the driver’s doo r is opened with the
power windows open.
■Customization
Settings (e.g. linked door lock operation)
can be changed. (Customizable fea - tures: →P.636)
WARNING
Observe the following precautions.
Failing to do so may result in death or
serious injury.
■Closing the power windows
●The driver is responsible for all the power window operations, including
the operation for the passengers. In
order to prevent accidental opera -
tion, especially by a child, do not let a child operate the power windows.
It is possible for children and other
passengers to have body parts caught in the power window. Also,
when riding with a child, it is recom -
mended to use the window lock switch. ( →P.293)
●Check to make sure that all passen- gers do not have any part of their
body in a position where it could be
caught when a po wer window is being operated.
●When using the wi reless remote control or mechanical key and oper -
ating the power windows, operate
the power window after checking to make sure that there is no possibil -
ity of any passenger having any of
their body parts caught in the side window. Also, do not let a child
operate the power window by the
wireless remote control or mechani - cal key. It is po ssible for children
and other passengers to get caught
in the power window.

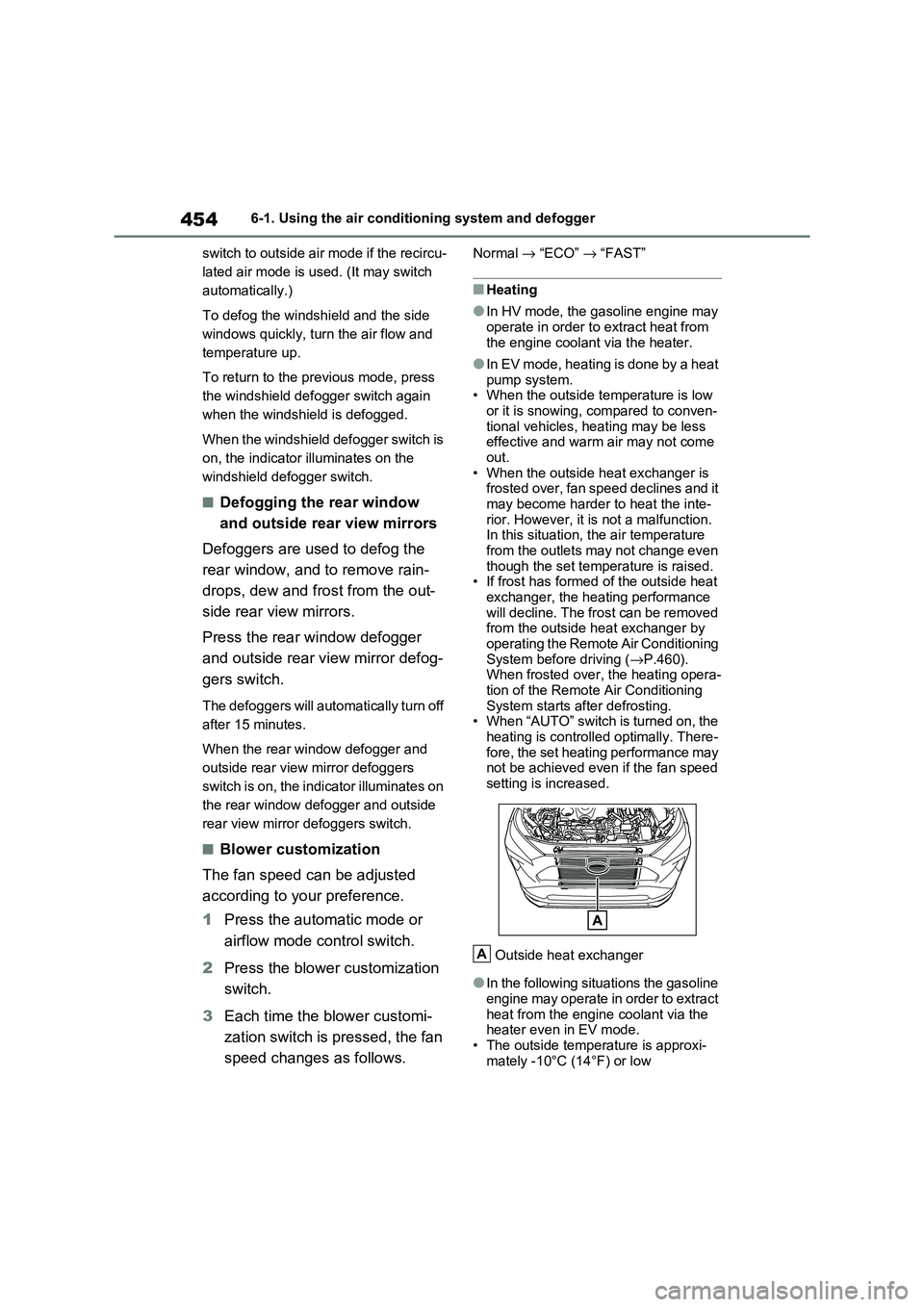

4546-1. Using the air conditioning system and defogger
switch to outside air mode if the recircu -
lated air mode is us ed. (It may switch
automatically.)
To defog the winds hield and the side
windows quickly, turn the air flow and
temperature up.
To return to the p revious mode, press
the windshield defogger switch again
when the windshi eld is defogged.
When the windshield defogger switch is
on, the indicator illuminates on the
windshield defogger switch.
■Defogging the rear window
and outside rear view mirrors
Defoggers are us ed to defog the
rear window, and to remove rain -
drops, dew and frost from the out -
side rear view mirrors.
Press the rear window defogger
and outside rear view mirror defog -
gers switch.
The defoggers will automatically turn off
after 15 minutes.
When the rear window defogger and
outside rear view mirror defoggers
switch is on, the indicator illuminates on
the rear window defogger and outside
rear view mirror defoggers switch.
■Blower customization
The fan speed can be adjusted
according to your preference.
1 Press the automatic mode or
airflow mode control switch.
2 Press the blower customization
switch.
3 Each time the blower customi-
zation switch is pressed, the fan
speed changes as follows.
Normal → “ECO” → “FAST”
■Heating
●In HV mode, the gasoline engine may
operate in order to extract heat from the engine coolant via the heater.
●In EV mode, heating is done by a heat pump system.
• When the outside t emperature is low
or it is snowing, compared to conven - tional vehicles, heating may be less
effective and warm air may not come
out. • When the outside heat exchanger is
frosted over, fan speed declines and it
may become harder to heat the inte- rior. However, it is not a malfunction.
In this situat ion, the air temperature
from the outlets may not change even though the set tem perature is raised.
• If frost has formed of the outside heat
exchanger, the heating performance will decline. The frost can be removed
from the outside heat exchanger by
operating the Remote Air Conditioning System before driving ( →P.460).
When frosted over, the heating opera -
tion of the Remote Air Conditioning System starts after defrosting.
• When “AUTO” switch is turned on, the
heating is controlle d optimally. There- fore, the set heating performance may
not be achieved even if the fan speed
setting is increased.
Outside heat exchanger
●In the following situations the gasoline
engine may operate in order to extract heat from the engine coolant via the
heater even in EV mode.
• The outside temperature is approxi -
mately -10°C (14°F) or low
A

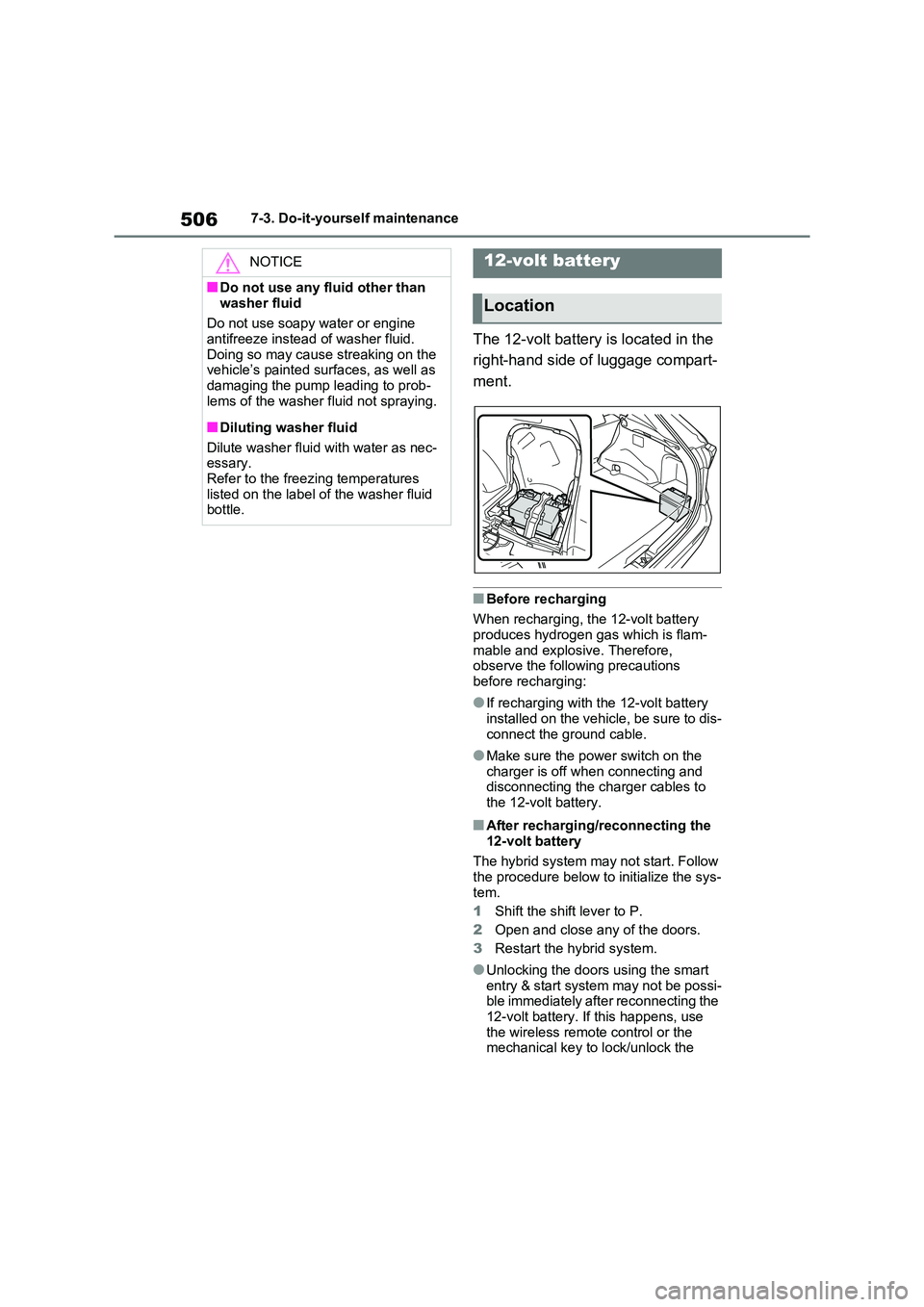

5067-3. Do-it-yourself maintenance
The 12-volt battery is located in the
right-hand side of luggage compart -
ment.
■Before recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-
mable and explosive. Therefore,
observe the following precautions before recharging:
●If recharging with the 12-volt battery installed on the vehicle, be sure to dis -
connect the ground cable.
●Make sure the power switch on the
charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
■After recharging/reconnecting the
12-volt battery
The hybrid system may not start. Follow the procedure below to initialize the sys-
tem.
1 Shift the shift lever to P.
2 Open and close any of the doors.
3 Restart the hybrid system.
●Unlocking the doors using the smart entry & start system may not be possi -
ble immediately after reconnecting the
12-volt battery. If this happens, use the wireless remote control or the
mechanical key to lock/unlock the
NOTICE
■Do not use any fluid other than
washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.
Doing so may cause streaking on the
vehicle’s painted sur faces, as well as damaging the pump leading to prob -
lems of the washer fluid not spraying.
■Diluting washer fluid
Dilute washer fluid with water as nec-
essary.
Refer to the freezing temperatures listed on the label of the washer fluid
bottle.
12-volt battery
Location

543
7

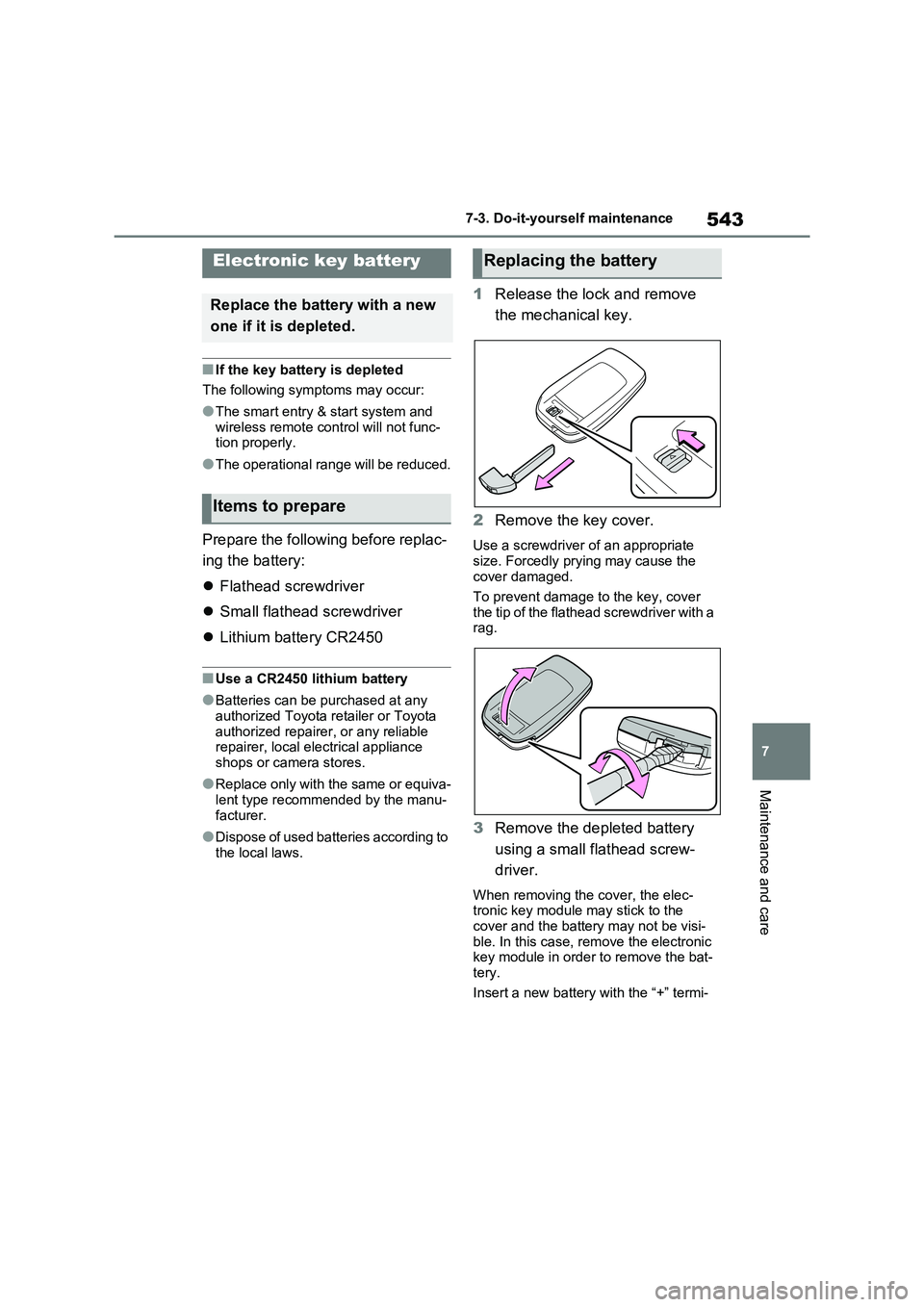

7-3. Do-it-yours elf maintenance
Maintenance and care
■If the key battery is depleted
The following symptoms may occur:
●The smart entry & start system and
wireless remote control will not func - tion properly.
●The operational range will be reduced.
Prepare the following before replac -
ing the battery:
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2450
■Use a CR2450 lithium battery
●Batteries can be purchased at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable repairer, local electrical appliance
shops or camera stores.
●Replace only with the same or equiva -
lent type recomme nded by the manu-
facturer.
●Dispose of used batteries according to
the local laws.
1 Release the lock and remove
the mechanical key.
2 Remove the key cover.
Use a screwdriver of an appropriate
size. Forcedly prying may cause the cover damaged.
To prevent damage to the key, cover
the tip of the flathead screwdriver with a rag.
3 Remove the depleted battery
using a small flathead screw -
driver.
When removing the cover, the elec - tronic key module may stick to the
cover and the batt ery may not be visi-
ble. In this case, rem ove the electronic key module in order to remove the bat -
tery.
Insert a new battery with the “+” termi -
Electronic key battery
Replace the battery with a new
one if it is depleted.
Items to prepare
Replacing the battery

6088-2. Steps to take in an emergency
minutes to recharge the 12-volt
battery of your vehicle.
6 Open and close any of the doors
of your vehicle with the power
switch off.
7 Maintain the engine speed of
the second vehicle and start the
hybrid system of your vehicle by
turning the power switch to ON.
8 Make sure the “READY” indica-
tor comes on. If the indicator
light does not come on, contact
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
9 Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were con -
nected.
10 Close the exclusive jump start-
ing terminal cover, and reinstall
the fuse box cover to its original
position.
Once the hybrid system starts,
have the vehicle inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
■Starting the hybrid system when
the 12-volt battery is discharged
The hybrid system c annot be started by push-starting.
■To prevent 12-volt battery dis -
charge
●Turn off the headlights and the audio
system while the hybrid system is off.
●Turn off any unnecessary electrical
components when the vehicle is run - ning at a low speed for an extended
period, such as in heavy traffic.
■When the 12-volt battery is
removed or discharged
●Information stored in the ECU is
cleared. When the 12 -volt battery is depleted, have the vehicle inspected
at any authorized Toyota retailer or
Toyota authorized repairer, or any reli - able repairer.
●Some systems may r equire initializa- tion. ( →P.643)
■When removing the 12-volt battery
terminals
When the 12-volt batte ry terminals are removed, the in formation stored in the
ECU is cleared. Before removing the 12-
volt battery termi nals, contact any authorized Toyota r etailer or Toyota
authorized repairer, or any reliable
repairer.
■Charging the 12-volt battery
The electricity stor ed in the 12-volt bat-
tery will discharge gr adually even when
the vehicle is not in use, due to natural discharge and the dr aining effects of
certain electrical appliances. If the vehi -
cle is left for a long time, the 12-volt bat- tery may discharge, and the hybrid
system may be unable t o start. (The 12-
volt battery recharges automatically while the hybrid syst em is operating.)
■When recharging or replacing the
12-volt battery
●In some cases, it may not be possible
to unlock the doors using the smart
entry & start system when the 12-volt
battery is discharged. Use the wire - less remote control o r the mechanical
key to lock or unlock the doors.
●The hybrid system may not start on
the first attempt after reinstalling the
12-volt battery. In t hat case, start the hybrid system in t he same manner as
when the electr onic key does not
operate properly ( →P.605). This is not

633
9

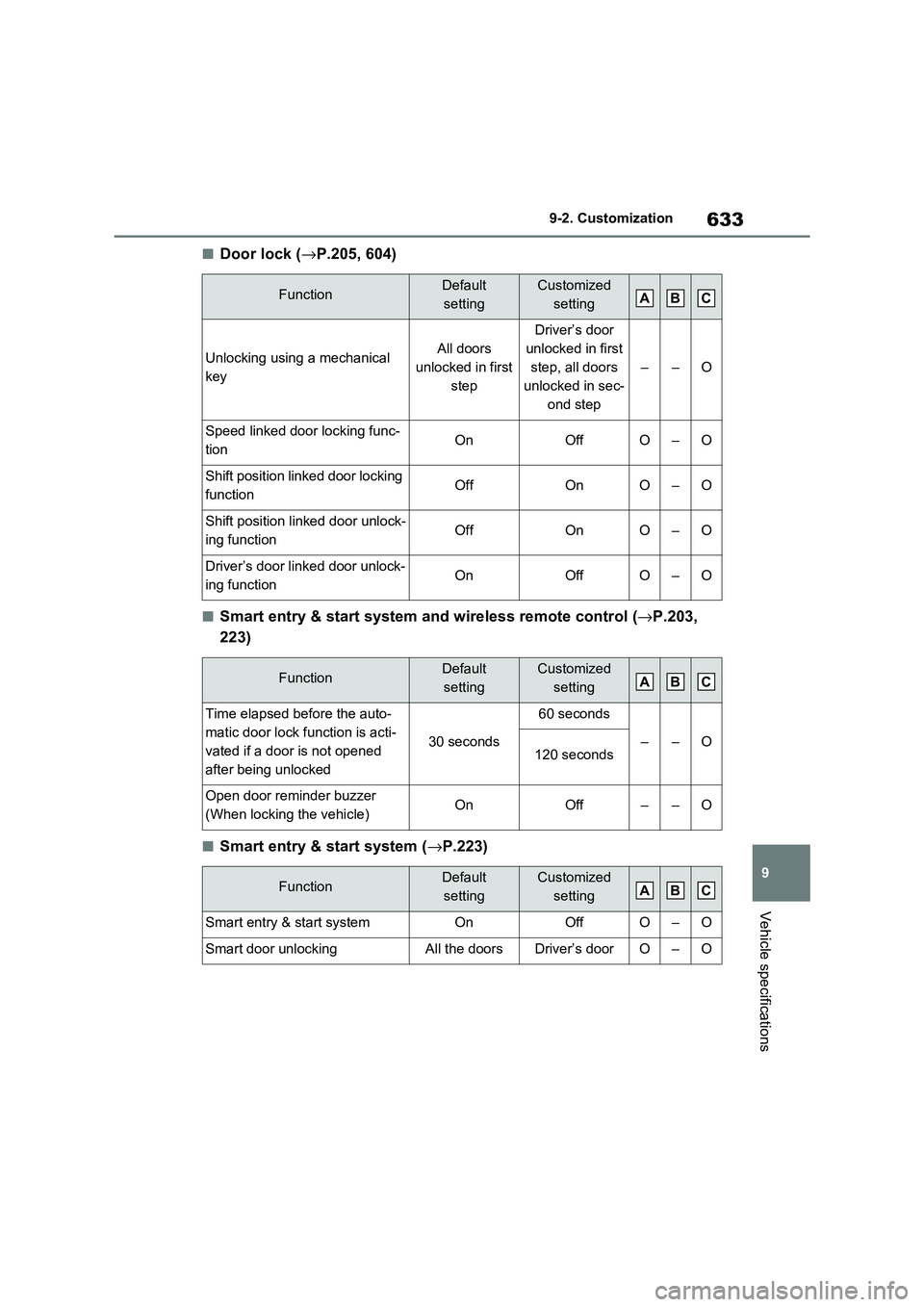

9-2. Customization
Vehicle specifications
■Door lock ( →P.205, 604)
■Smart entry & start system and wireless remote control (→P.203,
223)
■Smart entry & start system ( →P.223)
FunctionDefault
setting
Customized
setting
Unlocking using a mechanical
key
All doors
unlocked in first
step
Driver’s door
unlocked in first
step, all doors
unlocked in sec -
ond step
––O
Speed linked door locking func -
tionOnOffO–O
Shift position linked door locking
functionOffOnO–O
Shift position linked door unlock -
ing functionOffOnO–O
Driver’s door lin ked door unlock-
ing functionOnOffO–O
FunctionDefault
setting
Customized
setting
Time elapsed before the auto -
matic door lock function is acti-
vated if a door is not opened
after being unlocked
30 seconds
60 seconds
––O120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff––O
FunctionDefault
setting
Customized
setting
Smart entry & start systemOnOffO–O
Smart door unlockingAll the doorsDriver’s doorO–O
ABC
ABC
ABC

641
9
9-2. Customization
Vehicle specifications
■Remote Air Conditioning System ( →P.460)
■Illumination (→P.465)
*: If equipped
■Vehicle customization
●When the speed linked door locking function and shift position linked door locking function are both on, the d oor lock operates as follows.
• If the vehicle is started with all the doors locked, the speed linked door locking
function would not operate.
FunctionDefault
setting
Customized
setting
Operation using the “A/C” button
on the wireless remote control
Press and hold
(short)
Press once
––O
Press twice
Press and hold
(long)
Off
Stopping operation using the
“A/C” button on the wireless
remote control
Press twice
Press once
––O
Press and hold
(short)
Press and hold
(long)
Off
FunctionDefault
setting
Customized
setting
Time elapsed before the interior
lights turn off15 seconds
Off
O–O7.5 seconds
30 seconds
Operation after the power switch
is turned offOnOff––O
Operation when the doors are
unlockedOnOff––O
Operation when you approach
the vehicle with the electronic
key on your person
OnOff––O
Footwell lighting*OnOff––O
ABC
ABC

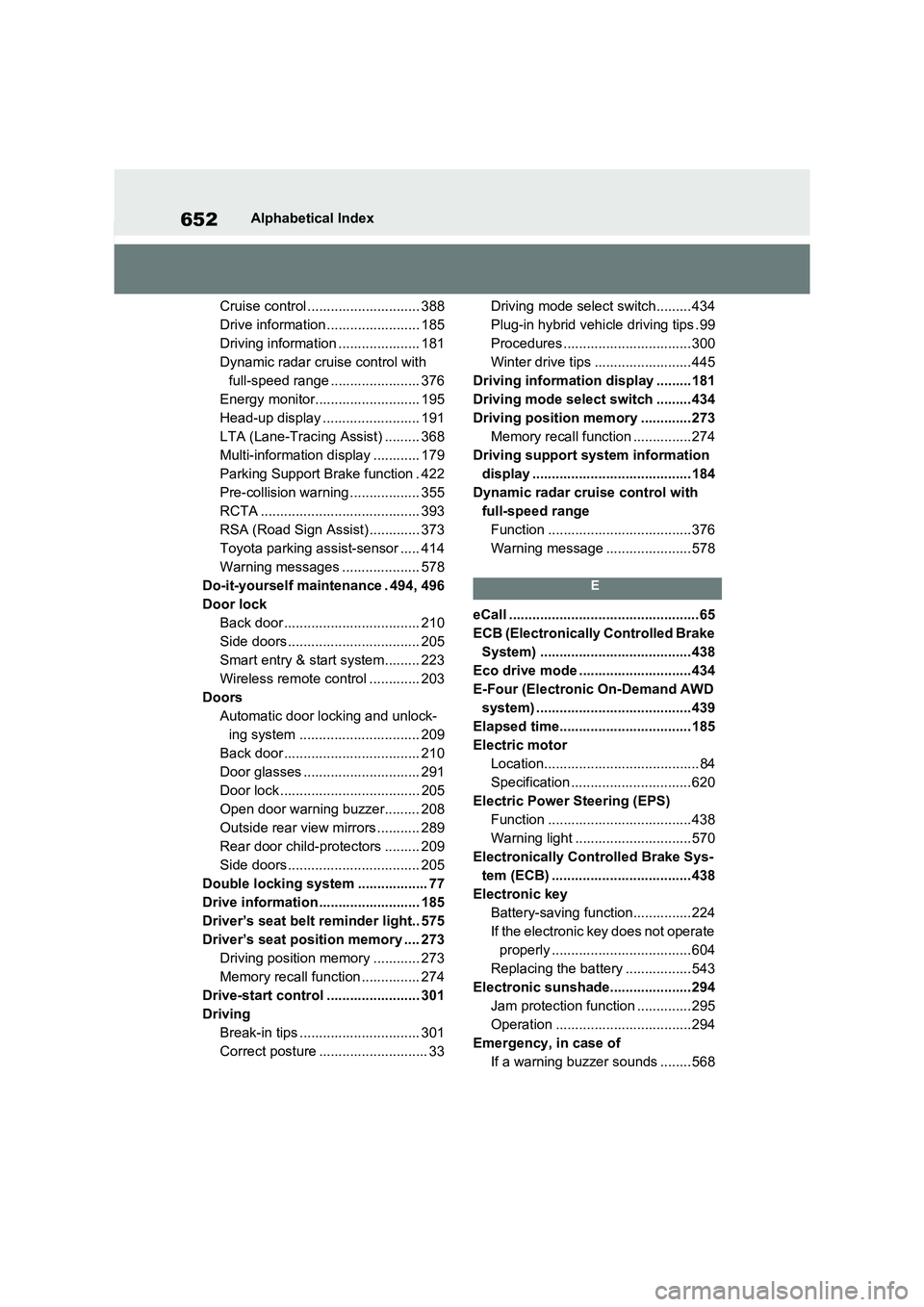

652Alphabetical Index
Cruise control ............................. 388
Drive information ........................ 185
Driving information ..................... 181
Dynamic radar cruise control with
full-speed range ....................... 376
Energy monitor........................... 195
Head-up display ...... ................... 191
LTA (Lane-Tracing Assist) ......... 368
Multi-information disp lay ............ 179
Parking Support Brake function . 422
Pre-collision warning . ................. 355
RCTA ......................................... 393
RSA (Road Sign Assist) ............. 373
Toyota parking assi st-sensor ..... 414
Warning messages .... ................ 578
Do-it-yourself maintenance . 494, 496
Door lock
Back door ................................... 210
Side doors .................................. 205
Smart entry & start system......... 223
Wireless remote con trol ............. 203
Doors
Automatic door locking and unlock -
ing system .... ........................... 209
Back door ................................... 210
Door glasses .............................. 291
Door lock .................................... 205
Open door warning buzzer......... 208
Outside rear view mirrors ........... 289
Rear door child-protectors ......... 209
Side doors .................................. 205
Double locking system .................. 77
Drive information .......................... 185
Driver’s seat belt r eminder light.. 575
Driver’s seat position memory .... 273
Driving position memory ............ 273
Memory recall function ............... 274
Drive-start control ........................ 301
Driving
Break-in tips ............................... 301
Correct posture ............................ 33
Driving mode select switch.........434
Plug-in hybrid vehicle driving tips . 99
Procedures ................................. 300
Winter drive tips ......................... 445
Driving information display .........181
Driving mode select switch .........434
Driving position memory .............273
Memory recall function ...............274
Driving support system information
display .........................................184
Dynamic radar cruise control with
full-speed range
Function .....................................376
Warning message ...................... 578
E
eCall ................................................. 65
ECB (Electronically Controlled Brake
System) ....................................... 438
Eco drive mode .............................434
E-Four (Electronic On-Demand AWD
system) .......... ..............................439
Elapsed time.................................. 185
Electric motor
Location........................................ 84
Specification ............................... 620
Electric Power Steering (EPS)
Function .....................................438
Warning light ..............................570
Electronically Cont rolled Brake Sys-
tem (ECB) .................................... 438
Electronic key
Battery-saving function...............224
If the electronic key does not operate
properly .................................... 604
Replacing the battery ................. 543
Electronic sunshade.....................294
Jam protection function .............. 295
Operation ...................................294
Emergency, in case of
If a warning buzzer sounds ........ 568

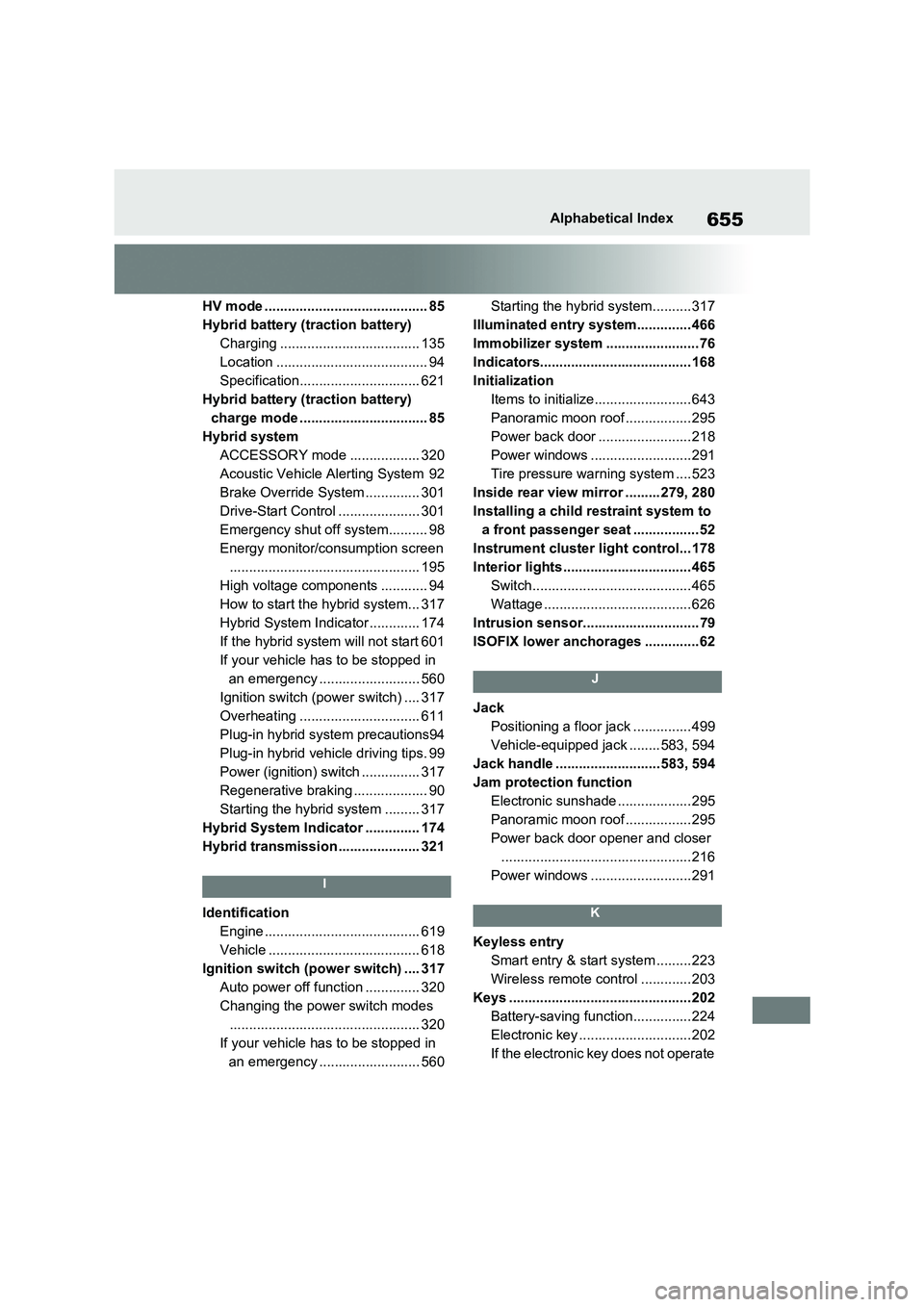

655Alphabetical Index
HV mode .......................................... 85
Hybrid battery ( traction battery)
Charging .................................... 135
Location ....................................... 94
Specification............................... 621
Hybrid battery ( traction battery)
charge mode ................................. 85
Hybrid system
ACCESSORY mode .................. 320
Acoustic Vehicle Alerting System 92
Brake Override System .............. 301
Drive-Start Control ..................... 301
Emergency shut off system.......... 98
Energy monitor/consumption screen
................................................. 195
High voltage components ............ 94
How to start the hybrid system... 317
Hybrid System Indicator ............. 174
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Ignition switch (power switch) .... 317
Overheating ............................... 611
Plug-in hybrid system precautions94
Plug-in hybrid vehicle driving tips. 99
Power (ignition) switch ............... 317
Regenerative brakin g ................... 90
Starting the hybrid system ......... 317
Hybrid System Indica tor .............. 174
Hybrid transmission ..................... 321
I
Identification
Engine ........................................ 619
Vehicle ....................................... 618
Ignition switch (pow er switch) .... 317
Auto power off function .............. 320
Changing the powe r switch modes
................................................. 320
If your vehicle has to be stopped in
an emergency .......................... 560
Starting the hybrid system..........317
Illuminated entry system.............. 466
Immobilizer system ........................ 76
Indicators....................................... 168
Initialization
Items to initialize......................... 643
Panoramic moon roof ................. 295
Power back door ........................218
Power windows ........ ..................291
Tire pressure war ning system ....523
Inside rear view mirror ......... 279, 280
Installing a child restraint system to
a front passenger seat ................. 52
Instrument cluster light control... 178
Interior lights ................................. 465
Switch.........................................465
Wattage ......................................626
Intrusion sensor.............................. 79
ISOFIX lower anchorages .............. 62
J
Jack
Positioning a floor jack ...............499
Vehicle-equipped jack ........ 583, 594
Jack handle ...........................583, 594
Jam protection function
Electronic sunshade ................... 295
Panoramic moon roof ................. 295
Power back door opener and closer
.................................................216
Power windows ........ ..................291
K
Keyless entry
Smart entry & star t system .........223
Wireless remote control .............203
Keys ............................................... 202
Battery-saving function...............224
Electronic key .............................202
If the electronic key does not operate
