1-1. For safe use
For safety and security
2 To release the seat belt, press
the release button .
■Emergency locking retractor (ELR)
The retractor will lo ck the belt during a
sudden stop or on impact. It may also
lock if you lean forw ard too quickly. A slow, easy motion will allow the belt to
extend so that you can move around
fully.
1 Push the seat belt shoulder
anchor down while pressing the
release button .
2 Push the seat belt shoulder
anchor up while pressing the
release button .
Move the height adjuster up and down
as needed until you hear a click.
The pretensioners help the seat
belts to quickly restrain the occu -
pants by retracting the seat belts
when the vehicle is subjected to
certain types of severe frontal or
side collision.
The pretensioners do not activate in the
event of a minor frontal impact, a minor
side impact, a rear impact or a vehicle
rollover.
■Replacing the belt after the preten- sioner has been activated
If the vehicle is invol ved in multiple colli-
sions, the pretensioner will activate for the first collision, but will not activate for
the second or subsequent collisions.
Adjusting the seat belt
shoulder anchor height
(front seats)
A
A
A
:$51,1*
■Adjustable shoulder anchor
Always make sure the shoulder belt is
positioned across the center of your shoulder. The belt should be kept
away from your neck, but not falling
off your shoulder. Failure to do so could reduce the amount of protection
in an accident and cause death or
serious injuries in the event of a sud -
den stop, sudden swerve or accident.
Seat belt pretensioners
(front and outboard rear
seats)

55
1
1-2. Child safety
For safety and security
child restraint systems. ( →P.58)
Check the selected child restraint
system together with the following
[Before confirming the compatibility
of each seating po sition with child
restraint systems].
■Before confirming the compat -
ibility of each seating position
with child restraint systems
1 Checking the child restraint sys-
tem standards.
Use a child restraint system that
conforms to UN(ECE) R44*1 or
UN(ECE) R129*1, 2.
The following approval mark is
displayed on child restraint sys -
tems which are conformed.
Check for an approval mark
attached to the child restraint
system.
Example of the dis played regulation
Number
UN(ECE) R44 approval mark*3
The weight range of the child
who is applic able for an
UN(ECE) R44 approval mark is
indicated.
UN(ECE) R129 approval mark*3
The height range of the child
who is applicable as well as
available weights for an
UN(ECE) R129 approval mark
is indicated.
2 Checking the category of the
child restraint system.
Check the approval mark of the
child restraint system for which
of the following categories the
child restraint system is suitable.
Also, if there a re any uncertain-
ties, check the user’s guide
included with the child restraint
system or contact the retailer of
the child restraint system.
• “universal”
• “semi-universal”
• “restricted”
• “vehicle specific”
*1: UN(ECE) R44 and UN(ECE) R129
are U.N. regulations for child
restraint systems.
*2: The child restraint systems men -
tioned in the table may not be avail -
able outside of the EU area.
*3: The displayed mark may differ
A
B

561-2. Child safety
depending on the product.
■Compatibility of each seating
position with child restraint
systems
Left-hand drive vehicles
Right-hand drive vehicles
*1: Move the front seat fully rearward. If
the passenger seat height can be
adjusted, move it to the upper most
position.
*2: Adjust the seatback angle to the
most upright position. When install -
ing a forward-facing child seat, if
there is a gap between the child seat
and the seatback, adjust the seat -
back angle until good contact is
achieved.
*1, 2, 3*4
*2, 3
*2, 3
*2, 3
Suitable for fixed with vehicle
seat belt “unive rsal” category
child restraint system.
Suitable for child restraint sys -
tems given on recommended
child restraint systems and
compatibility table ( →P.58).
Suitable for i-Size and ISOFIX
child restraint system.
Includes a top tether anchorage
point.
Never use a rear-facing child
restraint system on the front
passenger seat when the air -
bag manual on-off switch is on.

581-2. Child safety

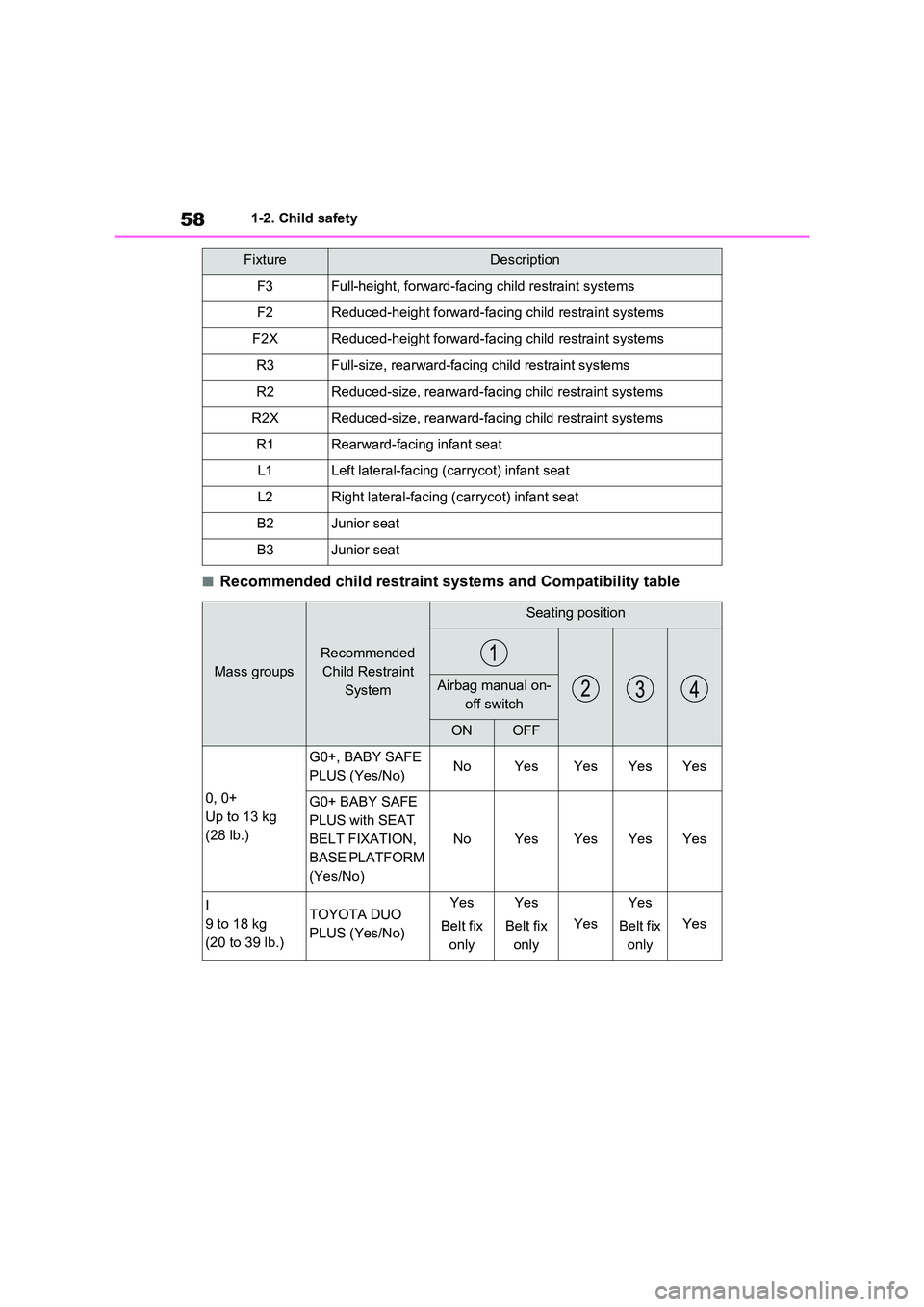

■Recommended child restraint systems and Compatibility table
FixtureDescription
F3Full-height, forward-facing child restraint systems
F2Reduced-height forward-facing child restraint systems
F2XReduced-height forward-facing child restraint systems
R3Full-size, rearward-facing child restraint systems
R2Reduced-size, rearward-facing child restraint systems
R2XReduced-size, rearward-facing child restraint systems
R1Rearward-facing infant seat
L1Left lateral-facing (carrycot) infant seat
L2Right lateral-facing (carrycot) infant seat
B2Junior seat
B3Junior seat
Mass groups
Recommended
Child Restraint
System
Seating position
Airbag manual on-
off switch
ONOFF
0, 0+
Up to 13 kg
(28 lb.)
G0+, BABY SAFE
PLUS (Yes/No)NoYesYesYesYes
G0+ BABY SAFE
PLUS with SEAT
BELT FIXATION,
BASE PLATFORM
(Yes/No)
NoYesYesYesYes
I
9 to 18 kg
(20 to 39 lb.)
TOYOTA DUO
PLUS (Yes/No)
Yes
Belt fix
only
Yes
Belt fix
only
Yes
Yes
Belt fix
only
Yes

97
2
2-1. Plug-in hybrid system
Plug-in hybrid system

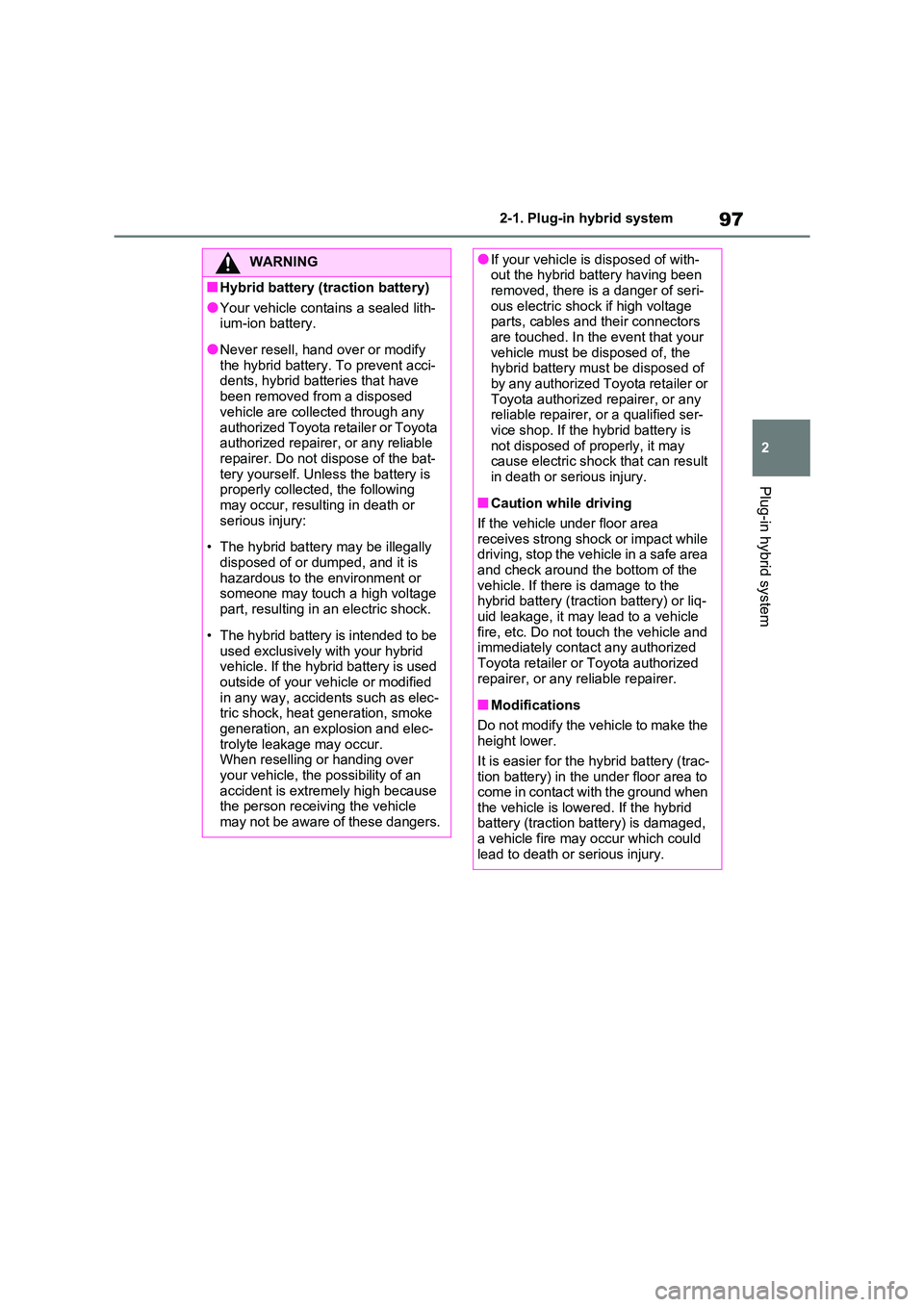

WARNING
■Hybrid battery ( traction battery)
●Your vehicle contains a sealed lith-
ium-ion battery.
●Never resell, hand over or modify
the hybrid battery . To prevent acci- dents, hybrid batteries that have
been removed from a disposed
vehicle are collected through any
authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer. Do not dispose of the bat -
tery yourself. Unless the battery is properly collected, the following
may occur, resulting in death or
serious injury:
• The hybrid battery may be illegally
disposed of or dumped, and it is hazardous to the environment or
someone may touch a high voltage
part, resulting in an electric shock.
• The hybrid battery is intended to be
used exclusively with your hybrid vehicle. If the hybrid battery is used
outside of your vehicle or modified
in any way, accidents such as elec - tric shock, heat generation, smoke
generation, an ex plosion and elec-
trolyte leakage may occur. When reselling or handing over
your vehicle, the possibility of an
accident is extremely high because the person receiving the vehicle
may not be aware of these dangers.
●If your vehicle is disposed of with- out the hybrid bat tery having been
removed, there is a danger of seri -
ous electric shock if high voltage parts, cables and their connectors
are touched. In t he event that your
vehicle must be disposed of, the hybrid battery mus t be disposed of
by any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer, or a qualified ser -
vice shop. If the hybrid battery is
not disposed of properly, it may cause electric shock that can result
in death or serious injury.
■Caution while driving
If the vehicle under floor area
receives strong shock or impact while driving, stop the vehicle in a safe area
and check around th e bottom of the
vehicle. If there is damage to the hybrid battery (traction battery) or liq -
uid leakage, it may lead to a vehicle
fire, etc. Do not touch the vehicle and immediately contac t any authorized
Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
■Modifications
Do not modify the v ehicle to make the height lower.
It is easier for the hybrid battery (trac -
tion battery) in the under floor area to come in contact with the ground when
the vehicle is lowered. If the hybrid
battery (traction bat tery) is damaged, a vehicle fire may occur which could
lead to death or serious injury.

2704-3. Adjusting the seats
4-3.Adjusting the seats

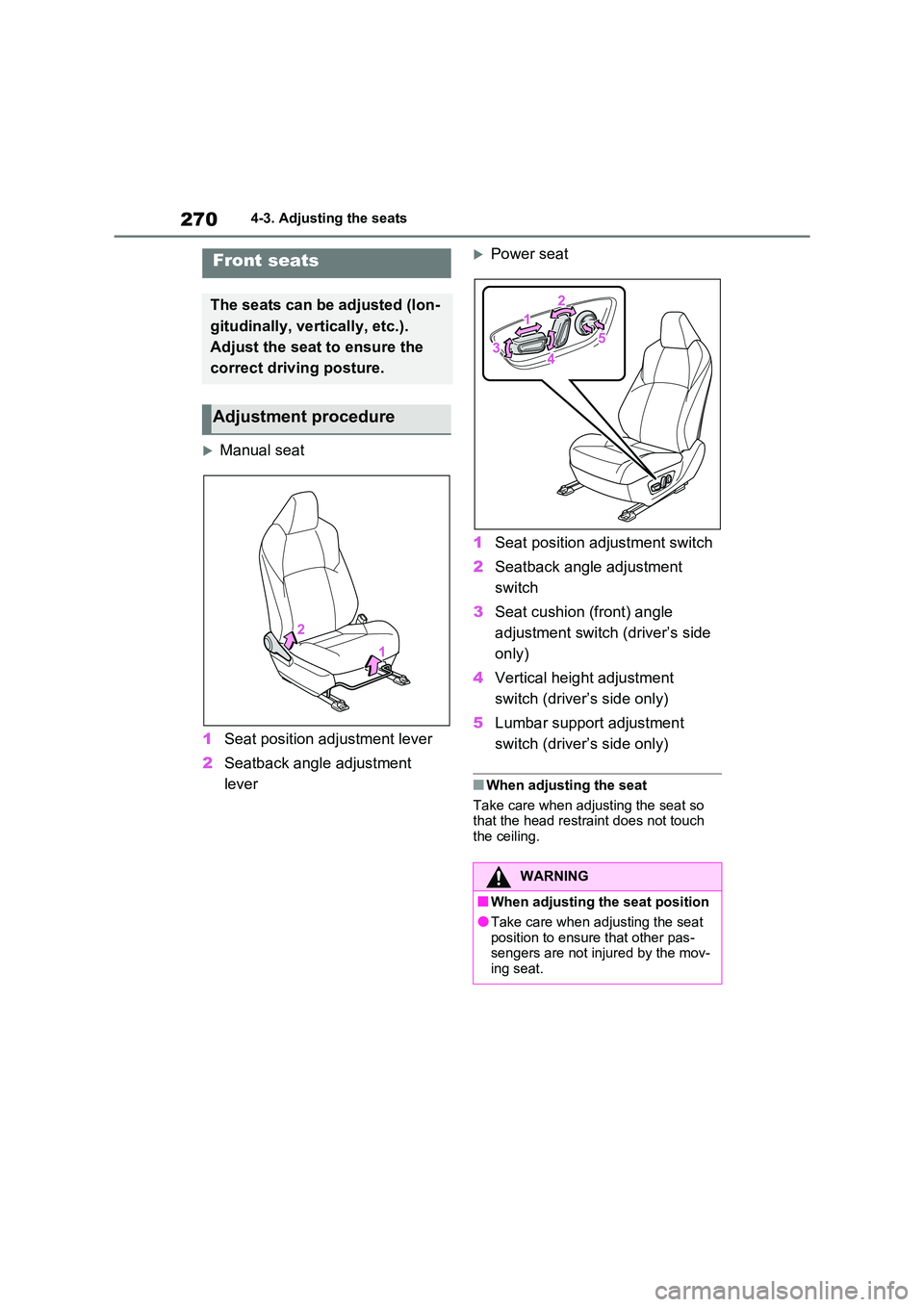

Manual seat
1 Seat position adjustment lever
2 Seatback angle adjustment
lever
Power seat
1 Seat position adjustment switch
2 Seatback angle adjustment
switch
3 Seat cushion (front) angle
adjustment switch (driver’s side
only)
4 Vertical height adjustment
switch (driver ’s side only)
5 Lumbar support adjustment
switch (driver ’s side only)
■When adjusting the seat
Take care when adjusting the seat so
that the head restra int does not touch
the ceiling.
Front seats
The seats can be adjusted (lon -
gitudinally, vertically, etc.).
Adjust the seat to ensure the
correct driving posture.
Adjustment procedure
WARNING
■When adjusting the seat position
●Take care when adjusting the seat
position to ensure that other pas -
sengers are not injured by the mov - ing seat.

2764-3. Adjusting the seats
■Front seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
■Rear seats
1 Up
Pull the head restraints up.
2Down
Push the head restraint down while
pressing the lock release button .
■Adjusting the height of the head
restraints (front seats)
Make sure that the h ead restraints are
adjusted so that the center of the head
restraint is closest to the top of your ears.
■Adjusting the rear seat head restraint
Always raise the head restraint one level
from the stowed position when using.
Pull the head res traint up while
pressing the lock release button
.
Head restraints
Head restraints are provided
for all seats.
WARNING
■Head restraint precautions
Observe the following precautions
regarding the head restraints. Failure to do so may result in death or
serious injury.
●Use the head restraints designed for each respective seat.
●Adjust the head restraints to the correct positio n at all times.
●After adjusting the head restraints, push down on them and make sure
they are locked in position.
●Do not drive with the head
restraints removed.
Vertical adjustment
A
5HPRYLQJWKHKHDG
UHVWUDLQWV
A
A

277
4
4-3. Adjusting the seats
Before driving
If the head restraint touches the ceiling,
making the removal difficult, change the
seat height or angle. ( →P.270)
Align the head restraint with the
installation holes and push it down
to the lock position.
Press and hold the lock release
button when lowering the head
restraint.

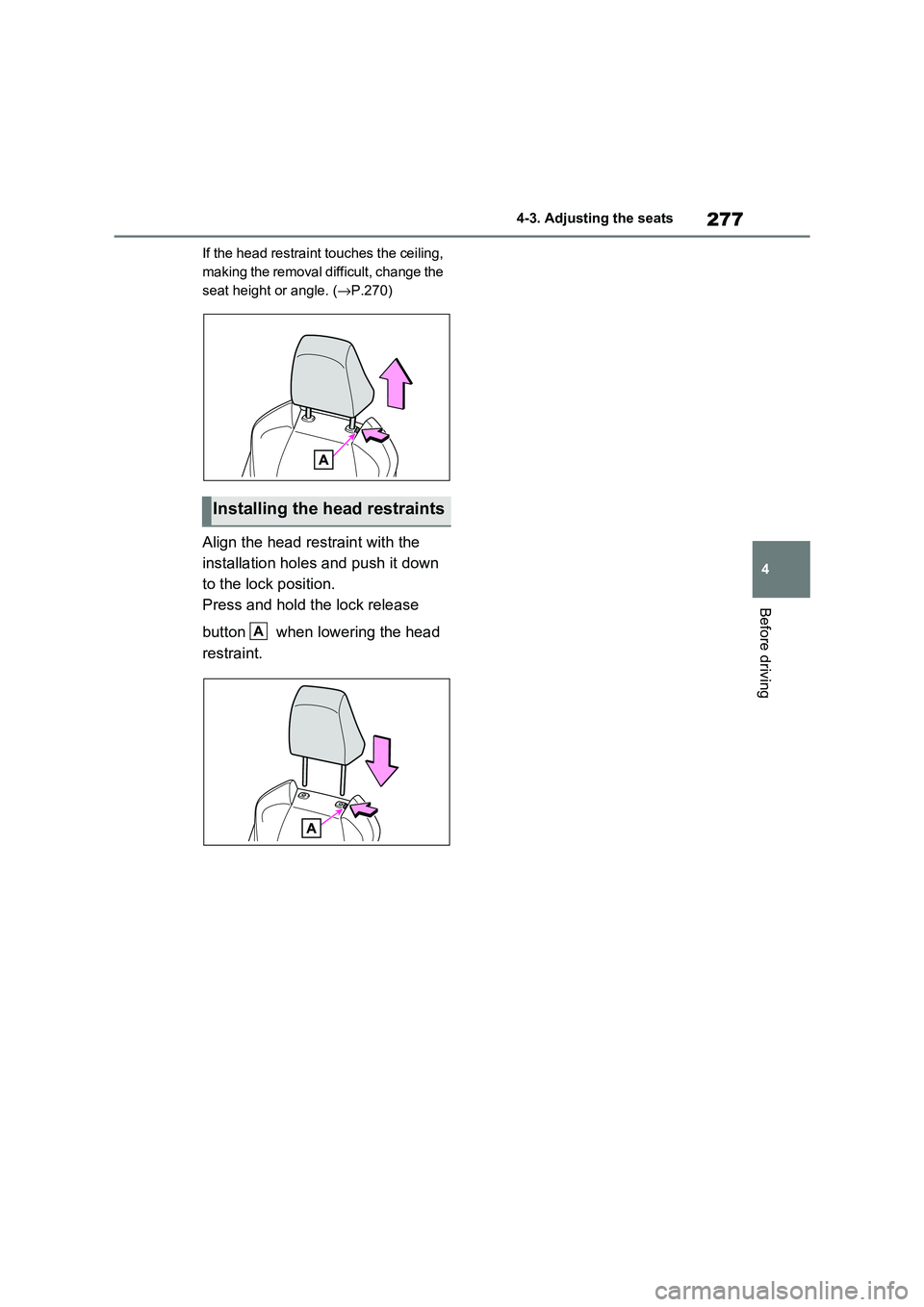

Installing the head restraints
A

279
4
4-4. Adjusting the steering wheel and mirrors
Before driving
*: If equipped
The height of the rear view mirror
can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.
Responding to the level of bright -
ness of the headlights of vehicles
behind, the reflecte d light is auto-
matically reduced.
Changing automat ic anti-glare
function mode on/off
When the automatic anti-glare function
is in ON mode, the indicator illumi-
nates.
The function will set to ON mode each
time the power swit ch is turned to ON.
Pressing the button turns the function
to OFF mode. (The indicator also
turns off.)
■To prevent sensor error
To ensure that the sensors operate
properly, do not touch or cover them.
Inside rear view mirror*
The rear view mirror’s position
can be adjusted to enable suf -
ficient confirmation of the rear
view.
Adjusting the height of rear
view mirror
WARNING
■Caution while driving
Do not adjust the position of the mir-
ror while driving. Doing so may lead to mishandling of
the vehicle and c ause an accident,
resulting in death or serious injury.
Anti-glare function
A
A

2824-4. Adjusting the steering wheel and mirrors
■Adjusting the mirror height
The height of the rear view mirror
can be adjusted to suit your driving
posture.
Change to optical mirror mode,
adjusting the height of the rear view
mirror by moving it up and down.
■Display settings (digital mir-
ror mode)
Settings of the display in the digital
mirror mode, on/off operation of the
automatic anti-glare function, etc.
can be changed.
1 Press the menu button.
The icons will be displayed.
2Press the menu button repeat-
edly and select the item you
want to adjust.
3 Press or to
change the setting.
The icons will disap pear if a button is
not operated for approximately 5 sec -
onds or more.
*: This is a function for the optical mirror
mode, however, the setting can also
be changed while using the digital
mirror mode.
■Enabling/disabling the auto -
matic anti-glare function (opti -
cal mirror mode)
The automatic anti-glare function in
the optical mirror mode can be
enabled/disabled. The setting can
be changed in both the digital mir -
Adjusting the mirror
IconsSettings
Select to adjust the brightness
of the display.
Select to adjus t the area dis-
played up/down.
Select to adjus t the area dis-
played to the left/right.
Select to adjust the angle of
the displayed image.
Select to zoom in/out the dis -
played image.
Select to enable/disable the
automatic anti-glare function.*
Responding to the brightness
of the headlights of vehicles
behind, the refl ected light is
automatically adjusted.
The automatic anti-glare func -
tion is enabled each time the
power switch is changed to
ON.
