3065-1. Before driving
NOTICE
In the event that you drive on a
flooded road and the vehicle is
flooded, be sure t o have any autho- rized Toyota retailer or Toyota autho -
rized repairer, or any reliable repairer
check the following:
●Brake function
●Changes in quantity and quality of
oil and fluid used for the engine, hybrid transaxle (front and rear),
etc.
●Lubricant condition for the bearings
and suspension joints (where possi -
ble), and the function of all joints, bearings, etc.
■When parking the vehicle
Always set the park ing brake, and
shift the shift lever to P. Failure to do
so may cause the vehicle to move or the vehicle may accelerate suddenly
if the accelerator pedal is accidentally
depressed.
Cargo and luggage
Take notice of the following
information about storage pre -
cautions, cargo capacity and
load.
WARNING
■Things that must not be carried
in the luggage compartment
The following things may cause a fire if loaded in the luggage compartment:
●Receptacles containing gasoline
●Aerosol cans
■Storage precautions
Observe the following precautions.
Failure to do so m ay prevent the ped-
als from being depressed properly, may block the driver’s vision, or may
result in items hitting the driver or
passengers, possibly causing an acci - dent.
●Stow cargo and l uggage in the lug-
gage compartment whenever pos - sible.
●Do not stack anything in the lug - gage compartment higher than the
seatbacks.
●When you fold down the rear seats,
long items should not be placed
directly behind the front seats.
●Never allow anyone to ride in the
luggage compartment. It is not designed for passengers. They
should ride in their seats with their
seat belts properl y fastened. Other- wise, they are much more likely to
suffer death or serious bodily injury,
in the event of sudden braking, sud - den swerving or an accident.

6189-1. Specifications
9-1.Specifications
*: Unladen vehicle
■Vehicle identification number
The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifi -
cation number for your Toyota. It is
used in registering the ownership of
your vehicle.
On some models, this number is
stamped on the top left of the
instrument panel.
Maintenance data (fuel, oil level, etc.)
Dimensions
Overall length*4600 mm (181.1 in.)
Overall width*1855 mm (73.0 in.)
Overall height*With18-inch wheels1685 mm (66.3 in.)
With19-inch wheels1690 mm (66.5 in.)
Wheelbase*2690 mm (105.9 in.)
Tread*
With18-inch wheelsFront1605 mm (63.2 in.)
Rear1625 mm (64.0 in.)
With19-inch wheelsFront1595 mm (62.8 in.)
Rear1615 mm (63.6 in.)
Weights
Gross vehicle mass2510 kg (5534 lb.)
Maximum permissible axle capacityFront1265 kg (2789 lb.)
Rear1315 kg (2899 lb.)
Drawbar load70 kg (154 lb.)
Towing capacityWithout brake750 kg (1653 lb.)
With brake1500 kg (3307 lb.)
Vehicle identification

621
9
9-1. Specifications
Vehicle specifications

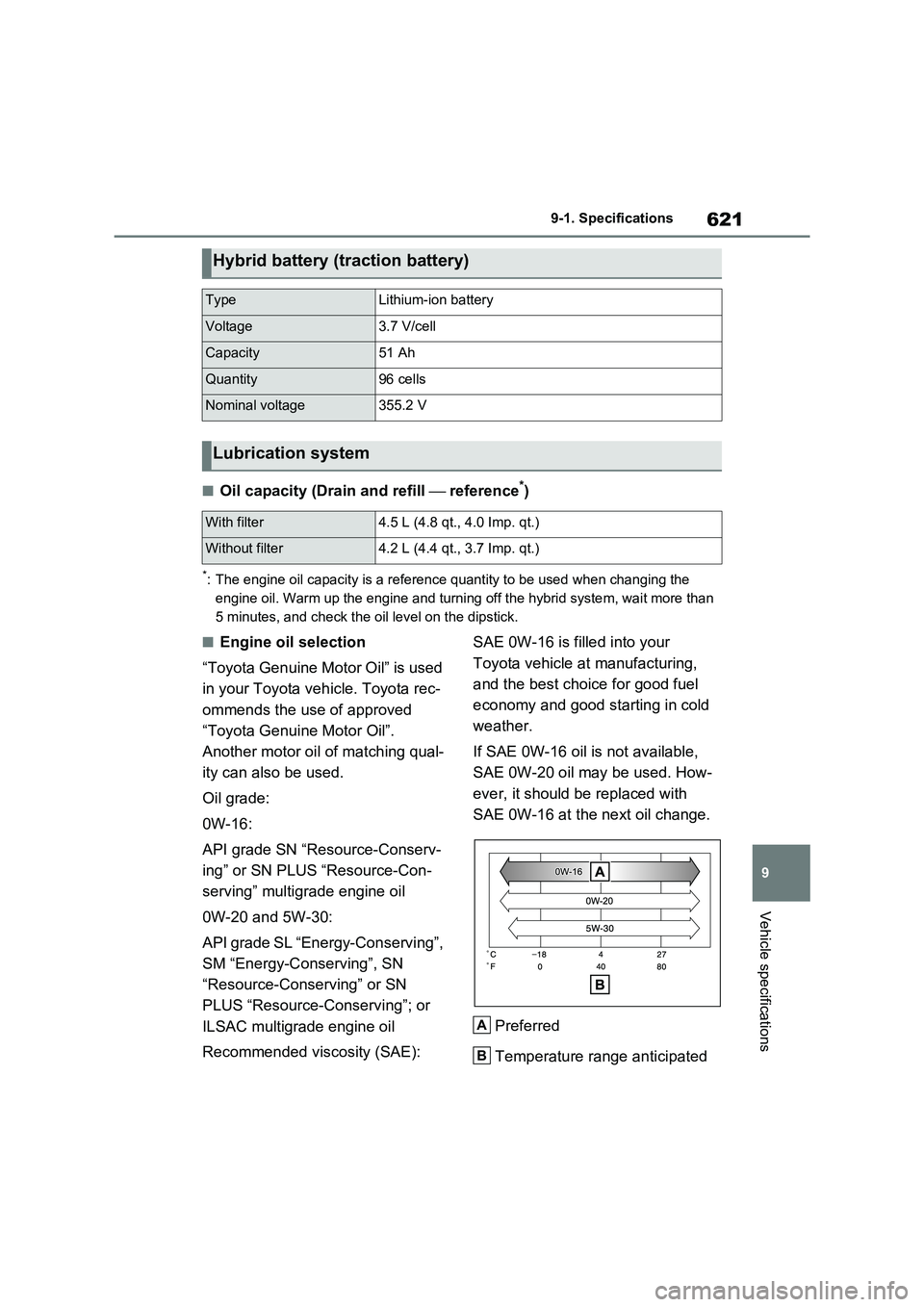

■Oil capacity (Drain and refill ⎯ reference*)
*: The engine oil capacity is a reference quantity to be used when changing the
engine oil. Warm up the engine and turning off the hybrid system, wait more than
5 minutes, and check the oi l level on the dipstick.
■Engine oil selection
“Toyota Genuine Motor Oil” is used
in your Toyota veh icle. Toyota rec-
ommends the use of approved
“Toyota Genuine Motor Oil”.
Another motor oil of matching qual -
ity can also be used.
Oil grade:
0W-16:
API grade SN “Resource-Conserv -
ing” or SN PLUS “Resource-Con -
serving” multigrade engine oil
0W-20 and 5W-30:
API grade SL “Energy-Conserving”,
SM “Energy-Conserving”, SN
“Resource-Conserving” or SN
PLUS “Resource-Conserving”; or
ILSAC multigrade engine oil
Recommended visc osity (SAE):
SAE 0W-16 is filled into your
Toyota vehicle at manufacturing,
and the best choice for good fuel
economy and good starting in cold
weather.
If SAE 0W-16 oil is not available,
SAE 0W-20 oil may be used. How -
ever, it should be replaced with
SAE 0W-16 at the next oil change.
Preferred
Temperature range anticipated
Hybrid battery (traction battery)
TypeLithium-ion battery
Voltage3.7 V/cell
Capacity51 Ah
Quantity96 cells
Nominal voltage355.2 V
Lubrication system
With filter4.5 L (4.8 qt., 4.0 Imp. qt.)
Without filter4.2 L (4.4 qt., 3.7 Imp. qt.)
A
B

6229-1. Specifications
before next oil change
Oil viscosity (0W-16 is explained
here as an example):
• The 0W in 0W-16 indicates the
characteristic o f the oil which
allows cold startability. Oils with
a lower value before the W allow
for easier starting of the engine
in cold weather.
• The 16 in 0W-16 indicates the
viscosity characteristic of the oil
when the oil is at high tempera -
ture. An oil with a higher viscos -
ity (one with a higher value) may
be better suited if the vehicle is
operated at high speeds, or
under extreme load conditions.
How to read oil container labels:
Either or both API registered marks
are added to some oil containers to
help you select the oil you should
use.
API Service Symbol
Top portion: “API SERVICE SN” means
the oil quality designation by American
Petroleum Institute (API).
Center porti on: “SAE 0W-16” means
the SAE viscosity grade.
Lower portion: “Resource-Conserving”
means that the oil has fuel-saving and
environmental protection capabilities.
ILSAC Certification Mark
The International Lubricant Specifica -
tion Advisory Committee (ILSAC) Certi -
fication Mark is displayed on the front of
the container.
*: The coolant capacity is t he quantity of reference.
If replacement is necessary, cont act any authorized Toyota retailer or Toyota
A
B
Cooling system
Capacity*
Gasoline
engine7.4 L (7.8 qt. , 6.5 Imp. qt.)
Power con-
trol unit2.0 L (2.1 qt. , 1.8 Imp. qt.)
Coolant type
Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based
non-silicate, non-amine , non-nitrite, and non-
borate coolant with long -life hybrid organic
acid technology
Do not use plain water alone.

653Alphabetical Index
If a warning light turns on ........... 568
If a warning message is displayed
................................................. 578
If the 12-volt batt ery is discharged
................................................. 606
If the electronic key does not operate
properly .................................... 604
If the fuel filler door cannot be
opened..................................... 603
If the hybrid system will not start 601
If the vehicle is trapped in rising
water ........................................ 561
If you have a flat tire........... 582, 593
If you lose your keys .................. 603
If you think something is wrong.. 566
If your vehicle becomes stuck .... 615
If your vehicle has to be stopped in
an emergency .......................... 560
If your vehicle needs to be towed
................................................. 563
If your vehicle overheats ............ 611
Emergency brake signal .............. 439
Emergency flashers ..................... 560
Emergency tire puncture repair kit
..................................................... 582
Energy monitor ............................. 195
Engine
Compartment ............................. 501
Exhaust gas precautions.............. 47
Hood .......................................... 498
How to start the hybrid system... 317
Identification number.................. 619
If the hybrid system will not start 601
If your vehicle has to be stopped in
an emergency .......................... 560
Overheating ............................... 611
Power switch .............................. 317
Engine coolant
Capacity ................ ..................... 622
Checking .................................... 503
High coolant temperature warning
light .......................................... 569
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
Engine coolant temperature gauge
..................................................... 174
Engine oil
Capacity .....................................621
Checking .................................... 501
Preparing and ch ecking before win-
ter ............................................. 445
Warning light ..............................569
EPS (Electric Power Steering)
Function .....................................438
Warning light ..............................570
EV/HV mode selection switch........ 86
EV driving range ...........................102
EV mode .......................................... 85
Exhaust gas precautions ............... 47
Extended Headlight Lighting system
..................................................... 333
F
Flat tire ...................................582, 593
Tire pressure war ning system ....511
Floor mats ....................................... 32
Fluid
Brake .......................................... 624
Hybrid transmission.................... 623
Rear differential ..........................624
Washer ....................................... 505
Fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Footwell lights............................... 465
Front fog lights
Replacing light bulbs ..................548
Switch.........................................337
Wattage ......................................626
Front passenger’s seat belt reminder

664

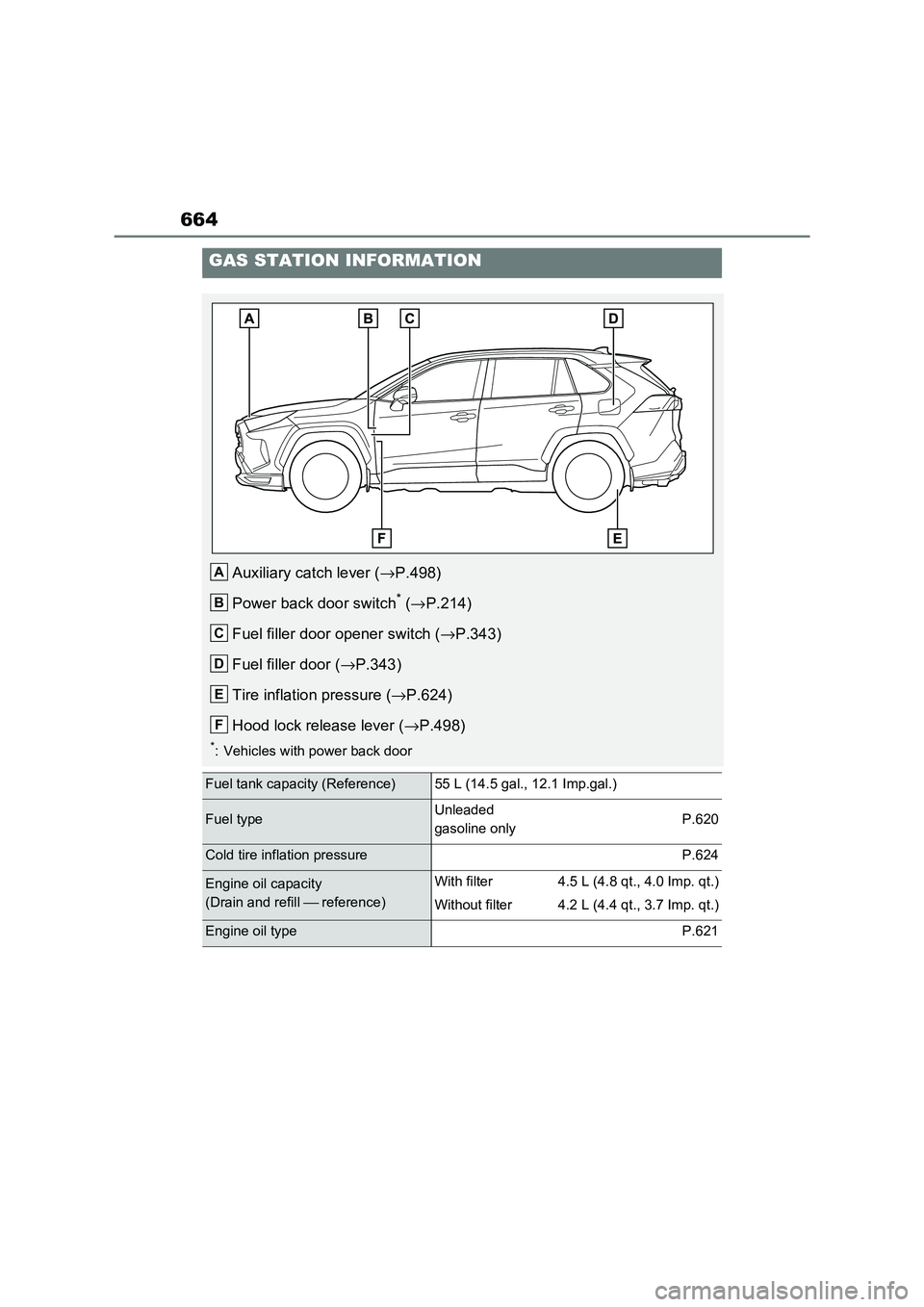

GAS STATION INFORMATION
Auxiliary catch lever (→P.498)
Power back door switch* ( →P.214)
Fuel filler door opener switch ( →P.343)
Fuel filler door ( →P.343)
Tire inflation pressure ( →P.624)
Hood lock release lever ( →P.498)
*: Vehicles with power back door
Fuel tank capacity (Reference)55 L (14.5 gal., 12.1 Imp.gal.)
Fuel typeUnleaded
gasoline onlyP.620
Cold tire inflation pressureP.624
Engine oil capacity
(Drain and refill ⎯ reference)
With filter
Without filter
4.5 L (4.8 qt., 4.0 Imp. qt.)
4.2 L (4.4 qt., 3.7 Imp. qt.)
Engine oil typeP.621
A
B
C
D
E
F
