5128-2. Steps to take in an emergency
QToyota parking assist-sensor OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QPKSB OFF indicator*
*: This light illuminates on the multi-information display.
Warning lightDetails/Actions
When a buzzer sounds:
Indicates a malfunction in the Toyota parking assist-
sensor function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
When a buzzer does not sound:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.373, 518)
Warning lightDetails/Actions
(If equipped)
If “Parking Support Brake Malfunction Visit Your
Dealer” is displayed on the multi-information display:
Indicates a malfunction in the PKSB (Parking Support
Brake) system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
If “Parking Assist Unavailable” is displayed on the
multi-information display:
Indicates that the system is temporarily unavailable,
possibly due to a sensor being dirty or covered with
ice, etc.
 Follow the instructions displayed on the multi-
information display. ( P.383, 518)

513
8
8-2. Steps to take in an emergency
When trouble arises

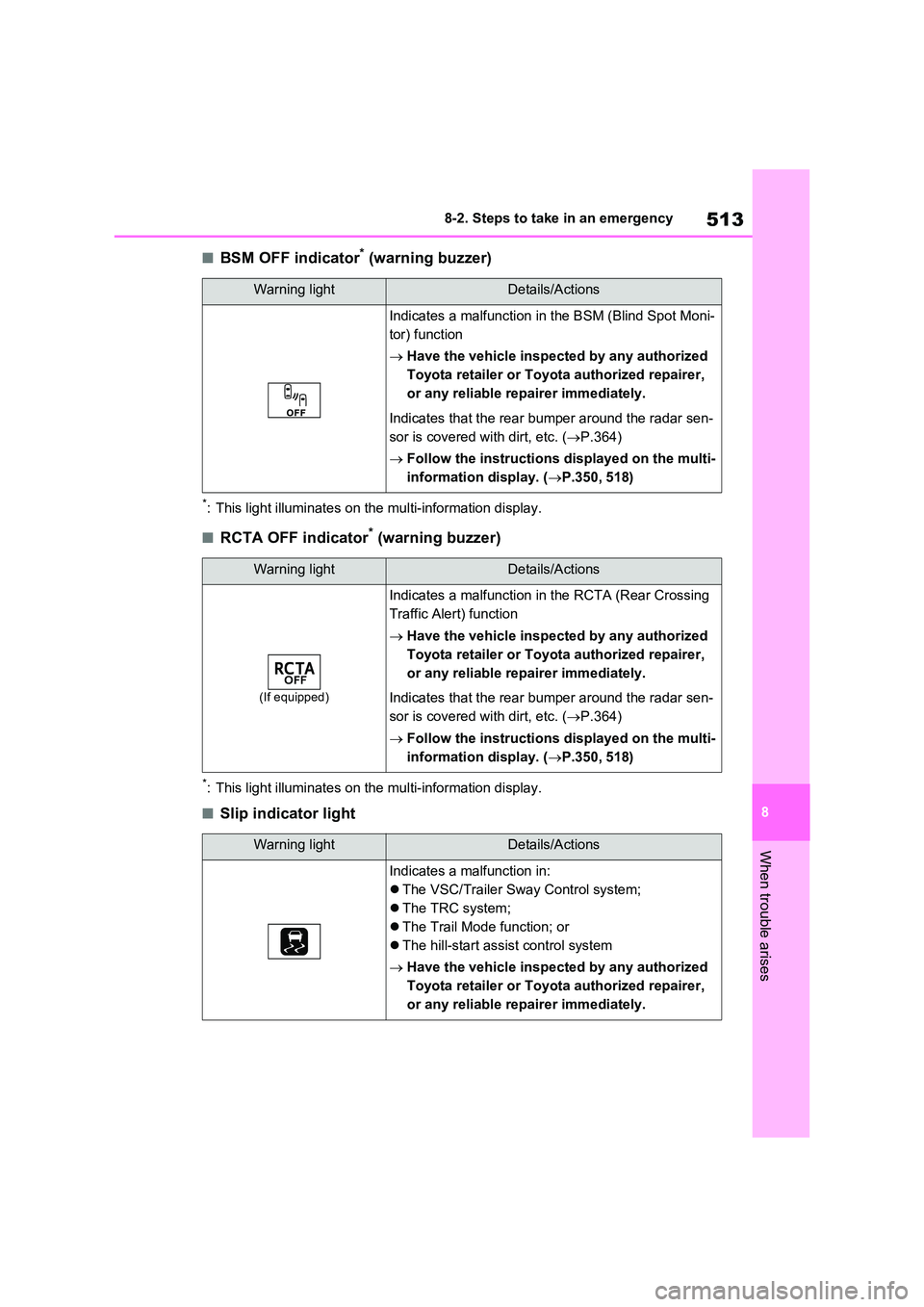

QBSM OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QRCTA OFF indicator* (warning buzzer)
*: This light illuminates on the multi-information display.
QSlip indicator light
Warning lightDetails/Actions
Indicates a malfunction in the BSM (Blind Spot Moni-
tor) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.364)
 Follow the instructions displayed on the multi-
information display. ( P.350, 518)
Warning lightDetails/Actions
(If equipped)
Indicates a malfunction in the RCTA (Rear Crossing
Traffic Alert) function
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Indicates that the rear bumper around the radar sen-
sor is covered with dirt, etc. ( P.364)
 Follow the instructions displayed on the multi-
information display. ( P.350, 518)
Warning lightDetails/Actions
Indicates a malfunction in:
 The VSC/Trailer Sway Control system;
 The TRC system;
 The Trail Mode function; or
 The hill-start assist control system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.

5148-2. Steps to take in an emergency

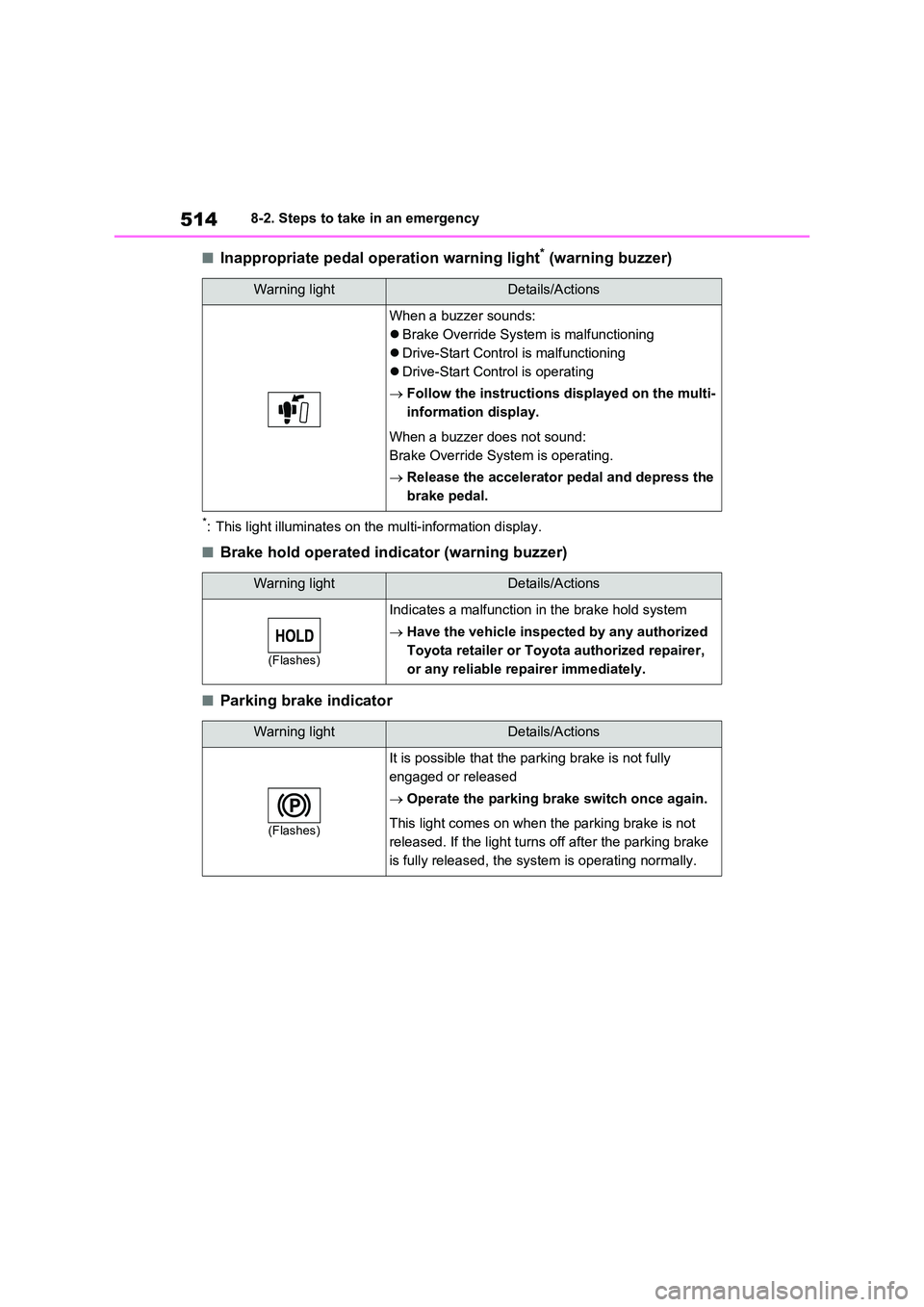

QInappropriate pedal operation warning light* (warning buzzer)
*: This light illuminates on the multi-information display.
QBrake hold operated indicator (warning buzzer)
QParking brake indicator
Warning lightDetails/Actions
When a buzzer sounds:
 Brake Override System is malfunctioning
 Drive-Start Control is malfunctioning
 Drive-Start Control is operating
 Follow the instructions displayed on the multi-
information display.
When a buzzer does not sound:
Brake Override System is operating.
 Release the accelerator pedal and depress the
brake pedal.
Warning lightDetails/Actions
(Flashes)
Indicates a malfunction in the brake hold system
 Have the vehicle inspected by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer immediately.
Warning lightDetails/Actions
(Flashes)
It is possible that the parking brake is not fully
engaged or released
 Operate the parking brake switch once again.
This light comes on when the parking brake is not
released. If the light turns off after the parking brake
is fully released, the system is operating normally.

515
8
8-2. Steps to take in an emergency
When trouble arises

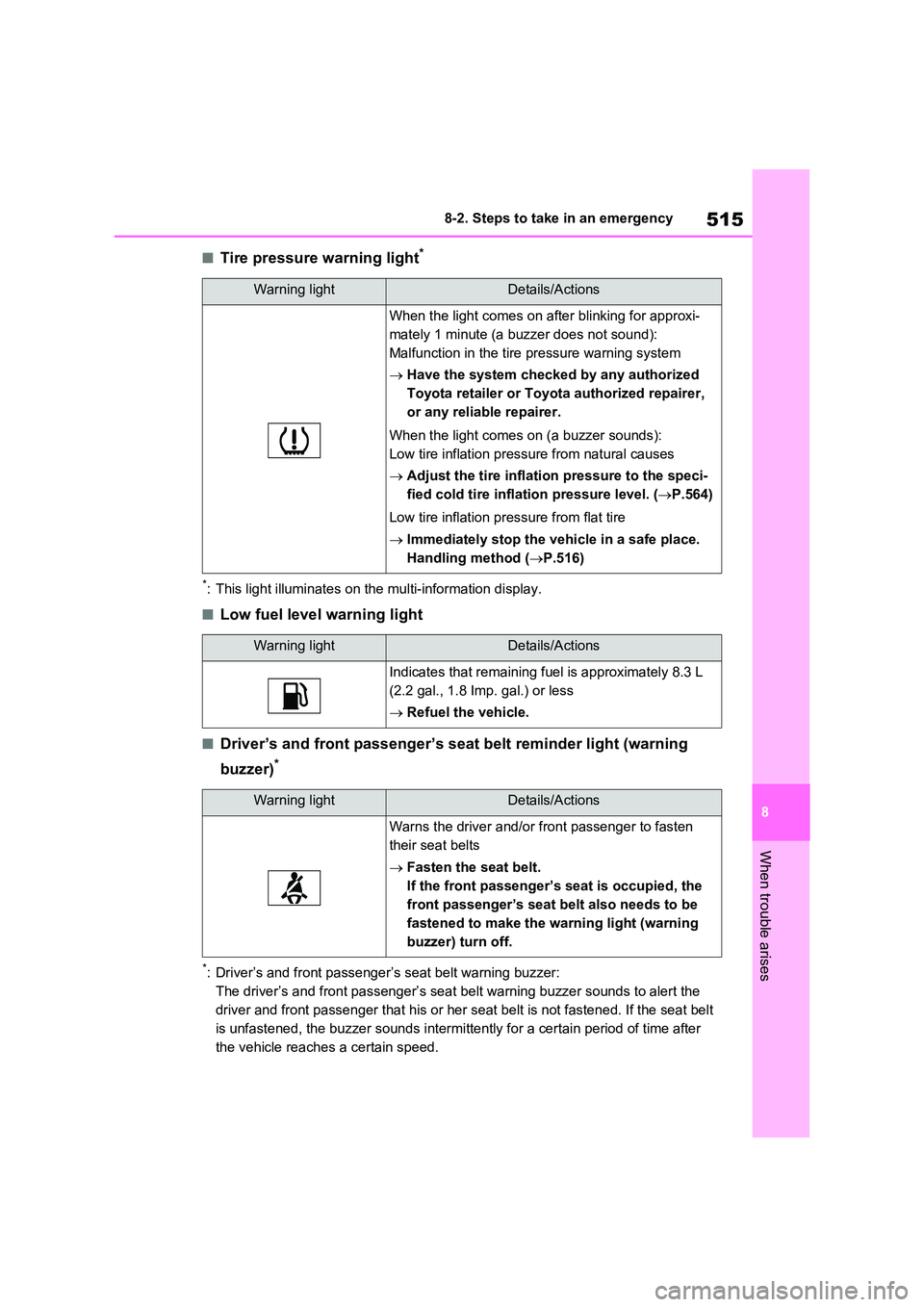

QTire pressure warning light*
*: This light illuminates on the multi-information display.
QLow fuel level warning light
QDriver’s and front passenger’s seat belt reminder light (warning
buzzer)*
*: Driver’s and front passenger’s seat belt warning buzzer:
The driver’s and front passenger’s seat belt warning buzzer sounds to alert the
driver and front passenger that his or her seat belt is not fastened. If the seat belt
is unfastened, the buzzer sounds intermittently for a certain period of time after
the vehicle reaches a certain speed.
Warning lightDetails/Actions
When the light comes on after blinking for approxi-
mately 1 minute (a buzzer does not sound):
Malfunction in the tire pressure warning system
 Have the system checked by any authorized
Toyota retailer or Toyota authorized repairer,
or any reliable repairer.
When the light comes on (a buzzer sounds):
Low tire inflation pressure from natural causes
 Adjust the tire inflation pressure to the speci-
fied cold tire inflation pressure level. ( P.564)
Low tire inflation pressure from flat tire
 Immediately stop the vehicle in a safe place.
Handling method ( P.516)
Warning lightDetails/Actions
Indicates that remaining fuel is approximately 8.3 L
(2.2 gal., 1.8 Imp. gal.) or less
 Refuel the vehicle.
Warning lightDetails/Actions
Warns the driver and/or front passenger to fasten
their seat belts
 Fasten the seat belt.
If the front passenger’s seat is occupied, the
front passenger’s seat belt also needs to be
fastened to make the warning light (warning
buzzer) turn off.

5168-2. Steps to take in an emergency
QRear passengers’ seat belt reminder lights*1 (warning buzzer)*2
*1: This light illuminates on the multi-information display.
*2: Rear passengers’ seat belt warning buzzer:
The rear passengers’ seat belt warning buzzer sounds to alert the rear passen-
ger that his or her seat belt is not fastened. If the seat belt is unfastened, the
buzzer sounds intermittently for a certain period of time after the vehicle reaches
a certain speed.
QWarning buzzer
In some cases, the buzzer may not be heard because of noisy place or an
audio sound.
QFront passenger detection sensor, seat belt reminder and warning buzzer
OIf luggage is placed on the front pas-
senger seat, the front passenger detection sensor may cause the warn-ing light to flash and the warning
buzzer to sound even if a passenger is not sitting in the seat.
OIf a cushion is placed on the seat, the sensor may not detect a passenger, and the warning light may not operate
properly.
QIf the malfunction indicator lamp comes on while driving
The malfunction indicator lamp will
come on if the fuel tank becomes com- pletely empty. If the fuel tank is empty, refuel the vehicle immediately. The mal-
function indicator lamp will go off after several trips.
If the malfunction indicator lamp does
not go off, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer as soon
as possible.
QElectric power steering system warning light (warning buzzer)
When the 12-volt battery charge
becomes insufficient or the voltage tem- porarily drops, the electric power steer-
ing system warning light may come on and the warning buzzer may sound.
At this time, the functions of the air con-
ditioning, etc. may be partially limited in order to reduce the power consumption of the 12-volt battery.
QWhen the tire pressure warning
light comes on
Inspect the tires to check if a tire is punctured.
If a tire is punctured: P.522, 533
If none of the tires are punctured:
Turn the power switch to OFF then turn
it to ON. Check if the tire pressure warn- ing light comes on or blinks.
If the tire pressure warning light blinks
for approximately 1 minute then stays on
There may be a malfunction in the tire
pressure warning system. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immedi- ately.
If the tire pressure warning light
comes on
1 After the temperature of the tires has lowered sufficiently, check the infla-tion pressure of each tire and adjust
them to the specified level.
2 If the warning light does not turn off even after several minutes have
Warning lightDetails/Actions
Warns the rear passengers to fasten their seat belts
 Fasten the seat belt.

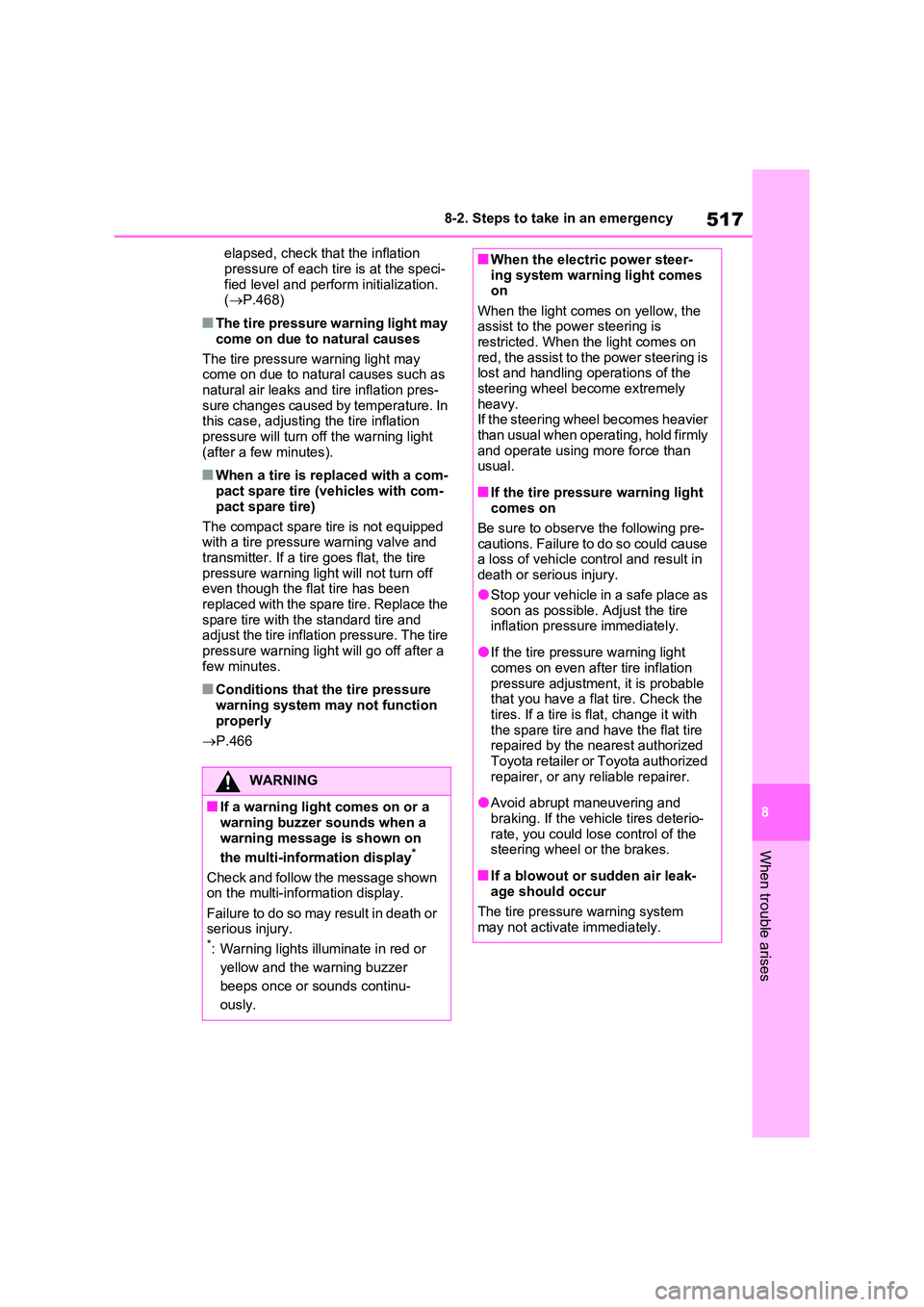

517
8
8-2. Steps to take in an emergency
When trouble arises
elapsed, check that the inflation
pressure of each tire is at the speci- fied level and perform initialization. ( P.468)
QThe tire pressure warning light may
come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pres- sure changes caused by temperature. In this case, adjusting the tire inflation
pressure will turn off the warning light (after a few minutes).
QWhen a tire is replaced with a com-pact spare tire (vehicles with com-
pact spare tire)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat tire has been
replaced with the spare tire. Replace the spare tire with the standard tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
QConditions that the tire pressure warning system may not function
properly
 P.466
WARNING
QIf a warning light comes on or a
warning buzzer sounds when a warning message is shown on
the multi-information display*
Check and follow the message shown on the multi-information display.
Failure to do so may result in death or serious injury.*: Warning lights illuminate in red or
yellow and the warning buzzer
beeps once or sounds continu-
ously.
QWhen the electric power steer- ing system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted. When the light comes on
red, the assist to the power steering is lost and handling operations of the steering wheel become extremely
heavy. If the steering wheel becomes heavier than usual when operating, hold firmly
and operate using more force than usual.
QIf the tire pressure warning light comes on
Be sure to observe the following pre-
cautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury.
OStop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure immediately.
OIf the tire pressure warning light comes on even after tire inflation
pressure adjustment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it with
the spare tire and have the flat tire repaired by the nearest authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
OAvoid abrupt maneuvering and
braking. If the vehicle tires deterio- rate, you could lose control of the steering wheel or the brakes.
QIf a blowout or sudden air leak-age should occur
The tire pressure warning system may not activate immediately.

5188-2. Steps to take in an emergency
QWarning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
QIf a message about an operation is
shown
OIf a message about an operation of
the accelerator pedal or brake pedal is shown
NOTICE
QTo ensure the tire pressure warn-ing system operates properly
Do not install tires with different speci- fications or manufacturers, as the tire pressure warning system may not
operate properly.

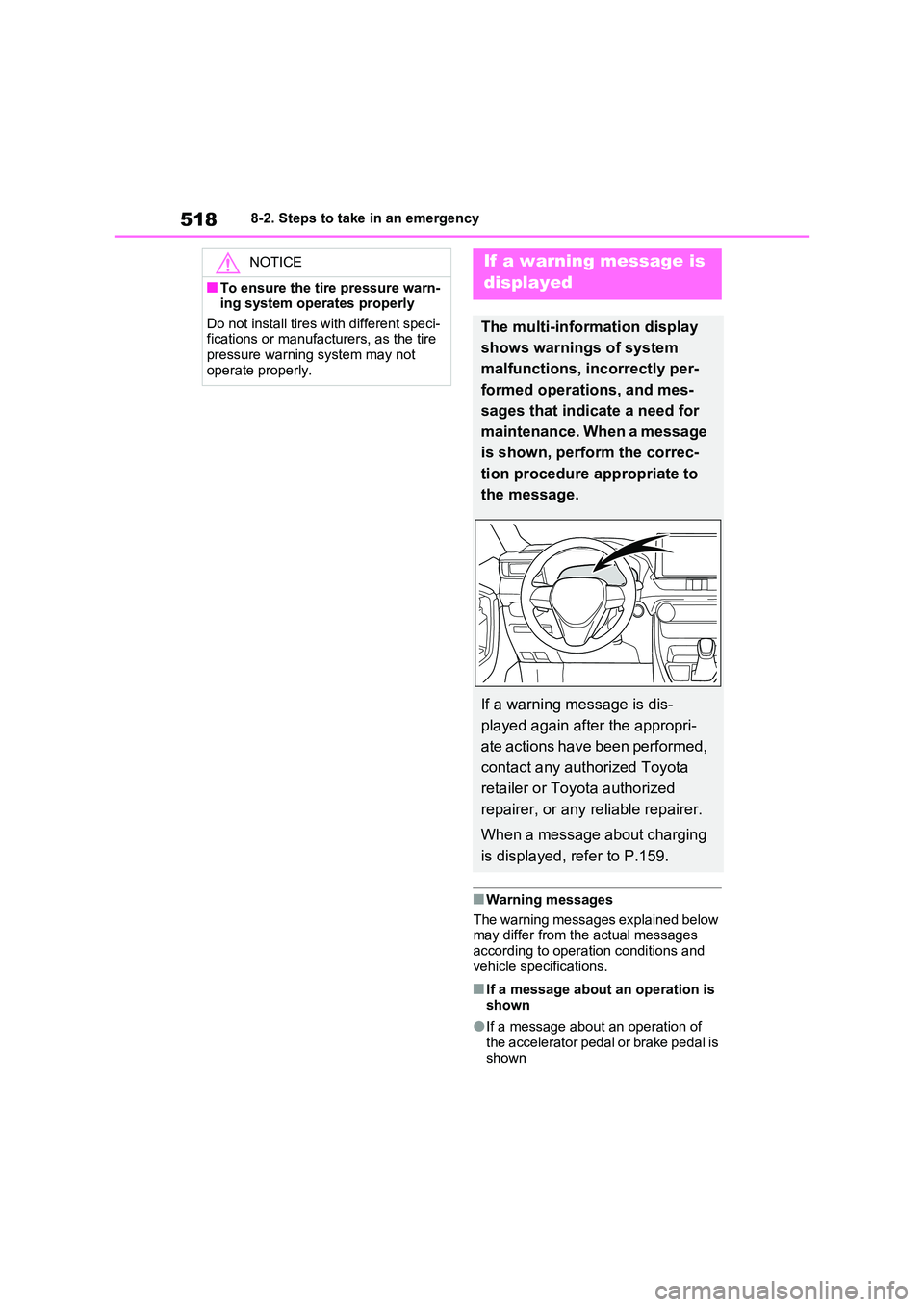

If a warning message is
displayed
The multi-information display
shows warnings of system
malfunctions, incorrectly per-
formed operations, and mes-
sages that indicate a need for
maintenance. When a message
is shown, perform the correc-
tion procedure appropriate to
the message.
If a warning message is dis-
played again after the appropri-
ate actions have been performed,
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
When a message about charging
is displayed, refer to P.159.

519
8
8-2. Steps to take in an emergency
When trouble arises
• A warning message about an opera-
tion of the brake pedal may be shown while the driving support systems such as PCS (Pre-Collision system) (if
equipped) or the dynamic radar cruise control with full-speed range (if equipped) is operating. If a warning
message is shown, be sure to decel- erate the vehicle or follow an instruc-tion shown on the multi-information
display. • A warning message is shown when Brake Override System operates.
( P.257) • A warning message is shown when Drive-Start Control or Parking Support
Brake function (if equipped) operates ( P.257, 379). Follow the instructions on the multi-information display.
OIf a message about an operation of the power switch is shown
An instruction for operation of the power
switch is shown when the incorrect pro-
cedure for starting the hybrid system is
performed or the power switch is oper-
ated incorrectly. Follow the instructions
shown on the multi-information display
to operate the power switch again.
OIf a message about a shift lever opera- tion is shown
To prevent the shift lever from being
operated incorrectly or the vehicle from
moving unexpectedly, a message that
requires shifting the shift lever may be
shown on the multi-information display.
In that case, follow the instruction of the
message and shift the shift lever.
OIf a message or image about an open/close state of a part or replen-
ishment of a consumable is shown
Confirm the part indicated by the multi-
information display or a warning light,
and then perform the coping method
such as closing the open door or replen-
ishing a consumable.
QIf a message that indicates the
need for visiting any authorized Toyota retailer or Toyota autho-rized repairer, or any reliable
repairer is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
QIf a message that indicates the need for referring to Owner’s Man-ual is displayed
OIf the following messages are shown, follow the instructions, accordingly.
• “Blind Spot Monitor Unavailable” ( P.350) • “RCTA Unavailable” ( P.350)
• “Engine Coolant Temp High” ( P.551) • “Exhaust Filter Full” ( P.390)
OIf the following messages are shown, there may be a malfunction.
Immediately have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.• “Plug-in Charging System Malfunc-
tion” • “Hybrid System Malfunction”• “Charging system malfunction”
• “Check Engine” • “Traction battery system malfunction”• “Accelerator System Malfunction”
• “Smart Entry & Start System Malfunc- tion”
OIf the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Con- tinuing to drive the vehicle may be dan-gerous.
•“Oil Pressure Low” • “Braking Power Low”
OIf any of the following messages are shown on the multi-information dis-

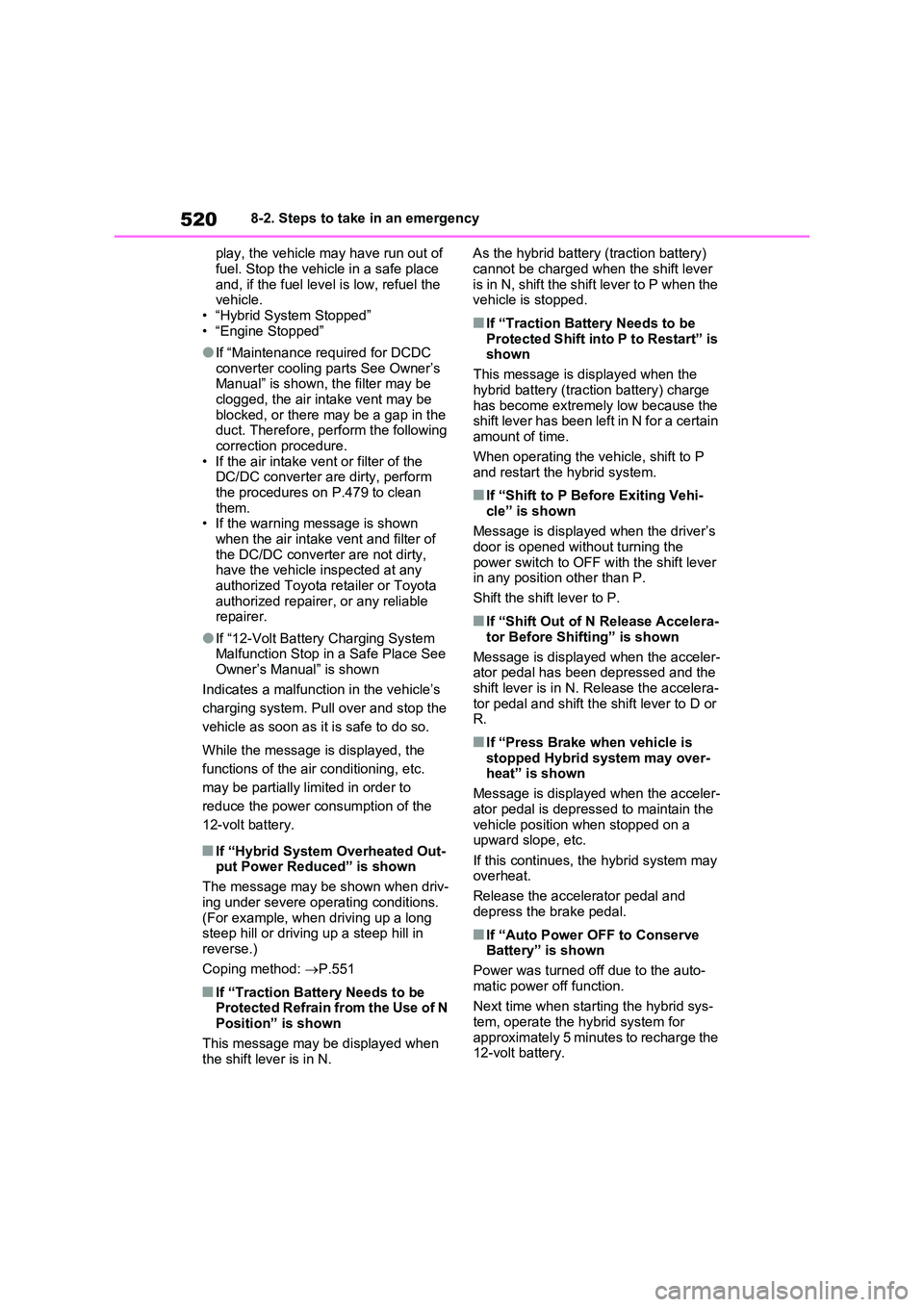

5208-2. Steps to take in an emergency
play, the vehicle may have run out of
fuel. Stop the vehicle in a safe place and, if the fuel level is low, refuel the vehicle.
• “Hybrid System Stopped” • “Engine Stopped”
OIf “Maintenance required for DCDC converter cooling parts See Owner’s Manual” is shown, the filter may be
clogged, the air intake vent may be blocked, or there may be a gap in the duct. Therefore, perform the following
correction procedure. • If the air intake vent or filter of the DC/DC converter are dirty, perform
the procedures on P.479 to clean them.• If the warning message is shown
when the air intake vent and filter of the DC/DC converter are not dirty, have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
OIf “12-Volt Battery Charging System Malfunction Stop in a Safe Place See
Owner’s Manual” is shown
Indicates a malfunction in the vehicle’s
charging system. Pull over and stop the
vehicle as soon as it is safe to do so.
While the message is displayed, the
functions of the air conditioning, etc.
may be partially limited in order to
reduce the power consumption of the
12-volt battery.
QIf “Hybrid System Overheated Out- put Power Reduced” is shown
The message may be shown when driv-
ing under severe operating conditions. (For example, when driving up a long steep hill or driving up a steep hill in
reverse.)
Coping method: P.551
QIf “Traction Battery Needs to be Protected Refrain from the Use of N
Position” is shown
This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery)
cannot be charged when the shift lever is in N, shift the shift lever to P when the vehicle is stopped.
QIf “Traction Battery Needs to be
Protected Shift into P to Restart” is shown
This message is displayed when the
hybrid battery (traction battery) charge has become extremely low because the shift lever has been left in N for a certain
amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
QIf “Shift to P Before Exiting Vehi-
cle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to OFF with the shift lever in any position other than P.
Shift the shift lever to P.
QIf “Shift Out of N Release Accelera-
tor Before Shifting” is shown
Message is displayed when the acceler- ator pedal has been depressed and the
shift lever is in N. Release the accelera- tor pedal and shift the shift lever to D or R.
QIf “Press Brake when vehicle is
stopped Hybrid system may over- heat” is shown
Message is displayed when the acceler-
ator pedal is depressed to maintain the vehicle position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and
depress the brake pedal.
QIf “Auto Power OFF to Conserve Battery” is shown
Power was turned off due to the auto-
matic power off function.
Next time when starting the hybrid sys- tem, operate the hybrid system for
approximately 5 minutes to recharge the 12-volt battery.

521
8
8-2. Steps to take in an emergency
When trouble arises
QIf “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is stopped on a slope. Move the vehicle to
a level surface and check if the mes- sage disappears.
QIf a message that indicates the mal-function of front camera is dis-
played (if equipped)
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.309, 508)
OPCS (Pre-Collision System)*
OLTA (Lane Tracing Assist)*
OAHB (Automatic High Beam)*
ORSA (Road Sign Assist)*
ODynamic radar cruise control with full-
speed range*
*: If equipped
QIf a message that indicates the mal- function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.309, 508)
OPCS (Pre-Collision System)*
OLTA (Lane Tracing Assist)*
ODynamic radar cruise control with full-
speed range*
*: If equipped
QIf “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is shown
The dynamic radar cruise control with full-speed range system (if equipped) is
suspended temporarily or until the prob- lem shown in the message is resolved. (causes and coping methods: P.309)
QIf “Radar Cruise Control Unavail-
able” is shown
The dynamic radar cruise control with full-speed range system (if equipped)
cannot be used temporarily. Use the system when it becomes available again.
QWarning buzzer
 P.516
WARNING
QIf a warning light comes on or a warning buzzer sounds when a
warning message is shown on the multi-information display
 P.517
NOTICE
Q“High Power Consumption Par- tial Limit On AC/Heater Opera-
tion” is frequently shown
There is a possible malfunction relat- ing to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
QIf “Maintenance Reqd. For Trac-tion Battery At Your Dealer” is
shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
OContinuing to drive the vehicle with- out having the hybrid battery (trac-
tion battery) inspected will cause the hybrid system not to start.
OIf the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.
