4927-3. Do-it-yourself maintenance
OBack-up lights
OOuter foot lights (if equipped)
QCondensation build-up on the
inside of the lens
Temporary condensation build-up on
the inside of the light lens does not indi-
cate a malfunction. Contact any autho-
rized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer for more information in the fol-
lowing situations:
OLarge drops of water have built up on
the inside of the lens.
OWater has built up inside the light.
QWhen replacing an electronic com-
ponent, such as a lights, etc.
P.490
QRear turn signal lights
1Open the back door and remove
the cover.
2Remove the screws and remove
the light unit.
Remove the light unit by pulling it
directly backward from the rear of the vehicle.
3Turn the bulb base counter-
clockwise.
4Remove the light bulb.
5Install a new light bulb then
install the bulb base to the light
Replacing light bulb

493
7 7-3. Do-it-yourself maintenance
Maintenance and care
unit by inserting it and turning
the bulb base clockwise.
6Align the grooves on the light
unit with the claws, and insert
the light unit straight so that the
pin on the light unit fit into the
hole.
Confirm that the light unit is completely
secured.
7Reinstall the screws.
8Reinstall the cover.
QBack-up lights
1Open the back door and remove
the cover.
To prevent damage to the cover, pro-
tect the tip of the screwdriver with a rag.
2Turn the bulb base counter-
clockwise.
Remove the cord from the clip before

4947-3. Do-it-yourself maintenance
turning the bulb base.
3Remove the light bulb.
4Install a new light bulb.
5Install the bulb base to the light
unit by inserting it and turning
the bulb base clockwise.
Secure the cord with the clip back again after installing the bulb base.
6Reinstall the cover.
QOuter foot lights (if equipped)
1Press the upper part of the out-
side rear view mirror to tilt the
mirror face upward, and discon-
nect the four tabs behind the
mirror.
Pry the mirror out toward you, and dis-
connect two tabs at a time.
Work carefully, ensuring that you do not

4967-3. Do-it-yourself maintenance
damage the tabs.
6Turn the bulb base counter-
clockwise.
Remove the cord from the clip before
turning the bulb base.
7Remove the light bulb.
8Install a new light bulb then
install the bulb base to the light
unit by inserting it and turning
the bulb base clockwise.
Secure the cord with the clip back again
after installing the bulb base.
9Install the light unit.
Make sure that the two tabs of the light
unit are engaged securely, and install

527
8

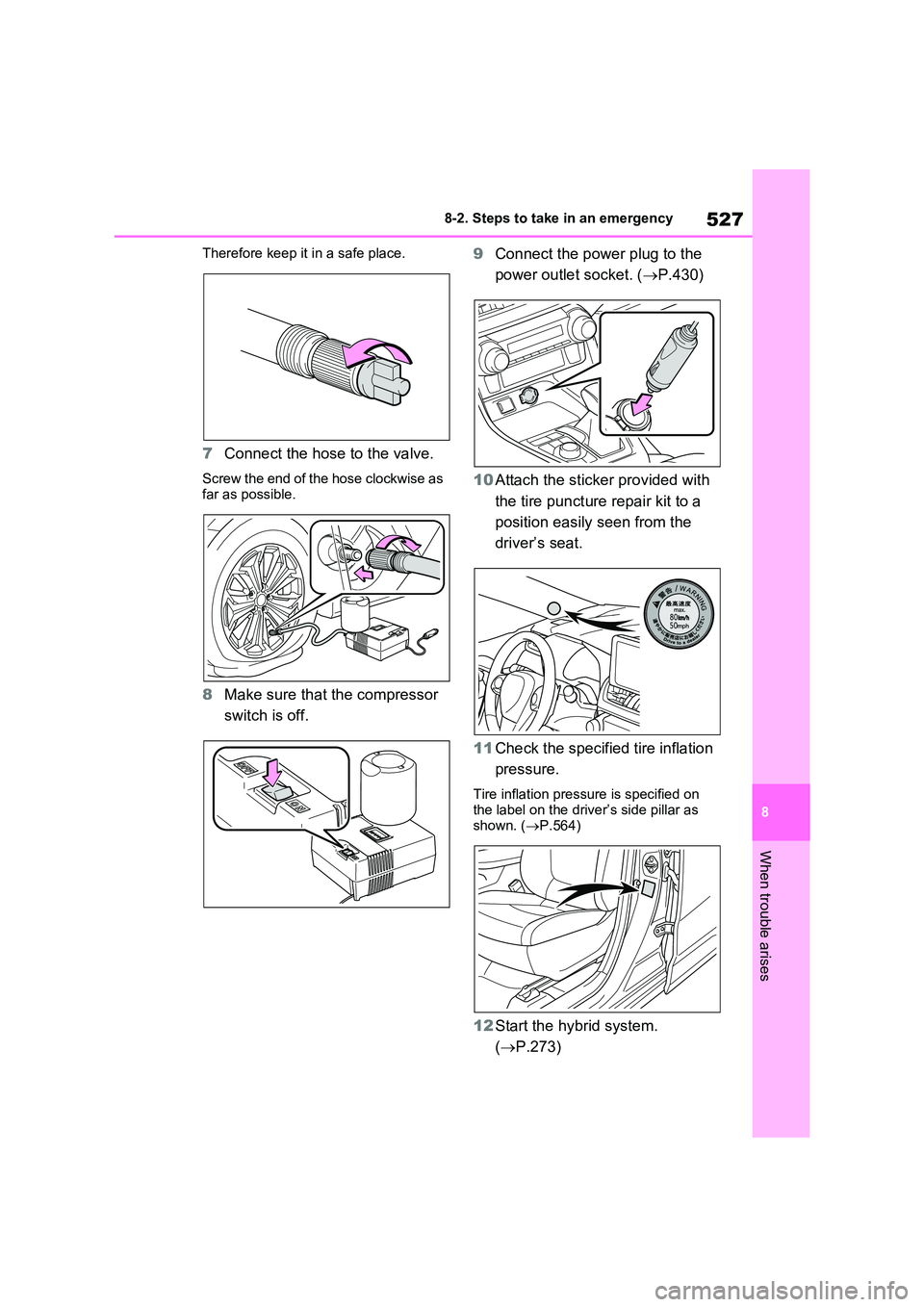

8-2. Steps to take in an emergency
When trouble arises
Therefore keep it in a safe place.
7 Connect the hose to the valve.
Screw the end of the hose clockwise as
far as possible.
8 Make sure that the compressor
switch is off.
9 Connect the power plug to the
power outlet socket. ( P.430)
10 Attach the sticker provided with
the tire puncture repair kit to a
position easily seen from the
driver’s seat.
11 Check the specified tire inflation
pressure.
Tire inflation pressure is specified on the label on the driver’s side pillar as
shown. ( P.564)
12Start the hybrid system.
( P.273)

5729-2. Customization
*1: For details about each function: P.184
*2: The default setting varies according to country.
*3: Available languages may differ depending on the target region.
*4: If equipped
*5: This can only be set if GPS calibration of clock is turned off in the multimedia sys-
tem settings.
QHead-up display*1 (P.189)
*1: If equipped
*2: For details about each function: P.190
Convenience Services (Sugges-
tion function)On
On (when the
vehicle is
stopped)
O–O
Off
Function*2Default
settingCustomized
setting
Head-up displayOnOff–O–
Gauge informationHybrid System
IndicatorTachometer–O–No content
Route guidance to destina-
tion/street name
*1OnOff–O–
Driving support system informa-
tion displayOnOff–O–
Compass*1OnOff–O–
Audio system operation status*1OnOff–O–
Function*1Default
settingCustomized
settingABC
ABC

589Alphabetical Index
When charging cannot be carried
out ............................................ 155
Charging port ................................ 105
If the charging port lid does not open
................................................. 120
Locking and unlocking ............... 120
Opening and closing .................. 106
Child-protector.............................. 207
Child restraint system .................... 50
Child restraint system installation
method....................................... 59
Fixed with a seat belt ................... 60
Fixed with an ISOFIX lower anchor-
age ............................................. 62
Points to remember...................... 51
Riding with children ...................... 49
Using a top tether anchorage....... 63
Child safety ..................................... 49
12-volt battery precautions. 461, 550
Airbag precautions ....................... 44
Back door precautions ............... 208
Charging precautions ................. 132
Heated steering wheel and seat
heater precautions ................... 416
How your child should wear the seat
belt ............................................. 36
Panoramic moon roof precautions
................................................. 252
Power window lock switch ......... 249
Power window precautions ........ 248
Rear door child-protectors ......... 207
Seat belt precautions ................... 35
Seat heater precautions ............. 416
Cleaning ................................ 442, 445
Aluminum wheels ....................... 442
DC/DC Converter air intake vent 479
Exterior....................................... 442
Front camera.............................. 301
Interior ........................................ 445
Radar sensor ............................. 301
Seat belts ................................... 445Water-repellent coating .............. 443
Clock ..............................................177
Coat hooks .................................... 439
Condenser ..................................... 458
Console box .................................. 423
Consumption screen .................... 193
Convenience Services (Suggestion
function) ...................................... 187
Coolant
Capacity ..................................... 562
Checking .................................... 457
Preparing and checking before win-
ter ............................................. 398
Warning light .............................. 509
Cooling system .............................457
Engine overheating .................... 551
Hybrid system overheating......... 553
Cruise control
Cruise control .............................344
Dynamic radar cruise control with
full-speed range .......................332
Cup holders ...................................424
Current fuel consumption ............196
Current fuel economy................... 179
Curtain shield airbags ....................39
Customizable features ................. 569
D
Daytime running light system ..... 288
Replacing light bulbs ..................491
DC/DC converter air intake vent .... 98
Cleaning ..................................... 479
Deck board .................................... 426
Deck under tray.............................427
Defogger
Outside rear view mirrors ........... 408
Rear window .............................. 408
Windshield.................................. 407
Digital Rear-view Mirror ............... 236
Dimensions ...................................558
Display

594Alphabetical Index
Key number plate ....................... 200
Keyless entry ..................... 201, 221
Mechanical key .......................... 202
Power switch .............................. 273
Replacing the battery ................. 486
Warning buzzer .......................... 221
Wireless remote control key....... 201
Knee airbags ................................... 39
L
Lane Tracing Assist (LTA) ........... 318
Operation ................................... 318
Warning messages .................... 327
Language (multi-information dis-
play) ..................................... 186, 571
Lever
Auxiliary catch lever ................... 452
Hood lock release lever ............. 452
Shift lever ................................... 277
Tilt and telescopic steering lock
release lever ............................ 234
Turn signal lever ........................ 281
Wiper lever ......................... 294, 296
License plate lights
Light switch ................................ 288
Replacing light bulbs .................. 491
Light bulbs
Replacing ................................... 491
Wattage...................................... 565
Lights
Automatic High Beam system .... 290
Emergency flasher switch .......... 500
Extended Headlight Lighting system
................................................. 289
Fog light switch .......................... 293
Front interior lights ..................... 419
Headlight switch ......................... 288
Illuminated entry system ............ 420
Interior lights .............................. 419
Luggage compartment light 210, 213
Personal lights ........................... 420Rear interior light ........................ 420
Replacing light bulbs ..................491
Turn signal lever......................... 281
Vanity lights ................................ 430
Wattage ...................................... 565
Lock steering column................... 274
LTA (Lane Tracing Assist) ........... 318
Operation ...................................318
Warning messages .................... 327
Luggage compartment light 210, 213
Luggage cover .............................. 427
M
Maintenance
Do-it-yourself maintenance ........ 450
Maintenance data.......................558
Maintenance requirements......... 448
Malfunction indicator lamp .......... 510
Menu icons .................................... 178
Meter
“ODO TRIP” switch .................... 176
Clock .......................................... 177
Head-up display ......................... 189
Indicators.................................... 166
Meter control switches ............... 178
Meters ........................................172
Multi-information display ............177
Settings .............................. 184, 571
Units ........................................... 186
Warning lights .................... 508, 518
Warning messages .................... 187
Meter control switches ................. 178
Mirrors
Digital Rear-view Mirror.............. 236
Inside rear view mirror................ 235
Outside rear view mirror defoggers
................................................. 408
Outside rear view mirrors ........... 245
Vanity mirrors .............................430
Multi-information display
Audio system-linked display ....... 182
