navigation system TOYOTA RAV4 PLUG-IN HYBRID 2022 User Guide

1783-1. Instrument cluster
A variety of information can be dis-
played by selecting a menu icon.
Additionally, warning or sugges-
tion/advice pop-up displays will be dis-
played in some situations.
Menu icons ( P.178)
QThe multi-information display is
displayed when
The power switch is in ON.
QWhen changing driving mode
OBackground color of the multi-informa- tion display is changed following the selected driving mode. ( P.387)
OBackground color of the multi-informa- tion display is changed following the
selected driving mode or when Trail Mode is turned on. ( P.387, 389)
QLiquid crystal display
Small spots or light spots may appear
on the display. This phenomenon is characteristic of liquid crystal displays, and there is no problem continuing to
use the display.
The multi-information display is
operated using the meter control
switches.
Scroll the screen*/switch the dis-
play*/move the cursor
Press: Enter/Set
Press and hold: Reset/Display
customizable items
Return to the previous screen
Call sending/receiving and his-
tory display (if equipped)
Linked with the hands-free sys-
tem, sending or receiving call is
displayed. For details regarding
the hands-free system, refer to
“Navigation and multimedia sys-
tem owner’s manual” or “Multi-
media Owner’s Manual”.
*: On screens where the screen can be
scrolled and the display can be
switched, a scroll bar or a round icon
that shows the number of registered
screens is displayed.
Information related to each icon
can be displayed by selecting the
icon with the meter control
switches.
Some of the information may be dis-
played automatically depending on the
situation.
Changing the display
C
A
WARNING
QCaution for use while driving
For safety, avoid operating the meter control switch while driving as much
as possible, and do not look continu- ously at the multi-information display while driving. Stop the vehicle and
operate the meter control switch. Fail- ure to do so may cause a steering wheel operation error, resulting in an
unexpected accident.
Menu icons
B
C
D

1823-1. Instrument cluster
Electricity consumption is the consump-
tion rate of the electricity when EV driv-
ing is performed and equivalent to the
fuel consumption for the gasoline vehi-
cles. For this vehicle, electricity con-
sumed per 100 km (“kWh/100 km”) is
displayed as electricity consumption on
each screen.
When the unit is set to “MPH” (if
equipped):
Electricity consumption is the consump-
tion rate of the electricity when EV driv-
ing is performed and equivalent to the
fuel consumption for the gasoline vehi-
cles. For this vehicle, driven distance
per kWh of electricity consumed
(“miles/kWh”) is displayed as electricity
consumption on each screen.
QEV driving range
OWhen the air conditioning system is
operating, is displayed next to
the EV driving range and the EV driv-
ing range with the air conditioning sys-
tem on is displayed.
OThe EV driving range may shorten
even when not driving due to power
consumption by the system.
OFor details, refer to “EV driving range”
(P.102)
QDistance to empty
OThis distance is computed based on
your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.
OWhen only a small amount of fuel is
added to the tank, the display may not
be updated. When refueling, turn the
power switch off. If the vehicle is refu-
eled without turning the power switch
off, the display may not be updated.
OWhen “Refuel” is displayed, the
remaining fuel amount is low and the
distance that can be driven with the
remaining fuel cannot be calculated.
Refuel immediately.
QECO Accelerator Guidance/“Eco
Score” will not operate when
The ECO Accelerator Guidance/“Eco Score” will not operate in the following
situations:
OThe Hybrid System Indicator is not
operating.
OThe vehicle is being driven using the
dynamic radar cruise control with full-
speed range.
QDriving support system infor-
mation display
Select to display the operational
status of the following systems:
LTA (Lane Tracing Assist)
*
(P.318)
Dynamic radar cruise control
with full-speed range
* (P.332)
Cruise control
* (P.344)
Speed limiter
* (P.347)
*: If equipped
QNavigation system-linked dis-
play (if equipped)
Select to display the following navi-
gation system-linked information.
Route guidance
Compass display
Select to enable selection of an
audio source or track on the dis-
play.
Driving support system
information display
Audio system-linked display

187
3
3-1. Instrument cluster
Vehicle status information and indicators
• “Drive Info Type”
Select to change the drive information
type display between trip and total.
( P.183).
• “Drive Info Items”
Select to set the items on the upper and
lower side of the drive information
screen from three items, average
speed, distance and total time.
 “Closing Display”
Select to set the items displayed when
the power switch is turned off.
 “Pop-Up Display” (if equipped)
Select to enable/disable the following
pop-up displays, which may appear in
some situations.
• Intersection guidance display of the
navigation system-linked system (if
equipped)
• Incoming call display of the hands-
free phone system (if equipped)
• Audio operation
• Volume operation
• Voice control (if equipped)
 “Calender”
Select to set up the calender.
This can only be set if GPS calibration
of clock is turned off in the multimedia
system settings.
 “MID OFF”
A blank screen is displayed
“Default Settings”
Select to reset the meter display set-
tings.
QSuspension of the settings display
OIn the following situations, operation of the settings display will be temporarily suspended.
• When a warning message appears on
the multi-information display
• When the vehicle begins to move
OSettings for functions not equipped to
the vehicle are not displayed.
OWhen a function is turned off, the
related settings for that function are not selectable.
Select to display warning mes-
sages and measures to be taken if
a malfunction is detected.
( P.518)
Displays suggestions to the driver
in the following situations. To select
a response to a displayed sugges-
tion, use the meter control
switches.
WARNING
QCautions during setting up the
display
As the hybrid system needs to be operating during setting up the dis-
play, ensure that the vehicle is parked in a place with adequate ventilation. In a closed area such as a garage,
exhaust gases including harmful car- bon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.
NOTICE
QDuring setting up the display
To prevent 12-volt battery discharge, ensure that the hybrid system is oper-
ating while setting up the display fea- tures.
Warning message display
Convenience Services (Sug-
gestion function)

189
3
3-1. Instrument cluster
Vehicle status information and indicators
*: If equipped
Illustrations used in this text are
intended as examples, and may differ
from the image that is actually dis-
played by the head-up display.
Driving support system informa-
tion/navigation system-linked
display area (if equipped)
( P.191)
Shift position display area/RSA
(Road Sign Assist) display area
(if equipped) ( P.277, 328)
Vehicle speed display
Hybrid System Indica-
tor/tachometer ( P.192)
QHead-up display will operate when
The power switch is in ON.
QWhen using the head-up display
The head-up display may seem dark or hard to see when viewed through sun-glasses, especially polarized sun-
glasses. Adjust the brightness of the head-up display or remove your sun-glasses.
QStreet name display (vehicles with
navigation system)
Only street names which are included in the map data will be displayed.
Head-up display*
The head-up display projects a
variety of driving-related infor-
mation and the operating state
of the driving support systems
on the windshield.
System components
A
B
C
D
WARNING
QWhen using the head-up display
OCheck that the position and bright-
ness of the head-up display image does not interfere with safe driving. Incorrect adjustment of the image’s
position or brightness may obstruct the driver’s view and lead to an accident, resulting in death or seri-
ous injury.
ODo not continuously look at the
head-up display while driving as you may fail to see pedestrians, objects on the road, etc. ahead of
the vehicle.
NOTICE
QHead-up display projector
ODo not place any drinks near the head-up display projector. If the projector gets wet, electrical mal-
functions may result.

191
3
3-1. Instrument cluster
Vehicle status information and indicators
• Driving support system information
display
• Compass (if equipped)
• Audio system operation status
 Display angle
Select to adjust the angle of the head-
up display.
QEnabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the power switch is turned off then back to ON.
QDisplay brightness
The brightness of the head-up display
can be adjusted on screen of the
multi-information display. Also, it is auto-
matically adjusted according to the ambient brightness.
QDriving support system infor-
mation display
Displays the operational status of
the following systems:
 LTA (Lane Tracing Assist) (if
equipped) ( P.318)
 Dynamic radar cruise control
with full-speed range (if
equipped) ( P.332)
Displayed content is the same as that
displayed on the meter. For details,
refer to the explanations of each sys-
tem.
QNavigation system-linked dis-
play area (if equipped)
Displays the following items which
are linked to the navigation system:
 Street name
 Route guidance to destination
 Compass
Pop-up displays for the following
systems will be displayed when
necessary:
QDriving support systems
Displays a warning/sugges-
tion/advice message or the operat-
ing state of a relevant system.
 PCS (Pre-Collision System) (if
equipped) ( P.311)
WARNING
QCaution for changing settings of the head-up display
If the hybrid system is operating when
changing the display settings, ensure that the vehicle is parked in a place with adequate ventilation. In a closed
area such as a garage, exhaust gases including harmful carbon mon-oxide (CO) may collect and enter the
vehicle. This may lead to death or a serious health hazard.
NOTICE
QWhen changing the settings of the head-up display
To prevent 12-volt battery discharge,
ensure that the hybrid system is oper- ating while changing the settings of the head-up display.
Driving support system
information/navigation sys-
tem-linked display area (if
equipped)
Pop-up display

193
3 3-1. Instrument cluster
Vehicle status information and indicators
QHybrid System Indicator
Charge area
Hybrid Eco area
Eco area
Power area
Displayed content is the same as that
displayed on the multi-information dis-
play (Hybrid System Indicator).
For details, refer to P.175.
QTachometer
Displays the engine speed in revo-
lutions per minute.Audio system screen (if
equipped)
Multi-information display
Meter control switches
(P.178)
The energy monitor can be used to
check the vehicle drive status,
hybrid system operation status and
energy regeneration status.
QDisplay
Multi-information display
Press or of the meter con-
trol switches on the steering wheel
A
B
C
D
Energy monitor/con-
sumption screen
You can view the status of
your vehicle on the multi-infor-
mation display and the audio
system screen
* (if equipped).
*: For navigation system or multime-
dia system
System components
Energy monitor
A
B
C

1943-1. Instrument cluster
and select , and then press
or to select the energy mon-
itor display.
Audio system screen (without
navigation function)
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
If a screen other than “Energy monitor”
is displayed, select “Energy”.
Audio system screen (with navi-
gation function)
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
3Select “ECO” on the “Informa-
tion” screen.
If a screen other than “Energy monitor”
is displayed, select “Energy”.
QReading the display
The arrows will appear in accor-
dance with the energy flow. When
there is no energy flow, arrows will
not be displayed.
The color of the arrows will change as
follows
Green: When the hybrid battery (trac-
tion battery) is regenerated or charged.
Yellow: When the hybrid battery (trac-
tion battery) is in use.
Red: When the gasoline engine is in
use.
Multi-information display
The image shows all the arrows as an
example. The actual display will vary
depending on conditions.
Gasoline engine
Hybrid battery (traction battery)
Front tire
Rear tire
Audio system screen (except
when charging)
The image shows all the arrows as an
example. The actual display will vary
depending on conditions.
Gasoline engine
Front electric motor (traction
motor)
Hybrid battery (traction battery)
Rear electric motor (traction
A
B
C
D
A
B
C
D

1963-1. Instrument cluster
warming up is finished.
Hybrid system output may be restricted
when the gasoline engine is displayed in
blue.
QDisplay
Audio system without navigation
function
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
3Select “Trip information” or “His-
tory”.
Audio system with navigation
function
1Press the “MENU” button.
2Select “Info” on the “Menu”
screen.
3Select “ECO” on the “Informa-
tion” screen.
4Select “Trip information” or “His-
tory”.
QTrip information
If a screen other than “Trip informa-
tion” is displayed, select “Trip infor-
mation”.
The image is an example only, and may
vary slightly from actual conditions.
Fuel consumption in the past 15
minutes
Regenerated energy in the past
15 minutes
One symbol indicates 50 Wh. Up to 5
symbols are shown.
Current fuel consumption
Resetting the consumption data
Average vehicle speed since the
hybrid system was started
Elapsed time since the hybrid
system was started
Cruising range (P.197)
Average fuel consumption for the past
15 minutes is divided by color into past
averages and averages attained since
the power switch was last turned to ON.
Use the displayed average fuel con-
sumption as a reference.
QHistory
If a screen other than “History” is
displayed, select “History”.
The image is an example only, and may
vary slightly from actual conditions.
Consumption
A
B
C
D
E
F
G

329
5 5-5. Using the driving support systems
Driving
When the front camera recognizes
a sign and/or information of a sign
is available from the navigation sys-
tem, the sign will be displayed on
the multi-information display.
When the driving support system
information display is selected, a
maximum of 3 signs can be dis-
played. (P.177)
When a tab other than the driv-
ing support system information
display is selected, the following
types of road signs will be dis-
played. (P.177)
• Speed limit begins/ends sign
• Speed limit related information sign
(Motorway, Expressway, Urban area,
Residential area)
• End of prohibition sign
• No-entry sign
* (when notification is
necessary)
• Speed limit with supplemental sign
(Ramp way only)
*: For vehicles with navigation systemIf signs other than speed limit signs are
recognized, they will be displayed in an
overlapping stack under the current
speed limit sign.
The following types of road signs,
including electronic signs and blink-
ing signs, are displayed.
A non-official (not meeting the Vienna
Convention) or a recently introduced
traffic sign may not be displayed.
Speed limit road signs*
*: No speed limit information is dis-
played when neither speed limit road
sign nor speed limit related informa-
tion is available.
Indication on the multi-infor-
mation display
Supported types of road
signs
Speed limit begins/Maxi-
mum speed zone begins
Speed limit ends/Maximum
speed zone ends

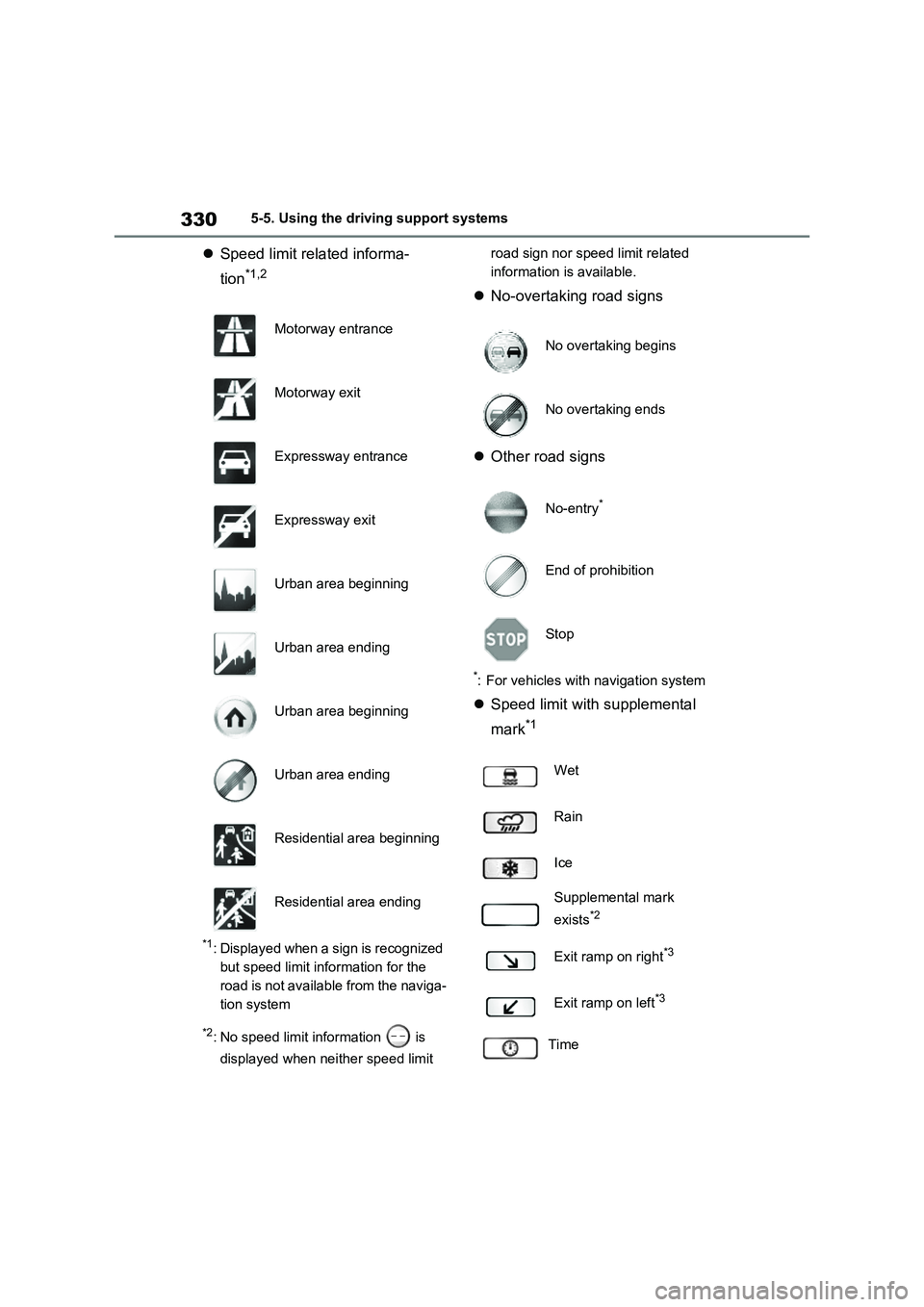

3305-5. Using the driving support systems
Speed limit related informa-
tion
*1,2
*1: Displayed when a sign is recognized
but speed limit information for the
road is not available from the naviga-
tion system
*2: No speed limit information is
displayed when neither speed limit road sign nor speed limit related
information is available.
No-overtaking road signs
Other road signs
*: For vehicles with navigation system
Speed limit with supplemental
mark
*1
Motorway entrance
Motorway exit
Expressway entrance
Expressway exit
Urban area beginning
Urban area ending
Urban area beginning
Urban area ending
Residential area beginning
Residential area ending
No overtaking begins
No overtaking ends
No-entry
*
End of prohibition
Stop
Wet
Rain
Ice
Supplemental mark
exists
*2
Exit ramp on right*3
Exit ramp on left*3
Time
