8-2. Steps to take in an emergency
When trouble arises
elapsed, check that the inflation
pressure of each tire is at the speci- fied level and perform initialization. ( P.468)
QThe tire pressure warning light may
come on due to natural causes
The tire pressure warning light may come on due to natural causes such as
natural air leaks and tire inflation pres- sure changes caused by temperature. In this case, adjusting the tire inflation
pressure will turn off the warning light (after a few minutes).
QWhen a tire is replaced with a com-pact spare tire (vehicles with com-
pact spare tire)
The compact spare tire is not equipped with a tire pressure warning valve and
transmitter. If a tire goes flat, the tire pressure warning light will not turn off even though the flat tire has been
replaced with the spare tire. Replace the spare tire with the standard tire and adjust the tire inflation pressure. The tire
pressure warning light will go off after a few minutes.
QConditions that the tire pressure warning system may not function
properly
 P.466
WARNING
QIf a warning light comes on or a
warning buzzer sounds when a warning message is shown on
the multi-information display*
Check and follow the message shown on the multi-information display.
Failure to do so may result in death or serious injury.*: Warning lights illuminate in red or
yellow and the warning buzzer
beeps once or sounds continu-
ously.
QWhen the electric power steer- ing system warning light comes on
When the light comes on yellow, the assist to the power steering is restricted. When the light comes on
red, the assist to the power steering is lost and handling operations of the steering wheel become extremely
heavy. If the steering wheel becomes heavier than usual when operating, hold firmly
and operate using more force than usual.
QIf the tire pressure warning light comes on
Be sure to observe the following pre-
cautions. Failure to do so could cause a loss of vehicle control and result in death or serious injury.
OStop your vehicle in a safe place as soon as possible. Adjust the tire inflation pressure immediately.
OIf the tire pressure warning light comes on even after tire inflation
pressure adjustment, it is probable that you have a flat tire. Check the tires. If a tire is flat, change it with
the spare tire and have the flat tire repaired by the nearest authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer.
OAvoid abrupt maneuvering and
braking. If the vehicle tires deterio- rate, you could lose control of the steering wheel or the brakes.
QIf a blowout or sudden air leak-age should occur
The tire pressure warning system may not activate immediately.

5188-2. Steps to take in an emergency
QWarning messages
The warning messages explained below may differ from the actual messages
according to operation conditions and vehicle specifications.
QIf a message about an operation is
shown
OIf a message about an operation of
the accelerator pedal or brake pedal is shown
NOTICE
QTo ensure the tire pressure warn-ing system operates properly
Do not install tires with different speci- fications or manufacturers, as the tire pressure warning system may not
operate properly.
If a warning message is
displayed
The multi-information display
shows warnings of system
malfunctions, incorrectly per-
formed operations, and mes-
sages that indicate a need for
maintenance. When a message
is shown, perform the correc-
tion procedure appropriate to
the message.
If a warning message is dis-
played again after the appropri-
ate actions have been performed,
contact any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
When a message about charging
is displayed, refer to P.159.

519
8
8-2. Steps to take in an emergency
When trouble arises
• A warning message about an opera-
tion of the brake pedal may be shown while the driving support systems such as PCS (Pre-Collision system) (if
equipped) or the dynamic radar cruise control with full-speed range (if equipped) is operating. If a warning
message is shown, be sure to decel- erate the vehicle or follow an instruc-tion shown on the multi-information
display. • A warning message is shown when Brake Override System operates.
( P.257) • A warning message is shown when Drive-Start Control or Parking Support
Brake function (if equipped) operates ( P.257, 379). Follow the instructions on the multi-information display.
OIf a message about an operation of the power switch is shown
An instruction for operation of the power
switch is shown when the incorrect pro-
cedure for starting the hybrid system is
performed or the power switch is oper-
ated incorrectly. Follow the instructions
shown on the multi-information display
to operate the power switch again.
OIf a message about a shift lever opera- tion is shown
To prevent the shift lever from being
operated incorrectly or the vehicle from
moving unexpectedly, a message that
requires shifting the shift lever may be
shown on the multi-information display.
In that case, follow the instruction of the
message and shift the shift lever.
OIf a message or image about an open/close state of a part or replen-
ishment of a consumable is shown
Confirm the part indicated by the multi-
information display or a warning light,
and then perform the coping method
such as closing the open door or replen-
ishing a consumable.
QIf a message that indicates the
need for visiting any authorized Toyota retailer or Toyota autho-rized repairer, or any reliable
repairer is displayed
The system or part shown on the multi- information display is malfunctioning.
Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer immediately.
QIf a message that indicates the need for referring to Owner’s Man-ual is displayed
OIf the following messages are shown, follow the instructions, accordingly.
• “Blind Spot Monitor Unavailable” ( P.350) • “RCTA Unavailable” ( P.350)
• “Engine Coolant Temp High” ( P.551) • “Exhaust Filter Full” ( P.390)
OIf the following messages are shown, there may be a malfunction.
Immediately have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.• “Plug-in Charging System Malfunc-
tion” • “Hybrid System Malfunction”• “Charging system malfunction”
• “Check Engine” • “Traction battery system malfunction”• “Accelerator System Malfunction”
• “Smart Entry & Start System Malfunc- tion”
OIf the following messages are shown, there may be a malfunction.
Immediately stop the vehicle in a safe place and contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer. Con- tinuing to drive the vehicle may be dan-gerous.
•“Oil Pressure Low” • “Braking Power Low”
OIf any of the following messages are shown on the multi-information dis-

5208-2. Steps to take in an emergency
play, the vehicle may have run out of
fuel. Stop the vehicle in a safe place and, if the fuel level is low, refuel the vehicle.
• “Hybrid System Stopped” • “Engine Stopped”
OIf “Maintenance required for DCDC converter cooling parts See Owner’s Manual” is shown, the filter may be
clogged, the air intake vent may be blocked, or there may be a gap in the duct. Therefore, perform the following
correction procedure. • If the air intake vent or filter of the DC/DC converter are dirty, perform
the procedures on P.479 to clean them.• If the warning message is shown
when the air intake vent and filter of the DC/DC converter are not dirty, have the vehicle inspected at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
OIf “12-Volt Battery Charging System Malfunction Stop in a Safe Place See
Owner’s Manual” is shown
Indicates a malfunction in the vehicle’s
charging system. Pull over and stop the
vehicle as soon as it is safe to do so.
While the message is displayed, the
functions of the air conditioning, etc.
may be partially limited in order to
reduce the power consumption of the
12-volt battery.
QIf “Hybrid System Overheated Out- put Power Reduced” is shown
The message may be shown when driv-
ing under severe operating conditions. (For example, when driving up a long steep hill or driving up a steep hill in
reverse.)
Coping method: P.551
QIf “Traction Battery Needs to be Protected Refrain from the Use of N
Position” is shown
This message may be displayed when the shift lever is in N.
As the hybrid battery (traction battery)
cannot be charged when the shift lever is in N, shift the shift lever to P when the vehicle is stopped.
QIf “Traction Battery Needs to be
Protected Shift into P to Restart” is shown
This message is displayed when the
hybrid battery (traction battery) charge has become extremely low because the shift lever has been left in N for a certain
amount of time.
When operating the vehicle, shift to P and restart the hybrid system.
QIf “Shift to P Before Exiting Vehi-
cle” is shown
Message is displayed when the driver’s door is opened without turning the
power switch to OFF with the shift lever in any position other than P.
Shift the shift lever to P.
QIf “Shift Out of N Release Accelera-
tor Before Shifting” is shown
Message is displayed when the acceler- ator pedal has been depressed and the
shift lever is in N. Release the accelera- tor pedal and shift the shift lever to D or R.
QIf “Press Brake when vehicle is
stopped Hybrid system may over- heat” is shown
Message is displayed when the acceler-
ator pedal is depressed to maintain the vehicle position when stopped on a upward slope, etc.
If this continues, the hybrid system may overheat.
Release the accelerator pedal and
depress the brake pedal.
QIf “Auto Power OFF to Conserve Battery” is shown
Power was turned off due to the auto-
matic power off function.
Next time when starting the hybrid sys- tem, operate the hybrid system for
approximately 5 minutes to recharge the 12-volt battery.

521
8
8-2. Steps to take in an emergency
When trouble arises
QIf “Engine Oil Level Low Add or
Replace” is displayed
The engine oil level may be low. Check the level of the engine oil, and add
engine oil if necessary. This message may be displayed if the vehicle is stopped on a slope. Move the vehicle to
a level surface and check if the mes- sage disappears.
QIf a message that indicates the mal-function of front camera is dis-
played (if equipped)
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.309, 508)
OPCS (Pre-Collision System)*
OLTA (Lane Tracing Assist)*
OAHB (Automatic High Beam)*
ORSA (Road Sign Assist)*
ODynamic radar cruise control with full-
speed range*
*: If equipped
QIf a message that indicates the mal- function of radar sensor is dis-
played
The following systems may be sus- pended until the problem shown in the
message is resolved. ( P.309, 508)
OPCS (Pre-Collision System)*
OLTA (Lane Tracing Assist)*
ODynamic radar cruise control with full-
speed range*
*: If equipped
QIf “Radar Cruise Control Temporar- ily Unavailable See Owner’s Man-
ual” is shown
The dynamic radar cruise control with full-speed range system (if equipped) is
suspended temporarily or until the prob- lem shown in the message is resolved. (causes and coping methods: P.309)
QIf “Radar Cruise Control Unavail-
able” is shown
The dynamic radar cruise control with full-speed range system (if equipped)
cannot be used temporarily. Use the system when it becomes available again.
QWarning buzzer
 P.516
WARNING
QIf a warning light comes on or a warning buzzer sounds when a
warning message is shown on the multi-information display
 P.517
NOTICE
Q“High Power Consumption Par- tial Limit On AC/Heater Opera-
tion” is frequently shown
There is a possible malfunction relat- ing to the charging system or the 12-
volt battery may be deteriorating. Have the vehicle inspected by any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.
QIf “Maintenance Reqd. For Trac-tion Battery At Your Dealer” is
shown
The hybrid battery (traction battery) is scheduled to be inspected or
replaced. Have the vehicle inspected by any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer immediately.
OContinuing to drive the vehicle with- out having the hybrid battery (trac-
tion battery) inspected will cause the hybrid system not to start.
OIf the hybrid system does not start, contact any authorized Toyota retailer or Toyota authorized
repairer, or any reliable repairer immediately.

5228-2. Steps to take in an emergency
Stop the vehicle in a safe place
on a hard, flat surface.
 Set the parking brake.
 Shift the shift lever to P.
 Turn off the intrusion sensor and
tilt sensor (if equipped) ( P.79)
 Stop the hybrid system.
 Turn on the emergency flashers.
( P.500)
 For vehicles with power back
door: Turn off the power back
door system. ( P.211)
 Check the degree of the tire
damage.
A tire should only be repaired with
the emergency tire puncture repair
kit if the damage is caused by a nail
or screw passing through the tire
tread.
• Do not remove the nail or screw
from the tire. Removing the
object may widen the opening
and prevent emergency repair
with the repair kit.
• To avoid sealant leakage, move
the vehicle until the area of the
puncture, if known, is positioned
at the top of the tire.
If you have a flat tire
(vehicles without spare
tire)
Your vehicle is not equipped
with a spare tire, but instead is
equipped with an emergency
tire puncture repair kit.
A puncture caused by a nail or
screw passing through the tire
tread can be repaired tempo-
rarily using the emergency tire
puncture repair kit. (The kit
contains a bottle of sealant.
The sealant can be used only
once to temporarily repair one
tire without removing the nail
or screw from the tire.)
Depending on the damage con-
dition of the flat tire, it may not
be able to repaired with the
emergency tire puncture repair
kit. ( P.523)
After temporarily repairing the
tire with the kit, have the tire
repaired or replaced by any
authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
WARNING
QIf you have a flat tire
Do not continue driving with a flat tire.
Driving even a short distance with a
flat tire can damage the tire and the wheel beyond repair, which could result in an accident.
Driving with a flat tire may cause a cir- cumferential groove on the side wall.
In such a case, the tire may explode when using a repair kit.
Before repairing the vehicle

525
8
8-2. Steps to take in an emergency
When trouble arises
OThe kit is exclusively designed for size
and type of tires originally installed on your vehicle. Do not use it for tires that a different size than the original ones,
or for any other purposes.
OIf the sealant gets on your clothes, it
may stain.
OIf the sealant adheres to a wheel or
the surface of the vehicle body, the stain may not be removable if it is not cleaned at once. Immediately wipe
away the sealant with a wet cloth.
ODuring operation of the repair kit, a
loud operation noise is produced. This does not indicate a malfunction.
ODo not use to check or to adjust the tire pressure.

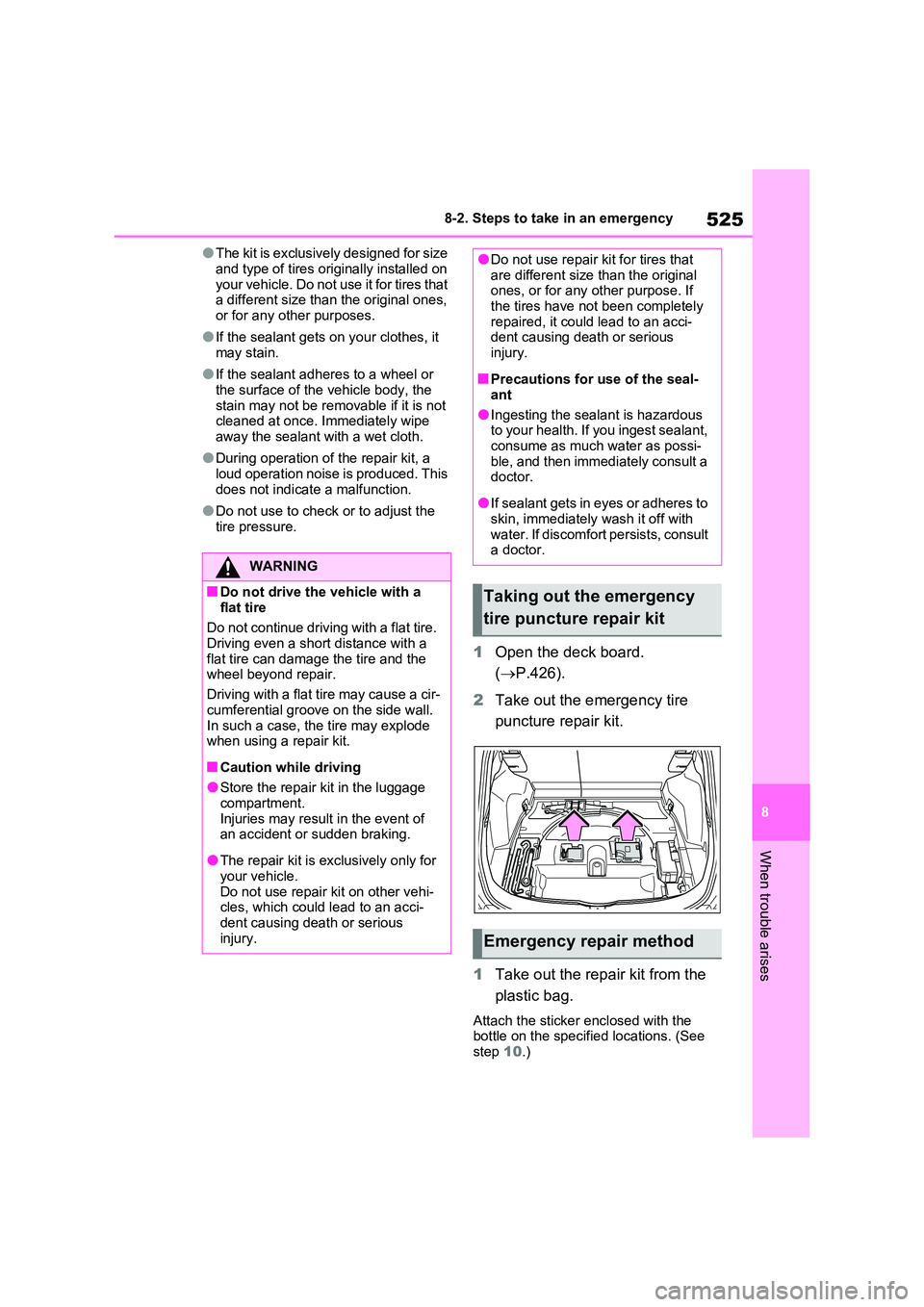

1 Open the deck board.
( P.426).
2 Take out the emergency tire
puncture repair kit.
1 Take out the repair kit from the
plastic bag.
Attach the sticker enclosed with the bottle on the specified locations. (See step 10.)
WARNING
QDo not drive the vehicle with a
flat tire
Do not continue driving with a flat tire. Driving even a short distance with a
flat tire can damage the tire and the wheel beyond repair.
Driving with a flat tire may cause a cir-
cumferential groove on the side wall. In such a case, the tire may explode when using a repair kit.
QCaution while driving
OStore the repair kit in the luggage
compartment. Injuries may result in the event of an accident or sudden braking.
OThe repair kit is exclusively only for your vehicle.
Do not use repair kit on other vehi- cles, which could lead to an acci-dent causing death or serious
injury.
ODo not use repair kit for tires that are different size than the original ones, or for any other purpose. If
the tires have not been completely repaired, it could lead to an acci-dent causing death or serious
injury.
QPrecautions for use of the seal-
ant
OIngesting the sealant is hazardous to your health. If you ingest sealant,
consume as much water as possi- ble, and then immediately consult a doctor.
OIf sealant gets in eyes or adheres to skin, immediately wash it off with
water. If discomfort persists, consult a doctor.
Taking out the emergency
tire puncture repair kit
Emergency repair method

5308-2. Steps to take in an emergency
may get dirty.
24 Store the bottle in the luggage
compartment while it is con-
nected to the compressor.
25 Taking precautions to avoid
sudden braking, sudden accel-
eration and sharp turns, drive
carefully at under 80 km/h (50
mph) to the nearest authorized
Toyota retailer or Toyota autho-
rized repairer, or reliable
repairer that is less than 100 km
(62 miles) away for tire repair or
replacement.
For repair and replacement of a tire or disposal of the tire puncture repair kit, contact any authorized Toyota retailer
or Toyota authorized repairer, or any reliable repairer.
When having the tire repaired or
replaced, make sure to tell the autho- rized Toyota retailer or Toyota autho-rized repairer, or reliable repairer that
the sealant is injected.
QIf the tire is inflated to more than the specified air pressure
1 Disconnect the hose from the valve.
2 Install the air release cap to the end of the hose and push the protrusion
on the air release cap into the tire valve to let some air out.
3 Disconnect the hose from the valve, remove the air release cap from the hose and then reconnect the hose.
4 Turn the compressor switch on and
wait for several seconds, and then turn it off. Check that the air pres-sure indicator shows the specified
air pressure.
If the air pressure is under the desig- nated pressure, turn the compressor
switch on again and repeat the inflation procedure until the specified air pres-sure is reached.
QAfter a tire is repaired with the
emergency tire puncture repair kit
OThe tire pressure warning valve and
transmitter should be replaced.
OEven if the tire inflation pressure is at
the recommended level, the tire pres- sure warning light may come on/flash.
QTaking out the jack (if equipped)
1 Open the deck board.
2 Unhook the tightening strap and take out the jack from the deck under
tray.
After taking out the jack, hold it in place by attaching the rubber band temporarily
to the hole shown in the illustration.
To store the jack, rotate the jack and tighten until it no longer moves. Insert it
into the deck under tray and then secure it in place with a rubber band.

531
8
8-2. Steps to take in an emergency
When trouble arises
WARNING
QWhen fixing the flat tire
OStop your vehicle in a safe and flat area.
ODo not touch the wheels or the area around the brakes immediately
after the vehicle has been driven. After the vehicle has been driven,
the wheels and the area around the brakes may be extremely hot. Touching these areas with hands,
feet or other body parts may result in burns.
OConnect the valve and hose securely with the tire installed on the vehicle. If the hose is not prop-
erly connected to the valve, air leakage may occur as sealant may be sprayed out.
OIf the hose comes off the valve while inflating the tire, there is a risk
that the hose will move abruptly due to air pressure.
OAfter inflation of the tire has com-pleted, the sealant may splatter when the hose is disconnected or
some air is let out of the tire.
OFollow the operation procedure to repair the tire. If the procedures not followed, the sealant may spray
out.
OKeep back from the tire while it is
being repaired, as there is a chance of it bursting while the repair opera-tion is being performed. If you
notice any cracks or deformation of the tire, turn off the compressor switch and stop the repair operation
immediately.
OThe repair kit may overheat if oper-
ated for a long period of time. Do not operate the repair kit continu-ously for more than 40 minutes.
OParts of the repair kit become hot during operation. Be careful han-
dling the repair kit during and after operation. Do not touch the metal part connecting the bottle and the
compressor. It will be extremely hot.
ODo not attach the vehicle speed warning sticker to an area other than the one indicated. If the sticker
is attached to an area where an SRS airbag is located, such as the pad of the steering wheel, it may
prevent the SRS airbag from oper- ating properly.
QDriving to spread the liquid seal-ant evenly
Observe the following precautions to
reduce the risk of accidents.
Failing to do so may result in a loss of vehicle control and cause death or
serious injury.
ODrive the vehicle carefully at a low speed. Be especially careful when
turning and cornering.

5328-2. Steps to take in an emergency
WARNING
OIf the vehicle does not drive straight or you feel a pull through the steer-
ing wheel, stop the vehicle and check the following.
• Tire condition. The tire may have
separated from the wheel.
• Tire inflation pressure. If the tire
inflation pressure is 130 kPa (1.3
kgf/cm2 or bar, 19 psi) or less, the tire may be severely damaged.
NOTICE
QWhen performing an emergency repair
OA tire should only be repaired with
the emergency tire puncture repair kit if the damage is caused by a sharp object such as nail or screw
passing through the tire tread. Do not remove the sharp object from the tire. Removing the object
may widen the opening and disen- able emergency repair with the
repair kit.
OThe repair kit is not waterproof.
Make sure that the repair kit is not exposed to water, such as when it is being used in the rain.
ODo not put the repair kit directly onto dusty ground such as sand at
the side of the road. If the repair kit vacuums up dust etc., a malfunc-tion may occur.
OMake sure to stand the kit with the bottle vertical. The kit cannot work
properly if it is laid on its side.
QPrecautions for the emergency
tire puncture repair kit
OThe repair kit power source should be 12 V DC suitable for vehicle use.
Do not connect the repair kit to any other source.
OIf fuel splatters on the repair kit, the repair kit may deteriorate. Take care not to allow fuel to contact it.
OPlace the repair kit in a storage to prevent it from being exposed to dirt
or water.
OStore the repair kit in the luggage
compartment out of reach of chil- dren.
ODo not disassemble or modify the repair kit. Do not subject parts such as the air pressure indicator to
impacts. This may cause a mal- function.
QTo avoid damage to the tire pres-sure warning valves and trans-mitters
When a tire is repaired with liquid sealants, the tire pressure warning valve and transmitter may not operate
properly. If a liquid sealant is used, contact any authorized Toyota retailer or Toyota authorized repairer, or any
reliable repairer or other qualified ser- vice shop as soon as possible. After use of liquid sealant, make sure to
replace the tire pressure warning valve and transmitter when repairing or replacing the tire. ( P.465)
