2484-5. Opening, closing the windows and moon roof
direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing direction again. After the side win-
dow is completely closed, continue holding the switch for a further 1 sec-ond or more.
If you release the switch while the side window is moving, start again from the beginning.
If the side window reverses and cannot be fully closed or opened, have the vehi-cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
QDoor lock linked power window operation
OThe power windows can be opened
and closed using the mechanical key.*
( P.545)
OThe power windows can be opened
and closed using the wireless remote
control.* ( P.203)
OVehicles with alarm: The alarm may be triggered if the alarm is set and the
power window is closed using the door lock linked power window opera-tion function. ( P.78)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
QPower window open reminder func-
tion
The buzzer sounds and a message is shown on the multi-information display
when the power switch is turned to OFF and the driver’s door is opened with the power windows open.
QCustomization
Settings (e.g. linked door lock operation) can be changed. (Customizable fea-tures: P.576)
WARNING
Observe the following precautions. Failing to do so may result in death or
serious injury.
QClosing the power windows
OThe driver is responsible for all the power window operations, including the operation for the passengers. In
order to prevent accidental opera- tion, especially by a child, do not let a child operate the power windows.
It is possible for children and other passengers to have body parts caught in the power window. Also,
when riding with a child, it is recom- mended to use the window lock switch. ( P.249)
OCheck to make sure that all passen- gers do not have any part of their
body in a position where it could be caught when a power window is being operated.
OWhen using the wireless remote control or mechanical key and oper-
ating the power windows, operate the power window after checking to make sure that there is no possibil-
ity of any passenger having any of their body parts caught in the side window. Also, do not let a child
operate the power window by the wireless remote control or mechani-cal key. It is possible for children
and other passengers to get caught in the power window.

4086-1. Using the air conditioning system and defogger
switch to outside air mode if the recircu-
lated air mode is used. (It may switch
automatically.)
To defog the windshield and the side
windows quickly, turn the air flow and
temperature up.
To return to the previous mode, press
the windshield defogger switch again
when the windshield is defogged.
When the windshield defogger switch is
on, the indicator illuminates on the
windshield defogger switch.
QDefogging the rear window
and outside rear view mirrors
Defoggers are used to defog the
rear window, and to remove rain-
drops, dew and frost from the out-
side rear view mirrors.
Press the rear window defogger
and outside rear view mirror defog-
gers switch.
The defoggers will automatically turn off
after 15 minutes.
When the rear window defogger and
outside rear view mirror defoggers
switch is on, the indicator illuminates on
the rear window defogger and outside
rear view mirror defoggers switch.
QBlower customization
The fan speed can be adjusted
according to your preference.
1Press the automatic mode or
airflow mode control switch.
2Press the blower customization
switch.
3Each time the blower customi-
zation switch is pressed, the fan
speed changes as follows.
Normal  “ECO”  “FAST”
QHeating
OIn HV mode, the gasoline engine may
operate in order to extract heat from
the engine coolant via the heater.
OIn EV mode, heating is done by a heat
pump system.
• When the outside temperature is low
or it is snowing, compared to conven-
tional vehicles, heating may be less
effective and warm air may not come
out.
• When the outside heat exchanger is
frosted over, fan speed declines and it
may become harder to heat the inte-
rior. However, it is not a malfunction.
In this situation, the air temperature
from the outlets may not change even
though the set temperature is raised.
• If frost has formed of the outside heat
exchanger, the heating performance
will decline. The frost can be removed
from the outside heat exchanger by
operating the Remote Air Conditioning
System before driving (P.414).
When frosted over, the heating opera-
tion of the Remote Air Conditioning
System starts after defrosting.
• When “AUTO” switch is turned on, the
heating is controlled optimally. There-
fore, the set heating performance may
not be achieved even if the fan speed
setting is increased.
Outside heat exchanger
OIn the following situations the gasoline
engine may operate in order to extract
heat from the engine coolant via the
heater even in EV mode.
• The outside temperature is approxi-
mately -10°C (14°F) or low
A

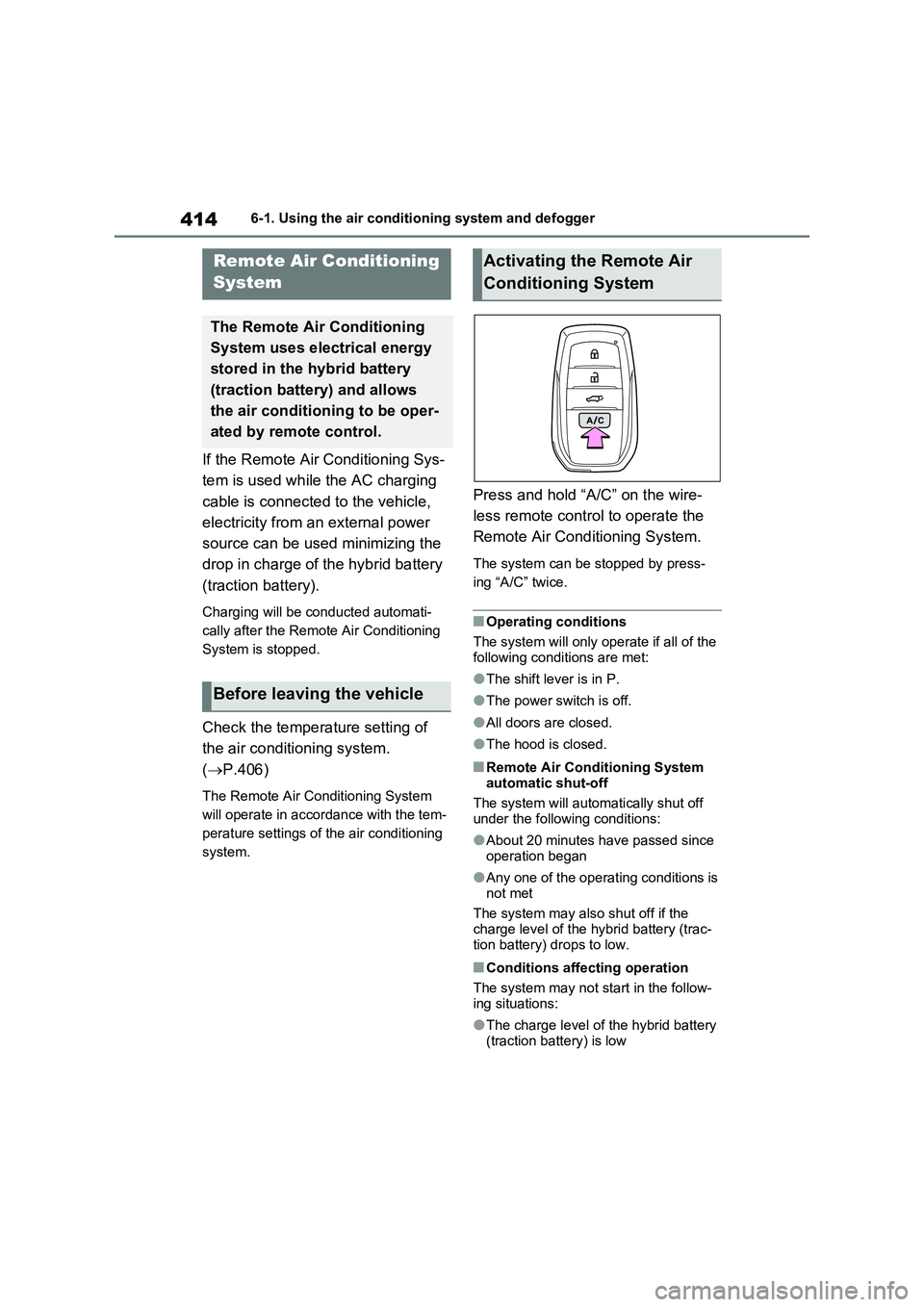

4146-1. Using the air conditioning system and defogger
If the Remote Air Conditioning Sys-
tem is used while the AC charging
cable is connected to the vehicle,
electricity from an external power
source can be used minimizing the
drop in charge of the hybrid battery
(traction battery).
Charging will be conducted automati-
cally after the Remote Air Conditioning
System is stopped.
Check the temperature setting of
the air conditioning system.
(P.406)
The Remote Air Conditioning System
will operate in accordance with the tem-
perature settings of the air conditioning
system.
Press and hold “A/C” on the wire-
less remote control to operate the
Remote Air Conditioning System.
The system can be stopped by press-
ing “A/C” twice.
QOperating conditions
The system will only operate if all of the
following conditions are met:
OThe shift lever is in P.
OThe power switch is off.
OAll doors are closed.
OThe hood is closed.
QRemote Air Conditioning System
automatic shut-off
The system will automatically shut off
under the following conditions:
OAbout 20 minutes have passed since
operation began
OAny one of the operating conditions is
not met
The system may also shut off if the
charge level of the hybrid battery (trac-
tion battery) drops to low.
QConditions affecting operation
The system may not start in the follow-
ing situations:
OThe charge level of the hybrid battery
(traction battery) is low
Remote Air Conditioning
System
The Remote Air Conditioning
System uses electrical energy
stored in the hybrid battery
(traction battery) and allows
the air conditioning to be oper-
ated by remote control.
Before leaving the vehicle
Activating the Remote Air
Conditioning System

4607-3. Do-it-yourself maintenance

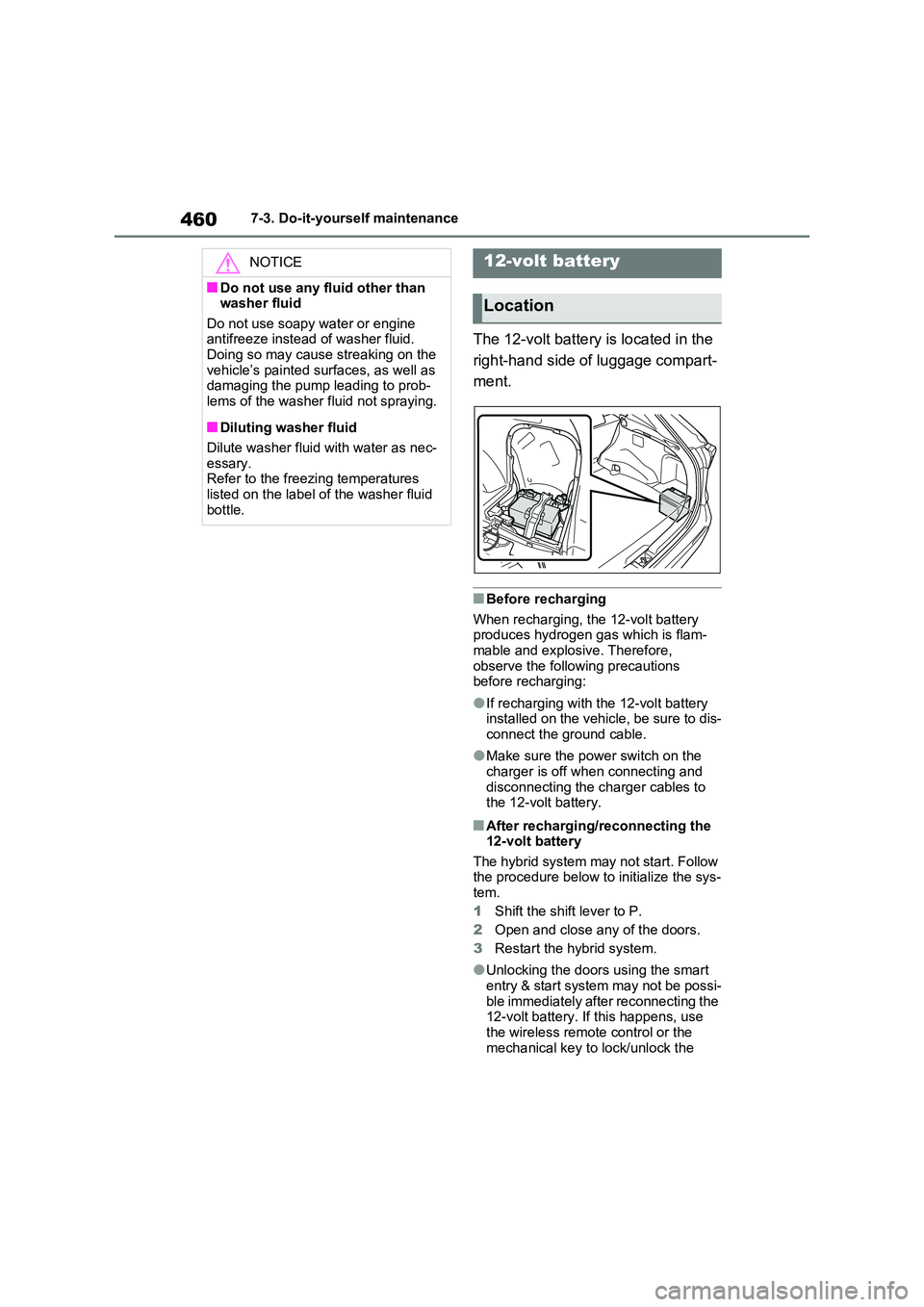

The 12-volt battery is located in the
right-hand side of luggage compart-
ment.
QBefore recharging
When recharging, the 12-volt battery produces hydrogen gas which is flam-mable and explosive. Therefore,
observe the following precautions before recharging:
OIf recharging with the 12-volt battery installed on the vehicle, be sure to dis-connect the ground cable.
OMake sure the power switch on the charger is off when connecting and
disconnecting the charger cables to the 12-volt battery.
QAfter recharging/reconnecting the 12-volt battery
The hybrid system may not start. Follow the procedure below to initialize the sys-tem.
1 Shift the shift lever to P.
2 Open and close any of the doors.
3 Restart the hybrid system.
OUnlocking the doors using the smart entry & start system may not be possi-
ble immediately after reconnecting the 12-volt battery. If this happens, use the wireless remote control or the
mechanical key to lock/unlock the
NOTICE
QDo not use any fluid other than washer fluid
Do not use soapy water or engine antifreeze instead of washer fluid.Doing so may cause streaking on the
vehicle’s painted surfaces, as well as damaging the pump leading to prob-lems of the washer fluid not spraying.
QDiluting washer fluid
Dilute washer fluid with water as nec-
essary. Refer to the freezing temperatures listed on the label of the washer fluid
bottle.
12-volt battery
Location

4867-3. Do-it-yourself maintenance

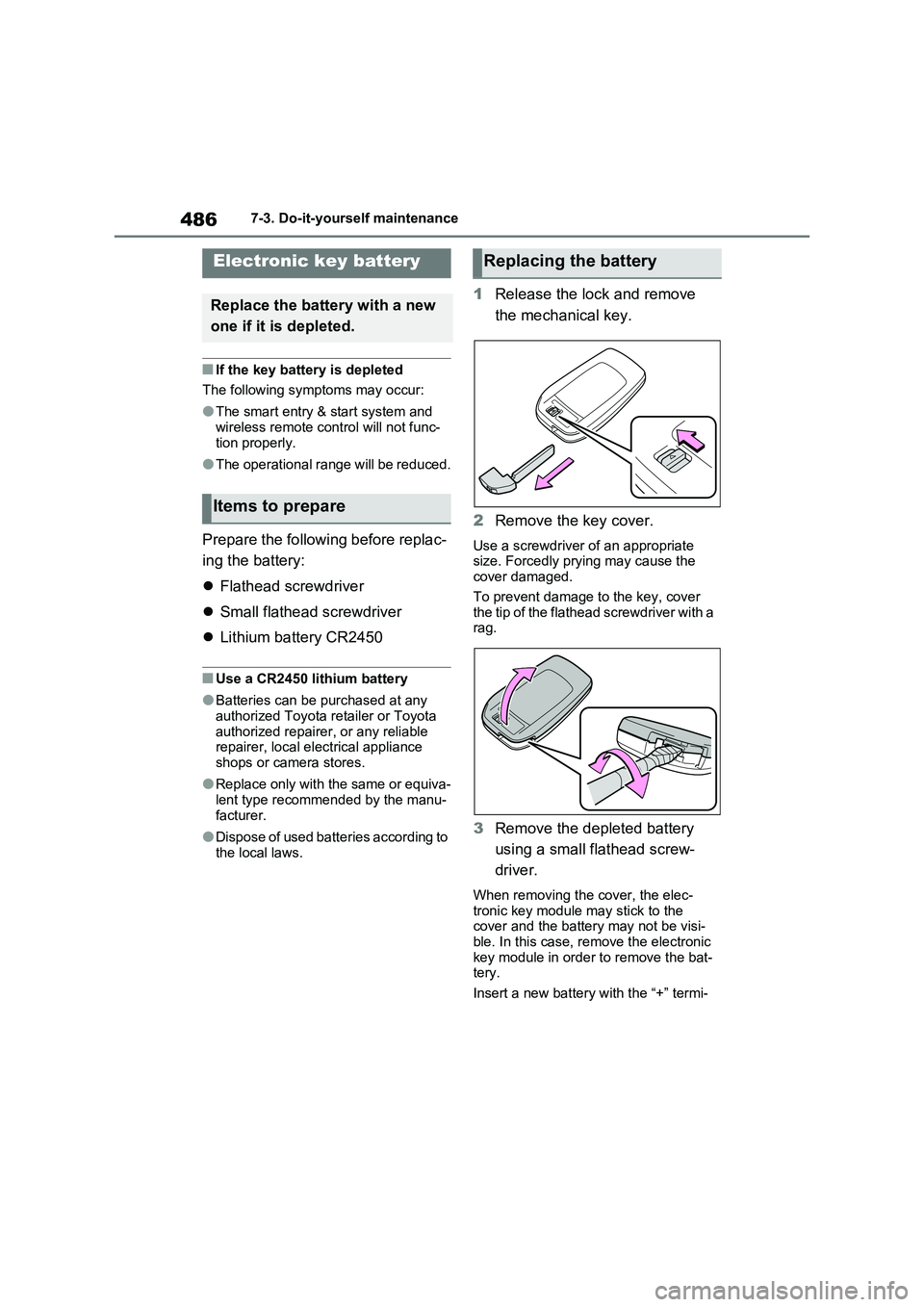

QIf the key battery is depleted
The following symptoms may occur:
OThe smart entry & start system and
wireless remote control will not func- tion properly.
OThe operational range will be reduced.
Prepare the following before replac-
ing the battery:
 Flathead screwdriver
 Small flathead screwdriver
 Lithium battery CR2450
QUse a CR2450 lithium battery
OBatteries can be purchased at any
authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer, local electrical appliance
shops or camera stores.
OReplace only with the same or equiva-
lent type recommended by the manu- facturer.
ODispose of used batteries according to the local laws.
1 Release the lock and remove
the mechanical key.
2 Remove the key cover.
Use a screwdriver of an appropriate size. Forcedly prying may cause the cover damaged.
To prevent damage to the key, cover the tip of the flathead screwdriver with a rag.
3 Remove the depleted battery
using a small flathead screw-
driver.
When removing the cover, the elec- tronic key module may stick to the cover and the battery may not be visi-
ble. In this case, remove the electronic key module in order to remove the bat-tery.
Insert a new battery with the “+” termi-
Electronic key battery
Replace the battery with a new
one if it is depleted.
Items to prepare
Replacing the battery

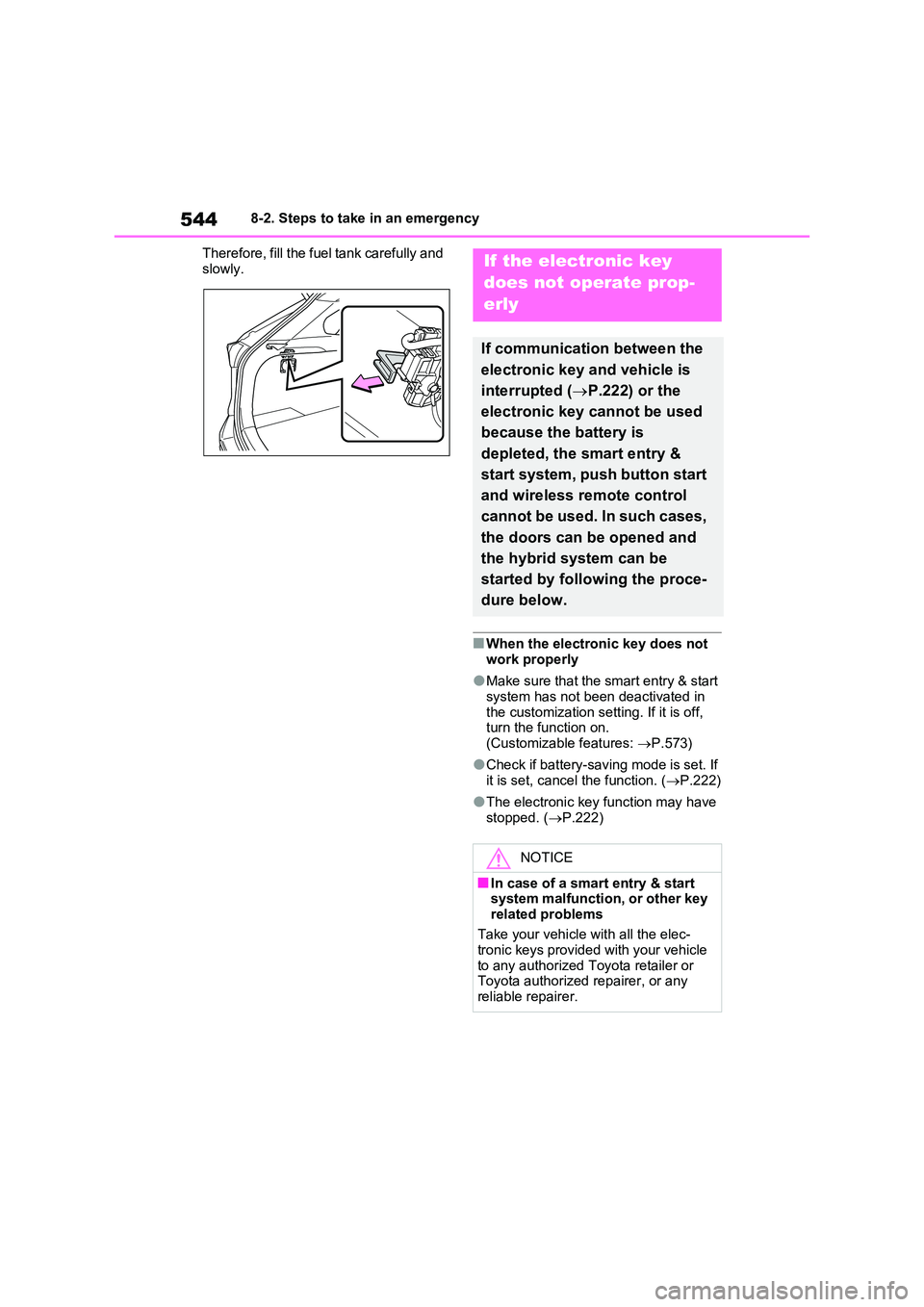

5448-2. Steps to take in an emergency
Therefore, fill the fuel tank carefully and
slowly.
QWhen the electronic key does not work properly
OMake sure that the smart entry & start system has not been deactivated in
the customization setting. If it is off, turn the function on. (Customizable features: P.573)
OCheck if battery-saving mode is set. If it is set, cancel the function. ( P.222)
OThe electronic key function may have
stopped. ( P.222)
If the electronic key
does not operate prop-
erly
If communication between the
electronic key and vehicle is
interrupted ( P.222) or the
electronic key cannot be used
because the battery is
depleted, the smart entry &
start system, push button start
and wireless remote control
cannot be used. In such cases,
the doors can be opened and
the hybrid system can be
started by following the proce-
dure below.
NOTICE
QIn case of a smart entry & start system malfunction, or other key
related problems
Take your vehicle with all the elec- tronic keys provided with your vehicle
to any authorized Toyota retailer or Toyota authorized repairer, or any reliable repairer.

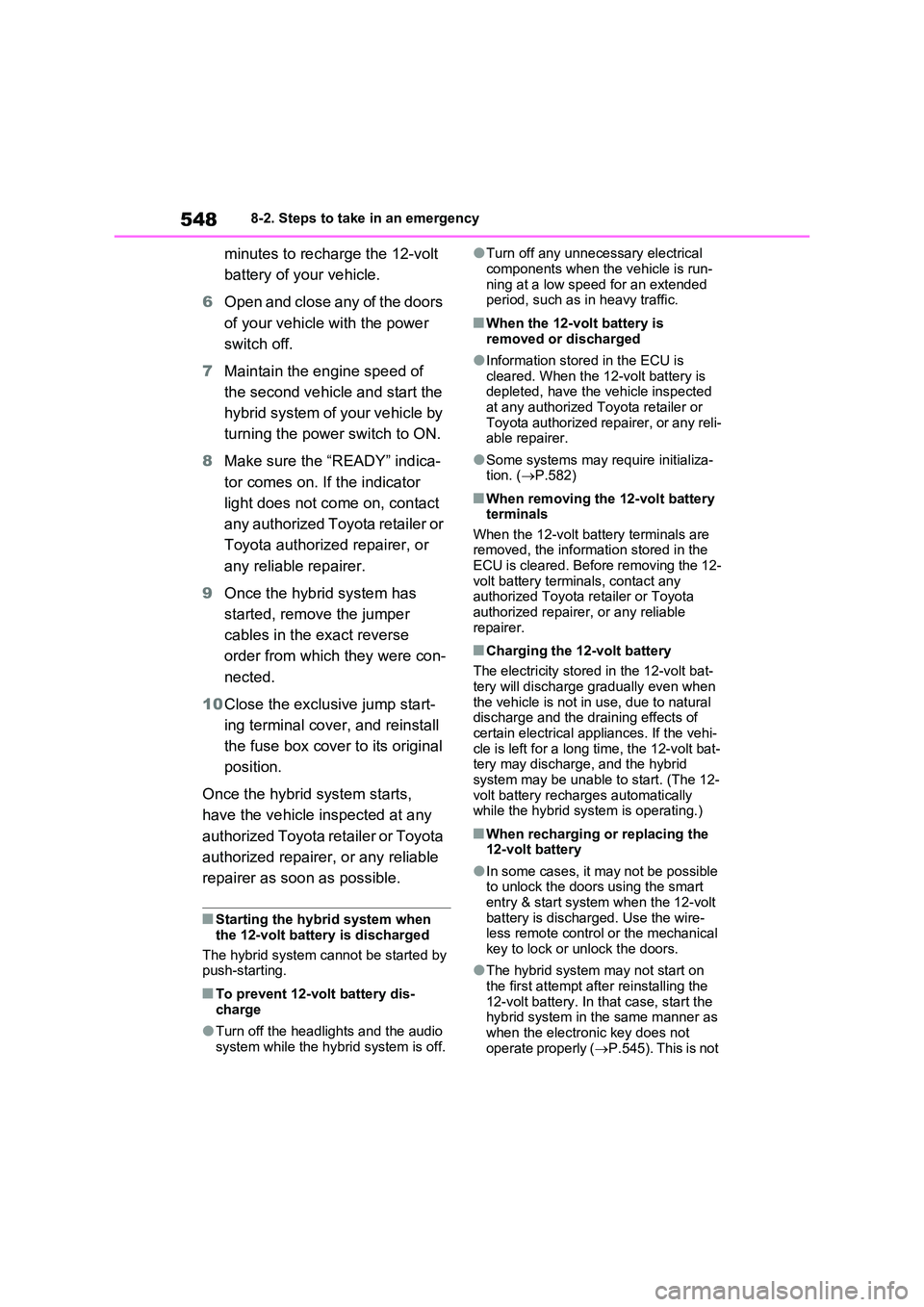

5488-2. Steps to take in an emergency
minutes to recharge the 12-volt
battery of your vehicle.
6 Open and close any of the doors
of your vehicle with the power
switch off.
7 Maintain the engine speed of
the second vehicle and start the
hybrid system of your vehicle by
turning the power switch to ON.
8 Make sure the “READY” indica-
tor comes on. If the indicator
light does not come on, contact
any authorized Toyota retailer or
Toyota authorized repairer, or
any reliable repairer.
9 Once the hybrid system has
started, remove the jumper
cables in the exact reverse
order from which they were con-
nected.
10 Close the exclusive jump start-
ing terminal cover, and reinstall
the fuse box cover to its original
position.
Once the hybrid system starts,
have the vehicle inspected at any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer as soon as possible.
QStarting the hybrid system when
the 12-volt battery is discharged
The hybrid system cannot be started by push-starting.
QTo prevent 12-volt battery dis-
charge
OTurn off the headlights and the audio
system while the hybrid system is off.
OTurn off any unnecessary electrical
components when the vehicle is run- ning at a low speed for an extended period, such as in heavy traffic.
QWhen the 12-volt battery is
removed or discharged
OInformation stored in the ECU is
cleared. When the 12-volt battery is depleted, have the vehicle inspected at any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
OSome systems may require initializa-tion. ( P.582)
QWhen removing the 12-volt battery terminals
When the 12-volt battery terminals are removed, the information stored in the ECU is cleared. Before removing the 12-
volt battery terminals, contact any authorized Toyota retailer or Toyota authorized repairer, or any reliable
repairer.
QCharging the 12-volt battery
The electricity stored in the 12-volt bat- tery will discharge gradually even when
the vehicle is not in use, due to natural discharge and the draining effects of certain electrical appliances. If the vehi-
cle is left for a long time, the 12-volt bat- tery may discharge, and the hybrid system may be unable to start. (The 12-
volt battery recharges automatically while the hybrid system is operating.)
QWhen recharging or replacing the 12-volt battery
OIn some cases, it may not be possible to unlock the doors using the smart
entry & start system when the 12-volt battery is discharged. Use the wire-less remote control or the mechanical
key to lock or unlock the doors.
OThe hybrid system may not start on
the first attempt after reinstalling the 12-volt battery. In that case, start the hybrid system in the same manner as
when the electronic key does not operate properly ( P.545). This is not

573

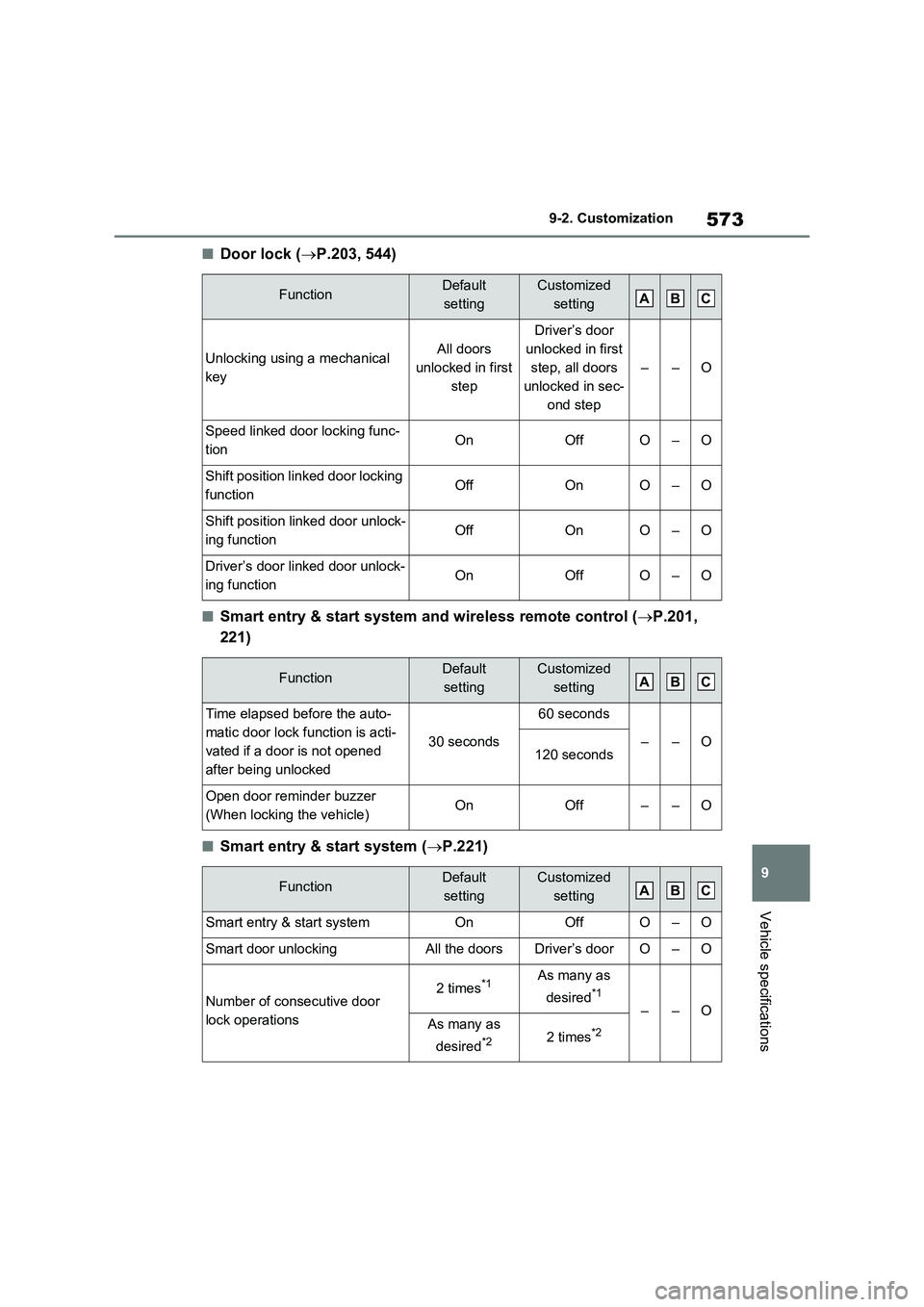

9 9-2. Customization
Vehicle specifications
QDoor lock (P.203, 544)
QSmart entry & start system and wireless remote control (P.201,
221)
QSmart entry & start system (P.221)
FunctionDefault
settingCustomized
setting
Unlocking using a mechanical
keyAll doors
unlocked in first
step
Driver’s door
unlocked in first
step, all doors
unlocked in sec-
ond step
––O
Speed linked door locking func-
tionOnOffO–O
Shift position linked door locking
functionOffOnO–O
Shift position linked door unlock-
ing functionOffOnO–O
Driver’s door linked door unlock-
ing functionOnOffO–O
FunctionDefault
settingCustomized
setting
Time elapsed before the auto-
matic door lock function is acti-
vated if a door is not opened
after being unlocked
30 seconds
60 seconds
––O120 seconds
Open door reminder buzzer
(When locking the vehicle)OnOff––O
FunctionDefault
settingCustomized
setting
Smart entry & start systemOnOffO–O
Smart door unlockingAll the doorsDriver’s doorO–O
Number of consecutive door
lock operations2 times*1As many as
desired
*1
––OAs many as
desired
*22 times*2
ABC
ABC
ABC

587Alphabetical Index
Alphabetical Index
A
A/C
“My Room Mode” ....................... 152
Air conditioning filter................... 475
Automatic air conditioning system
................................................. 406
Blower customization ................. 408
Front seat concentrated airflow
mode (S-FLOW) ...................... 411
Humidity sensor ......................... 413
Remote Air Conditioning System414
ABS (Anti-lock Brake System) .... 391
Function ..................................... 391
Warning light .............................. 510
ACA (Active Cornering Assist).... 392
AC charging cable ........................ 108
AC charging cable types ............ 110
CCID (Charging Circuit Interrupting
Device) .................................... 109
If the charging connector cannot be
unlocked .................................. 122
Indicator ..................................... 113
Locking and unlocking ............... 121
Maintenance .............................. 116
Replacing the plug-cord ............. 114
Safety functions ......................... 112
Acoustic Vehicle Alerting System 92
Active Cornering Assist (ACA).... 392
Airbag manual on-off system ........ 48
Airbags ............................................ 39
Airbag manual on-off system ....... 48
Airbag operating conditions ......... 41
Airbag precautions for your child . 44
Airbag warning light ................... 510
Correct driving posture................. 33
Curtain shield airbag operating con-
ditions ........................................ 41
Curtain shield airbag precautions 44
General airbag precautions.......... 44
Locations of airbags ..................... 39Modification and disposal of airbags
................................................... 46
Side airbag operating conditions .. 41
Side airbag precautions ............... 44
Side and curtain shield airbags oper-
ating conditions .......................... 41
Side and curtain shield airbags pre-
cautions...................................... 44
SRS airbags ................................. 39
SRS warning light.......................510
Air conditioning filter ................... 475
Air conditioning system
“My Room Mode” .......................152
Air conditioning filter ................... 475
Automatic air conditioning system
................................................. 406
Blower customization ................. 408
Front seat concentrated airflow
mode (S-FLOW).......................411
Humidity sensor ......................... 413
Remote Air Conditioning System414
Air intake vent ................................. 98
Cleaning ..................................... 479
Alarm................................................78
Alarm ............................................ 78
Warning buzzer .......................... 508
Antenna
Smart entry & start system ......... 221
Anti-lock brake system (ABS) ..... 391
Function ..................................... 391
Warning light .............................. 510
Approach warning ........................ 339
Armrest .......................................... 439
Ashtray .......................................... 430
Assist grips ...................................439
AUTO EV/HV mode .........................85
AUTO EV/HV mode switch ............. 86
Automatic air conditioning system
..................................................... 406
“My Room Mode” .......................152
Air conditioning filter ................... 475

590Alphabetical Index
BSM (Blind Spot Monitor) .......... 349
Consumption screen .................. 193
Cruise control ............................. 344
Drive information ........................ 183
Driving information ..................... 179
Dynamic radar cruise control with
full-speed range ....................... 332
Energy monitor........................... 193
Head-up display ......................... 189
LTA (Lane-Tracing Assist) ......... 324
Multi-information display ............ 177
Parking Support Brake function . 381
Pre-collision warning .................. 311
RCTA ......................................... 349
RSA (Road Sign Assist) ............. 329
Toyota parking assist-sensor ..... 371
Warning messages .................... 518
Do-it-yourself maintenance . 448, 450
Door lock
Back door ................................... 208
Side doors .................................. 203
Smart entry & start system......... 221
Wireless remote control ............. 201
Doors
Automatic door locking and unlock-
ing system ............................... 207
Back door ................................... 208
Door glasses .............................. 247
Door lock .................................... 203
Open door warning buzzer......... 206
Outside rear view mirrors ........... 245
Rear door child-protectors ......... 207
Side doors .................................. 203
Double locking system .................. 77
Drive information .......................... 183
Driver’s seat belt reminder light.. 515
Driver’s seat position memory .... 229
Driving position memory ............ 229
Memory recall function ............... 230
Drive-Start Control (DSC)
Sudden start restraint control ..... 262Driving
Break-in tips ............................... 257
Correct posture ............................ 33
Driving mode select switch......... 387
Plug in Hybrid Electric Vehicle ..... 99
Procedures ................................. 256
Winter drive tips ......................... 398
Driving information display ......... 179
Driving mode select switch ......... 387
Driving position memory ............. 229
Memory recall function ............... 230
Driving support system information
display ......................................... 182
DSC (Drive-Start Control)
Sudden start restraint control ..... 262
Dynamic radar cruise control with
full-speed range
Function ..................................... 332
Warning message ...................... 518
E
eCall ................................................. 65
ECB (Electronically Controlled Brake
System) ....................................... 391
Eco drive mode .............................387
E-Four (Electronic On-Demand AWD
system) ........................................392
Elapsed time.................................. 183
Electric motor
Location........................................ 84
Specification ............................... 560
Electric Power Steering (EPS)
Function ..................................... 392
Warning light .............................. 510
Electronically Controlled Brake Sys-
tem (ECB) .................................... 391
Electronic key
Battery-saving function............... 222
If the electronic key does not operate
properly .................................... 544
Replacing the battery ................. 486
