window TOYOTA RAV4 PLUG-IN HYBRID 2022 Owner's Manual

2064-2. Opening, closing and locking the doors
QUsing the door lock switches
1 Locks all the doors
2 Unlocks all the doors
QUsing the inside lock buttons
1 Locks the door
2 Unlocks the door
The front doors can be opened by pull-
ing the inside handle even if the lock
buttons are in the lock position.
QLocking the front doors from the outside without a key
1 Move the inside lock button to the
lock position.
2 Close the door while pulling the door handle.
The door cannot be locked if the power
switch is in ACC or ON, or the electronic
key is left inside the vehicle.
Depending on the position of the elec-
tronic key, the key may not be detected
correctly and the door may be locked.
QOpen door warning buzzer
If the vehicle speed reaches 5 km/h (3 mph), a buzzer sounds to indicate that
the door(s) or the hood is not fully closed.The open door(s) or hood is displayed
on the multi-information display.
QWhen all the doors are locked with the entry function or wireless remote control
OThe doors cannot be unlocked with the door lock switch.
OThe door lock switches can be reset by unlocking all the doors with the
entry function or wireless remote con-
WARNING
QWhen using the wireless remote control or mechanical key and
operating the power windows or panoramic moon roof (if equipped)
Operate the power window or pan- oramic moon roof after checking to make sure that there is no possibility
of any passenger having any of their body parts caught in the side window or panoramic moon roof. Also, do not
allow children to operate the wireless remote control or mechanical key. It is possible for children and other pas-
sengers to get caught in the side win- dow or panoramic moon roof.
Unlocking and locking the
doors from the inside

223
4 4-2. Opening, closing and locking the doors
Before driving
ONear a TV tower, electric power plant,
gas station, radio station, large dis-
play, airport or other facility that gen-
erates strong radio waves or electrical
noise
OWhen the electronic key is in contact
with, or is covered by the following
metallic objects
• Cards to which aluminum foil is
attached
• Cigarette boxes that have aluminum
foil inside
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
OWhen other wireless key (that emits
radio waves) is being used nearby
OWhen carrying the electronic key
together with the following devices
that emit radio waves
• Portable radio, cellular phone, cord-
less phone or other wireless commu-
nication devices
• Another electronic key or a wireless
key that emits radio waves
• Personal computers or personal digi-
tal assistants (PDAs)
• Digital audio players
• Portable game systems
OIf window tint with a metallic content or
metallic objects are attached to the
rear window
OWhen the electronic key is placed
near a battery charger or electronic
devices
OWhen the vehicle is parked in a pay
parking spot where radio waves are
emitted.
If the doors cannot be locked/unlocked
using the smart entry & start system,
lock/unlock the doors by performing any
of the following:
OBring the electronic key close to either
front door handle and operate the
entry function.
OOperate the wireless remote control. If
the doors cannot be locked/unlocked
using the above methods, use the mechanical key. (P.202)
If the hybrid system cannot be started
using the smart entry & start system,
refer to P.545.
QNote for the entry function
OEven when the electronic key is within
the effective range (detection areas),
the system may not operate properly
in the following cases:
• The electronic key is too close to the
window or outside door handle, near
the ground, or in a high place when
the doors are locked or unlocked.
• The electronic key is on the instru-
ment panel, luggage cover or floor, or
in the door pockets or glove box when
the hybrid system is started or power
switch modes are changed.
ODo not leave the electronic key on top
of the instrument panel or near the
door pockets when exiting the vehicle.
Depending on the radio wave recep-
tion conditions, it may be detected by
the antenna outside the cabin and the
door will become lockable from the
outside, possibly trapping the elec-
tronic key inside the vehicle.
OAs long as the electronic key is within
the effective range, the doors may be
locked or unlocked by anyone. How-
ever, only the doors detecting the
electronic key can be used to lock or
unlock the vehicle.
OEven if the electronic key is not inside
the vehicle, it may be possible to start
the hybrid system if the electronic key
is near the window.
OThe doors may unlock if a large
amount of water splashes on the door
handle, such as in the rain or in a car
wash when the electronic key is within
the effective range. (The doors will
automatically be locked after approxi-
mately 30 seconds if the doors are not
opened and closed.)
OIf the wireless remote control is used
to lock the doors when the electronic
key is near the vehicle, there is a pos-
sibility that the door may not be

2404-4. Adjusting the steering wheel and mirrors
QCleaning the mirror surface
If the mirror surface is dirty, the
image on the display may be diffi-
cult to see.
Clean the mirror surface gently
using a soft dry cloth.
QCleaning the camera
If the camera lens is dirty, the dis-
played image may not be clear. In
this case, clean it with a soft cloth
dampened with water or a swab.
QThe camera
The camera for the Digital Rear-view Mirror is located as shown.
QThe cooling fan
There is a cooling fan in the Digital
Rear-view Mirror. Cooling fan sounds may be heard when using the system.
WARNING
QTo prevent causes of fire
If the driver continues using the Digi-
tal Rear-view Mirror while smoke or odor comes from the mirror, it may result in fire. Stop using the system
immediately and contact any autho- rized Toyota retailer or Toyota autho-rized repairer, or any reliable repairer.
Cleaning the Digital Rear-
view Mirror
NOTICE
QTo prevent the Digital Rear-view Mirror from malfunctioning
ODo not use detergents, such as thinner, benzene, and alcohol to clean the mirror. They may discolor,
deteriorate or damage the mirror surface.
ODo not smoke, use matches, use
cigarette lighters or allow open flames near the mirror. It may dam-age the mirror or cause a fire.
ODo not remove, disassemble or modify the mirror.
QTo prevent the camera from mal-functioning
OObserve the following precautions,
otherwise the Digital Rear-view Mir- ror may not operate properly.
• Do not strike or hit the camera or
subject it to a strong impact, as the camera installation position and angle may be changed.
• Do not remove, disassemble or modify the camera.
• Do not allow an organic solvent, car wax, window cleaner or glass coat-
ing to adhere to the camera. If this happens, wipe it off as soon as pos-sible.
• When cleaning the camera lens, wipe the camera lens with a damp
soft cloth. Do not strongly rub the camera lens, as it may be scratched and
will not be able to transmit a clear image.
• When applying colored film (includ- ing transparent film) to the rear win-dow glass, do not apply it to the
area in front of the camera. If film is applied to the area in front of the camera, the image from the
camera may not display properly.

243
4 4-4. Adjusting the steering wheel and mirrors
Before driving
The image is dif-
ficult to see.
The luggage in the luggage
compartment is reflected off the
rear window glass and obstruct-
ing the camera.
• Change to optical mirror
mode.
• Move the luggage to a posi-
tion where it does not obstruct
the camera or cover it with a
black cloth to reduce the
amount it is reflected off the
rear window glass.
The rear window glass is fogged
up.
Change to optical mirror mode.
After defogging the rear window
using the rear window defogger
(P.408), use the digital mirror
mode again.
The outside of the rear window
glass is dirty.Use the rear window wiper to
remove dirt.
The inside of the rear window
glass is dirty.Wipe the inside of rear window
glass with a damp soft cloth.
The image is out
of alignment.
The back door is not fully
closed.Fully close the back door.
The camera or its surrounding
area has received a strong
impact.
Change to optical mirror mode
and have the vehicle inspected
by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
The display is
dim and is
displayed.
The system may be malfunc-
tioning.
Change to optical mirror mode
and have the vehicle inspected
by any authorized Toyota
retailer or Toyota authorized
repairer, or any reliable repairer.
goes off.
SymptomLikely causeSolution

245
4
4-4. Adjusting the steering wheel and mirrors
Before driving
QDefogging the mirrors
The outside rear view mirrors can be
cleared using the mirror defoggers. Turn on the rear window defogger to turn on the outside rear view mirror defoggers.
( P.408)
1To select a mirror to adjust,
press the switch.
Left
Right
2 To adjust the mirror, press the
switch.
Up
Right
Down
Left
QMirror angle can be adjusted when
The power switch is in ACC or ON.
Outside rear view mir-
rors
The rear view mirror’s position
can be adjusted to enable suf-
ficient confirmation of the rear
view.
WARNING
QImportant points while driving
Observe the following precautions
while driving. Failing to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.
ODo not adjust the mirrors while driv-
ing.
ODo not drive with the mirrors folded.
OBoth the driver and passenger side mirrors must be extended and prop-
erly adjusted before driving.
QWhen the mirror defoggers are
operating
Do not touch the rear view mirror sur- faces, as they can become very hot
and burn you.
Adjustment procedure
A
B
A
B
C
D

247
4
4-5. Opening, closing the windows and moon roof
Before driving
4-5.Opening, closing the windows an d moo n roof
The power windows can be opened
and closed using the switches.
Operating the switch moves the
side windows as follows:
1 Closing
2 One-touch closing*
3Opening
4 One-touch opening*
*: To stop the side window partway,
operate the switch in the opposite
direction.
QThe power windows can be oper- ated when
The power switch is in ON.
QOperating the power windows after
turning the hybrid system off
The power windows can be operated for approximately 45 seconds even after
the power switch is turned to ACC or OFF. They cannot, however, be oper-ated once either front door is opened.
QJam protection function
If an object becomes jammed between the side window and the window frame while the side window is closing, side
window movement is stopped and the
side window is opened slightly.
QCatch protection function
If an object becomes caught between the door and side window while the side
window is opening, side window move- ment is stopped.
QWhen the power window cannot be opened or closed
When the jam protection function or catch protection function operates unusually and the side window cannot
be opened and closed, perform the fol- lowing operations with the power win-dow switch of that door.
OStop the vehicle. With the power switch in ON, within 4 seconds of the
jam protection function or catch pro- tection function activating, continu-ously operate the power window
switch in the one-touch closing direc- tion or one-touch opening direction so that the side window can be opened
and closed.
OIf the side window cannot be opened
and closed even when performing the above operations, perform the follow-ing procedure for function initializa-
tion.
1 Turn the power switch to ON.
2 Pull and hold the power window switch in the one-touch closing direction and completely close the
side window.
3 Release the power window switch for a moment, resume pulling the switch in the one-touch closing
direction, and hold it there for approximately 6 seconds or more.
4 Press and hold the power window switch in the one-touch opening
direction. After the side window is completely opened, continue holding the switch for an additional 1 second
or more.
5 Release the power window switch for a moment, resume pushing the switch in the one-touch opening
Power windows
Opening and closing the
power windows

2484-5. Opening, closing the windows and moon roof
direction, and hold it there for
approximately 4 seconds or more.
6 Pull and hold the power window switch in the one-touch closing direction again. After the side win-
dow is completely closed, continue holding the switch for a further 1 sec-ond or more.
If you release the switch while the side window is moving, start again from the beginning.
If the side window reverses and cannot be fully closed or opened, have the vehi-cle inspected by any authorized Toyota
retailer or Toyota authorized repairer, or any reliable repairer.
QDoor lock linked power window operation
OThe power windows can be opened
and closed using the mechanical key.*
( P.545)
OThe power windows can be opened
and closed using the wireless remote
control.* ( P.203)
OVehicles with alarm: The alarm may be triggered if the alarm is set and the
power window is closed using the door lock linked power window opera-tion function. ( P.78)*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
QPower window open reminder func-
tion
The buzzer sounds and a message is shown on the multi-information display
when the power switch is turned to OFF and the driver’s door is opened with the power windows open.
QCustomization
Settings (e.g. linked door lock operation) can be changed. (Customizable fea-tures: P.576)
WARNING
Observe the following precautions. Failing to do so may result in death or
serious injury.
QClosing the power windows
OThe driver is responsible for all the power window operations, including the operation for the passengers. In
order to prevent accidental opera- tion, especially by a child, do not let a child operate the power windows.
It is possible for children and other passengers to have body parts caught in the power window. Also,
when riding with a child, it is recom- mended to use the window lock switch. ( P.249)
OCheck to make sure that all passen- gers do not have any part of their
body in a position where it could be caught when a power window is being operated.
OWhen using the wireless remote control or mechanical key and oper-
ating the power windows, operate the power window after checking to make sure that there is no possibil-
ity of any passenger having any of their body parts caught in the side window. Also, do not let a child
operate the power window by the wireless remote control or mechani-cal key. It is possible for children
and other passengers to get caught in the power window.

249
4
4-5. Opening, closing the windows and moon roof
Before driving
This function can be used to pre-
vent children from accidentally
opening or closing a passenger
window.
Press the switch.
The indicator will come on and the
passenger windows will be locked.
The passenger windows can still be
opened and closed using the driver’s
switch even if the lock switch is on.
QThe window lock switch can be operated when
The power switch is in ON.
QWhen the 12-volt battery is discon- nected
The window lock switch is disabled. If
necessary, press the window lock switch after reconnecting the 12-volt battery.
WARNING
OWhen exiting the vehicle, turn the power switch to OFF, carry the key
and exit the vehicle along with the child. There may be accidental operation, due to mischief, etc., that
may possibly lead to an accident.
QJam protection function
ONever use any part of your body to intentionally activate the jam pro-tection function.
OThe jam protection function may not work if something gets jammed just
before the side window is fully closed. Be careful not to get any part of your body jammed in the
side window.
QCatch protection function
ONever use any part of your body or clothing to intentionally activate the catch protection function.
OThe catch protection function may not work if something gets caught
just before the side window is fully opened. Be careful not to get any part of your body or clothing caught
in the side window.
Preventing accidental oper-
ation (window lock switch)
A

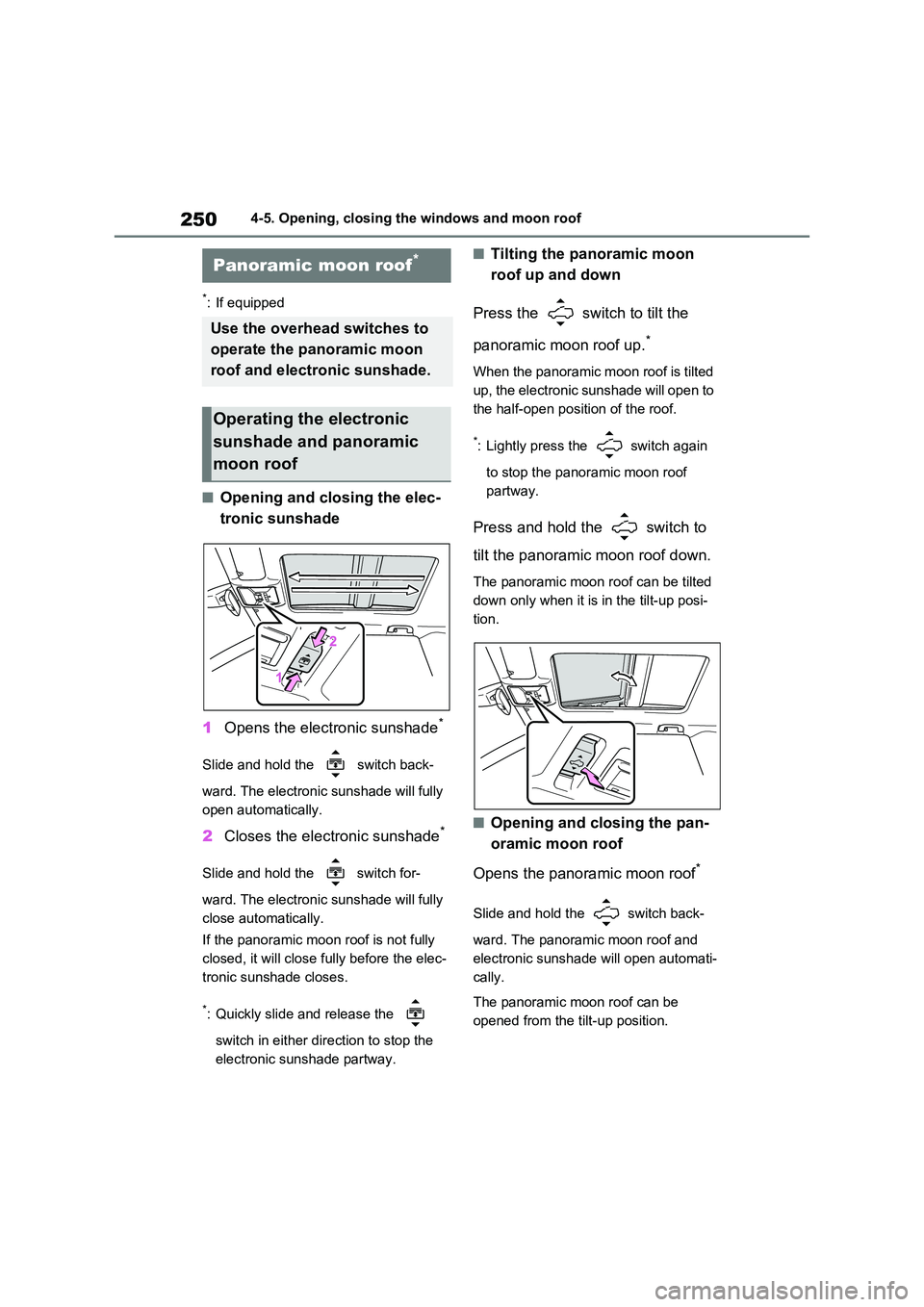

2504-5. Opening, closing the windows and moon roof
*: If equipped
QOpening and closing the elec-
tronic sunshade
1 Opens the electronic sunshade*
Slide and hold the switch back-
ward. The electronic sunshade will fully
open automatically.
2 Closes the electronic sunshade*
Slide and hold the switch for-
ward. The electronic sunshade will fully
close automatically.
If the panoramic moon roof is not fully
closed, it will close fully before the elec-
tronic sunshade closes.
*: Quickly slide and release the
switch in either direction to stop the
electronic sunshade partway.
QTilting the panoramic moon
roof up and down
Press the switch to tilt the
panoramic moon roof up.*
When the panoramic moon roof is tilted
up, the electronic sunshade will open to
the half-open position of the roof.
*: Lightly press the switch again
to stop the panoramic moon roof
partway.
Press and hold the switch to
tilt the panoramic moon roof down.
The panoramic moon roof can be tilted
down only when it is in the tilt-up posi-
tion.
QOpening and closing the pan-
oramic moon roof
Opens the panoramic moon roof*
Slide and hold the switch back-
ward. The panoramic moon roof and
electronic sunshade will open automati-
cally.
The panoramic moon roof can be
opened from the tilt-up position.
Panoramic moon roof*
Use the overhead switches to
operate the panoramic moon
roof and electronic sunshade.
Operating the electronic
sunshade and panoramic
moon roof

251
4 4-5. Opening, closing the windows and moon roof
Before driving
*: Quickly slide and release the
switch in either direction to stop the
panoramic moon roof partway.
Closes the panoramic moon roof
Slide and hold the switch for-
ward. The panoramic moon roof will
fully close automatically.
QThe panoramic moon roof can be
operated when
The power switch is in ON.
QOperating the panoramic moon
roof after turning the hybrid system
off
The panoramic moon roof and electronic
sunshade can be operated for approxi-
mately 45 seconds after the power
switch is turned to ACC or OFF. They
cannot, however, be operated once
either front door is opened.
QJam protection function
If an object is detected between the pan-oramic moon roof and the frame in the
following situations, travel is stopped
and the panoramic moon roof opens
slightly.
OThe panoramic moon roof is closing or
tilting down.
OThe electronic sunshade is closing.
QClosing both the panoramic moon
roof and electronic sunshade
Slide the switch forward.
The electronic sunshade will close to the
half-open position and pause. The pan-
oramic moon roof will then fully close.
Then the electronic sunshade will fully
close.
QDoor lock linked panoramic moon
roof operation
OThe panoramic moon roof can be
opened and closed using the mechan-
ical key.
* (P.545)
OThe panoramic moon roof can be
opened and closed using the wireless
remote control.
* (P.203)
OVehicles with alarm: The alarm may
be triggered if the alarm is set and the
panoramic moon roof is closed using
the door lock linked panoramic moon
roof operation function. (P.78)
*: These settings must be customized at
any authorized Toyota retailer or
Toyota authorized repairer, or any reli-
able repairer.
QWhen the panoramic moon roof or
electronic sunshade does not close
normally
Perform the following procedure:
1Stop the vehicle.
2Turn the power switch to ON.
3Slide and hold the switch or
switch forward. Continue slid-
ing and holding the switch for
approximately 10 seconds after the
