ECU TOYOTA RAV4 PLUG-IN HYBRID 2022 Owner's Guide

75
1
1-3. Emergency assistance
For safety and security

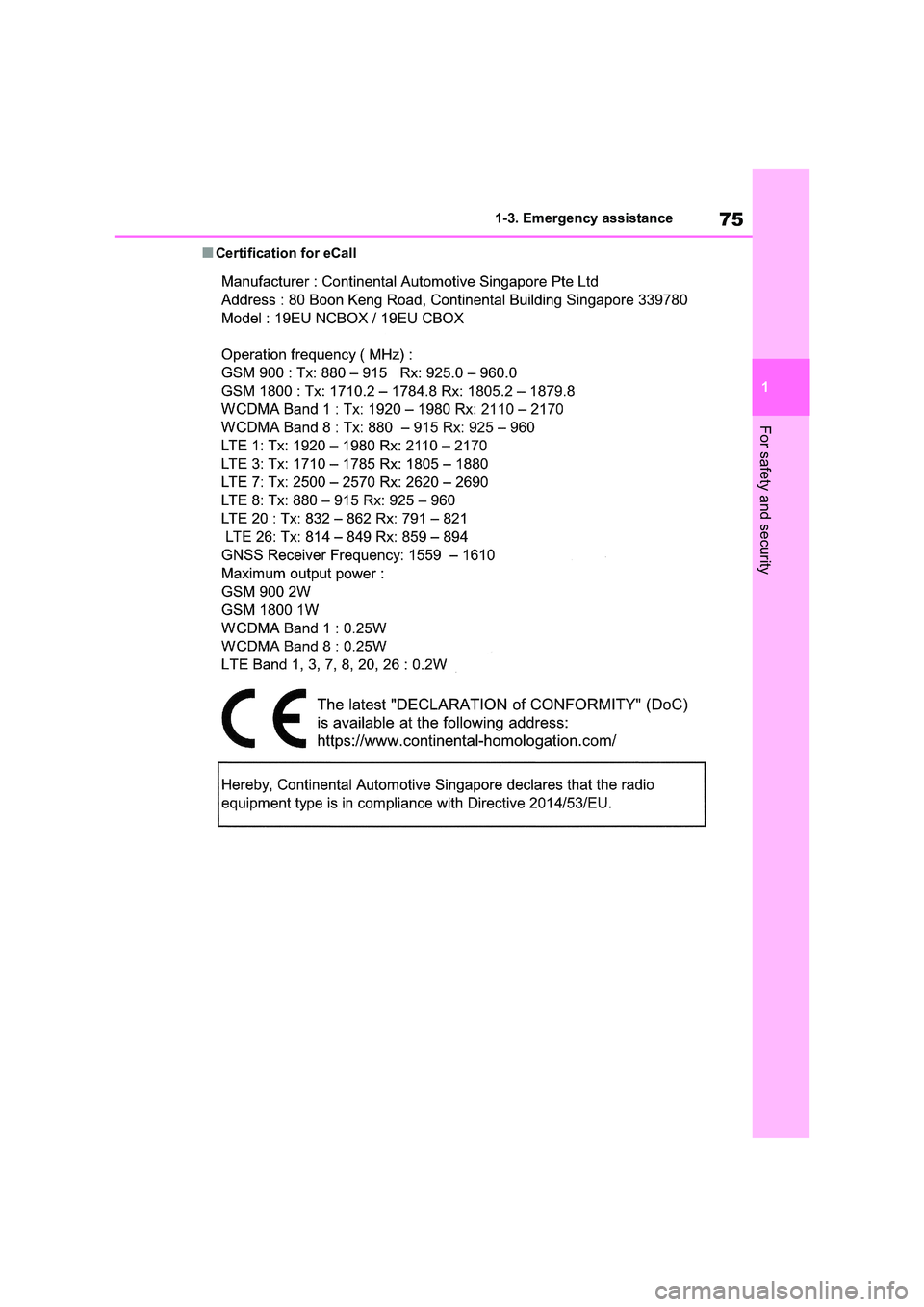

QCertification for eCall

761-4. Theft deterrent system
1-4.Theft de terre nt sys te m
The indicator light flashes after the
power switch has been turned to
OFF to indicate that the system is
operating.
The indicator light goes off after the
power switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.
QSystem maintenance
The vehicle has a maintenance-free type immobilizer system.
QConditions that may cause the sys-
tem to malfunction
OIf the grip portion of the key is in con-
tact with a metallic object
OIf the key is in close proximity to or
touching a key to the security system (key with a built-in transponder chip) of another vehicle
Immobilizer system
The vehicle’s keys have built-
in transponder chips that pre-
vent the hybrid system from
starting if a key has not been
previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the
vehicle.
This system is designed to help
prevent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system
NOTICE
QTo ensure the system operates correctly
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guaranteed.

77
1
1-4. Theft deterrent system
For safety and security
*: If equipped
QSetting
Turn the power switch to OFF, have
all the passengers exit the vehicle
and ensure that all the doors are
closed.
Using the entry function:
Touch the sensor area on the front
outside door handle twice within 5
seconds.
Using the wireless remote control:
Press twice within 5 sec-
onds.
QCanceling
Using the entry function:
Hold the front outside door handle.
Using the wireless remote control:
Press .
Double locking system*
Unauthorized access to the
vehicle is prevented by dis-
abling the door unlocking
function from both the interior
and exterior of the vehicle.
Vehicles employing this sys-
tem have labels on the front
side windows.
Setting/canceling the double
locking system
WARNING
QDouble locking system precau- tion
Never activate the double locking sys-
tem when there are people in the vehicle because all the doors cannot be opened from inside the vehicle.

79
1
1-4. Theft deterrent system
For safety and security
OThe doors are unlocked using the
mechanical key.
OA person inside the vehicle opens a
door or hood, or unlocks the vehicle using an inside lock button.
OThe 12-volt battery is recharged or replaced when the vehicle is locked. ( P.546)
QAlarm-operated door lock
In the following cases, depending on the
situation, the door may automatically lock to prevent improper entry into the vehicle:
OWhen a person remaining in the vehi-cle unlocks the door and the alarm is
activated.
OWhile the alarm is activated, a person
remaining in the vehicle unlocks the door.
OWhen recharging or replacing the 12-volt battery.
QCustomization (if equipped)
The alarm can be set to deactivate when the mechanical key is used to unlock.(Customizable features: P.570)
QThe intrusion sensor and tilt
sensor detection
 The intrusion sensor detects
intruders or movement in the
vehicle.
 The tilt sensor detects changes
in vehicle inclination, such as
when the vehicle is towed away.
This system is designed to deter
and prevent vehicle theft but does
not guarantee absolute security
against all intrusions.
QSetting the intrusion sensor
and tilt sensor
The intrusion sensor and tilt sensor
will be set automatically when the
alarm is set. ( P.78)
QCanceling the intrusion sensor
and tilt sensor
If you are leaving pets or other
moving things inside the vehicle,
make sure to disable the intrusion
sensor and tilt sensor before setting
NOTICE
QTo ensure the system operates correctly
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guaranteed.
Intrusion sensor and tilt
sensor

81
1
1-4. Theft deterrent system
For safety and security
OIce or snow is removed from the vehi-
cle, causing the vehicle to receive repeated impacts or vibrations.
OThe vehicle is inside an automatic or high-pressure car wash.
OThe vehicle experiences impacts, such as hail, lightning strikes, and other kinds of repeated impacts or
vibrations.
QTilt sensor detection consider- ations
The sensor may trigger the alarm in the
following situations:
OThe vehicle is transported by a ferry,
trailer, train, etc.
OThe vehicle is parked in a parking
garage.
OThe vehicle is inside a car wash that
moves the vehicle.
OAny of the tires loses air pressure.
OThe vehicle is jacked up.
OAn earthquake occurs or the road caves in.
NOTICE
QTo ensure the intrusion sensor functions correctly
OTo ensure that the sensors operate properly, do not touch or cover them.
ODo not spray air fresheners or other products directly into the sensor
holes.
OInstalling accessories other than
genuine Toyota parts or leaving objects between the driver’s seat and front passenger’s seat may
reduce the detection performance.
OThe intrusion sensor may be can-
celed when the electronic key is near the vehicle.

109
2
2-2. Charging
Plug-in hybrid system
Mode 2 AC charging cable
Charging connector
Identification label
NOTICE
OAfter removing the charging con- nector, securely install the AC
charging inlet cap.
QWhen using the AC charging
cable and related parts
 P.134
QPrecautions for low tempera- tures
In low temperatures, the AC charging
cable and plug-cord may become hard.
Therefore, make sure to not apply
excessive force when they are hard. If excessive force is applied to the hard-ened AC charging cable and plug-
cord, they may be damaged.
The names of each part of the AC charging cable
A
B

1142-2. Charging
The plug-cord can be replaced
using the following procedure.
Plug temperature
detection mal-
function
FlashesFlashes
There is a malfunction in the
plug temperature detection
part.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
Plug temperature
increase detectionFlashesNot illuminated
An increase in the temperature
of the plug is detected due to
an improper connection
between the socket and plug.
Check that the plug is
securely connected to the
socket
AC charging cable
life span noticeIlluminatedFlashes
The number of charges using
the AC charging cable is near-
ing the end of its usable life
span.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
AC charging cable
life spanIlluminatedIlluminated
The number of charges using
the AC charging cable has
exceeded its usable number of
charges.
Consult any authorized
Toyota retailer or Toyota
authorized repairer, or any
reliable repairer
StatusPower indica-
torError warning
indicatorCause/Correction procedure
Replacing the plug-cord
(Mode 2 AC charging cable)
(if equipped)

1162-2. Charging
Make sure that there are no foreign
objects attached to the connection before installing the plug-cord. Remove any foreign objects if they are attached.
Otherwise, water or other foreign mat- ter may enter the CCID (Charging Cir-cuit Interrupting Device), resulting in a
malfunction.
Turn the plug-cord connector nut of the plug-cord in the opposite direction of
removal until a click sound is heard and the plug-cord is secured.
7 Install the plug-cord connector
cap and release key to the plug-
cord that has been removed.
Securely install the release key to the plug-cord connector cap to prevent it
from being lost. Also, make sure that the release key does not fall out of the plug-cord connector cap accidentally.
Store the plug-cord in a safe, clean and dry place.
For safety, inspect the AC charging
cable on a routine basis.
WARNING
QWhen replacing the plug-cord (if
equipped)
Check the following points regularly.
Failure to do so may cause an unex-
pected accident, resulting in death or serious injury.
ODo not replace the plug-cord with wet hands.Also, do not replace in a place that
is rainy or wet.
ODo not replace the plug-cord when
the plug and/or charging connector are connected.
OCheck whether there are any local EV-charging regulations in place, and adhere to them.
ODo not leave the CCID (Charging Circuit Interrupting Device) with the
plug-cord removed.
OMake sure that there are no foreign
objects attached to the connection when installing the plug-cord to the CCID (Charging Circuit Interrupting
Device).
OWhen replacing the plug-cord,
firmly turn the nut of the plug-cord until a click sound can be heard.
ODo not replace the plug cord in Nor-way.
NOTICE
QPrecautions for the plug-cord (if
equipped)
Do not use the plug-cord for any use other than charging this vehicle.
Doing so may cause the plug-cord to be damaged.
Inspecting and maintaining
the AC charging cable

117
2
2-2. Charging
Plug-in hybrid system
QRating
 Voltage (Un): 220 V - 240 V ~
 Frequency: 50 Hz / 60 Hz 1Φ
 Current: 10 A
 Residual operating current (IΔn): 6 mA
 Ambient temperature: -30°C to 55°C
 IP67
WARNING
QRoutine inspection
Check the following points regularly.
Failure to do so may cause an unex- pected accident, resulting in death or serious injury.
OThe AC charging cable, plug, charging connector, CCID (Charging Circuit Interrupting
Device) etc. have not been dam- aged.
OThe socket has not been damaged.
OThe plug can be securely inserted
into the socket.
OThe plug does not get extremely hot
during use.
OThe tip of the plug has not been
deformed.
OThe plug is not dirtied by dust etc.
Remove the plug from the socket
before inspecting it. If any abnormali-
ties are found in the AC charging
cable as a result of the inspection,
immediately stop use and consult any
authorized Toyota retailer or Toyota
authorized repairer, or any reliable
repairer.
QMaintaining the AC charging cable
When the AC charging cable is dirty,
first remove the dirt with a hard, wringed cloth, and then wipe the cable with a dry cloth.
However, never wash it with water. If the AC charging cable is washed with water, fire or electric shock may occur
during charging, possibly resulting in death or serious injury.
QWhen not using the AC charging cable for a long time
Remove the plug from the socket.
Dust could accumulate on the plug or in the socket, possibly causing over-heating which could lead to a fire.
Also, keep the cable in a place free from moisture.
Appendix (Mode 2 AC charging cable)

1202-2. Charging
QUnlocking the charging port
lid
1Unlock the doors using the
smart entry & start system or
wireless remote control.
2Press the central rear edge of
the charging port lid (the loca-
tion shown in the illustration)
and open it.
QLocking the charging port lid
The charging port lid will be locked
when the lid is closed and the doors
are locked using the smart entry &
start system or wireless remote
control.
QSecurity feature
If the doors are locked by the security
function when the charing port lid is
closed, the charging port lid will also be
locked. (P.204)
QLocking the charging port lid
If the charging port lid is closed after the
doors are locked, the lid will not be
locked. In this case, close the lid and
then lock the doors again.
QIf the charging port lid does not
open
If the charging port lid does not open
when using the normal procedure, it can
be opened in an emergency by perform-
ing the following steps.
1Open the back door. (P.210, 211)
2Pull the 12-volt battery cover and
remove it. (P.462)
3Hook a finger to the emergency
release lever as shown in the illus-
tration.
4Move the emergency release lever
in the direction shown in the illustra-
tion.
*
The charging port lid is unlocked and
can be opened.
*: Make sure to move in the direction
shown in the illustration. Applying
force in other directions may damage
Locking and unlocking
the charging port lid and
charging connector
The charging port lid and
charging connector can be
locked/unlocked by the follow-
ing procedures.
Using the smart entry & start
system
*: P.203
Using the wireless remote con-
trol
*: P.201
*: If the smart entry & start system or
the wireless remote control does
not operate properly, use the
mechanical key. (P.545)
Locking and unlocking the
charging port lid
