6-3. Using the storage features
Interior features

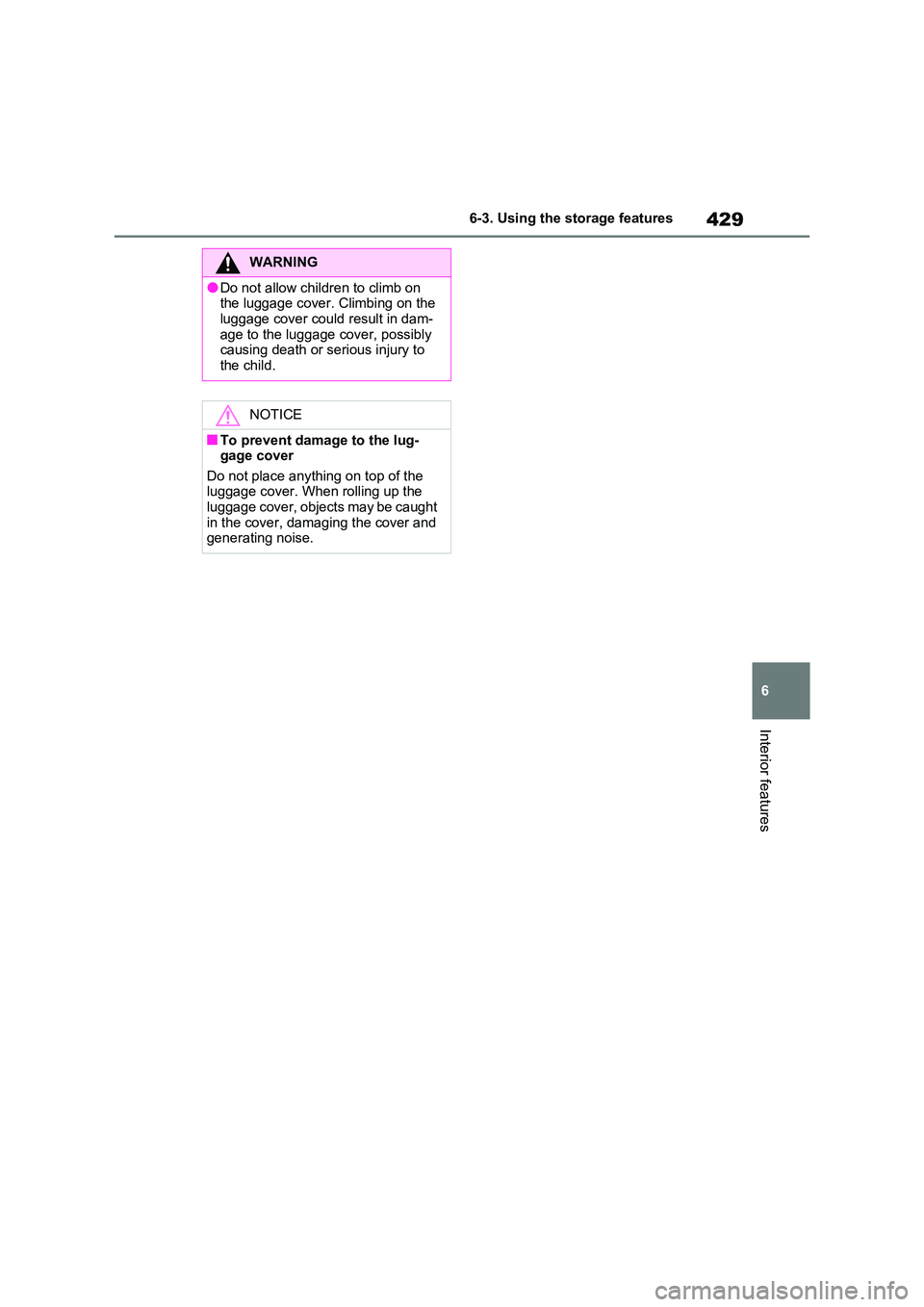

WARNING
ODo not allow children to climb on the luggage cover. Climbing on the
luggage cover could result in dam- age to the luggage cover, possibly causing death or serious injury to
the child.
NOTICE
QTo prevent damage to the lug- gage cover
Do not place anything on top of the luggage cover. When rolling up the luggage cover, objects may be caught
in the cover, damaging the cover and generating noise.

4306-4. Using the other interior features
6-4.Using the o ther interio r fea tures

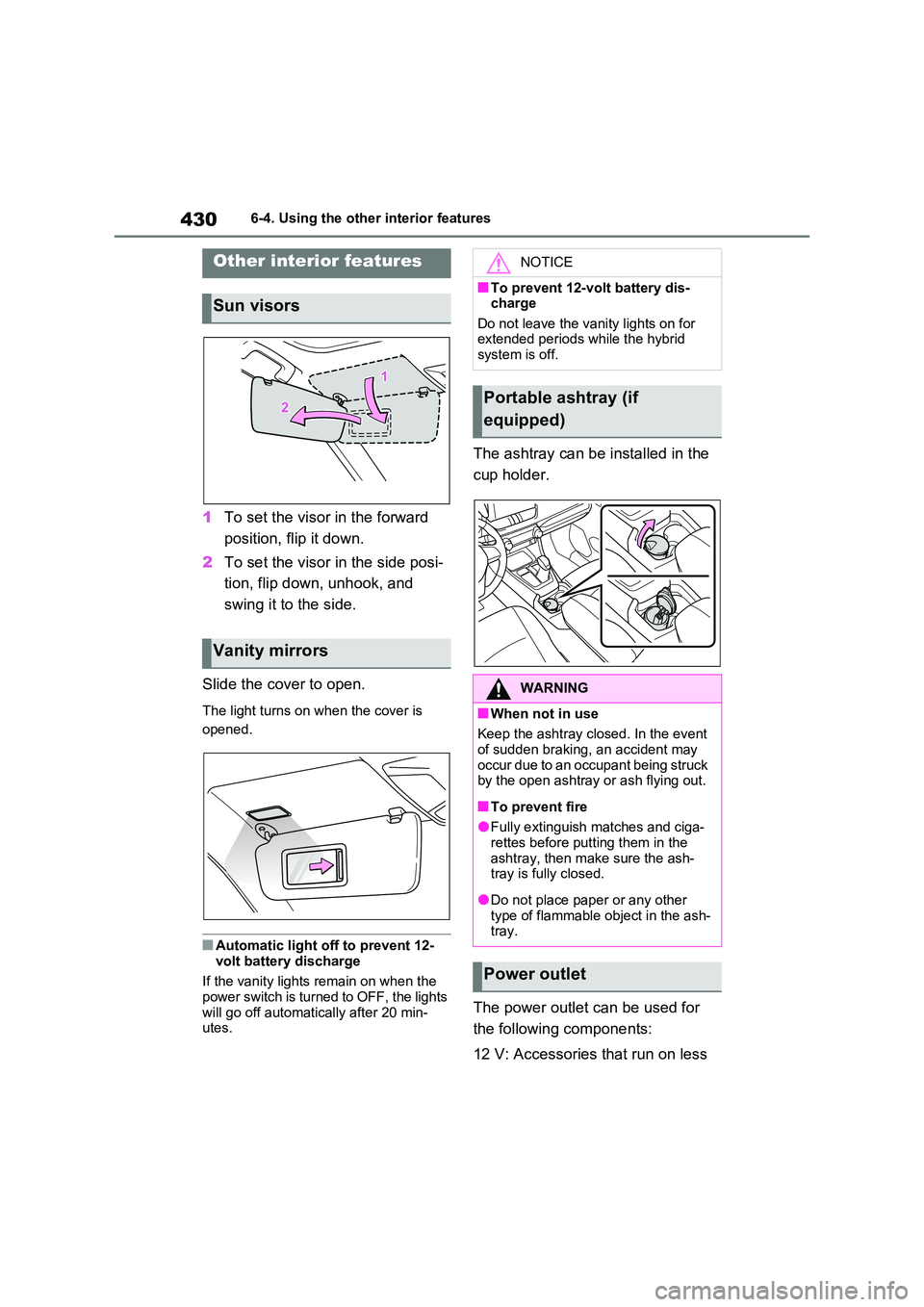

1To set the visor in the forward
position, flip it down.
2 To set the visor in the side posi-
tion, flip down, unhook, and
swing it to the side.
Slide the cover to open.
The light turns on when the cover is
opened.
QAutomatic light off to prevent 12-
volt battery discharge
If the vanity lights remain on when the power switch is turned to OFF, the lights
will go off automatically after 20 min- utes.
The ashtray can be installed in the
cup holder.
The power outlet can be used for
the following components:
12 V: Accessories that run on less
Other interior features
Sun visors
Vanity mirrors
NOTICE
QTo prevent 12-volt battery dis- charge
Do not leave the vanity lights on for extended periods while the hybrid system is off.
Portable ashtray (if
equipped)
WARNING
QWhen not in use
Keep the ashtray closed. In the event of sudden braking, an accident may
occur due to an occupant being struck by the open ashtray or ash flying out.
QTo prevent fire
OFully extinguish matches and ciga-rettes before putting them in the
ashtray, then make sure the ash- tray is fully closed.
ODo not place paper or any other type of flammable object in the ash-tray.
Power outlet

431
6
6-4. Using the other interior features
Interior features
than 10 A.
220 VAC: Accessories that use less
than 150 W.

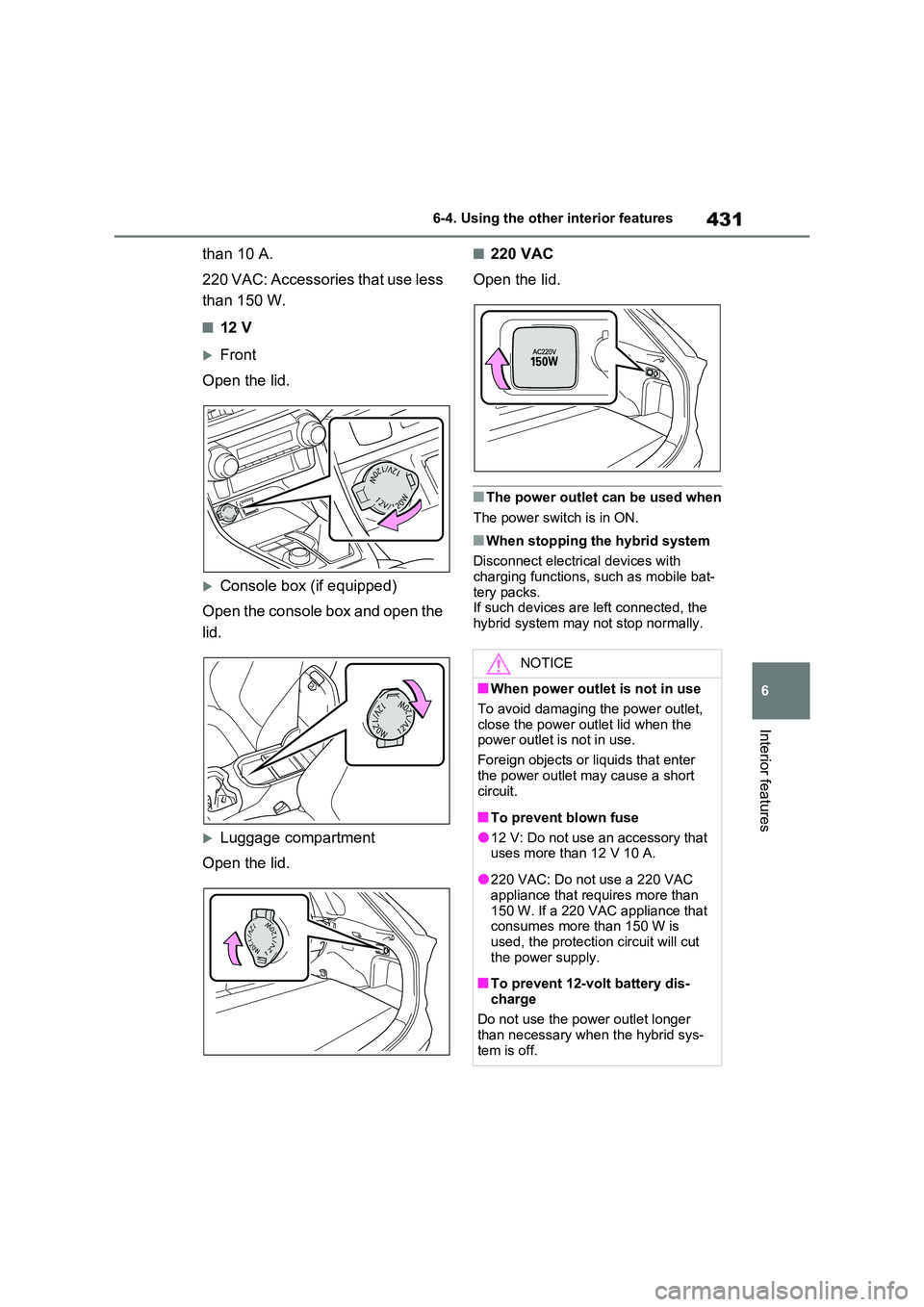

Q12 V
Front
Open the lid.
Console box (if equipped)
Open the console box and open the
lid.
Luggage compartment
Open the lid.
Q220 VAC
Open the lid.
QThe power outlet can be used when
The power switch is in ON.
QWhen stopping the hybrid system
Disconnect electrical devices with charging functions, such as mobile bat-
tery packs. If such devices are left connected, the hybrid system may not stop normally.
NOTICE
QWhen power outlet is not in use
To avoid damaging the power outlet,
close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter
the power outlet may cause a short circuit.
QTo prevent blown fuse
O12 V: Do not use an accessory that uses more than 12 V 10 A.
O220 VAC: Do not use a 220 VAC appliance that requires more than
150 W. If a 220 VAC appliance that consumes more than 150 W is used, the protection circuit will cut
the power supply.
QTo prevent 12-volt battery dis-
charge
Do not use the power outlet longer than necessary when the hybrid sys-
tem is off.

4326-4. Using the other interior features

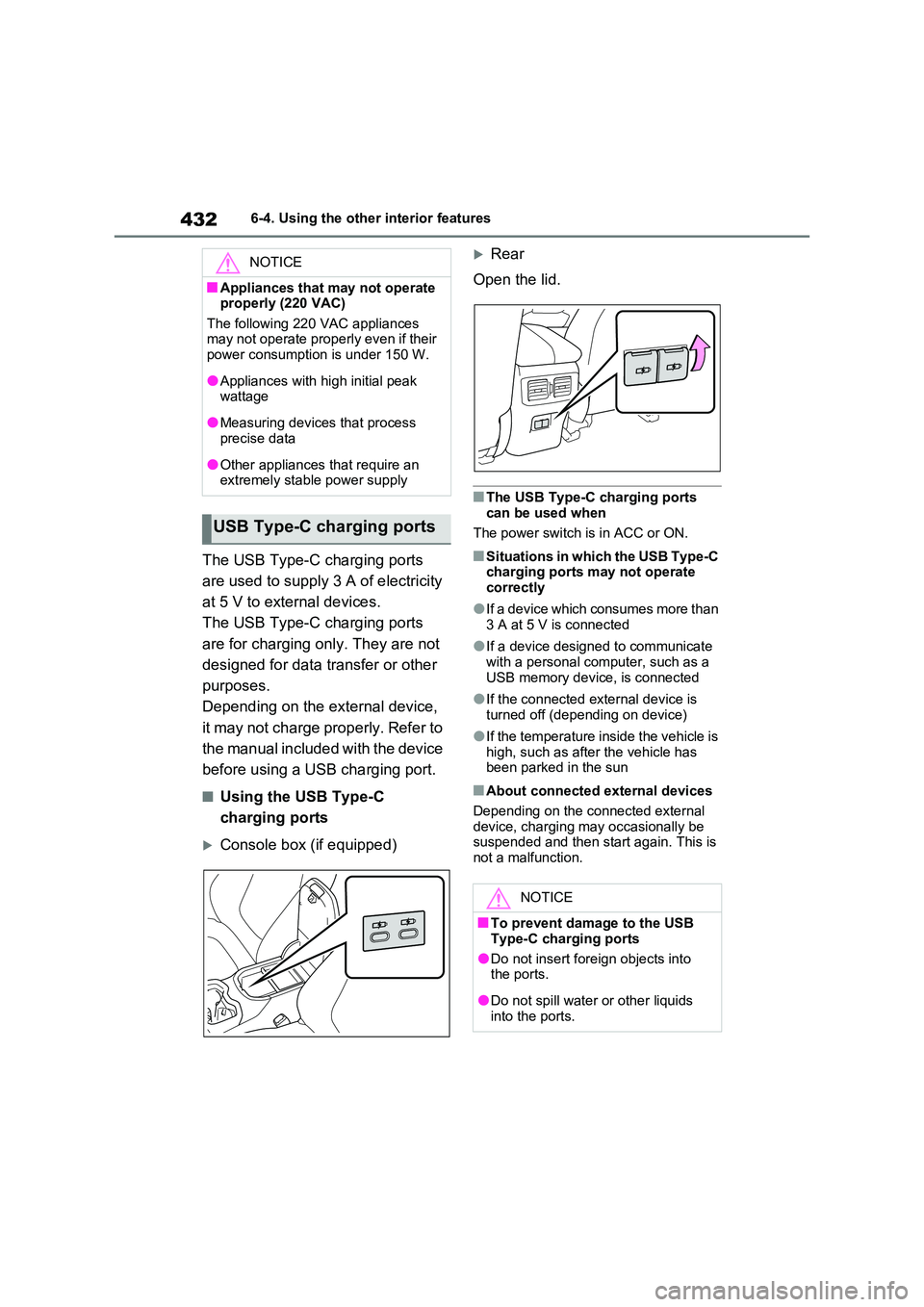

The USB Type-C charging ports
are used to supply 3 A of electricity
at 5 V to external devices.
The USB Type-C charging ports
are for charging only. They are not
designed for data transfer or other
purposes.
Depending on the external device,
it may not charge properly. Refer to
the manual included with the device
before using a USB charging port.
QUsing the USB Type-C
charging ports
Console box (if equipped)
Rear
Open the lid.
QThe USB Type-C charging ports
can be used when
The power switch is in ACC or ON.
QSituations in which the USB Type-C charging ports may not operate
correctly
OIf a device which consumes more than
3 A at 5 V is connected
OIf a device designed to communicate
with a personal computer, such as a USB memory device, is connected
OIf the connected external device is turned off (depending on device)
OIf the temperature inside the vehicle is high, such as after the vehicle has been parked in the sun
QAbout connected external devices
Depending on the connected external device, charging may occasionally be suspended and then start again. This is
not a malfunction.
NOTICE
QAppliances that may not operate properly (220 VAC)
The following 220 VAC appliances may not operate properly even if their power consumption is under 150 W.
OAppliances with high initial peak wattage
OMeasuring devices that process precise data
OOther appliances that require an extremely stable power supply
USB Type-C charging ports
NOTICE
QTo prevent damage to the USB
Type-C charging ports
ODo not insert foreign objects into the ports.
ODo not spill water or other liquids into the ports.

433
6
6-4. Using the other interior features
Interior features

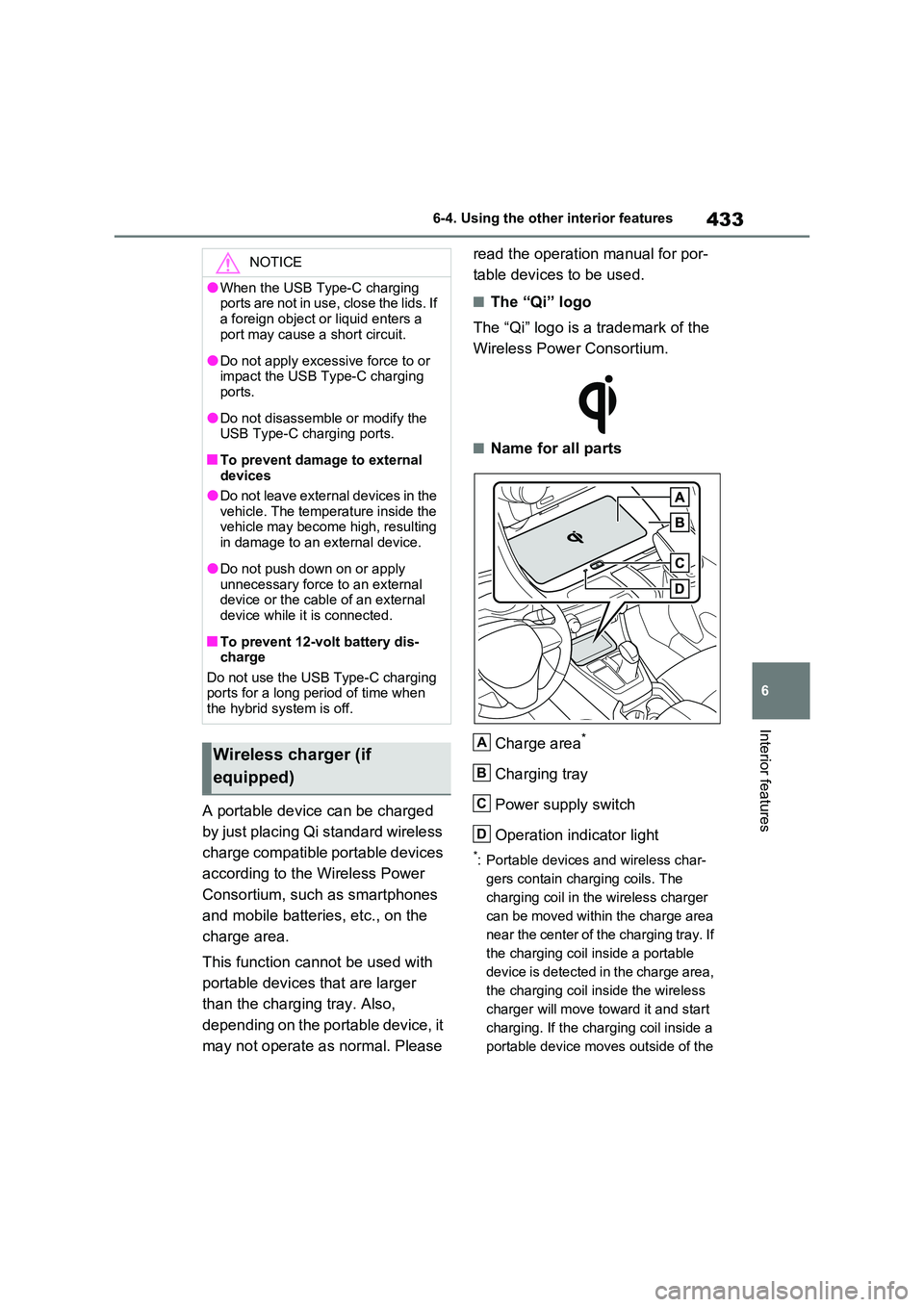

A portable device can be charged
by just placing Qi standard wireless
charge compatible portable devices
according to the Wireless Power
Consortium, such as smartphones
and mobile batteries, etc., on the
charge area.
This function cannot be used with
portable devices that are larger
than the charging tray. Also,
depending on the portable device, it
may not operate as normal. Please
read the operation manual for por-
table devices to be used.
QThe “Qi” logo
The “Qi” logo is a trademark of the
Wireless Power Consortium.
QName for all parts
Charge area*
Charging tray
Power supply switch
Operation indicator light
*: Portable devices and wireless char-
gers contain charging coils. The
charging coil in the wireless charger
can be moved within the charge area
near the center of the charging tray. If
the charging coil inside a portable
device is detected in the charge area,
the charging coil inside the wireless
charger will move toward it and start
charging. If the charging coil inside a
portable device moves outside of the
NOTICE
OWhen the USB Type-C charging ports are not in use, close the lids. If
a foreign object or liquid enters a port may cause a short circuit.
ODo not apply excessive force to or impact the USB Type-C charging ports.
ODo not disassemble or modify the USB Type-C charging ports.
QTo prevent damage to external devices
ODo not leave external devices in the vehicle. The temperature inside the vehicle may become high, resulting
in damage to an external device.
ODo not push down on or apply
unnecessary force to an external device or the cable of an external device while it is connected.
QTo prevent 12-volt battery dis-charge
Do not use the USB Type-C charging ports for a long period of time when the hybrid system is off.
Wireless charger (if
equipped)
A
B
C
D

4346-4. Using the other interior features
charge area, charging will automati-
cally stop.
If 2 or more portable devices are
placed on the charging tray, their
charging coils may not be properly
detected and they may not be
charged.

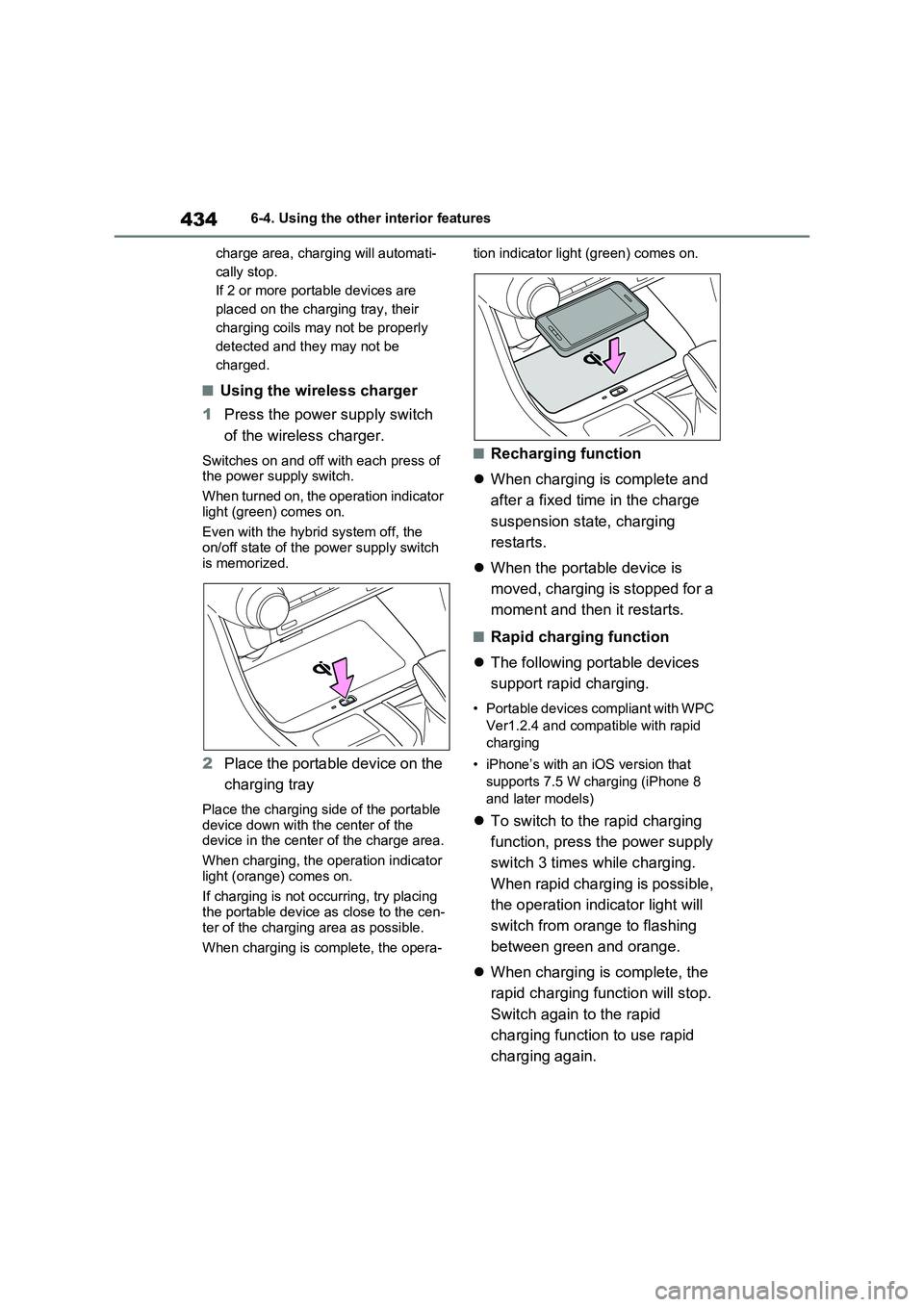

QUsing the wireless charger
1Press the power supply switch
of the wireless charger.
Switches on and off with each press of
the power supply switch.
When turned on, the operation indicator
light (green) comes on.
Even with the hybrid system off, the
on/off state of the power supply switch
is memorized.
2Place the portable device on the
charging tray
Place the charging side of the portable
device down with the center of the
device in the center of the charge area.
When charging, the operation indicator
light (orange) comes on.
If charging is not occurring, try placing
the portable device as close to the cen-
ter of the charging area as possible.
When charging is complete, the opera-tion indicator light (green) comes on.
QRecharging function
When charging is complete and
after a fixed time in the charge
suspension state, charging
restarts.
When the portable device is
moved, charging is stopped for a
moment and then it restarts.
QRapid charging function
The following portable devices
support rapid charging.
• Portable devices compliant with WPC
Ver1.2.4 and compatible with rapid
charging
• iPhone’s with an iOS version that
supports 7.5 W charging (iPhone 8
and later models)
To switch to the rapid charging
function, press the power supply
switch 3 times while charging.
When rapid charging is possible,
the operation indicator light will
switch from orange to flashing
between green and orange.
When charging is complete, the
rapid charging function will stop.
Switch again to the rapid
charging function to use rapid
charging again.

435
6 6-4. Using the other interior features
Interior features

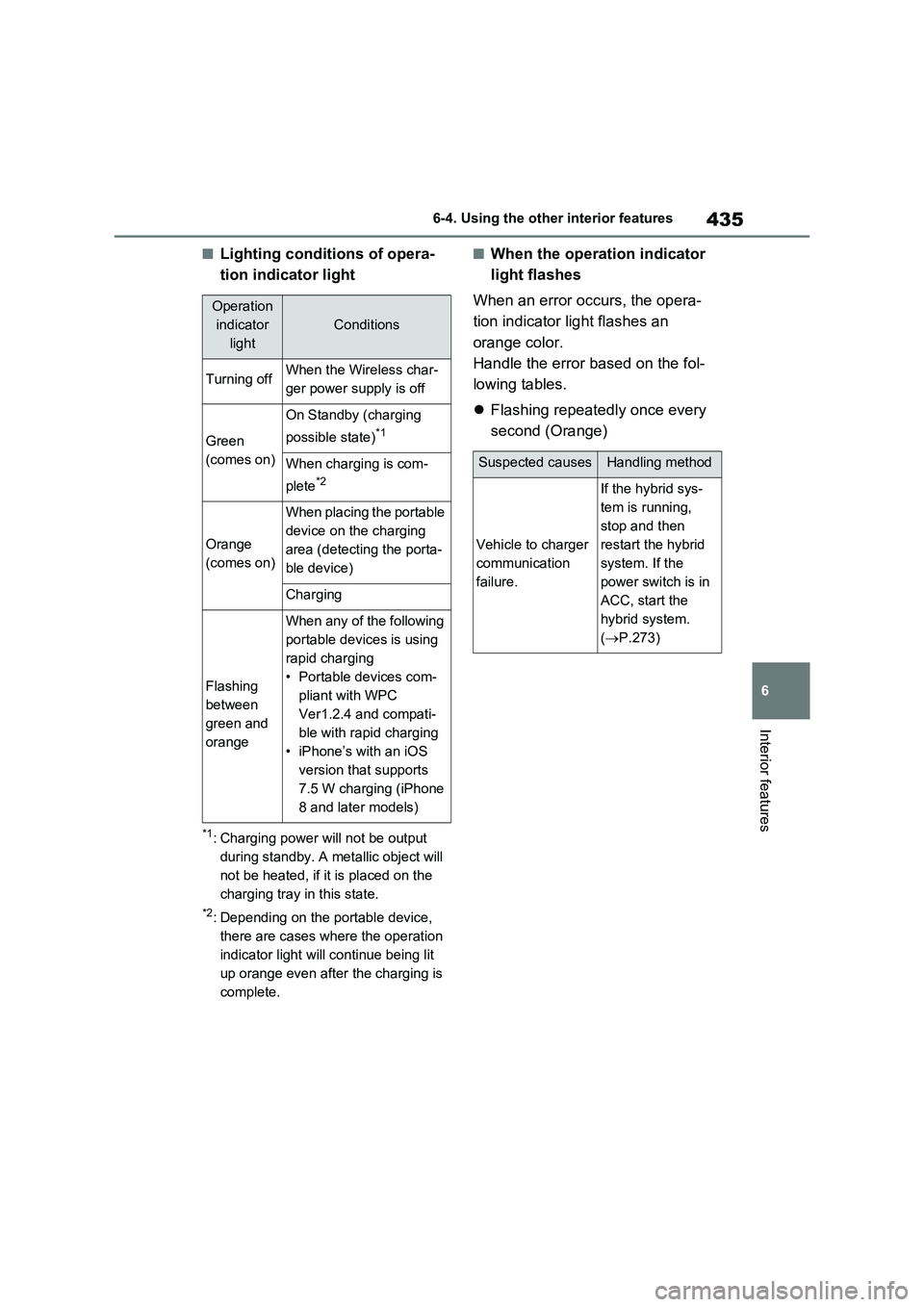

QLighting conditions of opera-
tion indicator light
*1: Charging power will not be output
during standby. A metallic object will
not be heated, if it is placed on the
charging tray in this state.
*2: Depending on the portable device,
there are cases where the operation
indicator light will continue being lit
up orange even after the charging is
complete.
QWhen the operation indicator
light flashes
When an error occurs, the opera-
tion indicator light flashes an
orange color.
Handle the error based on the fol-
lowing tables.
Flashing repeatedly once every
second (Orange)
Operation
indicator
light
Conditions
Turning offWhen the Wireless char-
ger power supply is off
Green
(comes on)
On Standby (charging
possible state)
*1
When charging is com-
plete
*2
Orange
(comes on)
When placing the portable
device on the charging
area (detecting the porta-
ble device)
Charging
Flashing
between
green and
orange
When any of the following
portable devices is using
rapid charging
• Portable devices com-
pliant with WPC
Ver1.2.4 and compati-
ble with rapid charging
• iPhone’s with an iOS
version that supports
7.5 W charging (iPhone
8 and later models)
Suspected causesHandling method
Vehicle to charger
communication
failure.
If the hybrid sys-
tem is running,
stop and then
restart the hybrid
system. If the
power switch is in
ACC, start the
hybrid system.
(P.273)

4366-4. Using the other interior features

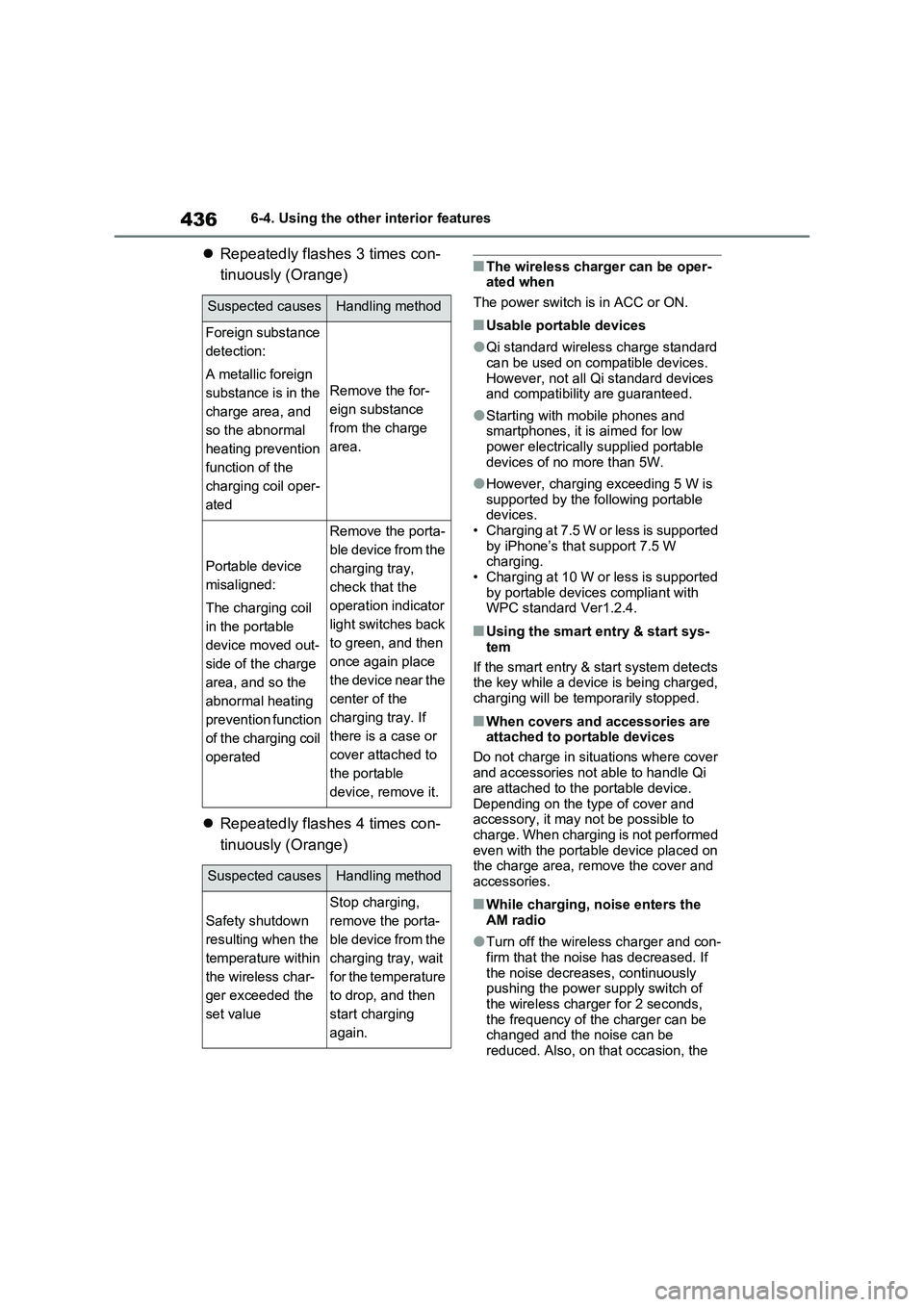

Repeatedly flashes 3 times con-
tinuously (Orange)
Repeatedly flashes 4 times con-
tinuously (Orange)QThe wireless charger can be oper-
ated when
The power switch is in ACC or ON.
QUsable portable devices
OQi standard wireless charge standard
can be used on compatible devices.
However, not all Qi standard devices
and compatibility are guaranteed.
OStarting with mobile phones and
smartphones, it is aimed for low
power electrically supplied portable
devices of no more than 5W.
OHowever, charging exceeding 5 W is
supported by the following portable
devices.
• Charging at 7.5 W or less is supported
by iPhone’s that support 7.5 W
charging.
• Charging at 10 W or less is supported
by portable devices compliant with
WPC standard Ver1.2.4.
QUsing the smart entry & start sys-
tem
If the smart entry & start system detects
the key while a device is being charged,
charging will be temporarily stopped.
QWhen covers and accessories are
attached to portable devices
Do not charge in situations where cover
and accessories not able to handle Qi
are attached to the portable device.
Depending on the type of cover and
accessory, it may not be possible to
charge. When charging is not performed
even with the portable device placed on
the charge area, remove the cover and
accessories.
QWhile charging, noise enters the
AM radio
OTurn off the wireless charger and con-
firm that the noise has decreased. If
the noise decreases, continuously
pushing the power supply switch of
the wireless charger for 2 seconds,
the frequency of the charger can be
changed and the noise can be
reduced. Also, on that occasion, the
Suspected causesHandling method
Foreign substance
detection:
A metallic foreign
substance is in the
charge area, and
so the abnormal
heating prevention
function of the
charging coil oper-
ated
Remove the for-
eign substance
from the charge
area.
Portable device
misaligned:
The charging coil
in the portable
device moved out-
side of the charge
area, and so the
abnormal heating
prevention function
of the charging coil
operated
Remove the porta-
ble device from the
charging tray,
check that the
operation indicator
light switches back
to green, and then
once again place
the device near the
center of the
charging tray. If
there is a case or
cover attached to
the portable
device, remove it.
Suspected causesHandling method
Safety shutdown
resulting when the
temperature within
the wireless char-
ger exceeded the
set value
Stop charging,
remove the porta-
ble device from the
charging tray, wait
for the temperature
to drop, and then
start charging
again.

437
6

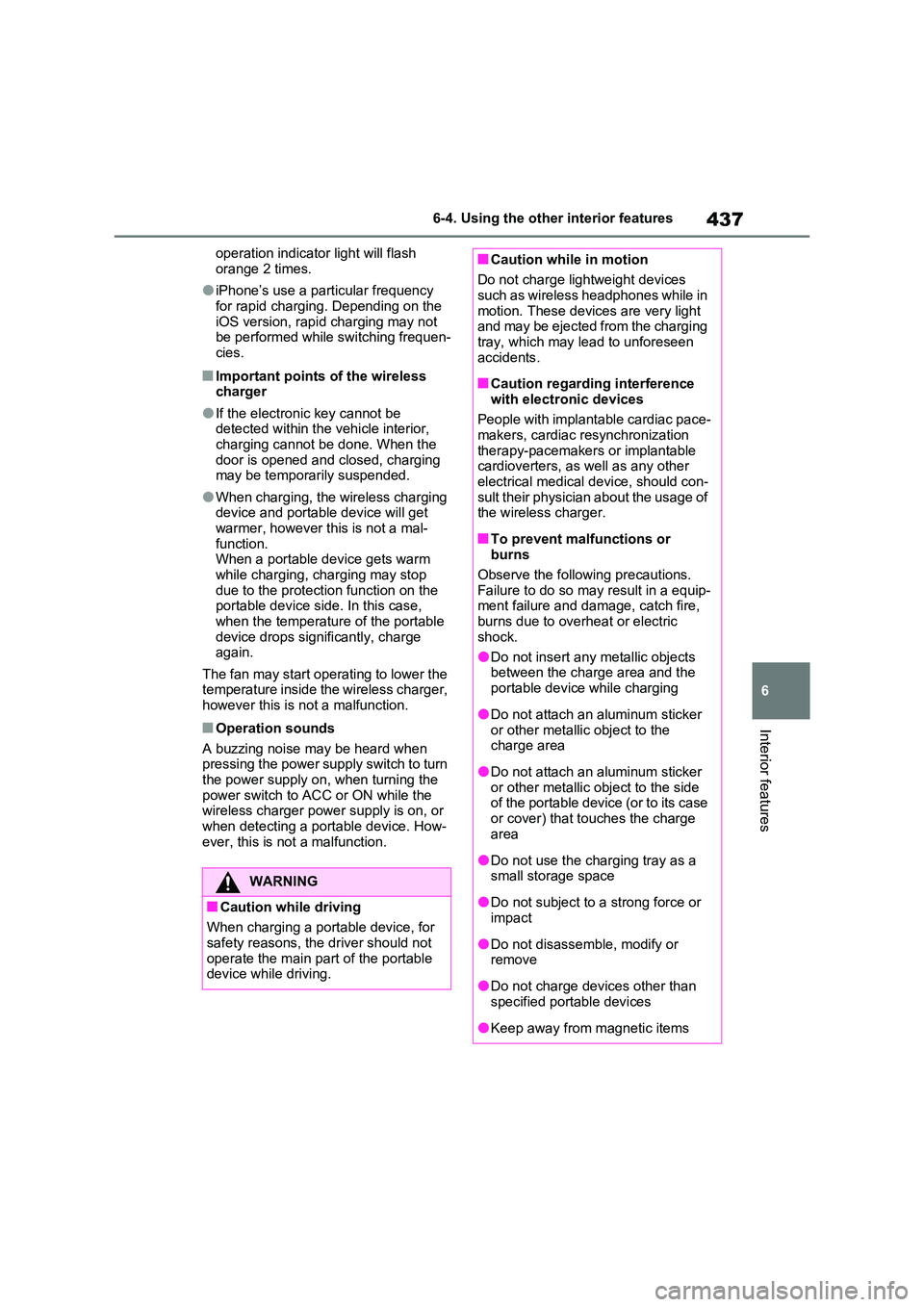

6-4. Using the other interior features
Interior features
operation indicator light will flash
orange 2 times.
OiPhone’s use a particular frequency
for rapid charging. Depending on the iOS version, rapid charging may not be performed while switching frequen-
cies.
QImportant points of the wireless charger
OIf the electronic key cannot be detected within the vehicle interior, charging cannot be done. When the
door is opened and closed, charging may be temporarily suspended.
OWhen charging, the wireless charging device and portable device will get warmer, however this is not a mal-
function. When a portable device gets warm while charging, charging may stop
due to the protection function on the portable device side. In this case, when the temperature of the portable
device drops significantly, charge again.
The fan may start operating to lower the temperature inside the wireless charger, however this is not a malfunction.
QOperation sounds
A buzzing noise may be heard when pressing the power supply switch to turn the power supply on, when turning the
power switch to ACC or ON while the wireless charger power supply is on, or when detecting a portable device. How-
ever, this is not a malfunction.
WARNING
QCaution while driving
When charging a portable device, for
safety reasons, the driver should not operate the main part of the portable device while driving.
QCaution while in motion
Do not charge lightweight devices such as wireless headphones while in
motion. These devices are very light and may be ejected from the charging tray, which may lead to unforeseen
accidents.
QCaution regarding interference
with electronic devices
People with implantable cardiac pace- makers, cardiac resynchronization
therapy-pacemakers or implantable cardioverters, as well as any other electrical medical device, should con-
sult their physician about the usage of the wireless charger.
QTo prevent malfunctions or burns
Observe the following precautions.
Failure to do so may result in a equip- ment failure and damage, catch fire, burns due to overheat or electric
shock.
ODo not insert any metallic objects between the charge area and the
portable device while charging
ODo not attach an aluminum sticker
or other metallic object to the charge area
ODo not attach an aluminum sticker or other metallic object to the side of the portable device (or to its case
or cover) that touches the charge area
ODo not use the charging tray as a small storage space
ODo not subject to a strong force or impact
ODo not disassemble, modify or remove
ODo not charge devices other than specified portable devices
OKeep away from magnetic items

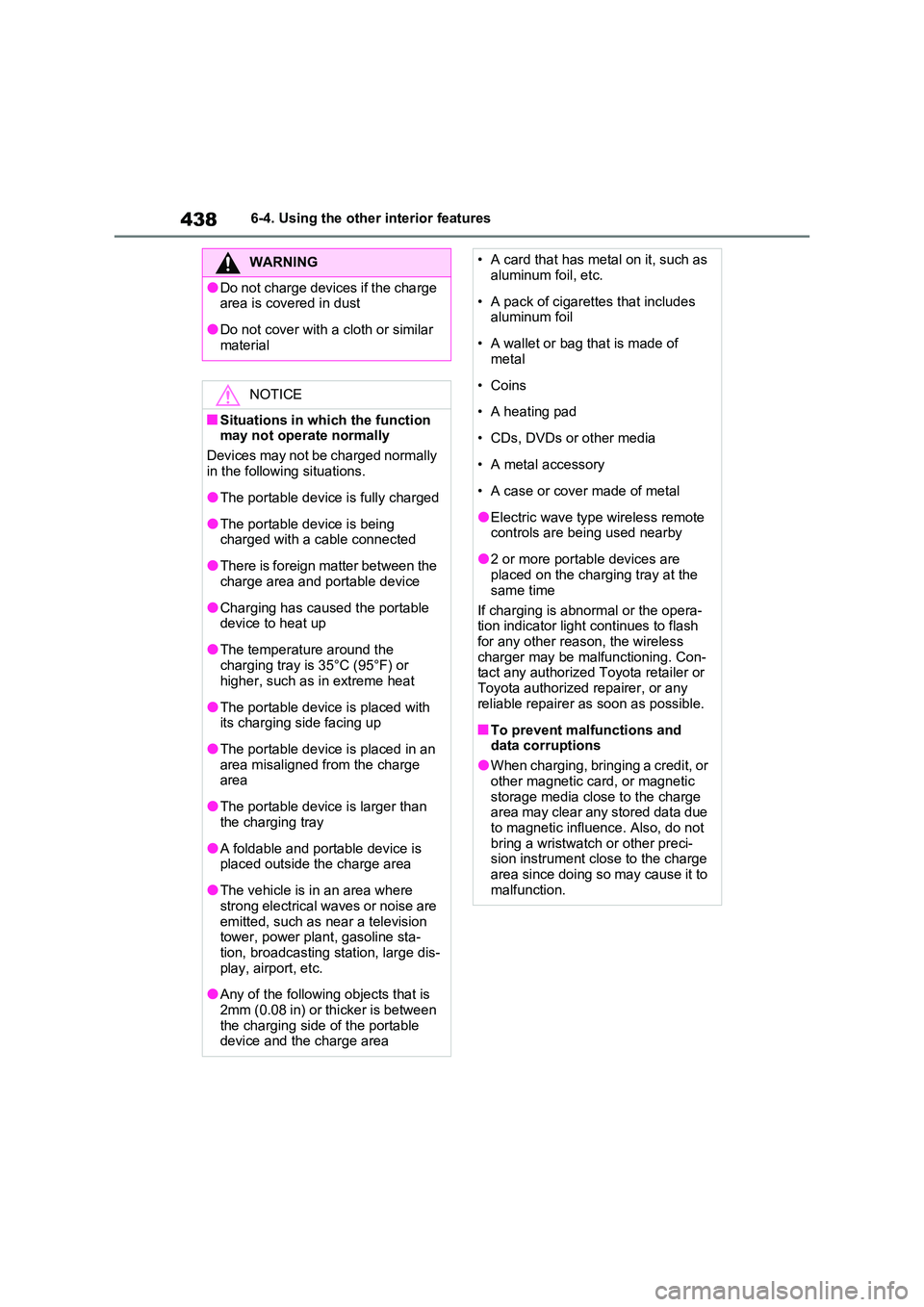

4386-4. Using the other interior features
WARNING
ODo not charge devices if the charge area is covered in dust
ODo not cover with a cloth or similar material
NOTICE
QSituations in which the function may not operate normally
Devices may not be charged normally
in the following situations.
OThe portable device is fully charged
OThe portable device is being charged with a cable connected
OThere is foreign matter between the charge area and portable device
OCharging has caused the portable device to heat up
OThe temperature around the charging tray is 35°C (95°F) or
higher, such as in extreme heat
OThe portable device is placed with its charging side facing up
OThe portable device is placed in an area misaligned from the charge area
OThe portable device is larger than the charging tray
OA foldable and portable device is placed outside the charge area
OThe vehicle is in an area where strong electrical waves or noise are
emitted, such as near a television tower, power plant, gasoline sta-tion, broadcasting station, large dis-
play, airport, etc.
OAny of the following objects that is
2mm (0.08 in) or thicker is between the charging side of the portable device and the charge area
• A card that has metal on it, such as aluminum foil, etc.
• A pack of cigarettes that includes aluminum foil
• A wallet or bag that is made of metal
•Coins
• A heating pad
• CDs, DVDs or other media
• A metal accessory
• A case or cover made of metal
OElectric wave type wireless remote controls are being used nearby
O2 or more portable devices are placed on the charging tray at the
same time
If charging is abnormal or the opera- tion indicator light continues to flash
for any other reason, the wireless charger may be malfunctioning. Con-tact any authorized Toyota retailer or
Toyota authorized repairer, or any reliable repairer as soon as possible.
QTo prevent malfunctions and data corruptions
OWhen charging, bringing a credit, or
other magnetic card, or magnetic storage media close to the charge area may clear any stored data due
to magnetic influence. Also, do not bring a wristwatch or other preci-sion instrument close to the charge
area since doing so may cause it to malfunction.
