2TABLE OF CONTENTS
For your information ........................6
Reading this manual........................ 9
How to search ............................... 10
Pictorial index ................................ 12
1-1. For safe use
Before driving........................ 32
For safe driving ..................... 33
Seat belts .............................. 35
SRS airbags.......................... 39
Exhaust gas precautions ...... 47
1-2. Child safety
Airbag manual on-off system 48
Riding with children............... 49
Child restraint systems ......... 50
1-3. Emergency assistance
eCall...................................... 65
1-4. Theft deterrent system
Immobilizer system ............... 76
Double locking system .......... 77
Alarm .................................... 78
2-1. Plug-in hybrid system
Plug-in hybrid system features
............................................ 84
Plug-in hybrid system precau-
tions .................................... 94
Plug in Hybrid Electric Vehicle
driving tips .......................... 99
EV driving range ................. 102
2-2. Charging
Charging equipment ........... 105
AC charging cable .............. 108
Locking and unlocking the
charging port lid and charging
connector .......................... 120
Power sources that can be used
.......................................... 123
Charging methods .............. 126
Charging tips....................... 129
Things to know before charging
.......................................... 131
How to charge..................... 134
Using the charging schedule
function ............................. 143
Using the “My Room Mode” 152
When charging cannot be car-
ried out.............................. 155
3-1. Instrument cluster
Warning lights and indicators
.......................................... 166
Gauges and meters ............ 172
Multi-information display ..... 177
Head-up display .................. 189
Energy monitor/consumption
screen ............................... 193
4-1. Key information
Keys .................................... 200
4-2. Opening, closing and locking
the doors
Side doors........................... 203
Back door............................ 208
1For safety and security
2Plug-in hybrid system
3Vehicle status information
and indicators
4Before driving

4TABLE OF CONTENTS
6-1. Using the air conditioning
system and defogger
Automatic air conditioning sys-
tem .................................... 406
Remote Air Conditioning System
.......................................... 414
Heated steering wheel/Front
seat heaters/Front seat heaters
and ventilators/Rear seat heat-
ers..................................... 416
6-2. Using the interior lights
Interior lights list .................. 419
6-3. Using the storage features
List of storage features ....... 422
Luggage compartment features
.......................................... 426
6-4. Using the other interior fea-
tures
Other interior features ......... 430
7-1. Maintenance and care
Cleaning and protecting the
vehicle exterior ................. 442
Cleaning and protecting the
vehicle interior .................. 445
7-2. Maintenance
Maintenance requirements . 448
7-3. Do-it-yourself maintenance
Do-it-yourself service precau-
tions .................................. 450
Hood ................................... 452
Positioning a floor jack ........ 453
Engine compartment........... 455
12-volt battery ..................... 460
Tires .................................... 463
Tire inflation pressure ......... 472
Wheels ................................ 473
Air conditioning filter ........... 475
Cleaning the DC/DC Converter
air intake vent and filter .... 479
Wiper insert replacement .... 482
Electronic key battery ......... 486
Checking and replacing fuses
.......................................... 488
Light bulbs .......................... 491
8-1. Essential information
Emergency flashers ............ 500
If your vehicle has to be stopped
in an emergency ............... 500
If the vehicle is submerged or
water on the road is rising 501
8-2. Steps to take in an emergency
If your vehicle needs to be towed
.......................................... 503
If you think something is wrong
.......................................... 506
If a warning light turns on or a
warning buzzer sounds..... 508
If a warning message is dis-
played ............................... 518
If you have a flat tire (vehicles
without spare tire) ............. 522
If you have a flat tire (vehicles
with spare tire) .................. 533
6Interior features
7Maintenance and care
8When trouble arises

5TABLE OF CONTENTS
1
6
5
4
3
2
8
7
9
If the hybrid system will not start
.......................................... 541
If you lose your keys ........... 543
If the fuel filler door cannot be
opened.............................. 543
If the electronic key does not
operate properly ............... 544
If the 12-volt battery is dis-
charged............................. 546
If your vehicle overheats ..... 551
If the vehicle becomes stuck
.......................................... 555
9-1. Specifications
Maintenance data (fuel, oil level,
etc.)................................... 558
Fuel information .................. 567
9-2. Customization
Customizable features ........ 569
9-3. Initialization
Items to initialize ................. 582
What to do if... (Troubleshooting)
.......................................... 584
Alphabetical Index ............. 587
9Vehicle specifications
Index

8
retailer or Toyota authorized
repairer, or any reliable repairer,
before you scrap your vehicle.
WARNING
QGeneral precautions while driv- ing
Driving under the influence: Never
drive your vehicle when under the influence of alcohol or drugs that have
impaired your ability to operate your vehicle. Alcohol and certain drugs delay reaction time, impair judgment
and reduce coordination, which could lead to an accident that could result in death or serious injury.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or pedestrians might
make and be ready to avoid acci- dents.
Driver distraction: Always give your
full attention to driving. Anything that distracts the driver, such as adjusting controls, talking on a cellular phone or
reading can result in a collision with resulting death or serious injury to you, your occupants or others.
QGeneral precaution regarding children’s safety
Never leave children unattended in the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi- cle or shift the vehicle into neutral. There is also a danger that children
may injure themselves by playing with the side windows, the panoramic moon roof, or other features of the
vehicle. In addition, heat build-up or extremely cold temperatures inside the vehicle can be fatal to children.

12Pictorial index
Pictorial index
QExterior
Side doors ..................................................................................... P.203
Locking/unlocking ........................................................................... P.203
Opening/closing the side windows .................................................. P.247
Locking/unlocking by using the mechanical key ............................. P.544
Warning messages ......................................................................... P.518
Back door ...................................................................................... P.208
Locking/unlocking ........................................................................... P.209
Opening from inside the cabin*1..................................................... P.211
Opening from outside.............................................................. P.210, 211
Warning messages ......................................................................... P.518
Outside rear view mirrors ............................................................ P.245
Adjusting the mirror angle ............................................................... P.245
Folding the mirrors .......................................................................... P.246
Defogging the mirrors ..................................................................... P.408
Windshield wipers ........................................................................ P.294
A
B
C
D

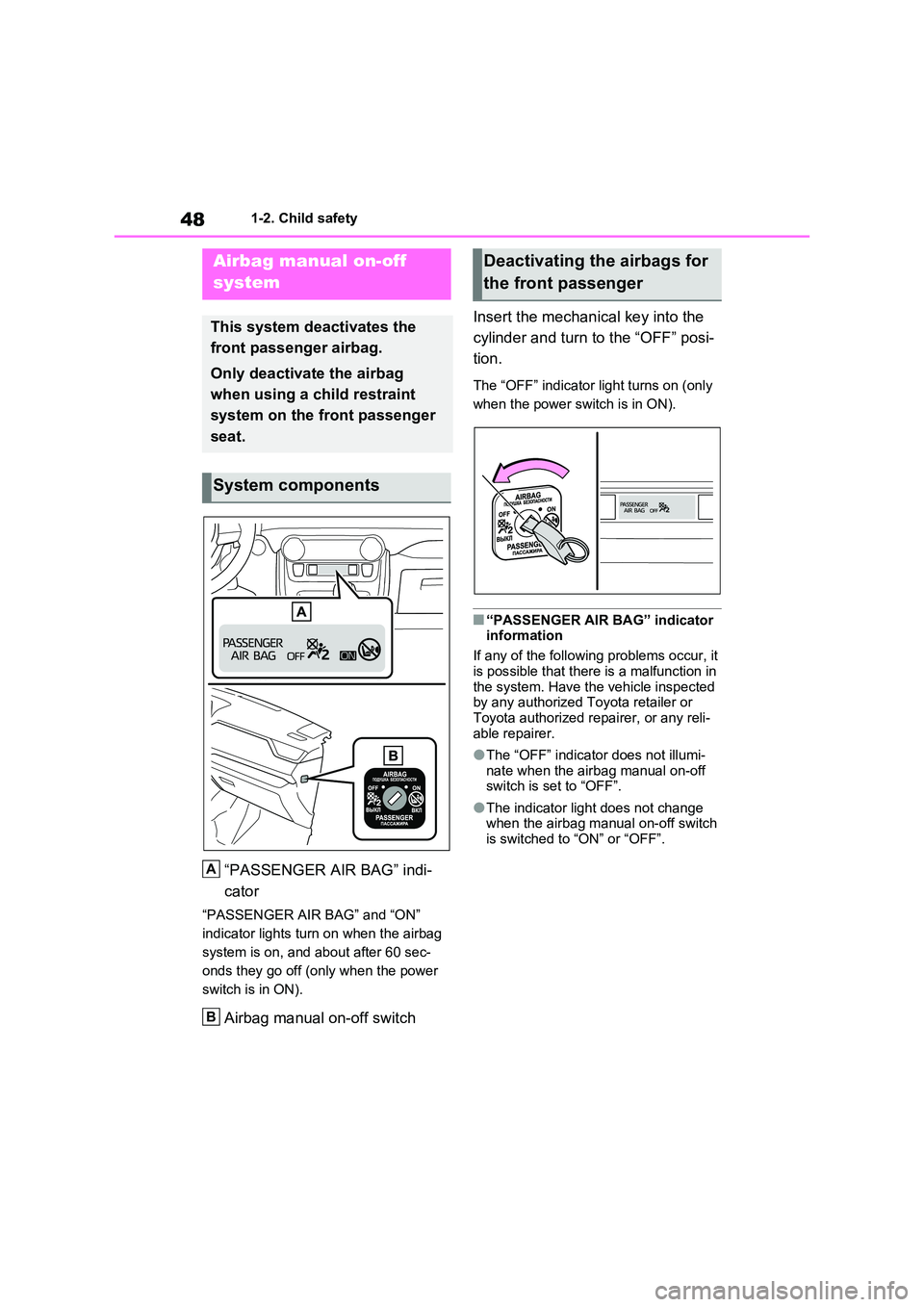

481-2. Child safety
1-2.Child sa fety
“PASSENGER AIR BAG” indi-
cator
“PASSENGER AIR BAG” and “ON”
indicator lights turn on when the airbag
system is on, and about after 60 sec-
onds they go off (only when the power
switch is in ON).
Airbag manual on-off switch
Insert the mechanical key into the
cylinder and turn to the “OFF” posi-
tion.
The “OFF” indicator light turns on (only
when the power switch is in ON).
Q“PASSENGER AIR BAG” indicator information
If any of the following problems occur, it
is possible that there is a malfunction in the system. Have the vehicle inspected by any authorized Toyota retailer or
Toyota authorized repairer, or any reli- able repairer.
OThe “OFF” indicator does not illumi-nate when the airbag manual on-off switch is set to “OFF”.
OThe indicator light does not change when the airbag manual on-off switch
is switched to “ON” or “OFF”.
Airbag manual on-off
system
This system deactivates the
front passenger airbag.
Only deactivate the airbag
when using a child restraint
system on the front passenger
seat.
System components
A
B
Deactivating the airbags for
the front passenger

501-2. Child safety
Points to remember: P.51
When using a child restraint sys-
tem: P.52
Child restraint system compatibility
for each seating position: P.54
Child restraint system installation
method: P.59
• Fixed with a seat belt: P.60
WARNING
QWhen children are in the vehicle
Never leave children unattended in
the vehicle, and never allow children to have or use the key.
Children may be able to start the vehi-
cle or shift the vehicle into neutral. There is also a danger that children may injure themselves by playing with
the side windows, panoramic moon roof (if equipped) or other features of the vehicle. In addition, heat build-up
or extremely cold temperatures inside the vehicle can be fatal to children.
Child restraint systems
Before installing a child
restraint system in the vehicle,
there are precautions that need
to be observed, different types
of child restraint systems, as
well as installation methods,
etc., written in this manual.
 Use a child restraint system
when riding with a small child
that cannot properly use a seat
belt. For the child’s safety,
install the child restraint sys-
tem to a rear seat. Be sure to
follow the installation method
that is in the operation manual
enclosed with the restraint sys-
tem.
 The use of a Toyota genuine
child restraint system is rec-
ommended, as it is safer to
use in this vehicle. Toyota gen-
uine child restraint systems
are made specifically for
Toyota vehicles. They can be
purchased at a Toyota dealer.
Table of contents

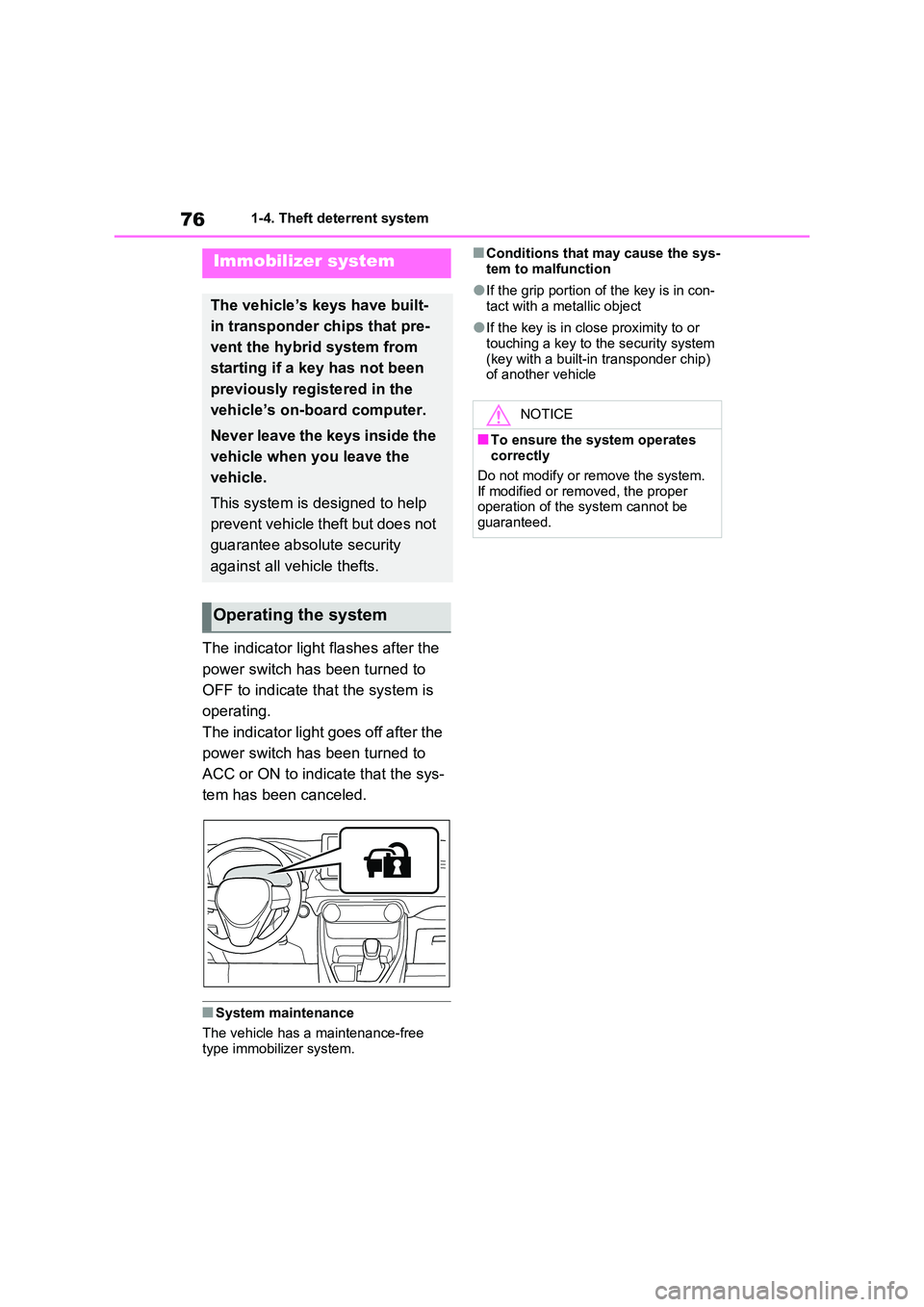

761-4. Theft deterrent system
1-4.Theft de terre nt sys te m
The indicator light flashes after the
power switch has been turned to
OFF to indicate that the system is
operating.
The indicator light goes off after the
power switch has been turned to
ACC or ON to indicate that the sys-
tem has been canceled.
QSystem maintenance
The vehicle has a maintenance-free type immobilizer system.
QConditions that may cause the sys-
tem to malfunction
OIf the grip portion of the key is in con-
tact with a metallic object
OIf the key is in close proximity to or
touching a key to the security system (key with a built-in transponder chip) of another vehicle
Immobilizer system
The vehicle’s keys have built-
in transponder chips that pre-
vent the hybrid system from
starting if a key has not been
previously registered in the
vehicle’s on-board computer.
Never leave the keys inside the
vehicle when you leave the
vehicle.
This system is designed to help
prevent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.
Operating the system
NOTICE
QTo ensure the system operates correctly
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guaranteed.

79
1
1-4. Theft deterrent system
For safety and security
OThe doors are unlocked using the
mechanical key.
OA person inside the vehicle opens a
door or hood, or unlocks the vehicle using an inside lock button.
OThe 12-volt battery is recharged or replaced when the vehicle is locked. ( P.546)
QAlarm-operated door lock
In the following cases, depending on the
situation, the door may automatically lock to prevent improper entry into the vehicle:
OWhen a person remaining in the vehi-cle unlocks the door and the alarm is
activated.
OWhile the alarm is activated, a person
remaining in the vehicle unlocks the door.
OWhen recharging or replacing the 12-volt battery.
QCustomization (if equipped)
The alarm can be set to deactivate when the mechanical key is used to unlock.(Customizable features: P.570)
QThe intrusion sensor and tilt
sensor detection
 The intrusion sensor detects
intruders or movement in the
vehicle.
 The tilt sensor detects changes
in vehicle inclination, such as
when the vehicle is towed away.
This system is designed to deter
and prevent vehicle theft but does
not guarantee absolute security
against all intrusions.
QSetting the intrusion sensor
and tilt sensor
The intrusion sensor and tilt sensor
will be set automatically when the
alarm is set. ( P.78)
QCanceling the intrusion sensor
and tilt sensor
If you are leaving pets or other
moving things inside the vehicle,
make sure to disable the intrusion
sensor and tilt sensor before setting
NOTICE
QTo ensure the system operates correctly
Do not modify or remove the system.
If modified or removed, the proper operation of the system cannot be guaranteed.
Intrusion sensor and tilt
sensor
