Navigation system
Navigation system
3-1. Basic operationNavigation ...................... 74
Map screen operation .... 76
Map screen information . 78
Traffic information .......... 83
3-2. Destination search Destination search opera-tion ............................... 86
Starting route guidance .. 93
3-3. Route guidance Route guidance screen .. 97
Typical voice guidance prompts ..................... 101
Editing route ................ 101
3-4. Setup Navigation settings...... 104
Detailed navigation settings .................................. 108
Traffic settings............. 111
Use of information accumu- lated by navigation system
(Vehicles equipped with
DCM) ......................... 116
3-5. Tips for operating the nav- igation system
GPS (Global Positioning System) ..................... 117
Map database version and covered area ............. 119

743-1. Basic operation
3-1.Basic operation
*: Premium Audio only
2D north up, 2D heading up or 3D heading up symbol (P.77)
Indicates whether the map orientation is set to north-up or hea d-
ing-up. The letter(s) under this s ymbol indicate the vehicle’s
heading direction (e.g. N for north). In 3D map, only a heading-up
view is available.
Destination button ( P.86)
Select to display the destination screen.
Map options button ( P.78)
Select to display the map options screen.
Route options button ( P.101)
Select to display the route options screen.
Mute button
Navigation*
The navigation system indicates your present position and
assists in locating a desired destination. To display the map
screen, press the “MAP” button.

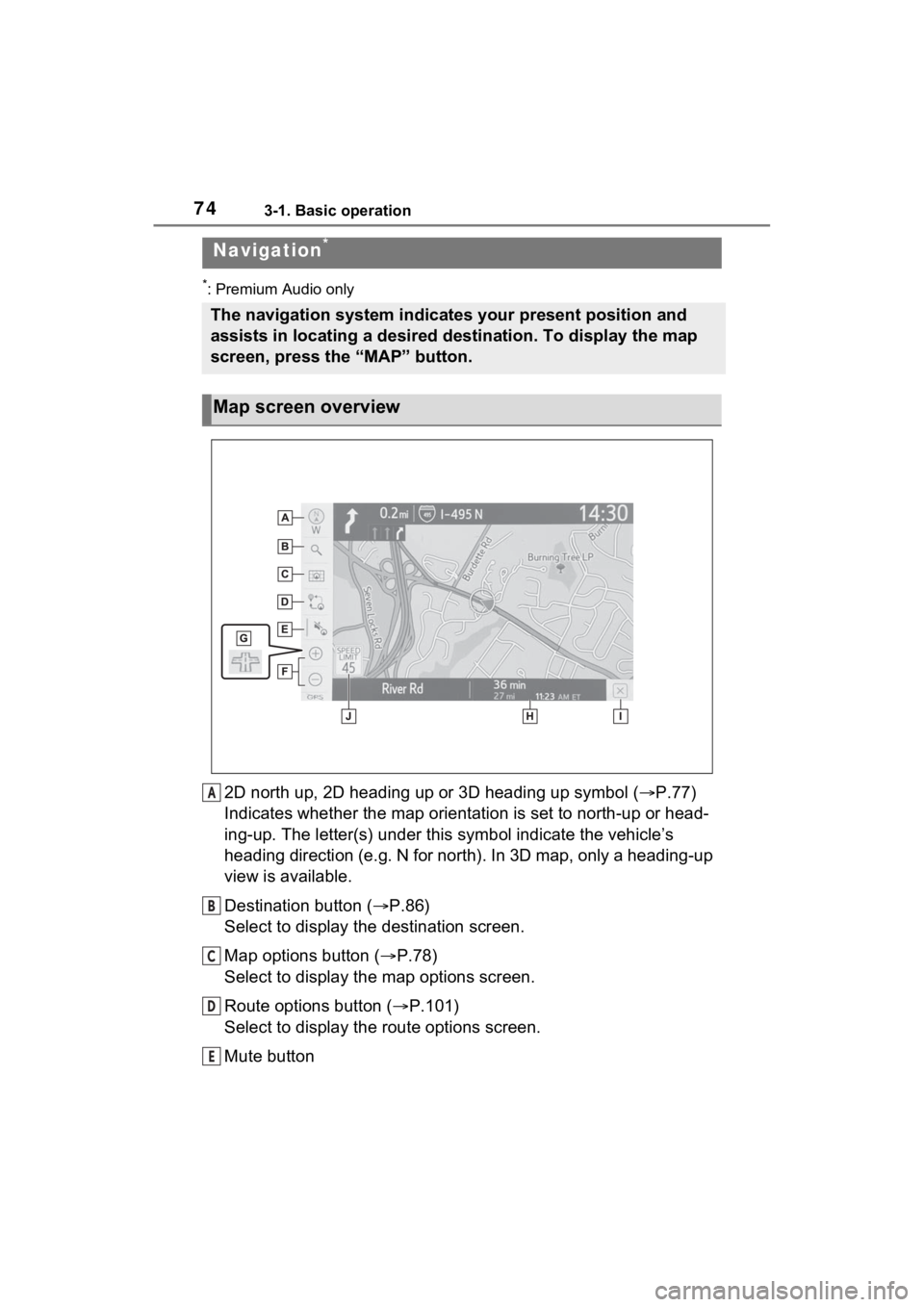

Map screen overview
A
B
C
D
E

753-1. Basic operation
3
Navigation system
Select to mute the voice guidance. When set to on, the indicator
will illuminate.
Zoom in/out button ( P.76)
Select to magnify or reduce the map scale. When either button i s
selected, the map scale indicator bar appears at the bottom of the
screen.
Micro city map button ( P.76)
Select to display the micro city map screen.
Route information bar ( P.97)
Displays the distance with the estimated travel time/arrival time to
the destination. The route information bar fills from left to r ight as
the vehicle progresses on the route.
Delete destination button ( P.23)
Select to delete destinations.
Speed limit icon ( P.78)
Indicates the speed limit on the current road. The display of t he
speed limit icon can be set to on/off.
●When the vehicle is no t receiving GPS signals, such as when dri ving in a
tunnel, will be displa yed at the bottom left corner of the screen.
●Press the “MAP” button to display the address of the current position on
the map screen or r epeat voice guidance.
F
G
H
I
J

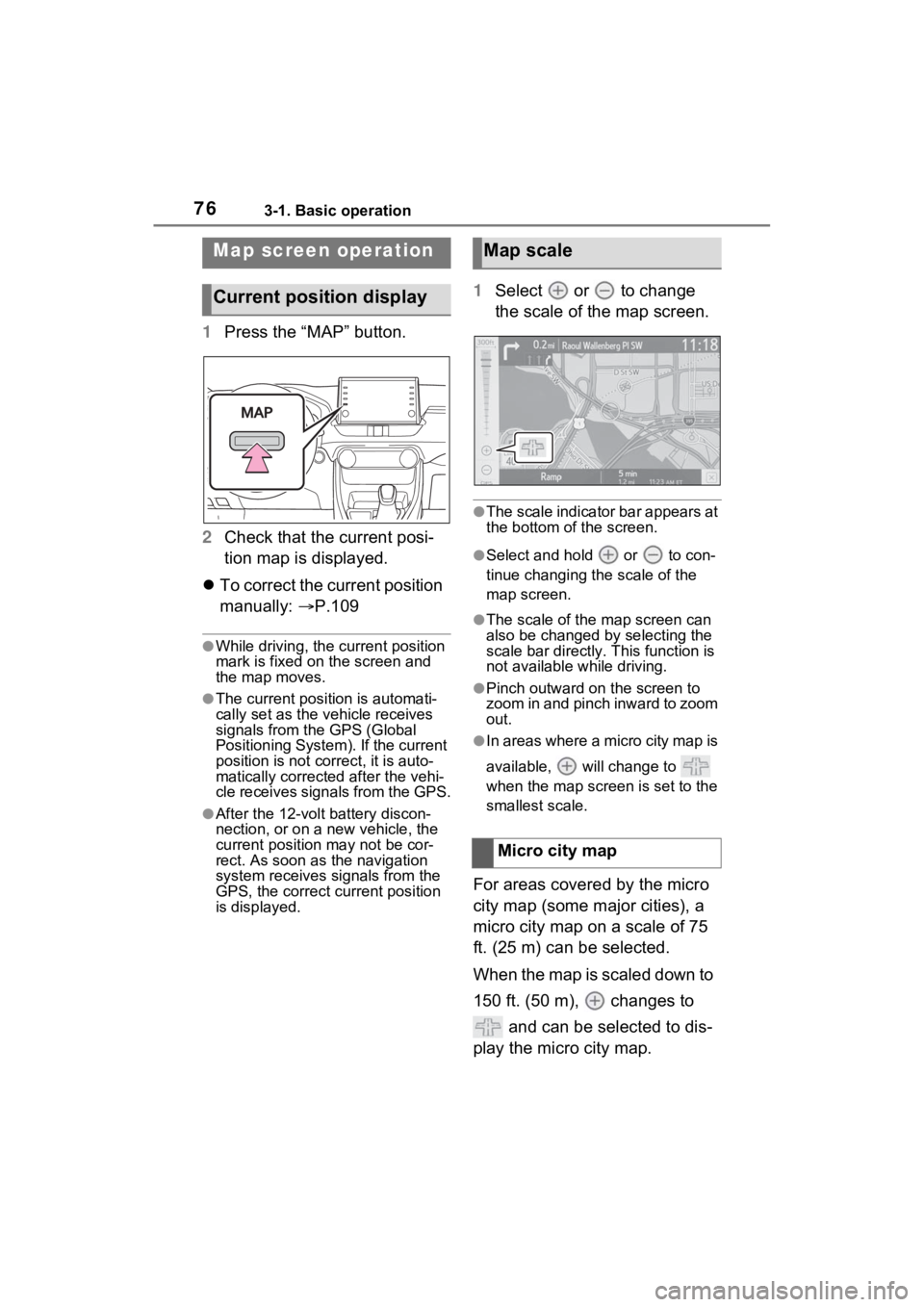

763-1. Basic operation
1Press the “MAP” button.
2 Check that the current posi-
tion map is displayed.
 To correct the current position
manually:  P.109
●While driving, the cu rrent position
mark is fixed on the screen and
the map moves.
●The current position is automati-
cally set as the vehicle receives
signals from the GPS (Global
Positioning System). If the current
position is not correct, it is auto-
matically corrected after the vehi-
cle receives signals from the GPS.
●After the 12-volt battery discon-
nection, or on a new vehicle, the
current position may not be cor-
rect. As soon as the navigation
system receives signals from the
GPS, the correct c urrent position
is displayed.
1 Select or to change
the scale of the map screen.
●The scale indicator bar appears at
the bottom of the screen.
●Select and hold or to con-
tinue changing the scale of the
map screen.
●The scale of the map screen can
also be changed by selecting the
scale bar directly. This function is
not available while driving.
●Pinch outward on the screen to
zoom in and pinch inward to zoom
out.
●In areas where a micro city map is
available, will change to
when the map screen is set to the
smallest scale.
For areas covered by the micro
city map (some major cities), a
micro city map on a scale of 75
ft. (25 m) can be selected.
When the map is scaled down to
150 ft. (50 m), changes to
and can be selected to dis-
play the micro city map.
Map screen operation
Current position display
Map scale
Micro city map

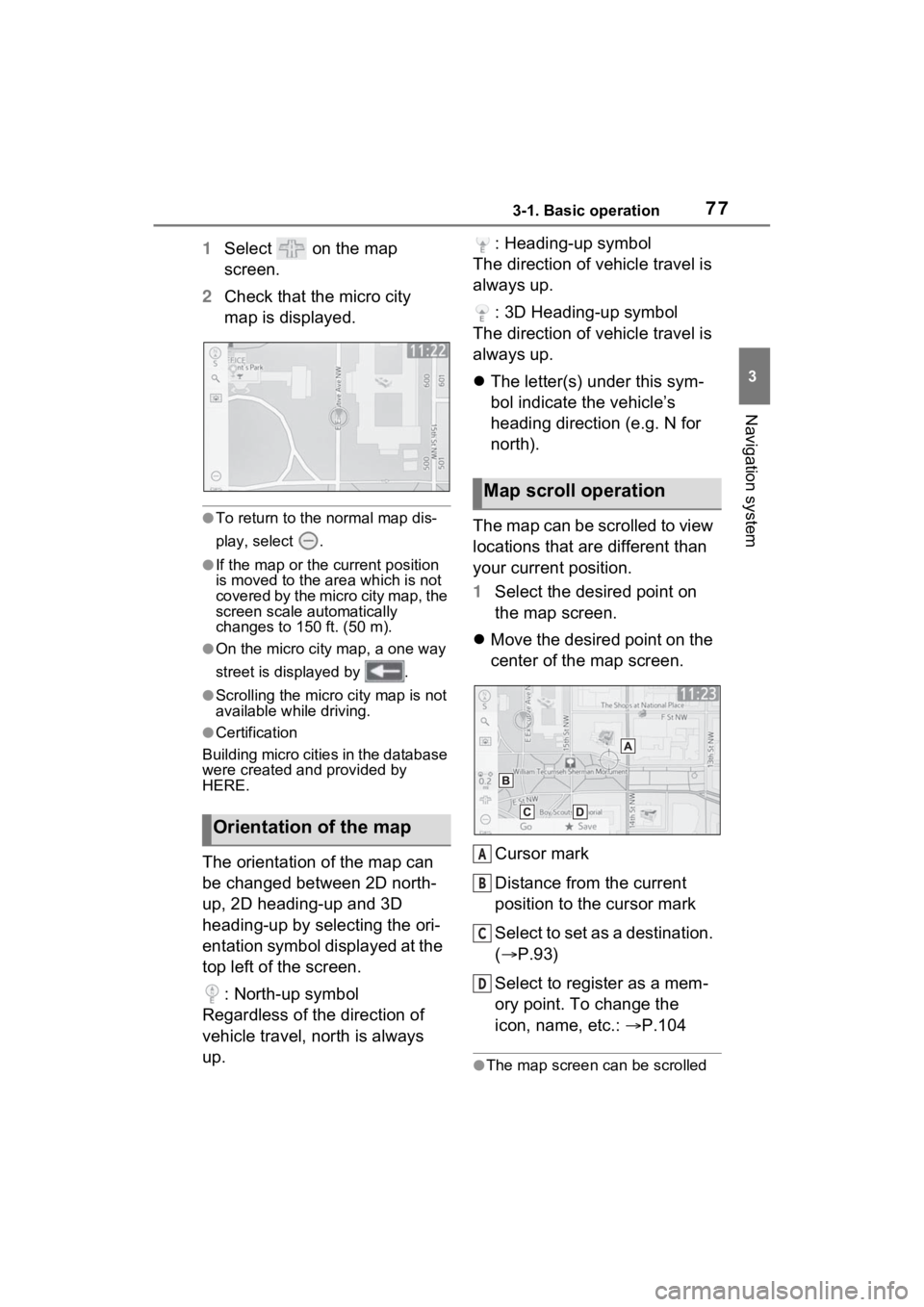

773-1. Basic operation
3
Navigation system
1Select on the map
screen.
2 Check that the micro city
map is displayed.
●To return to the normal map dis-
play, select .
●If the map or the c urrent position
is moved to the are a which is not
covered by the micro city map, the
screen scale automatically
changes to 150 ft. (50 m).
●On the micro city map, a one way
street is displayed by .
●Scrolling the micro city map is not
available while driving.
●Certification
Building micro cities in the database
were created and provided by
HERE.
The orientation of the map can
be changed between 2D north-
up, 2D heading-up and 3D
heading-up by selecting the ori-
entation symbol displayed at the
top left of the screen.
: North-up symbol
Regardless of the direction of
vehicle travel, north is always
up. : Heading-up symbol
The direction of vehicle travel is
always up.
: 3D Heading-up symbol
The direction of vehicle travel is
always up.
 The letter(s) under this sym-
bol indicate the vehicle’s
heading direction (e.g. N for
north).
The map can be scrolled to view
locations that are different than
your current position.
1 Select the desired point on
the map screen.
 Move the desired point on the
center of the map screen.
Cursor mark
Distance from the current
position to the cursor mark
Select to set as a destination.
( P.93)
Select to register as a mem-
ory point. To change the
icon, name, etc.: P.104
●The map screen can be scrolled
Orientation of the map
Map scroll operation
A
B
C
D

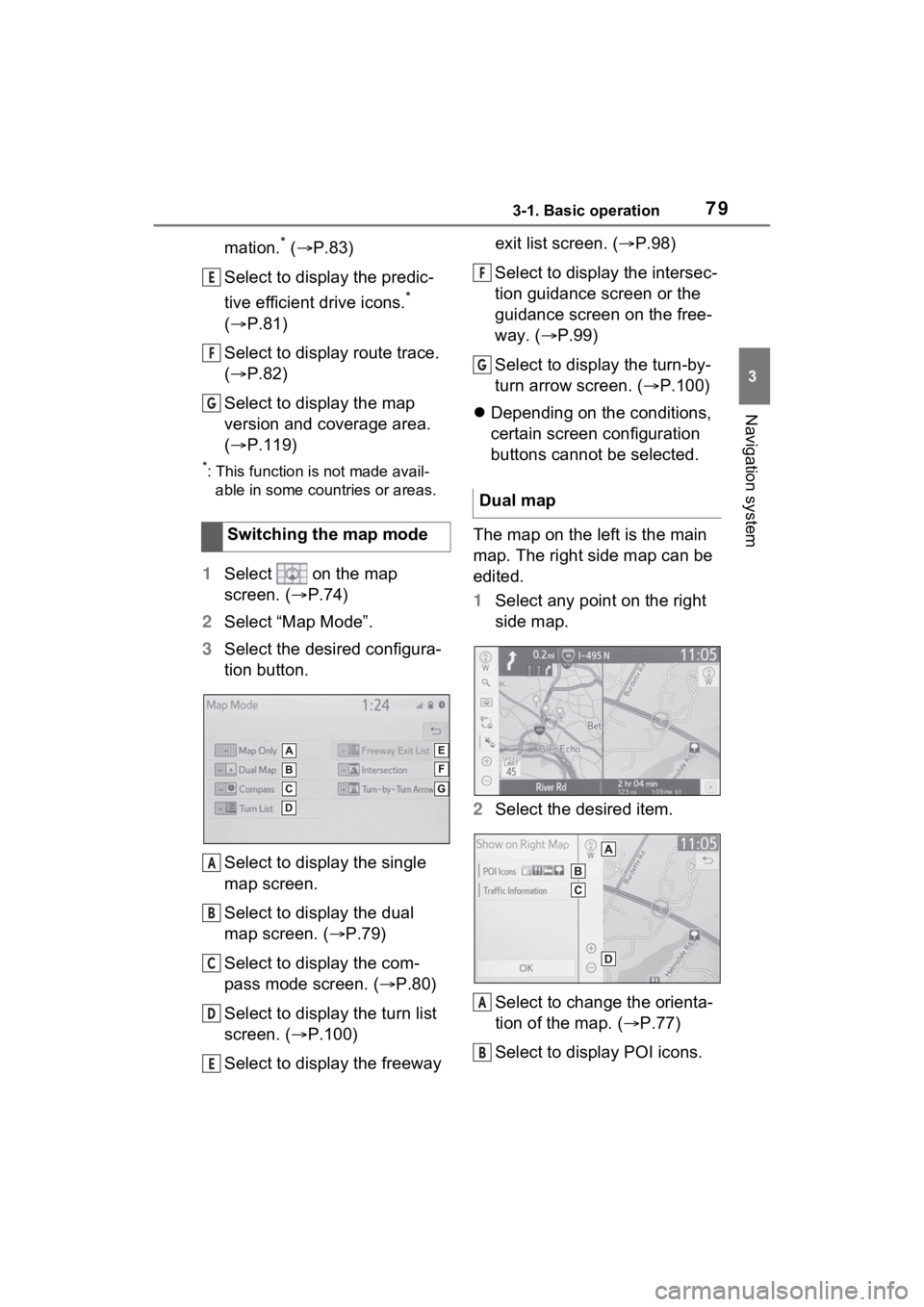

793-1. Basic operation
3
Navigation system
mation.* ( P.83)
Select to display the predic-
tive efficient drive icons.
*
( P.81)
Select to display route trace.
( P.82)
Select to display the map
version and coverage area.
( P.119)
*: This function is not made avail-
able in some countries or areas.
1 Select on the map
screen. ( P.74)
2 Select “Map Mode”.
3 Select the desired configura-
tion button.
Select to display the single
map screen.
Select to display the dual
map screen. ( P.79)
Select to display the com-
pass mode screen. ( P.80)
Select to display the turn list
screen. ( P.100)
Select to display the freeway exit list screen. (
P.98)
Select to display the intersec-
tion guidance screen or the
guidance screen on the free-
way. ( P.99)
Select to display the turn-by-
turn arrow screen. ( P.100)
 Depending on the conditions,
certain screen configuration
buttons cannot be selected.
The map on the left is the main
map. The right side map can be
edited.
1 Select any point on the right
side map.
2 Select the desired item.
Select to change the orienta-
tion of the map. ( P.77)
Select to display POI icons.
Switching the map mode
E
F
G
A
B
C
D
E
'XDOPDS
F
G
A
B

813-1. Basic operation
3
Navigation system
POIs that are within 20 miles (32
km) of the current position will
be listed from among the
selected categories.
1Select “Around Me”.
2 Select the desired POI.
“Sort/Search Area”: Select to
sort (distance, name, category)
POIs or search area.
 Select “Near Here” to search
for POIs near the current
position.
 Select “Along My Route” to
search for POIs along the
route.
3 Check that the selected POI
is displayed on the map
screen.
The icon for the predictive
deceleration support point can
be displayed on the map.
1 Select “Predictive Efficient
Drive”.
 The “Predictive Efficient
Drive” indicator illuminates.
 The icon is displayed on
the map for the predictive
deceleration support points.
Also, when the position of the
vehicle approaches the pre-
dictive deceleration support
point, the icon changes to an emphasized icon.●Up to 100 icons can be displayed
on one screen.
●When the maximum number of
icons that can be displayed is
exceeded, the predictive deceler-
ation support points near the posi-
tion of the vehicle are displayed.
●Icons for the predictive decelera-
tion support points can be dis-
played on maps more detailed
than 0.75 miles (1
.2 km). (exclud-
ing the city map)
●When a destinati on is set, predic-
tive deceleration support points
not along the guided route are not
emphasized.
1 Select “Predictive Efficient
Drive”.
 The “Predictive Efficient
Drive” indicator dims.
 After the “Predictive Efficient
Drive” function is turned off,
the screen to confirm whether
to clear the predictive efficient
drive information is dis-
played. To keep the points
(only remove the display
icon), select “Yes”. To clear
registered points, select “No”.
●Once the predictive deceleration
support point information is
cleared, it cannot be restored.
●The predictive deceleration sup-
port point information cannot be
selected and indiv idually cleared.
Displaying the local POI list
Displaying predictive effi-
cient drive information
Turning off the predictive
efficient drive information
display

833-1. Basic operation
3
Navigation system
●Even when traffic information is
not currently being received, traffic
information and will be dis-
played for a while after traffic infor-
mation has been received.
●In some situations, calls to a POI
may automatically change to an
international call or may not be
possible as a domestic call.
*: This function is not made avail-
able in some countries or areas.

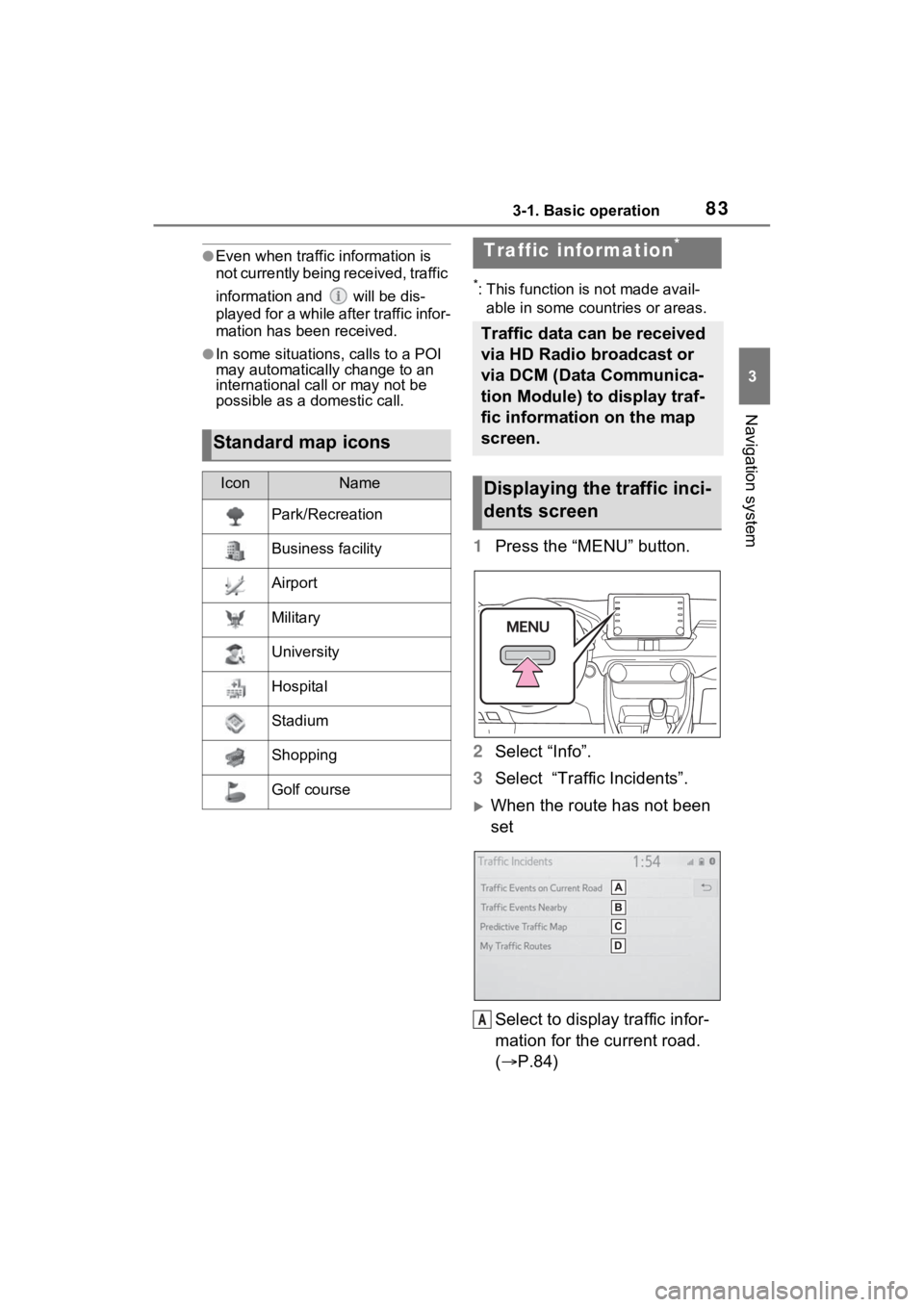

1 Press the “MENU” button.
2 Select “Info”.
3 Select “Traffic Incidents”.
When the route has not been
set
Select to display traffic infor-
mation for the current road.
( P.84)
Standard map icons
IconName
Park/Recreation
Business facility
Airport
Military
University
Hospital
Stadium
Shopping
Golf course
Traffic information*
Traffic data can be received
via HD Radio broadcast or
via DCM (Data Communica-
tion Module) to display traf-
fic information on the map
screen.
Displaying the traffic inci-
dents screen
A

853-1. Basic operation
3
Navigation system
3Scroll the map to the desired
point ( P.77) and set the
time of predictive traffic infor-
mation.
 The time of the predictive traf-
fic information can be
changed in 15-minute inter-
vals up to +45 minutes.
“<”: Moves the time forward 15 min-
utes.
“>”: Moves the time back 15 min-
utes.
Traffic information along the
saved routes can be displayed.
To use this function, it is neces-
sary to register a route.
( P.112)
1 Display the traffic incidents
screen. ( P.83)
2 Select “My Traffic Routes”.
 If map data has been
updated, a confirmation
screen will be displayed.
Select “OK” or “Do Not Tell
Me Again”.
3 Select the desired route.
“Options”: Select to add, edit or
delete personal traffic routes.
( P.112)
 If routes have not been regis-
tered yet, a confirmation
screen will be displayed.
Select “Yes” to register the
route.
4 Select the desired traffic
information. 5
Check that the traffic informa-
tion is displayed.
“Detail”: Select to display detailed
traffic information.
1Select on the map
screen.
2 Select “Traffic Information”.
3 Check that the traffic informa-
tion is displayed.
●The icons indicate traffic incidents
such as construction, accidents,
etc. Select an icon to hear more
detail by voice.
●The arrows indicate the flow of
traffic. The color changes depend-
ing on the speed.
My traffic routes
Displaying traffic informa-
tion on the map

863-2. Destination search
3-2.Destination search
The destination screen enables
to search for a destination. The
destination screen can be
reached by the following meth-
ods:
■From the map screen
1 Press the “MAP” button.
2 Select .
3 Follow the steps in “From the
menu screen” from step 3.
( P.86)
■From the menu screen
1 Press the “MENU” button.
2 Select “Destination”.
3 Select the desired search
method.
Select to set a destination by home. (
P.87)
Select to search for a desti-
nation by entering keywords.
( P.87)
Select to search for a desti-
nation via the Toyota
response center.
* (  P.279)
Select to search for a desti-
nation from a registered entry
in “Favorites”. ( P.87)
Select to search for a desti-
nation recent set destina-
tions. ( P.88)
Select to search for a desti-
nation from emergency ser-
vice points. ( P.88)
Select to search for a desti-
nation by address. ( P.89)
Select to search for a desti-
nation by point of interest.
( P.90)
Select to search for a desti-
nation from contact data
which had been transferred
to the navigation system from
a registered Bluetooth
®
phone. ( P.89)
*: This function is not made avail-
able in some countries or areas.
●To hide the destination screen,
touch any part of the map screen.
The selected state (province)
can be changed to set a desti-
Destination search
operation
Destination screen
A
6HOHFWLQJVHDUFKDUHD
B
C
D
E
F
G
H
I
