When you quickly push and release the
switch, the back window will open while
the switch is depressed and stop when
released.
To close: Push the switch on the ª
º
side. The back window will fully close au-
tomatically. To stop the window partway,
push either side of the switch.
When you quickly push and release the
switch, the back window will close while
the switch is depressed and stop when
released.
You can also open the back window when
the back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See ªBack window wiper
and washerº on page 154 and ªBack win-
dow and outside rear view mirror defog-
gersº on page 154 in Section 1±5.)Jam protection function: During automat-
ic closing operation, the window stops and
opens slightly if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION

Never try jamming any part of your
body to activate the jam protection
function intentionally.

The jam protection function may
not work if something gets caught
just before the window is fully
closed.
If the battery is disconnected or run
down, the back window may not operate
automatically and the jam protection func-
tion will not function correctly after you
reconnect, replace or recharge the battery.
In any of these cases, you should normal-
ize the back window.
To normalize the back window, close the
window fully by the power back window
switch. If the window has already been
closed, open it slightly and then fully
close it using the power back window
switch.
Make sure that the back window opens
and closes automatically. If the back win-
dow cannot be operated properly, have it
checked by your Toyota dealer.

05_SEQUOIA_U (L/O 0408)
33
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclock-
wise and hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This door key linked function can be
erased. For details, contact your Toyota
dealer.
You can also open the back window when
the back window wiper is working. At the
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See ªBack window wiper
and washerº on page 154 and ªBack win-
dow and outside rear view mirror defog-
gersº on page 154 in Section 1±5.)CAUTION
To avoid serious personal injury, you
must do the following.

Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone's neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure he or she
operates the window safely.

When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision.

Be sure to remove the ignition key
when you leave your vehicle.

05_SEQUOIA_U (L/O 0408)
34
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.

Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Vehicles with wireless remote control sys-
temÐ
To open the back window with the wire-
less remote control transmitter, see
ªÐOpening back windowº on page 22 in
this Section.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
To open the back door, pull the lever.
The back door will be controlled by oper-
ating the power door lock switch.
The back door window can be opened or
closed with the key operation in the back
door keyhole. (For details, see ªPower
back windowº on page 31 in this Section.)When closing the back door, the inside
strap can be used to make the reach
easier.
To close the back door, lower it and press
down on it. After closing the back door,
try pulling it up to make sure it is secure-
ly closed.
See ªÐStowage precautionsº on page 356
in Section 2 for precautions when loading
luggage.
Back door

05_SEQUOIA_U (L/O 0408)
35
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION
Keep the back window and back door
closed while driving. This not only
keeps the luggage from being thrown
out but also prevents exhaust gases
from entering the vehicle.
NOTICE
To prevent damage to the back door
dampers, do not apply any force,
paint or let any other foreign matter
on them.
Driver's side
Passenger's side
LOCKING AND UNLOCKING WITH
POWER BACK DOOR LOCK SWITCH
Push the switch.
To lock: Push the switch down on the
front side.
To unlock: Push the switch down on the
rear side.
Operating the power door lock switch si-
multaneously locks or unlocks the back
door. (See ªSide doorsº on page 24 in this
Section.)
Vehicles with wireless remote control sys-
temÐ
To lock or unlock the back door, see
ªWireless remote controlº on page 18 in
this Section.

05_SEQUOIA_U (L/O 0408)
36
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

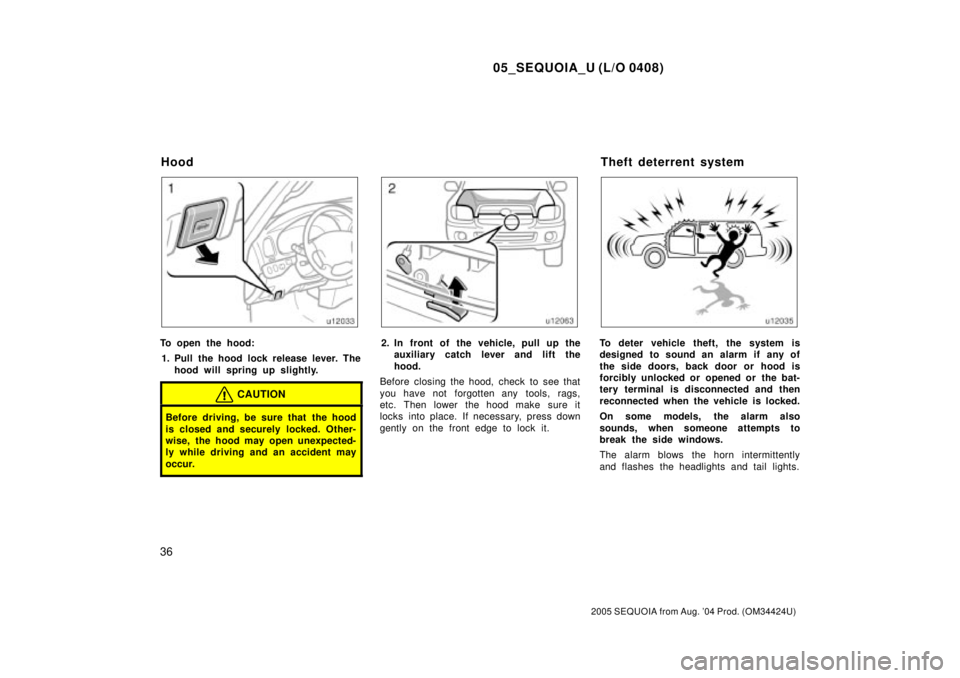

To open the hood:
1. Pull the hood lock release lever. The
hood will spring up slightly.
CAUTION
Before driving, be sure that the hood
is closed and securely locked. Other-
wise, the hood may open unexpected-
ly while driving and an accident may
occur.
2. In front of the vehicle, pull up the
auxiliary catch lever and lift the
hood.
Before closing the hood, check to see that
you have not forgotten any tools, rags,
etc. Then lower the hood make sure it
locks into place. If necessary, press down
gently on the front edge to lock it.To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
On some models, the alarm also
sounds, when someone attempts to
break the side windows.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.
HoodTheft deterrent system

05_SEQUOIA_U (L/O 0408)
37
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Indicator light
Glass breakage sensor (on some models)
SETTING THE SYSTEM
1. Turn the ignition key to the ªLOCKº
position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See ªEngine immobilizer systemº
on page 16 in this Section for details.)
2. Have all passengers get out of the
vehicle.
3. Close and lock all the side doors, back
door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked.
The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light
starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:

If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened

If the battery terminal is disconnected
and then reconnected
Vehicles with the glass breakage sensorÐ

The side windows are tapped or bro-
ken.
The indicator light will come on when the
system is activated.
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re±lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.

05_SEQUOIA_U (L/O 0408)
38
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
ªActivating the systemº.
Stopping the alarm
The alarm will be stopped by the following
two ways:

Turn the ignition key from the ªLOCKº
to ªONº position.

Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time.TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above.
The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside.
The system should activate the alarm.
4. Stop the alarm as described above.
5. Repeat this operation for the other
doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

05_SEQUOIA_U (L/O 0408)
39
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
1. To open the fuel filler door, pull the
lever.
When refueling, turn off the engine.
CAUTION

Do not smoke, cause sparks or al-
low open flames when refueling.
The fumes are flammable.

When opening the cap, do not re-
move the cap quickly. In hot weath-
er, fuel under pressure could cause
injury by spraying out of the filler
neck if the cap is suddenly re-
moved.
2. To remove the fuel tank cap, turn
the cap counterclockwise by 90 de-
grees (to the pressure point 1), and
then turn it an additional 30 degrees
(to point 2). Pause slightly before
removing it.
It is not unusual to hear a slight swoosh
when the cap is opened.3. The removed cap can be stored on
the back side of the fuel filler door.
Position the cap so that the hooks point
to the left and right, and set it in the
receptacle on the back side of the door.

05_SEQUOIA_U (L/O 0408)
40
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
When installing the cap, turn the cap
clockwise until you hear a click. When
you hear the click, the cap is fully
closed.
If the cap is not installed securely, the
malfunction indicator lamp comes on.
Make sure the cap is tightened securely.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.
CAUTION

Make sure the cap is installed se-
curely to prevent fuel spillage in
the event of an accident.

Use only a genuine Toyota fuel tank
cap for replacement. It is designed
to regulate fuel tank pressure.
NOTICE
To prevent damage to the cap, apply
force only in the turning direction to
the cap. Do not pull or pry it.
Sliding operation
Tilting operation
OPERATING FROM INSIDE
To operate the moon roof, use the
switches between the personal lights.
The moon roof works when the ignition
switch is in the ªONº position.
The sun shade can be opened or closed
by hand.
Sliding operationÐ
To open: Push the ªSLIDEº switch on the
ª
º (rear) side.
The roof will open and stop partway 135
mm (5.3 in.) from the fully opened posi-
tion. When you push ª
º (rear) side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or ªº (front) side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
135 mm (5.3 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the ªSLIDEº switch on the
ªº (front) side.
Electric moon roof

05_SEQUOIA_U (L/O 0408)
41
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The roof will fully close. To stop the roof
partway, push the same side or ª
º (rear)
side briefly.
Tilting operationÐ
To tilt up: Push the ªTILTº switch on the
ªUPº side.
To lower: Push the ªTILTº switch on the
opposite side of ªUPº.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Key off operation: If all the doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when any of the doors is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens half way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.OPERATING FROM OUTSIDE
The moon roof can be opened and closed
with the key operation in the driver's door
keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the moon roof
begins to open. To stop in the middle,
return the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the moon roof
begins to close. To stop in the middle,
return the key.
This door key linked operation for sliding
operation can be erased or changed into
the door key linked operation for tilting
operation. For details, contact your Toyota
dealer.
