2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
RECALLING THE MEMORIZED POSITION
When you push button ª1º or ª2º, a
beep will sound and the driving posi-
tion will be automatically adjusted to
the position recorded for that button.
The memorized position can be recalled
under the following conditions:

The ignition key is in the ªON position
and the shift lever is in the ªPº posi-
tion.

The key is not in the ignition switch
and less than 30 seconds have passed
since opening the driver 's door.To stop the operation, push any driving
position memory button.
To reactivate the system, push the button
ª1º or ª2º again.
If the vehicle's battery is disconnected,
the memory will be erased and the posi-
tions will have to be set again.
CAUTION

Do not start the vehicle while the
adjustment are being made.

Take care not to select the wrong
button, or the seat could strike the
rear passenger or hit your body
against the steering wheel. If this
happens, you can stop the move-
ment by pressing another driving
position memory switch, or de-
pressing the brake pedal.
Toyota strongly urges that the driver and
passengers in the vehicle be properly re-
strained at all times with the seat belts
provided. Failure to do so could increase
the chance of injury and/or the severity of
injury in accidents.
The seat belts provided for your vehicle
are designed for people of adult size,
large enough to properly wear them.
Child. Use a child restraint system ap-
propriate for the child until the child be-
comes large enough to properly wear the
vehicle's seat belts. See ªChild restraintº
on page 107 in this Section for details.
If a child is too large for a child restraint
system, the child should sit in the rear
seat and must be restrained using the
vehicle's seat belt. According to accident
statistics, the child is safer when properly
restrained in the rear seat than in the
front seat.
If a child must sit in the front seat, the
seat belts should be worn properly. If an
accident occurs and the seat belts are not
worn properly, the force of the rapid infla-
tion of the airbag may cause death or
serious injury to the child.
Seat beltsÐ
ÐSeat belt precautions

05_SEQUOIA_U (L/O 0408)
73
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Do not allow any children to stand up or
kneel on either rear or front seats. An
unrestrained child could suffer serious in-
jury or death during emergency braking or
a collision. Also, do not let the child sit
on your lap. Holding a child in your arms
does not provide sufficient restraint.
Pregnant woman. Toyota recommends the
use of a seat belt. Ask your doctor for
specific recommendations. The lap belt
should be worn securely and as low as
possible over the hips and not on the
waist.
Injured person. Toyota recommends the
use of a seat belt. Depending on the inju-
ry, first check with your doctor for specific
recommendation.CAUTION
Persons should ride in their seats
properly wearing their seat belts
whenever the vehicle is moving.
Otherwise, they are much more likely
to suffer serious bodily injury or
death in the event of sudden braking
or a collision.
When using the seat belts, observe
the following:

Use the belt for only one person at
a time. Do not use a single belt for
two or more peopleÐeven children.

Avoid reclining the seatback any
more than needed. The seat belts
provide maximum protection in a
frontal or rear collision when the
driver and the front passenger are
sitting up straight and well back in
the seats. If you are reclined, the
lap belt may slide past your hips
and apply restraint forces directly
to the abdomen or your neck may
contact the shoulder belt. In the
event of a frontal collision, the
more the seat is reclined, the great-
er the risk of death or personal in-
jury.

Be careful not to damage the belt
webbing or hardware. Take care that
they do not get caught or pinched
in the seat or side doors.

Inspect the belt system periodically.
Check for cuts, fraying, and loose
parts. Damaged parts should be re-
placed. Do not disassemble or
modify the system.

Keep the belts clean and dry. If
they need cleaning, use a mild soap
solution or lukewarm water. Never
use bleach, dye, or abrasive clean-
ers, or allow them to come into
contact with the beltÐthey may se-
verely weaken the belts. (See
ªCleaning the interiorº on page 407
in Section 5.)

Replace the belt assembly (includ-
ing bolts) if it has been used in a
severe impact. The entire assembly
should be replaced even if damage
is not obvious.

05_SEQUOIA_U (L/O 0408)
74
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Ta b
Buckle
Adjust the seat as needed and sit up
straight and well back in the seat. To
fasten your belt, pull it out of the re-
tractor and insert the tab into the
buckle.
You will hear a click when the tab locks
into the buckle.
The seat belt length automatically adjusts
to your size and the seat position.
The retractor will lock the belt during a
sudden stop or on impact. It also may
lock if you lean forward too quickly. A
slow, easy motion will allow the belt to
extend, and you can move around freely.When a passenger 's shoulder belt is com-
pletely extended and is then retracted
even slightly, the belt is locked in that
position and cannot be extended. This fea-
ture is used to hold the child restraint
system securely. (For details, see ªChild
restraintº on page 107 in this Section.) To
free the belt again, fully retract the belt
and then pull the belt out once more.
If the seat belt cannot be pulled out of the
retractor, firmly pull the belt and release
it. You will then be able to smoothly pull
the belt out of the retractor.CAUTION

After inserting the tab, make sure
the tab and buckle are locked and
that the belt is not twisted.

Do not insert coins, clips, etc. in
the buckle as this may prevent you
from properly latching the tab and
buckle.

If the seat belt does not function
normally, immediately contact your
Toyota dealer. Do not use the seat
until the seat belt is fixed, because
it cannot protect an adult occupant
or your child from injury.
To o h i g h
Keep as low on
hips as possible
Ta k e u p
slack
Adjust the position of the lap and
shoulder belts.
Position the lap belt as low as possible
on your hipsÐnot on your waist, then ad-
just it to a snug fit by pulling the shoulder
portion upward through the latch plate.
ÐFastening front and rear
seat belts

05_SEQUOIA_U (L/O 0408)
75
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION

Both high±positioned lap belts and
loose±fitting belts could cause seri-
ous injuries due to sliding under
the lap belt during a collision or
other unintended event. Keep the
lap belt positioned as low on hips
as possible.

Do not place the shoulder belt un-
der your arm.
Seat belts with an adjustable shoulder
anchorÐ
Adjust the shoulder anchor position to
your size.
To raise: Slide the anchor up.
To lower: Push in the lock release button
and slide the anchor down.
After adjustment make sure the anchor is
locked in position.
CAUTION
Always make sure the shoulder belt
is positioned across the center of
your shoulder. The belt should be
kept away from your neck, but not
falling off your shoulder. Failure to
do so could reduce the amount of
protection in an accident and cause
serious injuries in a collision.

05_SEQUOIA_U (L/O 0408)
76
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
To release the belt, press the buckle
release button and allow the belt to
retract.
If the belt does not retract smoothly, pull
it out and check for kinks or twists. Then
make sure it remains untwisted as it re-
tracts.CENTER SEAT BELT OF THE THIRD
SEATS
The center seat belt of the third seats is
a 3±point type restraint with 2 buckles.
Both seat belt buckles must be correctly
located and securely latched for proper
operation.
Make sure buckle 1 (with light gray
buckle±release button) is securely latched
for ready use of the center seat belt.Two buckles and tabs for rear center
seat belt
The two buckles for the rear center seat
belt of the third seats are distinguished
with colors of the buckle release button.
Also the two tabs have different shape for
its end so that the belt is not buckled in
the wrong place.
Buckle 1 (with light gray buckle±re-
lease button)ÐProperly matches with
concave end tab
Buckle 2 (with red buckle±release but-
ton)ÐProperly matches with round end
tab

05_SEQUOIA_U (L/O 0408)
77
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION
Make sure the both buckles are cor-
rectly located and securely latched.
Failure to properly match the buckle
and tab may cause severe injury in
case of an accident or a collision.
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle±release button) and allow the
belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause severe per-
sonal injury in case of sudden brak-
ing or a collision.

05_SEQUOIA_U (L/O 0408)
78
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Second (bench type)
second (separate type)
Third
The seat belt buckles of the second
and third seats can be stowed when
not in use.
Seat belt buckles must be stowed before
you fold the seat back. (See ªÐTumbling
second seats for luggage space (bench
type)º on page 52, ªÐTumbling second
seats for luggage space (separate type)º
on page 54, ªÐTumbling third seats for
luggage spaceº on page 57 and ªÐRe-
moving third seatsº on page 62 in this
Section.)
STOWING THE CENTER SEAT BELT OF
THE THIRD SEATS
To stow the center seat belt of the third
seats, pull the seat belt out of its cov-
er. It will automatically roll back part-
way. Roll the seat belt backward and
insert it into the slot of its cover as
shown above. Make sure the tabs are
securely locked in the cover.
Seat belt must be stowed before you fold
the seatback. (See ªÐTumbling third seats
for luggage spaceº on page 57 or ªÐRe-
moving third seatsº on page 62 in this
Section.)
ÐStowing seat belt buckles of
t h e seco n d an d th ird seat sÐStowing the center seat belt
of the third seats

05_SEQUOIA_U (L/O 0408)
79
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Stow the center seat belt of the third
seats when not in use.
PULLING OUT THE CENTER SEAT BELT
OF THE THIRD SEATS
To use the center seat belt of the third
seats, pull the belt out a little and then
pull the tabs out from the cover.The center shoulder belt comfort guide
for the third seat center position will
provide added seat belt comfort for
children who have outgrown child re-
straints and for small adults. When the
center shoulder belt is inserted through
the guide, the comfort guide pulls the
belt away from the neck and head of an
occupant.

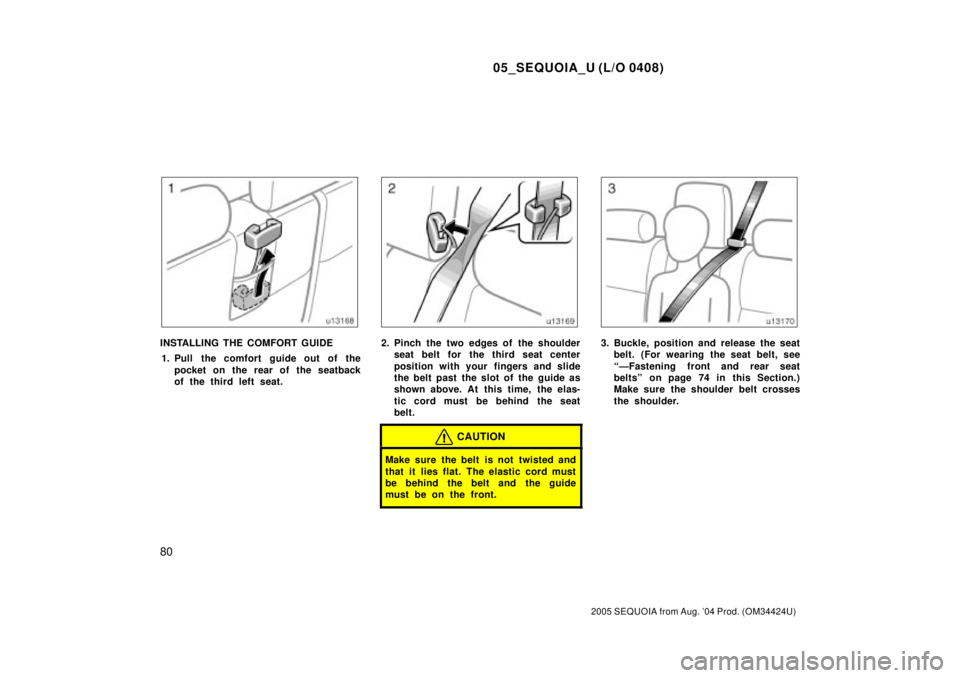

To use the comfort guide, do as fol-
lows.
ÐSeat belt comfort guide

05_SEQUOIA_U (L/O 0408)
80
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
INSTALLING THE COMFORT GUIDE
1. Pull the comfort guide out of the
pocket on the rear of the seatback
of the third left seat.2. Pinch the two edges of the shoulder
seat belt for the third seat center
position with your fingers and slide
the belt past the slot of the guide as
shown above. At this time, the elas-
tic cord must be behind the seat
belt.
CAUTION
Make sure the belt is not twisted and
that it lies flat. The elastic cord must
be behind the belt and the guide
must be on the front.
3. Buckle, position and release the seat
belt. (For wearing the seat belt, see
ªÐFastening front and rear seat
beltsº on page 74 in this Section.)
Make sure the shoulder belt crosses
the shoulder.

05_SEQUOIA_U (L/O 0408)
81
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

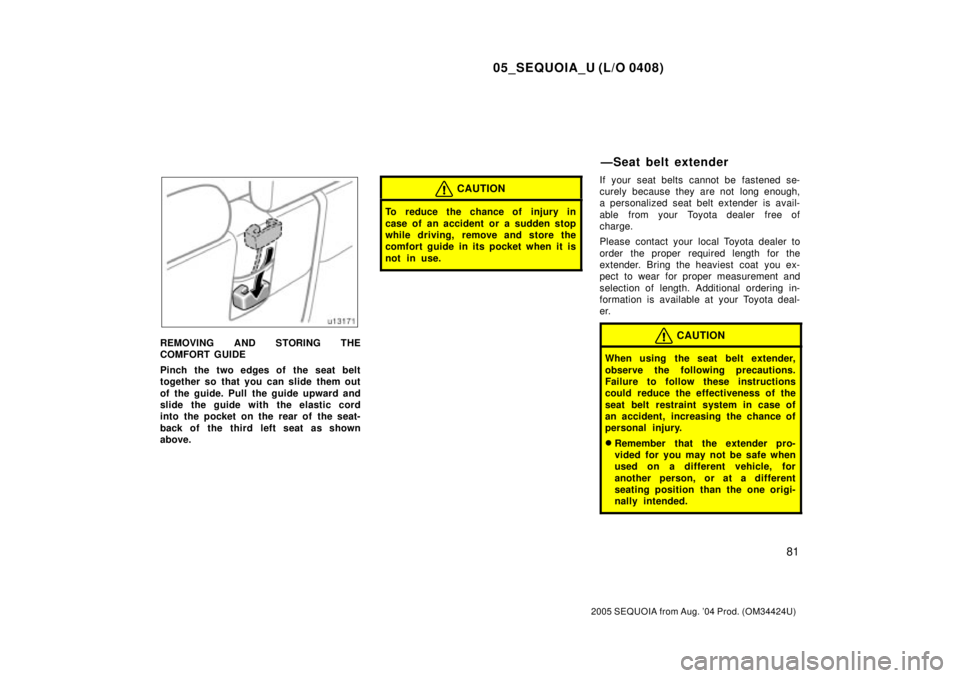

REMOVING AND STORING THE
COMFORT GUIDE
Pinch the two edges of the seat belt
together so that you can slide them out
of the guide. Pull the guide upward and
slide the guide with the elastic cord
into the pocket on the rear of the seat-
back of the third left seat as shown
above.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, remove and store the
comfort guide in its pocket when it is
not in use.
If your seat belts cannot be fastened se-
curely because they are not long enough,
a personalized seat belt extender is avail-
able from your Toyota dealer free of
charge.
Please contact your local Toyota dealer to
order the proper required length for the
extender. Bring the heaviest coat you ex-
pect to wear for proper measurement and
selection of length. Additional ordering in-
formation is available at your Toyota deal-
er.
CAUTION
When using the seat belt extender,
observe the following precautions.
Failure to follow these instructions
could reduce the effectiveness of the
seat belt restraint system in case of
an accident, increasing the chance of
personal injury.

Remember that the extender pro-
vided for you may not be safe when
used on a different vehicle, for
another person, or at a different
seating position than the one origi-
nally intended.
ÐSeat belt extender
