TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
202
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

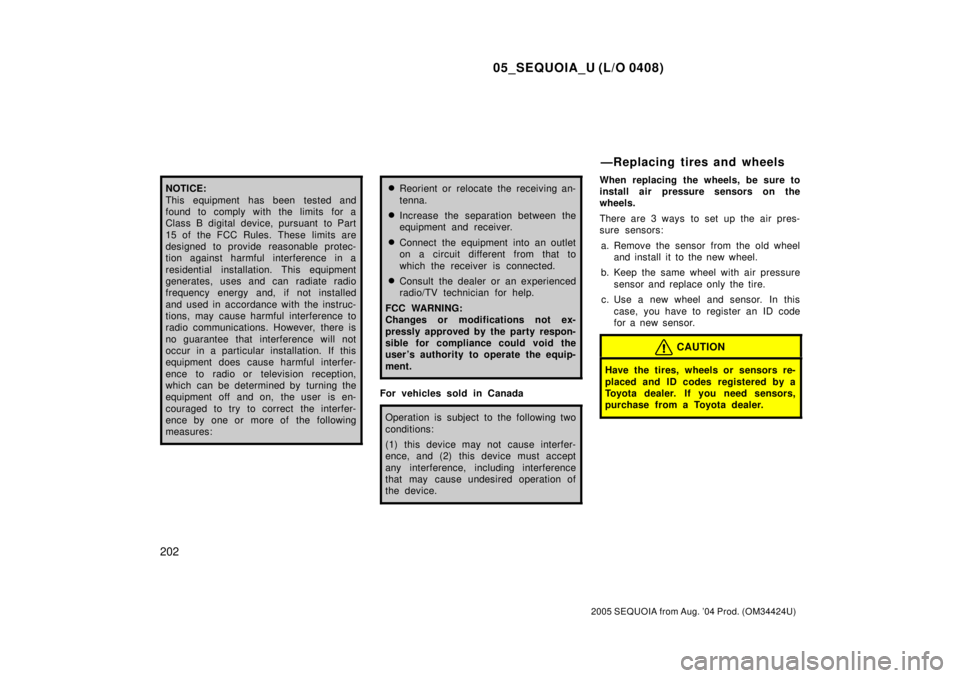

NOTICE:
This equipment has been tested and
found to comply with the limits for a
Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are
designed to provide reasonable protec-
tion against harmful interference in a
residential installation. This equipment
generates, uses and can radiate radio
frequency energy and, if not installed
and used in accordance with the instruc-
tions, may cause harmful interference to
radio communications. However, there is
no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interfer-
ence to radio or television reception,
which can be determined by turning the
equipment off and on, the user is en-
couraged to try to correct the interfer-
ence by one or more of the following
measures:
Reorient or relocate the receiving an-
tenna.

Increase the separation between the
equipment and receiver.

Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.

Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user's authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
When replacing the wheels, be sure to
install air pressure sensors on the
wheels.
There are 3 ways to set up the air pres-
sure sensors:
a. Remove the sensor from the old wheel
and install it to the new wheel.
b. Keep the same wheel with air pressure
sensor and replace only the tire.
c. Use a new wheel and sensor. In this
case, you have to register an ID code
for a new sensor.
CAUTION
Have the tires, wheels or sensors re-
placed and ID codes registered by a
Toyota dealer. If you need sensors,
purchase from a Toyota dealer.
ÐReplacing tires and wheels

05_SEQUOIA_U (L/O 0408)
203
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
TIRE PRESSURE WARNING SYSTEM
RESET SWITCH
The tire pressure warning system need
to be initialized in the following condi-
tions:

After replacing or rotating tires or
wheels

After replacing an air pressure sen-
sor.
When initializing the system, the pres-
ent tire condition is stored as a stan-
dard.To initialize the system, perform the fol-
lowing:
1. Park the vehicle at a safe place and
apply the parking brake. Stop the en-
gine.
2. Adjust the pressure of all the installed
tires to the specified level. (See ªTiresº
on page 458 in Section 8.)
3. Turn the ignition key to ªONº.
4. Push and hold the reset switch until
the low tire pressure warning light
blinks three times.
Initialization is completed or over for more
than 20 minutes.
When initializing the system, make sure
the low tire pressure warning light blinks
three times. If the warning light does not
blink three times, initialization will fail and
the tire pressure warning system will not
function properly. In this case, initialize
the system again.
Do not push the reset switch without ad-
justing the tire inflation pressure to the
specified level. Otherwise, the low tire
pressure warning light may not come on
even if the tire pressure is low, or it may
come on when the tire inflation pressure
is actually normal.
If you push the reset switch while the
vehicle is moving, initialization is not per-
formed.

05_SEQUOIA_U (L/O 0408)
204
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If the low tire pressure warning light does
not blink when you push and hold the
reset switch, have the low pressure warn-
ing system checked at your Toyota dealer.
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
Parking brake

05_SEQUOIA_U (L/O 0408)
205
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The cruise control allows you to cruise
the vehicle at a desired speed over 40
km/h (25 mph) even with your foot off
the accelerator pedal.
Your cruising speed can be maintained up
or down grades within the limits of engine
performance, although a slight speed
change may occur when driving up or
down the grades. On steeper hills, a
greater speed change will occur so it is
better to drive without the cruise control.
CAUTION

To help maintain maximum control
of your vehicle, do not use the
cruise control when driving in
heavy or varying traffic, or on slip-
pery (rainy, icy or snow±covered) or
winding roads.

Avoid vehicle speed increases when
driving downhill. If the vehicle
speed is too fast in relation to the
cruise control set speed, cancel the
cruise control then downshift the
transmission to use engine braking
to slow down.
TURNING THE SYSTEM ON
To operate the cruise control, press the
ªON±OFFº button. This turns the system
on. The indicator light in the instrument
panel shows that you can now set the
vehicle at a desired cruising speed. Anoth-
er press will turn the system completely
off.
CAUTION
To avoid accidental cruise control en-
gagement, keep the ªON±OFFº button
off when not using the cruise control.
SETTING AT A DESIRED SPEED
The transmission must be in ªDº before
you set the cruise control speed.
Bring your vehicle to the desired speed,
push the lever down in the ª± SETº direc-
tion and release it. This sets the vehicle
at that speed. If the speed is not satisfac-
tory, tap the lever up for a faster speed,
or tap it down for a slower speed. Each
tap changes the set speed by 1.6 km/h
(1.0 mph). You can now take your foot off
the accelerator pedal.
Cruise control

05_SEQUOIA_U (L/O 0408)
206
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If you need accelerationÐfor example,
when passingÐdepress the accelerator
pedal enough for the vehicle to exceed
the set speed. When you release it, the
vehicle will return to the speed set prior
to the acceleration.
CANCELLING THE PRESET SPEED
You can cancel the preset speed by:
a. Pulling the lever in the ªCANCELº di-
rection and releasing it.
b. Depressing the brake pedal.
c. Pushing ªON±OFFº button.
If the vehicle speed falls below about 40
km/h (25 mph), the preset speed will auto-
matically cancel out.
If the vehicle speed drops 16 km/h (10
mph) below the preset speed, the preset
speed will also automatically cancel out.
If the preset speed automatically cancels
out other than for the above cases, have
your vehicle checked by your Toyota deal-
er at the earliest opportunity.RESETTING TO A FASTER SPEED
Push the lever up in the ª+ RESº direction
and hold it. Release the lever when the
desired speed is attained. While the lever
is held up, the vehicle will gradually gain
speed.
However, a faster way to reset is to ac-
celerate the vehicle and then push the
lever down in the ª± SETº direction.
RESETTING TO A SLOWER SPEED
Push the lever down in the ª± SETº direc-
tion and hold it. Release the lever when
the desired speed is attained. While the
lever is held down, the vehicle speed will
gradually decrease.
However, a faster way to reset is to de-
press the brake pedal and then push the
lever down in the ª± SETº direction.
Even if you turn off the overdrive switch,
with the cruise control on, engine braking
will not be applied because the cruise
control is not cancelled. To decrease the
vehicle speed, reset to a slower speed
with the cruise control lever or depress
the brake pedal. If you use the brake
pedal, cruise control is cancelled.RESUMING THE PRESET SPEED
If the preset speed is cancelled by pulling
the control lever or by depressing the
brake pedal, pushing the lever up in the
ª+ RESº direction will restore the speed
set prior to cancellation.
CRUISE CONTROL FAILURE WARNING
If the ªCRUISEº indicator light in the
instrument cluster flashes when using the
cruise control, press the ªON±OFFº button
to turn the system off and then press it
again to turn it on.
If any of the following conditions then oc-
curs, there is some trouble in the cruise
control system.

The indicator light does not come on.

The indicator light flashes again.

The indicator light goes out after it
comes on.
If this is the case, contact your Toyota
dealer and have your vehicle inspected.

05_SEQUOIA_U (L/O 0408)
207
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio/video system
Reference208 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Using your audio system208 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio remote controls224 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat audio system226 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Rear seat entertainment system235 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Audio/video system operating hints283 . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 1± 8

05_SEQUOIA_U (L/O 0408)
208
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

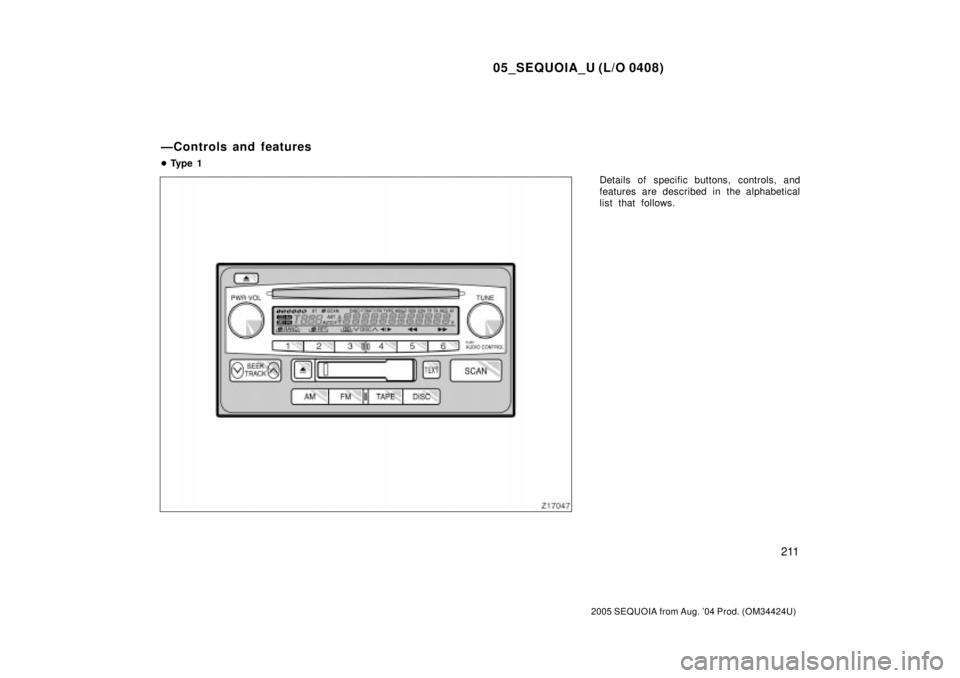

Type 1: AM´FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)Type 2: AM´FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the ªACCº or ªONº position.
TURNING THE SYSTEM ON AND OFF
Push ªPWR´VOLº to turn the audio system
on and off.
Push ªAMº, ªFMº, ªTAPEº, ªDISCº or
ªLOADº to turn on that function without
pushing ªPWR´VOLº. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push ªAMº, ªFMº, ªTAPEº, ªDISCº or
ªLOADº if the system is already on but
you want to switch from one function to
another.
ReferenceUsing your audio systemÐ
ÐSome basics

05_SEQUOIA_U (L/O 0408)
209
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
TONE AND BALANCE
For details about your system's tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Your vehicle has an antenna printed on
the inside of the rear quarter window.
NOTICE
Attaching the film (especially conduc-
tive or metallic type) on the rear
quarter glass will noticeably reduce
the sensitivity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
YOUR COMPACT DISC PLAYER (type 1)
When you insert a disc, gently push it in
with the label side up. (The player will
automatically eject a disc if the label side
is down.) The player will play from track
1 through the end of the disc. Then it will
play from track 1 again.
NOTICE
Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything other than com-
pact discs into the slot.
The player is intended for use with 12 cm
(4.7 in.) discs only.

05_SEQUOIA_U (L/O 0408)
210
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
YOUR COMPACT DISC PLAYER WITH
CHANGER (type 2)
When you insert a disc, push the ªLOADº
button and gently push the disc in with
the label side up. (The player will auto-
matically eject a disc if the label side is
down.) This compact disc player can store
up to six discs. The player will play from
track 1 through the end of the disc. Then
it will play from track 1 of the next disc.
The player is intended for use with 12 cm
(4.7 in.) discs only.
NOTICE

Do not stack up two discs for in-
sertion, or it will cause damage to
the compact disc changer. Insert
only one compact disc into slot at
a ti me.

Never try to disassemble or oil any
part of the compact disc player. Do
not insert anything except a com-
pact disc into the slot.

05_SEQUOIA_U (L/O 0408)
211
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Details of specific buttons, controls, and
features are described in the alphabetical
list that follows.
ÐControls and features

Ty p e 1
