Radio
AM mode
When you select the AM mode, ªAMº will
appear on the screen.
FM mode
When you select the FM mode, ªFM1º or
ªFM2º will appear on the display.
If the front audio system receives a traffic
announcement (TA) while the rear seat
audio system is in the radio mode,
ªTRAFº will flash on the screen and the
rear seat audio system will turn off. When
the front audio receives a traffic an-
nouncement (TA), the rear seat audio sys-
tem cannot select the AM/FM mode.
Tape mode
ªTAPEº appears on the screen while this
mode is selected.Compact disc mode
ªCDº appears on the screen while this
mode is selected.
The screen shows the track, or track and
disc number currently being played.
Error messages
If the player malfunctions, your audio sys-
tem will screen one of the four following
error messages.
ªWAITº: The compact disc player unit
may be too hot. Allow the player to cool
down.
ªERR 1º: The disc may be dirty, damaged
or inserted incorrectly (up±side down).
Clean the disc and re±insert it.
ªERR 3º: There is a problem inside the
system. Eject the disc. Set the disc again.
ªERR 4º: Over±current. Ask your Toyota
dealer to inspect.
If the malfunction still exists, take your
vehicle to your Toyota dealer.
4. ªOFFº button
Push ªOFFº button to turn off the rear
seat audio system.REPLACING CONTROLLER BATTERY
For replacement, use a CR2025 lithium
battery or equivalent.
CAUTION
Special care should be taken that
small children do not swallow the re-
moved battery or components.
NOTICE

When replacing the battery, be care-
ful not to lose the components.

Replace only with the same or
equivalent type of battery recom-
mended by a Toyota dealer.

Dispose of used batteries according
to the local regulations.

05_SEQUOIA_U (L/O 0408)
233
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Replace the battery by using the following
procedures:

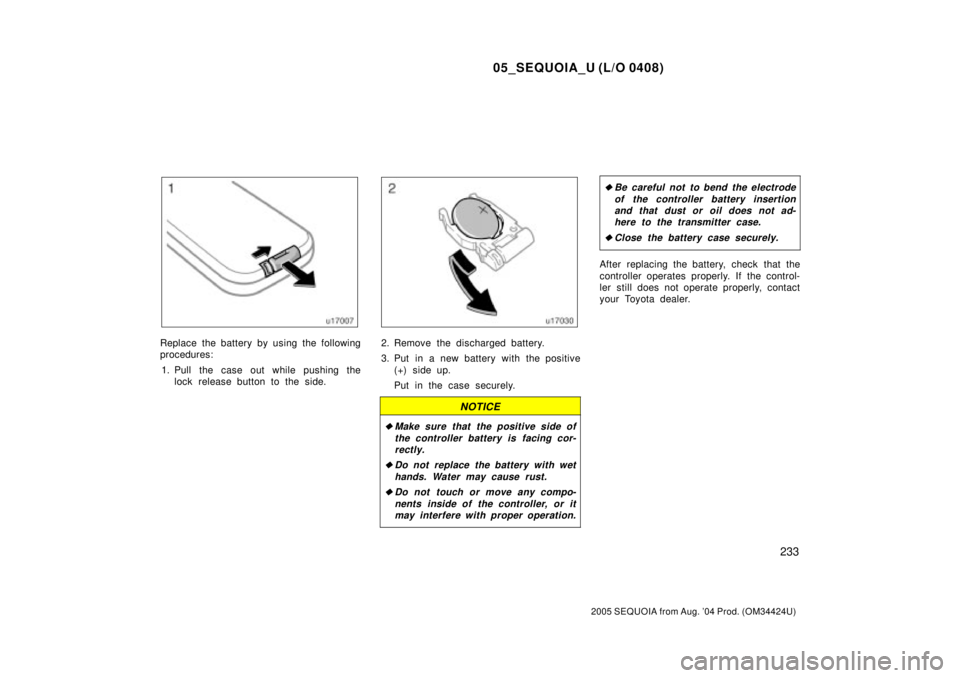

1. Pull the case out while pushing the
lock release button to the side.2. Remove the discharged battery.
3. Put in a new battery with the positive
(+) side up.
Put in the case securely.
NOTICE

Make sure that the positive side of
the controller battery is facing cor-
rectly.

Do not replace the battery with wet
hands. Water may cause rust.

Do not touch or move any compo-
nents inside of the controller, or it
may interfere with proper operation.

Be careful not to bend the electrode
of the controller battery insertion
and that dust or oil does not ad-
here to the transmitter case.

Close the battery case securely.
After replacing the battery, check that the
controller operates properly. If the control-
ler still does not operate properly, contact
your Toyota dealer.

05_SEQUOIA_U (L/O 0408)
234
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
You can enjoy the rear seat audio sys-
tem with commercial headphone.
To use the headphones, connect them to
the jack.
The key must be in the ªACCº or ªONº
position.To adjust the volume of the headphones,
turn the knob. Turn right to increase the
volume. Turn left to decrease the volume.
The maximum volume depends on the
type of headphones.
With some headphone generally available
in the market, it may be difficult to catch
sound properly. Toyota recommends the
use of Toyota genuine headphone.
Please contact your Toyota dealer for fur-
ther details.
CAUTION
Adjust the volume when you connect
the headphones to the jack. Loud
sounds may have a significant impact
on the human body.
ÐHeadphone input jacks

05_SEQUOIA_U (L/O 0408)
235
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

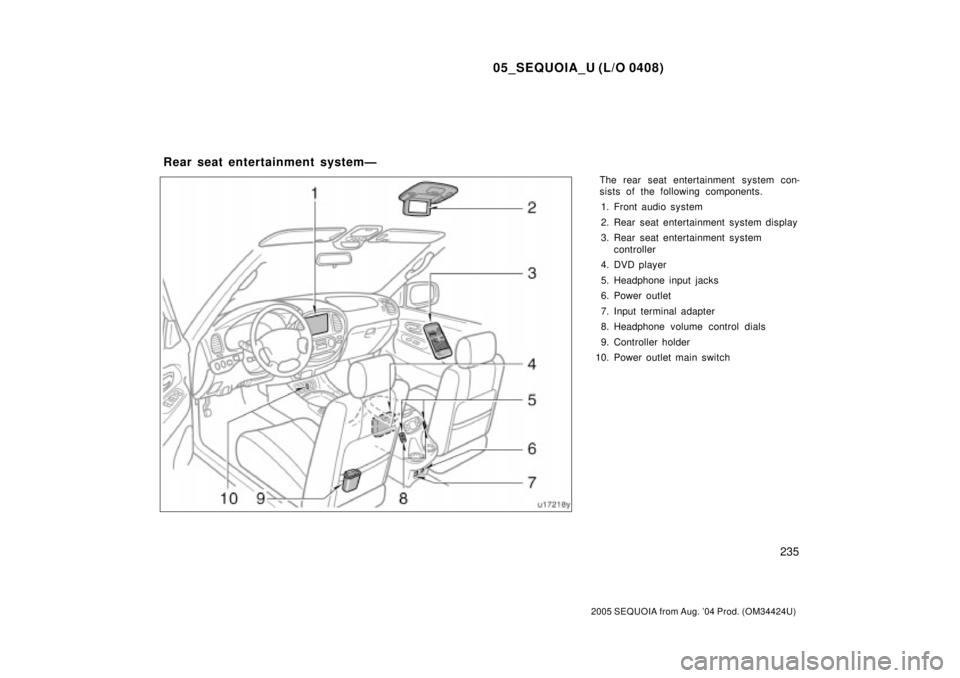

The rear seat entertainment system con-
sists of the following components.
1. Front audio system
2. Rear seat entertainment system display
3. Rear seat entertainment system
controller
4. DVD player
5. Headphone input jacks
6. Power outlet
7. Input terminal adapter
8. Headphone volume control dials
9. Controller holder
10. Power outlet main switch
Rear seat entertainment systemÐ

05_SEQUOIA_U (L/O 0408)
236
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
The rear seat entertainment system is de-
signed for the rear passengers to enjoy
audio and DVD video separately from the
front audio system.
The rear seat entertainment system can
be operated when the ignition key is in
the ªACCº or ªONº position.
The rear passengers can enjoy all modes
(AM and FM radio, cassette tape player,
compact disc player with changer and
DVD player) on the rear seat entertain-
ment system only if a cassette tape and
a compact disc are loaded in the front
audio system.
The rear seat entertainment system can
play DVD video, audio CD, video CD, CD
text, dts±CD or DVD audio only when a
disc is loaded in the DVD player.
You can enjoy videos and sound when
your personal audio system is connected
to the input terminal adapter on the rear
console box. For details, refer to the
manufacturer 's instructions.You can enjoy the rear seat entertainment
system with commercial headphone. See
ªÐHeadphone input jacksº on page 282 in
this Section for details.
You can also enjoy the rear seat enter-
tainment system with a wireless head-
phone. The wireless headphone can be
used within rear seat. If the signal be-
comes weak, the headphone will mute.
For details, refer to the manufacturer 's
instructions.
With some wireless headphone generally
available in the market, it may be difficult
to catch sound properly. Toyota recom-
mends the use of Toyota genuine wireless
headphone.
You can purchase a wireless headphone
at a Toyota dealer.CAUTION
Do not drive with using the head-
phone. Otherwise, you may be hard
to hear the sound from the outside
while using the headphone and may
cause an accident.
Conversational speech on some
DVDs is recorded at a low volume
to emphasize the impact of sound
effects. If you adjust the volume
assuming that the conversations
represent the maximum volume lev-
el that the DVD will play, you may
be startled by louder sound effects
or when you change to a different
audio source. Be sure to adjust the
volume with this in mind.
Make sure the volume is not in-
creased, before you turn on the
headphone.

05_SEQUOIA_U (L/O 0408)
237
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

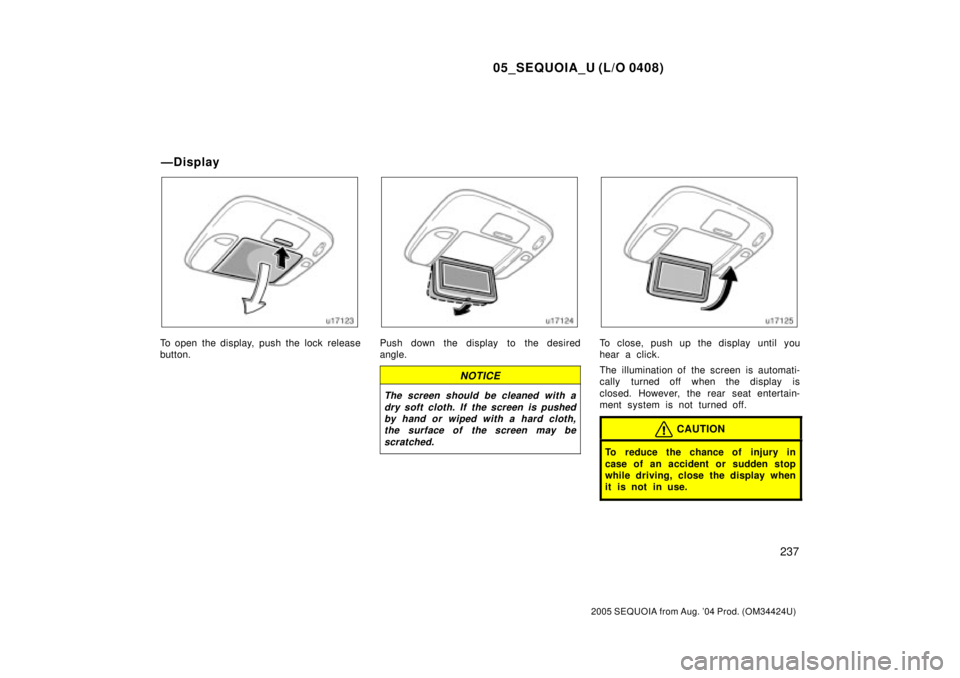

To open the display, push the lock release
button.Push down the display to the desired
angle.
NOTICE
The screen should be cleaned with a
dry soft cloth. If the screen is pushed
by hand or wiped with a hard cloth,
the surface of the screen may be
scratched.
To close, push up the display until you
hear a click.
The illumination of the screen is automati-
cally turned off when the display is
closed. However, the rear seat entertain-
ment system is not turned off.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, close the display when
it is not in use.
ÐDisplay

05_SEQUOIA_U (L/O 0408)
238
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE

The screen should be cleaned with
a dry soft cloth. If the screen is
pushed by hand or wiped with a
hard cloth, the surface of the
screen may be scratched.

Benzene or alkaline solutions may
damage the coated surface of the
screen
.


To prevent the battery from being
discharged, do not turn on the rear
seat entertainment system longer
than necessary when the engine is
not running.
The rear seat entertainment system can
be operated with the rear seat entertain-
ment system controller. The system can-
not be operated by touching the switches
on the screen directly.
CAUTION
Do not disassemble or modify the
controller. It may cause an accident,
fire or electric shock.
NOTICE
Keep the controller away from direct
sunlight, high heat and high humidity.
These conditions could cause the
case to deform or the battery to ex-

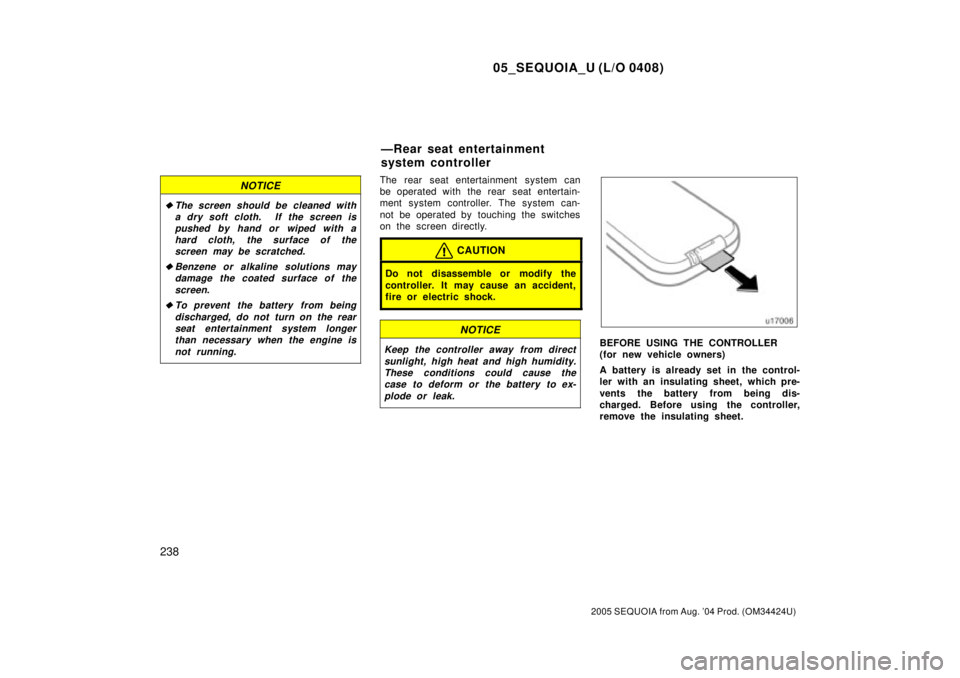

plode or leak.BEFORE USING THE CONTROLLER
(for new vehicle owners)
A battery is already set in the control-
ler with an insulating sheet, which pre-
vents the battery from being dis-
charged. Before using the controller,
remove the insulating sheet.
ÐRear seat entertainment
system controller

05_SEQUOIA_U (L/O 0408)
239
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
USING THE CONTROLLER

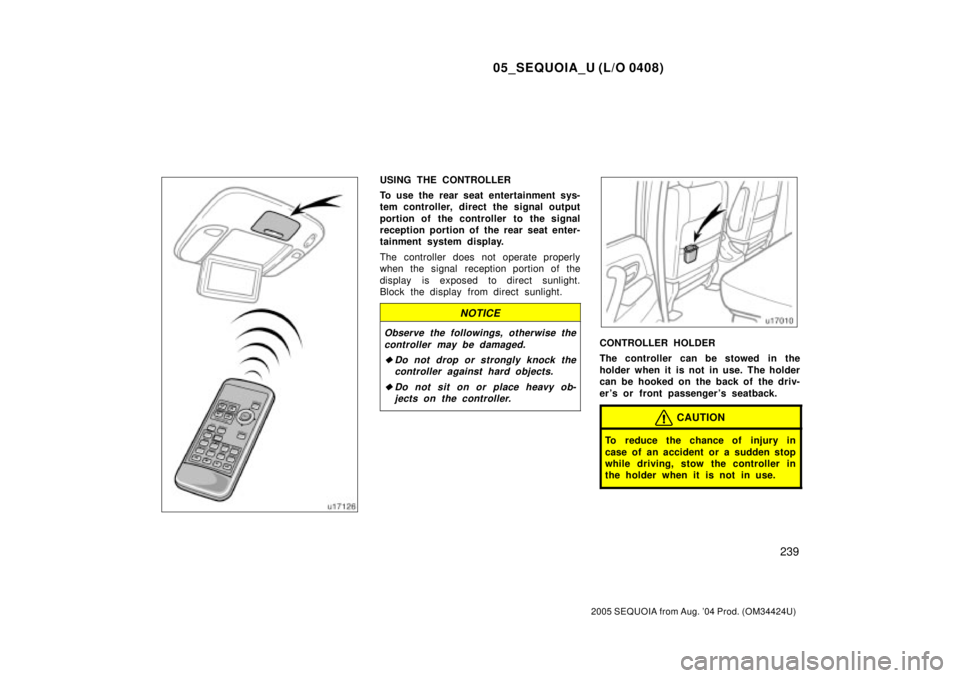

To use the rear seat entertainment sys-
tem controller, direct the signal output
portion of the controller to the signal
reception portion of the rear seat enter-
tainment system display.
The controller does not operate properly
when the signal reception portion of the
display is exposed to direct sunlight.
Block the display from direct sunlight.
NOTICE
Observe the followings, otherwise the
controller may be damaged.

Do not drop or strongly knock the
controller against hard objects.

Do not sit on or place heavy ob-
jects on the controller.
CONTROLLER HOLDER
The controller can be stowed in the
holder when it is not in use. The holder
can be hooked on the back of the driv-
er 's or front passenger 's seatback.
CAUTION
To reduce the chance of injury in
case of an accident or a sudden stop
while driving, stow the controller in
the holder when it is not in use.

05_SEQUOIA_U (L/O 0408)
240
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Do not leave the controller exposed
to high temperatures (such as on the
instrument panel) for a long time,
otherwise the controller may be dam-
aged.

05_SEQUOIA_U (L/O 0408)
241
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

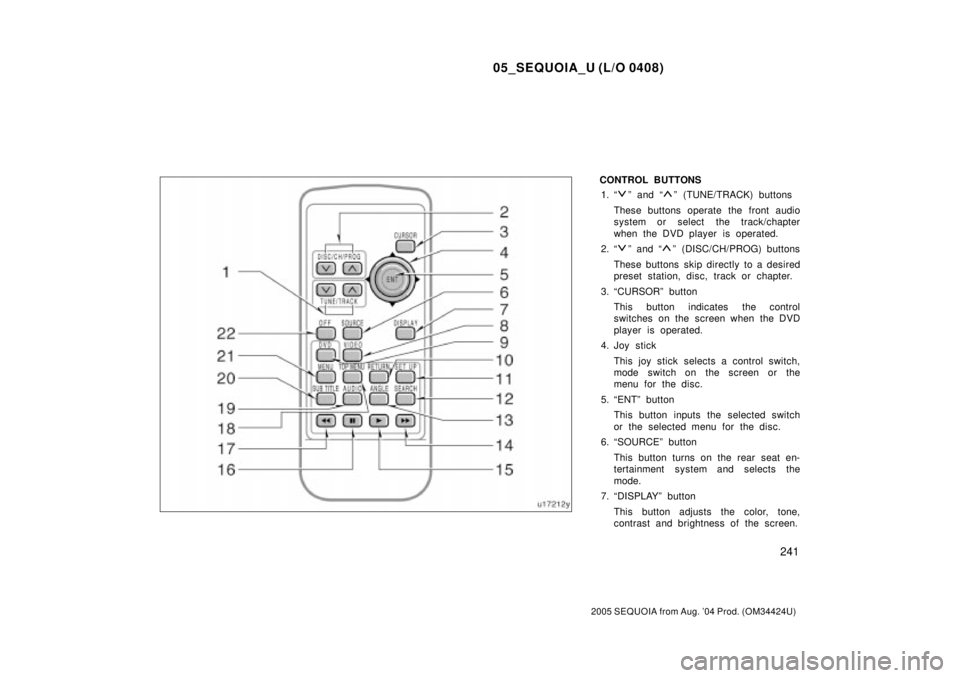

CONTROL BUTTONS
1. ª
º and ªº (TUNE/TRACK) buttons
These buttons operate the front audio
system or select the track/chapter
when the DVD player is operated.
2. ª
º and ªº (DISC/CH/PROG) buttons
These buttons skip directly to a desired
preset station, disc, track or chapter.
3. ªCURSORº button
This button indicates the control
switches on the screen when the DVD
player is operated.
4. Joy stick
This joy stick selects a control switch,
mode switch on the screen or the
menu for the disc.
5. ªENTº button
This button inputs the selected switch
or the selected menu for the disc.
6. ªSOURCEº button
This button turns on the rear seat en-
tertainment system and selects the
mode.
7. ªDISPLAYº button
This button adjusts the color, tone,
contrast and brightness of the screen.
