Tread wear indicator
CHECKING YOUR TIRES
Check the tire's tread for tread
wear indicators. If the indicators
show, replace the tires. The loca-
tion of tread wear indicators is
shown by the ªTWIº or ª
Dº marks,
etc., molded on the sidewall of
each tire.The tires on your Toyota have built±in
tread wear indicators to help you
know when the tires need replace-
ment. When the tread depth wears to
1.6 mm (0.06 in.) or less, the indica-
tors will appear. If you can see the
indicators in two or more adjacent
grooves, the tire should be replaced.
The lower the tread, the higher the
risk of skidding.
The effectiveness of snow tires is
lost if the tread wears down below
4 mm (0.16 in.).
If you have tire damage such as
cuts, splits, cracks deep enough to
expose the fabric, or bulges indi-
cating internal damage, the tire
should be replaced.
If a tire often goes flat or cannot be
properly repaired due to the size or
location of a cut or other damage, it
should be replaced. If you are not
sure, consult with your Toyota dealer.If air loss occurs while driving, do not
continue driving. Driving even a short
distance can damage a tire beyond
repair.
An y ti res wh i ch are over 6 years
old must be checked by a qualified
technician even if damage is not
obvious.
Tires deteriorate with age even if they
have never or seldom been used.
This applies also to the spare tire and
tires stored for future use.
Checking and replacing tires

05_SEQUOIA_U (L/O 0408)
433
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
REPLACING YOUR TIRES
When replacing a tire, use a tire of
the same size and construction,
and the same or greater maximum
load as the originally installed
tires. Also, on four±wheel drive
models, all the tires must be the
same brand and have the same
tread patterns.
Using any other size or type of tire
may seriously affect handling, ride,
speedometer/odometer calibration,
ground clearance, and clearance be-
tween the body and tires or snow
chains.
Check that the maximum load of the
replaced tire is greater than 1/2 of the
Gross Axle Weight Ratings (GAWR)
of either the front axle or the rear
axle, whichever is greater. As for the
maximum load of the tire, see the load
limit at maximum cold tire inflation
pressure mentioned on the sidewall
of the tire, and as for the Gross Axle
Weight Ratings (GAWR), see the Cer-
tification Label.For details about the side wall of the
tire and the Certification Label, see
pages 347 and 345.
CAUTION
Observe the following instruc-
tions. Otherwise, an accident
may occur resulting in death or
serious injuries.

Do not mix radial, bias belted,
or bias±ply tires on your ve-
hicle, as this may cause dan-
gerous handling characteris-
tics resulting in loss of control.

Do not use tires other than the
manufacturer's recommended
size, as this may cause danger-
ous handling characteristics
resulting in loss of control.

Four±wheel drive models:
Do not use tires of different
brands, sizes, construction or
tread patterns, as this may
cause dangerous handling
characteristics resulting in
loss of control.
For vehicles with vehicle stability
control systemÐ

Do not use tires of different
brands, sizes and construc-
tions. This may damage the
drive system and prevent the
vehicle skid control system
from functioning correctly.

05_SEQUOIA_U (L/O 0408)
434
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Toyota recommends all four tires,
or at least both of the front or rear
tires be replaced at a time as a set.
See ªIf you have a flat tireº on page
387 for tire change procedure.
When a tire is replaced, the wheel
should always be balanced.
An unbalanced wheel may affect ve-
hicle handling and tire life. Wheels
can get out of balance with regular
use and should therefore be balanced
occasionally.
When replacing a tubeless tire, the
air valve should also be replaced
w i t h a new on e.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have replaced your tires.
See ªTire pressure warning sys-
temº on page 198 in Section 1±7.

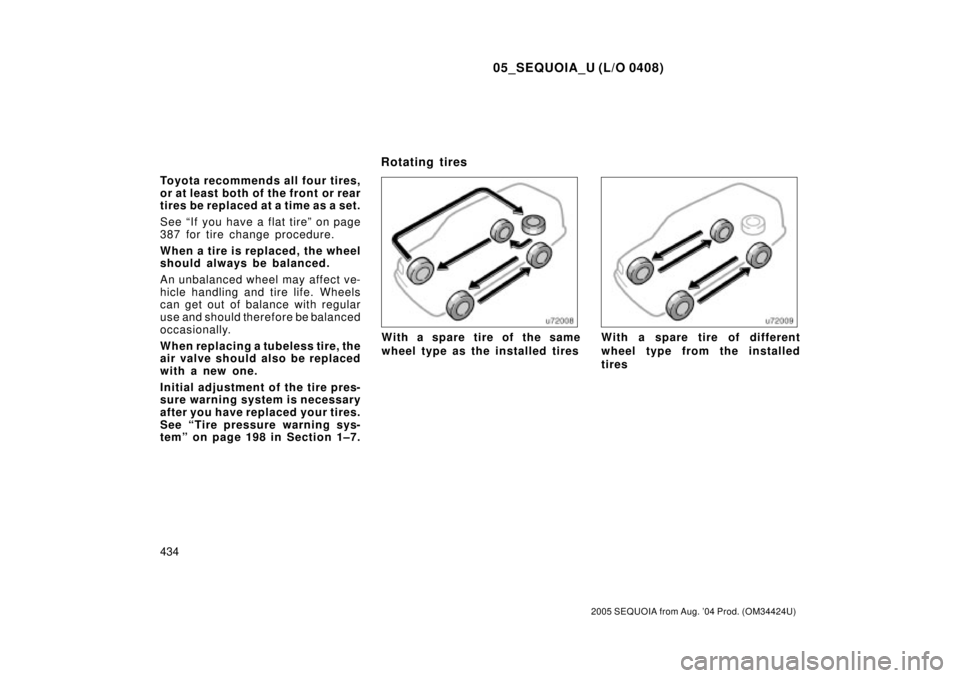

With a spare tire of the same
wheel type as the installed tiresWith a spare tire of different
wheel type from the installed
tires
Rotating tires

05_SEQUOIA_U (L/O 0408)
435
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
To equalize the wear and help ex-
tend tire life, Toyota recommends
that you rotate your tires accord-
ing to the maintenance schedule.
(For scheduled maintenance infor-
mation, please refer to the ªSched-
uled Maintenance Guideº or ªOwn-
er's Manual Supplementº.)
However, the most appropriate tim-
ing for tire rotation may vary ac-
cording to your driving habits and
road surface conditions.
See ªIf you have a flat tireº on page
387 in Section 4 for tire change proce-
dure.
When rotating tires, check for uneven
wear and damage. Abnormal wear is
usually caused by incorrect tire pres-
sure, improper wheel alignment, out±
of±balance wheels, or severe braking.
Initial adjustment of the tire pres-
sure warning system is necessary
after you have rotated your tires.
See ªTire pressure warning sys-
temº on page 198 in Section 1±7.WHEN TO USE SNOW TIRES OR
CHAINS
Snow tires or chains are recommended
when driving on snow or ice.
On wet or dry roads, conventional tires
provide better traction than snow tires.
SNOW TIRE SELECTION
If you need snow tires, select tires of
the same size, construction and load
capacity as the originally installed tires.
Also, on four±wheel drive models, all
the tires must be the same brand and
have the same tread patterns.
Do not use tires other than those men-
tioned above. Do not install studded tires
without first checking local regulations for
possible restrictions.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.

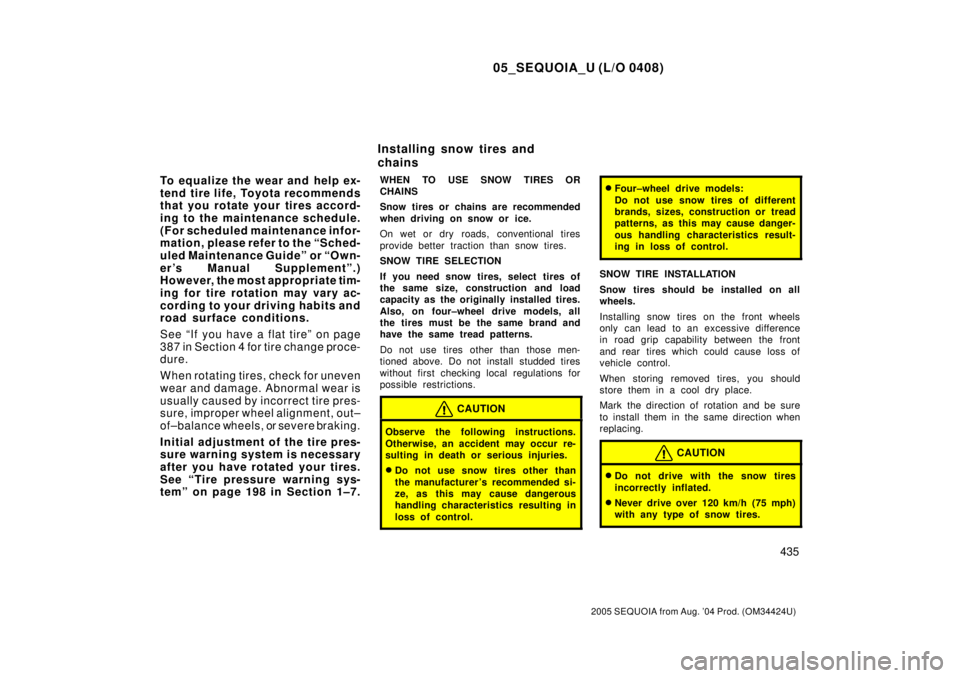

Do not use snow tires other than
the manufacturer 's recommended si-
ze, as this may cause dangerous
handling characteristics resulting in
loss of control.

Four±wheel drive models:
Do not use snow tires of different
brands, sizes, construction or tread
patterns, as this may cause danger-
ous handling characteristics result-
ing in loss of control.
SNOW TIRE INSTALLATION
Snow tires should be installed on all
wheels.
Installing snow tires on the front wheels
only can lead to an excessive difference
in road grip capability between the front
and rear tires which could cause loss of
vehicle control.
When storing removed tires, you should
store them in a cool dry place.
Mark the direction of rotation and be sure
to install them in the same direction when
replacing.
CAUTION

Do not drive with the snow tires
incorrectly inflated.

Never drive over 120 km/h (75 mph)
with any type of snow tires.
Installing snow tires and
chains

05_SEQUOIA_U (L/O 0408)
436
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
TIRE CHAIN SELECTION
Use the tire chains of correct size.
Regulations regarding the use of tire
chains vary according to location or
type of road, so always check local reg-
ulations before installing chains.
CHAIN INSTALLATION
Install the chains on the rear tires as
tightly as possible. Do not use tire
chains on the front tires. Retighten
chains after driving 0.5Ð1.0 km
(1/4Ð1/2 mile).
When installing chains on your tires, care-
fully follow the instructions of the chain
manufacturer.
If wheel covers are used, they will be
scratched by the chain band, so remove
the covers before putting on the chains.CAUTION

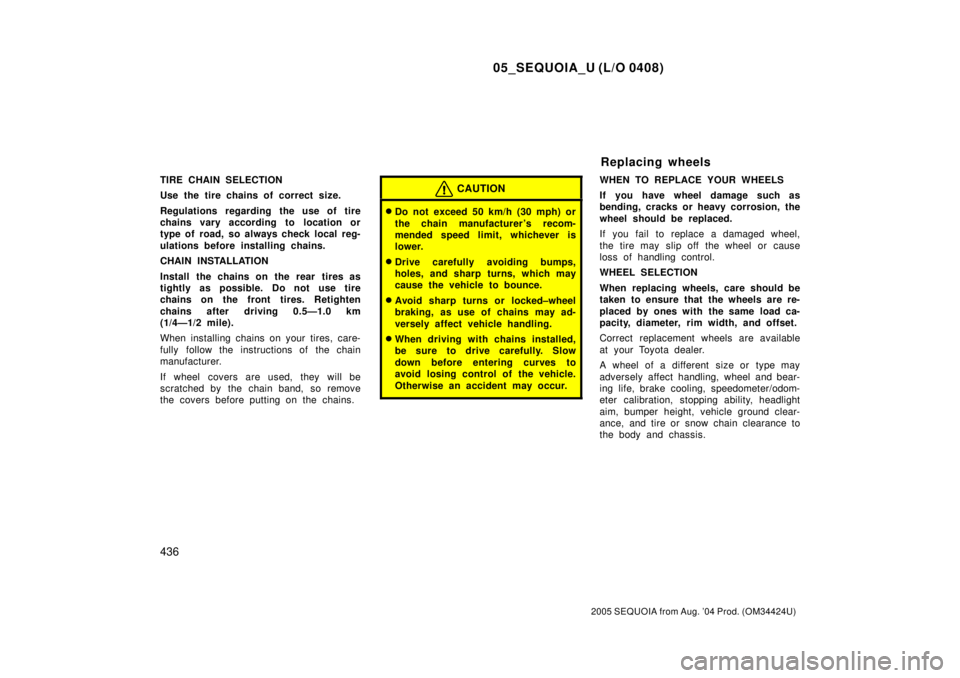

Do not exceed 50 km/h (30 mph) or
the chain manufacturer 's recom-
mended speed limit, whichever is
lower.

Drive carefully avoiding bumps,
holes, and sharp turns, which may
cause the vehicle to bounce.

Avoid sharp turns or locked±wheel
braking, as use of chains may ad-
versely affect vehicle handling.

When driving with chains installed,
be sure to drive carefully. Slow
down before entering curves to
avoid losing control of the vehicle.
Otherwise an accident may occur.
WHEN TO REPLACE YOUR WHEELS
If you have wheel damage such as
bending, cracks or heavy corrosion, the
wheel should be replaced.
If you fail to replace a damaged wheel,
the tire may slip off the wheel or cause
loss of handling control.
WHEEL SELECTION
When replacing wheels, care should be
taken to ensure that the wheels are re-
placed by ones with the same load ca-
pacity, diameter, rim width, and offset.
Correct replacement wheels are available
at your Toyota dealer.
A wheel of a different size or type may
adversely affect handling, wheel and bear-
ing life, brake cooling, speedometer/odom-
eter calibration, stopping ability, headlight
aim, bumper height, vehicle ground clear-
ance, and tire or snow chain clearance to
the body and chassis.
Replacing wheels

05_SEQUOIA_U (L/O 0408)
437
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Replacement with used wheels is not rec-
ommended as they may have been sub-
jected to rough treatment or high mileage
and could fail without warning. Also, bent
wheels which have been straightened may
have structural damage and therefore
should not be used. Never use an inner
tube in a leaking wheel which is designed
for a tubeless tire.
CAUTION
Observe the following instructions.
Otherwise, an accident may occur re-
sulting in death or serious injuries.

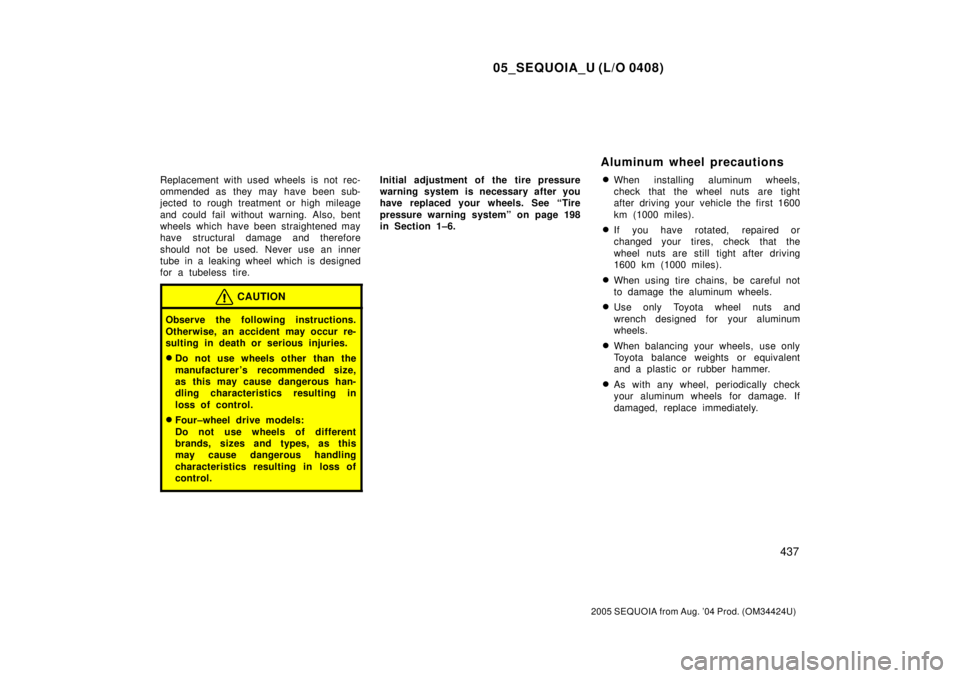

Do not use wheels other than the
manufacturer 's recommended size,
as this may cause dangerous han-
dling characteristics resulting in
loss of control.

Four±wheel drive models:
Do not use wheels of different
brands, sizes and types, as this
may cause dangerous handling
characteristics resulting in loss of
control.
Initial adjustment of the tire pressure
warning system is necessary after you
have replaced your wheels. See ªTire
pressure warning systemº on page 198
in Section 1±6.
When installing aluminum wheels,
check that the wheel nuts are tight
after driving your vehicle the first 1600
km (1000 miles).

If you have rotated, repaired or
changed your tires, check that the
wheel nuts are still tight after driving
1600 km (1000 miles).

When using tire chains, be careful not
to damage the aluminum wheels.

Use only Toyota wheel nuts and
wrench designed for your aluminum
wheels.

When balancing your wheels, use only
Toyota balance weights or equivalent
and a plastic or rubber hammer.

As with any wheel, periodically check
your aluminum wheels for damage. If
damaged, replace immediately.
Aluminum wheel precautions

05_SEQUOIA_U (L/O 0408)
438
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

05_SEQUOIA_U (L/O 0408)
439
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
DO±IT±YOURSELF MAINTENANCE
Electrical components
Checking battery condition440 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Battery recharging precautions441 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Checking and replacing fuses442 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Adding washer fluid444 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing light bulbs444 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SECTION 7± 3

05_SEQUOIA_U (L/O 0408)
440
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
CAUTION
BATTERY PRECAUTIONS
The battery produces flammable and
explosive hydrogen gas.

Do not cause a spark from the bat-
tery with tools.

Do not smoke or light a match near
the battery.
The electrolyte contains poisonous
and corrosive sulfuric acid.

Avoid contact with eyes, skin or
clothes.

Never ingest electrolyte.

Wear protective safety glasses when
working near the battery.

Keep children away from the bat-
tery.
EMERGENCY MEASURES

If electrolyte gets in your eyes,
flush your eyes with clean water
immediately and get immediate
medical attention. If possible, con-
tinue to apply water with a sponge
or cloth while en route to the medi-
cal office.

If electrolyte gets on your skin,
thoroughly wash the contact area. If
you feel pain or burning, get medi-
cal attention immediately.

If electrolyte gets on your clothes,
there is a possibility of its soaking
through to your skin, so immediate-
ly take off the exposed clothing and
follow the procedure above, if nec-
essary.

If you accidentally swallow electro-
lyte, drink a large quantity of water
or milk. Follow with milk of magne-
sia, beaten raw egg or vegetable
oil. Then go immediately for emer-
gency help.
Ground
cable
Terminals
Hold±down
clamp
Check the battery for corroded or loose
terminal connections, cracks, or loose
hold±down clamp.
a. If the battery is corroded, wash it off
with a solution of warm water and bak-
ing soda. Coat the outside of the termi-
nals with grease to prevent further cor-
rosion.
b. If the terminal connections are loose,
tighten their clamp nutsÐbut do not
overtighten.
c. Tighten the hold±down clamp only
enough to keep the battery firmly in
place. Overtightening may damage the
battery case.
Checking battery conditionÐ
ÐPrecautionsÐChecking battery exterior

05_SEQUOIA_U (L/O 0408)
441
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE

Be sure the engine and all accesso-
ries are off before performing main-
tenance.

When checking the battery, remove
the ground cable from the negative
terminal (ª±º mark) first and rein-
stall it last.

Be careful not to cause a short cir-
cuit with tools.

Take care no solution gets into the
battery when washing it.

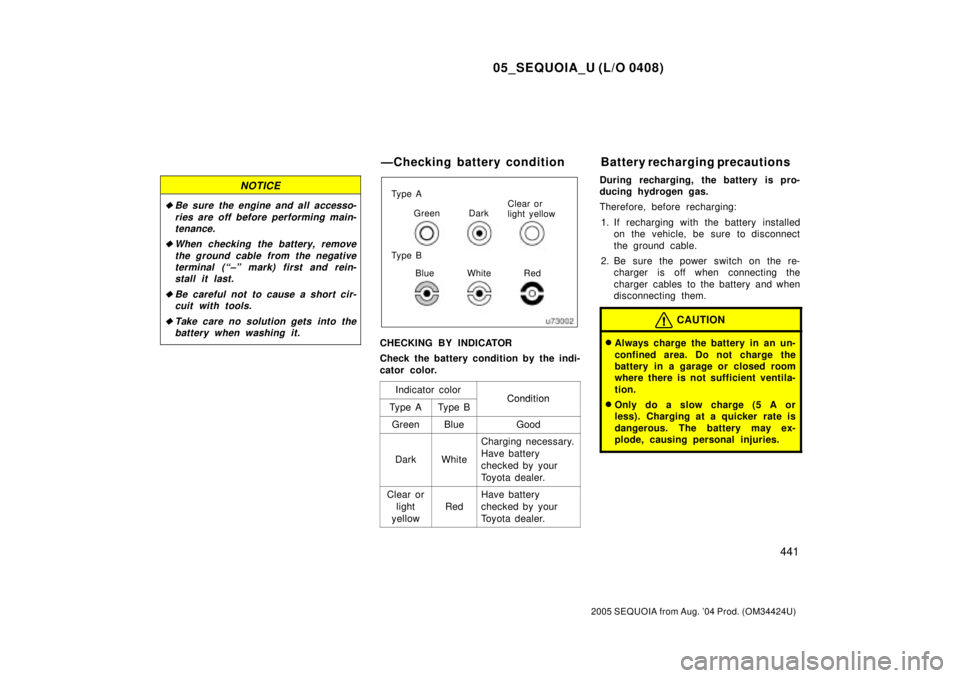

Ty p e A
Green
Ty p e BClear or
light yellow
White Blue RedDark
CHECKING BY INDICATOR
Check the battery condition by the indi-
cator color.
Indicator color
ConditionTy p e ATy p e BCondition
GreenBlueGood
DarkWhite
Charging necessary.
Have battery
checked by your
Toyota dealer.
Clear or
light
yellow
Red
Have battery
checked by your
Toyota dealer.
During recharging, the battery is pro-
ducing hydrogen gas.
Therefore, before recharging:
1. If recharging with the battery installed
on the vehicle, be sure to disconnect
the ground cable.
2. Be sure the power switch on the re-
charger is off when connecting the
charger cables to the battery and when
disconnecting them.
CAUTION

Always charge the battery in an un-
confined area. Do not charge the
battery in a garage or closed room
where there is not sufficient ventila-
tion.

Only do a slow charge (5 A or
less). Charging at a quicker rate is
dangerous. The battery may ex-
plode, causing personal injuries.
ÐChecking battery condition Battery recharging precautions
