TOYOTA SEQUOIA 2001 Service Repair Manual

05_SEQUOIA_U (L/O 0408)
442
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
NOTICE
Never recharge the battery while the
engine is running. Also, be sure all
accessories are turned off.

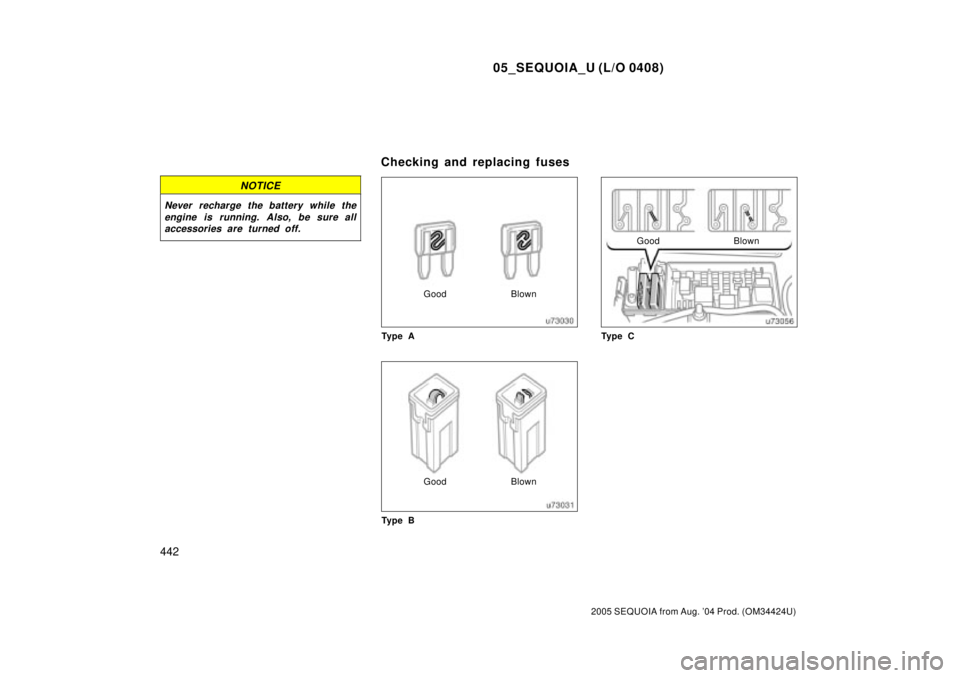

Good Blown
Ty p e A
Good Blown
Ty p e B
Good Blown
Ty p e C
Checking and replacing fuses

05_SEQUOIA_U (L/O 0408)
443
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If the headlights or other electrical
components do not work, check the
fuses. If any of the fuses are blown,
they must be replaced.
See ªFuse locationsº on page 419 in Sec-
tion 7±1 for locations of the fuses.
Turn the ignition switch and inoperative
component off. Pull the suspected fuse
straight out and check it.
Determine which fuse may be causing the
problem. The lid of the fuse box shows
the name of the circuit for each fuse. See
page 459 in Section 8 for the functions
controlled by each circuit.Type C fusesÐWhen any of the fuses are
blown, contact your Toyota dealer.

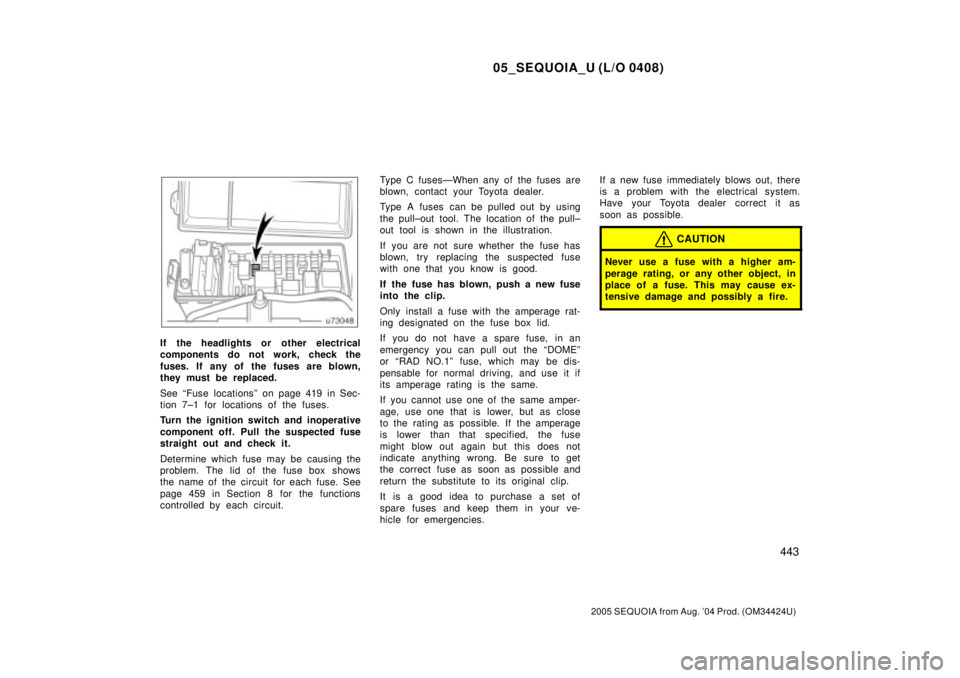

Type A fuses can be pulled out by using
the pull±out tool. The location of the pull±
out tool is shown in the illustration.
If you are not sure whether the fuse has
blown, try replacing the suspected fuse
with one that you know is good.
If the fuse has blown, push a new fuse
into the clip.
Only install a fuse with the amperage rat-
ing designated on the fuse box lid.
If you do not have a spare fuse, in an
emergency you can pull out the ªDOMEº
or ªRAD NO.1º fuse, which may be dis-
pensable for normal driving, and use it if
its amperage rating is the same.
If you cannot use one of the same amper-
age, use one that is lower, but as close
to the rating as possible. If the amperage
is lower than that specified, the fuse
might blow out again but this does not
indicate anything wrong. Be sure to get
the correct fuse as soon as possible and
return the substitute to its original clip.
It is a good idea to purchase a set of
spare fuses and keep them in your ve-
hicle for emergencies.If a new fuse immediately blows out, there
is a problem with the electrical system.
Have your Toyota dealer correct it as
soon as possible.
CAUTION
Never use a fuse with a higher am-
perage rating, or any other object, in
place of a fuse. This may cause ex-
tensive damage and possibly a fire.

05_SEQUOIA_U (L/O 0408)
444
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
If any washer does not work or the low
windshield washer fluid level warning
light comes on, the washer tank may be
empty. Add washer fluid.
You may use plain water as washer fluid.
However, in cold areas where tempera-
tures range below the freezing point, use
washer fluid containing antifreeze. This
product is available at your Toyota dealer
and most auto parts stores. Follow the
manufacturer 's directions for how much to
mix with water.
NOTICE
Do not use engine antifreeze or any
other substitute because it may dam-
age your vehicle's paint.
The following illustrations show how to
gain access to the bulbs. When replacing
a bulb, make sure the ignition switch and
light switch are off. Use bulbs with the
wattage ratings given in the table.

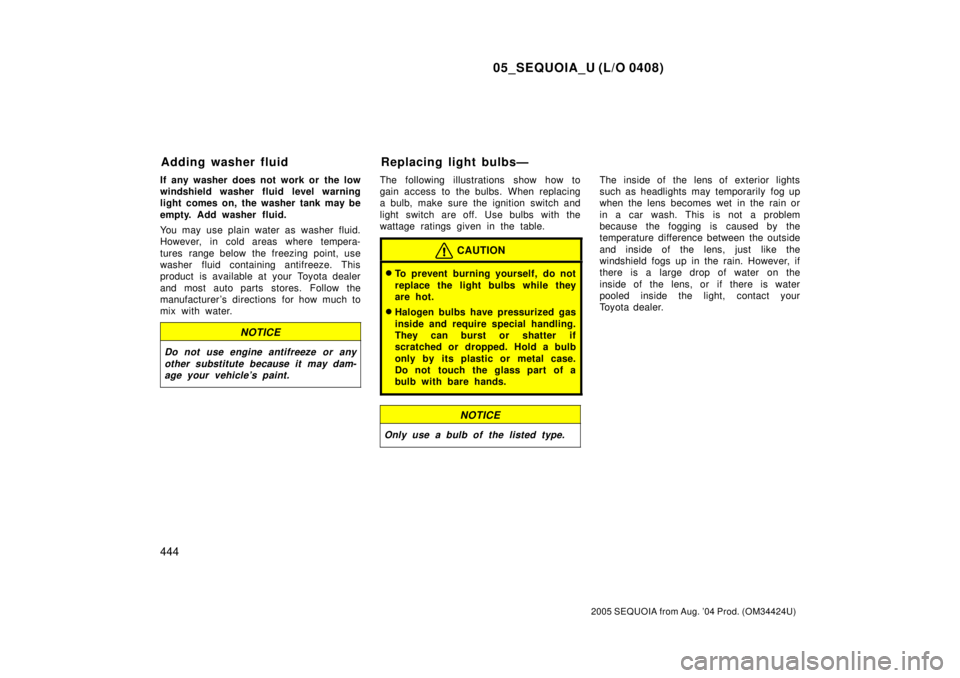

CAUTION

To prevent burning yourself, do not
replace the light bulbs while they
are hot.

Halogen bulbs have pressurized gas
inside and require special handling.
They can burst or shatter if
scratched or dropped. Hold a bulb
only by its plastic or metal case.
Do not touch the glass part of a
bulb with bare hands.
NOTICE
Only use a bulb of the listed type.
The inside of the lens of exterior lights
such as headlights may temporarily fog up
when the lens becomes wet in the rain or
in a car wash. This is not a problem
because the fogging is caused by the
temperature difference between the outside
and inside of the lens, just like the
windshield fogs up in the rain. However, if
there is a large drop of water on the
inside of the lens, or if there is water
pooled inside the light, contact your
Toyota dealer.
Adding washer fluid Replacing light bulbsÐ

05_SEQUOIA_U (L/O 0408)
445
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Light bulbsBulb
No.WTy p e
HeadlightsÐ60/55A
Front fog lights900651B
Parking lights1685C
Front side marker
and front turn
signal lights3157
A27/8D
Rear turn signal
lights744021D
Stop/tail and rear
side marker lights744321/5C
Back±up lights92118C
Tail lights1943.8C
License plate lights1685C
High mounted
stoplight1758C
Interior lightsÐ8E
Personal lightsÐ3.8C
Glove box lightÐ1.2C
Luggage
compartment lightÐ8E
Vanity lightsÐ3C
Door courtesy
lights1943.8C
A: HB2 halogen bulbs
B: HB4 halogen bulbs
C: Wedge base bulbs (clear)
D: Wedge base bulbs (amber)
E: Double end bulbs

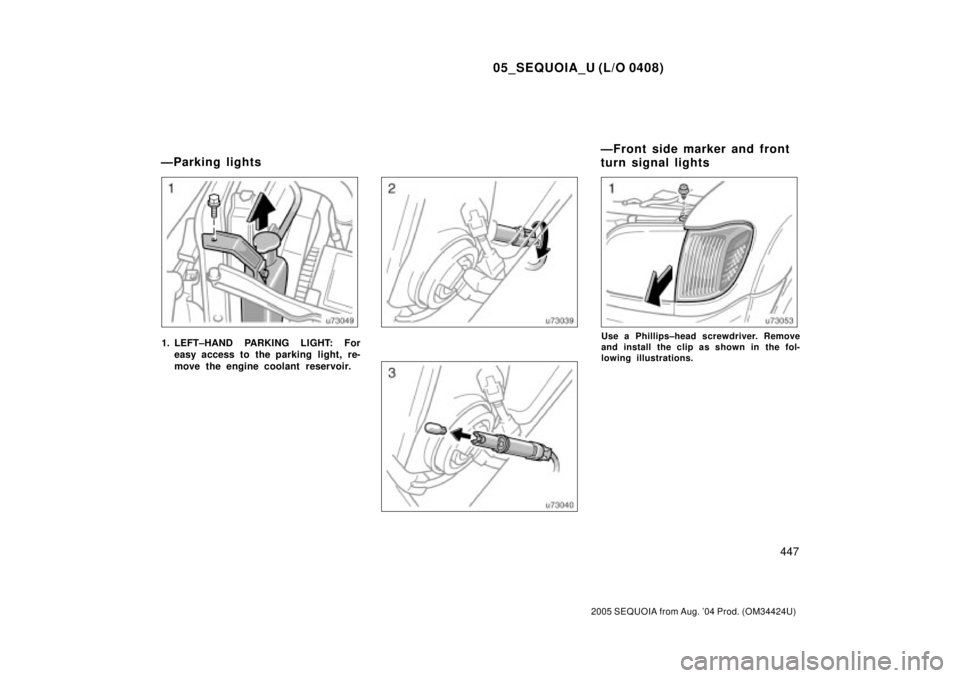

1. Open the hood. Unplug the connec-
tor. Remove the rubber cover.
If the connector is tight, wiggle it.
ÐHeadlights

05_SEQUOIA_U (L/O 0408)
446
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
2. Release the bulb retaining spring
and remove the bulb. Install a new
bulb and the bulb retaining spring.
To install a bulb, align the tabs of the
bulb with the cutouts of the mounting
hole.3. Install the rubber cover and fit it
securely on the boss. Then, plug in
the connector.
Make sure the rubber cover fits securely
on the bulb base and the mounting body.
Aiming is not necessary after replacing
the bulb. When aiming adjustment is nec-
essary, contact your Toyota dealer.If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
ÐFront fog lights

05_SEQUOIA_U (L/O 0408)
447
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
1. LEFT±HAND PARKING LIGHT: For
easy access to the parking light, re-
move the engine coolant reservoir.Use a Phillips±head screwdriver. Remove
and install the clip as shown in the fol-
lowing illustrations.
ÐParking lightsÐFront side marker and front
turn signal lights

05_SEQUOIA_U (L/O 0408)
448
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

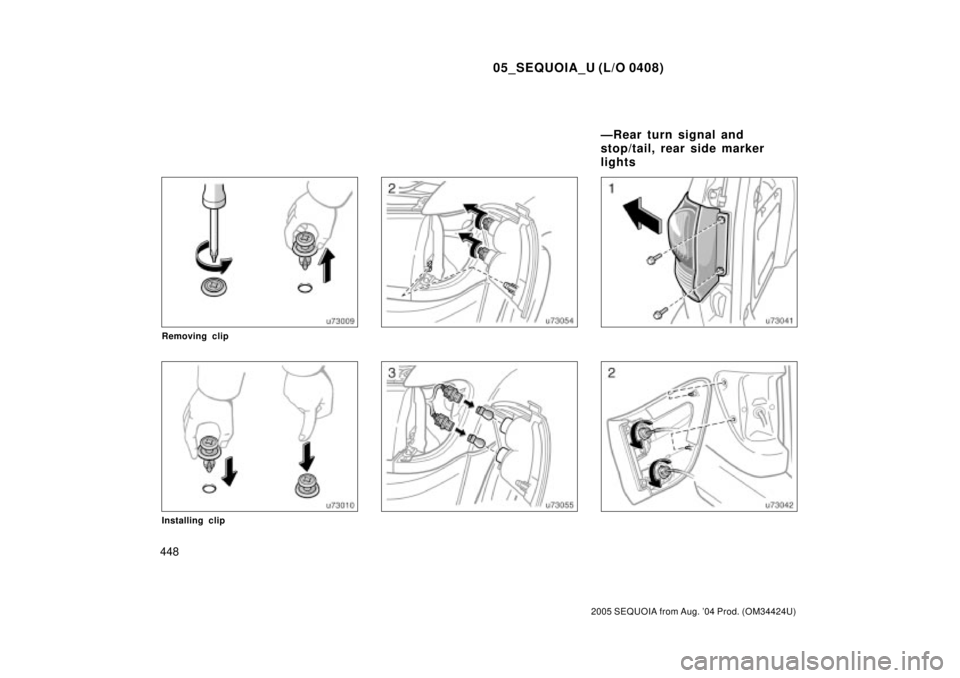

Removing clip
Installing clip
ÐRear turn signal and
stop/tail, rear side marker
lights

05_SEQUOIA_U (L/O 0408)
449
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

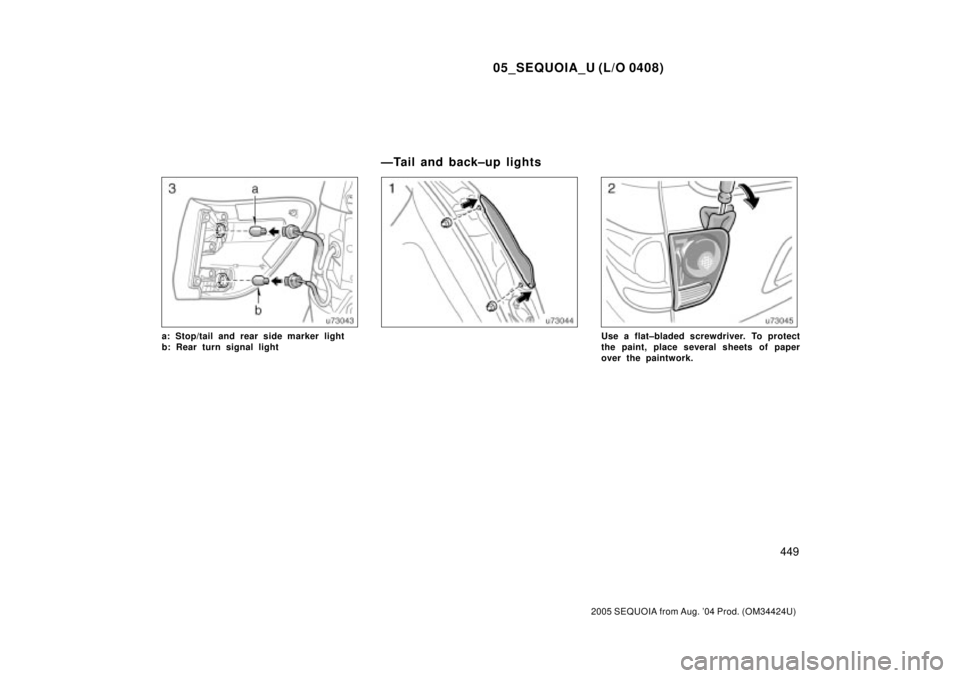

a: Stop/tail and rear side marker light
b: Rear turn signal lightUse a flat±bladed screwdriver. To protect
the paint, place several sheets of paper
over the paintwork.
ÐTail and back±up lights

05_SEQUOIA_U (L/O 0408)
450
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)

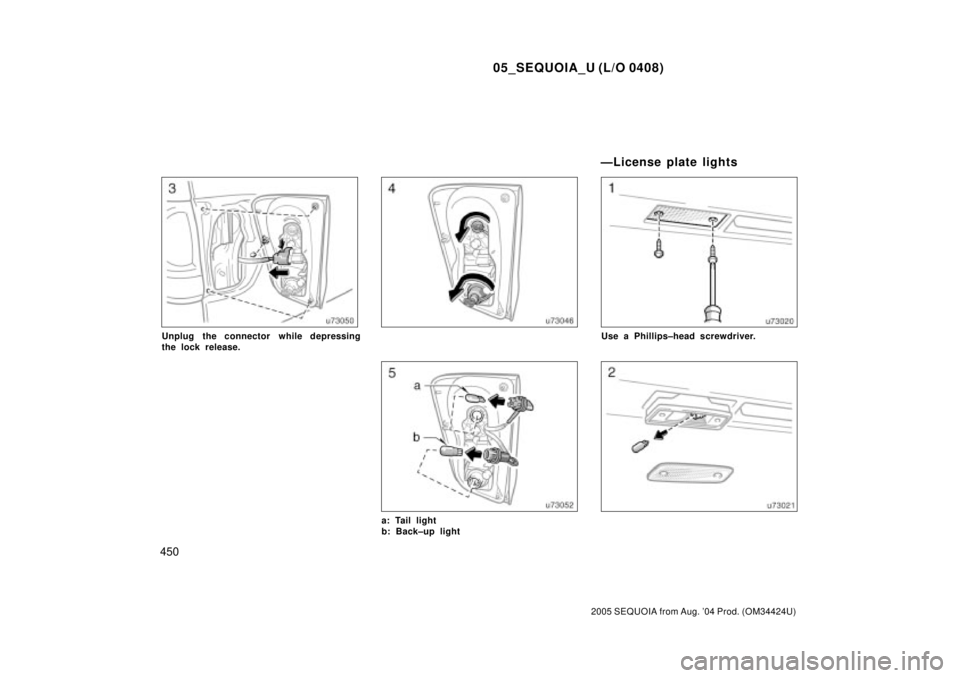

Unplug the connector while depressing
the lock release.
a: Tail light
b: Back±up light
Use a Phillips±head screwdriver.
ÐLicense plate lights

05_SEQUOIA_U (L/O 0408)
451
2005 SEQUOIA from Aug. '04 Prod. (OM34424U)
Use a Phillips±head and a flat±bladed
screwdrivers. To protect the paint, place
several sheets of paper over the paint-
work.
ÐHigh mounted stoplight
