key TOYOTA SEQUOIA 2004 1.G Owner's Manual

04_SEQUOIA_U (L/O 0309)
36
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
OPERATING FROM OUTSIDE
The moon roof can be opened and closed
with the key operation in the driver’s door
keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the moon roof
begins to open. To stop in the middle,
return the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the moon roof
begins to close. To stop in the middle,
return the key.
This door key linked operation for sliding
operation can be erased or changed into
the door key linked operation for tilting
operation. For details, contact your Toyota
dealer.CAUTION
To avoid serious personal injury, you
must do the following.
While the vehicle is moving, always
keep the heads, hands and other
parts of the bodies of all occupants
away from the roof opening. Other-
wise, they could be seriously in-
jured if the vehicle stops suddenly
or if the vehicle is involved in an
accident.
Before you close the moon roof,
always make sure there is nobody
around the moon roof. You must
also make sure nobody places his
or her head, hands and other parts
of the body in the roof opening. If
someone’s neck, head or hands get
caught in the closing roof, it could
result in a serious injury. When
anyone closes the moon roof, first
make sure it is safe to do so.
Be sure to remove the ignition key
when you leave your vehicle.

04_SEQUOIA_U (L/O 0309)
37
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the moon roof switches and get
trapped in the roof opening. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Never sit on top of the vehicle
around the roof opening.
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.

04_SEQUOIA_U (L/O 0309)
58
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To use the armrest, do this.
Front—Pull the armrest down as shown in
the illustration.
Second—Pull the armrest out as shown in
the illustration.
NOTICE
To prevent damage to the armrest,
avoid putting heavy loads on it.
To turn on the seat heater, push the
switch to “HI” (high heating tempera-
ture) or “LO” (low heating temperature).
At this time, the indicator light will illu-
minate to indicate the seat heater is
operating.
The key must be in the “ON” position to
operate seat heaters.
Pushing lightly on the opposite side will
turn it off.
CAUTION
Occupants must use caution when op-
erating the seat heater because it
may make them feel too hot or cause
burns at low temperatures (erythema,
varicella). Use extra caution for;
Babies, small children, elderly per-
sons, sick persons or handicapped
persons
Persons who have delicate skin
Persons who are exhausted
Person who have taken alcohol or
drugs which induce sleep (sleeping
drug, cold remedy, etc.)
To prevent the seat overheating, do
not use the seat heater with a blan-
ket, cushion, or other insulating ob-
jects which cover the seat.
Seat heaters

04_SEQUOIA_U (L/O 0309)
64
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To release the concave end tab, insert the
key into the hole on buckle 1 (with light
gray buckle−release button) and allow the
belt to retract.CAUTION
Do not use the center seat belt of the
third seats with either buckle re-
leased. Fastening only the shoulder
belt or lap belt may cause severe per-
sonal injury in case of sudden brak-
ing or a collision.
Second
Third
—Stowing seat belt buckles of
t h e seco n d an d th ird seat s

04_SEQUOIA_U (L/O 0309)
71
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the front seat belt pretensioners
are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 134 in Section 1−6.) If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
If any seat belt does not retract or can
not be pulled out due to a malfunction
or activation of the relevant seat belt
pretensioner.
The seat belt pretensioner assembly or
surrounding area has been damaged.In the following cases, contact your Toyota
dealer as soon as possible:
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the seat belt pretensioners to operate.
Either seat belt pretensioner assembly
or surrounding area is scratched,
cracked, or otherwise damaged.

04_SEQUOIA_U (L/O 0309)
77
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Do not modify or remove any wir-
ing. Do not modify, remove, strike
or open any components such as
the steering wheel pad, steering
wheel, column cover, dashboard
near the front passenger airbag,
front passenger airbag cover, front
passenger airbag or airbag sensor
assembly. Doing so may prevent the
front airbag system from activating
correctly, cause sudden activation
of the system or disable the sys-
tem, which could result in death or
serious injury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can in-
terfere with proper operation of the
SRS front airbag system in some
cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the front end struc-
ture
 Attachment of a grille guard (bull
bar, kangaroo bar, etc.), snowplow,
winches or any other equipment to
the front end
 Repairs made on or near the front
fenders, front end structure, con-
sole, steering column, steering
wheel or dashboard near the front
passenger airbag
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS front airbags are oper-
ating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sen-
sors, seat belt pretensioner assemblies,
inflators, warning light, interconnecting wir-
ing and power sources. (For details, see
“Service reminder indicators and warning
buzzers” on page 134 in Section 1 −6.)

04_SEQUOIA_U (L/O 0309)
78
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
In the following cases, contact your Toyota
dealer as soon as possible:
The SRS front airbags have been in-
flated.
The front of the vehicle (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS front airbags to inflate.
The pad section of the steering wheel
or front passenger airbag cover
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

04_SEQUOIA_U (L/O 0309)
84
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

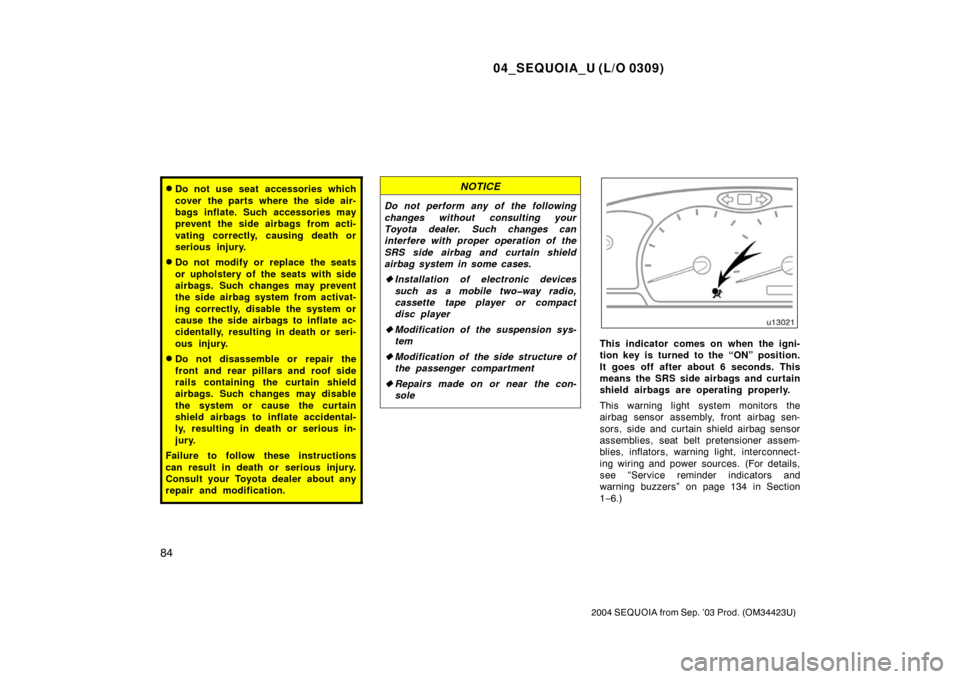

Do not use seat accessories which
cover the parts where the side air-
bags inflate. Such accessories may
prevent the side airbags from acti-
vating correctly, causing death or
serious injury.
Do not modify or replace the seats
or upholstery of the seats with side
airbags. Such changes may prevent
the side airbag system from activat-
ing correctly, disable the system or
cause the side airbags to inflate ac-
cidentally, resulting in death or seri-
ous injury.
Do not disassemble or repair the
front and rear pillars and roof side
rails containing the curtain shield
airbags. Such changes may disable
the system or cause the curtain
shield airbags to inflate accidental-
ly, resulting in death or serious in-
jury.
Failure to follow these instructions
can result in death or serious injury.
Consult your Toyota dealer about any
repair and modification.
NOTICE
Do not perform any of the following
changes without consulting your
Toyota dealer. Such changes can
interfere with proper operation of the
SRS side airbag and curtain shield
airbag system in some cases.
 Installation of electronic devices
such as a mobile twoway radio,
cassette tape player or compact
disc player
 Modification of the suspension sys-
tem
 Modification of the side structure of
the passenger compartment
 Repairs made on or near the con-
sole
This indicator comes on when the igni-
tion key is turned to the “ON” position.
It goes off after about 6 seconds. This
means the SRS side airbags and curtain
shield airbags are operating properly.
This warning light system monitors the
airbag sensor assembly, front airbag sen-
sors, side and curtain shield airbag sensor
assemblies, seat belt pretensioner assem-
blies, inflators, warning light, interconnect-
ing wiring and power sources. (For details,
see “Service reminder indicators and
warning buzzers” on page 134 in Section
1−6.)

04_SEQUOIA_U (L/O 0309)
85
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If any of the following conditions occurs,
this indicates a malfunction of the airbags
or seat belt pretensioners. Contact your
Toyota dealer as soon as possible.
When the ignition key is turned to the
“ON” position, the light does not come
on, remains on or flashes.
The light comes on or starts flashing
while driving.
In the following cases, contact your Toyota
dealer as soon as possible:
Any of the SRS side airbags and cur-
tain shield airbags have been inflated.
The portion of the doors (shaded in the
illustration) was involved in an accident
that was not severe enough to cause
the SRS side airbags and curtain
shield airbags to inflate.
The surface of the seats with the side
airbag (shaded in the illustration) is
scratched, cracked, or otherwise dam-
aged.
The portion of the front pillars or roof
side rail garnish (padding) containing
the curtain shield airbags inside
(shaded in the illustration) is scratched,
cracked, or otherwise damaged.
NOTICE
Do not disconnect the battery cables
before contacting your Toyota dealer.

04_SEQUOIA_U (L/O 0309)
109
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

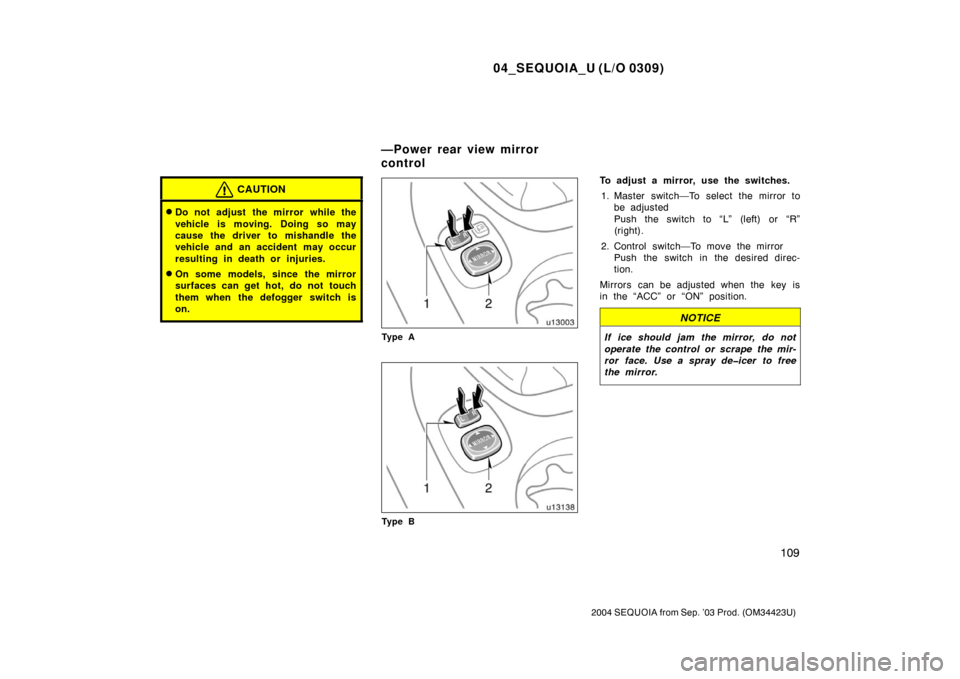

CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the
vehicle and an accident may occur
resulting in death or injuries.
On some models, since the mirror
surfaces can get hot, do not touch
them when the defogger switch is
on.
Ty p e A
Ty p e B
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control
