key TOYOTA SEQUOIA 2004 1.G Workshop Manual

04_SEQUOIA_U (L/O 0309)
151
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NOTICE
Do not drive on a dry paved surface
in “L4” (LOCKED) mode. This may
damage the locking mechanism and
the drive system.
SHIFTING BETWEEN “L4” (UNLOCKED)
AND “L4” (LOCKED)
To shift between unlock and lock
modes in “L”, push the center differential
lock switch.
This can be done at any vehicle speed.
If the indicator light flashes when you
push the center differential lock switch,
drive straight ahead while accelerating or
decelerating.
CAUTION
Never push the center differential
lock switch if wheels are slipping.
Stop the slipping or spinning before
shifting.
NOTICE
Do not drive on a dry paved surface
in “L4” (LOCKED) mode. This may
damage the locking mechanism and
the drive system.
The traction control system automatical-
ly helps prevent the spinning of rear
wheels when the vehicle is started or
accelerated on slippery road surfaces.
When the ignition key is turned to “ON”,
the system automatically turns on.
CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against rear wheels cannot be
maintained, even though the traction
control system is in operation. Do not
drive the vehicle under any speed or
maneuvering conditions which may
cause the vehicle to lose traction
control. In situations where the road
surface is covered with ice or snow,
your vehicle should be fitted with
snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
Traction control system
(twowheel drive models)

04_SEQUOIA_U (L/O 0309)
152
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
NORMAL DRIVING MODE
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the trac-
tion control system is in the self−check
mode, but does not indicate a malfunction. When the traction control system is oper-
ating, the following conditions occur:
The system controls the spinning of the
rear wheels. At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
TRACTION CONTROL OFF MODE
If your wheels get stuck in a ditch
when you are driving on a severe off
road and sand, turn off the traction
control system. This system that con-
trols engine performance interferes with
the process of freeing your wheels.

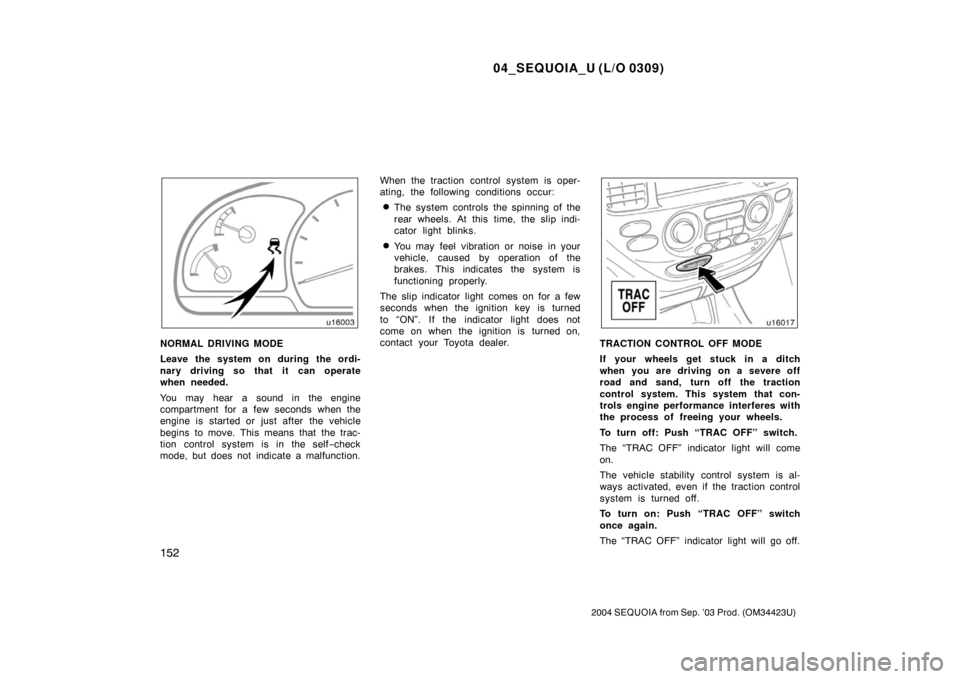

To turn off: Push “TRAC OFF” switch.
The “TRAC OFF” indicator light will come
on.
The vehicle stability control system is al-
ways activated, even if the traction control
system is turned off.
To turn on: Push “TRAC OFF” switch
once again.
The “TRAC OFF” indicator light will go off.

04_SEQUOIA_U (L/O 0309)
153
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
The traction control system will automati-
cally go on, and the “TRAC OFF” indicator
light will go off when you drive over 30
km/h (19 mph) even if the “TRAC OFF”
switch is pushed to cancel the traction
control system.
“TRAC OFF” indicator light comes on for
a few seconds when the ignition key is
turned to “ON”. It will come on again
when you push the “TRAC OFF” switch to
turn off the system.
In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on with the
normal driving mode while driving.

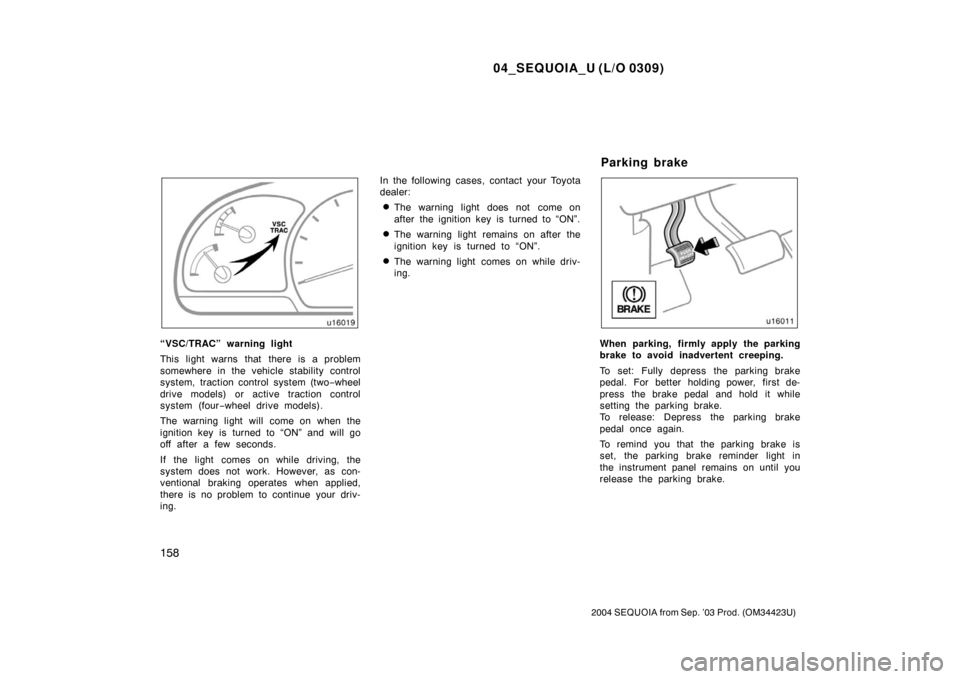

“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the traction control system
or the vehicle stability control system.
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds.The brake pad or actuator temperature
increases during continuous operation of
the traction control system or vehicle sta-
bility control system such as on slippery
roads. If the brake pad or actuator tem-
perature becomes too high while the trac-
tion control system or vehicle stability
control system is operating, a buzzer will
start to sound intermittently to indicate
that the traction control system can no
longer operate. In this case, stop your
vehicle immediately at a safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At the time the “VSC/TRAC” warning light
will come on and the traction control sys-
tem temporarily stops operating in order to
protect the brake pad. (Although the trac-
tion control system does not operate,
there is no problem to continue your driv-
ing.) The system will be automatically re-
stored after a short time and the warning
light goes out.
If the light comes on while driving, the
traction control system does not work.
However, as conventional braking operates
when applied, there is no problem to con-
tinue your driving.

04_SEQUOIA_U (L/O 0309)
154
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
The “TRAC OFF” indicator light will come
on when the “VSC” warning light comes
on even if the “TRAC OFF” switch is not
pushed. The active traction control system auto-
matically helps prevent the spinning of
4 wheels (4WD mode) or rear wheels
(2WD mode) when the vehicle is started
or accelerated on slippery road sur-
faces.
When the ignition key is turned to “ON”,
the system automatically turns on.

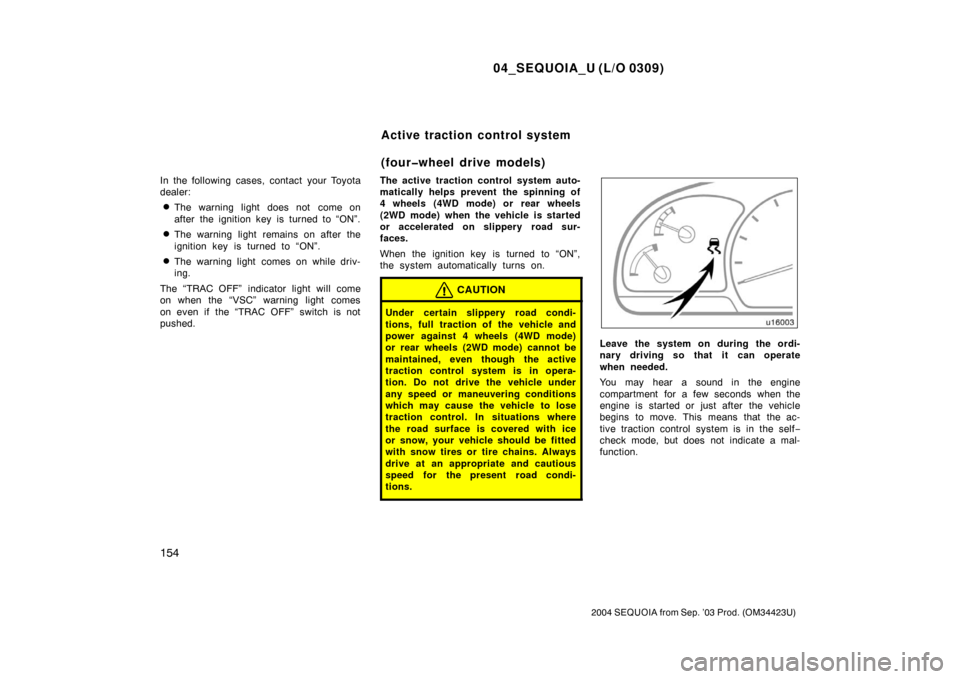

CAUTION
Under certain slippery road condi-
tions, full traction of the vehicle and
power against 4 wheels (4WD mode)
or rear wheels (2WD mode) cannot be
maintained, even though the active
traction control system is in opera-
tion. Do not drive the vehicle under
any speed or maneuvering conditions
which may cause the vehicle to lose
traction control. In situations where
the road surface is covered with ice
or snow, your vehicle should be fitted
with snow tires or tire chains. Always
drive at an appropriate and cautious
speed for the present road condi-
tions.
Leave the system on during the ordi-
nary driving so that it can operate
when needed.
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the ac-
tive traction control system is in the self
−
check mode, but does not indicate a mal-
function.
Active traction control system
(fourwheel drive models)

04_SEQUOIA_U (L/O 0309)
155
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
When the active traction control system is
operating, the following conditions occur:
The system controls the spinning of the
4 wheels (4WD mode) or rear wheels
(2WD mode). At this time, the slip indi-
cator light blinks.
You may feel vibration or noise in your
vehicle, caused by operation of the
brakes. This indicates the system is
functioning properly.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.
“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the active traction control
system or the vehicle stability control sys-
tem.
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds. The brake pad or actuator temperature
increases during continuous operation of
the active traction control system or ve-
hicle stability control system such as on
slippery roads. If the brake pad or actua-
tor temperature becomes too high while
the active traction control system or ve-
hicle stability control system is operating,
a buzzer will start to sound intermittently
to indicate that the active traction control
system can no l
onger operate. In this
case, stop your vehicle immediately at a
safe place.
If the system continues to operate, the
buzzer sound changes from intermittent to
continuous. (The continuous buzzer
sounds for about 3 seconds.)
At the time, the “VSC/TRAC” warning light
will come on and the active traction con-
trol system temporarily stops operating in
order to protect the brake pad. (Although
the active traction control system does not
operate, there is no problem to continue
your driving.) The system will be automati-
cally restored after a short time and the
warning light goes out.
If the light comes on while driving, the
active traction control system does not
work. However, as conventional braking
operates when applied, there is no prob-
lem to continue your driving.

04_SEQUOIA_U (L/O 0309)
156
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.The vehicle stability control system
helps provide integrated control of the
systems such as antilock brake sys-
tem, traction control, engine control,
etc. This system automatically controls
the brakes and engine to help prevent
the vehicle from skidding when corner-
ing on a slippery road surface or oper-
ating steering wheel abruptly.

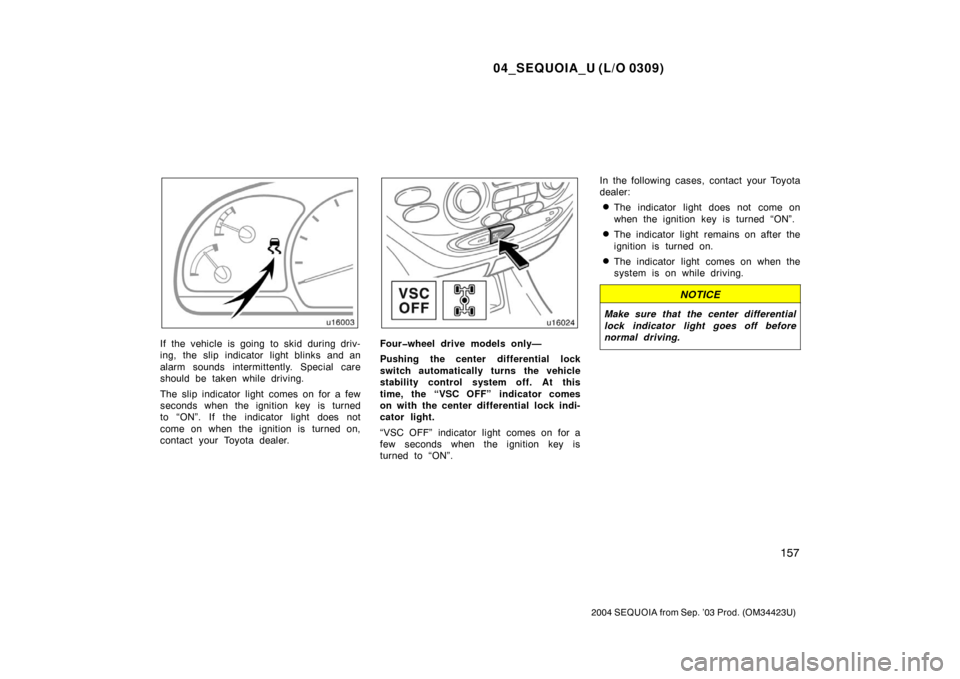

The vehicle stability control activates
when the vehicle speed is more than the
following speed.
Front drive control lever in “H”
15 km/h (9 mph)
Front drive control lever in “L4” 30 km/h (18 mph)
You may hear a sound in the engine
compartment for a few seconds when the
engine is started or just after the vehicle
begins to move. This means that the sys-
tem is in the self −check mode but does
not indicate a malfunction.

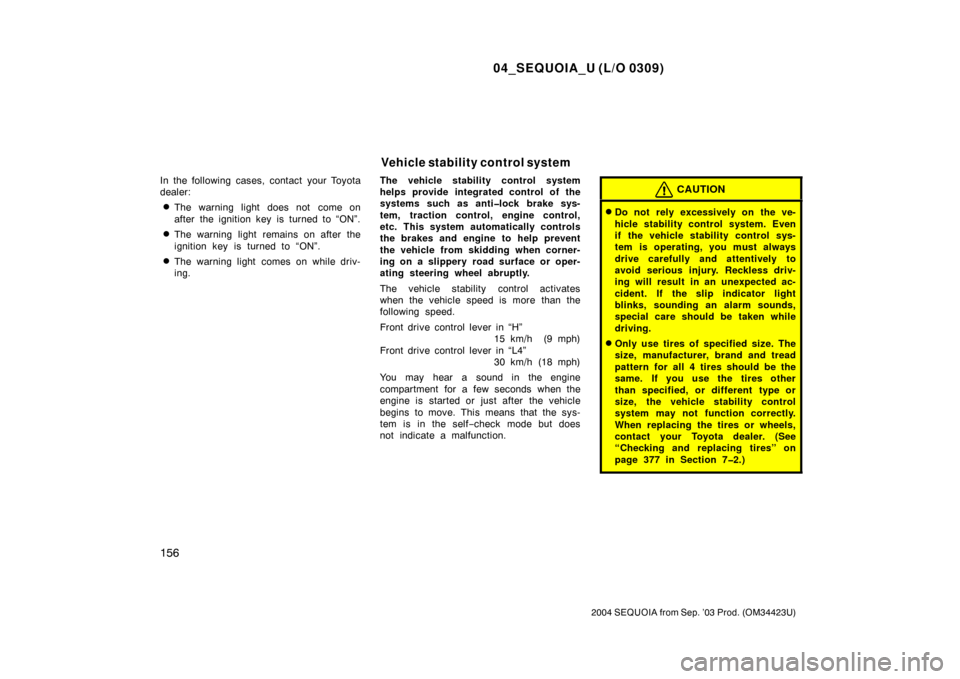

CAUTION
Do not rely excessively on the ve-
hicle stability control system. Even
if the vehicle stability control sys-
tem is operating, you must always
drive carefully and attentively to
avoid serious injury. Reckless driv-
ing will result in an unexpected ac-
cident. If the slip indicator light
blinks, sounding an alarm sounds,
special care should be taken while
driving.
Only use tires of specified size. The
size, manufacturer, brand and tread
pattern for all 4 tires should be the
same. If you use the tires other
than specified, or different type or
size, the vehicle stability control
system may not function correctly.
When replacing the tires or wheels,
contact your Toyota dealer. (See
“Checking and replacing tires” on
page 377 in Section 72.)
Vehicle stability control system

04_SEQUOIA_U (L/O 0309)
157
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If the vehicle is going to skid during driv-
ing, the slip indicator light blinks and an
alarm sounds intermittently. Special care
should be taken while driving.
The slip indicator light comes on for a few
seconds when the ignition key is turned
to “ON”. If the indicator light does not
come on when the ignition is turned on,
contact your Toyota dealer.Fourwheel drive models only—
Pushing the center differential lock
switch automatically turns the vehicle
stability control system off. At this
time, the “VSC OFF” indicator comes
on with the center differential lock indi-
cator light.
“VSC OFF” indicator light comes on for a
few seconds when the ignition key is
turned to “ON”.In the following cases, contact your Toyota
dealer:
The indicator light does not come on
when the ignition key is turned “ON”.
The indicator light remains on after the
ignition is turned on.
The indicator light comes on when the
system is on while driving.
NOTICE
Make sure that the center differential
lock indicator light goes off before
normal driving.

04_SEQUOIA_U (L/O 0309)
158
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
“VSC/TRAC” warning light
This light warns that there is a problem
somewhere in the vehicle stability control
system, traction control system (two−wheel
drive models) or active traction control
system (four −wheel drive models).
The warning light will come on when the
ignition key is turned to “ON” and will go
off after a few seconds.
If the light comes on while driving, the
system does not work. However, as con-
ventional braking operates when applied,
there is no problem to continue your driv-
ing. In the following cases, contact your Toyota
dealer:
The warning light does not come on
after the ignition key is turned to “ON”.
The warning light remains on after the
ignition key is turned to “ON”.
The warning light comes on while driv-
ing.
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Fully depress the parking brake
pedal. For better holding power, first de-
press the brake pedal and hold it while
setting the parking brake.
To release: Depress the parking brake
pedal once again.
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
Parking brake

04_SEQUOIA_U (L/O 0309)
164
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Type 1: AM·FM radio/cassette player/com-
pact disc player (with compact disc
changer controller)Type 2: AM·FM radio/cassette player/com-
pact disc player with changer
This section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the “ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push “PWR·VOL” to turn the audio system
on and off.
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” to turn on that function without
pushing “PWR·VOL”. To turn on the cas-
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If the another function was pre-
viously playing, it will come on again.
SWITCHING BETWEEN FUNCTIONS
Push “AM”, “FM”, “TAPE”, “DISC” or
“LOAD” if the system is already on but
you want to switch from one function to
another.
ReferenceUsing your audio system—
—Some basics

04_SEQUOIA_U (L/O 0309)
165
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
TONE AND BALANCE
For details about your system’s tone and
balance controls, see the description of
your own system.
Tone
How good an audio program sounds to
you is largely determined by the mix of
the treble, midrange, and bass levels. In
fact, different kinds of music and vocal
programs usually sound better with differ-
ent mixes of treble, midrange, and bass.
Balance
A good balance of the left and right stereo
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.YOUR RADIO ANTENNA
Detachable antenna
To remove an detachable antenna, careful-
ly turn it counterclockwise.
NOTICE
To prevent damage to the antenna,
make sure it is removed before driv-
ing your Toyota through an automatic
car wash.
Power antenna
To lower a power antenna, turn off the
audio system by pushing “PWR·VOL” or
turn the ignition key to “LOCK”.
The power antenna automatically retracts
when the radio mode is switched off to
turn on the cassette tape player.
NOTICE

To prevent damage to the antenna,
make sure it is retracted before
driving your Toyota through an au-
tomatic car wash.
 On models with glass antenna, at-
taching film (especially conductive
or metallic type) on the rear glass
will noticeably reduce the sensitiv-
ity of the radio.
YOUR CASSETTE PLAYER
When you insert a cassette, the exposed
tape should face to the right.
NOTICE
Do not oil any part of the player and
do not insert anything other than cas-
sette tapes into the slot, or the tape
player may be damaged.
