key TOYOTA SEQUOIA 2004 1.G User Guide

04_SEQUOIA_U (L/O 0309)
20
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
“PANIC” SWITCH
Pushing the “PANIC” switch blows the
horn intermittently and flashes the
headlights and tail lights.
The “PANIC” switch is used to deter ve-
hicle theft when you witness anyone at-
tempting to break into or damage your
vehicle.
The alarm will last for one minute. To stop
alarm midway, push the “PANIC” or
“UNLOCK” switch, or unlock any side door
or back door with key. You can also stop
the alarm by turning the ignition key from
“LOCK” to the “ON” position.The “PANIC” mode does not work when
the ignition key is in the “ON” position.
This alarm function can be disabled. For
details, contact your Toyota dealer.
WIRELESS REMOTE CONTROL
TRANSMITTER
The wireless remote control transmitter is
an electronic component. Observe the fol-
lowing instructions in order not to cause
damage to the transmitter.
Do not leave the transmitter on places
where the temperature becomes high
such as on the dashboard.
Do not disassemble it.
Avoid knocking it hard against other
objects or dropping it.
Avoid putting it in water.
You can use up to 4 wireless remote con-
trol transmitters for the same vehicle.
Contact your Toyota dealer for detailed
information. If the wireless remote control transmitter
does not actuate the doors or alarm, or
operate from a normal distance:
Check for closeness to a radio trans-
mitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
The battery may have been consumed.
Check the battery in the transmitter. To
replace the battery, see following
“REPLACING THE BATTERY”.
If you lose your transmitter, contact your
Toyota dealer as soon as possible to
avoid the possibility of theft, or an acci-
dent. (See “If you lose your wireless re-
mote control transmitter” on page 347 in
Section 4.)

04_SEQUOIA_U (L/O 0309)
24
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Window lock
switch
Driver’s door switches
Front passenger’s door switch
OPERATING FROM INSIDE
The windows can be operated with the
switch on each side door.
The power windows work when the ignition
switch is in the “ON” position.
Key off operation: If both front doors are
closed, they work for 43 seconds even
after the ignition switch is turned off. They
stop working when either front side door
is opened.
OPERATING THE DRIVER’S AND FRONT
PASSENGER’S WINDOWS
Use the switches on the driver’s door
and front passenger ’s door.
Normal operation: The window moves as
long as you hold the switch.
To open: Lightly push down the switch.
To close: Lightly pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s window
cannot be operated.
Driver’s door switches
Front passenger’s door switch
Power windows

04_SEQUOIA_U (L/O 0309)
25
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Automatic operation: Push the switch
completely down or pull it completely up,
and then release it. The window will fully
open or close. To stop the window part-
way, lightly move the switch in the oppo-
site direction and then release it.
If you push in the window lock switch on
the driver ’s door, the front passengers’
window cannot be operated.
Jam protection function: During automat-
ic closing operation, the window stops and
opens half way if something gets caught
between the window and window frame.
If the window receives a strong impact,
this function may work even if nothing is
caught.
CAUTION
Never try jamming any part of your
body to activate the jam protection
function intentionally.
The jam protection function may
not work if something gets caught
just before the window is fully
closed.
OPERATING FROM OUTSIDE
The front windows can be opened and
closed with the key operation in the driv-
er ’s door keyhole.
To open: Turn the key fully backward and
hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully forward and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This feature can be disabled. For details,
contact your Toyota dealer.

04_SEQUOIA_U (L/O 0309)
26
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Window
lock
switch
Driver’s door switches
OPERATING THE REAR PASSENGERS’
WINDOWS
Use the switch on each rear passen-
gers’ doors or the switches on the driv-
er ’s door that control rear passengers’
windows.
The window moves as long as you hold
the switch.
To open: Push down the switch.
To close: Pull up the switch.
If you push in the window lock switch on
the driver ’s door, the passenger ’s windows
cannot be operated.
Rear passengers’ door switches
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power win-
dows, always make sure there is
nobody around the power windows.
You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power win-
dows, make sure he or she oper-
ates the windows safely.
When small children are in the ve-
hicle, never let them use the power
window switches without supervi-
sion. Use the window lock switch to
prevent them from making unex-
pected use of the switches.
Be sure to remove the ignition key
when you leave your vehicle.

04_SEQUOIA_U (L/O 0309)
27
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power window switches and
get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
OPERATING FROM INSIDE
The back window can be operated with
the switch on the instrument panel.
The ignition key must be in the “ON” posi-
tion.
The back window moves as long as you
hold the inner switch.
To open: Push the switch on the “
”
side.
To close: Push the switch on the “
”
side. You can also open the back window when
the back window wiper is working. At that
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See “Back window wiper
and washer” on page 125 and “Back win-
dow and outside rear view mirror defog-
gers” on page 126 in Section 1
−5.)
Power back window

04_SEQUOIA_U (L/O 0309)
28
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If you push in the window lock switch on
the driver ’s door, the back window cannot
be operated.
OPERATING FROM OUTSIDE
The back window can be opened and
closed with the key operation in the back
door keyhole.
To open: Turn the key fully counterclock-
wise and hold it.
After the door is unlocked, the window
begins to open. To stop the window part-
way, release the key.
To close: Turn the key fully clockwise and
hold it.
After the door is locked, the window be-
gins to close. To stop the window partway,
release the key.
This door key linked function can be
erased. For details, contact your Toyota
dealer.
You can also open the back window when
the back window wiper is working. At the
time, the wiper stops working until the
window is closed again.
If the back window is not fully closed, the
back window wiper, washer, and defogger
will not work. (See “Back window wiper
and washer” on page 125 and “Back win-
dow and outside rear view mirror defog-
gers” on page 126 in Section 1−5.)

04_SEQUOIA_U (L/O 0309)
29
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
CAUTION
To avoid serious personal injury, you
must do the following.
Before you close the power back
window, always make sure there is
nobody around the power back win-
dow. You must also make sure the
heads, hands and other parts of the
bodies of all occupants are kept
completely inside the vehicle. If
someone’s neck, head or hands get
caught in a closing window, it
could result in a serious injury.
When anyone closes the power
back window, make sure he or she
operates the window safely.
When small children are in the ve-
hicle, never let them use the power
back window switch without super-
vision. Use the window lock switch
to prevent them from making unex-
pected use of the switch.
Be sure to remove the ignition key
when you leave your vehicle.
Never leave anyone (particularly a
small child) alone in your vehicle,
especially with the ignition key still
inserted. Otherwise, he/she could
use the power back window switch
and get trapped in a window. Unat-
tended person (particularly a small
child) can be involved in a serious
accident.
Keep the back window closed while
driving. This not only keeps the
luggage from being thrown out but
also prevents exhaust gases from
entering the vehicle.
Vehicles with wireless remote control sys-
tem—
To open the back window with the wire-
less remote control transmitter, see
“—Wireless remote control” on page 18 in
this Section.
LOCKING AND UNLOCKING WITH KEY
Insert the key into the keyhole and turn
it.
To lock: Turn the key clockwise.
To unlock: Turn the key counterclockwise.
All the doors lock and unlock simulta-
neously with back door.
To open the back door, pull the lever.
The back door will be controlled by oper-
ating the power door lock switch.
The back door window can be opened or
closed with the key operation in the back
door keyhole. (For details, see “Power
back window” on page 27 in this Section.)
Back door

04_SEQUOIA_U (L/O 0309)
32
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To deter vehicle theft, the system is
designed to sound an alarm if any of
the side doors, back door or hood is
forcibly unlocked or opened or the bat-
tery terminal is disconnected and then
reconnected when the vehicle is locked.
The alarm blows the horn intermittently
and flashes the headlights and tail lights.SETTING THE SYSTEM1. Turn the ignition key to the “LOCK” position and remove it.
The indicator light will start flashing when
the key is removed from the ignition
switch. (See “Engine immobilizer system”
on page 12 in this Section for details.)
2. Have all passengers get out of the vehicle.
3. Close and lock all the side doors, back door and hood.
The indicator light will remain on when all
the side doors, back door and hood are
closed and locked. The system will automatically be set after
30 seconds. When the system is set, the
indicator light will start flashing again.
4. After making sure the indicator light starts flashing, you may leave the ve-
hicle.
Never leave anyone in the vehicle when
you set the system, because unlocking
from the inside will activate the system.
WHEN THE SYSTEM IS SET
Activating the system
The system will sound the alarm under
the following conditions:If any of the side doors is unlocked or
opened without the key or wireless re-
mote control transmitter, or if the back
door or hood is forcibly opened
If the battery terminal is disconnected
and then reconnected
The indicator light will come on when the
system is activated.
Theft deterrent system

04_SEQUOIA_U (L/O 0309)
33
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
If the alarm has been activated and the
key is not in the ignition switch, all the
side doors and back door will re−lock au-
tomatically.
After one minute, the alarm will automati-
cally stop and the indicator light will starts
flashing again.
Reactivating the alarm
Once set, the system automatically resets
the alarm after the alarm stops.
The alarm will activate again under the
same circumstances described in
“Activating the system”.
Stopping the alarm
The alarm will be stopped by the following
two ways:
Turn the ignition key from the “LOCK”
to “ON” position.
Unlock any of the side doors or back
door with the key or wireless remote
control transmitter.
These ways cancel the system at the
same time. TESTING THE SYSTEM
1. Open all the windows.
2. Set the system as described above. The side doors and back door should
be locked with the key or wireless re-
mote control transmitter. Be sure to
wait until the indicator light goes off or
starts flashing.
3. Unlock any side door from the inside. The system should activate the alarm.
4. Stopping the alarm as described above.
5. Repeat this operation for the other doors and hood. When testing the
hood, also check that the system is
activated when the battery terminal is
disconnected and then reconnected.
If the system does not work properly,
have it checked by your Toyota dealer.
This indicates that the fuel filler door
is on the left side of your vehicle.
Fuel tank cap

04_SEQUOIA_U (L/O 0309)
35
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

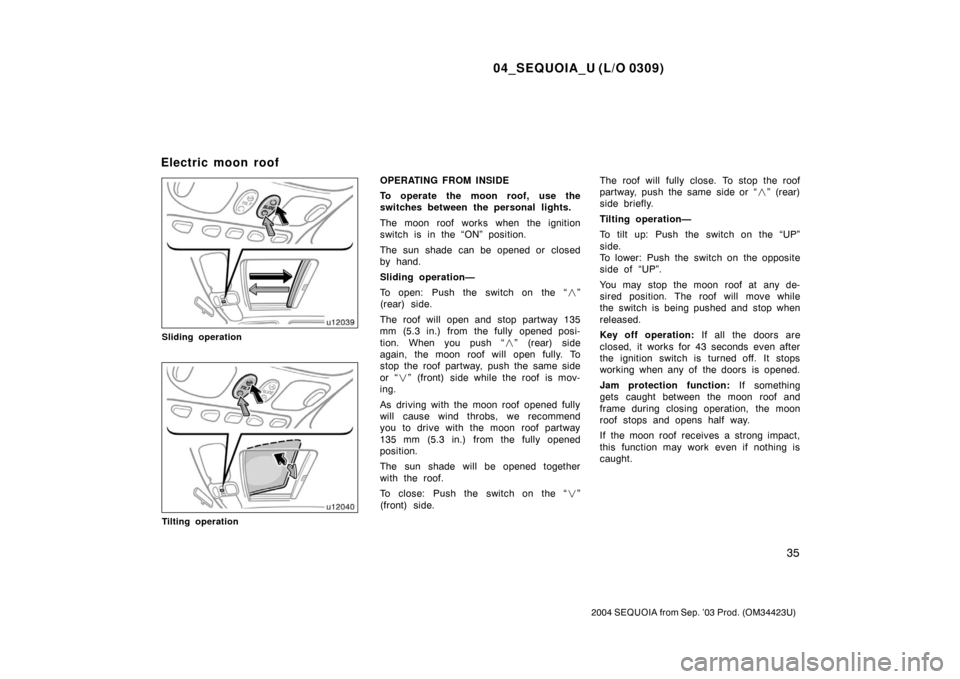

Sliding operation
Tilting operation
OPERATING FROM INSIDE
To operate the moon roof, use the
switches between the personal lights.
The moon roof works when the ignition
switch is in the “ON” position.
The sun shade can be opened or closed
by hand.
Sliding operation—
To open: Push the switch on the “”
(rear) side.
The roof will open and stop partway 135
mm (5.3 in.) from the fully opened posi-
tion. When you push “ ” (rear) side
again, the moon roof will open fully. To
stop the roof partway, push the same side
or “ ” (front) side while the roof is mov-
ing.
As driving with the moon roof opened fully
will cause wind throbs, we recommend
you to drive with the moon roof partway
135 mm (5.3 in.) from the fully opened
position.
The sun shade will be opened together
with the roof.
To close: Push the switch on the “ ”
(front) side. The roof will fully close. To stop the roof
partway, push the same side or “
” (rear)
side briefly.
Tilting operation—
To tilt up: Push the switch on the “UP”
side.
To lower: Push the switch on the opposite
side of “UP”.
You may stop the moon roof at any de-
sired position. The roof will move while
the switch is being pushed and stop when
released.
Key off operation: If all the doors are
closed, it works for 43 seconds even after
the ignition switch is turned off. It stops
working when any of the doors is opened.
Jam protection function: If something
gets caught between the moon roof and
frame during closing operation, the moon
roof stops and opens half way.
If the moon roof receives a strong impact,
this function may work even if nothing is
caught.
Electric moon roof
