key TOYOTA SEQUOIA 2004 1.G Owner's Guide

04_SEQUOIA_U (L/O 0309)
11 0
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

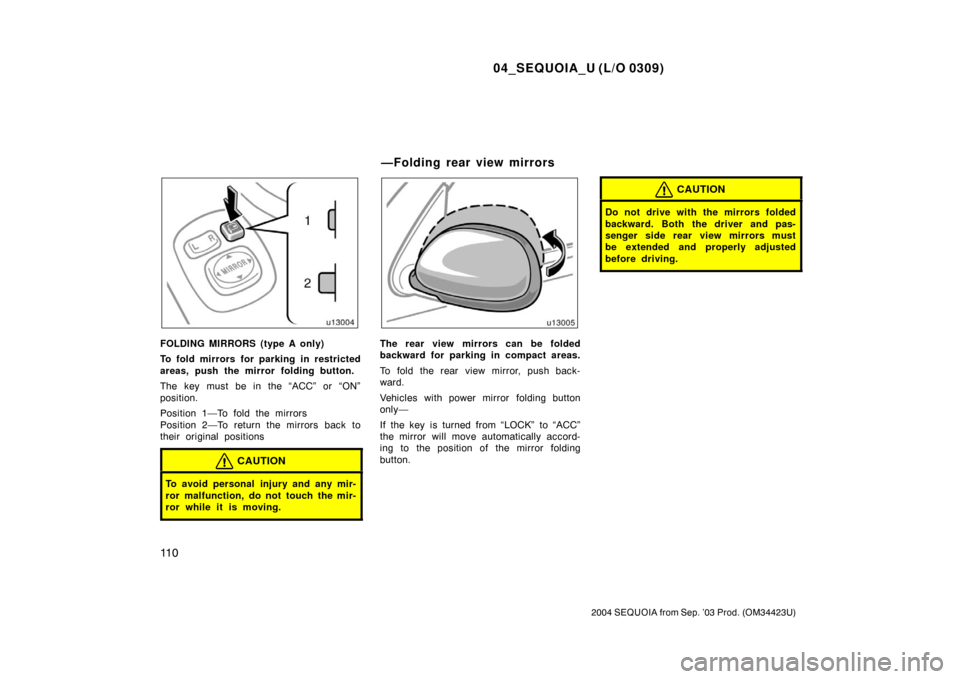

FOLDING MIRRORS (type A only)
To fold mirrors for parking in restricted
areas, push the mirror folding button.
The key must be in the “ACC” or “ON”
position.
Position 1—To fold the mirrors
Position 2—To return the mirrors back to
their original positions
CAUTION
To avoid personal injury and any mir-
ror malfunction, do not touch the mir-
ror while it is moving.
The rear view mirrors can be folded
backward for parking in compact areas.
To fold the rear view mirror, push back-
ward.
Vehicles with power mirror folding button
only—
If the key is turned from “LOCK” to “ACC”
the mirror will move automatically accord-
ing to the position of the mirror folding
button.
CAUTION
Do not drive with the mirrors folded
backward. Both the driver and pas-
senger side rear view mirrors must
be extended and properly adjusted
before driving.
—Folding rear view mirrors

04_SEQUOIA_U (L/O 0309)
111
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

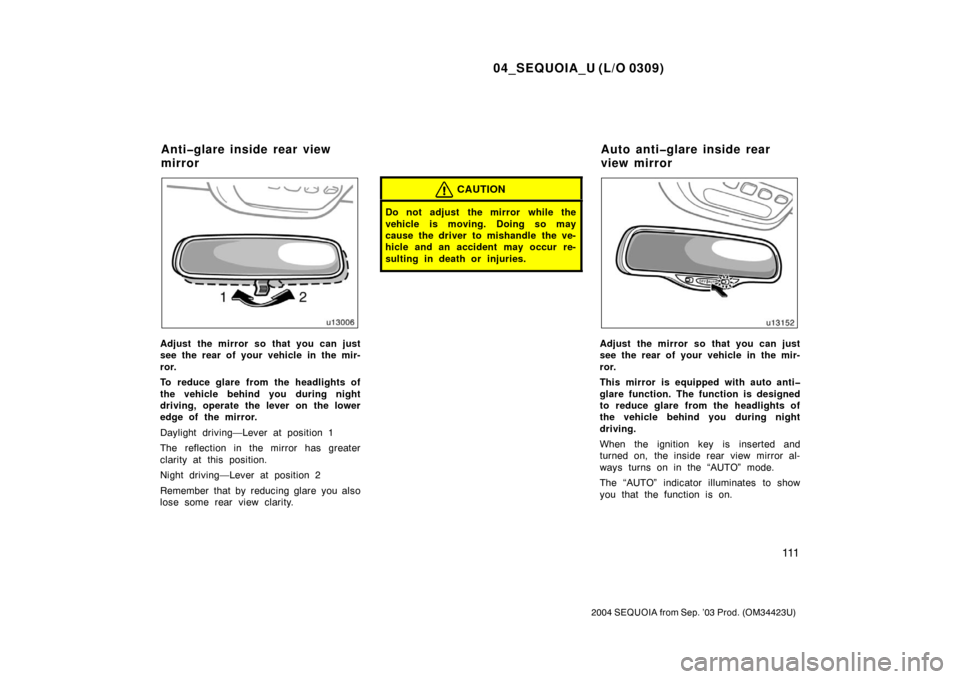

Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the “AUTO” mode.
The “AUTO” indicator illuminates to show
you that the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror

04_SEQUOIA_U (L/O 0309)
11 6
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
Position 3 (“AUTO”)—Headlights and/or all
of the lights in position 1
They automatically turn on or off depend-
ing on the darkness of the surroundings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the driver’s side instrument
panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.The lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The time before the headlights turn off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Headlights and turn signals
(with automatic light control
system)

04_SEQUOIA_U (L/O 0309)
11 7
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on when the parking
brake is released with the engine started,
even with the light switch in the “OFF”
position. They will not go off until the
ignition switch is turned off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Under the daytime running light system,
the headlights turn on at reduced intensity.
Twist the knob to the position 2 to turn
to full intensity for driving at night.

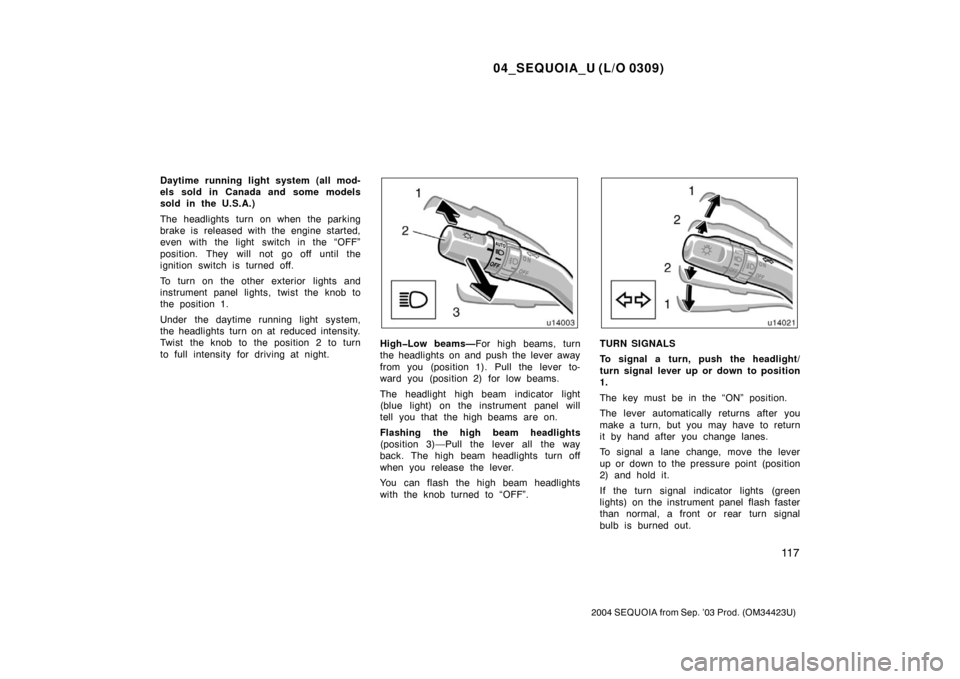

HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal
bulb is burned out.

04_SEQUOIA_U (L/O 0309)
11 8
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
HEADLIGHTS
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
aboveThe lights automatically turn off after 30
seconds when all the side doors and back
door are closed with the ignition key in
the “ACC” or “LOCK” position and the le-
ver at position 2.
The lights also automatically turn off when
the driver ’s door is opened with the lever
at position 1.
If the doors are locked by the wireless
remote control transmitter, the lights auto-
matically turn off immediately.
To turn them on again, turn the key to the
“ON” position or actuate the headlight
switch.
If you are going to park for over one
week, make sure the headlight switch is
off.
The timing for the headlights turning off
can be changed. For details, contact your
Toyota dealer.
NOTICE
To prevent the battery from being dis-
charged, do not leave the lights on
for a long period when the engine is
not running.
Daytime running light system (all mod-
els sold in Canada and some models
sold in the U.S.A.)
The headlights turn on at reduced intensi-
ty when the parking brake is released with
the engine started, even with the light
switch in the “OFF” position. They will not
go off until the ignition switch is turned
off.
To turn on the other exterior lights and
instrument panel lights, twist the knob to
the position 1.
Twist the knob to the position 2 to turn
to full intensity for driving at night.
Headlights and turn signals
(without automatic light
control system)

04_SEQUOIA_U (L/O 0309)
11 9
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

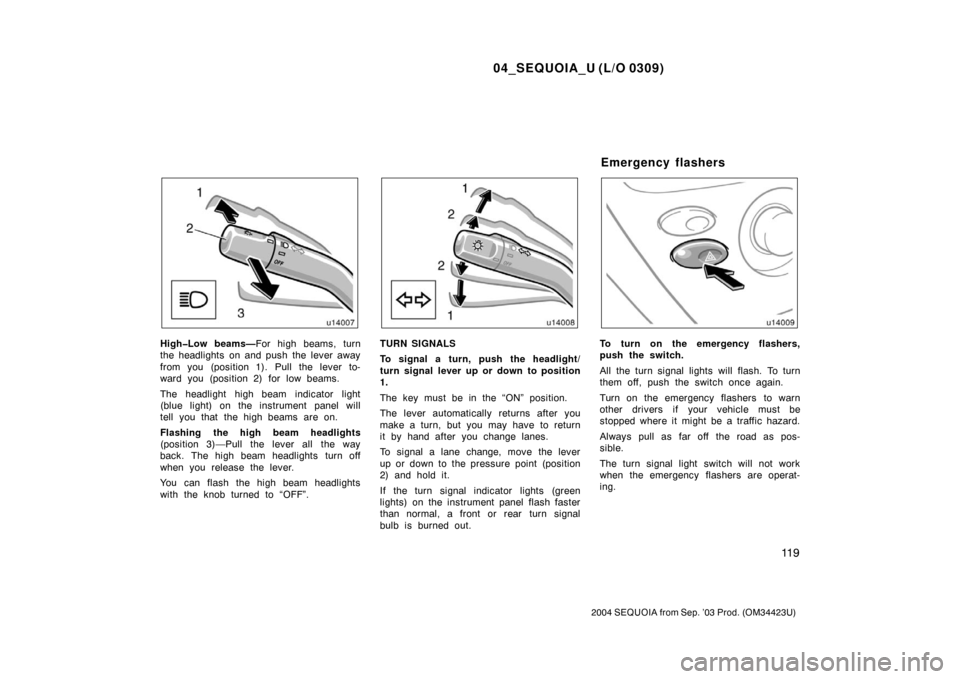

HighLow beams—For high beams, turn
the headlights on and push the lever away
from you (position 1). Pull the lever to-
ward you (position 2) for low beams.
The headlight high beam indicator light
(blue light) on the instrument panel will
tell you that the high beams are on.
Flashing the high beam headlights
(position 3)—Pull the lever all the way
back. The high beam headlights turn off
when you release the lever.
You can flash the high beam headlights
with the knob turned to “OFF”.TURN SIGNALS
To signal a turn, push the headlight/
turn signal lever up or down to position
1.
The key must be in the “ON” position.
The lever automatically returns after you
make a turn, but you may have to return
it by hand after you change lanes.
To signal a lane change, move the lever
up or down to the pressure point (position
2) and hold it.
If the turn signal indicator lights (green
lights) on the instrument panel flash faster
than normal, a front or rear turn signal

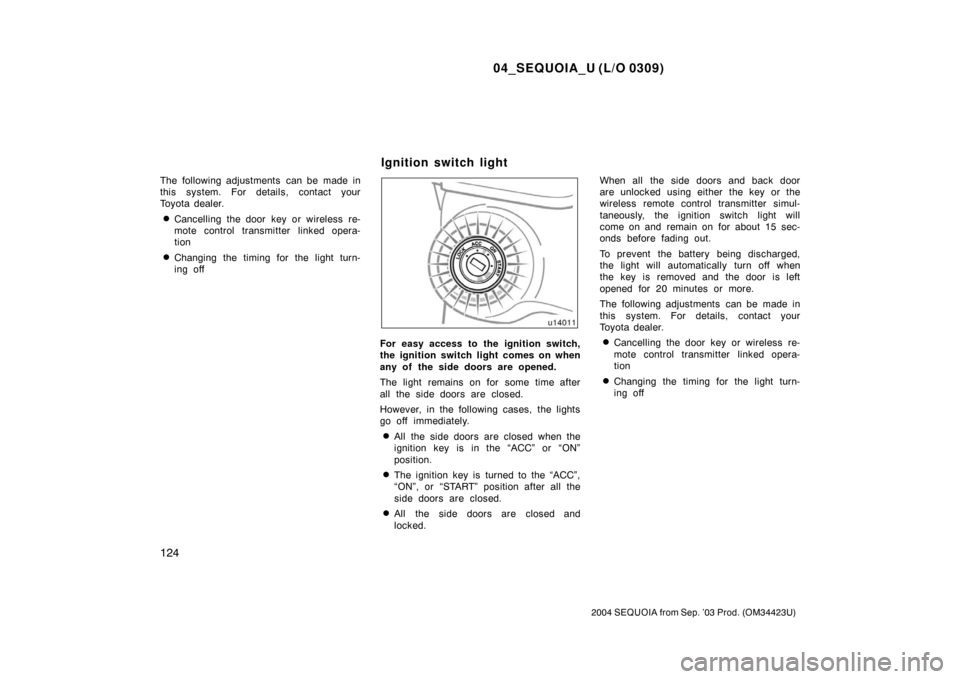

bulb is burned out.To turn on the emergency flashers,
push the switch.
All the turn signal lights will flash. To turn
them off, push the switch once again.
Turn on the emergency flashers to warn
other drivers if your vehicle must be
stopped where it might be a traffic hazard.
Always pull as far off the road as pos-
sible.
The turn signal light switch will not work
when the emergency flashers are operat-
ing.
Emergency flashers

04_SEQUOIA_U (L/O 0309)
121
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)

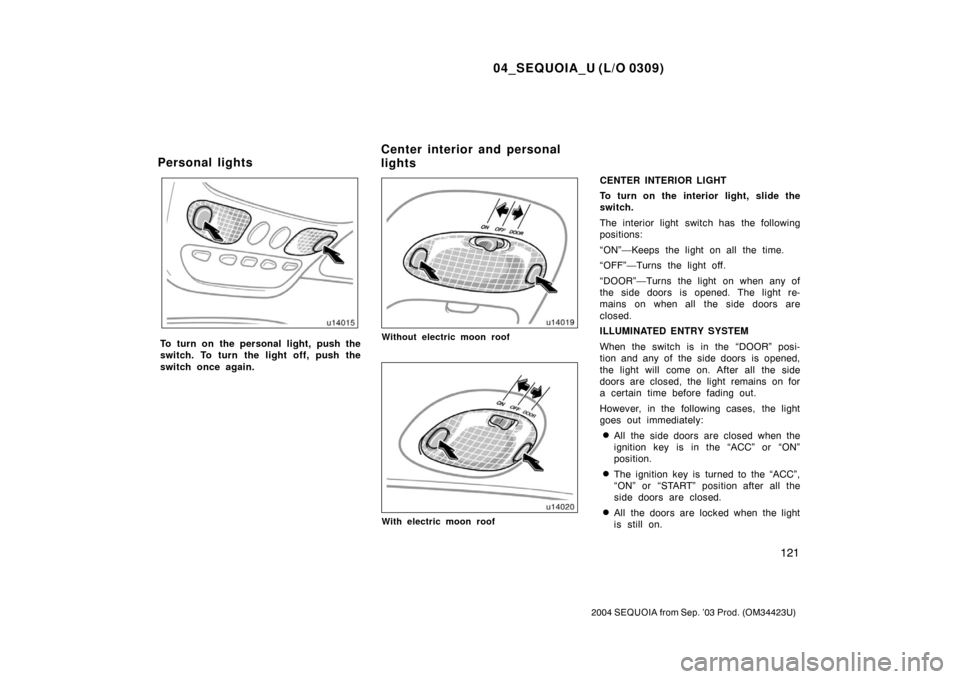

To turn on the personal light, push the
switch. To turn the light off, push the
switch once again.Without electric moon roof
With electric moon roof
CENTER INTERIOR LIGHT
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors is opened. The light re-
mains on when all the side doors are
closed.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors is opened,
the light will come on. After all the side
doors are closed, the light remains on for
a certain time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the doors are locked when the light
is still on.
Personal lightsCenter interior and personal
lights

04_SEQUOIA_U (L/O 0309)
122
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
When all the doors are unlocked using
either the key or the wireless remote con-
trol transmitter simultaneously, the lights
come on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in “DOOR” position
for 20 minutes or more.

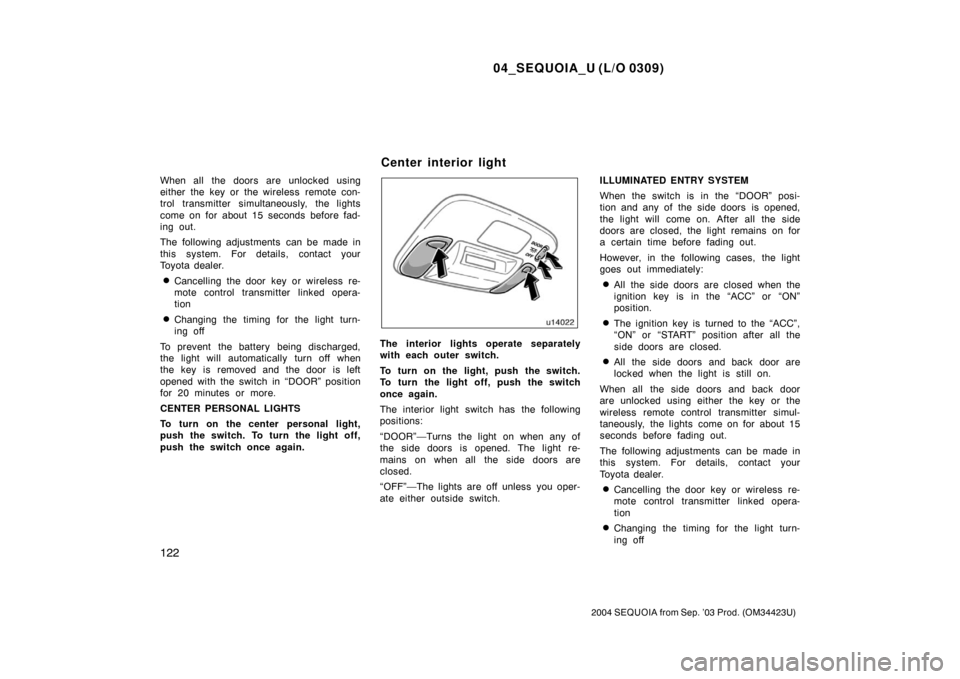

CENTER PERSONAL LIGHTS
To turn on the center personal light,
push the switch. To turn the light off,
push the switch once again.
The interior lights operate separately
with each outer switch.
To turn on the light, push the switch.
To turn the light off, push the switch
once again.
The interior light switch has the following
positions:
“DOOR”—Turns the light on when any of
the side doors is opened. The light re-
mains on when all the side doors are
closed.
“OFF”—The lights are off unless you oper-
ate either outside switch. ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors is opened,
the light will come on. After all the side
doors are closed, the light remains on for
a certain time before fading out.
However, in the following cases, the light
goes out immediately:
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON” or “START” position after all the
side doors are closed.
All the side doors and back door are
locked when the light is still on.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the lights come on for about 15
seconds before fading out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Center interior light

04_SEQUOIA_U (L/O 0309)
123
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened with the switch in “DOOR” position
for 20 minutes or more.
To turn on the luggage compartment
light, slide the switch.
The luggage compartment light switch has
the following positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when any of
the side doors or back door are opened.
The light goes off immediately when the
back door is closed. However, the light
remains on when all the side doors are
closed.ILLUMINATED ENTRY SYSTEM
When the switch is in “DOOR” position
and any door is opened, the light will
come on. After all the side doors are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the lights
go off immediately.
All the side doors and back door are
closed when the ignition key is in the
“ACC” or “ON” position.
The ignition key is turned to the “ACC”,
“ON”, or “START” position after all the
side doors are closed.
All the side doors and back door are
closed and locked.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the lights will come on and re-
main on for about 15 seconds before fad-
ing out.
Luggage compartment light

04_SEQUOIA_U (L/O 0309)
124
2004 SEQUOIA from Sep. ’03 Prod. (OM34423U)
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors are closed.
However, in the following cases, the lights
go off immediately.
All the side doors are closed when the
ignition key is in the “ACC” or “ON”
position.
The ignition key is turned to the “ACC”,
“ON”, or “START” position after all the
side doors are closed.
All the side doors are closed and
locked.When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the ignition switch light will
come on and remain on for about 15 sec-
onds before fading out.
To prevent the battery being discharged,
the light will automatically turn off when
the key is removed and the door is left
opened for 20 minutes or more.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Ignition switch light
