display TOYOTA SEQUOIA 2007 1.G Navigation Manual

48

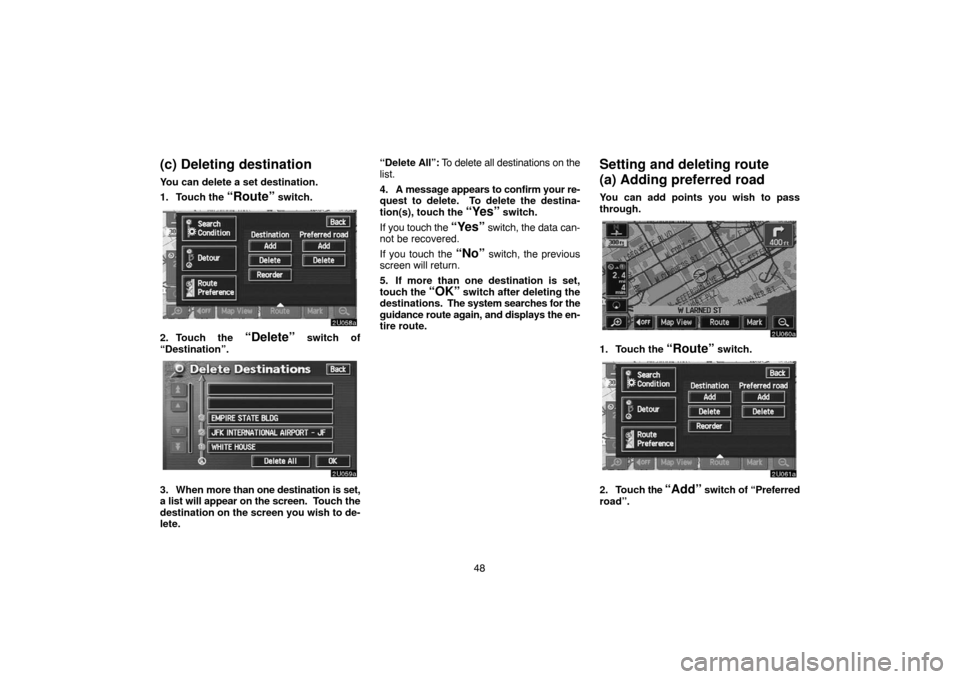

(c) Deleting destination
You can delete a set destination.
1. Touch the
“Route” switch.
2U058a
2. Touch the “Delete” switch of
“Destination”.
2U059a
3. When more than one destination is set,
a list will appear on the screen. Touch the
destination on the screen you wish to de-
lete.“Delete All”: To delete all destinations on the
list.
4. A message appears to confirm your re-
quest to delete. To delete the destina-
tion(s), touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you touch the
“No” switch, the previous
screen will return.
5. If more than one destination is set,
touch the
“OK” switch after deleting the
destinations. The system searches for the
guidance route again, and displays the en-
tire route.
Setting and deleting route
(a) Adding preferred road
You can add points you wish to pass
through.
2U060a
1. Touch the “Route” switch.
2U061a
2. Touch the “Add” switch of “Preferred
road”.

50 “Delete All”: To delete all the listed preferred
road.
4. A message appears to confirm your re-
quest to delete. To delete the preferred
road, touch the
“Yes” switch.
If you touch the
“Yes” switch, the data can-
not be recovered.
If you want to try again or cancel deletion,
touch the
“No” switch. The previous screen
will return.
5. If more than one preferred road is set,
touch the
“OK” switch after deleting the
preferred road. The system searches for
the guidance route again, and displays en-
tire route.

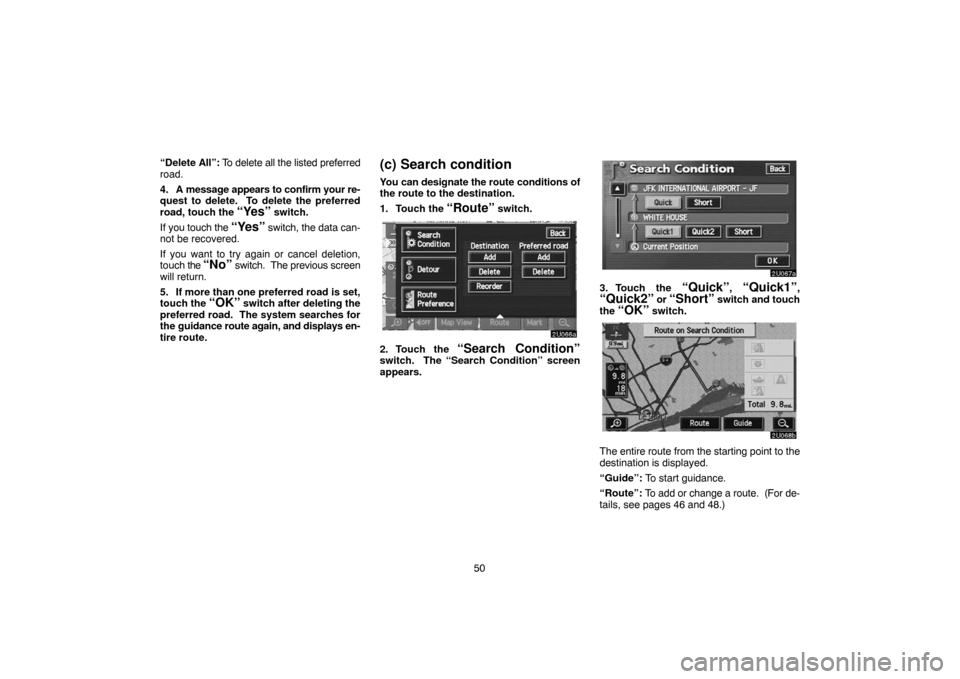

(c) Search condition
You can designate the route conditions of
the route to the destination.
1. Touch the
“Route” switch.
2U066a
2. Touch the “Search Condition”switch. The “Search Condition” screen
appears.
2U067a
3. Touch the “Quick”, “Quick1”,“Quick2” or “Short” switch and touch
the “OK” switch.
2U068b
The entire route from the starting point to the
destination is displayed.
“Guide”: To start guidance.
“Route”: To add or change a route. (For de-
tails, see pages 46 and 48.)

53
Show POI icons
Points of Interest such as gas stations and
restaurants can be displayed on the map
screen. You can also set their location as
a destination and use them for route guid-
ance.
2U074a
1. Touch the “Map View” switch.
2U075a
2. Touch the “Show POI Icon” switch
to display a particular type of Point of In-
terest on the screen.
2U076a
A screen with a limited choice of Points of In-
terest will be displayed. (To change the dis-
played POI, see page 94.) When you touch
the desired Point of Interest category, sym-
bols will appear on the map screen indicating
where the POI addresses are located.
To turn off the symbols of the Points of In-
terest on the map screen, touch the
“POI
Off” switch.
“More”: If you cannot find your desired Point
of Interest on the limited choice screen, touch
this switch. The screen then displays the
complete POI listing screen.
You can display up to 5 categories of icons on
the screen.

54

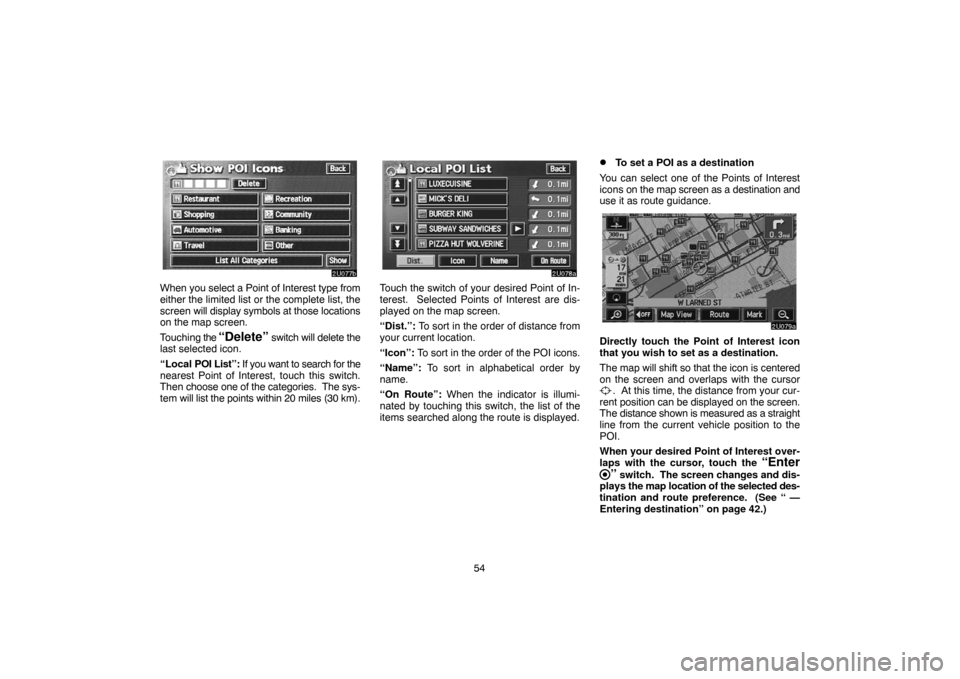

2U077b
When you select a Point of Interest type from
either the limited list or the complete list, the
screen will display symbols at those locations
on the map screen.
Touching the
“Delete” switch will delete the
last selected icon.
“Local POI List”: If you want to search for the
nearest Point of Interest, touch this switch.
Then choose one of the categories. The sys-
tem will list the points within 20 miles (30 km).
2U078a
Touch the switch of your desired Point of In-
terest. Selected Points of Interest are dis-
played on the map screen.
“Dist.”: To sort in the order of distance from
your current location.
“Icon”: To sort in the order of the POI icons.
“Name”: To sort in alphabetical order by
name.
“On Route”: When the indicator is illumi-
nated by touching this switch, the list of the
items searched along the route is displayed.
To set a POI as a destination
You can select one of the Points of Interest
icons on the map screen as a destination and
use it as route guidance.
2U079a
Directly touch the Point of Interest icon
that you wish to set as a destination.
The map will shift so that the icon is centered
on the screen and overlaps with the cursor
. At this time, the distance from your cur-
rent position can be displayed on the screen.
The distance shown is measured as a straight
line from the current vehicle position to the
POI.
When your desired Point of Interest over-
laps with the cursor, touch the
“Enter
” switch. The screen changes and dis-
plays the map location of the selected des-
tination and route preference. (See “ —
Entering destination” on page 42.)

55

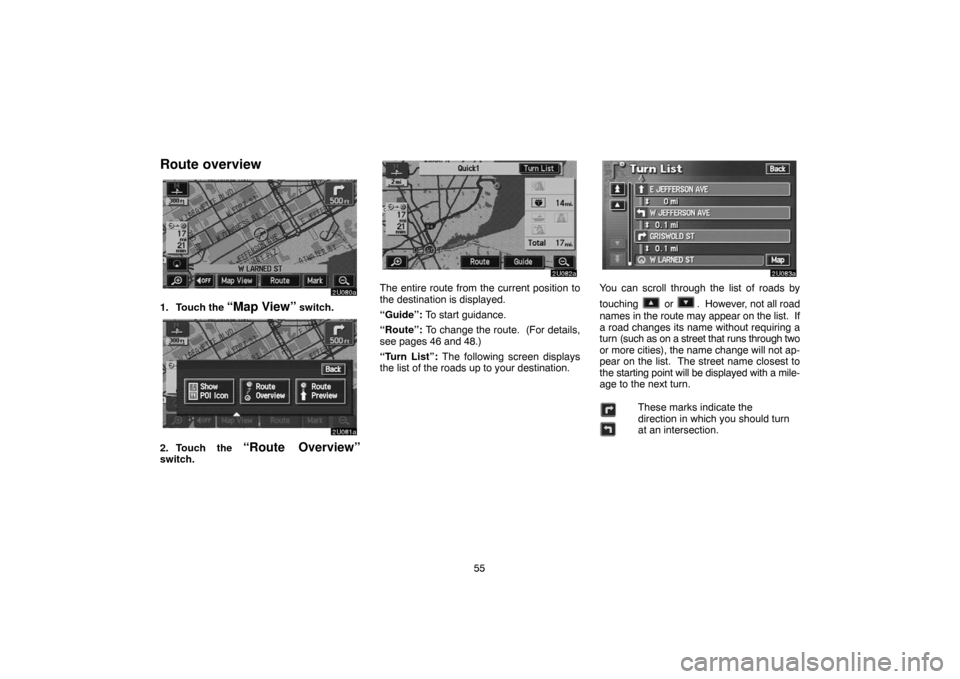

Route overview
2U080a
1. Touch the “Map View” switch.
2U081a
2. Touch the “Route Overview”switch.
2U082a
The entire route from the current position to
the destination is displayed.
“Guide”: To start guidance.
“Route”: To change the route. (For details,
see pages 46 and 48.)
“Turn List”: The following screen displays
the list of the roads up to your destination.
2U083a
You can scroll through the list of roads by
touching
or . However, not all road
names in the route may appear on the list. If
a road changes its name without requiring a
turn (such as on a street that runs through two
or more cities), the name change will not ap-
pear on the list. The street name closest to
the starting point will be displayed with a mile-
age to the next turn.
These marks indicate the
direction in which you should turn
at an intersection.

57

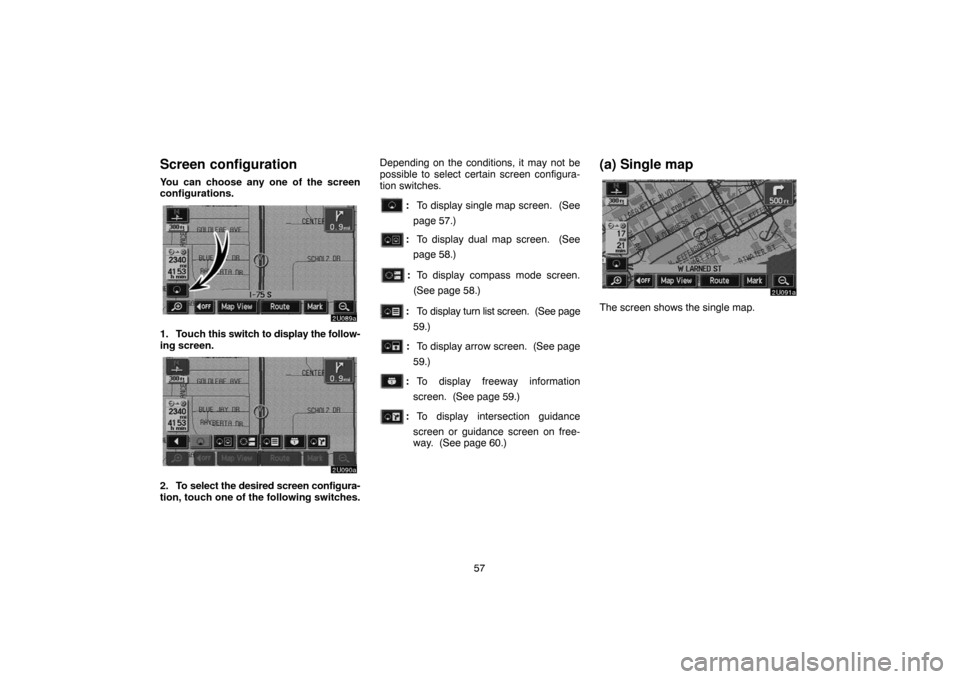

Screen configuration
You can choose any one of the screen
configurations.
2U089a
1. Touch this switch to display the follow-
ing screen.
2U090a
2. To select the desired screen configura-
tion, touch one of the following switches.Depending on the conditions, it may not be
possible to select certain screen configura-
tion switches.
:To display single map screen. (See
page 57.)
:To display dual map screen. (See
page 58.)
:To display compass mode screen.
(See page 58.)
:To display turn list screen. (See page
59.)
:To display arrow screen. (See page
59.)
:To display freeway information
screen. (See page 59.)
:To display intersection guidance
screen or guidance screen on free-
way. (See page 60.)
(a) Single map
2U091a
The screen shows the single map.

58

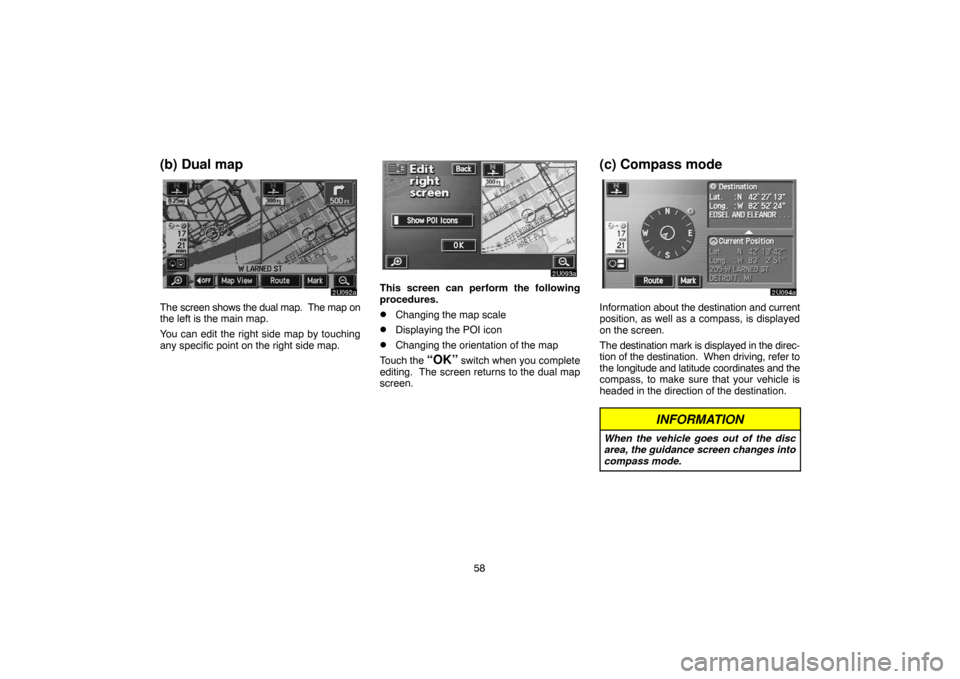

(b) Dual map
2U092a
The screen shows the dual map. The map on
the left is the main map.
You can edit the right side map by touching
any specific point on the right side map.
2U093a
This screen can perform the following
procedures.
Changing the map scale
Displaying the POI icon
Changing the orientation of the map
Touch the
“OK” switch when you complete
editing. The screen returns to the dual map
screen.
(c) Compass mode
2U094a
Information about the destination and current
position, as well as a compass, is displayed
on the screen.
The destination mark is displayed in the direc-
tion of the destination. When driving, refer to
the longitude and latitude coordinates and the
compass, to make sure that your vehicle is
headed in the direction of the destination.
INFORMATION
When the vehicle goes out of the disc
area, the guidance screen changes into
compass mode.

59

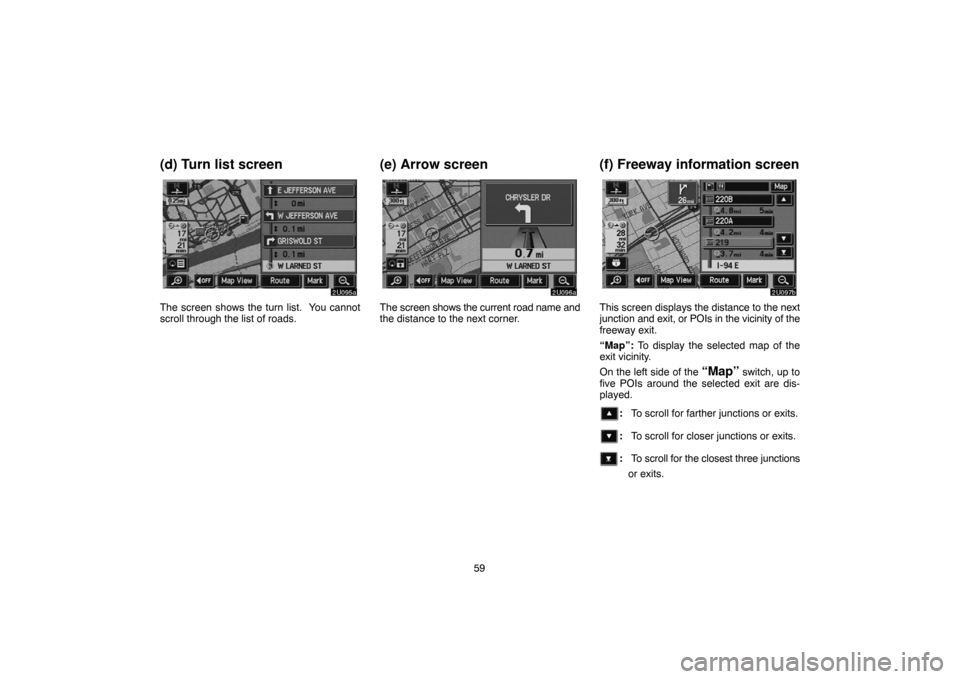

(d) Turn list screen
2U095a
The screen shows the turn list. You cannot
scroll through the list of roads.
(e) Arrow screen
2U096a
The screen shows the current road name and
the distance to the next corner.
(f) Freeway information screen
2U097b
This screen displays the distance to the next
junction and exit, or POIs in the vicinity of the
freeway exit.
“Map”: To display the selected map of the
exit vicinity.
On the left side of the
“Map” switch, up to
five POIs around the selected exit are dis-
played.
:To scroll for farther junctions or exits.
:To scroll for closer junctions or exits.
:To scroll for the closest three junctions
or exits.

61

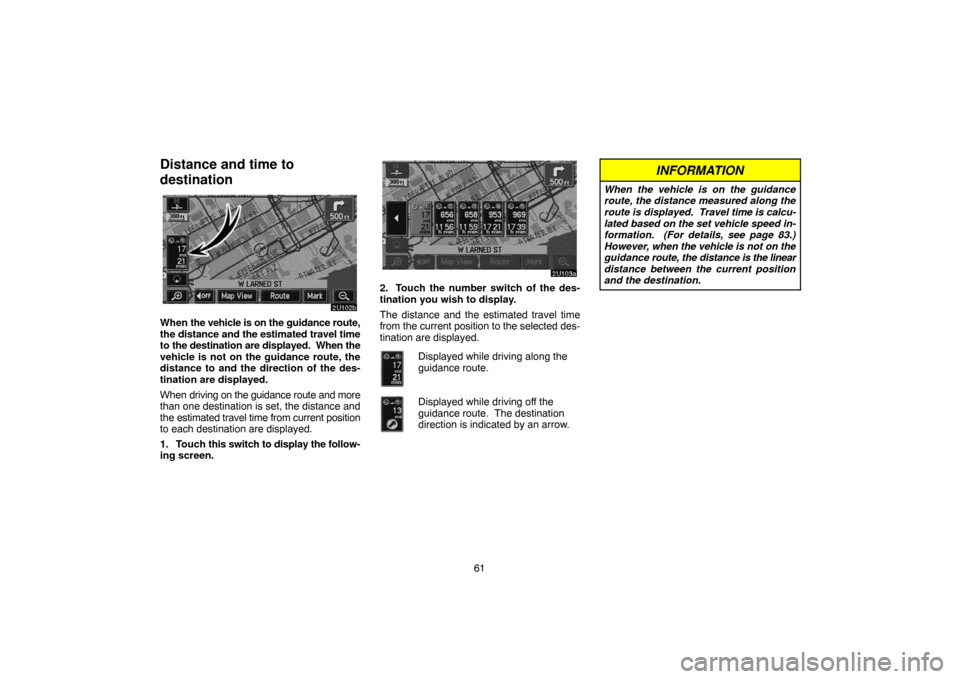

Distance and time to
destination
2U102b
When the vehicle is on the guidance route,
the distance and the estimated travel time
to the destination are displayed. When the
vehicle is not on the guidance route, the
distance to and the direction of the des-
tination are displayed.
When driving on the guidance route and more
than one destination is set, the distance and
the estimated travel time from current position
to each destination are displayed.
1. Touch this switch to display the follow-
ing screen.
2U103a
2. Touch the number switch of the des-
tination you wish to display.
The distance and the estimated travel time
from the current position to the selected des-
tination are displayed.
Displayed while driving along the
guidance route.
Displayed while driving off the
guidance route. The destination
direction is indicated by an arrow.
INFORMATION
When the vehicle is on the guidance
route, the distance measured along the
route is displayed. Travel time is calcu-
lated based on the set vehicle speed in-
formation. (For details, see page 83.)
However, when the vehicle is not on the
guidance route, the distance is the linear
distance between the current position
and the destination.

62

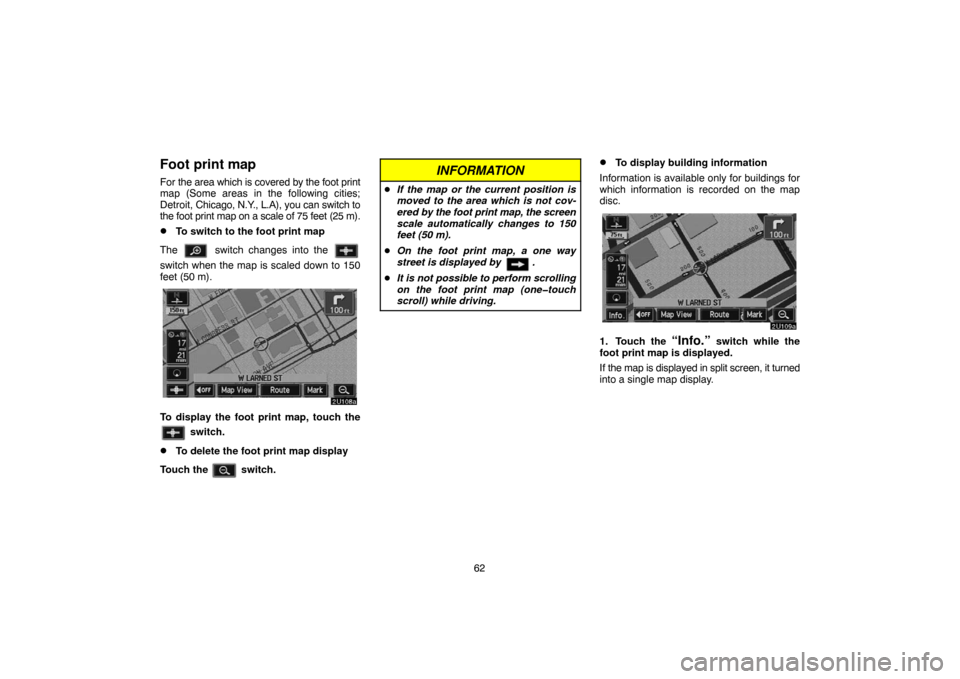

Foot print map
For the area which is covered by the foot print
map (Some areas in the following cities;
Detroit, Chicago, N.Y., L.A), you can switch to
the foot print map on a scale of 75 feet (25 m).
To switch to the foot print map
The
switch changes into the
switch when the map is scaled down to 150
feet (50 m).
2U108a
To display the foot print map, touch the
switch.
To delete the foot print map display
Touch the
switch.
INFORMATION
If the map or the current position is
moved to the area which is not cov-
ered by the foot print map, the screen
scale automatically changes to 150
feet (50 m).
On the foot print map, a one way
street is displayed by .
It is not possible to perform scrolling
on the foot print map (onetouch
scroll) while driving.
To display building information
Information is available only for buildings for
which information is recorded on the map
disc.
2U109a
1. Touch the “Info.” switch while the
foot print map is displayed.
If the map is displayed in split screen, it turned
into a single map display.
