display TOYOTA SEQUOIA 2007 1.G Navigation Manual

77
Area to avoid
Areas you wish to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
Push the
“MENU” button to display the
“Menu” screen and then touch the
“My
Places”
switch to display the following
screen.
3U037b
INFORMATION
If a destination is inputted in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to avoid may be shown.
(a) Registering area to avoid
1. Touch the “Register” switch of the
“Areas to avoid”.
3U038b
2. Enter the location in the same way as
inputting a destination, or display the map
of the area you wish to avoid. (See page
24.)
INFORMATION
Up to 10 locations can be registered as
point/area to avoid. If there are 10 loca-
tions already registered, the message
“Unable to register additional points.
Perform operation again after deleting
unnecessary points.” appears on the
screen.
3U039a
3. Set the cursor in the center of the area
to avoid, and touch the
“Enter” switch.

78
3U040a
4. Touch either or switch to
change the size of the area to avoid.
(b) Editing area to avoid
1. Touch the “Edit” switch of the “Areas
to Avoid” to display the “Edit Area to
Avoid” screen.
3U041a
2. To edit an area to avoid, touch the cor-
responding switch.
3U042a
3. Touch the “Name”, “Location” or
“Area Size” switch on this screen.

79
To change “Name”
3U043a
Touch alphabet or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
The avoid area name can be set to be dis-
played or not on the map. To show the
name, touch the
“On” switch. Not to
show it, touch the
“Off” switch.
To change “Location”
3U044a
Set the cursor to the desired location, then
touch the
“Enter” switch. The previous
screen will be displayed.
To change “Area size”
3U045a
Touch either or switch to change
the size of area you want to avoid, and touch
the
“OK” switch. The previous screen will
be displayed.

80
(c) Deleting area to avoid
1. Touch the “Delete” switch of the
“Areas to Avoid” to display the “Delete
Area to Avoid” screen.
3U046a
2. Touch the area you wish to delete from
the list.
“Delete all”: To delete all registered areas to
avoid in the system.
3. To delete, touch the
“Yes” switch. To
cancel the deletion, touch the
“No”
switch.
Setup
You can set the items shown on the “Set-
up” screen.
1. Push the
“MENU” button.
3U047c
2. To display the “Setup” menu screen,
touch the
“Setup” switch. Touch the
items you wish to set.
3U048b
3. Touch the “OK” switch on the screen
and then the previous screen will be dis-
played.
“Default”: This switch initializes all of the set-
tings.
“Calibration”: You can adjust the current ve-
hicle position mark manually.
“Distance”: You can select “km” or “miles” as
the distance unit.
“Estimated Travel Time”: You can set the
system to display the travel time to the des-
tination on the route guidance screen.
“Auto Reroute”: You can set the system to
automatically search for a new route to the
destination.
“Adjust Time Zone”: You can select your de-
sired time zone.
“Auto Voice Guidance”: You can set the au-
tomatic voice guidance.

81 “Voice Guidance in All Modes”: You can set
the voice guidance in all modes.
“Notify Traffic Restriction”: You can select
notification of seasonal restrictions.
“Intersection Guidance”: You can select
ON or OFF to display intersection guidance.
“Guidance Screen on Freeway”: You can
select ON or OFF to display the guidance
screen on the freeway.
“Street Name on Scroll Map”: You can se-
lect ON or OFF to display the street name on
the scroll map.
“Display Building Shape”: You can select
ON or OFF to display the building shape on
the map screen.
“
Function”: You can set to display or
not to display each switch and current street
name on the map screen.
“Show POI Icons”: You can choose 6 icons
displayed on “Show POI Icons” top screen.
“Previous Point”: You can delete the pre-
vious destination.
“Map Color (Day)”: You can select the de-
sired map color.
“Map Color (Night)”: You can select the de-
sired map color.
“Screen Animation”: You can set some
screen displays to be animated.
Current position calibration
When driving, the current vehicle position
mark will be automatically corrected by
GPS signals. If GPS reception is poor due
to location, you can manually adjust the
current vehicle position mark.
3U049c
1. Push the “MENU” button to display
the “Menu” screen, and then touch the
“Setup” switch.
3U050b
2. Touch the “Adjust” switch of
“Calibration”.
3U051a
3. Touch the “Position/Direction”
switch.
INFORMATION
For additional information on the accu-
racy of a current vehicle position, see
“Limitations of the navigation system”
on page 10.

82
Position/direction calibration
3U052a
1. Touch the scroll arrows to move the
cursor to your desired location.
Touch the
“Enter” switch.
3U053a
2. Touch either the or switch to ad-
just the direction of the current vehicle
position mark.
Touch the
“Enter” switch and the map
screen will be displayed.
Tire change calibration
The tire change calibration function will be
used when replacing the tires. This func-
tion will adjust the miscalculation caused
by the circumference difference between
the old tires and new ones. If this proce-
dure is not performed when tires are re-
placed, the current vehicle position mark
may be incorrectly displayed.
To perform a distance calibration procedure,
touch the
“Tire Change” switch on the
“Calibration” screen.
The message appears and the quick distance
calibration is automatically started. A few
seconds later, a map screen will be displayed.

84
3U057c
2. Touch the “Setup” switch.
3U058b
3. Touch the “Set Speed” switch of the
“Estimated Travel Time”.
3U059a
4. Touch or to set the average ve-
hicle speeds for driving on a Freeway,
Main street, and Residential.
To set the default speeds, touch the
“Default” switch.
5. When you finish setting the desired
speeds, touch the
“OK” switch.
INFORMATION
The displayed time to the destination
is the approximate driving time that is
calculated based on the speeds you
selected and your actual position
along the guidance route.
The time shown on the screen may
vary greatly depending on your prog-
ress along the route, which may be af-
fected by road conditions such as
traffic jams, construction work.
It is possible to display up to 99 hours
59 minutes.

86
3U063b
3. Touch the “Change” switch. The
“Adjust Time Zone” screen appears on the
display.
3U064b
4. Touch the desired time zone.
The selected switch is highlighted in green.
5. Touch the
“OK” switch on the screen
and the “Setup” screen will be displayed.
Auto voice guidance
When the “Auto Voice Guidance” feature
is turned on, the voice guidance can be
heard automatically.
When the “Auto Voice Guidance” feature
is turned off, the voice guidance can be
heard only if you push the
“MAP/
VOICE”
button.
To turn the “Auto Voice Guidance” mode
on:
1. Push the
“MENU” button.
3U065c
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

87
3U066a
3. Touch the “On” switch of “Auto Voice
Guidance” and touch the
“OK” switch.
Voice guidance in all modes
When the “Voice Guidance in All Modes”
feature is turned on, you can hear the
voice guidance in all modes.
When the “Voice Guidance in All Modes”
feature is turned off, voice guidance can-
not be heard when using the audio sys-
tem.
To turn the “Voice Guidance in All Modes”
on:
1. Push the
“MENU” button.
3U067c
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.

88

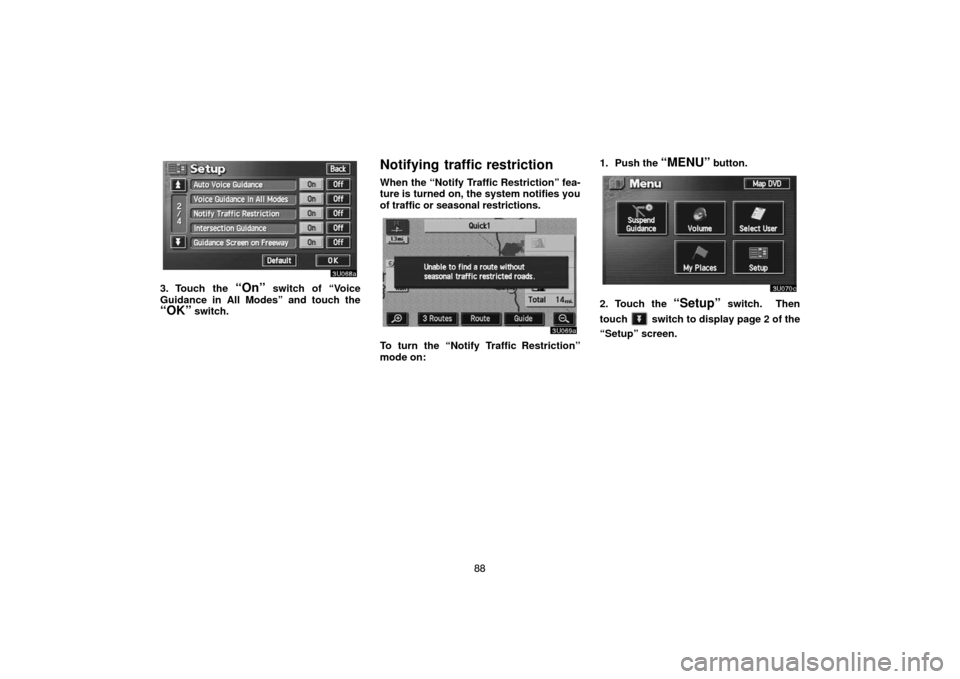

3U068a
3. Touch the “On” switch of “Voice
Guidance in All Modes” and touch the
“OK” switch.
Notifying traffic restriction
When the “Notify Traffic Restriction” fea-
ture is turned on, the system notifies you
of traffic or seasonal restrictions.
3U069a
To turn the “Notify Traffic Restriction”
mode on:1. Push the
“MENU” button.
3U070c
2. Touch the “Setup” switch. Then
touch
switch to display page 2 of the
“Setup” screen.
