display TOYOTA SEQUOIA 2007 1.G Navigation Manual

103
4U007a_toyota

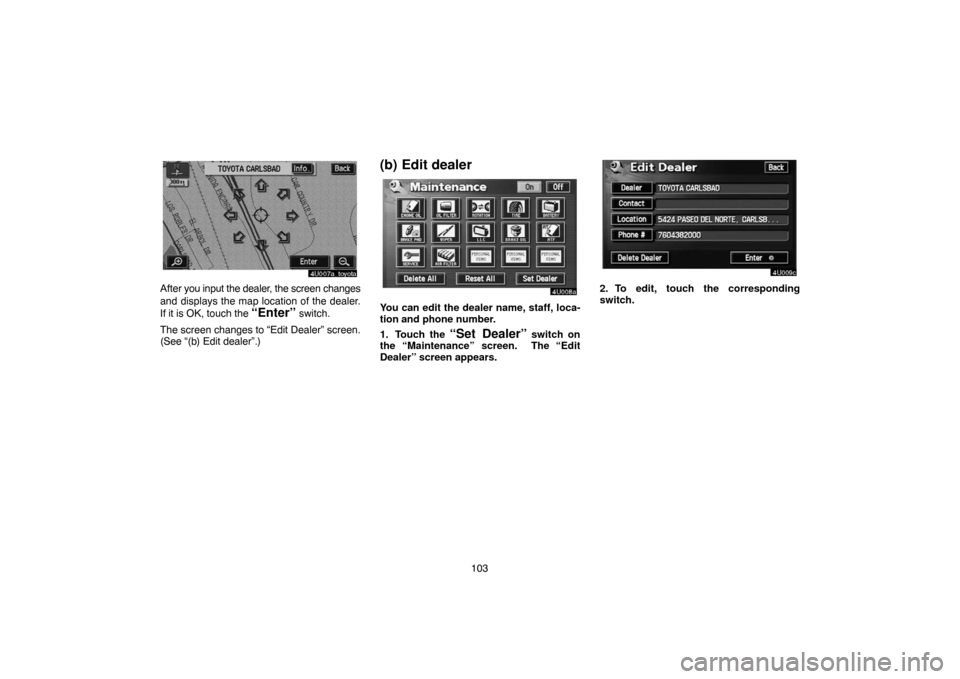

After you input the dealer, the screen changes
and displays the map location of the dealer.
If it is OK, touch the
“Enter” switch.
The screen changes to “Edit Dealer” screen.
(See “(b) Edit dealer”.)
(b) Edit dealer
4U008a
You can edit the dealer name, staff, loca-
tion and phone number.
1. Touch the
“Set Dealer” switch on
the “Maintenance” screen. The “Edit
Dealer” screen appears.
4U009c
2. To edit, touch the corresponding
switch.

104
To edit “Dealer” or “Contact”
4U010a
To input the name, touch the alphabet, nu-
meral and/or umlaut keys. You can input
up to 24 letters.
After inputting, touch the
“OK” switch at the
bottom right of the screen. The previous
screen will be displayed.
To edit “Location”
4U011a
Set the cursor to the desired point, and
touch the
“Enter” switch on the screen.
To edit “Phone #” (telephone number)
RS01017
Touch numeral keys.
After inputting, touch the
“OK” switch. The
previous screen will be displayed.

105
(c) Delete dealer
4U013c
1. Touch the “Delete Dealer” switch
on the screen.
2. A message will appear on the screen.
To delete, touch the
“Yes” switch. To
cancel the deletion, touch the
“No” or
“Back” switch.
(d) Set as destination
4U014c
Touch the “Enter ” switch on the “Set
Dealer” screen. The screen changes and
displays the map location of the registered
dealer and the “Route Preference”. (See
“ — Entering destination” on page 42.)
Calendar with memo
4U015a
This system informs you of a memo entry.
At the specified date, the memo informa-
tion will be displayed when the navigation
system is in operation. The memo infor-
mation screen will appear every time the
system is turned on. To disable this
screen, touch the
“Do not display this
message again.”
switch.

106
4U016b

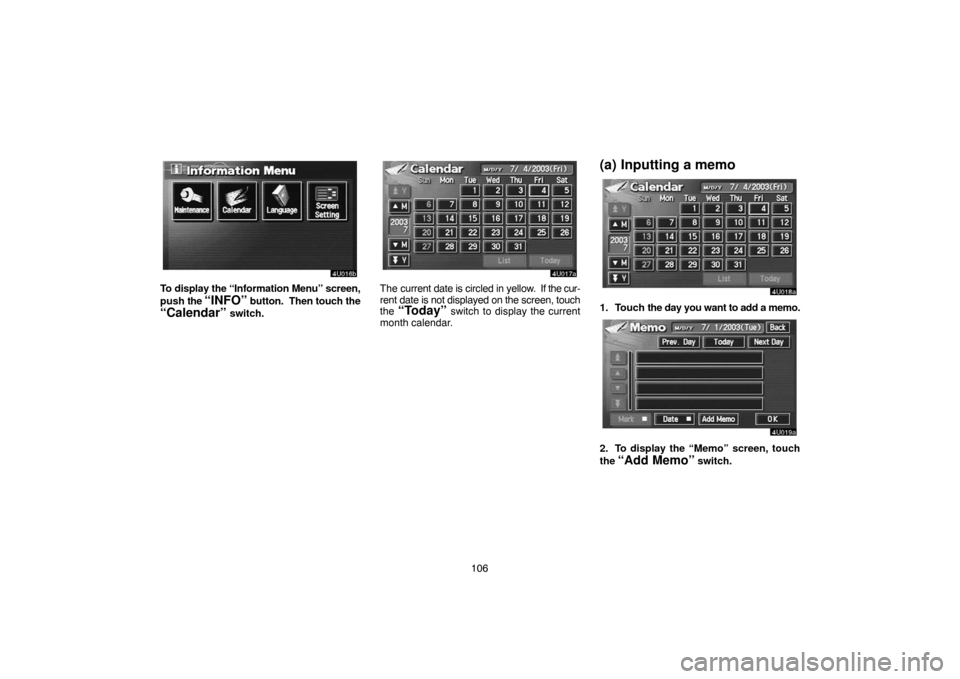

To display the “Information Menu” screen,
push the
“INFO” button. Then touch the
“Calendar” switch.
4U017a
The current date is circled in yellow. If the cur-
rent date is not displayed on the screen, touch
the
“Today” switch to display the current
month calendar.
(a) Inputting a memo
4U018a
1. Touch the day you want to add a memo.
4U019a
2. To display the “Memo” screen, touch
the
“Add Memo” switch.

109
4U027a

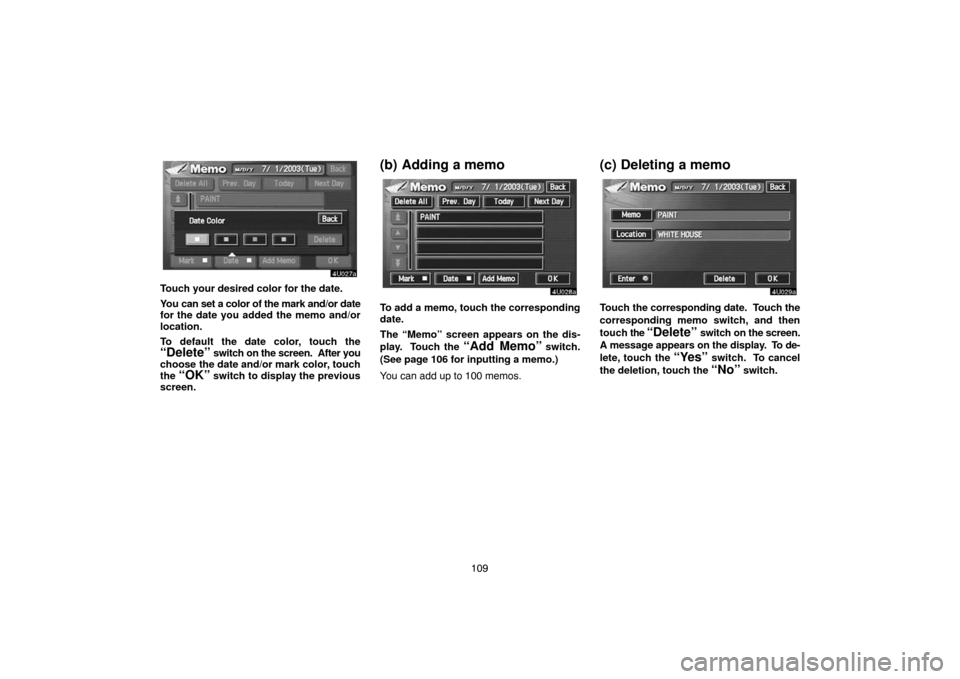

Touch your desired color for the date.
You can set a color of the mark and/or date
for the date you added the memo and/or
location.
To default the date color, touch the
“Delete” switch on the screen. After you
choose the date and/or mark color, touch
the
“OK” switch to display the previous
screen.
(b) Adding a memo
4U028a
To add a memo, touch the corresponding
date.
The “Memo” screen appears on the dis-
play. Touch the
“Add Memo” switch.
(See page 106 for inputting a memo.)
You can add up to 100 memos.
(c) Deleting a memo
4U029a
Touch the corresponding date. Touch the
corresponding memo switch, and then
touch the
“Delete” switch on the screen.
A message appears on the display. To de-
lete, touch the
“Yes” switch. To cancel
the deletion, touch the
“No” switch.

111
4U033c
2. Touch the desired search condition to
list the memos. The “Memo list” is dis-
played on the screen.
4U034a
To display the memos listed in a desired
period, touch the
“Period” switch.
Touch the number keys.
After setting the period, touch the
“OK”switch. The “Memo list” screen will be dis-
played.
You can set a period from January 1, 2003,
through December 31, 2022, for searching.
4U035a

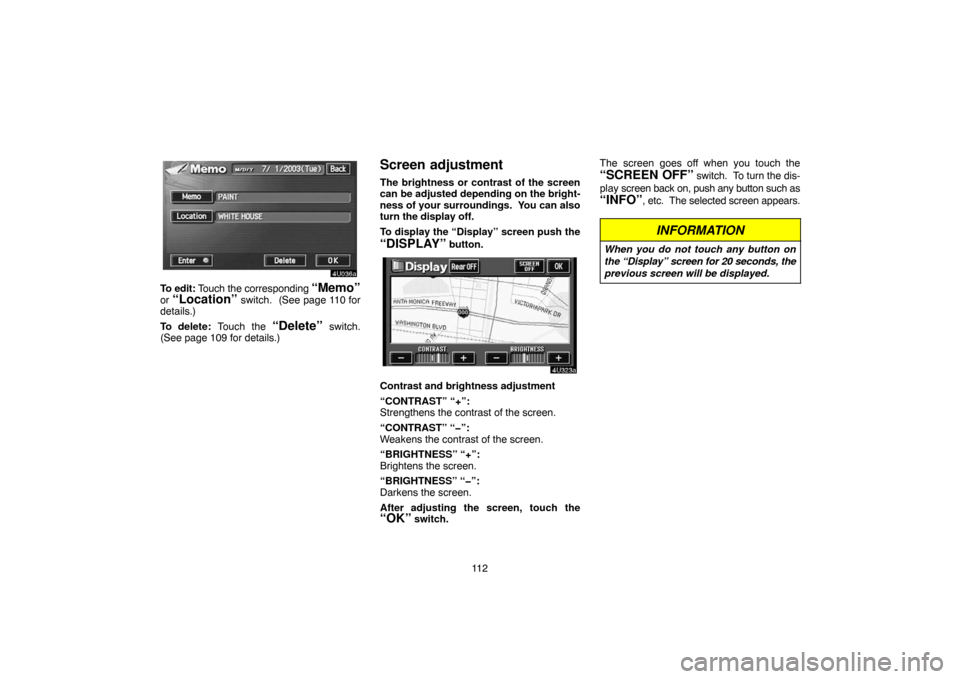

To delete and/or edit the memo, touch the
desired memo switch.
To delete all memos, touch the
“Delete
All”
switch. A message appears on the
display. To delete, touch the “Yes”
switch. To cancel the deletion, touch the“No” switch.

11 2
4U036a
To edit: Touch the corresponding “Memo”
or “Location” switch. (See page 110 for
details.)
To delete: Touch the
“Delete” switch.
(See page 109 for details.)
Screen adjustment
The brightness or contrast of the screen
can be adjusted depending on the bright-
ness of your surroundings. You can also
turn the display off.
To display the “Display” screen push the
“DISPLAY” button.
4U323a
Contrast and brightness adjustment
“CONTRAST” “+”:
Strengthens the contrast of the screen.
“CONTRAST” “”:
Weakens the contrast of the screen.
“BRIGHTNESS” “+”:
Brightens the screen.
“BRIGHTNESS” “”:
Darkens the screen.
After adjusting the screen, touch the
“OK” switch.The screen goes off when you touch the
“SCREEN OFF” switch. To turn the dis-
play screen back on, push any button such as
“INFO”, etc. The selected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds, the
previous screen will be displayed.

11 3
4U319a
Color and tone adjustment (with rear seat
entertainment system)
You can adjust the color and the tone while
the DVD video, DVD audio and video CD are
being played.
“COLOR” “RED”:
Strengthens the red color of the screen.
“COLOR” “GREEN”:
Strengthens the green color of the screen.
“TONE” “+”: Strengthens the tone of the
screen.
“TONE” “”: Weakens the tone of the
screen.
After adjusting the screen, touch the
“OK” switch.
The rear screen turns off when you touch
“Rear OFF”.The screen turns off when you touch
“SCREEN OFF”. To turn the screen back
on, push any button such as “INFO”, etc.
The selected screen appears.
INFORMATION
When you do not touch any button on
the “Display” screen for 20 seconds, the
previous screen will be displayed.
4U302a
Depending on the position of the headlight
switch, the screen changes to either day
mode or night mode.
To display the screen in the day mode even
with the headlight switch on, touch the
“DAY
MODE”
switch on the adjustment screen for
brightness and contrast control.
If the screen is set in the day mode with the
headlight switch turned on, this condition is
memorized in the system even with the en-
gine turned off.

11 4
Screen setting
1. Push the “INFO” button to display the
“Information Menu” screen.
4U303a
2. Touch the “Screen Setting” switch.
(a) Automatic transition
You can select a function that enables au-
tomatic return to the navigation screen
from the audio screen.
4U304a
Select “ON” or “OFF” and then touch
the
“OK” switch.
“ON”:The navigation screen automatically
returns from the audio screen 20
seconds after the end of audio op-
eration.
“OFF”:The audio screen remains on.
(b) Background color
You can select a background color.
4U305a
Select the desired background color and
then touch the
“OK” switch.

11 6

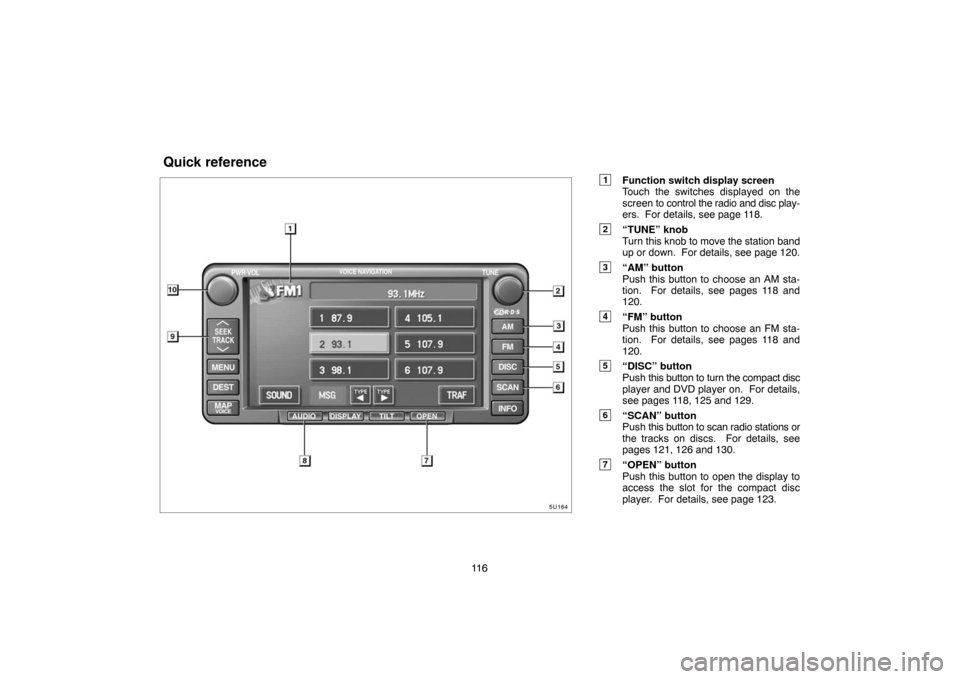

1Function switch display screen
Touch the switches displayed on the
screen to control the radio and disc play-
ers. For details, see page 118.
2“TUNE” knob
Turn this knob to move the station band
up or down. For details, see page 120.
3“AM” button
Push this button to choose an AM sta-
tion. For details, see pages 118 and
120.
4“FM” button
Push this button to choose an FM sta-
tion. For details, see pages 118 and
120.
5“DISC” button
Push this button to turn the compact disc
player and DVD player on. For details,
see pages 118, 125 and 129.
6“SCAN” button
Push this button to scan radio stations or
the tracks on discs. For details, see
pages 121, 126 and 130.
7“OPEN” button
Push this button to open the display to
access the slot for the compact disc
player. For details, see page 123.
Quick reference
5U164
