TOYOTA SEQUOIA 2007 1.G Navigation Manual

68

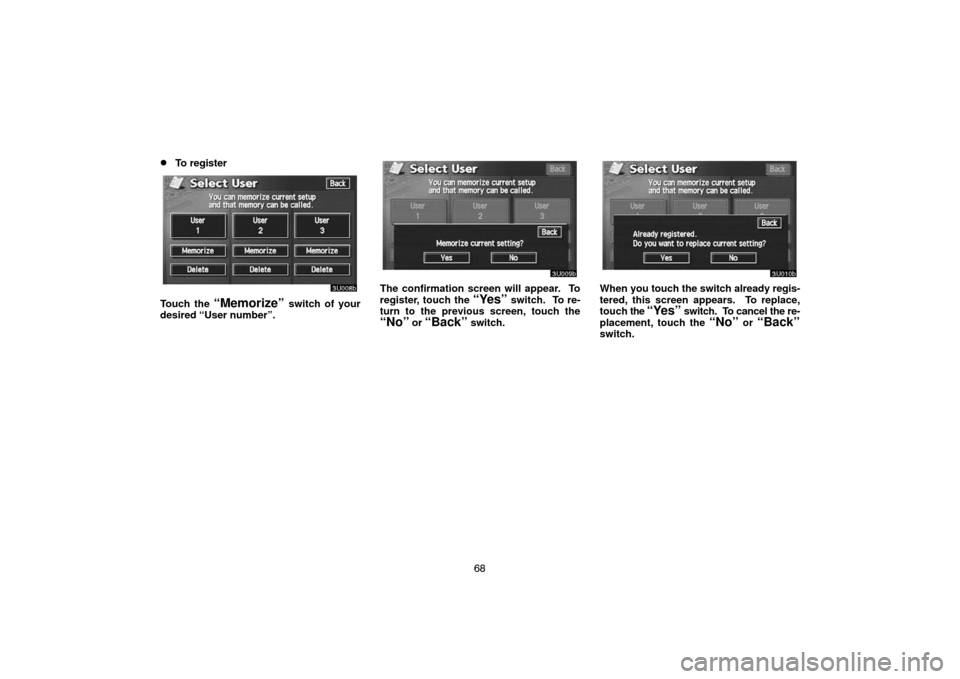

To register
3U008b
Touch the “Memorize” switch of your
desired “User number”.
3U009b
The confirmation screen will appear. To
register, touch the
“Yes” switch. To re-
turn to the previous screen, touch the
“No” or “Back” switch.
3U010b
When you touch the switch already regis-
tered, this screen appears. To replace,
touch the
“Yes” switch. To cancel the re-
placement, touch the
“No” or “Back”switch.

69

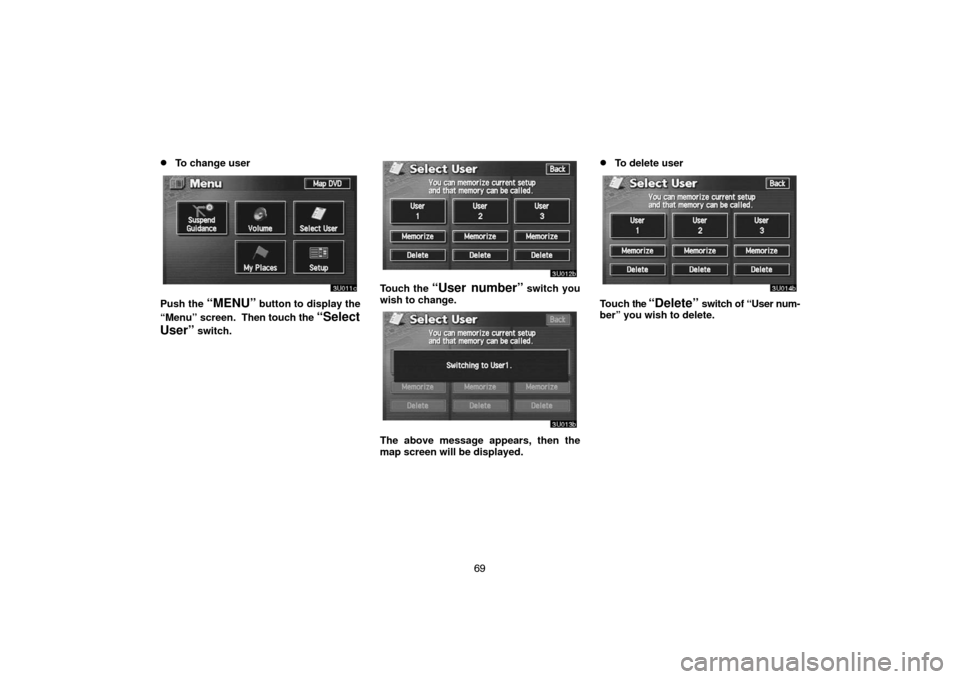

To change user
3U011c
Push the “MENU” button to display the
“Menu” screen. Then touch the
“Select
User”
switch.
3U012b
Touch the “User number” switch you
wish to change.
3U013b
The above message appears, then the
map screen will be displayed.

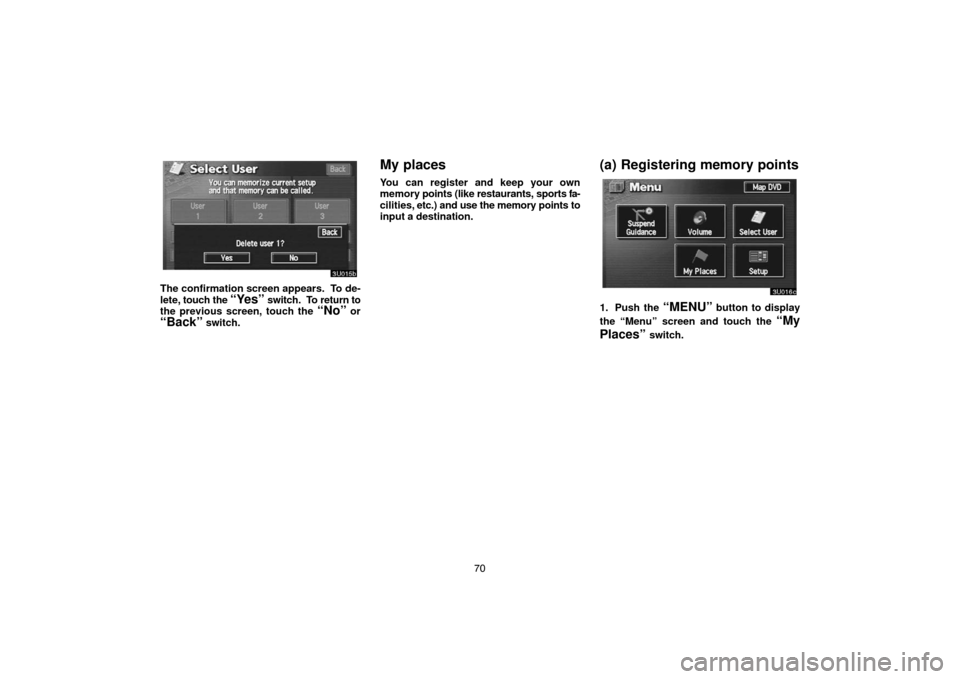

To delete user
3U014b
Touch the “Delete” switch of “User num-
ber” you wish to delete.

70
3U015b
The confirmation screen appears. To de-
lete, touch the
“Yes” switch. To return to
the previous screen, touch the “No” or
“Back” switch.
My places
You can register and keep your own
memory points (like restaurants, sports fa-
cilities, etc.) and use the memory points to
input a destination.
(a) Registering memory points
3U016c
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.

71

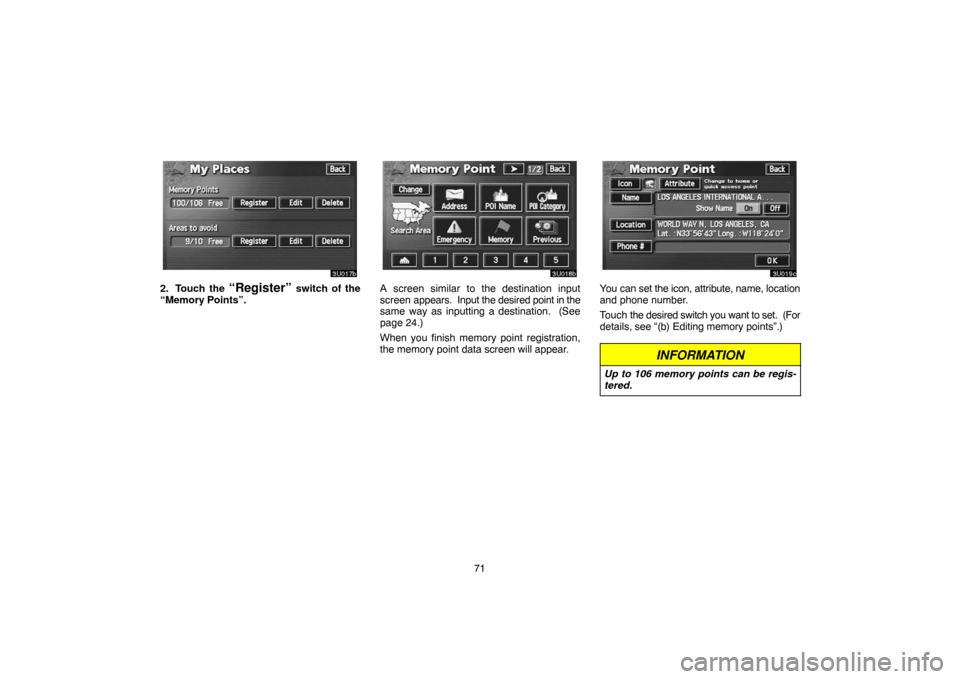

3U017b
2. Touch the “Register” switch of the
“Memory Points”.
3U018b
A screen similar to the destination input
screen appears. Input the desired point in the
same way as inputting a destination. (See
page 24.)
When you finish memory point registration,
the memory point data screen will appear.
3U019c
You can set the icon, attribute, name, location
and phone number.
Touch the desired switch you want to set. (For
details, see “(b) Editing memory points”.)
INFORMATION
Up to 106 memory points can be regis-
tered.

72
(b) Editing memory points
The icon, attribute, name, location and/or
telephone number of a registered memory
point can be edited.

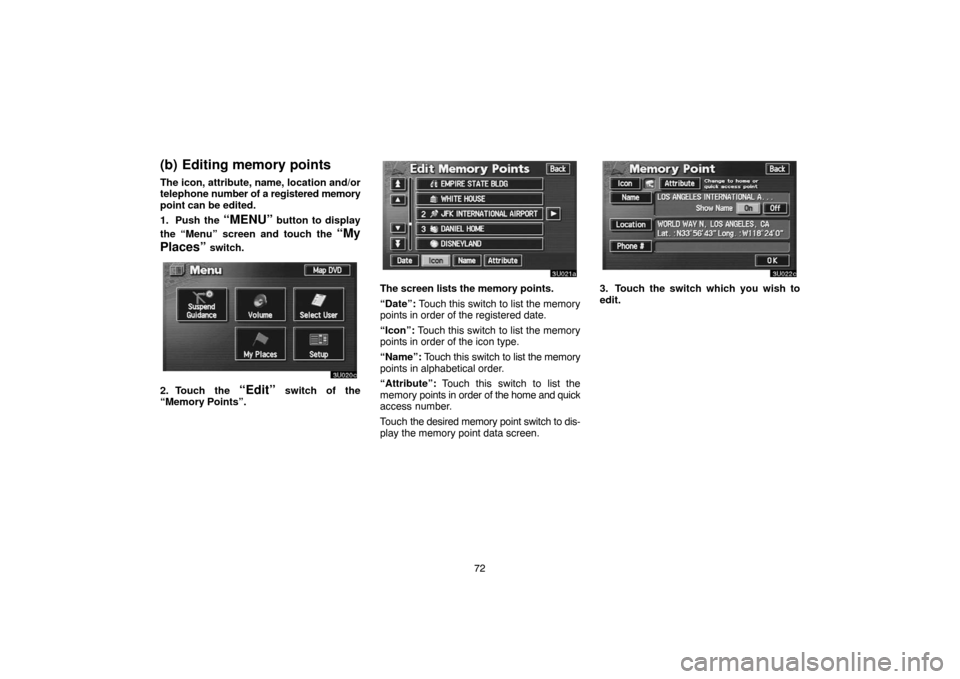

1. Push the
“MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
3U020c
2. Touch the “Edit” switch of the
“Memory Points”.
3U021a
The screen lists the memory points.
“Date”: Touch this switch to list the memory
points in order of the registered date.
“Icon”: Touch this switch to list the memory
points in order of the icon type.
“Name”: Touch this switch to list the memory
points in alphabetical order.
“Attribute”: Touch this switch to list the
memory points in order of the home and quick
access number.
Touch the desired memory point switch to dis-
play the memory point data screen.
3U022c
3. Touch the switch which you wish to
edit.

73

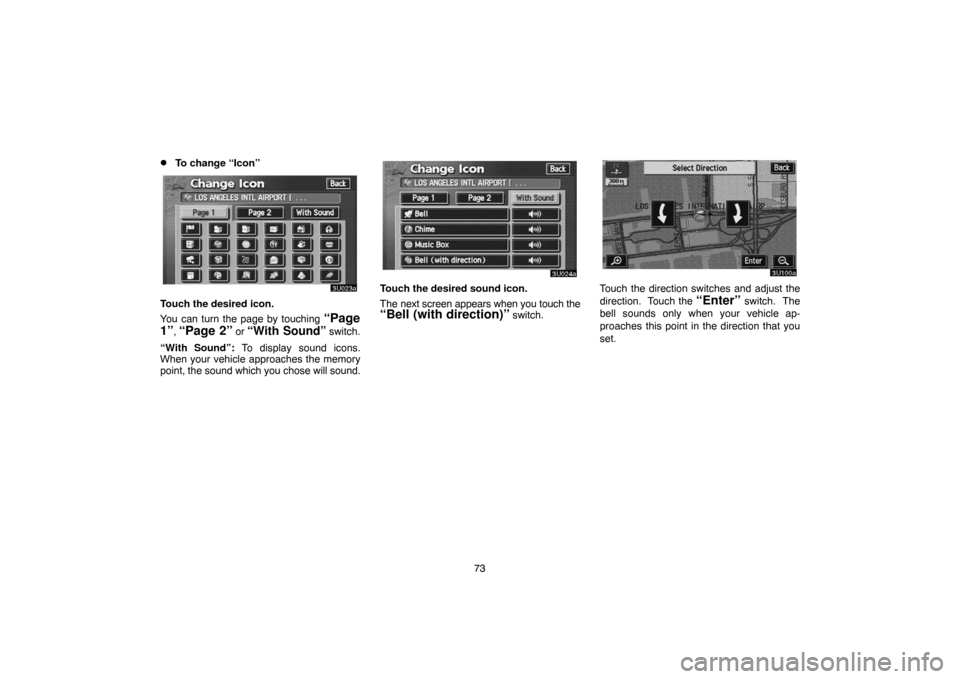

To change “Icon”
3U023a
Touch the desired icon.
You can turn the page by touching
“Page
1”
, “Page 2” or “With Sound” switch.
“With Sound”: To display sound icons.
When your vehicle approaches the memory
point, the sound which you chose will sound.
3U024a
Touch the desired sound icon.
The next screen appears when you touch the
“Bell (with direction)” switch.
3U100a
Touch the direction switches and adjust the
direction. Touch the
“Enter” switch. The
bell sounds only when your vehicle ap-
proaches this point in the direction that you
set.

74

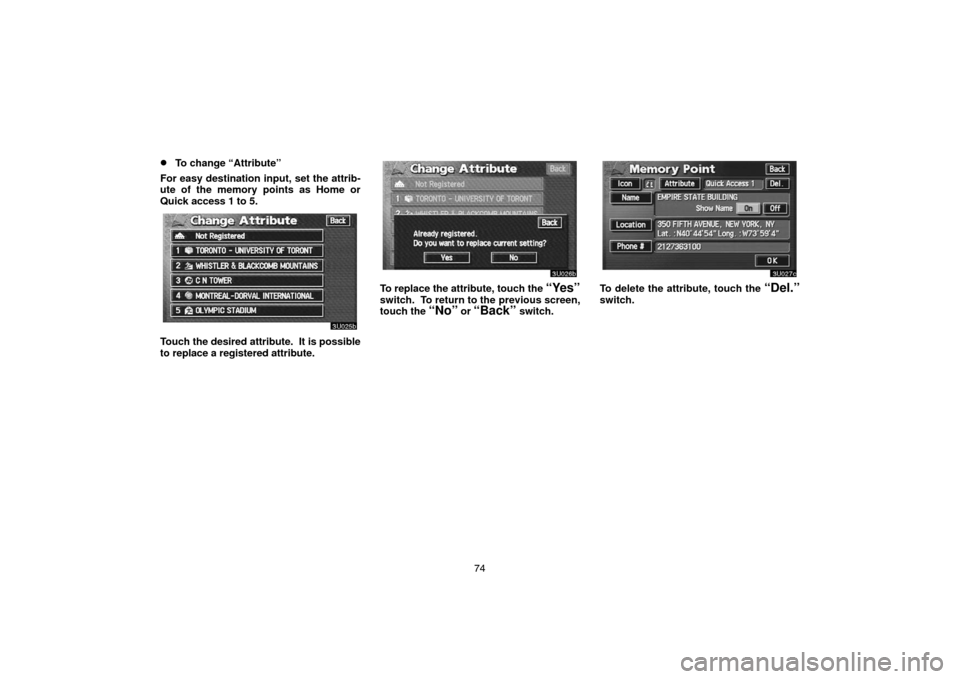

To change “Attribute”
For easy destination input, set the attrib-
ute of the memory points as Home or
Quick access 1 to 5.
3U025b
Touch the desired attribute. It is possible
to replace a registered attribute.
3U026b
To replace the attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
3U027c
To delete the attribute, touch the “Del.”
switch.

75
3U028c
To delete an attribute, touch the “Yes”
switch. To return to the previous screen,
touch the “No” or “Back” switch.
To change “Name”
3U029a
Touch the alphabet and/or numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
“Show Name”
You can set the name of a memory point to
be displayed or not on the map.
To show the name, touch the
“On”
switch. Not to show it, touch the “Off”switch.
To change “Location”
3U030a
Touch the eight direction switch to move
the cursor to the desired point on the
map.
Touch the
“Enter” switch and the previous
screen will be displayed.

76
To change “Phone #” (telephone num-
ber)
3U031a
Touch numeral keys.
When the entry has been completed, touch
the
“OK” switch on the screen.
The previous screen will be displayed.
(c) Deleting memory points
1. Push the “MENU” button to display
the “Menu” screen and touch the
“My
Places”
switch.
3U032b
2. Touch the “Delete” switch of the
“Memory Points”.
3U033a
3. Touch the corresponding switch. To
delete all memory points, touch the
“Delete All” switch.
For efficient memory point search, memory
points can be sorted by the
“Date”,
“Icon”, “Name” or “Attribute” switch.
To delete, touch the
“Yes” switch. To cancel
the deletion, touch the “No” switch.

77
Area to avoid
Areas you wish to avoid because of traffic
jams, construction work or other reasons
can be registered as areas to avoid.
Push the
“MENU” button to display the
“Menu” screen and then touch the
“My
Places”
switch to display the following
screen.
3U037b
INFORMATION
If a destination is inputted in the area to
avoid or the route calculation cannot be
made without running through the area
to avoid, a route passing through the
area to avoid may be shown.
(a) Registering area to avoid
1. Touch the “Register” switch of the
“Areas to avoid”.
3U038b
2. Enter the location in the same way as
inputting a destination, or display the map
of the area you wish to avoid. (See page
24.)
INFORMATION
Up to 10 locations can be registered as
point/area to avoid. If there are 10 loca-
tions already registered, the message
“Unable to register additional points.
Perform operation again after deleting
unnecessary points.” appears on the
screen.
3U039a
3. Set the cursor in the center of the area
to avoid, and touch the
“Enter” switch.
