TOYOTA SEQUOIA 2007 1.G Navigation Manual

38
— Destination input by
“Previous”
Touch the “Previous” switch on the
“Destination” screen.
2U037b
The previous starting point and up to 99 pre-
viously set destinations are displayed on the
screen.
Touch the switch of the desired
destination. The screen changes and
displays the map location of the selected
destination and the route preference.
(See “ — Entering destination” on page
42.)
“Date”: To list the previous destinations in or-
der of registered date.
“Name”: To list the previous destinations in
alphabetical order.
INFORMATION
You can delete the list of previous des-
tinations while your vehicle is stopped,
if you no longer need them. (See page
95.)
— Destination input by “Map”
Touch the “Map” switch on the
“Destination” screen.
2U038a
The screen changes and displays the map
location that was previously displayed
just before the destination input operation
and the route preference. (See “ —
Entering destination” on page 42.)
INFORMATION
Guidance starts if you touch the“Enter” switch even while driving.
However, the cursor cannot be moved.

39

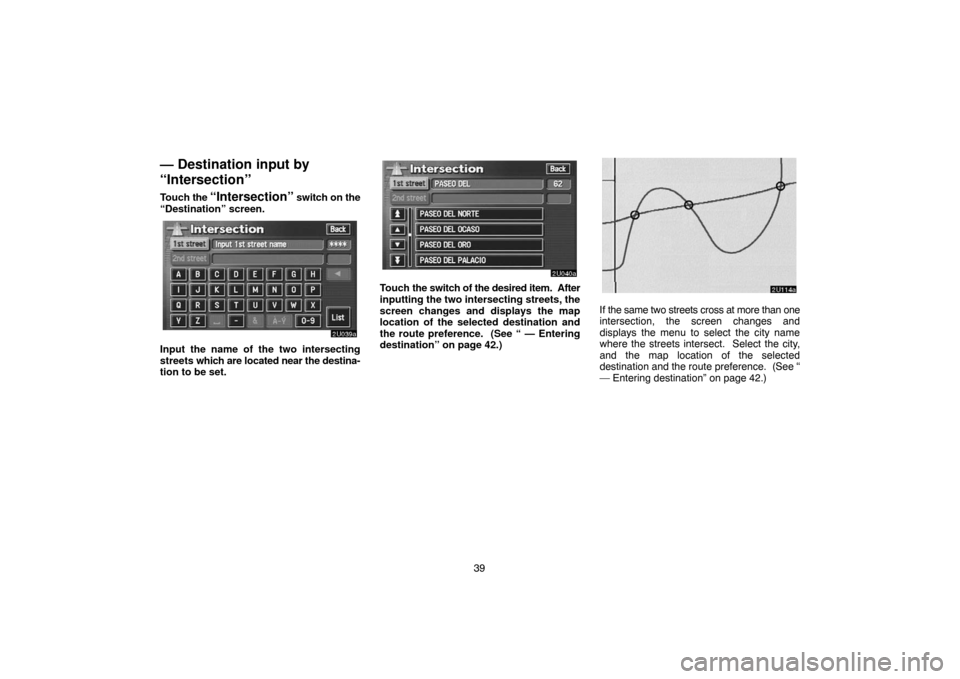

— Destination input by
“Intersection”
Touch the “Intersection” switch on the
“Destination” screen.
2U039a
Input the name of the two intersecting
streets which are located near the destina-
tion to be set.
2U040a
Touch the switch of the desired item. After
inputting the two intersecting streets, the
screen changes and displays the map
location of the selected destination and
the route preference. (See “ — Entering
destination” on page 42.)
2U114a
If the same two streets cross at more than one
intersection, the screen changes and
displays the menu to select the city name
where the streets intersect. Select the city,
and the map location of the selected
destination and the route preference. (See “
— Entering destination” on page 42.)

40

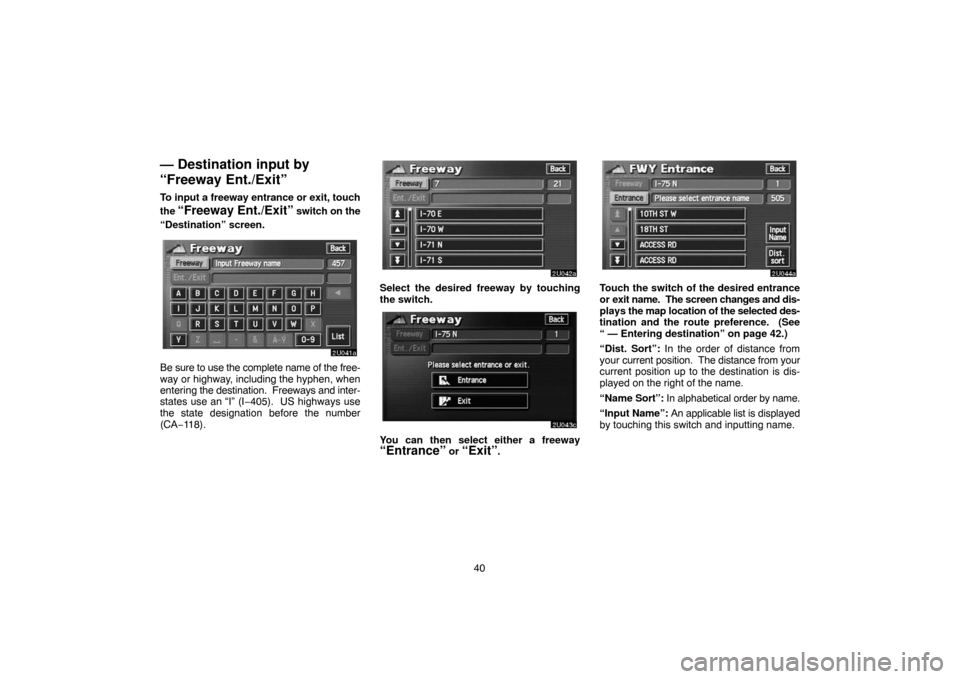

— Destination input by
“Freeway Ent./Exit”
To input a freeway entrance or exit, touch
the
“Freeway Ent./Exit” switch on the
“Destination” screen.
2U041a
Be sure to use the complete name of the free-
way or highway, including the hyphen, when
entering the destination. Freeways and inter-
states use an “I” (I−405). US highways use
the state designation before the number
(CA−118).
2U042a
Select the desired freeway by touching
the switch.
2U043c
You can then select either a freeway“Entrance” or “Exit”.
2U044a
Touch the switch of the desired entrance
or exit name. The screen changes and dis-
plays the map location of the selected des-
tination and the route preference. (See
“ — Entering destination” on page 42.)
“Dist. Sort”: In the order of distance from
your current position. The distance from your
current position up to the destination is dis-
played on the right of the name.
“Name Sort”: In alphabetical order by name.
“Input Name”: An applicable list is displayed
by touching this switch and inputting name.

41

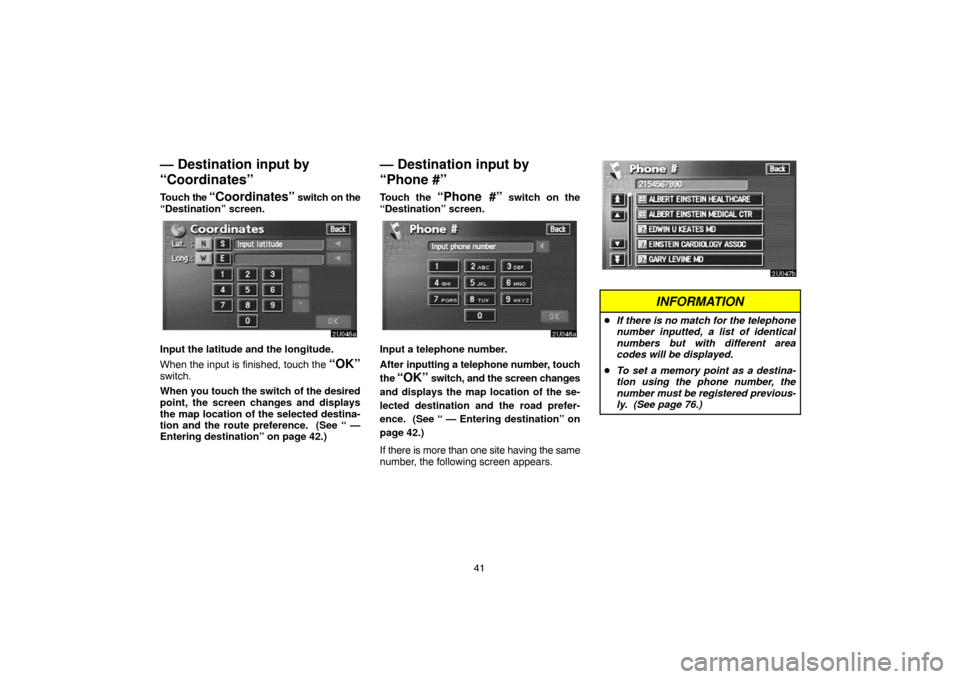

— Destination input by
“Coordinates”
Touch the “Coordinates” switch on the
“Destination” screen.
2U045a
Input the latitude and the longitude.
When the input is finished, touch the
“OK”switch.
When you touch the switch of the desired
point, the screen changes and displays
the map location of the selected destina-
tion and the route preference. (See “ —
Entering destination” on page 42.)
— Destination input by
“Phone #”
Touch the “Phone #” switch on the
“Destination” screen.
2U046a
Input a telephone number.
After inputting a telephone number, touch
the
“OK” switch, and the screen changes
and displays the map location of the se-
lected destination and the road prefer-
ence. (See “ — Entering destination” on
page 42.)
If there is more than one site having the same
number, the following screen appears.
2U047b
INFORMATION
If there is no match for the telephone
number inputted, a list of identical
numbers but with different area
codes will be displayed.
To set a memory point as a destina-
tion using the phone number, the
number must be registered previous-
ly. (See page 76.)

42
Starting route guidance —
— Entering destination
After you input the destination, the screen
changes and displays the map location of
the selected destination and the route
preference.
2U048b
SCREEN A
1. When you touch an arrow facing the
desired point, the map scrolls in that
direction. When you release your finger,
scrolling stops.
2. To set the destination and display
SCREEN B, touch the
“Enter” switch.
When the destination is already set, the
“Add to ” switch and the “Replace
” switch are displayed.
“Add to
”: To add a destination.“Replace
”: To delete the existing destina-
tions and set a new one.
“Change”: To change the route preference.
(See page 43.)
“Info.”: If this switch is displayed on the top
of the screen, touch the switch to see name,
address, and phone number, etc.
2U049a
SCREEN B
3. To start guidance, touch the
“Guide”switch.
“3 Routes”: To select the desired route from
three possible routes. (See page 43.)
“Route”: To change the route. (See pages
46 and 48.)
INFORMATION
Guidance can be suspended or re-
sumed. (See page 66.)
If you keep touching the
“Guide”switch until a beep sounds, Demo
mode will start.

43
To change the route before starting
guidance

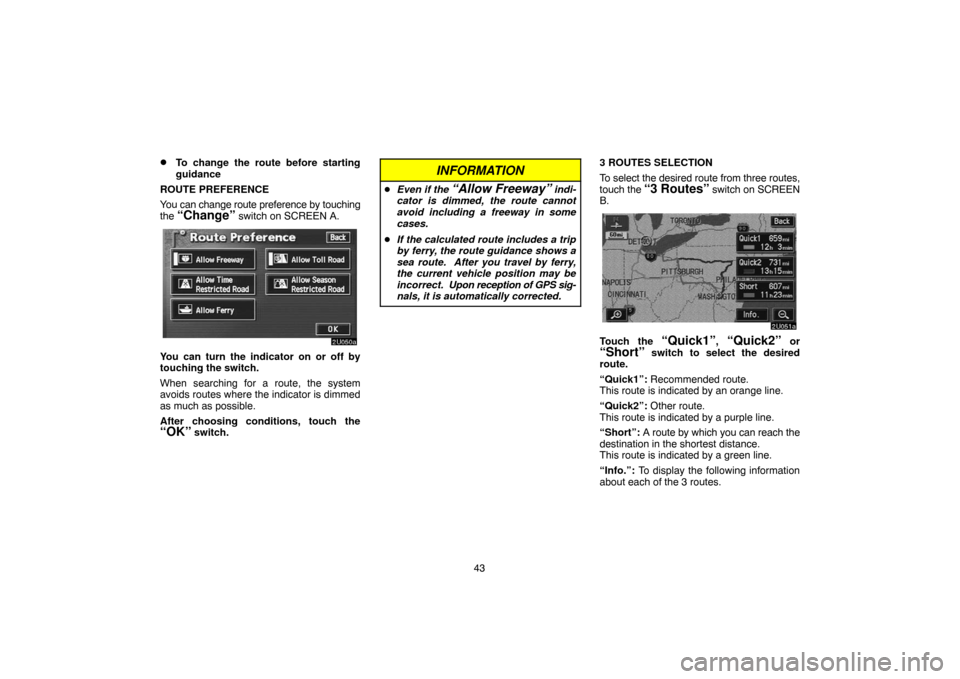

ROUTE PREFERENCE
You can change route preference by touching
the
“Change” switch on SCREEN A.
2U050a
You can turn the indicator on or off by
touching the switch.
When searching for a route, the system
avoids routes where the indicator is dimmed
as much as possible.
After choosing conditions, touch the
“OK” switch.
INFORMATION
Even if the “Allow Freeway” indi-
cator is dimmed, the route cannot
avoid including a freeway in some
cases.
If the calculated route includes a trip
by ferry, the route guidance shows a
sea route. After you travel by ferry,
the current vehicle position may be
incorrect. Upon reception of GPS sig-
nals, it is automatically corrected.
3 ROUTES SELECTION
To select the desired route from three routes,
touch the
“3 Routes” switch on SCREEN
B.
2U051a
Touch the “Quick1”, “Quick2” or“Short” switch to select the desired
route.
“Quick1”: Recommended route.
This route is indicated by an orange line.
“Quick2”: Other route.
This route is indicated by a purple line.
“Short”: A route by which you can reach the
destination in the shortest distance.
This route is indicated by a green line.

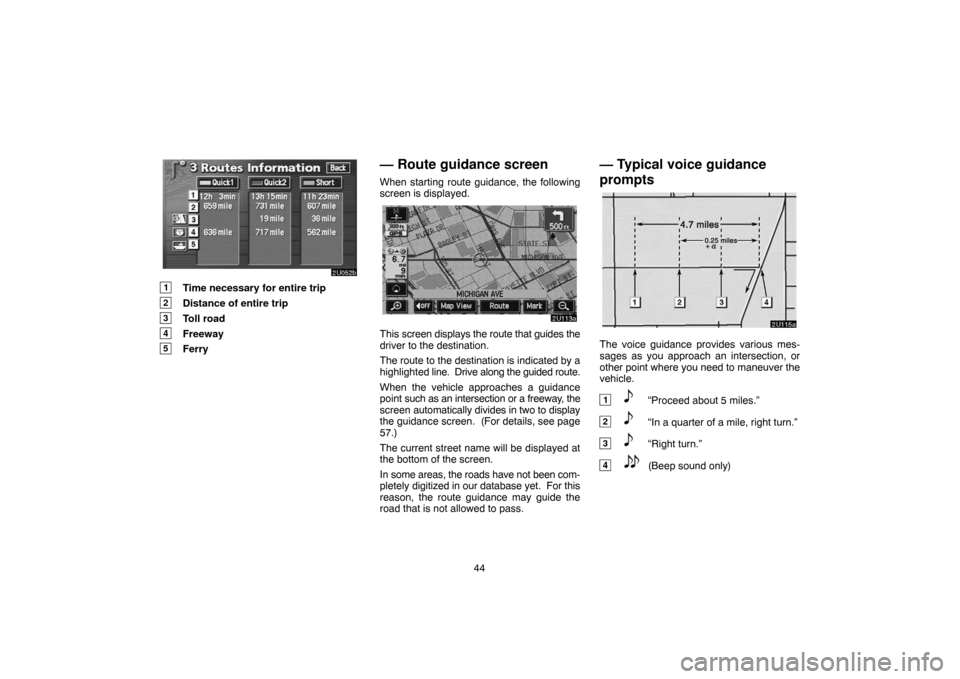

“Info.”: To display the following information
about each of the 3 routes.

44
2U052b
1Time necessary for entire trip
2Distance of entire trip
3Toll road
4Freeway
5Ferry
— Route guidance screen
When starting route guidance, the following
screen is displayed.
2U113a
This screen displays the route that guides the
driver to the destination.
The route to the destination is indicated by a
highlighted line. Drive along the guided route.
When the vehicle approaches a guidance
point such as an intersection or a freeway, the
screen automatically divides in two to display
the guidance screen. (For details, see page
57.)
The current street name will be displayed at
the bottom of the screen.
In some areas, the roads have not been com-
pletely digitized in our database yet. For this
reason, the route guidance may guide the
road that is not allowed to pass.
— Typical voice guidance
prompts
2U115a
The voice guidance provides various mes-
sages as you approach an intersection, or
other point where you need to maneuver the
vehicle.
1“Proceed about 5 miles.”
2“In a quarter of a mile, right turn.”
3“Right turn.”
4(Beep sound only)

45

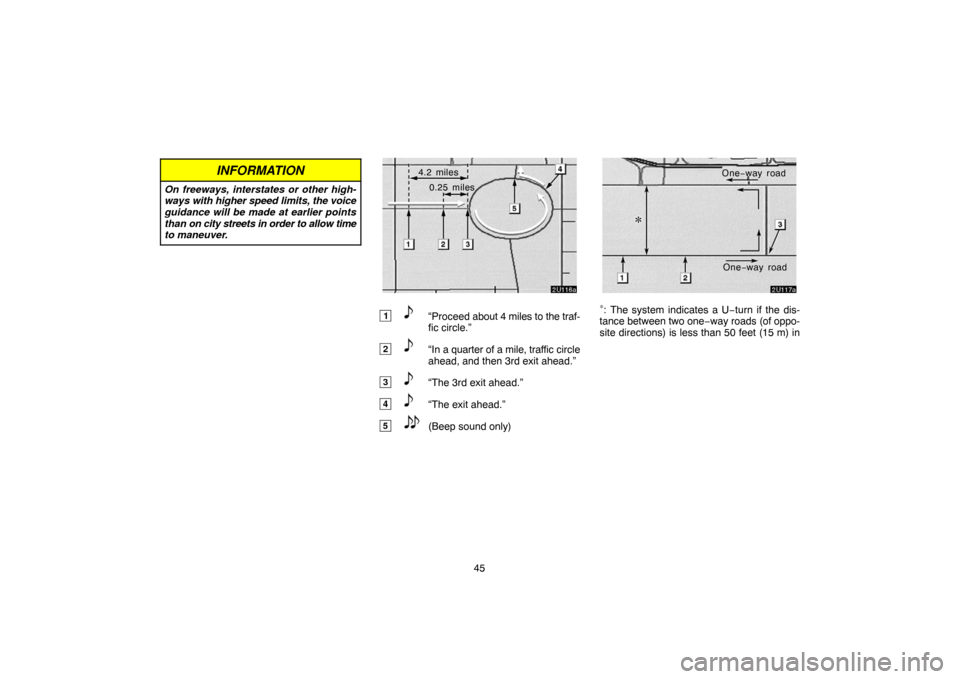

INFORMATION
On freeways, interstates or other high-
ways with higher speed limits, the voice
guidance will be made at earlier points
than on city streets in order to allow time
to maneuver.
2U116a
4.2 miles
0.25 miles
1“Proceed about 4 miles to the traf-
fic circle.”
2“In a quarter of a mile, traffic circle
ahead, and then 3rd exit ahead.”
3“The 3rd exit ahead.”
4“The exit ahead.”
5(Beep sound only)
2U117a
One−way road
One−way road
∗: The system indicates a U−turn if the dis-
tance between two one−way roads (of oppo-
site directions) is less than 50 feet (15 m) in

46 residential areas or 164 feet (50 m) in non−
residential areas.
1“In half of a mile, make a legal U−
turn.”
2“Make a legal U−turn ahead.”
3(Beep sound only)
2U118a
The system announces your approach to the
final destination.
1“Your destination is ahead.”
2“You have arrived at your
destination. The route guidance is
now finished.”
INFORMATION
If the system cannot determine the
current vehicle position correctly (in
cases of poor GPS signal reception),
the voice guidance may be made ear-
ly or delayed.
If you did not hear the voice guidance
command, touch the
“MAP/
VOICE” button to hear it again.
To adjust the voice guidance volume,
see page 67.

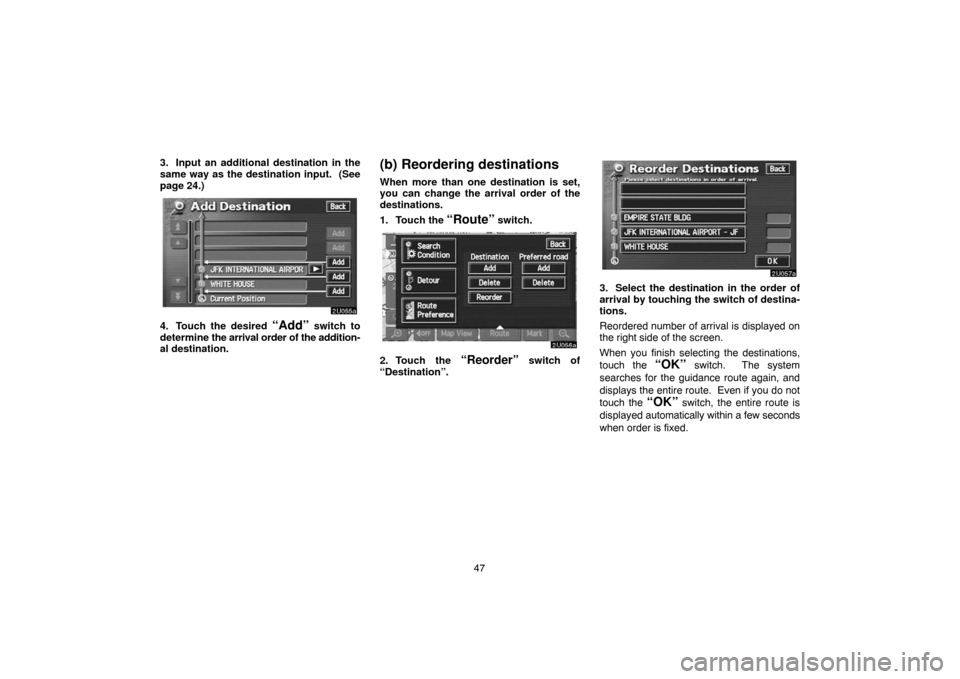

Setting and deleting
destination
(a) Adding destinations
You can add destinations and search
again for the routes.
2U053a
1. Touch the “Route” switch.
2U054a
2. Touch the “Add” switch of
“Destination”.

47 3. Input an additional destination in the
same way as the destination input. (See
page 24.)
2U055a
4. Touch the desired “Add” switch to
determine the arrival order of the addition-
al destination.
(b) Reordering destinations
When more than one destination is set,
you can change the arrival order of the
destinations.
1. Touch the
“Route” switch.
2U056a
2. Touch the “Reorder” switch of
“Destination”.
2U057a
3. Select the destination in the order of
arrival by touching the switch of destina-
tions.
Reordered number of arrival is displayed on
the right side of the screen.
When you finish selecting the destinations,
touch the
“OK” switch. The system
searches for the guidance route again, and
displays the entire route. Even if you do not
touch the
“OK” switch, the entire route is
displayed automatically within a few seconds
when order is fixed.
