TOYOTA SEQUOIA 2009 2.G Quick Reference Guide

9
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

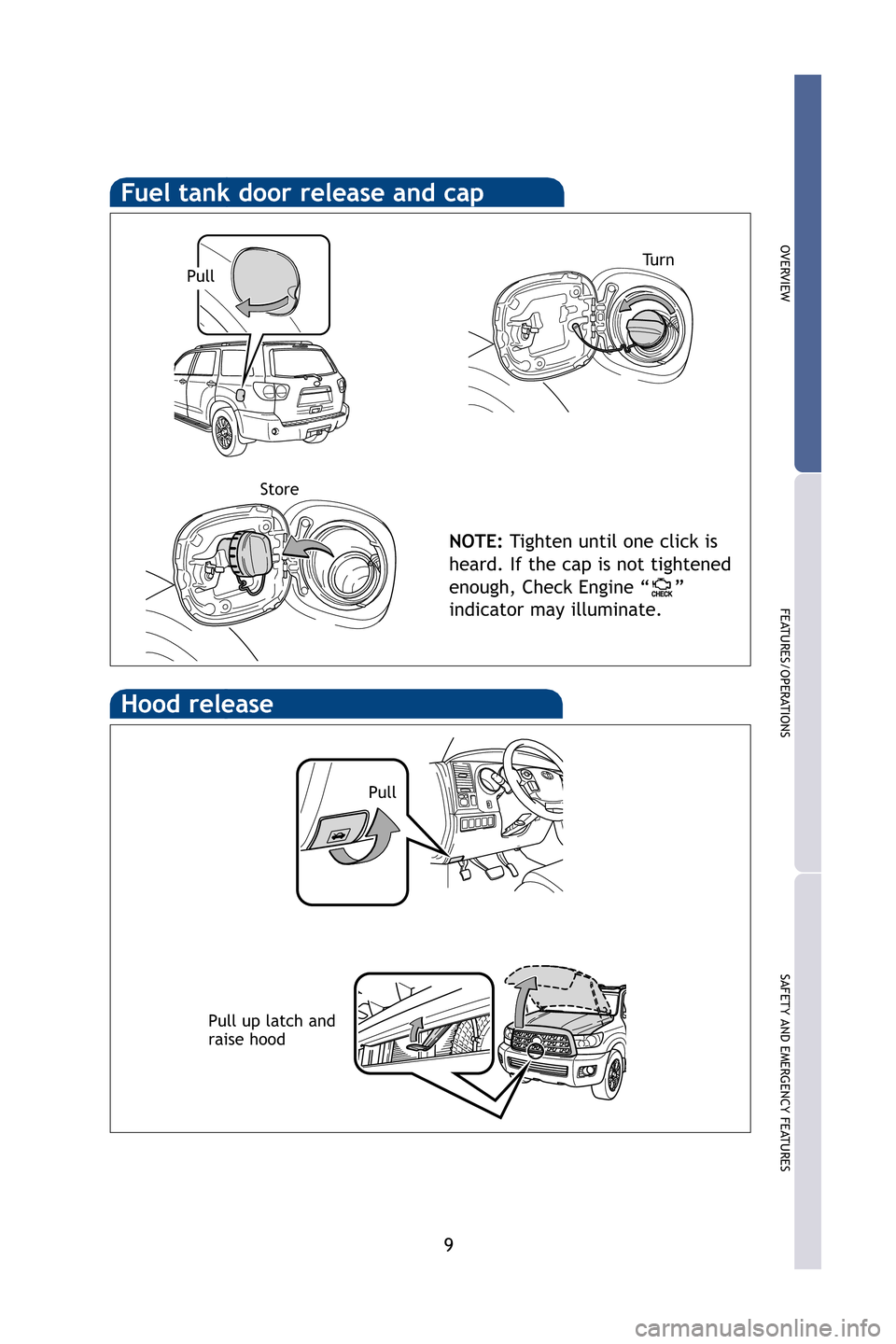

Hood release
Pull up latch and
raise hood
Fuel tank door release and cap
NOTE:Tighten until one click is
heard. If the cap is not tightened
enough, Check Engine “ ”
indicator may illuminate.
Tu r n
Pull
Store
Pull
412xxxM2.qxd 7/16/08 4:14 PM Page 9

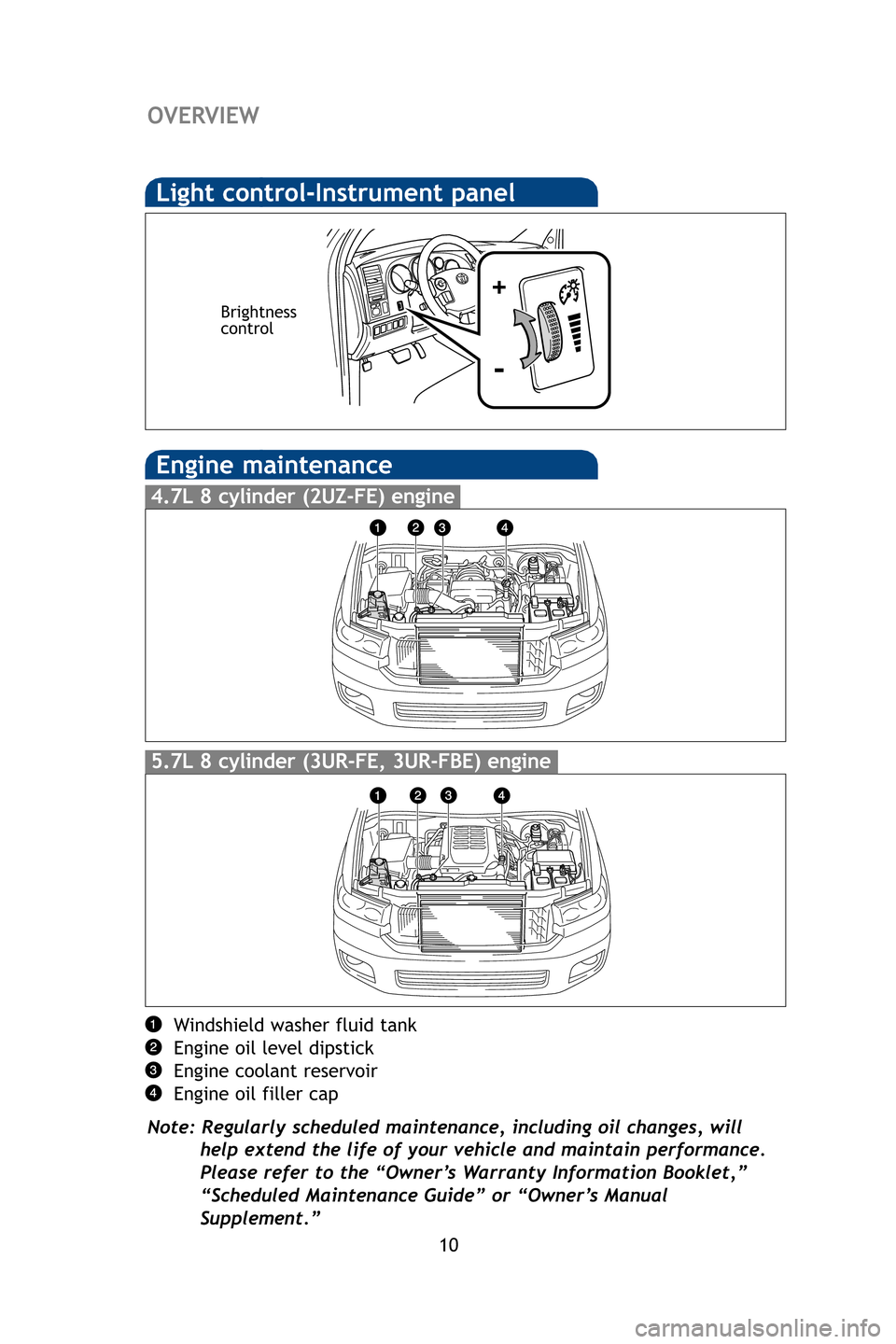

10
Windshield washer fluid tank
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including oil changes, will help extend the life of your vehicle and maintain performance.
Please refer to the “Owner’s Warranty Information Booklet,”
“Scheduled Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
Light control-Instrument panel
Brightness
control
-
+
OVERVIEW
4.7L 8 cylinder (2UZ-FE) engine
5.7L 8 cylinder (3UR-FE, 3UR-FBE) engine
412xxxM2.qxd 7/16/08 4:14 PM Page 10

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
FEATURES/OPERATIONS

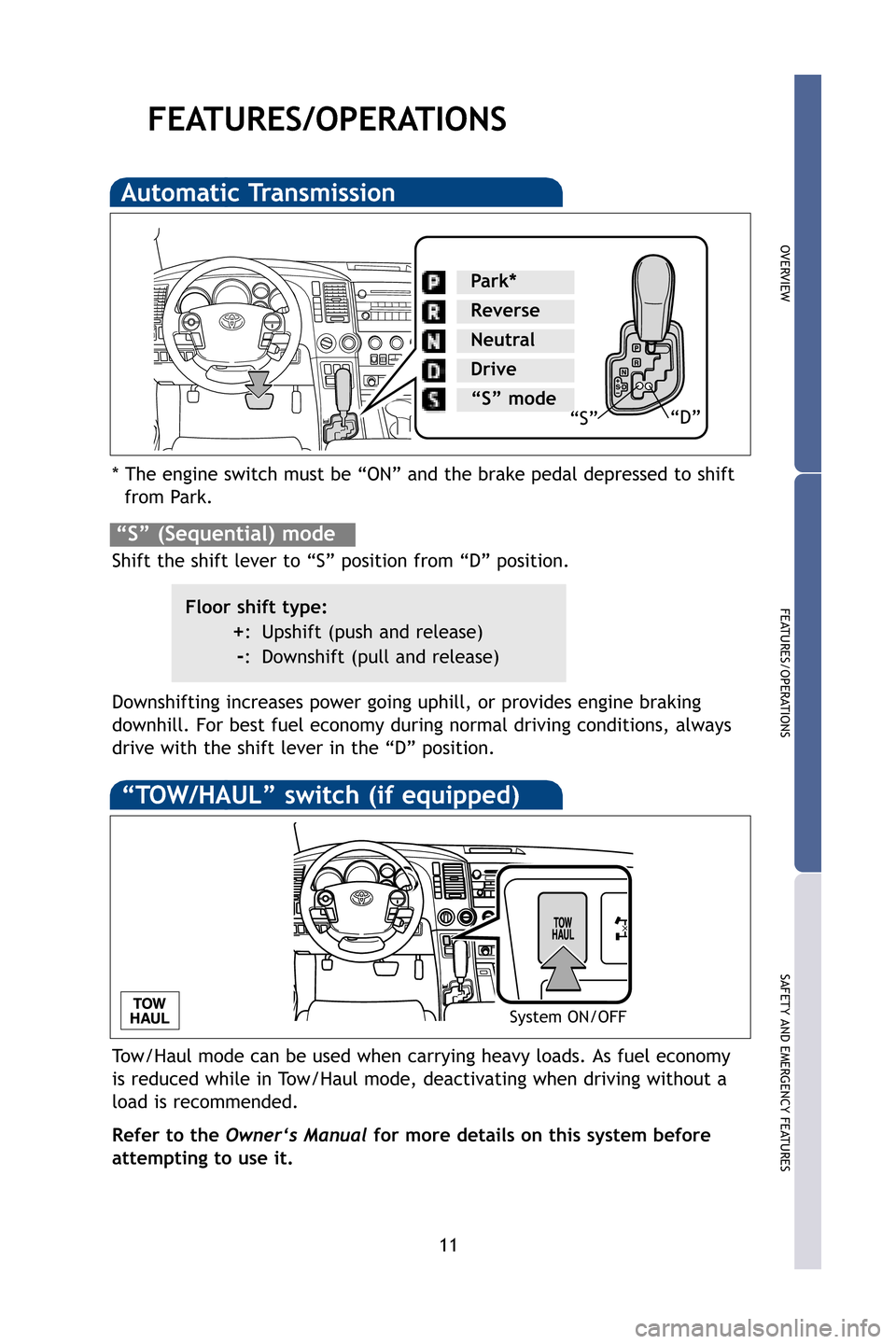

Automatic Transmission
* The engine switch must be “ON” and the brake pedal depressed to \
shift from Park.
Downshifting increases power going uphill, or provides engine braking
downhill. For best fuel economy during normal driving conditions, always\
drive with the shift lever in the “D” position.
Floor shift type:
+: Upshift (push and release)
-: Downshift (pull and release)
“S” (Sequential) mode
Shift the shift lever to “S” position from “D” position.
Park*
Reverse
Neutral
Drive
“S” mode“S” “D”
“TOW/HAUL” switch (if equipped)
Tow/Haul mode can be used when carrying heavy loads. As fuel economy
is reduced while in Tow/Haul mode, deactivating when driving without a
load is recommended.
Refer to the Owner‘s Manual
for more details on this system before
attempting to use it.
System ON/OFF
412xxxM2.qxd 7/16/08 4:14 PM Page 11

12
FEATURES/OPERATIONS

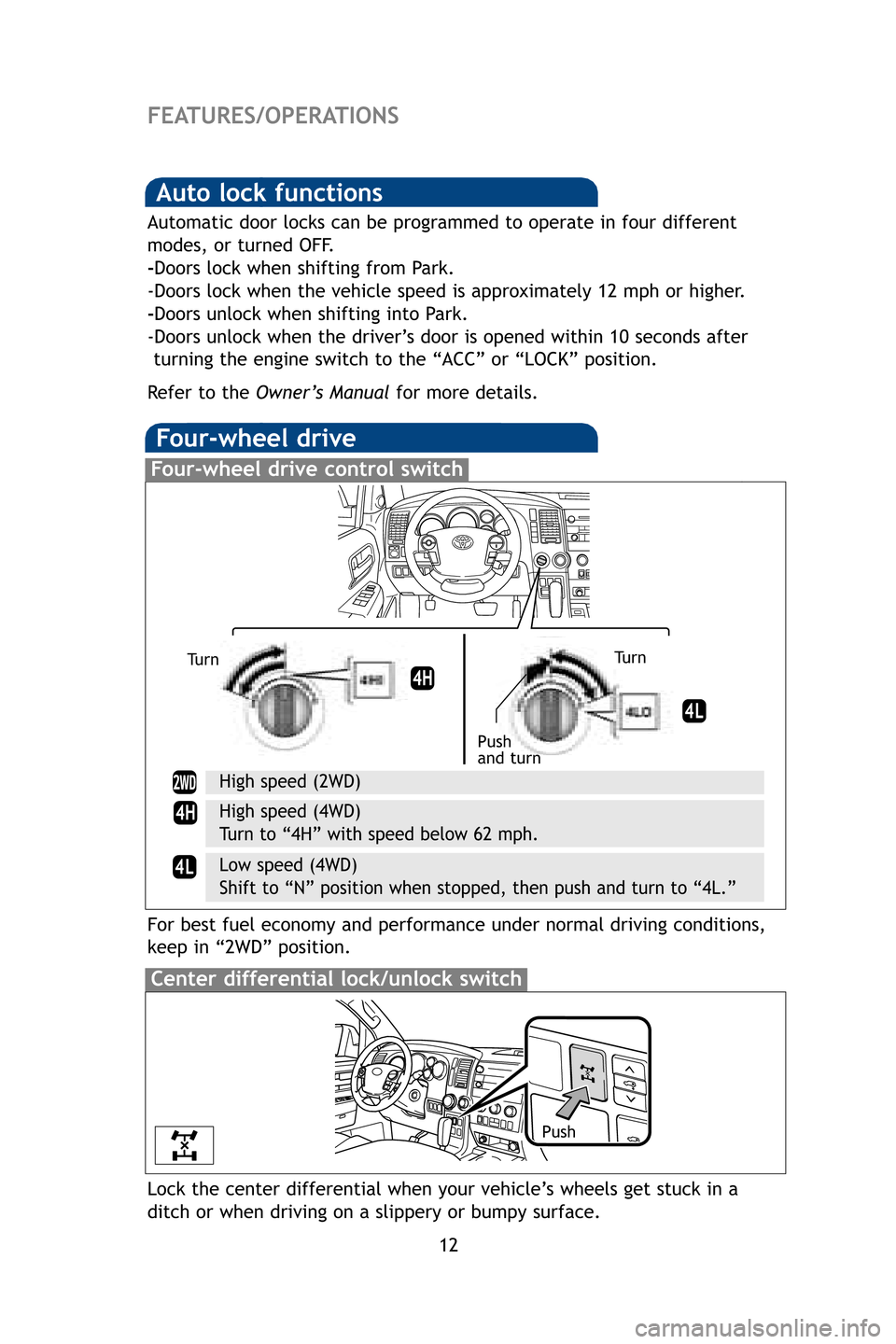

Auto lock functions
Automatic door locks can be programmed to operate in four different
modes, or turned OFF.
-Doors lock when shifting from Park.
-Doors lock when the vehicle speed is approximately 12 mph or higher.
-Doors unlock when shifting into Park.
-Doors unlock when the driver’s door is opened within 10 seconds afterturning the engine switch to the “ACC” or “LOCK” position.
Refer to the Owner’s Manual for more details.
Lock the center differential when your vehicle’s wheels get stuck in a
ditch or when driving on a slippery or bumpy surface.
Center differential lock/unlock switch
Four-wheel drive
High speed (2WD)
High speed (4WD)
Turn to “4H” with speed below 62 mph.
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L.”\
WD
For best fuel economy and performance under normal driving conditions,
keep in “2WD” position.
Push
and turn
Tu r n
Tu r n
Push
Four-wheel drive control switch
412xxxM2.qxd 7/16/08 4:14 PM Page 12

13
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Seat adjustments-Front
Position
Seatback angle
Seat height
Seat cushion angle
Lumbar support (if equipped)
Position, cushion angle and height
Leg support
Manual seat
Power seat
Seats-Head restraints
FrontThird row
Lock release buttonLock release button
HeightAngle
Second row
Height
Height
Lock release button Height
412xxxM2.qxd 7/16/08 4:14 PM Page 13

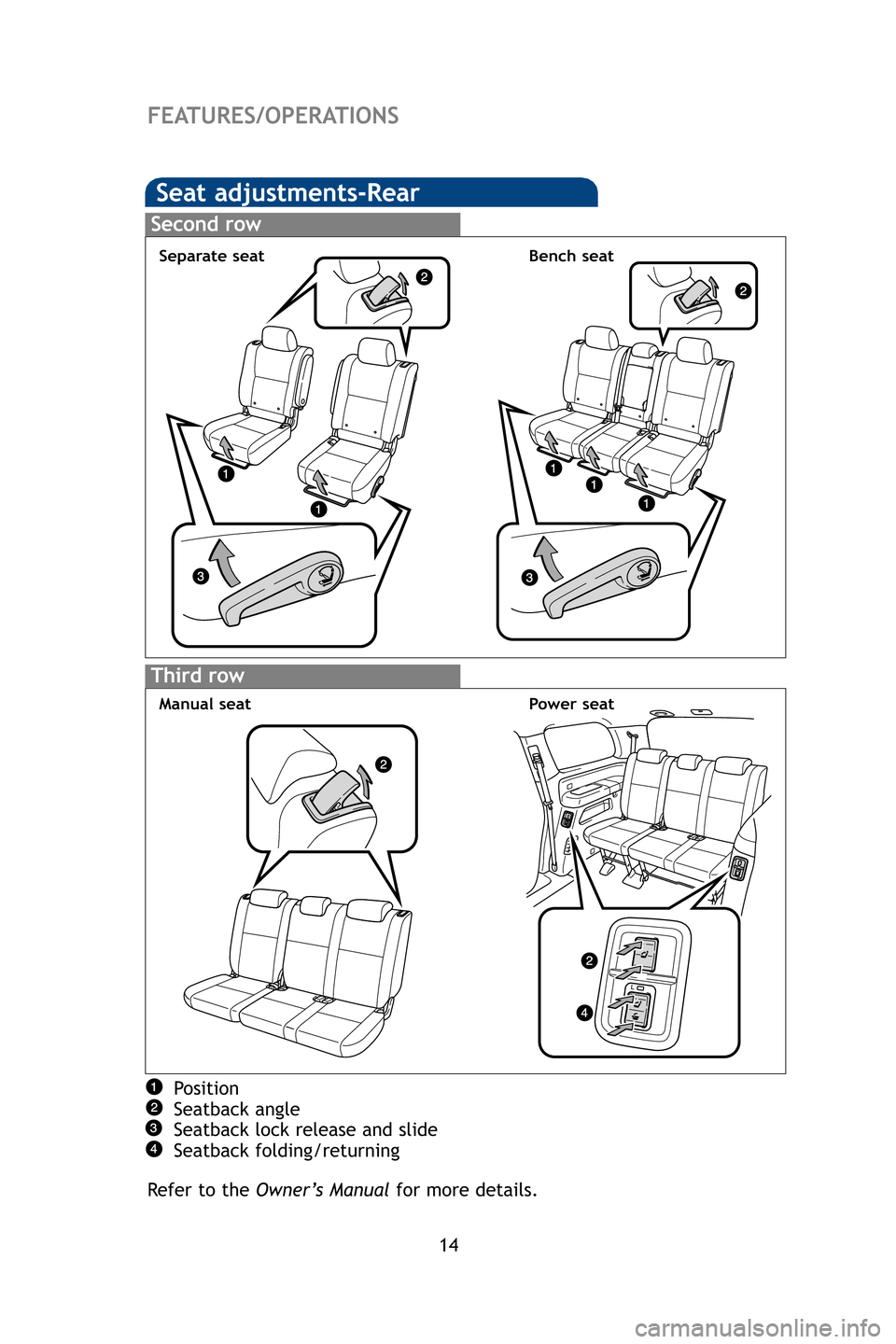

14
FEATURES/OPERATIONS
Seat adjustments-Rear
Position
Seatback angle
Seatback lock release and slide
Seatback folding/returning
Refer to the Owner’s Manual for more details.
Second row
Third row
Separate seat Bench seat
Manual seat Power seat
412xxxM2.qxd 7/16/08 4:14 PM Page 14

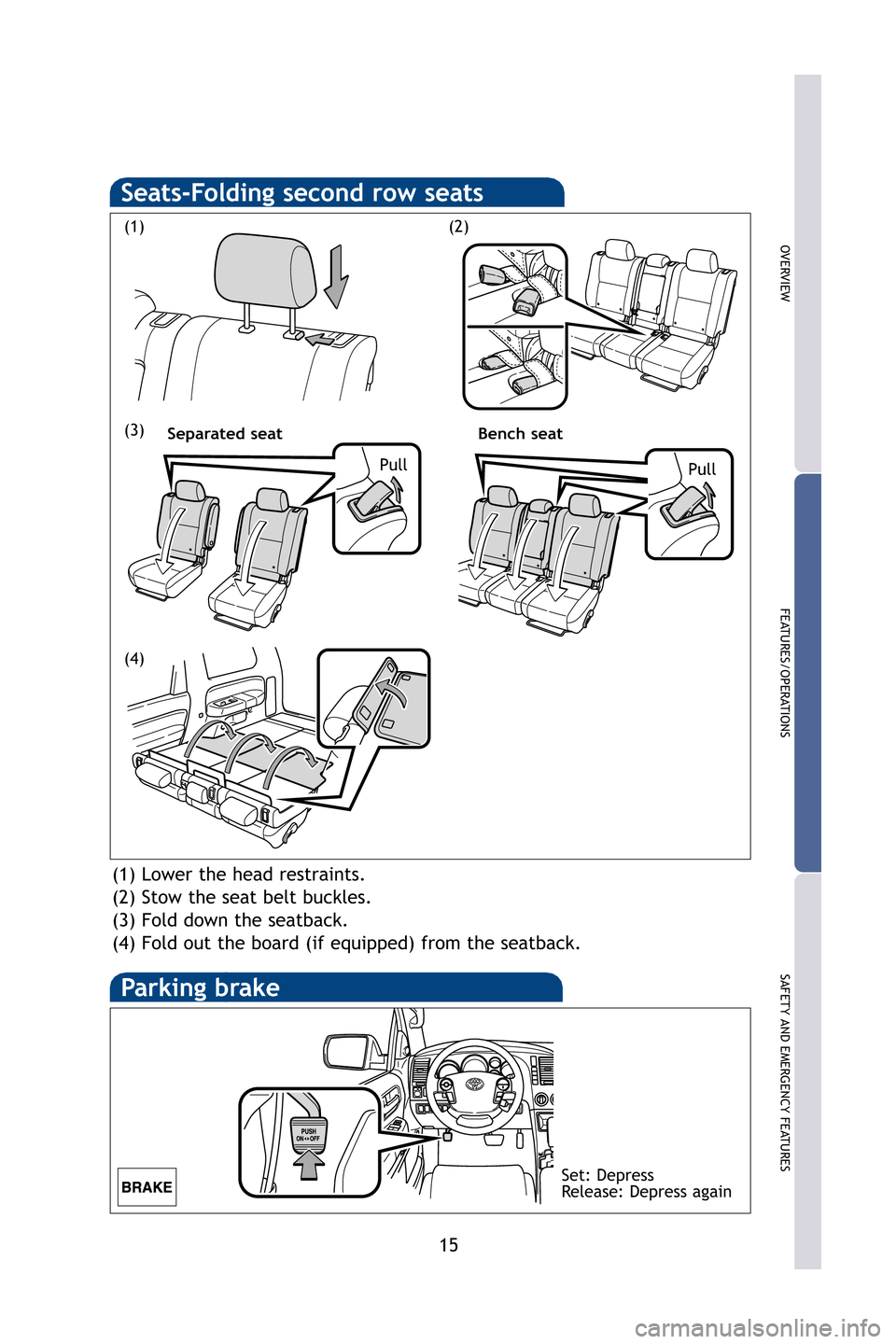

15
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
(1) Lower the head restraints.
(2) Stow the seat belt buckles.
(3) Fold down the seatback.
(4) Fold out the board (if equipped) from the seatback.
(1)
(3)
(2)
Seats-Folding second row seats
(4)Pull
Pull
Separated seat
Bench seat
Parking brake
Set: Depress
Release: Depress again
412xxxM2.qxd 7/16/08 4:14 PM Page 15

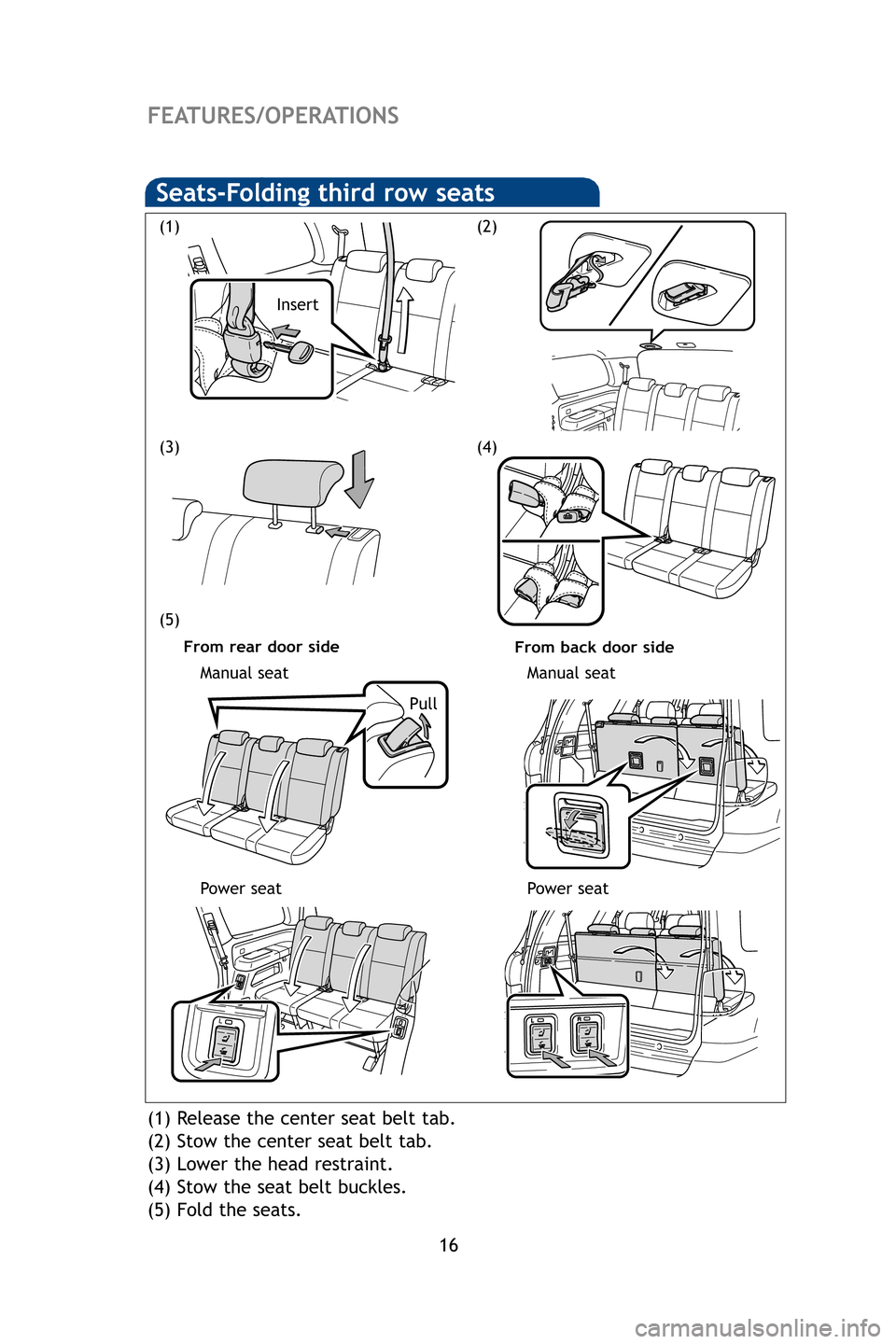

16
FEATURES/OPERATIONS
(1) Release the center seat belt tab.
(2) Stow the center seat belt tab.
(3) Lower the head restraint.
(4) Stow the seat belt buckles.
(5) Fold the seats.
(1)
(5)
(3)
(2)
Seats-Folding third row seats
(4)
Power seatPull
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
412xxxM2.qxd 7/16/08 4:14 PM Page 16

17
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

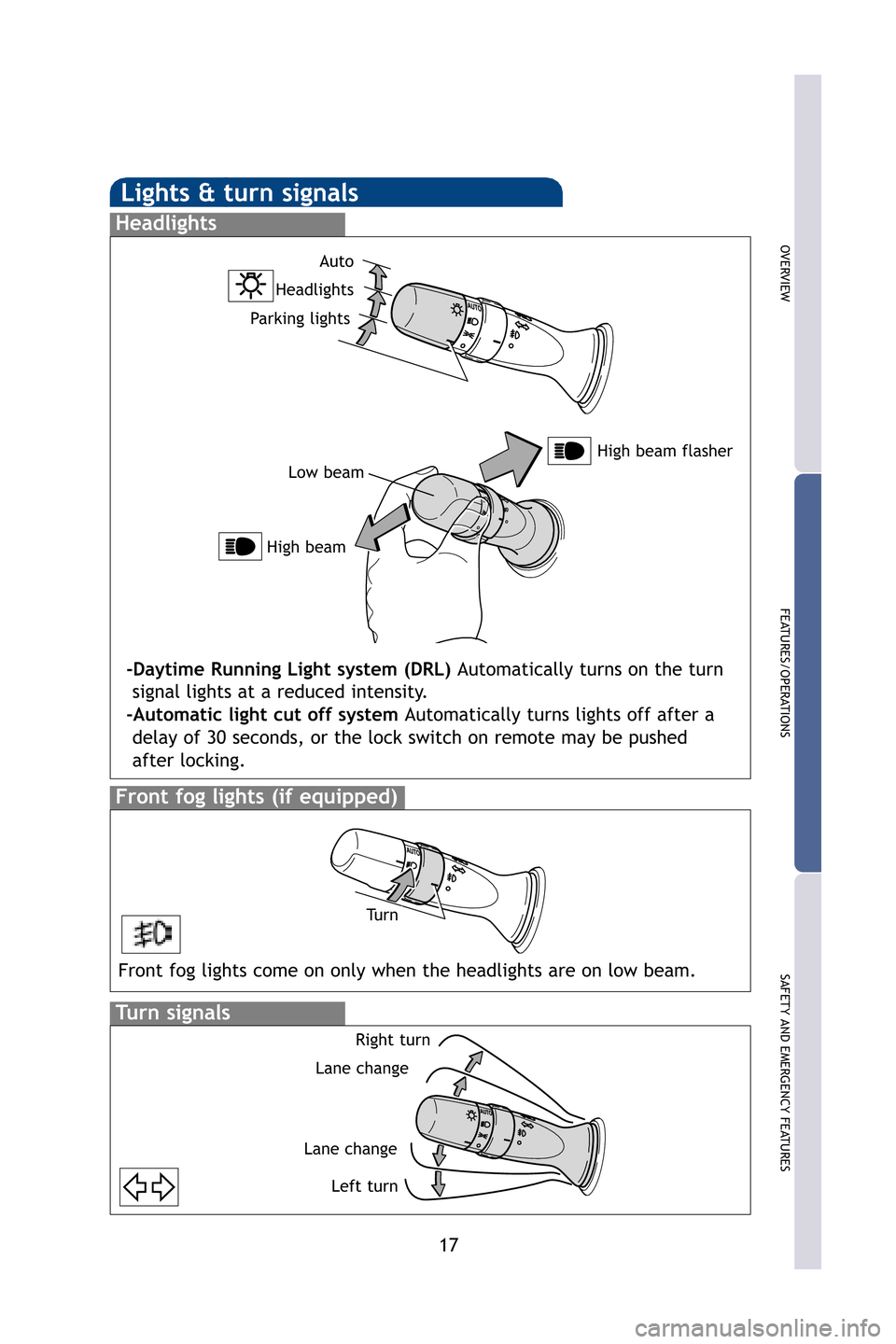

Lights & turn signals
Turn signals
Headlights
High beamLow beam
Front fog lights (if equipped)
-Daytime Running Light system (DRL)
Automatically turns on the turn
signal lights at a reduced intensity.
-Automatic light cut off system Automatically turns lights off after a
delay of 30 seconds, or the lock switch on remote may be pushed
after locking.
Front fog lights come on only when the headlights are on low beam.
Right turn
Lane change
Lane change Left turn High beam flasher
Auto
Headlights
Parking lights
Tu r n
412700M2_r1.qxd 7/18/08 5:34 PM Page 17

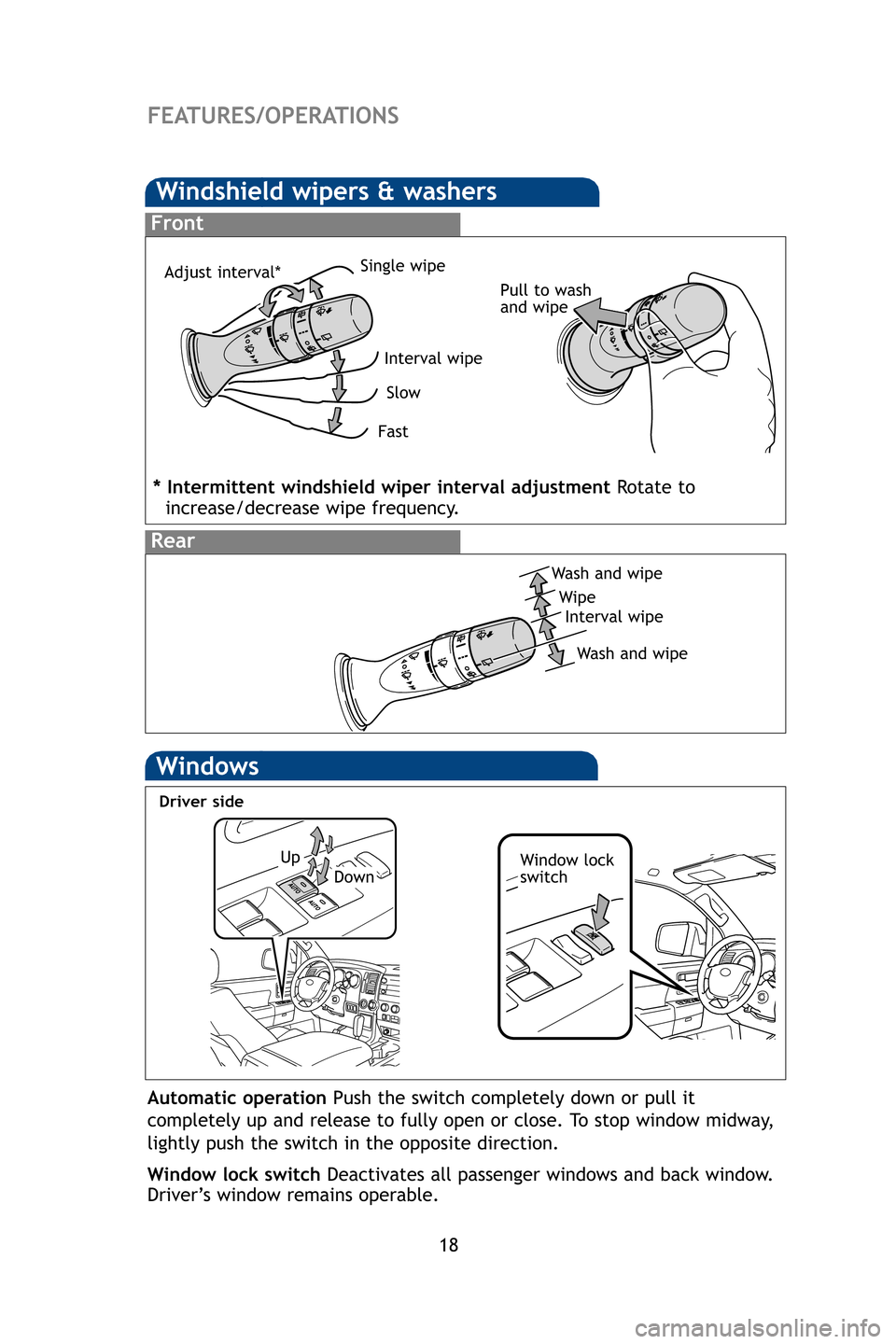

18
Windshield wipers & washers
Interval wipe
Single wipe
Slow
Fast Pull to wash
and wipe
Front
Rear
Wash and wipe
WipeInterval wipe
Wash and wipe
FEATURES/OPERATIONS
Windows
Window lock
switch
Automatic operation
Push the switch completely down or pull it
completely up and release to fully open or close. To stop window midway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
UpDown
Driver side
Adjust interval*
* Intermittent windshield wiper interval adjustment Rotate to
increase/decrease wipe frequency.
412xxxM2.qxd 7/16/08 4:14 PM Page 18
