display TOYOTA SEQUOIA 2014 2.G Navigation Manual

5
167
1
2
3
4
6 5
7
8
9

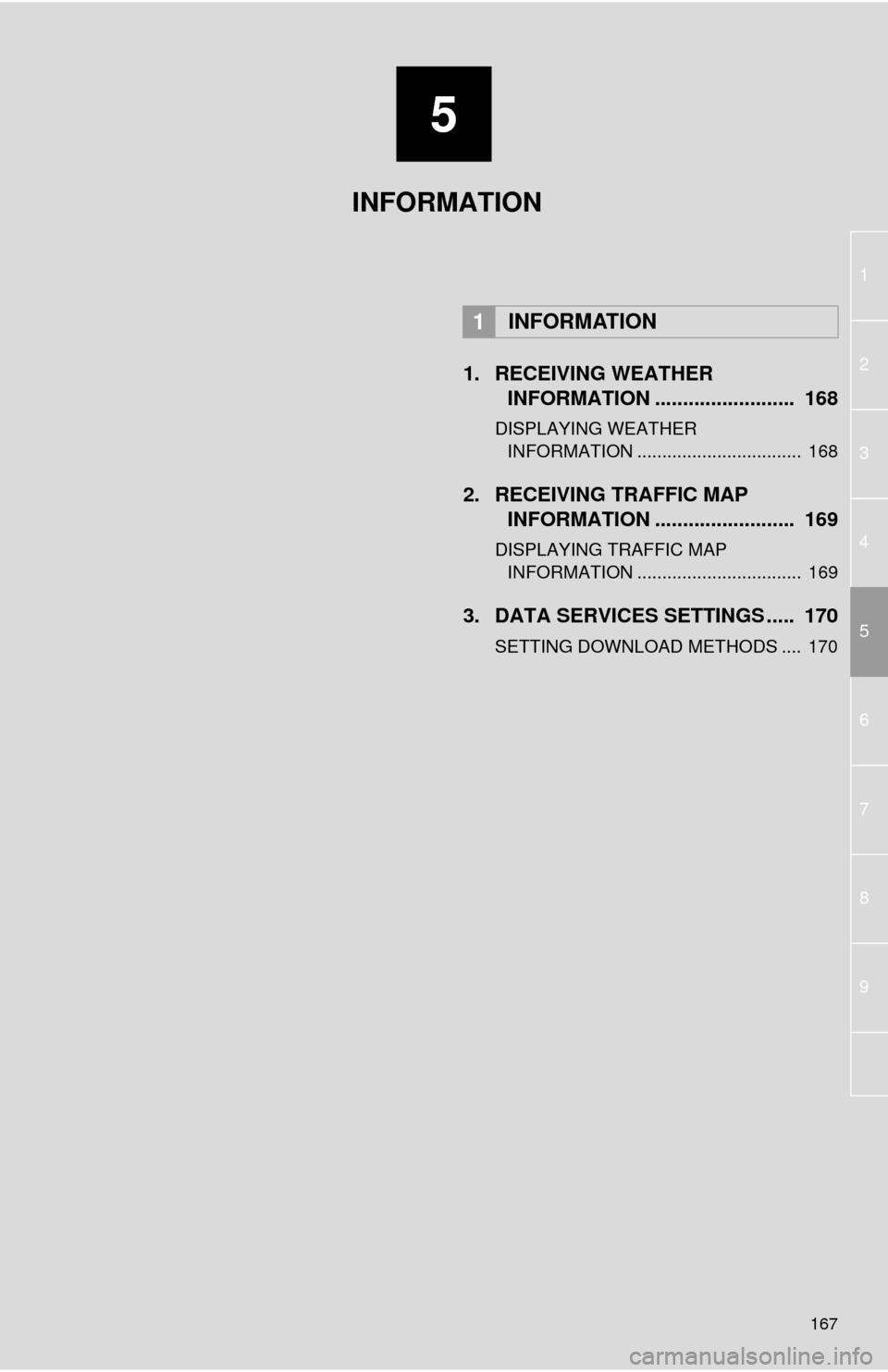

1. RECEIVING WEATHER
INFORMATION ......................... 168
DISPLAYING WEATHER
INFORMATION ................................. 168
2. RECEIVING TRAFFIC MAP
INFORMATION ......................... 169
DISPLAYING TRAFFIC MAP
INFORMATION ................................. 169
3. DATA SERVICES SETTINGS ..... 170
SETTING DOWNLOAD METHODS .... 170
1INFORMATION
INFORMATION

168
1. INFORMATION
1. RECEIVING WEATHER INFORMATION*
1Press the “APPS” button.
2Select “Weather”.
3Check that the “Weather” screen is dis-
played. Entune Audio Plus
Weather radar information can be re-
ceived via the HD Radio.
Entune Premium Audio
Weather radar information can be re-
ceived via the HD Radio or by the En-
tune application on a Bluetooth
®
phone.
DISPLAYING WEATHER
INFORMATION
*: Available in the 48 states, D.C. and Alaska
No.Function
Select to display the weather of the
current location.
Select to display the weather of a
desired location in the recently
checked locations list.
Select to display the weather of a
desired location in the national cities
list.
Select to display the weather of a
desired location in the other local cit-
ies list.
Entune Premium Audio only:
Select to display Doppler weather
radar information over the map.
INFORMATION
●If “Weather” is set to the home screen,
the weather information of the current
location will be displayed.

169
1. INFORMATION
5
INFORMATION
2. RECEIVING TRAFFIC MAP INFORMATION*
1Press the “APPS” button.
2Select “Traffic”.
3Check that the traffic map screen is
displayed.Traffic map information can be re-
ceived via the HD Radio.
DISPLAYING TRAFFIC MAP
INFORMATION
*: Entune Audio Plus only (Available in the 48 states, D.C. and Alaska)
No.Function
Current position of your car
Traffic information line
The line color means the following:
Red: Heavy congestion
Yellow: Moderate traffic
Green: Freely flowing traffic

6
171
1
2
3
4
5
7
6
8
9

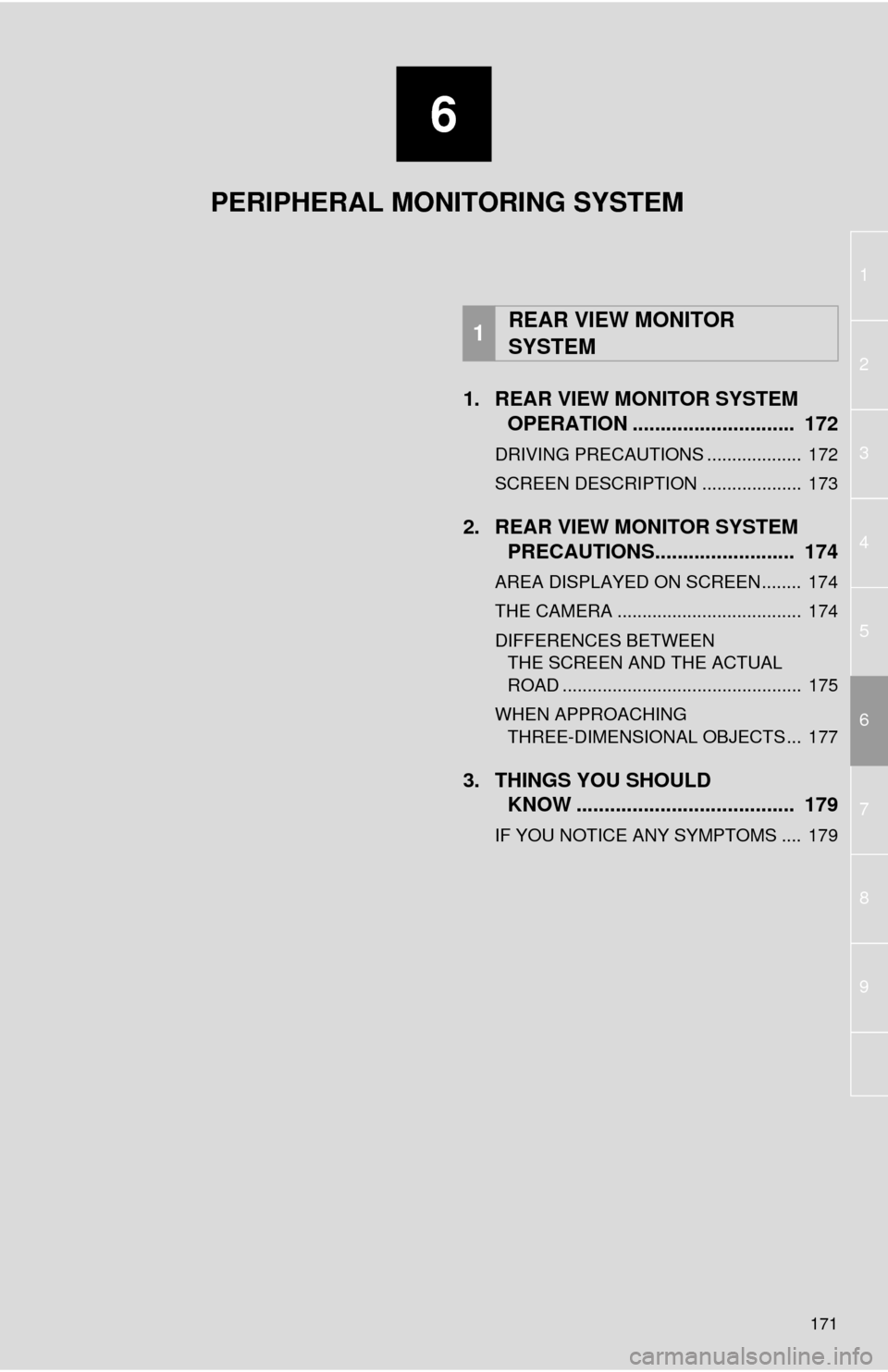

1. REAR VIEW MONITOR SYSTEM
OPERATION ............................. 172
DRIVING PRECAUTIONS ................... 172
SCREEN DESCRIPTION .................... 173
2. REAR VIEW MONITOR SYSTEM
PRECAUTIONS......................... 174
AREA DISPLAYED ON SCREEN........ 174
THE CAMERA ..................................... 174
DIFFERENCES BETWEEN
THE SCREEN AND THE ACTUAL
ROAD ................................................ 175
WHEN APPROACHING
THREE-DIMENSIONAL OBJECTS ... 177
3. THINGS YOU SHOULD
KNOW ....................................... 179
IF YOU NOTICE ANY SYMPTOMS .... 179
1REAR VIEW MONITOR
SYSTEM
PERIPHERAL MONITORING SYSTEM

172
1. REAR VIEW MONITOR SYSTEM
1. REAR VIEW MONITOR SYSTEM OPERATION
The rear view monitor system assists
the driver by displaying an image of the
view behind the vehicle with fixed
guide lines on the screen while backing
up, for example while parking.
INFORMATION
●The screen illustrations used in this text
are intended as examples, and may dif-
fer from the image that is actually dis-
played on the screen.
DRIVING PRECAUTIONS
The rear view monitor system is a sup-
plemental device intended to assist the
driver when backing up. When backing
up, be sure to visually check all around
the vehicle both directly and using the
mirrors before proceeding. If you do
not, you may hit another vehicle, and
could possibly cause an accident.
Pay attention to the following precau-
tions when using the rear view monitor
system.
CAUTION
●Never depend on the rear view monitor
system entirely when backing up. The
image and the position of the guide lines
displayed on the screen may differ from
the actual state.
Use caution, just as you would when
backing up any vehicle.
●Be sure to back up slowly, depressing
the brake pedal to control vehicle speed.
●The instructions given are only guide-
lines. When and how much to turn the
steering wheel will vary according to
traffic conditions, road surface condi-
tions, vehicle condition, etc. when park-
ing. It is necessary to be fully aware of
this before using the rear view monitor
system.
●When parking, be sure to check that the
parking space will accommodate your
vehicle before maneuvering into it.
●Do not use the rear view monitor system
in the following cases:
• On icy or slick road surfaces, or in
snow
• When using tire chains or emergency
tires
• When the trunk is not closed com-
pletely
• On roads that are not flat or straight,
such as curves or slopes.
●In low temperatures, the screen may
darken or the image may become faint.
The image could distort when the vehi-
cle is moving, or you may become
unable to see the image on the screen.
Be sure to visually check all around the
vehicle both directly and using the mir-
rors before proceeding.
●If the tire sizes are changed, the position
of the fixed guide lines displayed on the
screen may change.
●The camera uses a special lens. The
distances between objects and pedestri-
ans that appear in the image displayed
on the screen will differ from the actual
distances.(P.175)

173
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
SCREEN DESCRIPTION
The rear view monitor system screen will be displayed if the shift lever is shifted to
the “R” position while
the engine switch is in “ON” position.
No.DisplayFunction
Vehicle width extension
guide linesDisplays a guide path when the vehicle is being backed
straight up.
The displayed width is wider than the actual vehicle
width.
Vehicle center guide linesThese lines indicate the estimated vehicle center on the
ground.
Distance guide linesShows distance behind the vehicle.
Displays a point approximately 1.5 ft. (0.5 m) (red) from
the edge of the bumper.
Distance guide lineShows distance behind the vehicle.
Displays a point approximately 3 ft. (1 m) (blue) from
the edge of the bumper.
CANCELING REAR VIEW MONITOR SYSTEM
The rear view monitor system is canceled when the shift lever is shifted into any
position other than the “R” position.

174
1. REAR VIEW MONITOR SYSTEM
2. REAR VIEW MONITOR SYSTEM PRECAUTIONS
The image adjustment procedure for the
rear view monitor system screen is the
same as the procedure for adjusting the
multimedia screen. (P.39)
AREA DISPLAYED ON
SCREEN
The rear view monitor system displays
an image of the view from the bumper
of the rear area of the vehicle.
INFORMATION
●The area displayed on the screen may
vary according to vehicle orientation
conditions.
●Objects which are close to either corner
of the bumper or under the bumper can-
not be displayed.
●The camera uses a special lens. The
distance of the image that appears on
the screen differs from the actual dis-
tance.
●Items which are located higher than the
camera may not be displayed on the
monitor.
Screen Displayed area
Corners of bumper
THE CAMERA
The camera for the rear view monitor
system is located as shown in the illus-
tration.
USING THE CAMERA
If the camera lens becomes dirty, it
cannot transmit a clear image. If water
droplets, snow or mud adhere to the
lens, rinse with water and wipe with a
soft cloth. If the lens is extremely dirty,
wash it with a mild cleanser and rinse.

177
1. REAR VIEW MONITOR SYSTEM
6
PERIPHERAL MONITORING SYSTEM
WHEN ANY PART OF THE
VEHICLE SAGS
When any part of the vehicle sags due
to the number of passengers or the dis-
tribution of the load, there is a margin
of error between the fixed guide lines
on the screen and the actual distance/
course on the road.
A margin of error
WHEN APPROACHING
THREE-DIMENSIONAL
OBJECTS
The distance guide lines are displayed
according to flat surfaced objects
(such as the road). It is not possible to
determine the position of three-dimen-
sional objects (such as vehicles) using
the distance guide lines. When ap-
proaching a three-dimensional object
that extends outward (such as the flat-
bed of a truck), be careful of the follow-
ing.

7
181
1
2
3
4
5
6
8
7
9

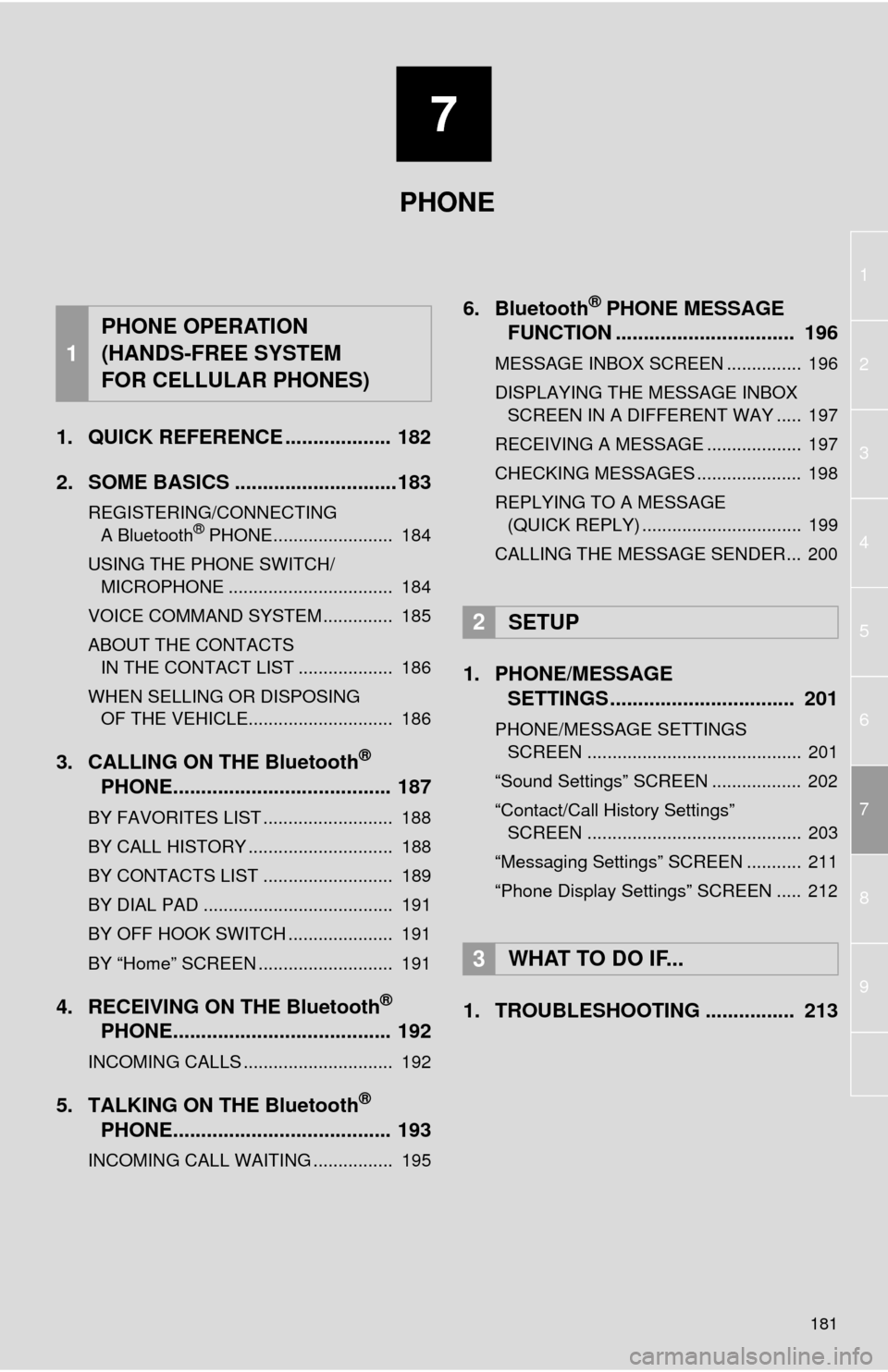

1. QUICK REFERENCE ................... 182
2. SOME BASICS .............................183
REGISTERING/CONNECTING A Bluetooth® PHONE........................ 184
USING THE PHONE SWITCH/ MICROPHONE ................................. 184
VOICE COMMAND SYSTEM .............. 185
ABOUT THE CONTACTS IN THE CONTACT LIST ................... 186
WHEN SELLING OR DISPOSING OF THE VEHICLE............................. 186
3. CALLING ON THE Bluetooth®
PHO

NE....................................... 187
BY FAVORITES LIST .......................... 188
BY CALL HISTORY ............................. 188
BY CONTACTS LIST .......................... 189
BY DIAL PAD ...................................... 191
BY OFF HOOK SWITCH ..................... 191
BY “Home” SCREEN ........................... 191
4. RECEIVING ON THE Bluetooth®
PHO

NE....................................... 192
INCOMING CALLS .............................. 192
5. TALKING ON THE Bluetooth®
PHO

NE....................................... 193
INCOMING CALL WAITING ................ 195
6. Bluetooth® PHONE MESSAGE
FUNCTION ...... ....................... ... 196
MESSAGE INBOX SCREEN ............... 196
DISPLAYING THE MESSAGE INBOX
SCREEN IN A DIFFERENT WAY ..... 197
RECEIVING A MESSAGE ................... 197
CHECKING MESSAGES ..................... 198
REPLYING TO A MESSAGE (QUICK REPLY) ................................ 199
CALLING THE MESSAGE SENDER... 200
1. PHONE/MESSAGE SETTINGS ................................. 201
PHONE/MESSAGE SETTINGS
SC

REEN ........................................... 201
“Sound Settings” SCREEN .................. 202
“Contact/Call History Settings” SCREEN ........................................... 203
“Messaging Settings” SCREEN ........... 211
“Phone Display Settings” SCREEN ..... 212
1. TROUBLESHOOTING ................ 213
1
PHONE OPERATION
(HANDS-FREE SYSTEM
FOR CELLULAR PHONES)
2SETUP
3WHAT TO DO IF...
PHONE

182
1. PHONE OPERATION (HANDS-FREE SYSTEM FOR CELLULAR PHONES)
1. QUICK REFERENCE
The phone top screen can be used to make a phone call. The phone screen can
be reached by following methods:
Press the “APPS” button and select “Phone”.
Press the switch on the steering wheel.
Press the button on the instrument panel.
Several functions are available to operate on each screen that is displayed by se-
lecting the 4 tabs.
FunctionPage
Phone operation
Registering/connecting Bluetooth® phone41
Calling on the Bluetooth® phone187
Receiving on the Bluetooth® phone192
Talking on the Bluetooth® phone193
Message functionUsing the Bluetooth® phone message function196
Setting up a phonePhone settings201
Bluetooth® settings46
