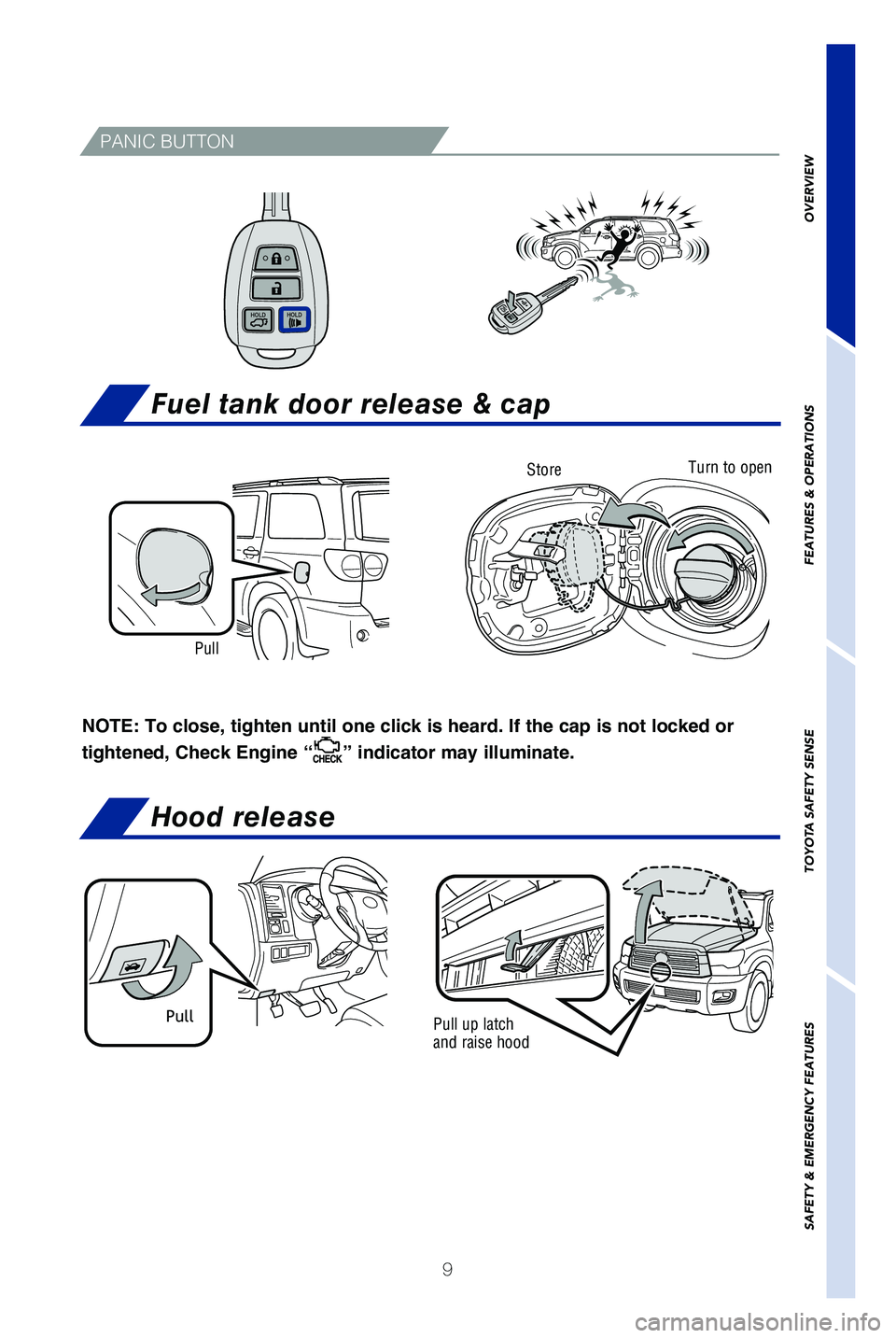

Page 11 of 60
9
PANIC BUTTON
NOTE: To close, tighten until one click is heard. If the cap is not locked or
tightened, Check Engine “
” indicator may illuminate.
Fuel tank door release & cap
Turn to openStore
Pull
Hood release
Pull up latch
and raise hoodPull
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 97/31/18 10:04 PM

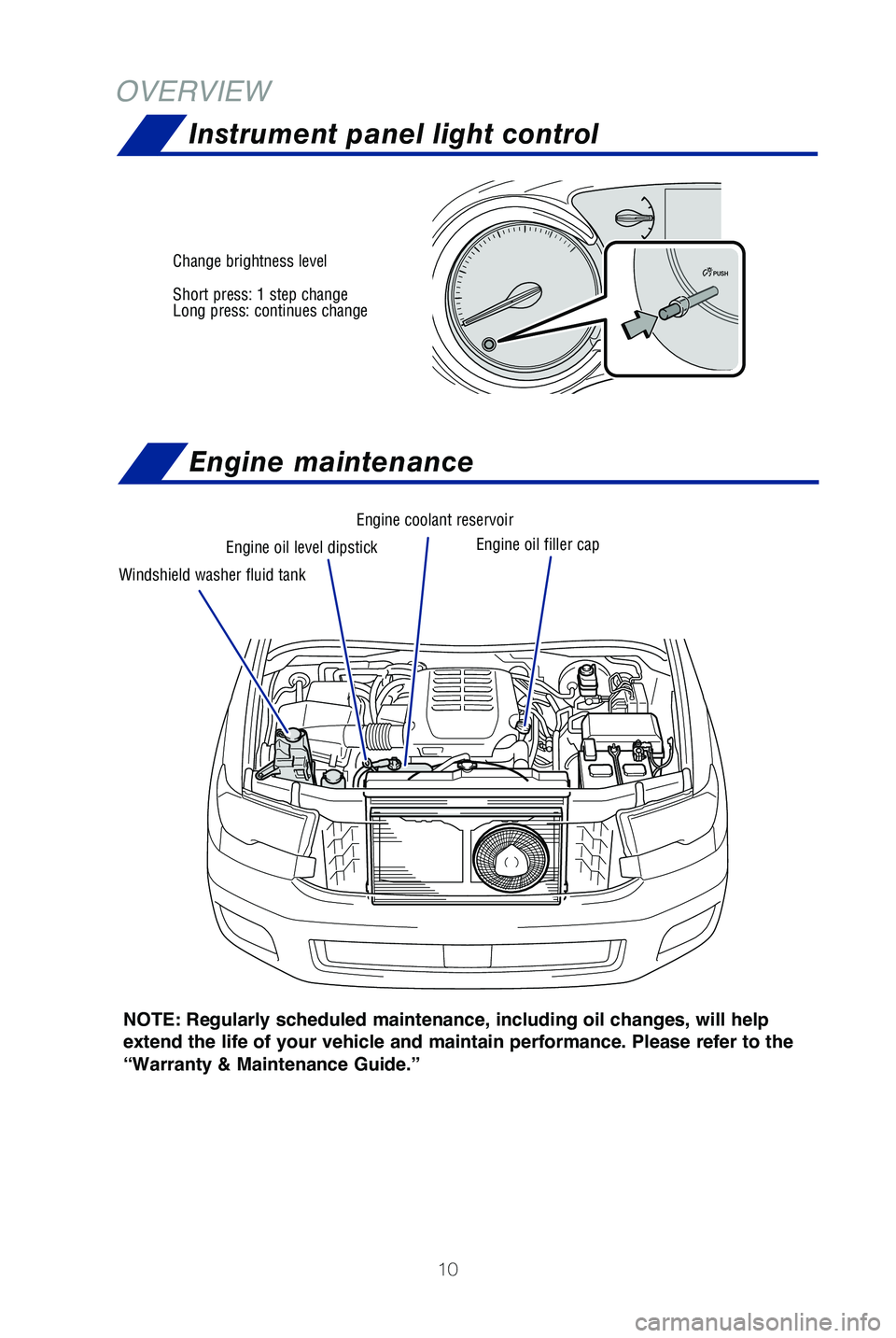

Page 12 of 60
10
OVERVIEW
NOTE: Regularly scheduled maintenance, including
oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”
Engine maintenance
Short press: 1 step change
Long press: continues change
Change brightness level
Windshield washer fluid tank Engine oil level dipstick Engine coolant reservoir
Engine oil filler cap
Instrument panel light control
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 107/31/18 10:04 PM

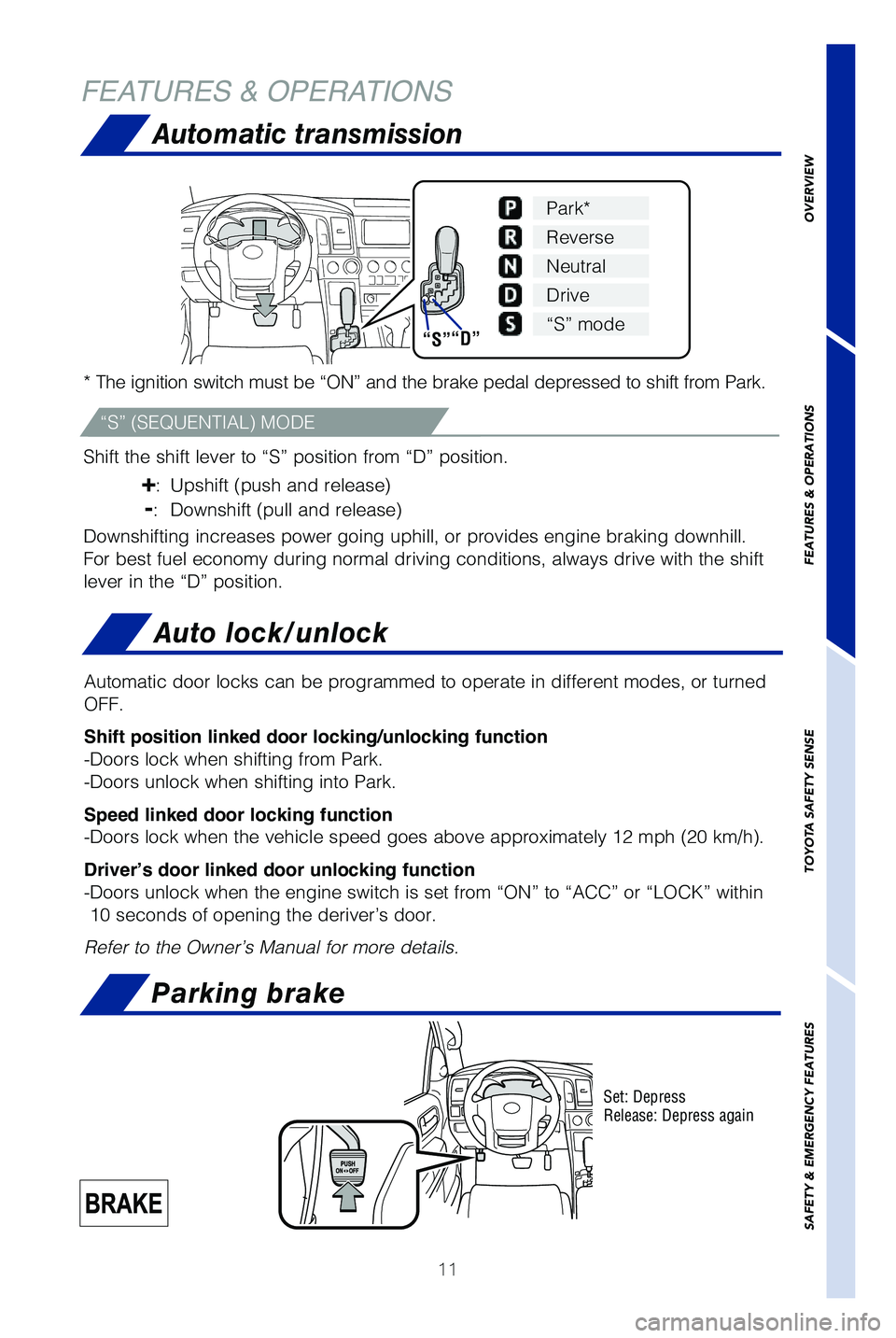

Page 13 of 60
11
Automatic transmission
* The ignition switch must be “ON” and the brake pedal depressed t\
o shift from Park.
Shift the shift lever to “S” position from “D” position.
+: Upshift (push and release)
-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
“S” (SEQUENTIAL) MODE
FEATURES & OPERATIONS
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 \
km/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set from “ON” to “ACC”\
or “LOCK” within 10 seconds of opening the deriver’s door.
Refer to the Owner’s Manual for more details.
Parking brake
Set: Depress
Release: Depress again
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 117/31/18 10:04 PM

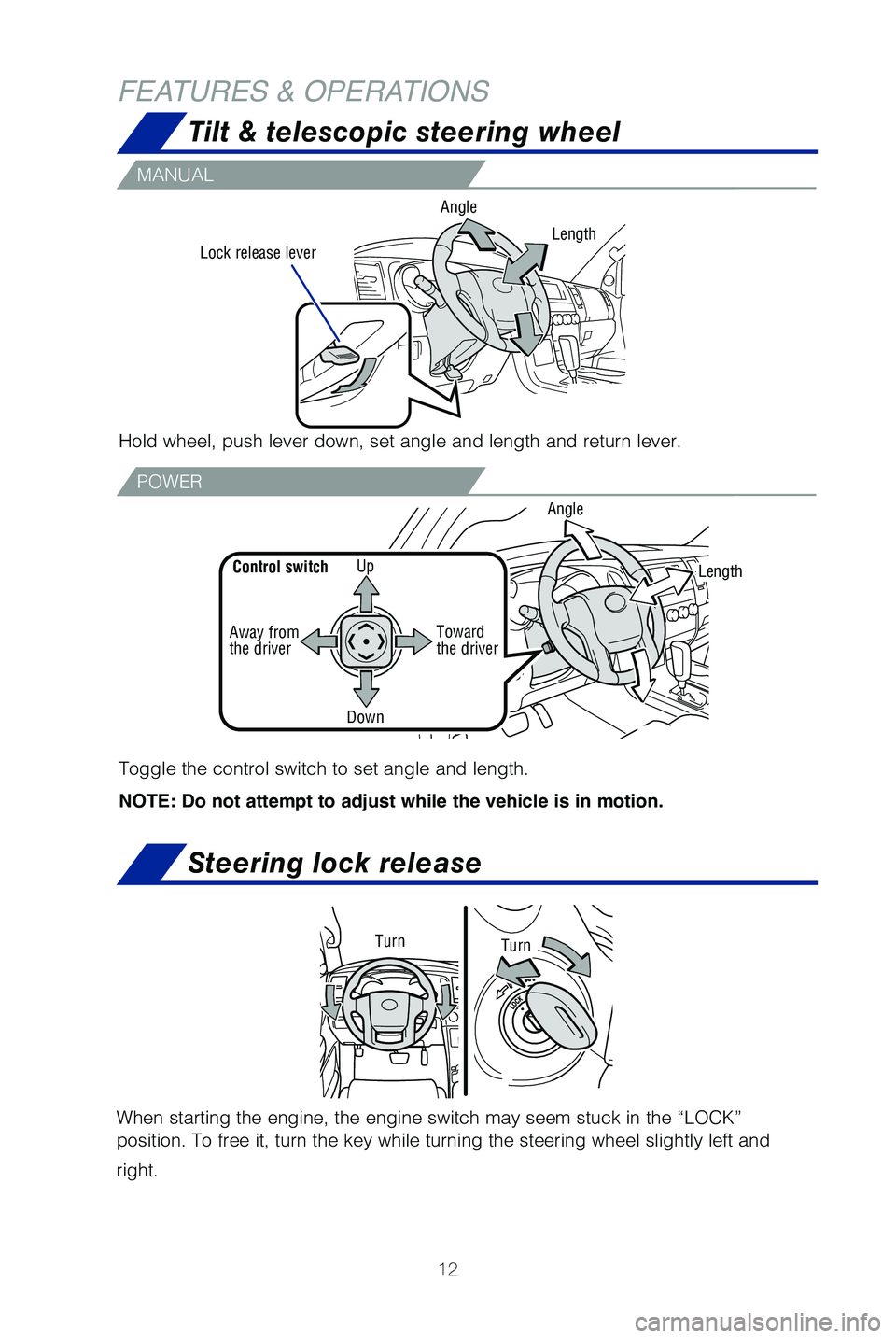

Page 14 of 60
12
FEATURES & OPERATIONS
MANUAL
POWER
Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel
Steering lock release
When starting the engine, the engine switch may seem stuck in the “LO\
CK”
position. To free it, turn the key while turning the steering wheel slig\
htly left and
right.
TurnTurn
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 127/31/18 10:04 PM

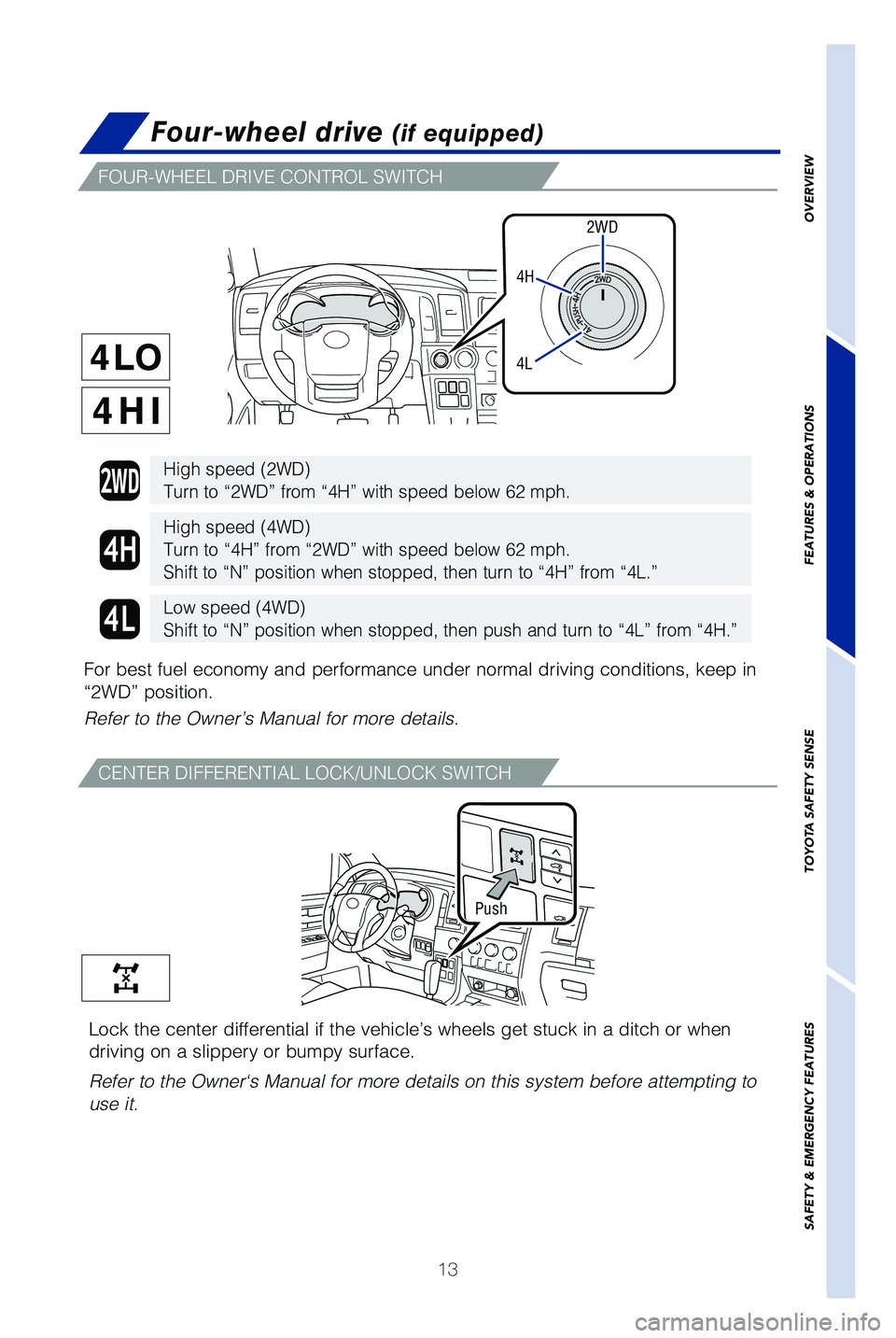

Page 15 of 60
13
Four-wheel drive (if equipped)
FOUR-WHEEL DRIVE CONTROL SWITCH
CENTER DIFFERENTIAL LOCK/UNLOCK SWITCH
High speed (2WD)
Turn to “2WD” from “4H” with speed below 62 mph.
High speed (4WD)
Turn to “4H” from “2WD” with speed below 62 mph.
Shift to “N” position when stopped, then turn to “4H” from “\
4L.”
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L”\
from “4H.”
WD
4H
4L 2WD
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
Refer to the Owner’s Manual for more details.
Lock the center differential if the vehicle’s wheels get stuck in a d\
itch or when
driving on a slippery or bumpy surface.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
Push
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 137/31/18 10:04 PM

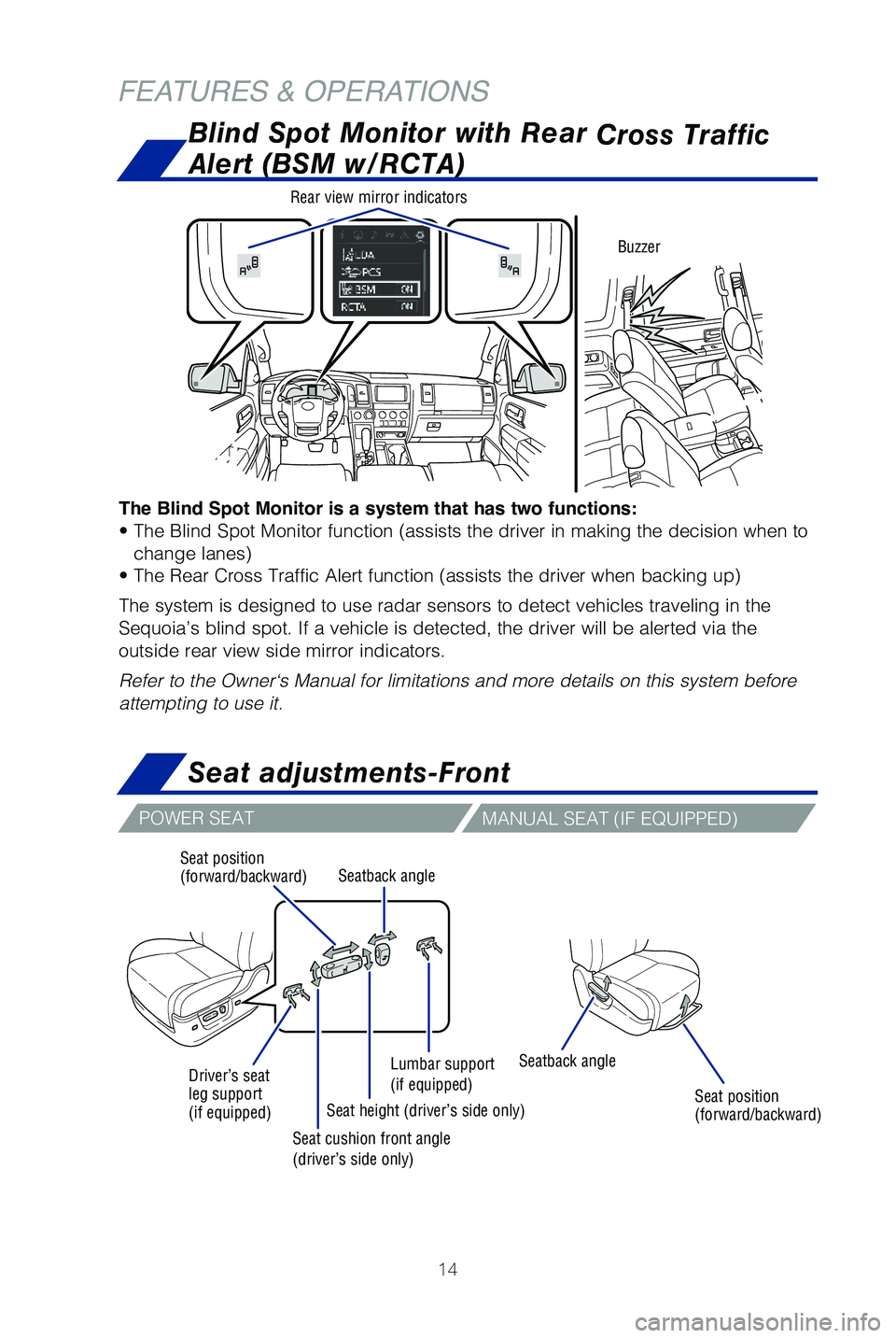

Page 16 of 60
14
FEATURES & OPERATIONS
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the \
decision when to change lanes)
• The Rear Cross Traffic Alert function (assists the driver when bac\
king up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Sequoia’s blind spot. If a vehicle is detected, the driver will be al\
erted via the
outside rear view side mirror indicators.
Refer to the Owner‘s Manual for limitations and more details on this system before
attempting to use it.
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
Rear view mirror indicators
Buzzer
Seat adjustments-Front
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback angle
Seatback angle
Seat height (driver’s side only)
Seat cushion front angle
(driver’s side only) Lumbar support
(if equipped)
Driver’s seat
leg support
(if equipped)
POWER SEAT MANUAL SEAT (IF EQUIPPED)
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 147/31/18 10:04 PM

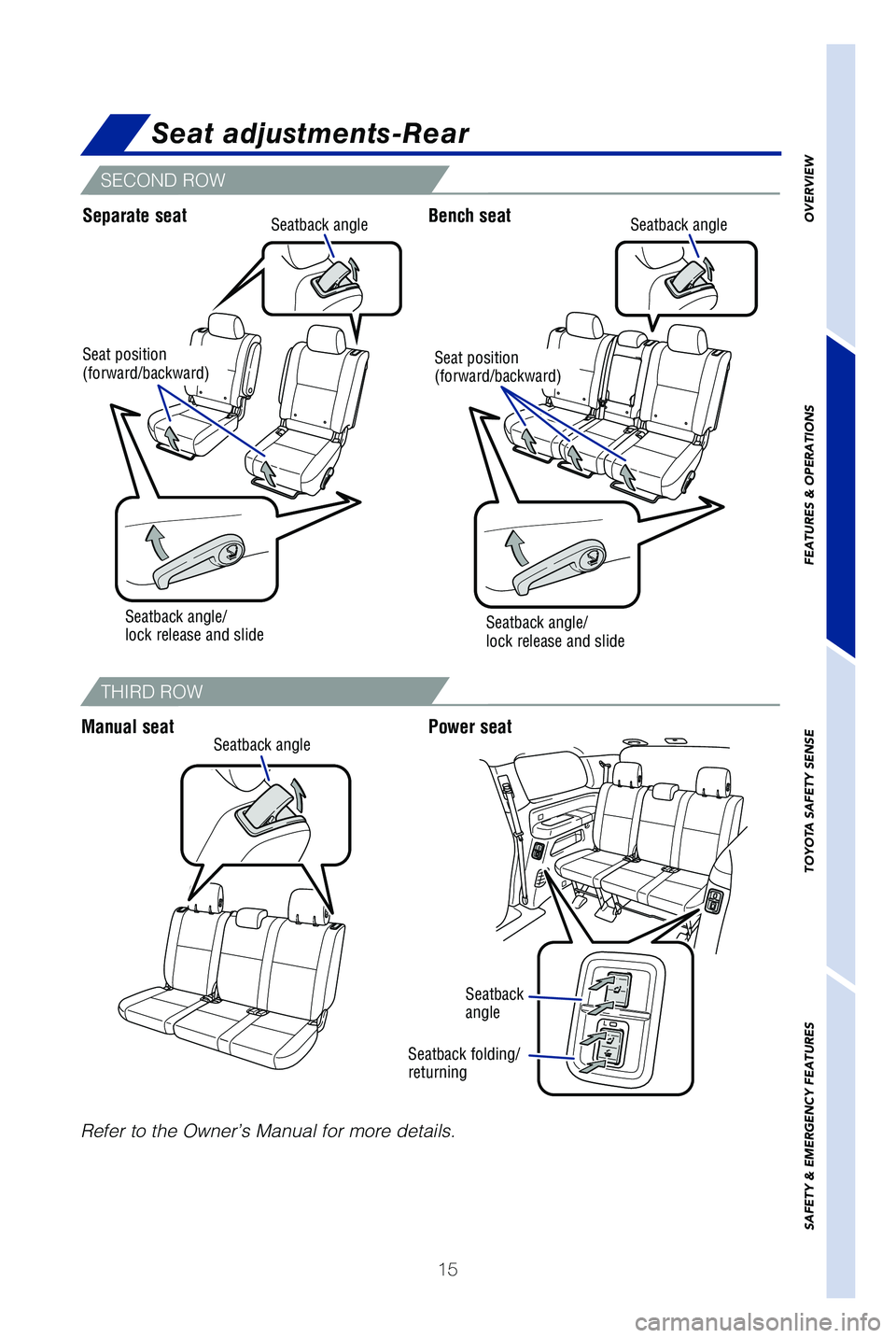

Page 17 of 60
15
Seat adjustments-Rear
Seatback angle/
lock release and slide
Separate seat Bench seat
Manual seat Power seat
SECOND ROW
THIRD ROW
Seatback angle
Seatback angleSeatback angle
Seatback
angle
Seatback folding/
returning
Seat position
(forward/backward)Seat position
(forward/backward)
Seatback angle/
lock release and slide
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more details.
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 157/31/18 10:04 PM

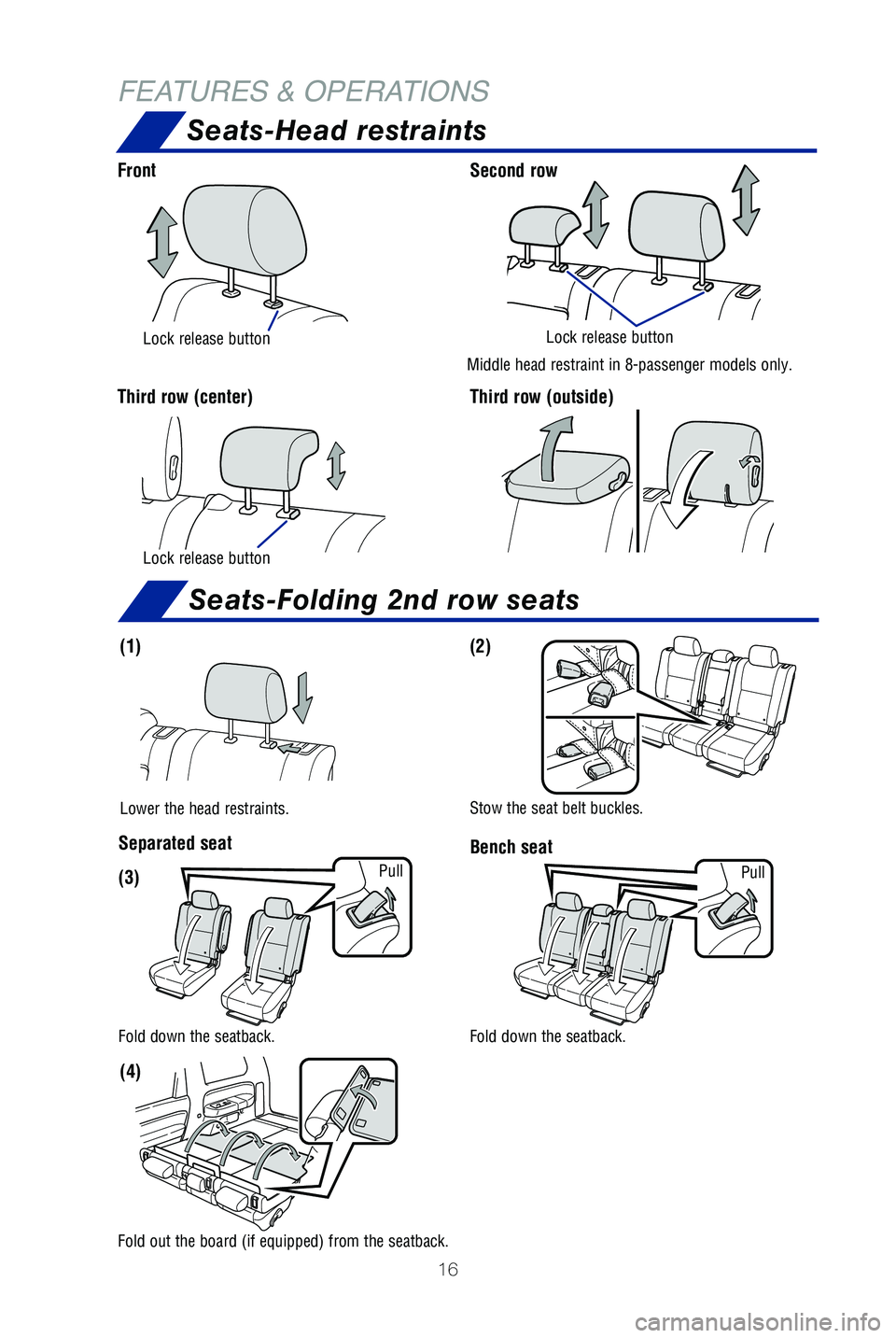

Page 18 of 60
16
FEATURES & OPERATIONSSeats-Head restraints
Front
Third row (center)
Lock release button
Lock release button
Second row
Lock release button
Middle head restraint in 8-passenger models only.
Third row (outside)
Seats-Folding 2nd row seats
Lower the head restraints. Stow the seat belt buckles.
(1)
(3)
(2)
(4)
Pull Pull
Separated seat
Bench seat
Fold down the seatback. Fold down the seatback.
Fold out the board (if equipped) from the seatback.
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 167/31/18 10:04 PM
Page 19 of 60
17
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

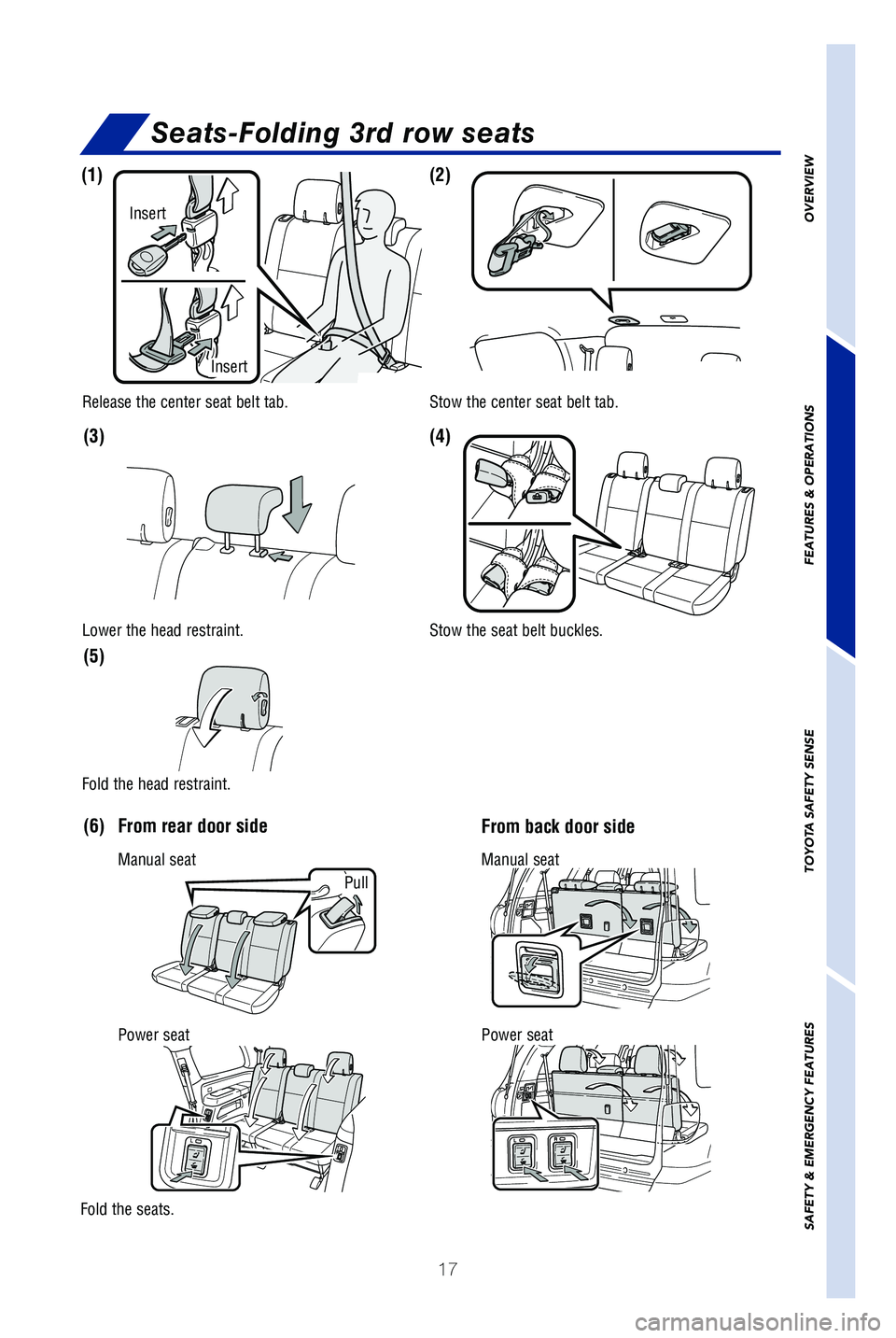

Seats-Folding 3rd row seats
Release the center seat belt tab. Stow the center seat belt tab.
Stow the seat belt buckles.
Fold the head restraint.
Fold the seats.
(1)
(6)
(3)
(2)
(4)
Power seat
Pull
Insert
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
(5)
Lower the head restraint.
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 177/31/18 10:04 PM
Page 20 of 60
18
FEATURES & OPERATIONS

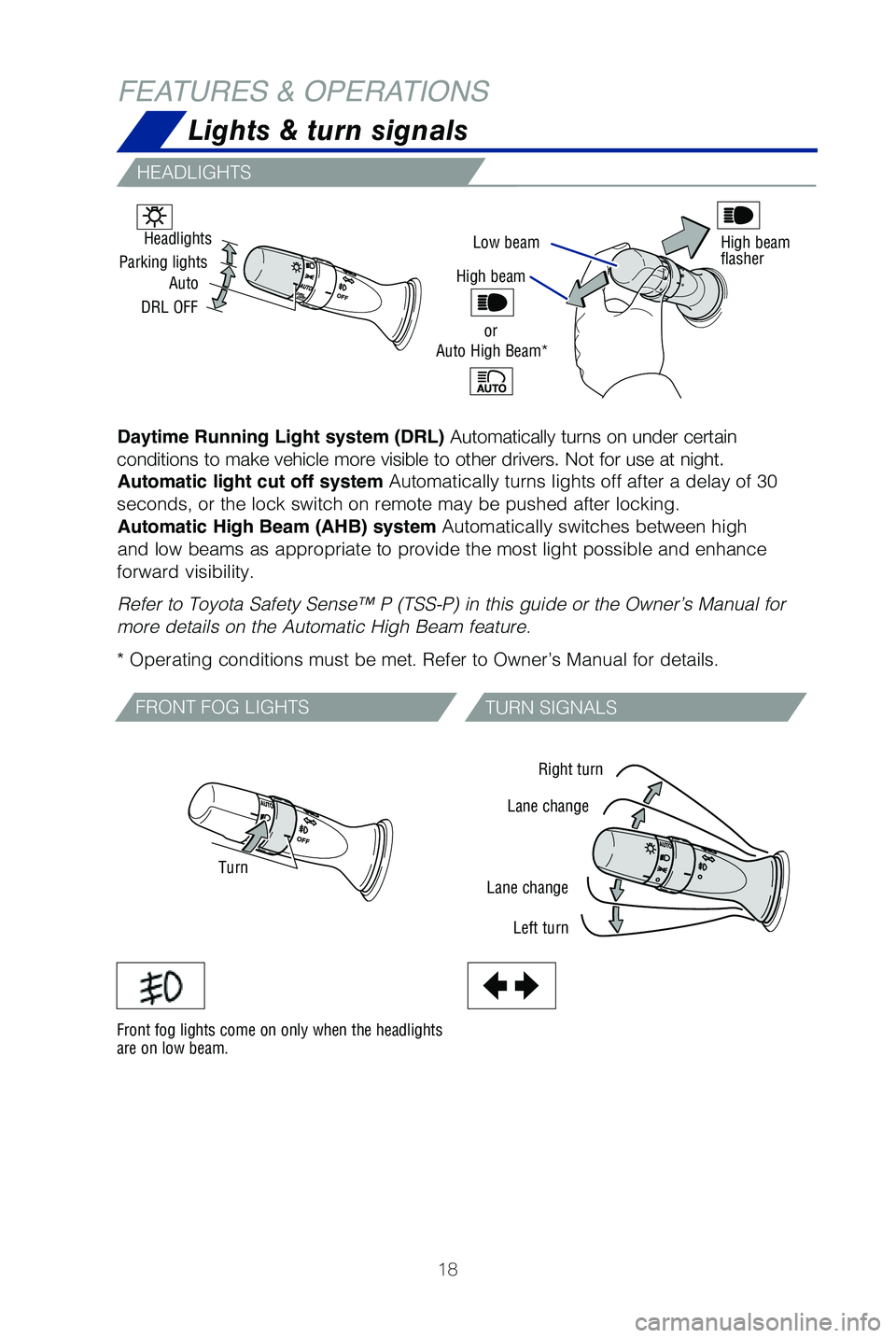

Low beam
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after a delay of 30
seconds, or the lock switch on remote may be pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to provide the most light possible and enha\
nce
forward visibility.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to Owner’s Manual for detai\
ls.
Front fog lights come on only when the headlights
are on low beam. Right turn
Lane change
Lane change Left turn High beam
flasher
Turn
Auto
Headlights
Parking lights
DRL OFF
HEADLIGHTS
FRONT FOG LIGHTS TURN SIGNALS
High beam
orAuto High Beam*
Lights & turn signals
49195b_MY19_Sequoia_QRG_V1_ML_0718.indd 187/31/18 10:04 PM
