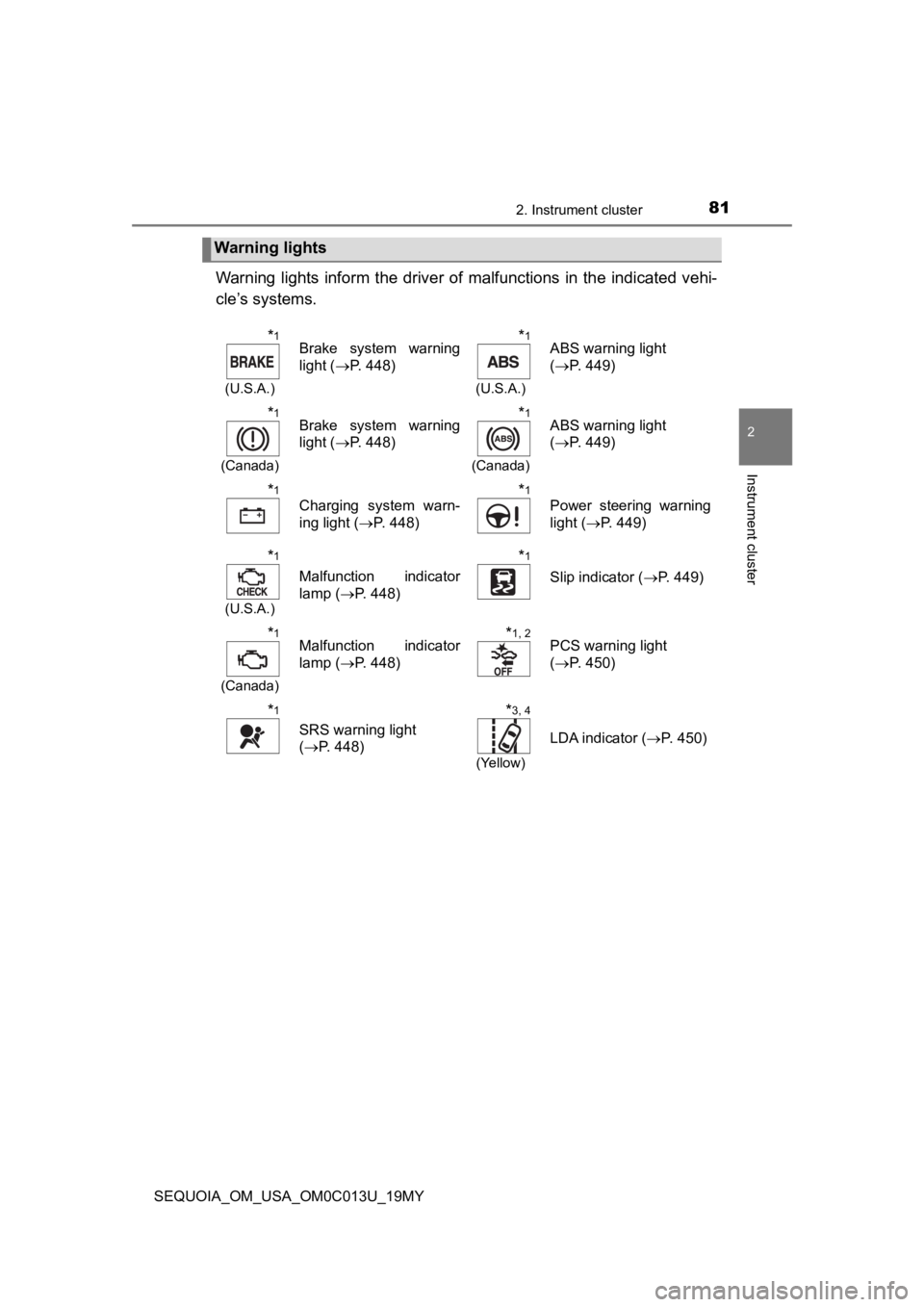

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.
Warning lights
*1
(U.S.A.)
Brake system warning
light ( P. 448)*1
(U.S.A.)
ABS warning light
(P. 449)
*1
(Canada)
Brake system warning
light ( P. 448)*1
(Canada)
ABS warning light
(P. 449)
*1
Charging system warn-
ing light ( P. 448)*1
Power steering warning
light (P. 449)
*1
(U.S.A.)
Malfunction indicator
lamp ( P. 448)
*1
Slip indicator ( P. 449)
*1
(Canada)
Malfunction indicator
lamp (P. 448)*1, 2PCS warning light
(P. 450)
*1
SRS warning light
(P. 448)
*3, 4
(Yellow)
LDA indicator ( P. 450)

822. Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
*1: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a m alfunction
in a system if the lights do not come on, or do not turn off. H ave the vehicle
inspected by your Toyota dealer.
*2: The light flashes to indicate a malfunction.
*3: The light illuminates on the multi-information display.
*4: The light comes on to indicate a malfunction.

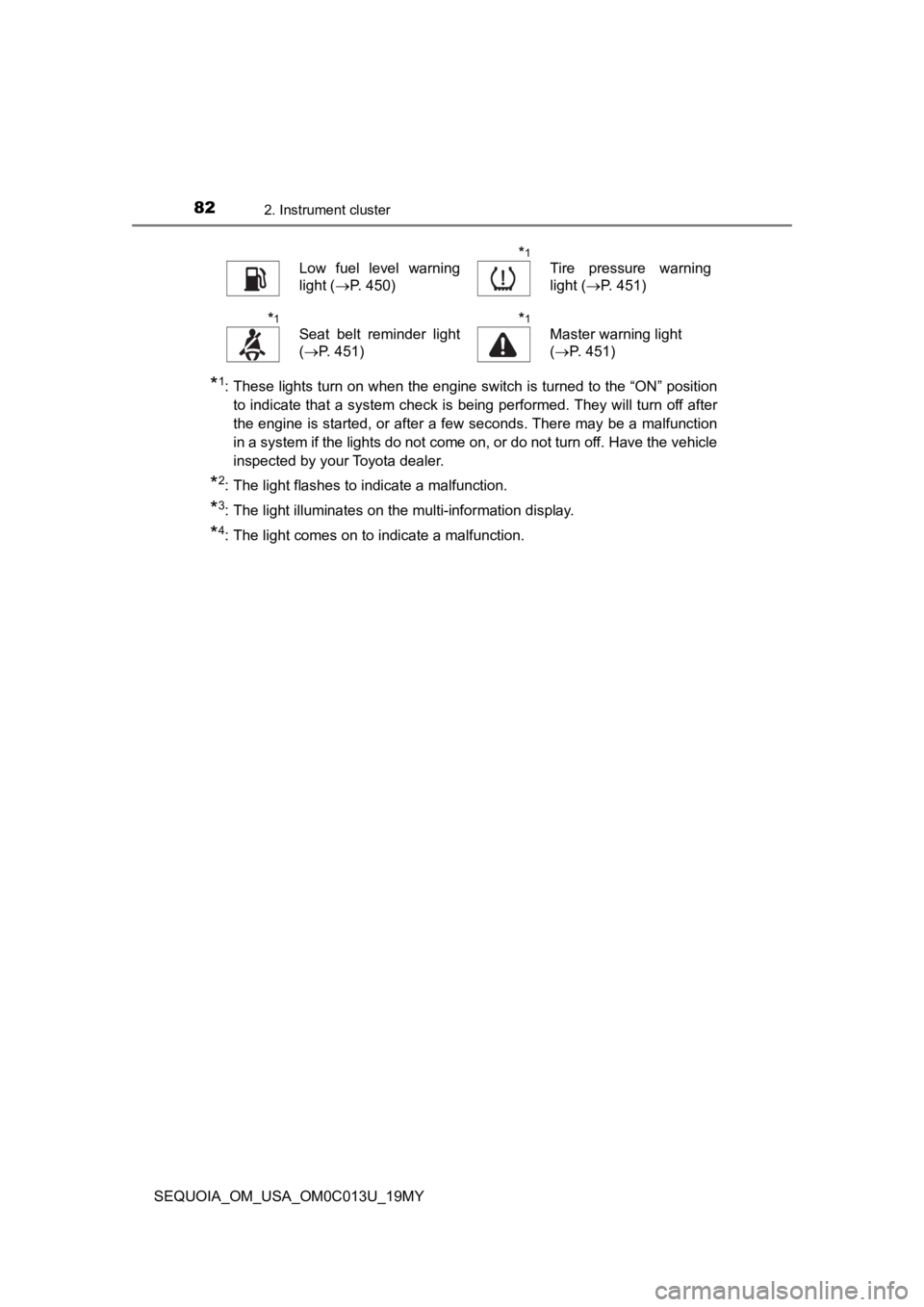

Low fuel level warning
light ( P. 450)*1
Tire pressure warning
light (P. 451)
*1
Seat belt reminder light
(P. 451)*1
Master warning light
(P. 451)

832. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY

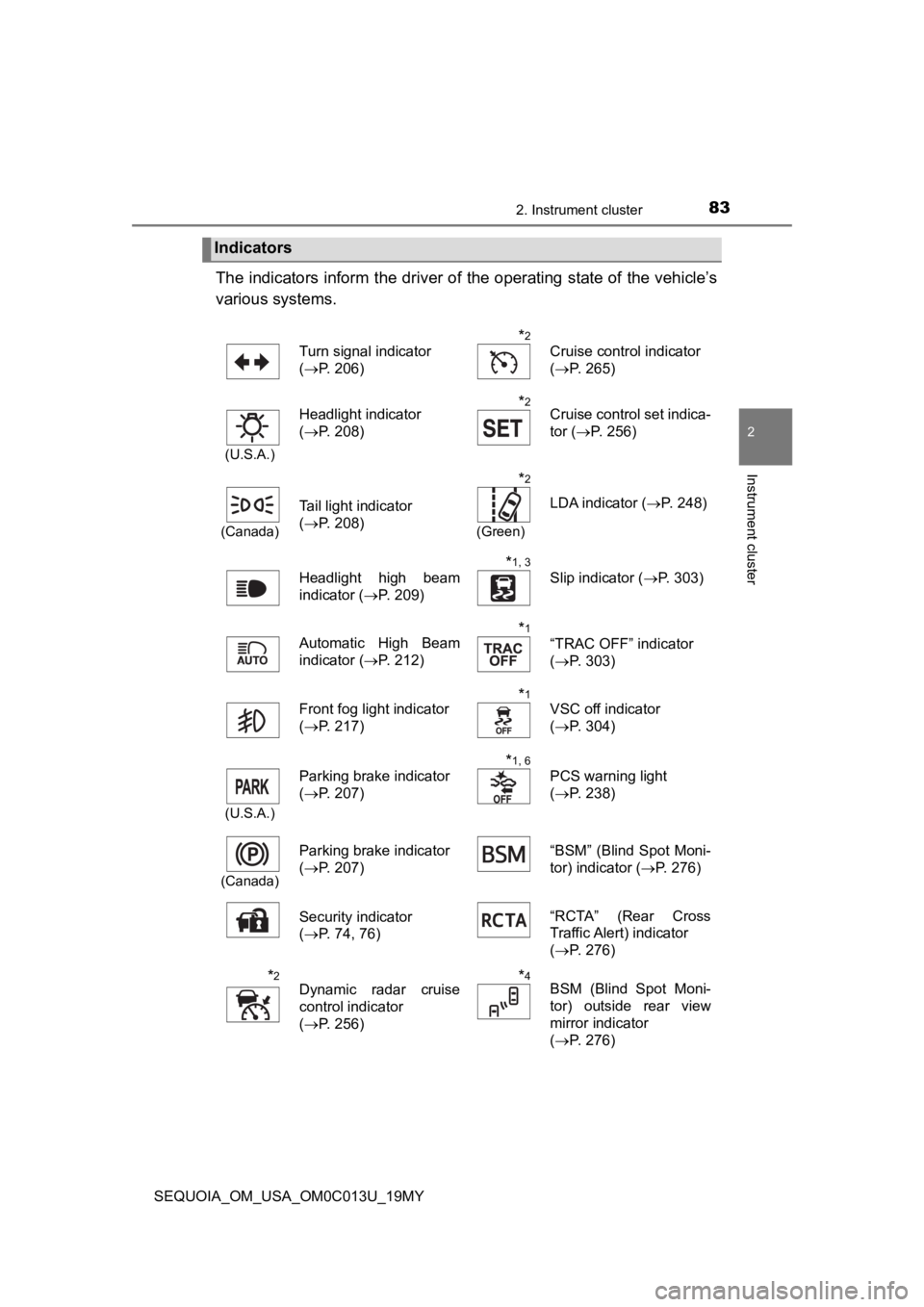

The indicators inform the driver of the operating state of the vehicle’s
various systems.
Indicators
Turn signal indicator
( P. 206)*2
Cruise control indicator
(P. 265)
(U.S.A.)
Headlight indicator
(P. 208)*2Cruise control set indica-
tor ( P. 256)
(Canada)
Tail light indicator
(P. 208)
*2
(Green)
LDA indicator ( P. 248)
Headlight high beam
indicator ( P. 209)
*1, 3
Slip indicator ( P. 303)
Automatic High Beam
indicator ( P. 212)
*1
“TRAC OFF” indicator
(P. 303)
Front fog light indicator
( P. 217)
*1
VSC off indicator
(P. 304)
(U.S.A.)
Parking brake indicator
(P. 207)*1, 6
PCS warning light
(P. 238)
(Canada)
Parking brake indicator
(P. 207) “BSM” (Blind Spot Moni-
tor) indicator (
P. 276)
Security indicator
( P. 74, 76) “RCTA” (Rear Cross
Traffic Alert) indicator
(
P. 276)
*2Dynamic radar cruise
control indicator
(P. 256)*4BSM (Blind Spot Moni-
tor) outside rear view
mirror indicator
(P. 276)

842. Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
*1: These lights turn on when the engine switch is turned to the “ON” position
to indicate that a system check is being performed. They will turn off after
the engine is started, or after a few seconds. There may be a m alfunction
in a system if the lights do not come on, or do not turn off. H ave the vehicle
inspected by your Toyota dealer.
*2: This light illuminates on the multi-information display.
*3: The light flashes to indicate that the system is operating.
*4: In order to confirm operation, the BSM outside rear view mirro r indicators
illuminate in the following situations:
• When the engine switch is turned to the “ON” position, the BSM function
is enabled on the screen of the multi-information display.
• When the BSM function is enabled on the screen of the multi-infor- mation display, the engine switch is turned to the “ON” positio n.
If the system is functioning correctly, the BSM outside rear vi ew mirror
indicators will turn off after a few seconds.
If the BSM outside rear view mirror indicators do not illuminat e or do not
turn off, there may be a malfunction in the system.
If this occurs, have the vehicle inspected by your Toyota deale r.
*5: This light illuminates on the center panel.
*6: This light turns on when the system is off.
(if equipped)

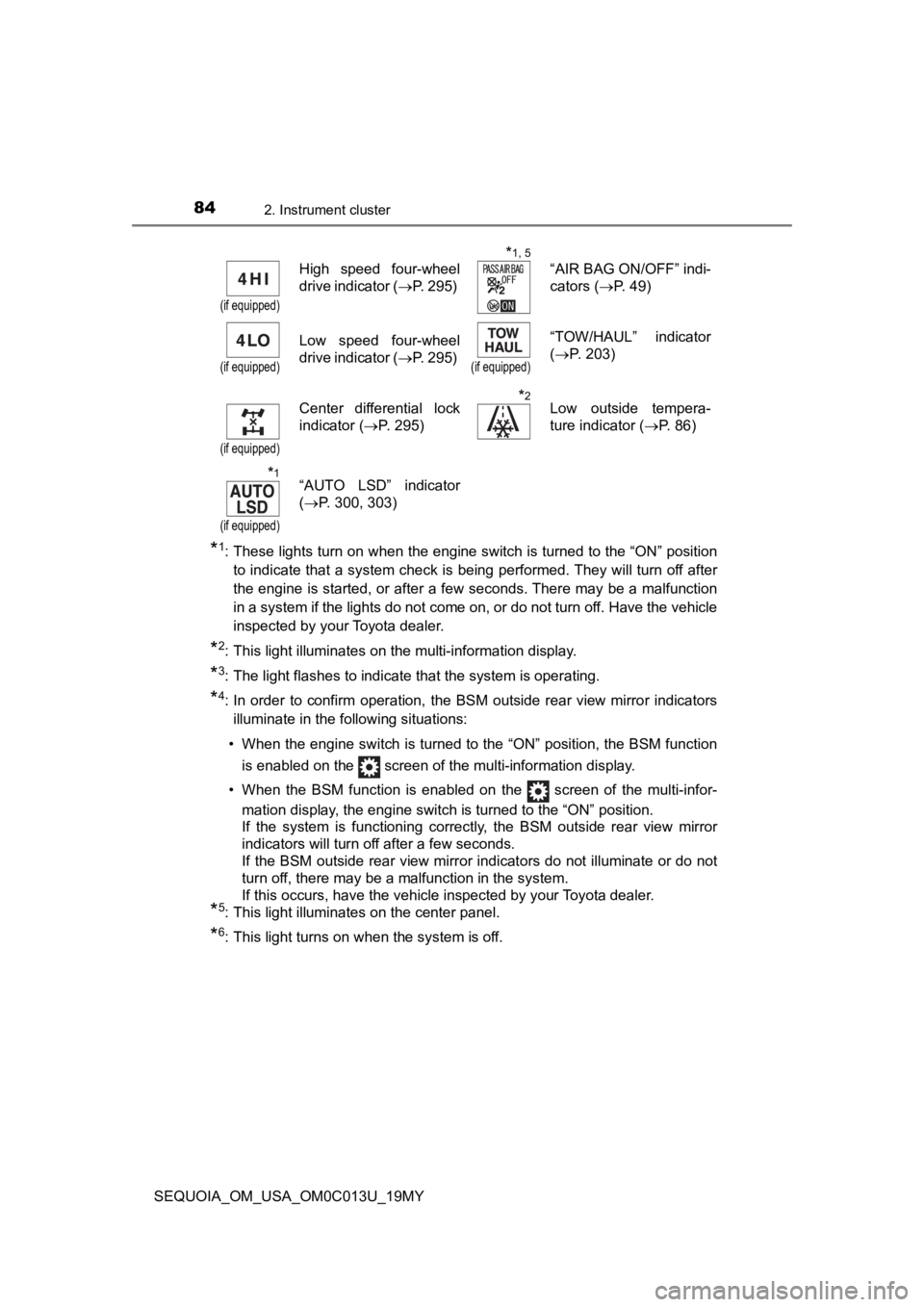

High speed four-wheel
drive indicator (P. 2 9 5 )
*1, 5
“AIR BAG ON/OFF” indi-
cators (P. 49)
(if equipped)
Low speed four-wheel
drive indicator ( P. 2 9 5 )
(if equipped)
“TOW/HAUL” indicator
(P. 203)
(if equipped)
Center differential lock
indicator ( P. 295)*2Low outside tempera-
ture indicator ( P. 86)
*1
(if equipped)
“AUTO LSD” indicator
(P. 300, 303)

852. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
WARNING
■If a safety system warning light does not come on
Should a safety system light such as the ABS and SRS warning li ght not
come on when you start the engine, this could mean that these s ystems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.

862. Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY

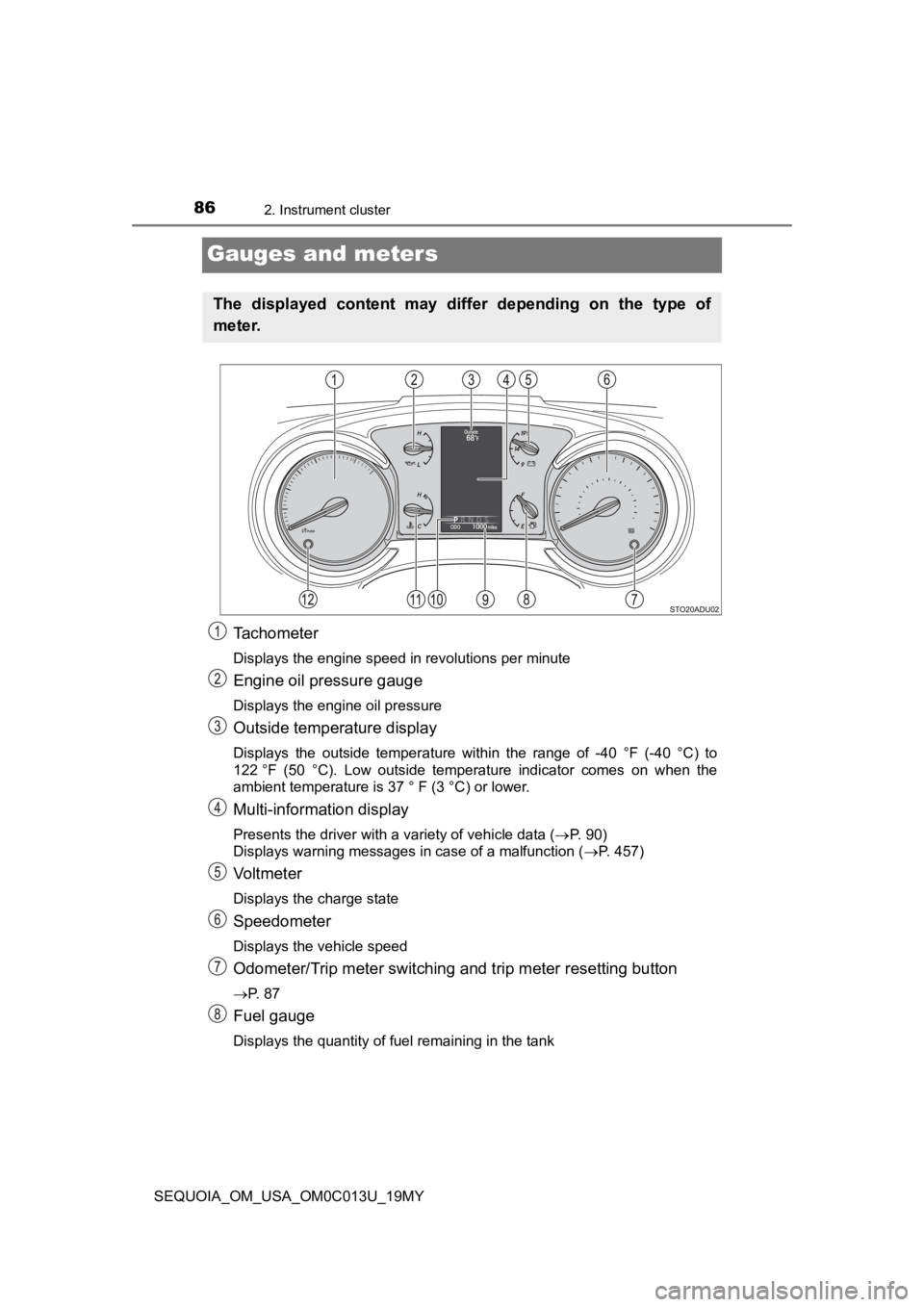

Gauges and meters
Tachometer
Displays the engine speed in revolutions per minute
Engine oil pressure gauge
Displays the engine oil pressure
Outside temperature display
Displays the outside temperature within the range of -40 °F (-40 °C) to
122 °F (50 °C). Low outside temperature indicator comes on when the
ambient temperature is 37 ° F (3 °C) or lower.
Multi-information display
Presents the driver with a variety of vehicle data ( P. 90)
Displays warning messages in case of a malfunction ( P. 457)
Vo l t m e t e r
Displays the charge state
Speedometer
Displays the vehicle speed
Odometer/Trip meter switching and trip meter resetting button
P. 8 7
Fuel gauge
Displays the quantity of fuel remaining in the tank
The displayed content may differ depending on the type of
meter.

872. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
Odometer and trip meter display
P. 8 7
Shift position and shift range display
Displays the selected shift position or selected shift range ( P. 201)
Engine coolant temperature gauge
Displays the engine coolant temperature
Instrument panel light control button (P. 8 8 )
Pressing the button changes the
display change button display as
follows.
■Odometer
Displays the total distance the vehicle has been driven.
■Tr i p m e t e r A*/trip meter B*
Displays the distance the vehicl e has been driven since the met er
was last reset. Trip meters A and B can be used to record and d is-
play different distances independently.
*: Press and hold the display change button to reset.

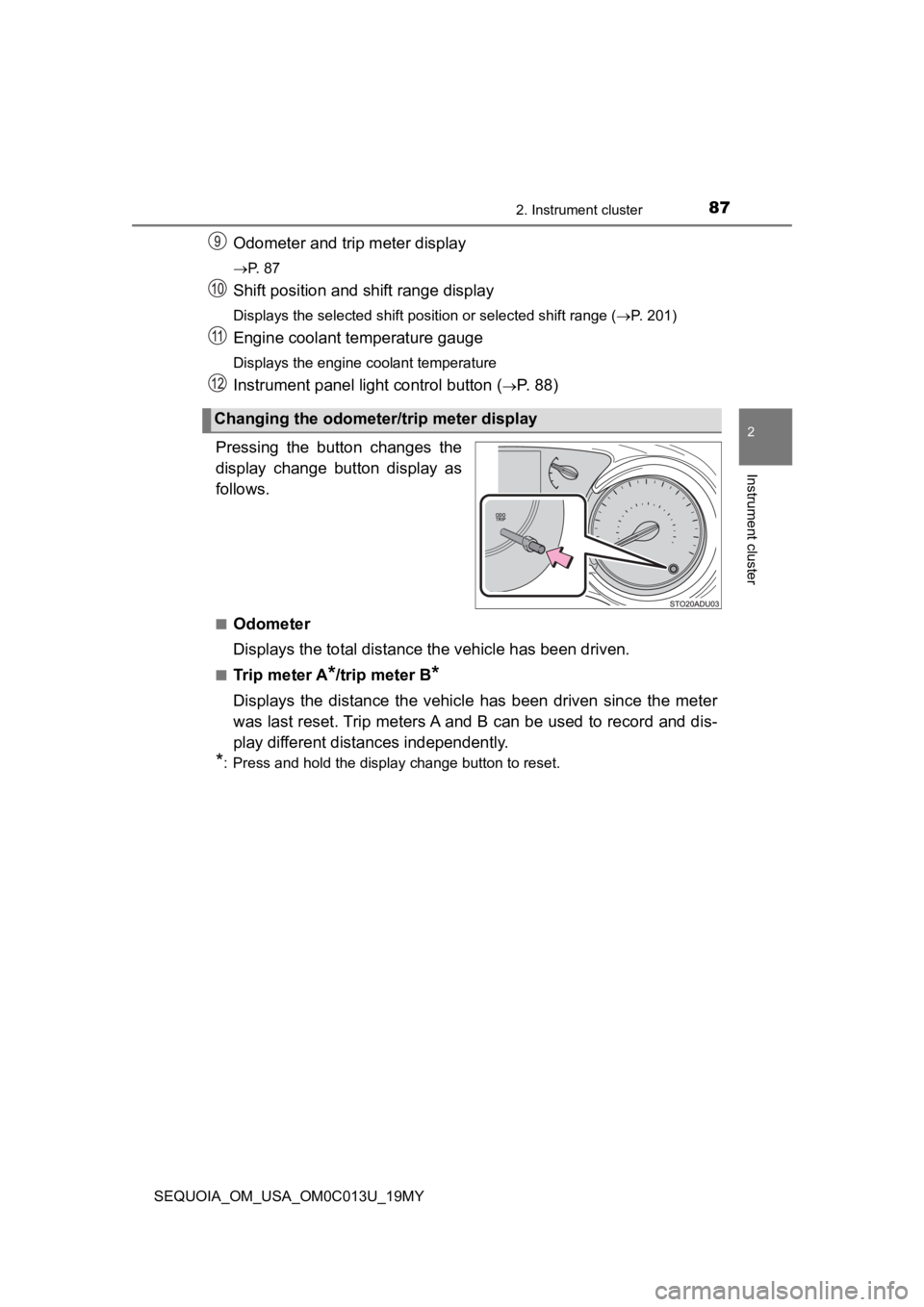

Changing the odometer/t rip meter display

882. Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
The brightness of the instrument panel lights can be adjusted.
Pressing the button will adjust
brightness of the instrument panel
light.
Short press: 1 step change of
brightness level.
Long press: continues change of
brightness level until released.
■ The meters and display illuminate when
The engine switch is in the “ON” position.
■ Instrument panel bri ghtness adjustment
When the tail lights are turned on, the display’s brightness will be reduced
slightly unless the meter brightness level adjustment is set to the brightest
setting.
■ Outside temperature display
●In the following situations, the correct outside temperature ma y not be dis-
played, or the display may take longer than normal to change.
• When stopped, or driving at low speeds (less than 12 mph [20 k m/h])
• When the outside temperature has changed suddenly (at the entr ance/
exit of a garage, tunnel, etc.)
● When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to your Toyota dealer.
■ Liquid crystal display
Small spots or light spots may appear on the display. This phen omenon is
characteristic of liquid crystal displays, and there is no prob lem continuing to
use the display.

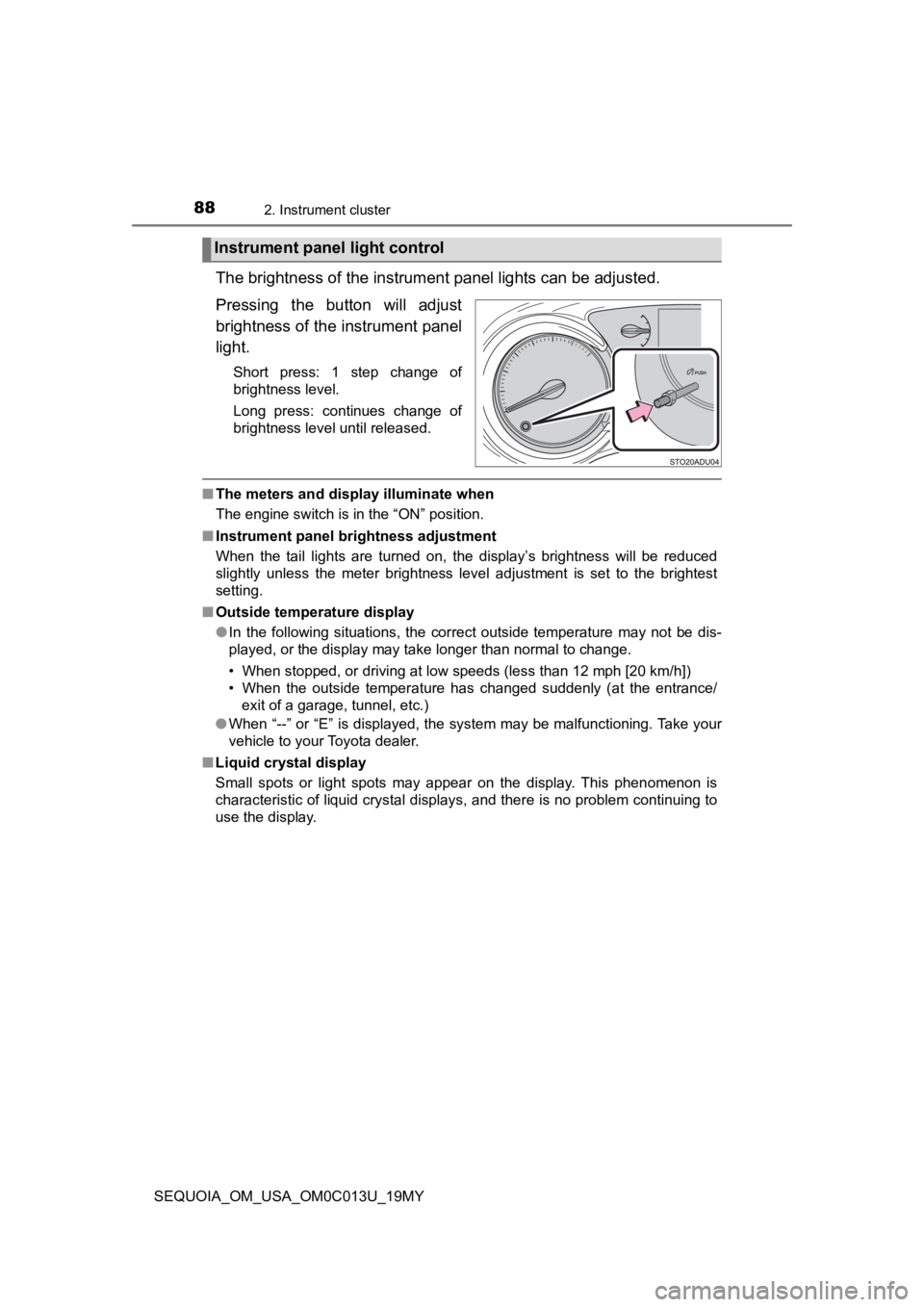

Instrument panel light control

892. Instrument cluster
2
Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY
WARNING
■The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the drive r to down-
shift again, causing rapid and excessive engine braking and pos sibly an
accident resulting in personal death or injury.
NOTICE
■ To prevent damage to the engine and its components
● Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.
● The engine may be overheating if the engine coolant temperature gauge is
in the red zone (H). In this case, immediately stop the vehicle in a safe
place, and check the engine after it has cooled completely. ( P. 484)
■ Voltmeter
When the voltmeter indicates 19 V or higher or 9 V or lower while the engine
is running, there may be a battery or charging system malfunction. Have the
vehicle inspected at your Toyota dealer.
■ Engine oil pressure gauge
When the value of the engine oil pressure gauge drops while the engine is
running, stop the vehicle in a safe place immediately and check the amount
of engine oil. ( P. 395)
When the oil pressure drops even though the engine oil amount has not
decreased, or if the oil pressure does not increase when engine oil is
added, contact your Toyota dealer, as there may be a problem wi th the lubri-
cation system.

902. Instrument cluster
SEQUOIA_OM_USA_OM0C013U_19MY

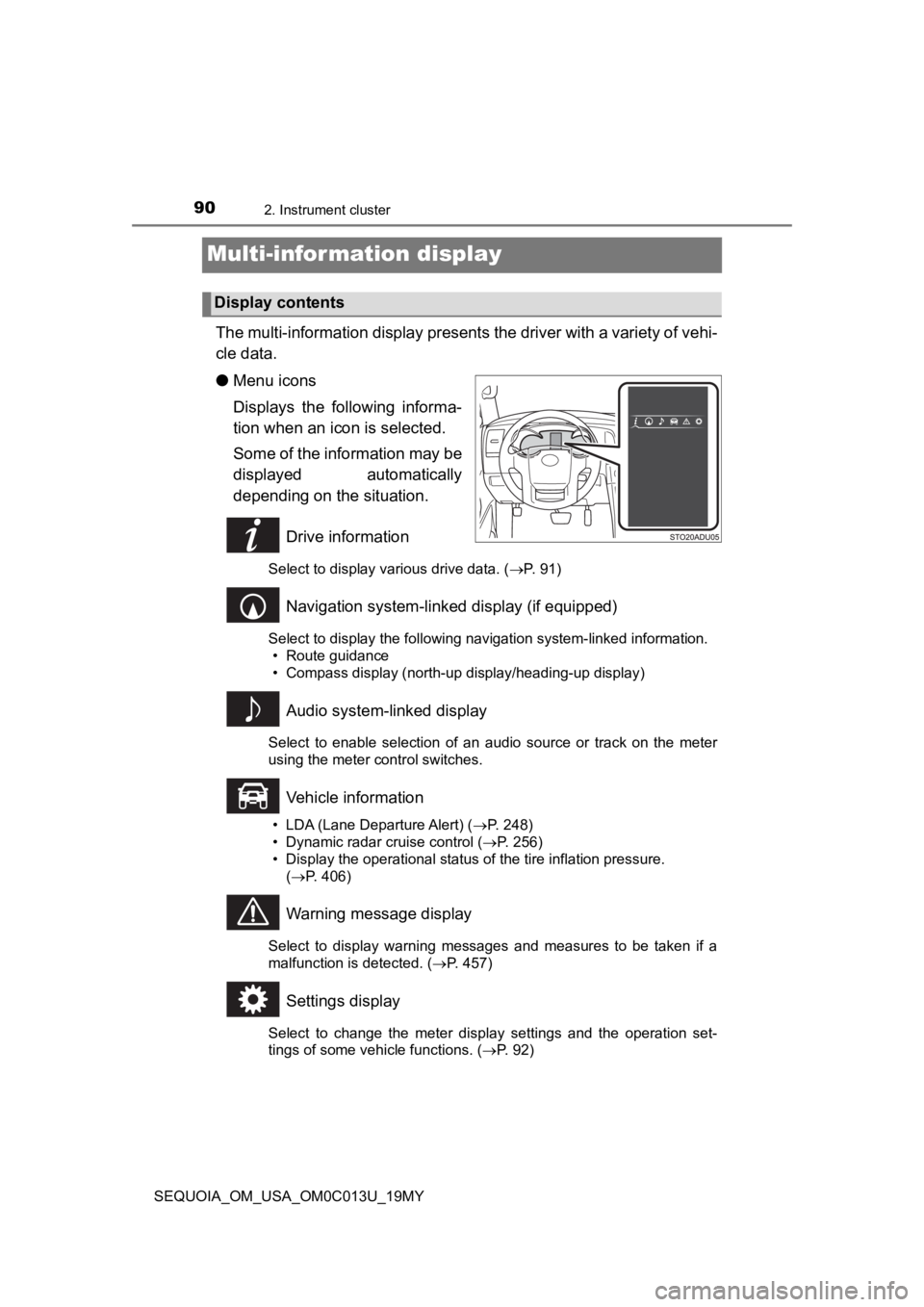

Multi-infor mation display
The multi-information display presents the driver with a variety of vehi-
cle data.
● Menu icons
Displays the following informa-
tion when an icon is selected.
Some of the information may be
displayed automatically
depending on the situation.
Drive information
Select to display various drive data. ( P. 91)
Navigation system-linked display (if equipped)
Select to display the following navigation system-linked information.
• Route guidance
• Compass display (north-up display/heading-up display)
Audio system-linked display
Select to enable selection of an audio source or track on the m eter
using the meter control switches.
Vehicle information
• LDA (Lane Departure Alert) ( P. 248)
• Dynamic radar cruise control ( P. 256)
• Display the operational status of the tire inflation pressure.
( P. 406)
Warning message display
Select to display warning messages and measures to be taken if a
malfunction is detected. ( P. 457)
Settings display
Select to change the meter display settings and the operation set-
tings of some vehicle functions. ( P. 92)
Display contents
