TOYOTA SEQUOIA 2020 (in English) User Guide

9
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
PANIC BUTTON
Without depressing the brake pedal, pressing the engine switch will chan\
ge the
operation mode in succession from:
POWER (WITHOUT STARTING ENGINE)
START FUNCTION
Smart Key system
NOTE: The Smart Key must be carried to enable the start function. With the
gear shift lever in Park and the brake pedal depressed, push the “ENGINE
START STOP” switch.
Off - All systems OFF. Emergency flashers can be used.
Accessory – Some electrical components can be used.
On - All electrical components can be used.

10
OVERVIEW
NOTE: To close, tighten until one click is heard. If the cap is not locked or
tightened, Check Engine “
” indicator may illuminate.

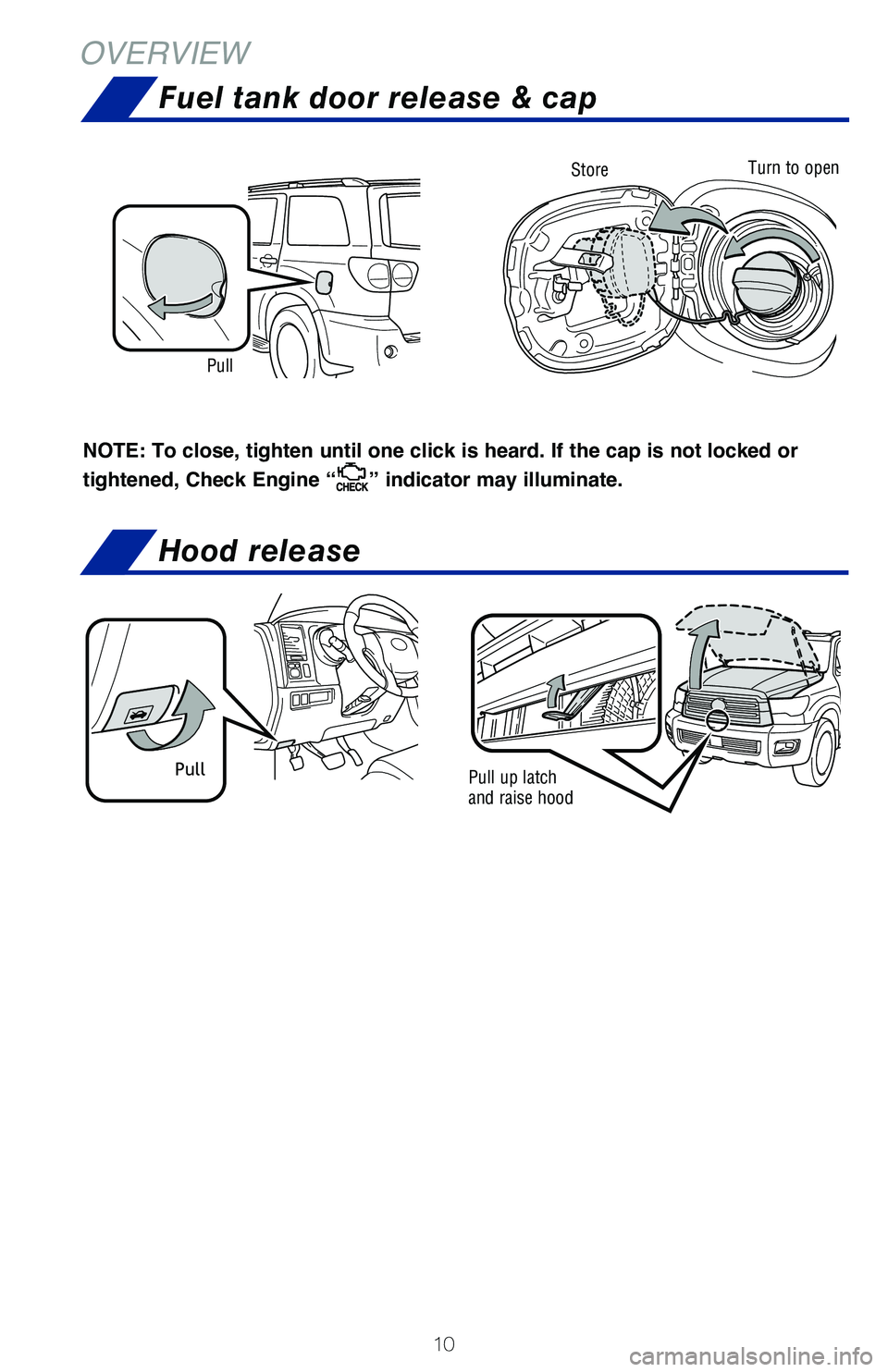

Fuel tank door release & cap
Turn to openStore
Pull
Hood release
Pull up latch
and raise hoodPull

11
NOTE: Regularly scheduled maintenance, including oil changes, will help
extend the life of your vehicle and maintain performance. Please refer to the
“Warranty & Maintenance Guide.”

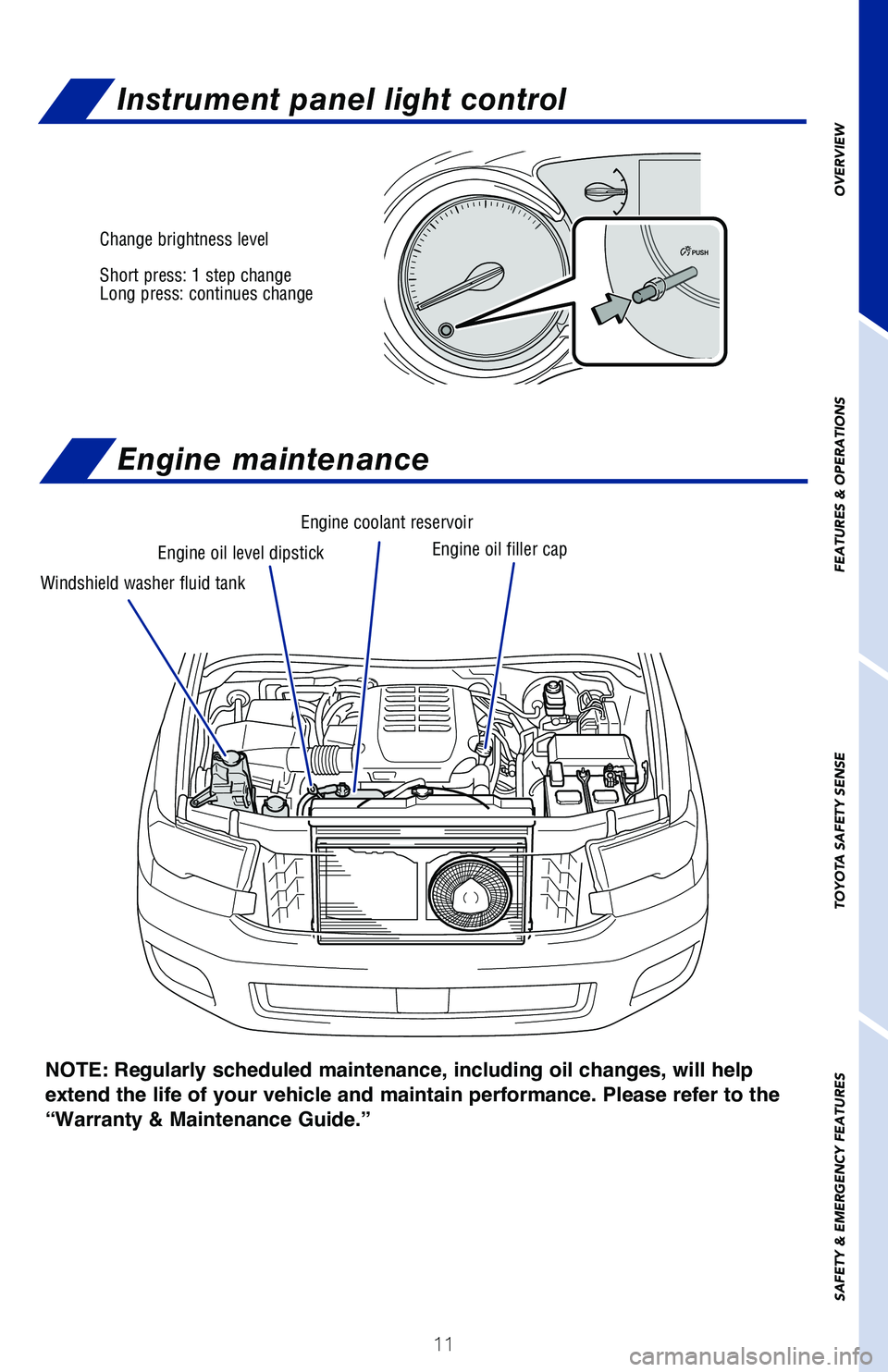

Engine maintenance
Short press: 1 step change
Long press: continues change Change brightness level
Windshield washer fluid tank Engine oil level dipstick Engine coolant reservoir
Engine oil filler cap
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Instrument panel light control

12

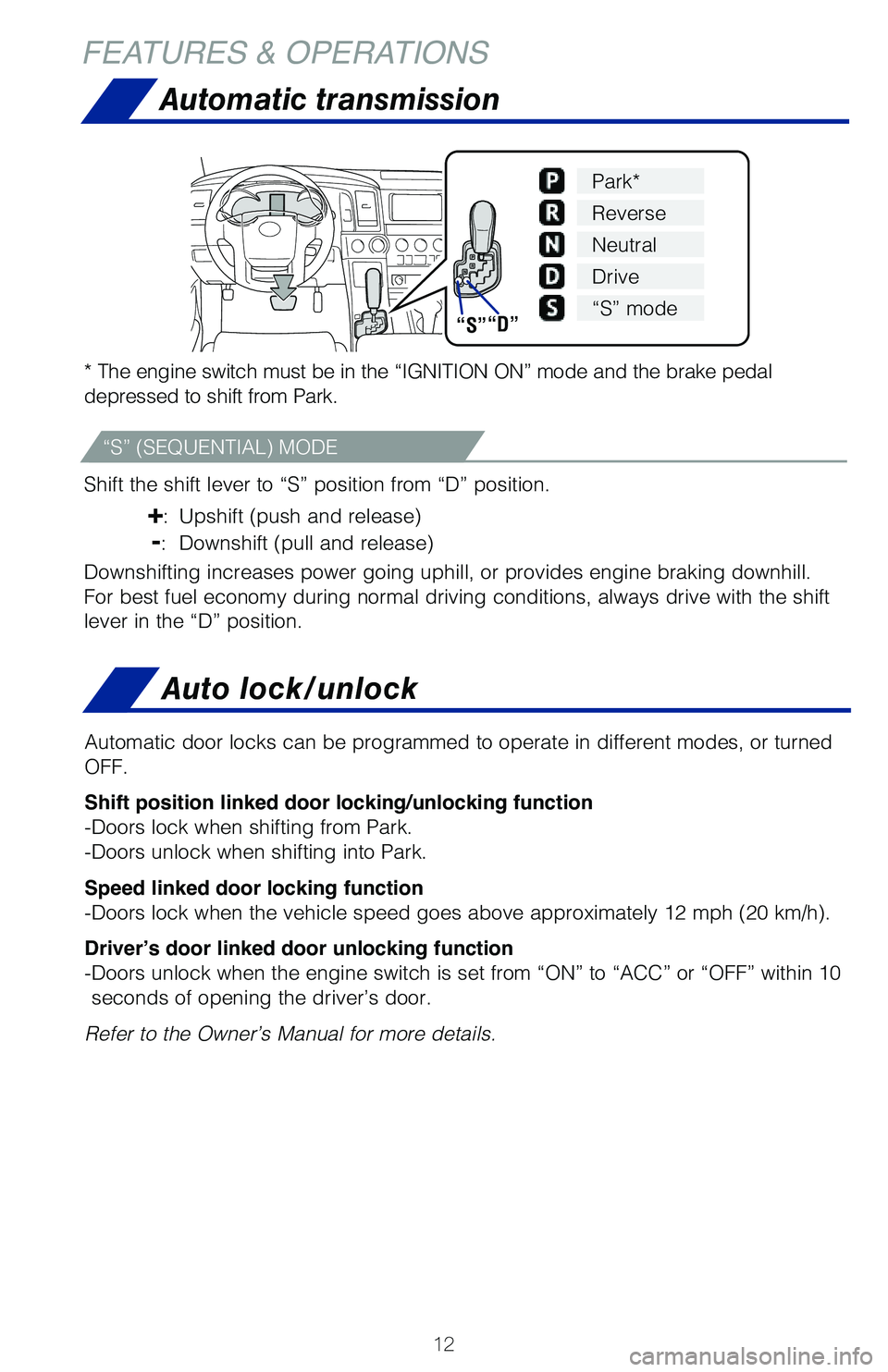

FEATURES & OPERATIONSAutomatic transmission
* The engine switch must be in the “IGNITION ON” mode and the brak\
e pedal
depressed to shift from Park.
Shift the shift lever to “S” position from “D” position.

+: Upshift (push and release)

-: Downshift (pull and release)
Downshifting increases power going uphill, or provides engine braking do\
wnhill.
For best fuel economy during normal driving conditions, always drive wit\
h the shift
lever in the “D” position.
Park*
Reverse
Neutral
Drive
“S” mode“S”“D”
“S” (SEQUENTIAL) MODE
Auto lock/unlock
Automatic door locks can be programmed to operate in different modes, or\
turned
OFF.
Shift position linked door locking/unlocking function
-Doors lock when shifting from Park.
-Doors unlock when shifting into Park.
Speed linked door locking function
-Doors lock when the vehicle speed goes above approximately 12 mph (20 \
km/h).
Driver’s door linked door unlocking function
-Doors unlock when the engine switch is set from “ON” to “ACC”\
or “OFF” within 10 seconds of opening the driver’s door.
Refer to the Owner’s Manual for more details.

13
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

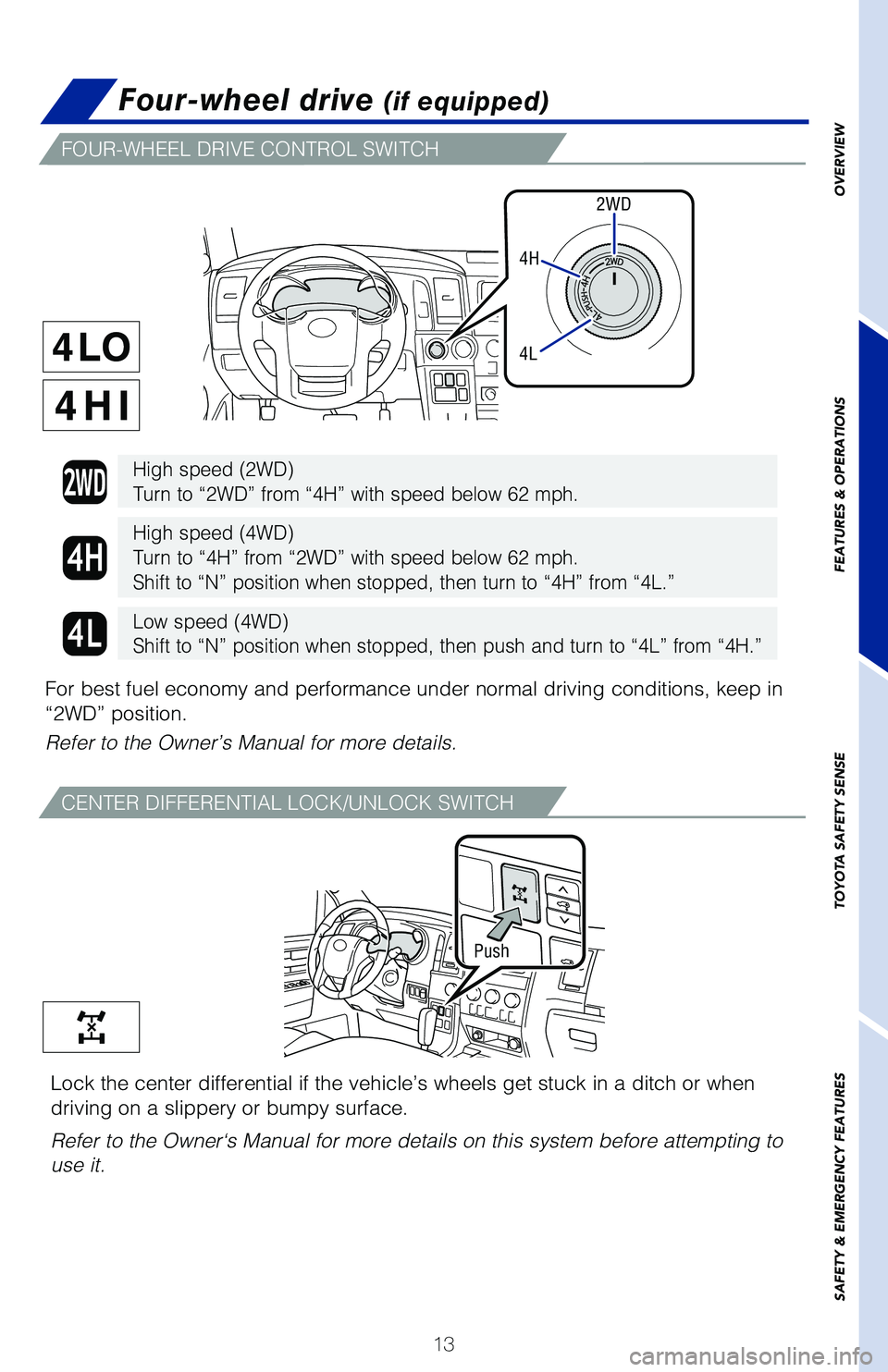

Four-wheel drive (if equipped)
FOUR-WHEEL DRIVE CONTROL SWITCH
CENTER DIFFERENTIAL LOCK/UNLOCK SWITCH
High speed (2WD)
Turn to “2WD” from “4H” with speed below 62 mph.
High speed (4WD)
Turn to “4H” from “2WD” with speed below 62 mph.
Shift to “N” position when stopped, then turn to “4H” from “\
4L.”
Low speed (4WD)
Shift to “N” position when stopped, then push and turn to “4L”\
from “4H.”
WD
4H
4L 2WD
For best fuel economy and performance under normal driving conditions, k\
eep in
“2WD” position.
Refer to the Owner’s Manual for more details.
Lock the center differential if the vehicle’s wheels get stuck in a d\
itch or when
driving on a slippery or bumpy surface.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
Push

14
FEATURES & OPERATIONS
MANUAL
POWER
Hold wheel, push lever down, set angle and length and return lever.
Lock release leverAngle
Toggle the control switch to set angle and length.
NOTE: Do not attempt to adjust while the vehicle is in motion.
UpControl switch
Away from
the driver
Length
Toward
the driver
Down Angle
Length
Tilt & telescopic steering wheel
Steering lock release
A message will be displayed on the multi-information display.

Check that the shift lever is in P. Press the engine switch while turnin\
g the steering
wheel left and right.
Turn

15
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

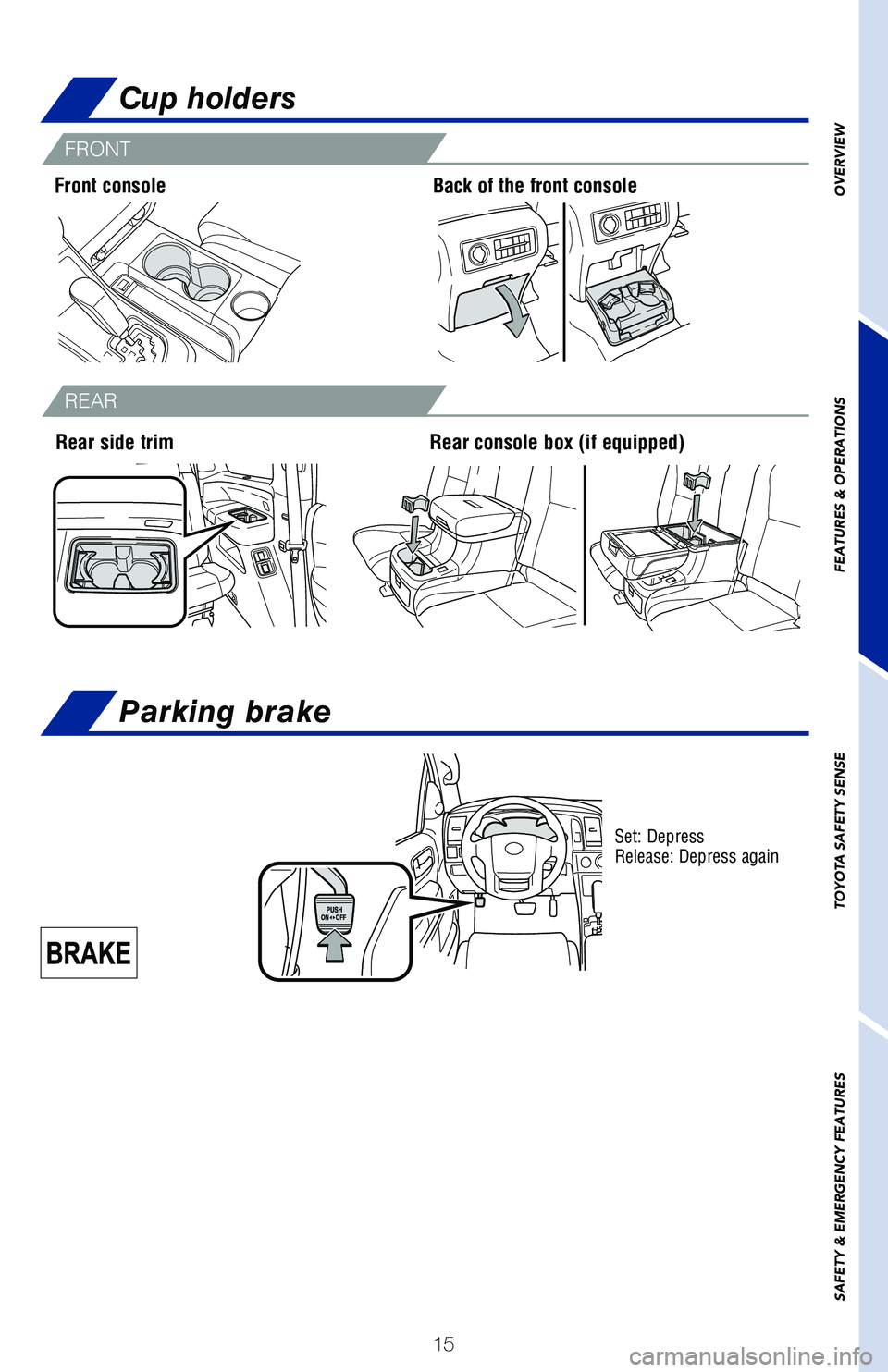

Parking brake
Set: Depress
Release: Depress again
Cup holders
Front consoleBack of the front console
Rear console box (if equipped)Rear side trim
FRONT
REAR

16
FEATURES & OPERATIONS
POWER SEAT
MANUAL SEAT

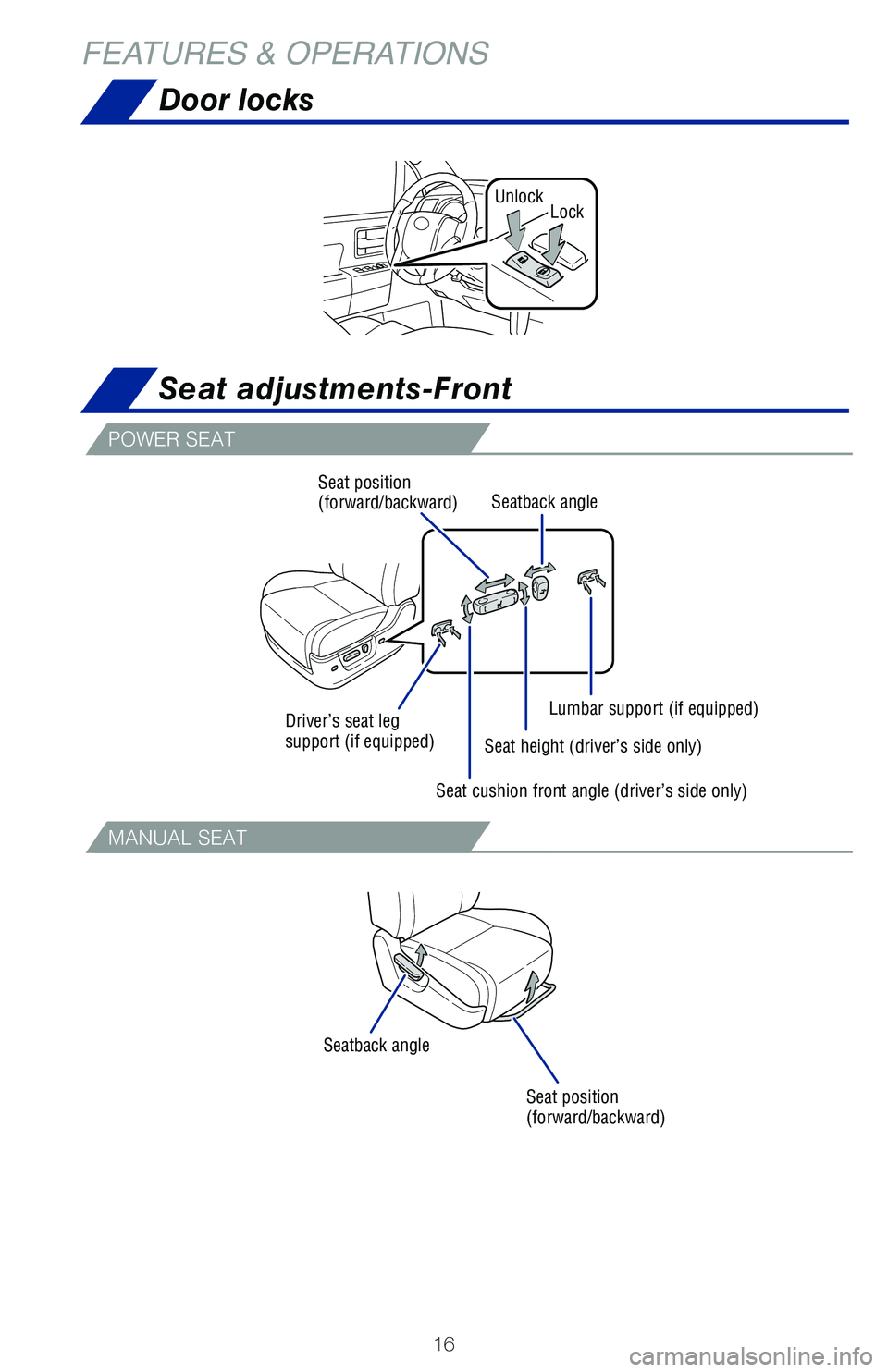

Seat adjustments-Front
Seat position
(forward/backward)
Seat position
(forward/backward)
Seatback angle Seatback angle
Seat height (driver’s side only)
Seat cushion front angle (driver’s side only) Lumbar support (if equipped)
Driver’s seat leg
support (if equipped)
Door locks
LockUnlock

17

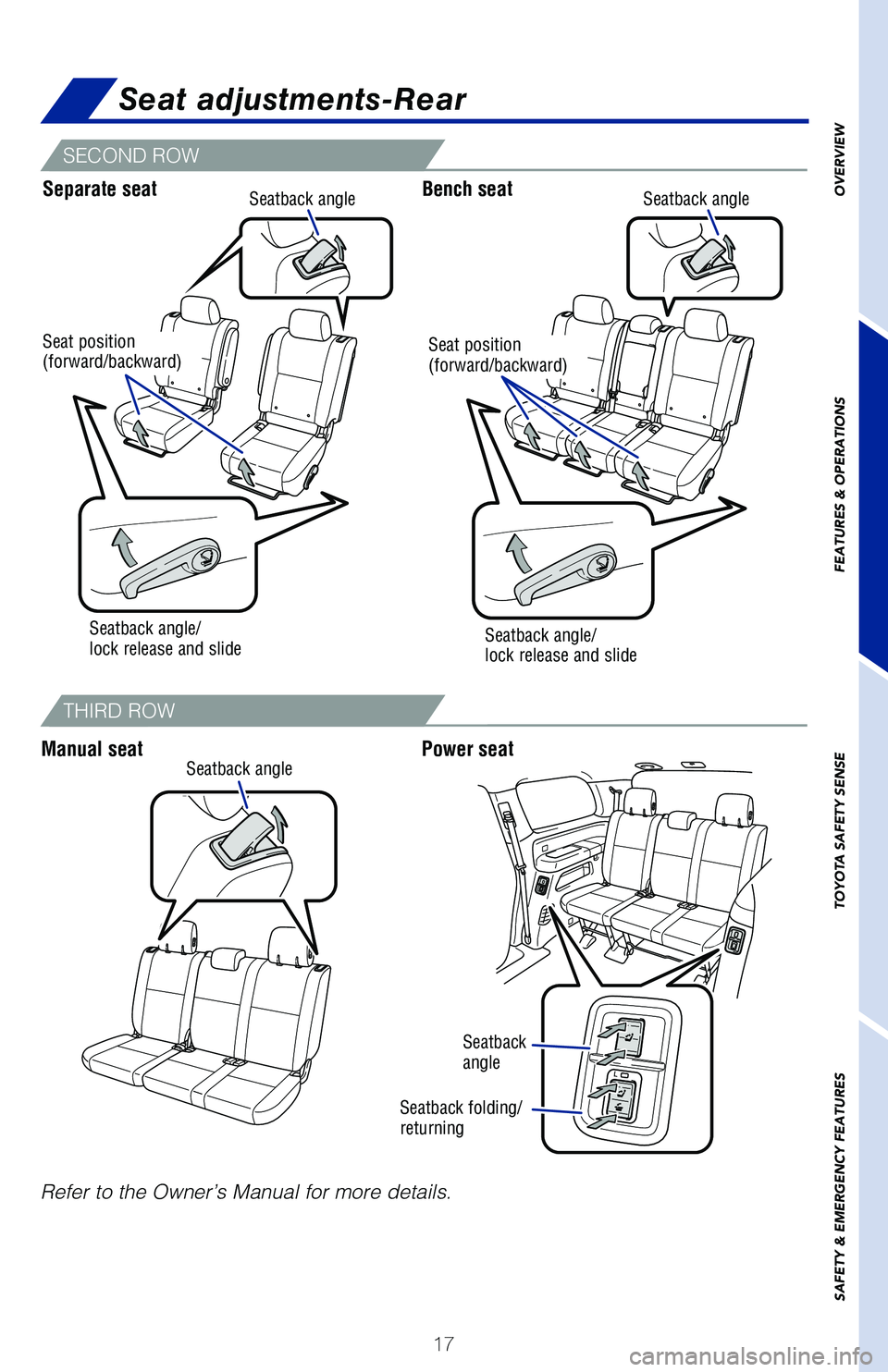

Seat adjustments-Rear
Seatback angle/
lock release and slide
Separate seatBench seat
Manual seat Power seat
THIRD ROW
SECOND ROW
Seatback angle
Seatback angleSeatback angle
Seatback
angle
Seatback folding/
returning
Seat position
(forward/backward)Seat position
(forward/backward)
Seatback angle/
lock release and slide
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Refer to the Owner’s Manual for more details.

18

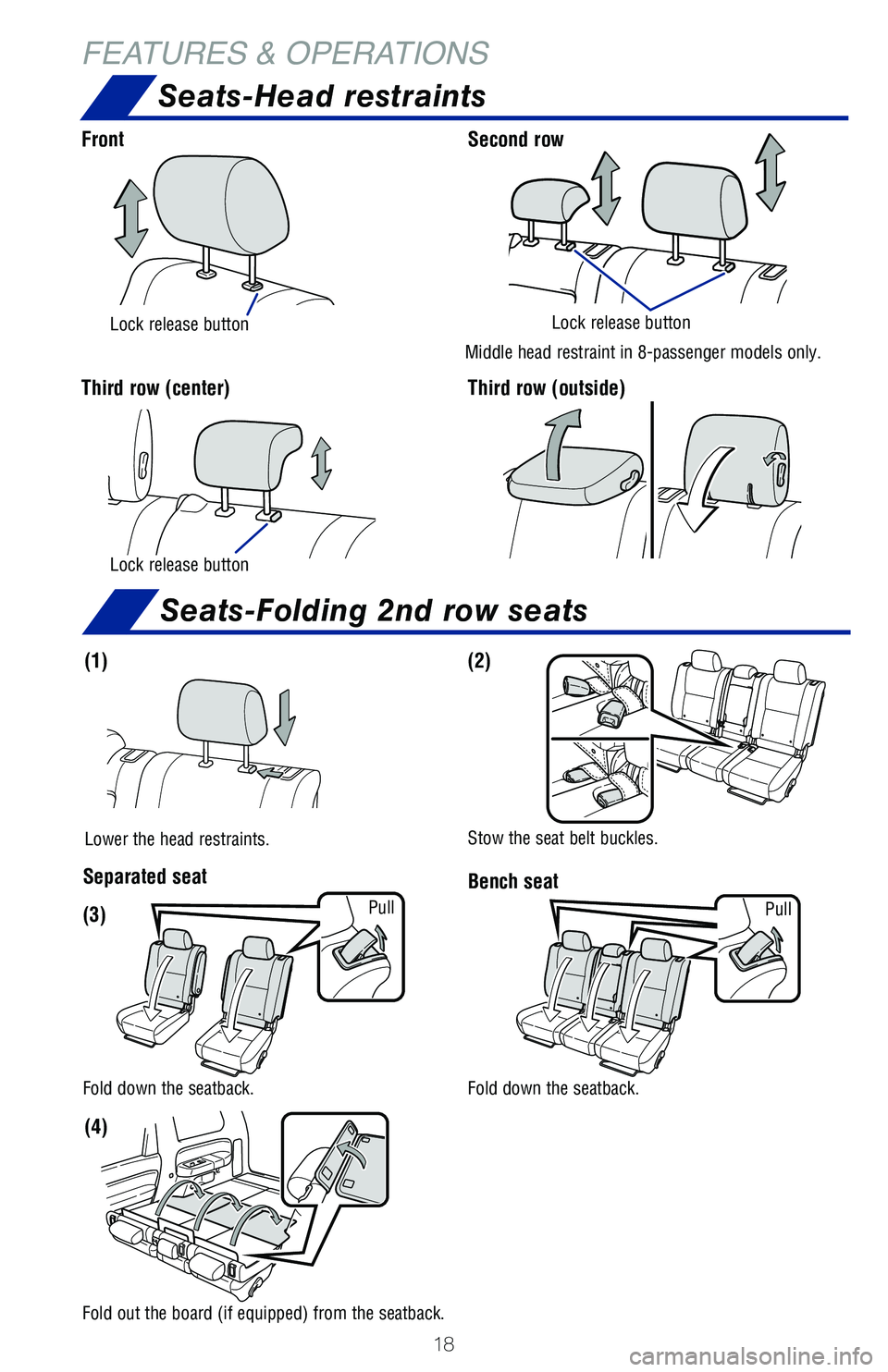

FEATURES & OPERATIONSSeats-Head restraints
Front
Third row (center)
Lock release button
Lock release button
Second row
Lock release button
Middle head restraint in 8-passenger models only.
Third row (outside)
Seats-Folding 2nd row seats
Lower the head restraints. Stow the seat belt buckles.
(1)
(3)
(2)
(4)
Pull Pull
Separated seat
Bench seat
Fold down the seatback. Fold down the seatback.
Fold out the board (if equipped) from the seatback.
