TOYOTA SEQUOIA 2020 (in English) Owner's Manual

19
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

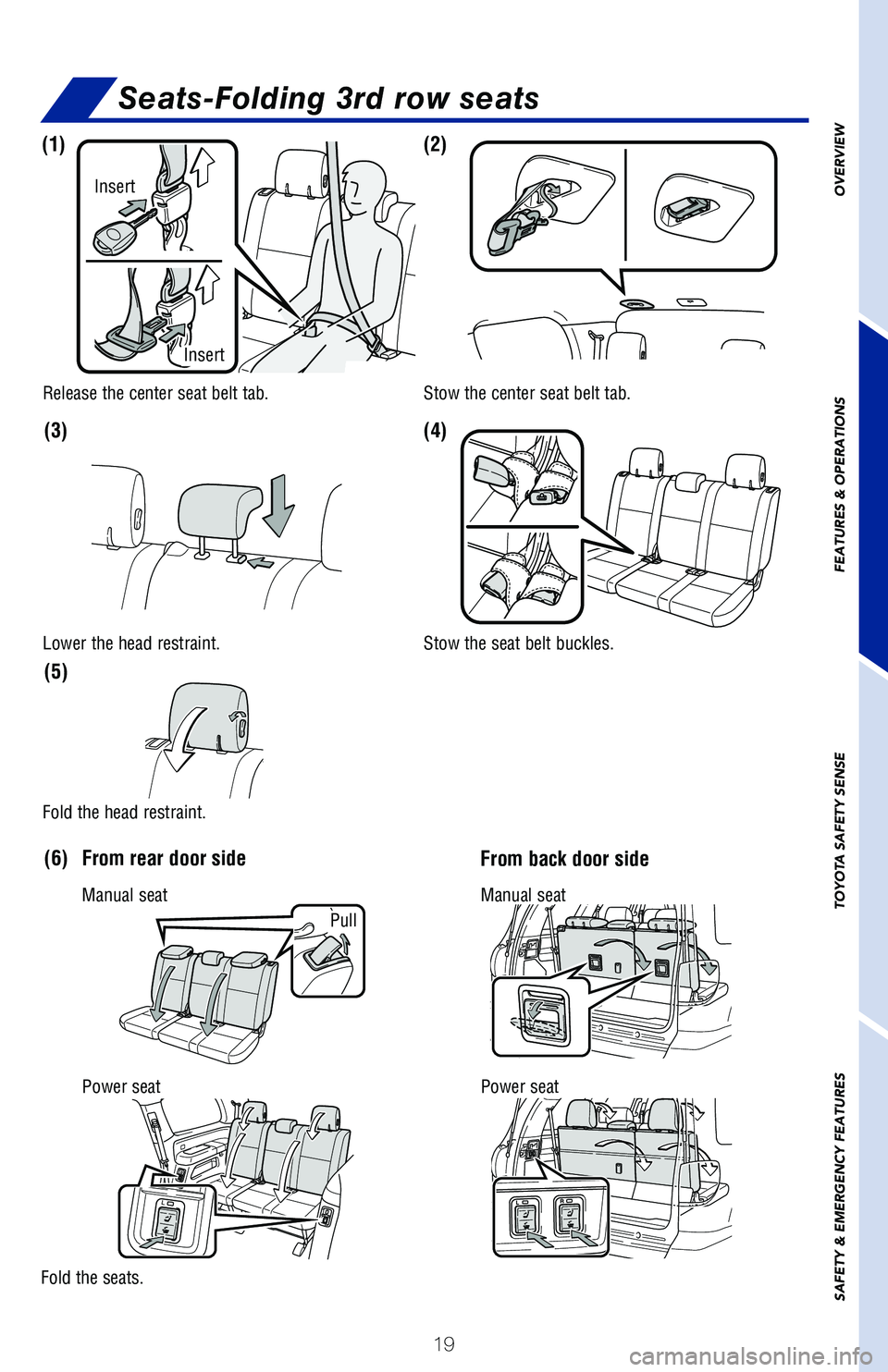

Seats-Folding 3rd row seats
Release the center seat belt tab. Stow the center seat belt tab.
Stow the seat belt buckles.
Fold the head restraint.
Fold the seats.
(1)
(6)
(3)
(2)
(4)
Power seat
Pull
Insert
Insert
From back door side
From rear door side
Power seat
Manual seatManual seat
(5)
Lower the head restraint.

20
FEATURES & OPERATIONS
Low beam
Daytime Running Light system (DRL) Automatically turns on under certain
conditions to make vehicle more visible to other drivers. Not for use at\
night. Automatic light cut off system Automatically turns lights off after 30 second delay,
or the lock switch on remote is pushed after locking. Automatic High Beam (AHB) system Automatically switches between high
and low beams as appropriate to enhance vision at night.
Refer to Toyota Safety Sense™ P (TSS-P) in this guide or the Owner’\
s Manual for
more details on the Automatic High Beam feature.
* Operating conditions must be met. Refer to the Owner’s Manual for d\
etails.
Front fog lights come on only when the headlights
are on low beam. Right turn
Lane change
Lane change Left turn High beam
flasher
Turn
Auto
Headlights
Parking lights
DRL OFF
HEADLIGHTS
FRONT FOG LIGHTS TURN SIGNALS
High beam
orAutomatic High Beam*
Lights & turn signals

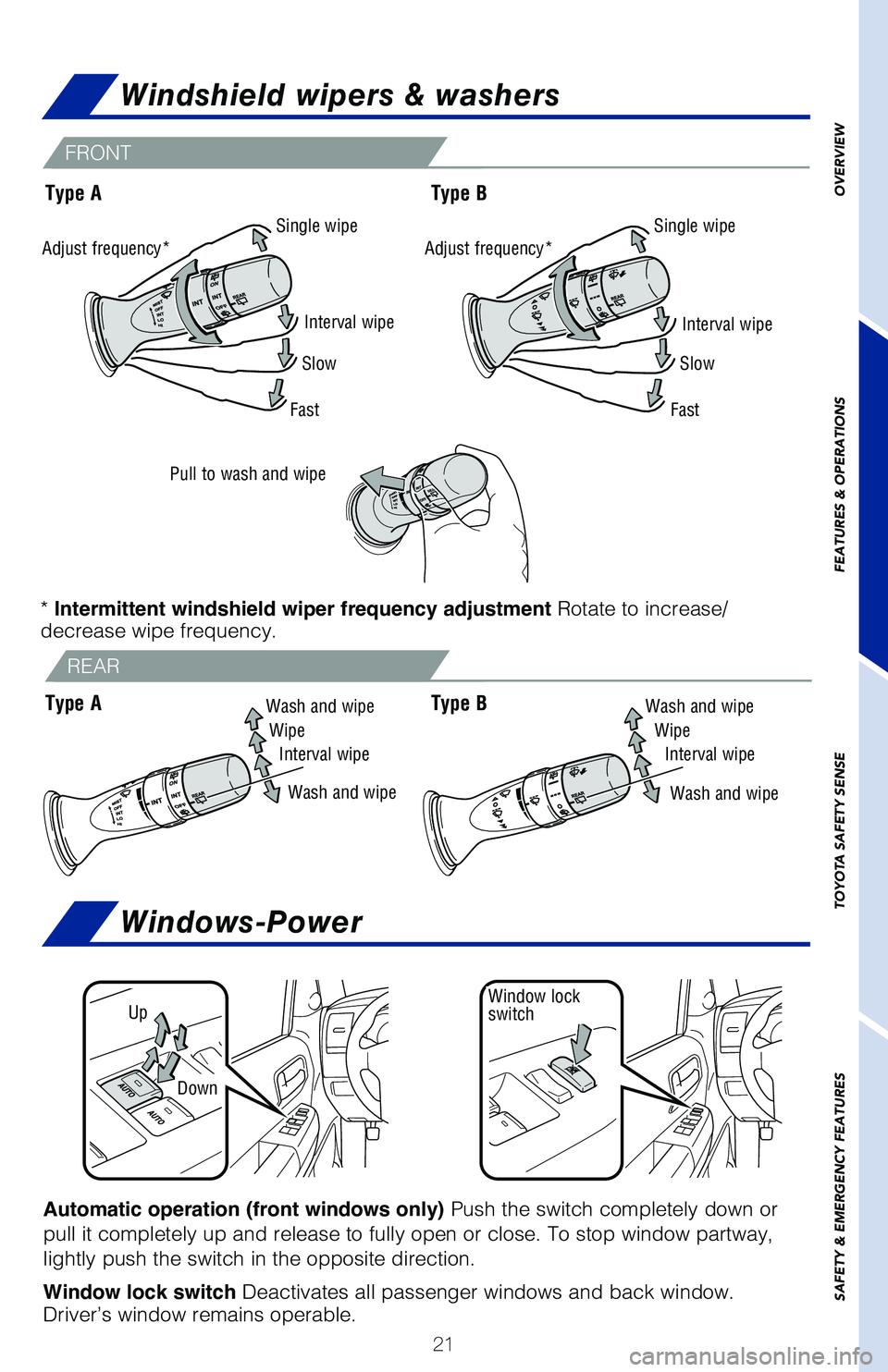

21
Windshield wipers & washers
Windows-Power
FRONT
REAR
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Interval wipe
Single wipe
Slow
Fast
Pull to wash and wipe
Wash and wipeWipe Wipe
Interval wipe Interval wipe
Wash and wipe
Window lock
switch
Automatic operation (front windows only) Push the switch completely down or
pull it completely up and release to fully open or close. To stop window\
partway,
lightly push the switch in the opposite direction.
Window lock switch Deactivates all passenger windows and back window.
Driver’s window remains operable.
Up
Down
Adjust frequency*
*
Intermittent windshield wiper frequency adjustment Rotate to increase/
decrease wipe frequency. Type A
Type B
Interval wipe
Single wipe
Slow
Fast
Adjust frequency*
Type AWash and wipe
Wash and wipeType B

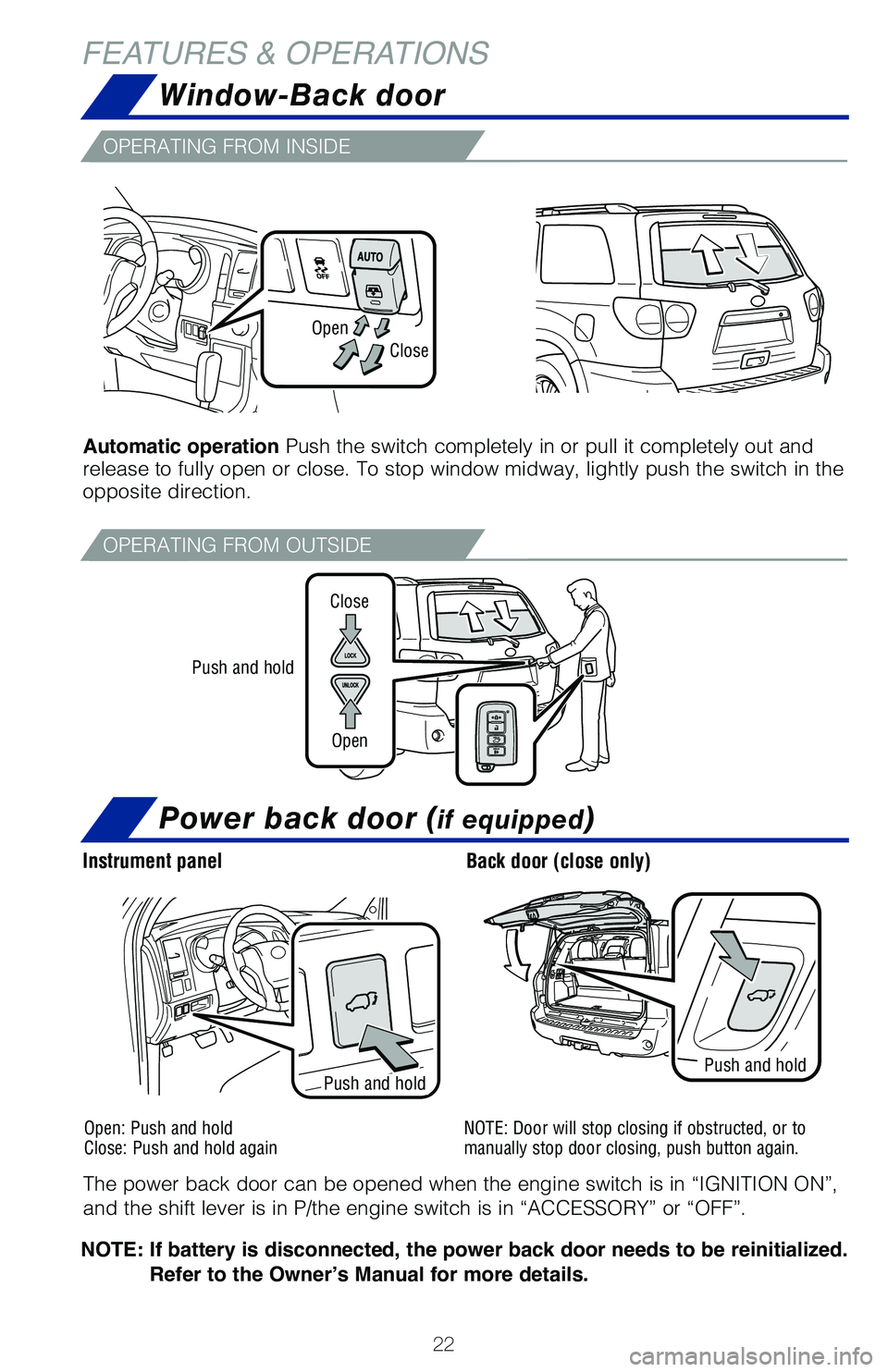

22
FEATURES & OPERATIONSWindow-Back door
Power back door (if equipped)
OPERATING FROM INSIDE
OPERATING FROM OUTSIDE
Automatic operation Push the switch completely in or pull it completely out and
release to fully open or close. To stop window midway, lightly push the \
switch in the
opposite direction.
Open
Close
Open
Close
Push and hold
Push and hold
Back door (close only)
Open: Push and hold
Close: Push and hold again
NOTE: If battery is disconnected, the power back door needs to be reinitialized.
Refer to the Owner’s Manual for more details.
Instrument panel
NOTE: Door will stop closing if obstructed, or to
manually stop door closing, push button again.
The power back door can be opened when the engine switch is in “IGNIT\
ION ON”,
and the shift lever is in P/the engine switch is in “ACCESSORY” or\
“OFF”.
Push and hold

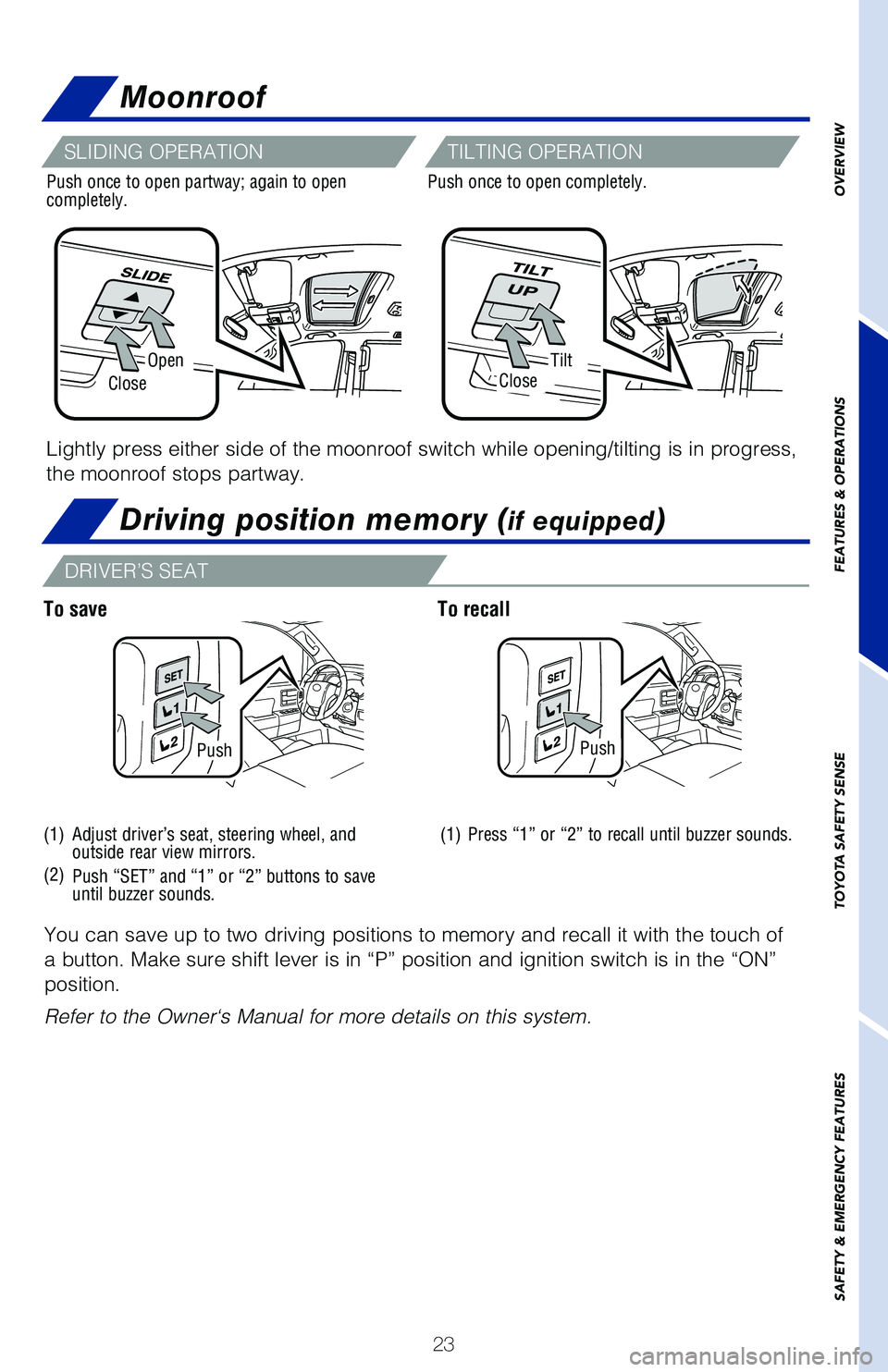

23
OpenTilt
CloseClose
PushPush
(1)
(2)
(1)
You can save up to two driving positions to memory and recall it with th\
e touch of
a button. Make sure shift lever is in “P” position and ignition sw\
itch is in the “ON”
position.
Refer to the Owner‘s Manual for more details on this system.
To save
Adjust driver’s seat, steering wheel, and
outside rear view mirrors.Press “1” or “2” to recall until buzzer sounds.
Push “SET” and “1” or “2” buttons to save
until buzzer sounds.
To recall
SLIDING OPERATIONTILTING OPERATION
DRIVER’S SEAT
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Lightly press either side of the moonroof switch while opening/tilting i\
s in progress,
the moonroof stops partway.
Push once to open partway; again to open
completely. Push once to open completely.
Moonroof
Driving position memory (if equipped)

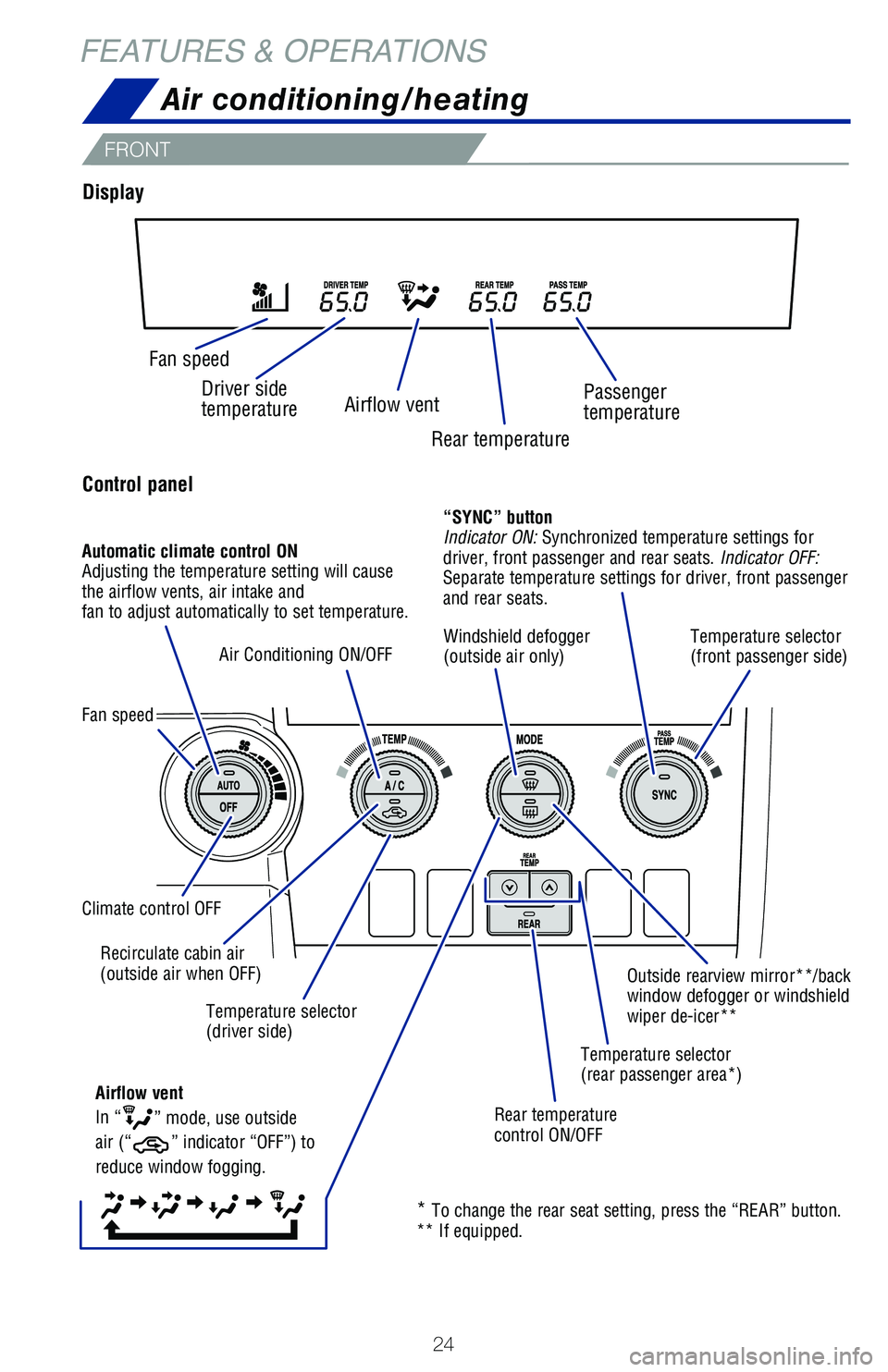

24
FEATURES & OPERATIONS
Control panel
Display
FRONT
Fan speedDriver side
temperature
Rear temperature
Airflow vent
Passenger
temperature
Fan speed Automatic climate control ON
Adjusting the temperature setting will cause
the airflow vents, air intake and
fan to adjust automatically to set temperature. “SYNC” button
Indicator ON: Synchronized temperature settings for
driver, front passenger and rear seats. Indicator OFF:
Separate temperature settings for driver, front passenger
and rear seats.
Air Conditioning ON/OFF
Rear temperature
control ON/OFF
Climate control OFF Windshield defogger
(outside air only)
Temperature selector
(front passenger side)
Temperature selector
(rear passenger area*)
Recirculate cabin air
(outside air when OFF)
Temperature selector
(driver side) Outside rearview mirror**/back
window defogger or windshield
wiper de-icer**
Airflow vent
In “
” mode, use outside
air (“
” indicator “OFF”) to
reduce window fogging.
* To change the rear seat setting, press the “REAR” button.
** If equipped.
Air conditioning/heating

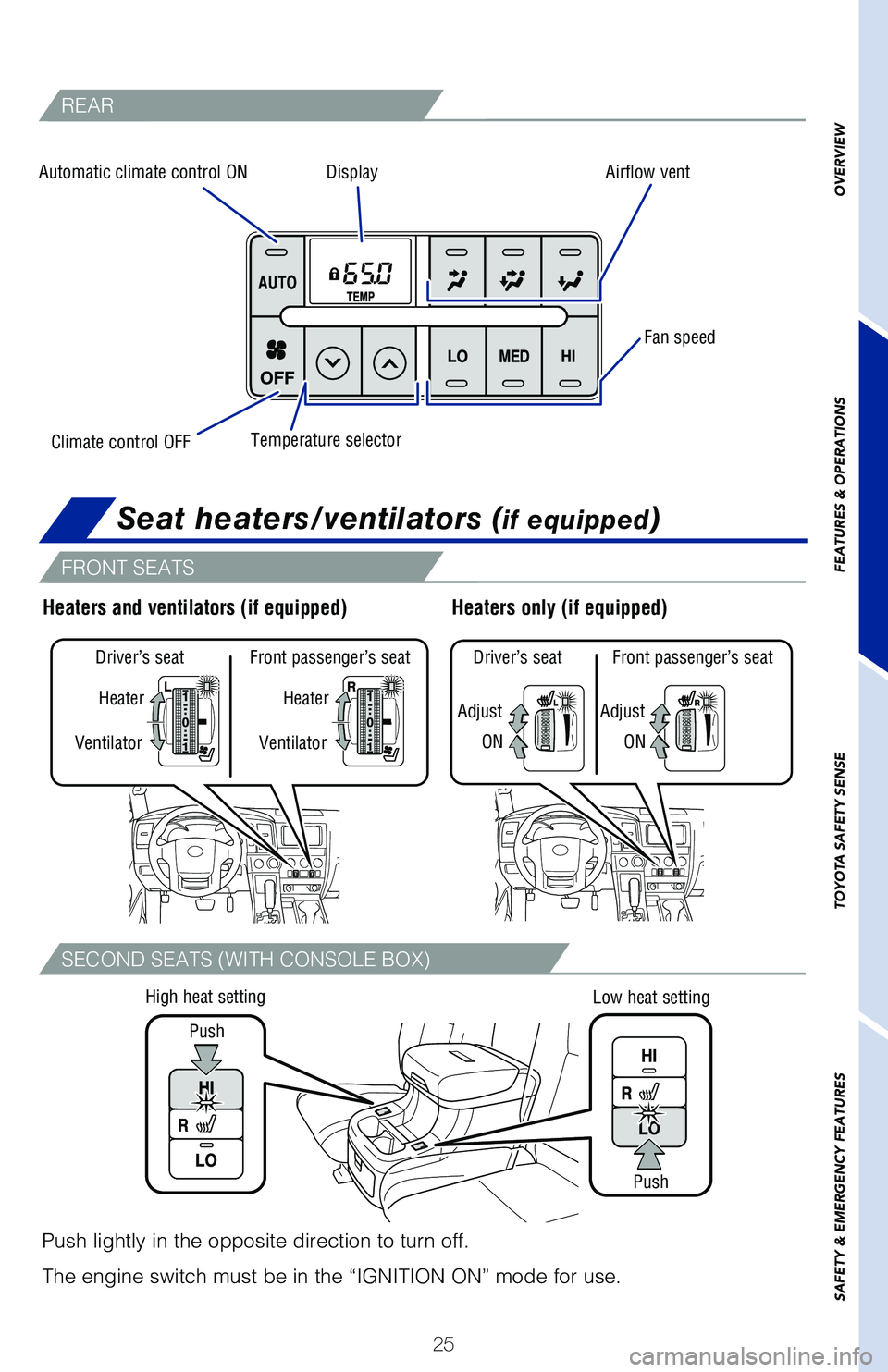

25
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
REAR
FRONT SEATS
SECOND SEATS (WITH CONSOLE BOX)
Climate control OFF
Driver’s seat Front passenger’s seat
Ventilator
Ventilator Heater
Heater
Adjust
Driver’s seat Front passenger’s seat
ON
Adjust
ON
Heaters only (if equipped)Heaters and ventilators (if equipped)
Push
Push
Low heat setting
High heat setting
Push lightly in the opposite direction to turn off.
The engine switch must be in the “IGNITION ON” mode for use.
Automatic climate control ON
DisplayAirflow vent
Fan speed
Temperature selector
Seat heaters/ventilators (if equipped)

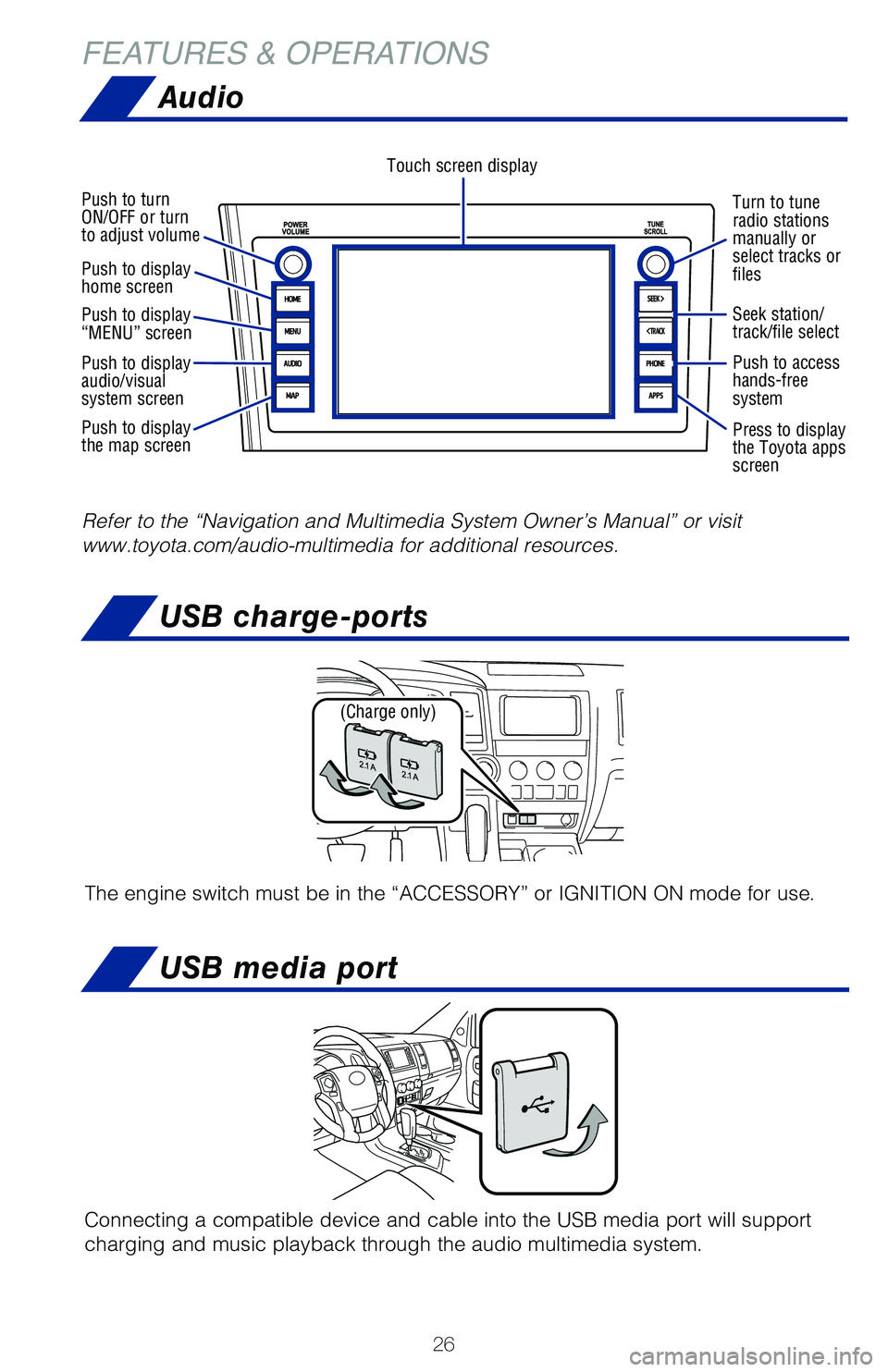

26
FEATURES & OPERATIONS
Turn to tune
radio stations
manually or
select tracks or
files
Touch screen display
Push to turn
ON/OFF or turn
to adjust volume
Push to display
home screen
Push to display
“MENU” screen
Push to display
audio/visual
system screen
Push to display
the map screen
USB media port
USB charge-ports
Connecting a compatible device and cable into the USB media port will su\
pport
charging and music playback through the audio multimedia system.
Refer to the “Navigation and Multimedia System Owner’s Manual” \
or visit

www.toyota.com/audio-multimedia for additional resources.
Seek station/
track/file select
Push to access
hands-free
system
Press to display
the Toyota apps
screen
(Charge only)
The engine switch must be in the “ACCESSORY” or IGNITION ON mode f\
or use.
Audio

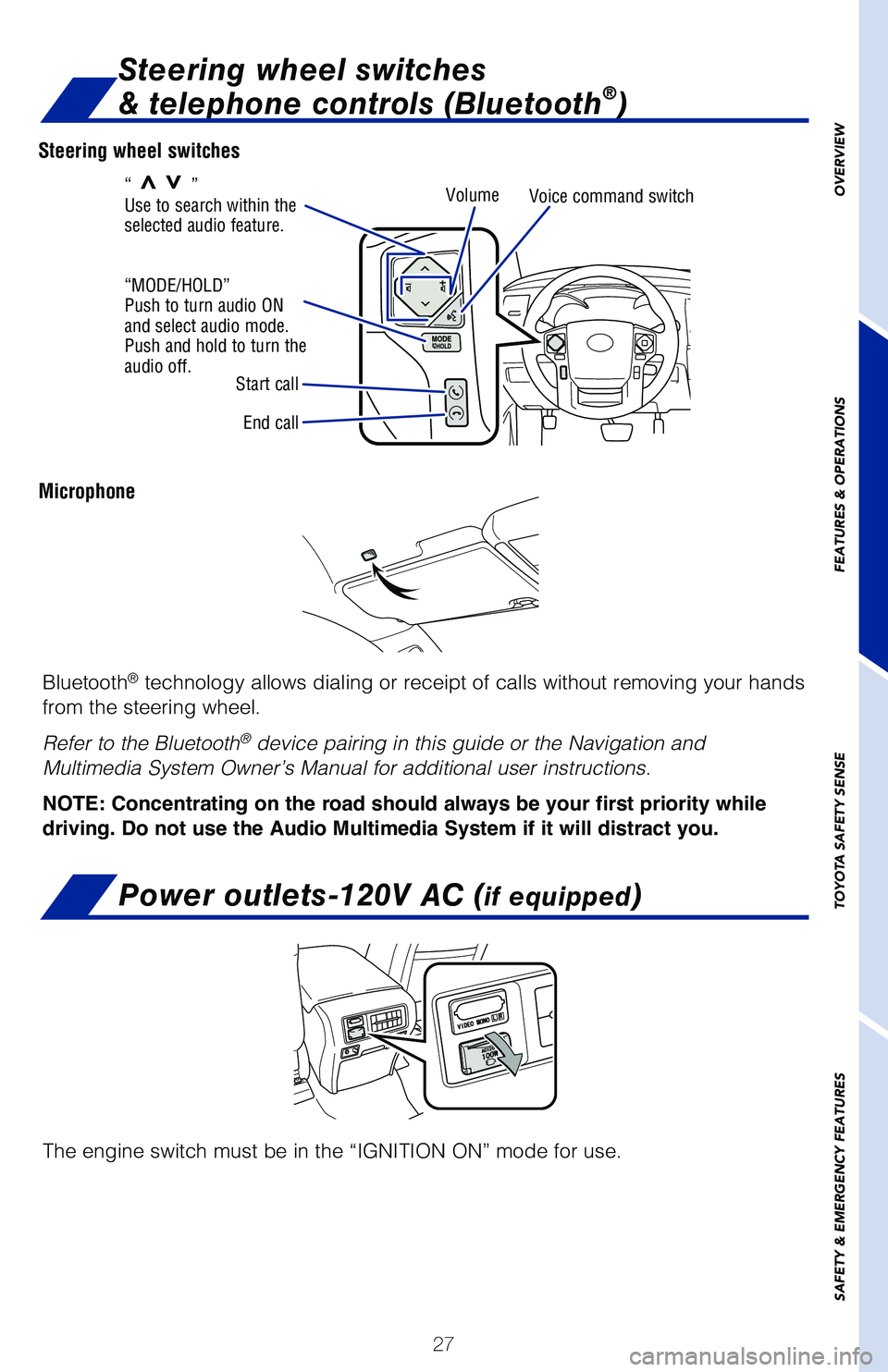

27
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Steering wheel switches
Microphone
End call Volume
Voice command switch
Start call
“MODE/HOLD”
Push to turn audio ON
and select audio mode.
Push and hold to turn the
audio off. “
>>”
Use to search within the
selected audio feature.
Steering wheel switches
& telephone controls (Bluetooth®)
Bluetooth® technology allows dialing or receipt of calls without removing your han\
ds
from the steering wheel.
Refer to the Bluetooth
® device pairing in this guide or the Navigation and
Multimedia System Owner’s Manual for additional user instructions.
NOTE: Concentrating on the road should always be your first priority while
driving. Do not use the Audio Multimedia System if it will distract you.
The engine switch must be in the “IGNITION ON” mode for use.
Power outlets-120V AC (if equipped)

28

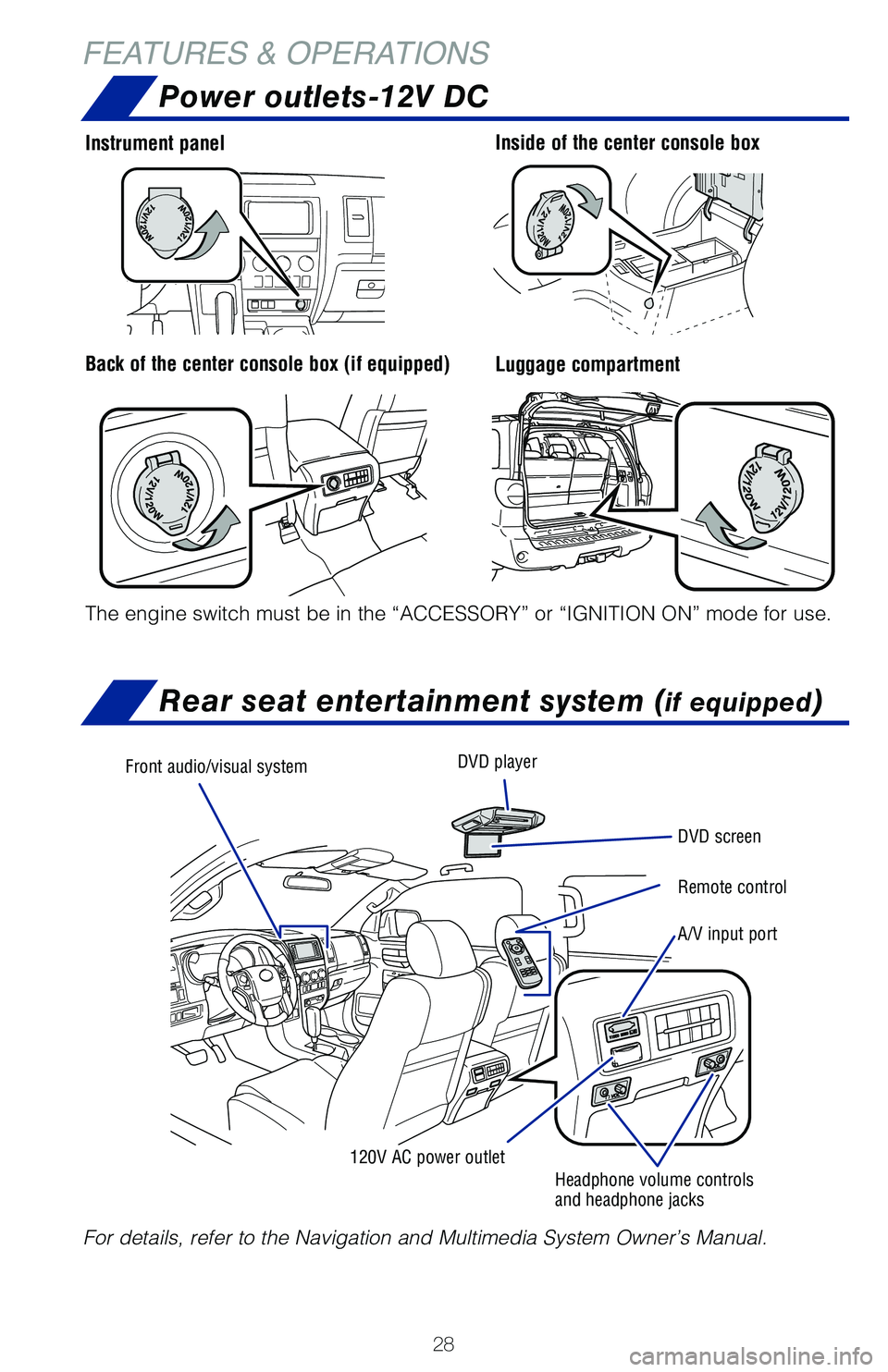

FEATURES & OPERATIONSPower outlets-12V DC
Luggage compartment
Instrument panelInside of the center console box
Back of the center console box (if equipped)
The engine switch must be in the “ACCESSORY” or “IGNITION ON”\
mode for use.
Rear seat entertainment system (if equipped)
For details, refer to the Navigation and Multimedia System Owner’s Ma\
nual.
Front audio/visual system DVD player
DVD screen
Remote control
A/V input port
120V AC power outlet Headphone volume controls
and headphone jacks
