TOYOTA SEQUOIA 2020 (in English) Owner's Guide

29
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Multi-Information Display (MID)
Return to previous screen Press: Enters/Sets
Press and hold: Resets
Menu
Select item/change pages
Drive information
Navigation system-linked display (if equipped)
Audio system-linked display
Vehicle information
Warning message display
Settings display
Use the meter control switches on the steering wheel to scroll through t\
he following
information screens:
Refer to the Owner’s Manual, for more details.
The VSC OFF switch is used to switch between modes related to the TRAC, \
VSC
and AUTO LSD functions.
Refer to the Owner’s Manual for limitations and more information.
Push
Vehicle Stability Control (VSC) OFF switch

30
FEATURES & OPERATIONS

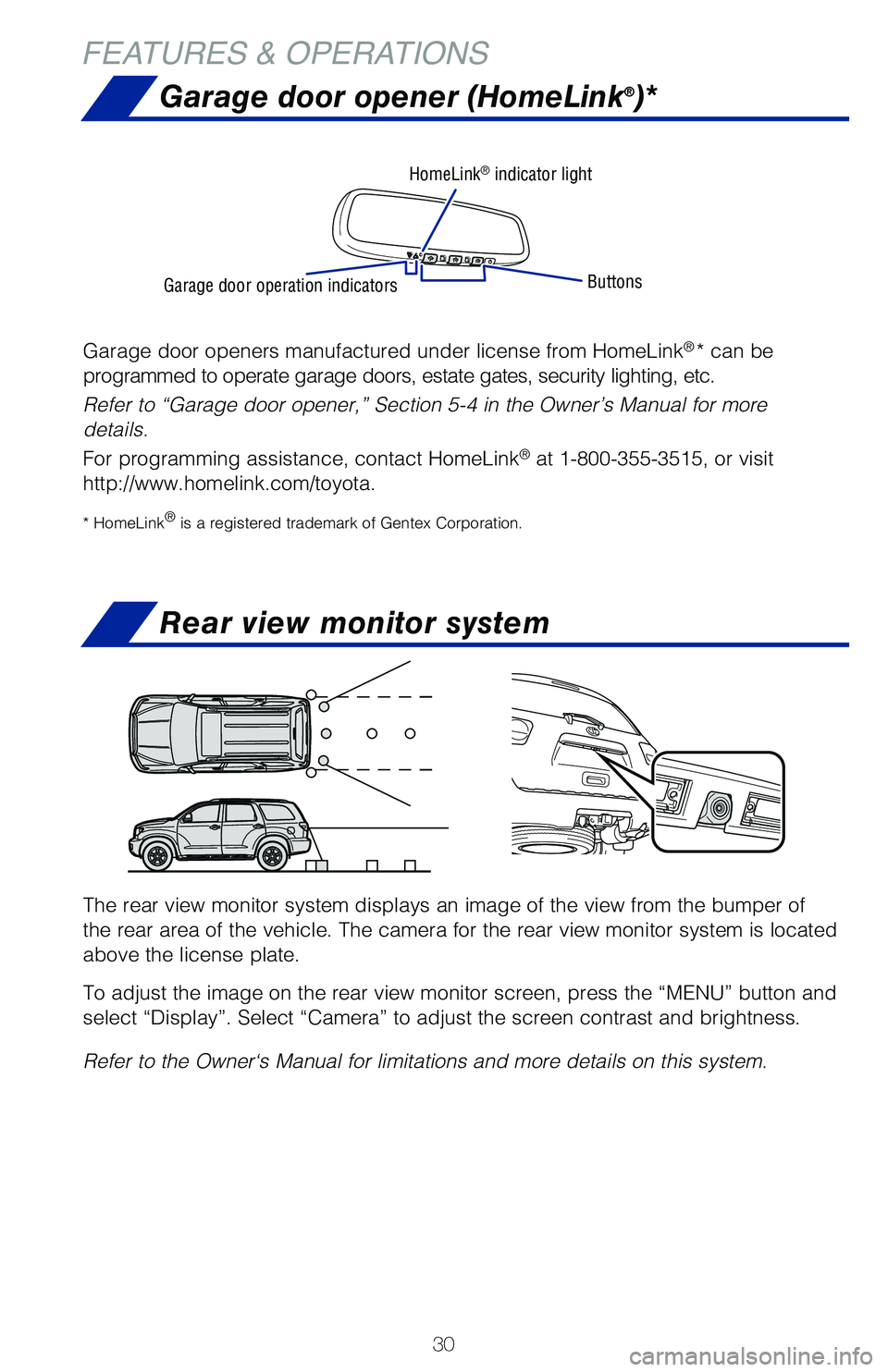

Garage door opener (HomeLink®)*
Garage door openers manufactured under license from HomeLink®* can be
programmed to operate garage doors, estate gates, security lighting, etc\
.
Refer to “Garage door opener,” Section 5-4 in the Owner’s Manual for more
details.
For programming assistance, contact HomeLink
® at 1-800-355-3515, or visit
http://www.homelink.com/toyota.
* HomeLink® is a registered trademark of Gentex Corporation.
Buttons
HomeLink® indicator light
Garage door operation indicators
The rear view monitor system displays an image of the view from the bump\
er of
the rear area of the vehicle. The camera for the rear view monitor syste\
m is located
above the license plate.
To adjust the image on the rear view monitor screen, press the “MENU”\
button and
select “Display”. Select “Camera” to adjust the screen contr\
ast and brightness.
Refer to the Owner‘s Manual for limitations and more details on this system.
Rear view monitor system

31
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

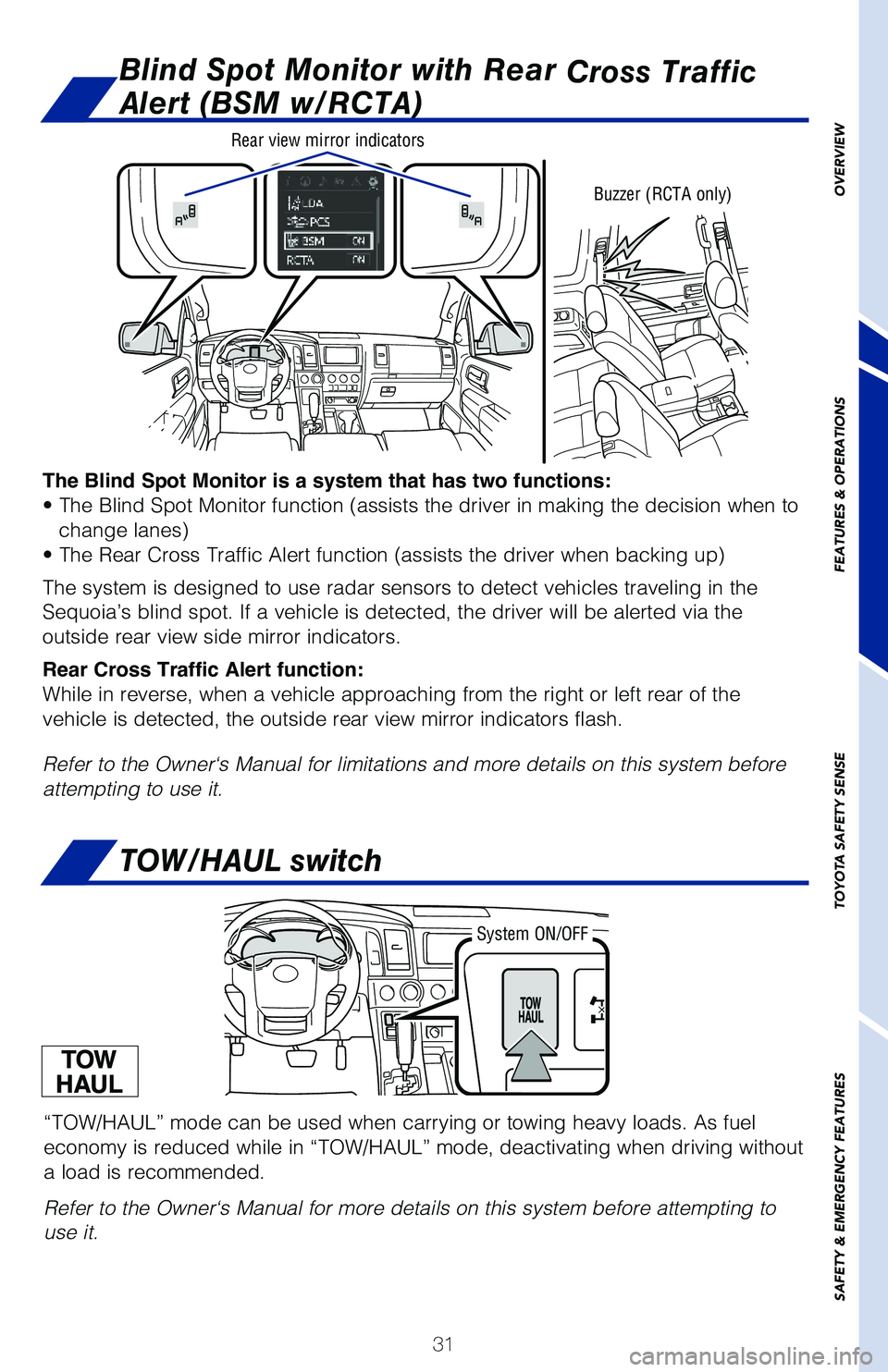

TOW/HAUL switch
“TOW/HAUL” mode can be used when carrying or towing heavy loads. As fuel
economy is reduced while in “TOW/HAUL” mode, deactivating when driving without
a load is recommended.
Refer to the Owner‘s Manual for more details on this system before attempting to
use it.
System ON/OFF
The Blind Spot Monitor is a system that has two functions:
• The Blind Spot Monitor function (assists the driver in making the decision when to change lanes)
• The Rear Cross Traffic Alert function (assists the driver when backing up)
The system is designed to use radar sensors to detect vehicles traveling\
in the
Sequoia’s blind spot. If a vehicle is detected, the driver will be al\
erted via the
outside rear view side mirror indicators.
Rear Cross Traffic Alert function:
While in reverse, when a vehicle approaching from the right or left rear\
of the
vehicle is detected, the outside rear view mirror indicators flash.
Refer to the Owner‘s Manual for limitations and more details on this system before\

attempting to use it.
Blind Spot Monitor with Rear Cross Traffic
Alert (BSM w/RCTA)
Rear view mirror indicators
Buzzer (RCTA only)

32

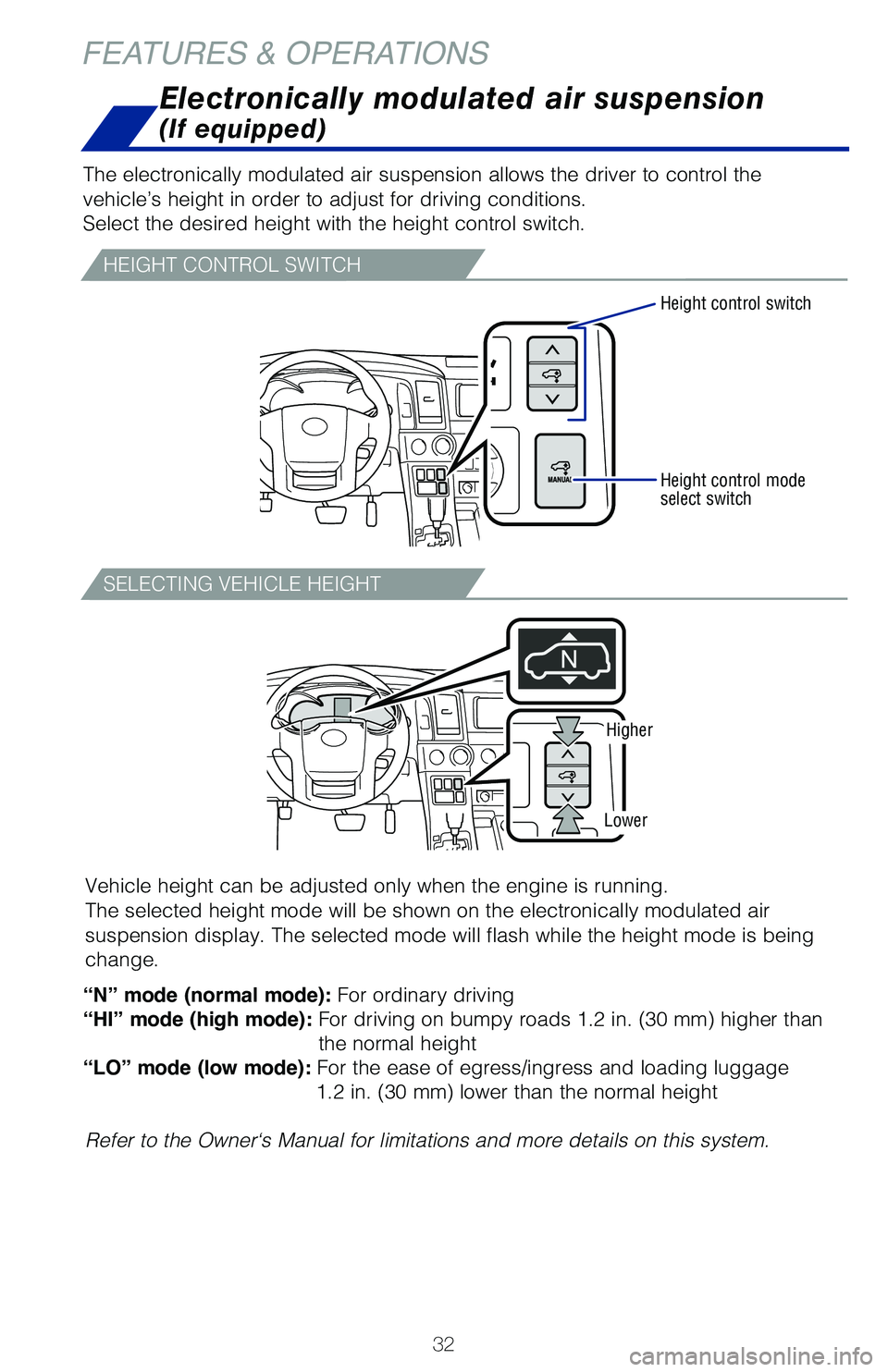

Electronically modulated air suspension
(If equipped)
FEATURES & OPERATIONS
The electronically modulated air suspension allows the driver to control\
the
vehicle’s height in order to adjust for driving conditions.
Select the desired height with the height control switch.
“N” mode (normal mode): For ordinary driving
“HI” mode (high mode): For driving on bumpy roads 1.2 in. (30 mm) higher than
the normal height
“LO” mode (low mode): For the ease of egress/ingress and loading luggage
1.2 in. (30 mm) lower than the normal height
Vehicle height can be adjusted only when the engine is running.
The selected height mode will be shown on the electronically modulated a\
ir
suspension display. The selected mode will flash while the height mode i\
s being
change.
Refer to the Owner‘s Manual for limitations and more details on this system.
HEIGHT CONTROL SWITCH
SELECTING VEHICLE HEIGHT
Height control switch
Higher
Lower
Height control mode
select switch

33
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES
Intuitive parking assist
The parking assist sonar system operates when the vehicle approaches an \
obstacle. The distance from your vehicle to nearby obstacles when parall\
el parking
or maneuvering into a garage is measured by sensors and communicated via\
the
Multi-Information Display (MID) and audible beeps.
When the sensor detects an obstacle, the direction of and the approximat\
e distance
to the obstacle are displayed on the MID display by illuminating continu\
ously (far)
or blinking (near), and beeping sounds will switch from intermittent t\
o continuous as
you approach and get closer to a detected obstacle. When the sensors det\
ect two
or more obstacles, the audible alerts will respond to the nearest zone. \
Always check the surrounding area when using this system.
Refer to the Owner’s Manual for limitations and more details.
Front corner sensors
Rear
corner sensor Rear
corner sensor
Rear
center sensor
AVS (Adaptive Variable Suspension System)
(If equipped)
Sport mode
Normal
mode
Comfort
mode
AVS controls the suspension according to the road and driving conditions\
.
Selecting an optimum driving mode allows good vehicle posture and steeri\
ng wheel
operation.
Sport mode: For winding mountain road driving or high speed driving.
Normal mode: For ordinary driving.
Comfort mode: For driving on a bumpy road.
Refer to the Owner‘s Manual for limitations and more details on this system.

34

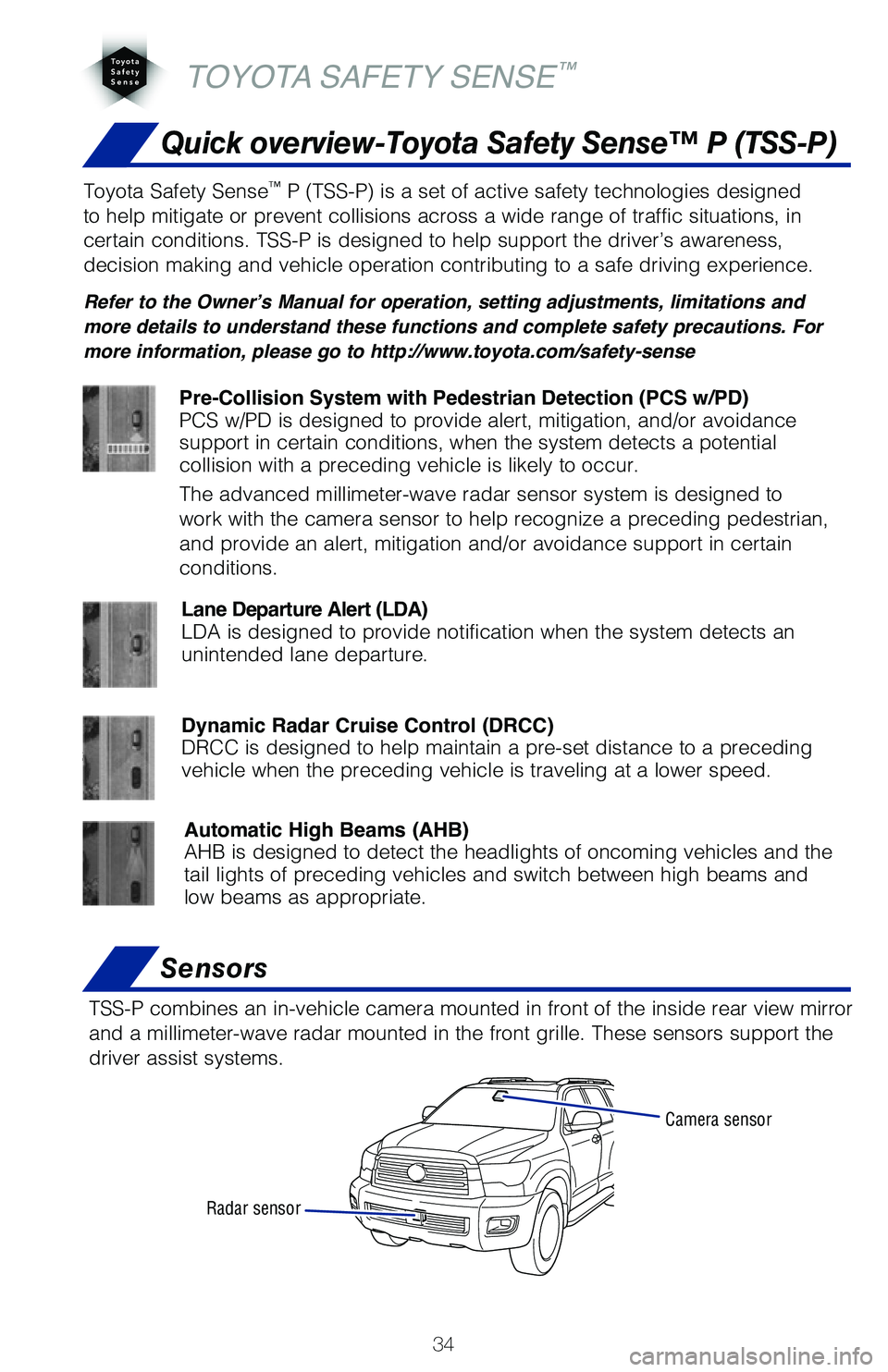

Quick overview-Toyota Safety Sense™ P (TSS-P)
Sensors
TSS-P combines an in-vehicle camera mounted in front of the inside rear \
view mirror
and a millimeter-wave radar mounted in the front grille. These sensors s\
upport the
driver assist systems.
Camera sensor
Radar sensor
TOYOTA SAFETY SENSE™
Toyota Safety Sense™ P (TSS-P) is a set of active safety technologies designed
to help mitigate or prevent collisions across a wide range of traffic si\
tuations, in
certain conditions. TSS-P is designed to help support the driver’s aw\
areness,
decision making and vehicle operation contributing to a safe driving exp\
erience.
Refer to the Owner’s Manual for operation, setting adjustments, limitations and
more details to understand these functions and complete safety precautions. For
more information, please go to http://www.toyota.com/safety-sense
Lane Departure Alert (LDA)
LDA is designed to provide notification when the system detects an
unintended lane departure.
Automatic High Beams (AHB)
AHB is designed to detect the headlights of oncoming vehicles and the
tail lights of preceding vehicles and switch between high beams and
low beams as appropriate.
Pre-Collision System with Pedestrian Detection (PCS w/PD)
PCS w/PD is designed to provide alert, mitigation, and/or avoidance
support in certain conditions, when the system detects a potential
collision with a preceding vehicle is likely to occur.
The advanced millimeter-wave radar sensor system is designed to
work with the camera sensor to help recognize a preceding pedestrian,
and provide an alert, mitigation and/or avoidance support in certain
conditions.
Dynamic Radar Cruise Control (DRCC)
DRCC is designed to help maintain a pre-set distance to a preceding
vehicle when the preceding vehicle is traveling at a lower speed.

35
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

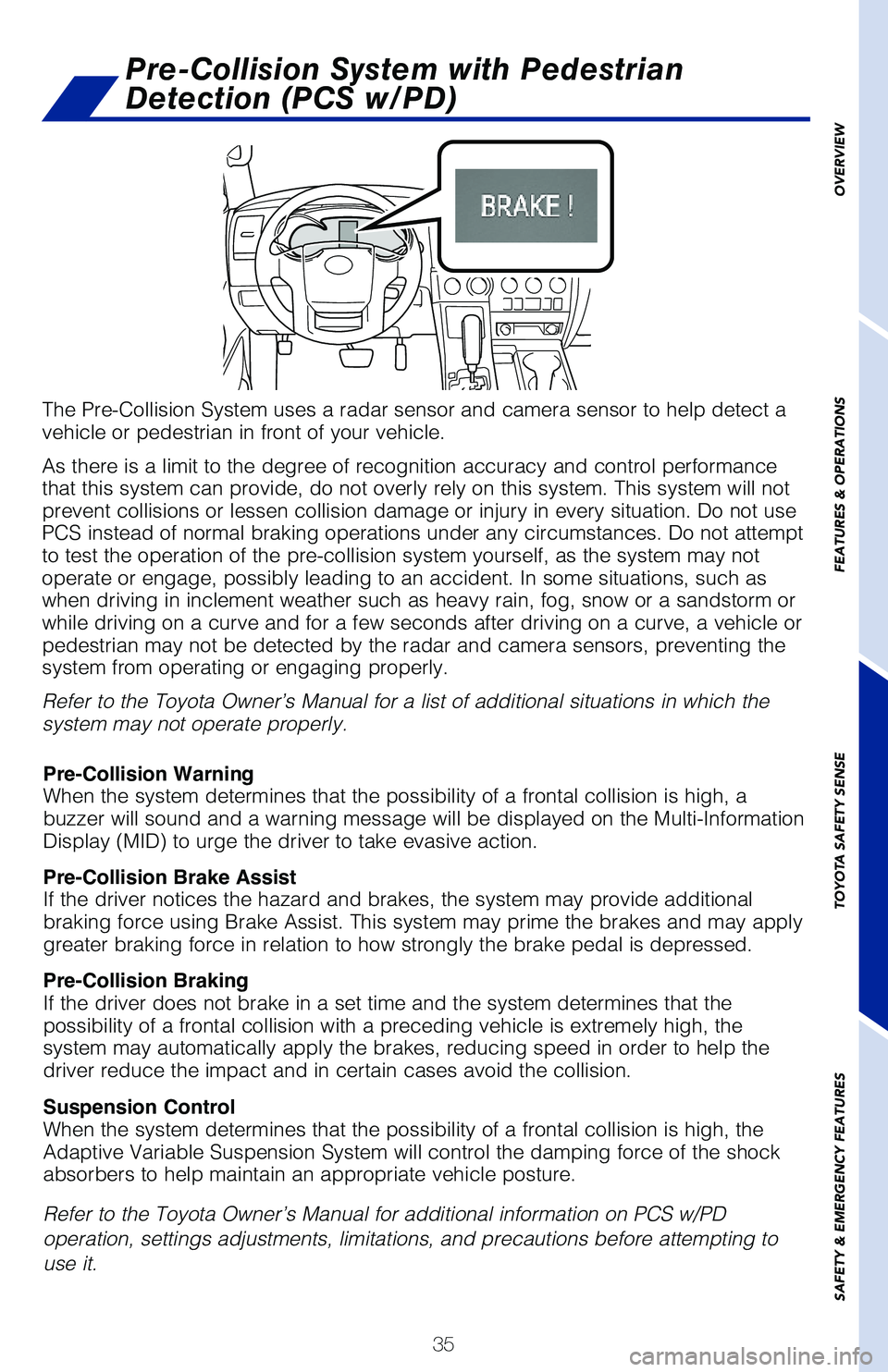

The Pre-Collision System uses a radar sensor and camera sensor to help d\
etect a
vehicle or pedestrian in front of your vehicle.
As there is a limit to the degree of recognition accuracy and control pe\
rformance
that this system can provide, do not overly rely on this system. This sy\
stem will not
prevent collisions or lessen collision damage or injury in every situati\
on. Do not use
PCS instead of normal braking operations under any circumstances. Do not\
attempt
to test the operation of the pre-collision system yourself, as the syste\
m may not
operate or engage, possibly leading to an accident. In some situations, \
such as
when driving in inclement weather such as heavy rain, fog, snow or a san\
dstorm or
while driving on a curve and for a few seconds after driving on a curve,\
a vehicle or
pedestrian may not be detected by the radar and camera sensors, preventi\
ng the
system from operating or engaging properly.
Refer to the Toyota Owner’s Manual for a list of additional situation\
s in which the
system may not operate properly.
Refer to the Toyota Owner’s Manual for additional information on PCS \
w/PD
operation, settings adjustments, limitations, and precautions before att\
empting to
use it. Pre-Collision Warning
When the system determines that the possibility of a frontal collision i\
s high, a
buzzer will sound and a warning message will be displayed on the Multi-I\
nformation
Display (MID) to urge the driver to take evasive action.
Pre-Collision Brake Assist
If the driver notices the hazard and brakes, the system may provide addi\
tional
braking force using Brake Assist. This system may prime the brakes and m\
ay apply
greater braking force in relation to how strongly the brake pedal is dep\
ressed.
Pre-Collision Braking
If the driver does not brake in a set time and the system determines tha\
t the
possibility of a frontal collision with a preceding vehicle is extremely\
high, the
system may automatically apply the brakes, reducing speed in order to he\
lp the
driver reduce the impact and in certain cases avoid the collision.
Suspension Control
When the system determines that the possibility of a frontal collision i\
s high, the
Adaptive Variable Suspension System will control the damping force of th\
e shock
absorbers to help maintain an appropriate vehicle posture.
Pre-Collision System with Pedestrian
Detection (PCS w/PD)

36
TOYOTA SAFETY SENSE™

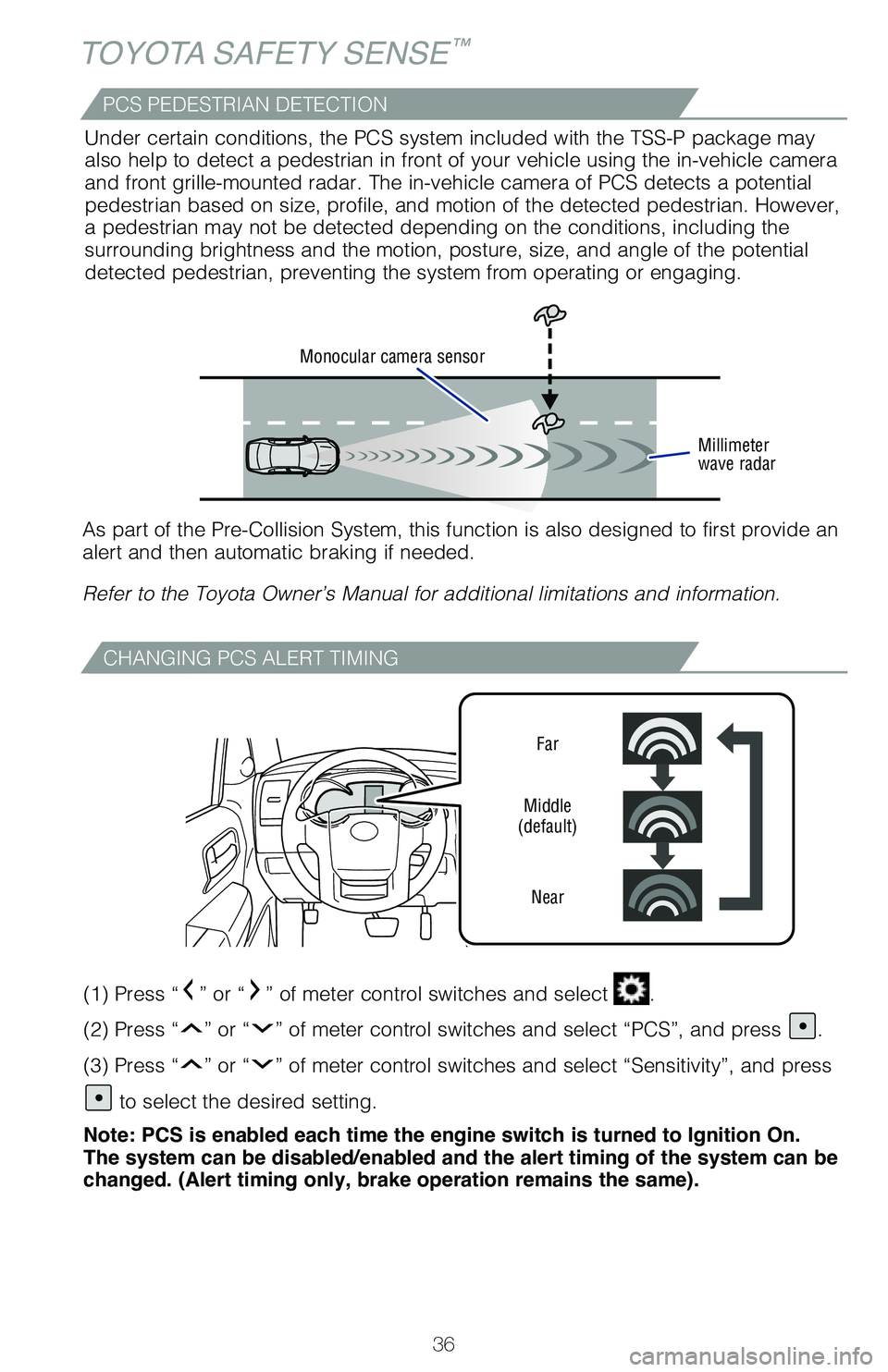

CHANGING PCS ALERT TIMING
Far
Middle
(default)
Near
(1) Press “” or “” of meter control switches and select .
(2) Press “
” or “” of meter control switches and select “PCS”, and press .
(3) Press “
” or “” of meter control switches and select “Sensitivity”, and press\

to select the desired setting.
Note: PCS is enabled each time the engine switch is turned to Ignition On.
The system can be disabled/enabled and the alert timing of the system can be
changed. (Alert timing only, brake operation remains the same).
Monocular camera sensor
Millimeter
wave radar
As part of the Pre-Collision System, this function is also designed to f\
irst provide an
alert and then automatic braking if needed.
Refer to the Toyota Owner’s Manual for additional limitations and inf\
ormation.Under certain conditions, the PCS system included with the TSS-P package\
may
also help to detect a pedestrian in front of your vehicle using the in-v\
ehicle camera
and front grille-mounted radar. The in-vehicle camera of PCS detects a p\
otential
pedestrian based on size, profile, and motion of the detected pedestrian\
. However,
a pedestrian may not be detected depending on the conditions, including \
the
surrounding brightness and the motion, posture, size, and angle of the p\
otential
detected pedestrian, preventing the system from operating or engaging.
PCS PEDESTRIAN DETECTION

37
OVERVIEW
FEATURES & OPERATIONS
TOYOTA SAFETY SENSE
SAFETY & EMERGENCY FEATURES

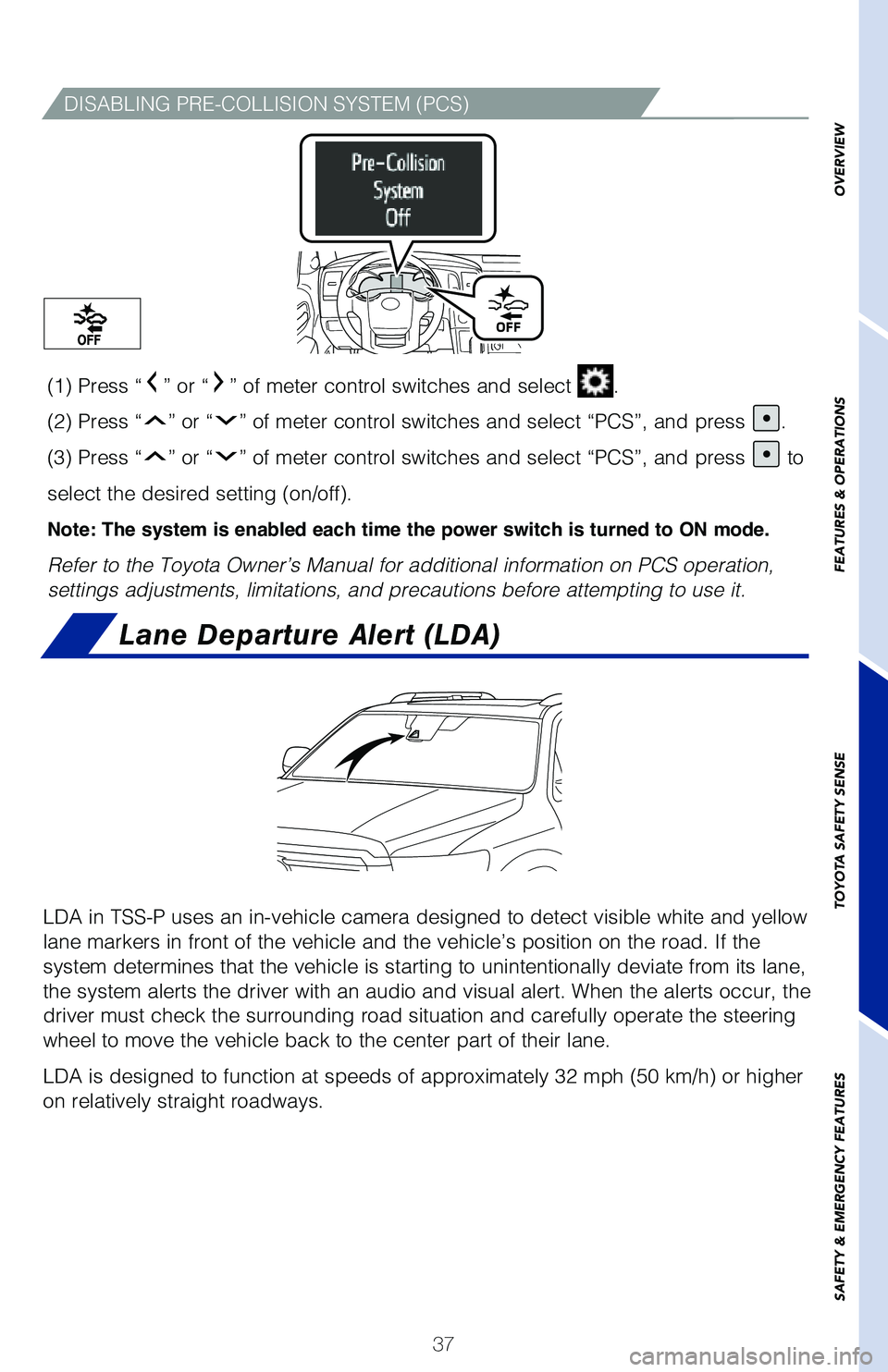

DISABLING PRE-COLLISION SYSTEM (PCS)
(1) Press “” or “” of meter control switches and select .
(2) Press “
” or “” of meter control switches and select “PCS”, and press .
(3) Press “
” or “” of meter control switches and select “PCS”, and press to
select the desired setting (on/off).
Note: The system is enabled each time the power switch is turned to ON mode.
Refer to the Toyota Owner’s Manual for additional information on PCS \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
Lane Departure Alert (LDA)
LDA in TSS-P uses an in-vehicle camera designed to detect visible white \
and yellow
lane markers in front of the vehicle and the vehicle’s position on th\
e road. If the
system determines that the vehicle is starting to unintentionally deviat\
e from its lane,
the system alerts the driver with an audio and visual alert. When the al\
erts occur, the
driver must check the surrounding road situation and carefully operate t\
he steering
wheel to move the vehicle back to the center part of their lane.
LDA is designed to function at speeds of approximately 32 mph (50 km/h)\
or higher
on relatively straight roadways.

38
TOYOTA SAFETY SENSE™
LDA indicatorLane markers
(2)
(1)
LANE DEPARTURE ALERT
Lane Departure Alert (LDA) indicator flashes orange when operating.
TURNING THE LDA SYSTEM ON/OFF
Press the LDA switch to turn the LDA system on. Depress again to turn it\
off.
Note: The system will continue in the last state it was in (ON or OFF) when the
engine is started again.
Refer to the Toyota Owner’s Manual for additional information on LDA \
operation,
settings adjustments, limitations, and precautions before attempting to \
use it.
