4636-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
Light bulbs
(  P.499)
• Bulb with same
number and
wattage rating as
original
• Phillips-head screwdriver
• Wrench
Radiator and
condenser
(  P.469)

Tire inflation
pressure
( P.484)• Tire pressure
gauge
• Compressed air source
Washer fluid
( P.470)
• Water or washer
fluid containing
antifreeze (for
winter use)
• Funnel (used only for adding
water or washer
fluid)
Hybrid battery
(traction bat-
tery) air intake
vent ( P.489)
Flathead screw
driver
WARNING
The engine compartment contains
many mechanisms and fluids that
may move suddenly, become hot,
or become electrically energized.
To avoid death or serious injury,
observe the following precautions.
■When working on the engine
compartment
●Make sure that the “ACCES-
SORY” or “IGNITION ON” on
the multi-inform ation display
and the “READY” indicator are
both off.
ItemsParts and tools●Keep hands, clothing and tools
away from the moving fan and
engine.
●Be careful not to touch the
engine, inverter, radiator,
exhaust manifold, etc., right
after driving as they may be hot.
Oil and other fluids may also be
hot.
●Do not leave anything that may
burn easily, such as paper and
rags, in the engine compart-
ment.
●Do not smoke, cause sparks or
expose an open flame to fuel.
■When working near the elec-
tric cooling fans or radiator
grille
Be sure the power switch is off.
With the power switch in ON, the
electric cooling fans may auto-
matically start to r un if the air con-
ditioning is on an d/or the coolant
temperature is high. ( P.469)
■Safety glasses
Wear safety glasses to prevent
flying or falling material, fluid
spray, etc., from getting in your
eyes.
NOTICE
■If you remove the air cleaner
filter
Driving with the air cleaner filter
removed may cause excessive
engine wear due to dirt in the air.

4656-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
Fuse boxes ( P.495)
Power control unit coolant reservoir ( P.468)
Intercooler coolant reservoir ( P.468)
Engine coolant reservoir ( P.468)
Engine oil filler cap ( P.466)
Engine oil level dipstick ( P.466)
Brake fluid reservoir ( P.469)
Engine radiator ( P.469)
Condenser ( P.469)
Electric cooling fans
Radiator cooling fan ( P.468)
Washer fluid tank ( P.470)
Intercooler radiators ( P.468)
Engine compar tment
Components

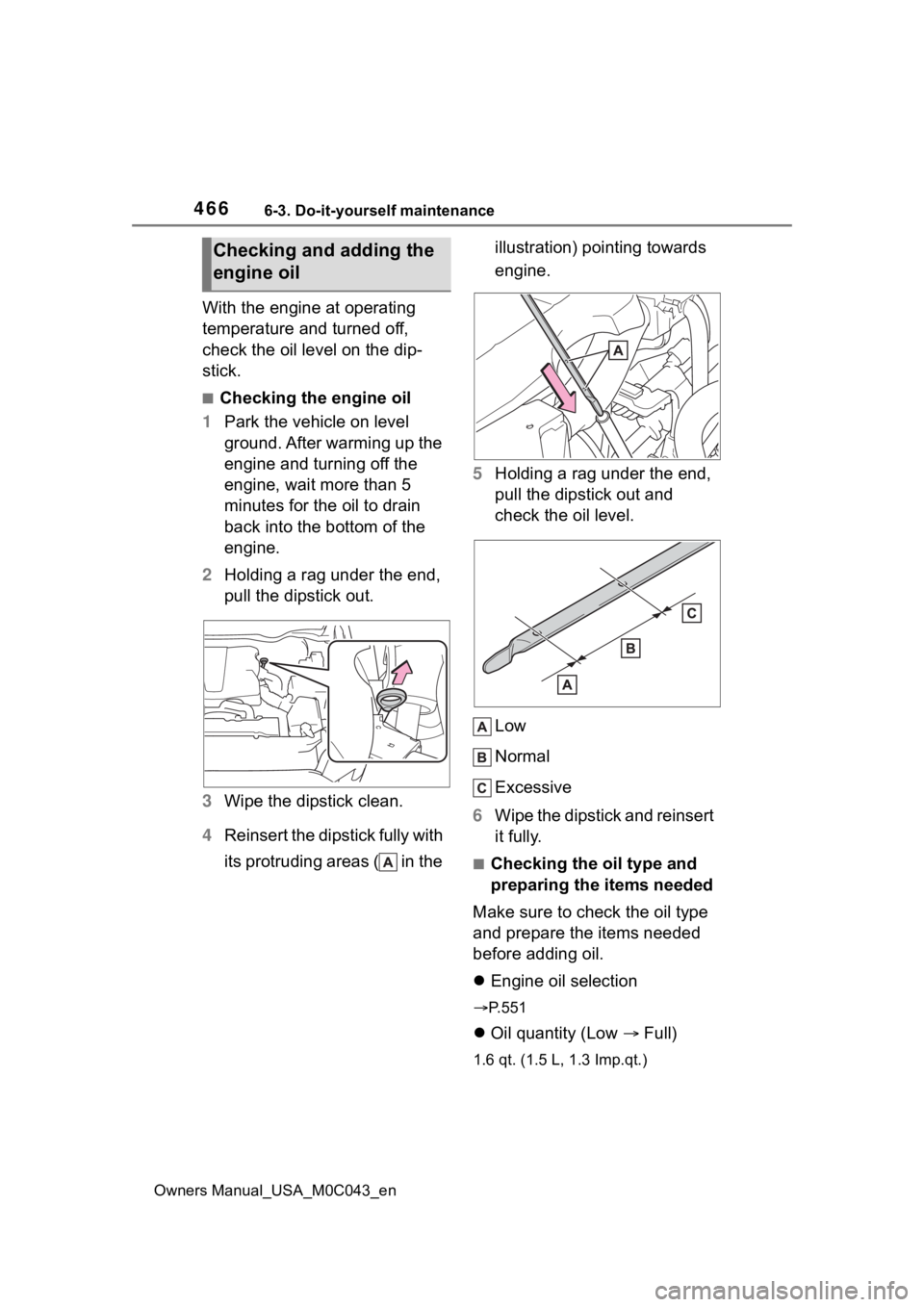

4666-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
With the engine at operating
temperature and turned off,
check the oil level on the dip-
stick.
■Checking the engine oil
1 Park the vehicle on level
ground. After warming up the
engine and turning off the
engine, wait more than 5
minutes for the oil to drain
back into the bottom of the
engine.
2 Holding a rag under the end,
pull the dipstick out.
3 Wipe the dipstick clean.
4 Reinsert the dipstick fully with
its protruding areas ( in the illustration) pointing towards
engine.
5 Holding a rag under the end,
pull the dipstick out and
check the oil level.
Low
Normal
Excessive
6 Wipe the dipstick and reinsert
it fully.
■Checking the oil type and
preparing the items needed
Make sure to check the oil type
and prepare the items needed
before adding oil.
 Engine oil selection
P.551
 Oil quantity (Low  Full)
1.6 qt. (1.5 L, 1.3 Imp.qt.)
Checking and adding the
engine oil

4676-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
 Items
Clean funnel
■Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.
1 Remove the oil filler cap by
turning it counterclockwise.
2 Add engine oil slowly, check-
ing the dipstick.
3 Install the oil filler cap by
turning it clockwise.
■Engine oil consumption
A certain amount of engine oil will
be consumed while driving. In the
following situatio ns, oil consump-
tion may increase, and engine oil
may need to be ref illed in between
oil maintenance intervals.
●When the engine is new, for
example directly after purchasing
the vehicle or after replacing the
engine
●If low quality oil or oil of an inap-
propriate viscosity is used
●When driving at high engine
speeds or with a heavy load,
when towing, or when driving
while accelerating o r decelerating
frequently
●When leaving the engine idling for a long time, or when driving fre-
quently through heavy traffic
■After changing the engine oil
The engine oil maintenance data
should be reset. Pe rform the follow-
ing procedures:
1 Press or of the meter
control switches and select .
2 Press or of the meter
control switches, select the
“Vehicle Settings” and then press
.
3 Press or of the meter
control switches, select the “Oil
Maintenance” and then press
.
4 Select the “Yes” and push .
“Reset Complete” is displayed
on the multi-info rmation display.
WARNING
■Used engine oil
●Used engine oil contains poten-
tially harmful contaminants
which may cause skin disorders
such as inflammation and skin
cancer, so care should be taken
to avoid prolonged and
repeated contact. To remove
used engine oil from your skin,
wash thoroughly with soap and
water.
●Dispose of used oil and filters
only in a safe and acceptable
manner. Do not dispose of used
oil and filters in h ousehold trash,
in sewers or onto the ground.
Call your Toyota dealer, service
station or auto parts store for
information concerning recy-
cling or disposal.
●Do not leave used engine oil
within the reach of children.

4686-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
The coolant level is satisfactory
if it is between the “F” and “L”
lines on the reservoir when the
hybrid system is cold.
Engine coolant Engine coolant reservoir cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up
to the “F” line.
(  P.543)
Intercooler coolant
Intercooler coolant reservoir
cap
“F” line
“L” line
If the level is on or below the “L”
line, add coolant up to the “F” line.
(  P.543)
Power control unit coolant
Power control unit coolant
reservoir cap
“FULL” line
NOTICE
■To prevent serious engine
damage
Check the oil level on a regular
basis.
■When replacing the engine oil
●Be careful not to spill engine oil
on the vehicle components.
●Avoid overfilling, or the engine
could be damaged.
●Check the oil le vel on the dip-
stick every time you refill the
vehicle.
●Be sure the engine oil filler cap
is properly tightened.
■If oil is spilled on the engine
cover
To prevent the engine cover from
being damaged, remove any
engine oil from the engine cover
as soon as possible using a neu-
tral detergent. Do not use an
organic solvent such as brake
cleaner.
Checking the coolant

4696-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
“LOW” line
If the level is on or below the “LOW”
line, add coolant up to the “FULL”
line. ( P.543)
■Coolant selection
Only use “Toyota Super Long Life
Coolant” or a similar high quality
ethylene glycol based non-silicate,
non-amine, non-nitrite, and non-
borate coolant with long-life hybrid
organic acid technology.
U.S.A.:“Toyota Super Long Life
Coolant” is a mixture of 50% coolant
and 50% deionized water.
(Minimum temperature: -31°F [-
35°C])
Canada: “Toyota Super Long Life
Coolant” is a mixture of 55% coolant
and 45% deionized water.
(Minimum temperature: -44°F [-
42°C])
For more details about coolant, con-
tact your Toyota dealer.
■If the coolant level drops within
a short time of replenishing
Visually check the radiator, hoses,
engine coolant reser voir cap, inter-
coolant reservoir cap, drain cock
and water pump.
If you cannot find a leak, have your
Toyota dealer test the cap and
check for leaks in the cooling sys-
tem.
Check the radiator, condenser
and intercooler radiators and
clear away any foreign objects.
If either of the above parts is
extremely dirty or you are not
sure of their condition, have
your vehicle inspected by your
Toyota dealer.
■Checking fluid level
The brake fluid level should be
between the “MAX” and “MIN”
WARNING
■When the hybrid system is
hot
Do not remove the coolant reser-
voir cap.
The cooling system may be under
pressure and may spray hot cool-
ant if the cap is removed, causing
serious injuries, such as burns.
NOTICE
■When adding coolant
Coolant is neither plain water nor
straight antifreeze. The correct
mixture of water and antifreeze
must be used to provide proper
lubrication, corrosion protection
and cooling. Be sure to read the
antifreeze or coolant label.
■If you spill coolant
Be sure to wash it off with water to
prevent it from damaging parts or
paint.
Checking the radiator,
condenser and inter-
cooler radiators
WARNING
■When the hybrid system is
hot
Do not touch the radiator, con-
denser or intercooler radiators or
condenser as they may be hot
and cause serious injuries, such
as burns.
Checking and adding the
brake fluid

4956-3. Do-it-yourself maintenance
Owners Manual_USA_M0C043_en
6
Maintenance and care
1 Turn the power switch off.
2 Open the fuse box cover.
Engine compartment: type A
fuse box
Push the tabs in and lift the lid off.
Engine compartment: type B
fuse box
Push the tabs in and lift the lid off.
Passenger’ side instrument
panel
Remove the cover.
Vehicles with footwell lights:
Remove the footwell lights connec-
tor.
Remove the lid.
Make sure to push the claw when
removing/installing the lid.
Checking and replac-
ing fuses
If any of the electrical com-
ponents do not operate, a
fuse may have blown. If this
happens, check and replace
the fuses as necessary.
Checking and replacing
fuses

5047-1. Essential information
Owners Manual_USA_M0C043_en
outside water level exceeds
half the height of the door, the
door cannot be opened from
the inside due to water pres-
sure.
■Water level exceeds the floor
When the water level exceeds the
floor and time has passed, the elec-
trical equipment will get damaged,
the power windows will not operate,
the engine and motor stop, and the
vehicle may not be able to get mov-
ing.
■Using an emergency escape
hammer*1
Laminated glass*2 is used in the
windshield and the windows on this
vehicle.
Laminated glass cannot be shat-
tered with an emergency hammer
*1.
*1: Contact your Toyota dealer or
aftermarket accessory manufac-
turer for further information about
an emergency hammer.
*2: If equipped
■How to distinguish laminated
glass
When looking from the cross-sec-
tional view point, laminated glass is
two sheets of glass pasted together.
Laminated glass
Tempered glass
WARNING
■Caution while driving
Do not drive on roads where the
roads may be submerged or the
water may be rising. Otherwise
the vehicle may be damaged and
cannot move, as well as become
flooded and set a drift, which may
lead to death.

5077-2. Steps to take in an emergency
Owners Manual_USA_M0C043_en
7
When trouble arises
When using a flat-bed truck to
transport the vehicle, use tire
strapping belts. Refer to the
owner’s manual of the flat-bed
truck for the tire strapping
method.
In order to suppress vehicle
movement during transporta-
tion, set the parking brake and
turn the power switch off.
Your vehicle has not towing
hook. If towing is necessary, we
recommend having your vehicle
towed by your Toyota dealer or
commercial towing service. 
Fluid leaks under the vehicle.
(Water dripping from the air
conditioning after use is nor-
mal.)
 Flat-looking tires or uneven
tire wear
 Engine coolant temperature
gauge needle continually
points higher than normal.
 Voltmeter continually points
higher or lower than normal.
 Engine oil pressure gauge
continually points lower than
normal.
 Automatic transmission fluid
temperature warning mes-
sage is displayed
 Changes in exhaust sound
 Excessive tire squeal when
cornering
 Strange noises related to the
suspension system
NOTICE
■Towing with a sling-type truck
Do not tow with a sling-type truck
to prevent body damage.
Using a flatbed truck
Emergency towing
If you think something
is wrong
If you notice any of the fol-
lowing symptoms, your
vehicle probably needs
adjustment or repair. Con-
tact your Toyota dealer as
soon as possible.
Visible symptoms
Audible symptoms

5087-2. Steps to take in an emergency
Owners Manual_USA_M0C043_en
Pinging or other noises
related to the engine
 Engine misses, stumbling or
running roughly
 Appreciable loss of power
 Vehicle pulls heavily to one
side when braking
 Vehicle pulls heavily to one
side when driving on a level
road
 Loss of brake effectiveness,
spongy feeling, pedal almost
touches the floor
Operational symptoms
