TOYOTA SIENNA 2009 XL20 / 2.G Owners Manual

361
3
Interior features

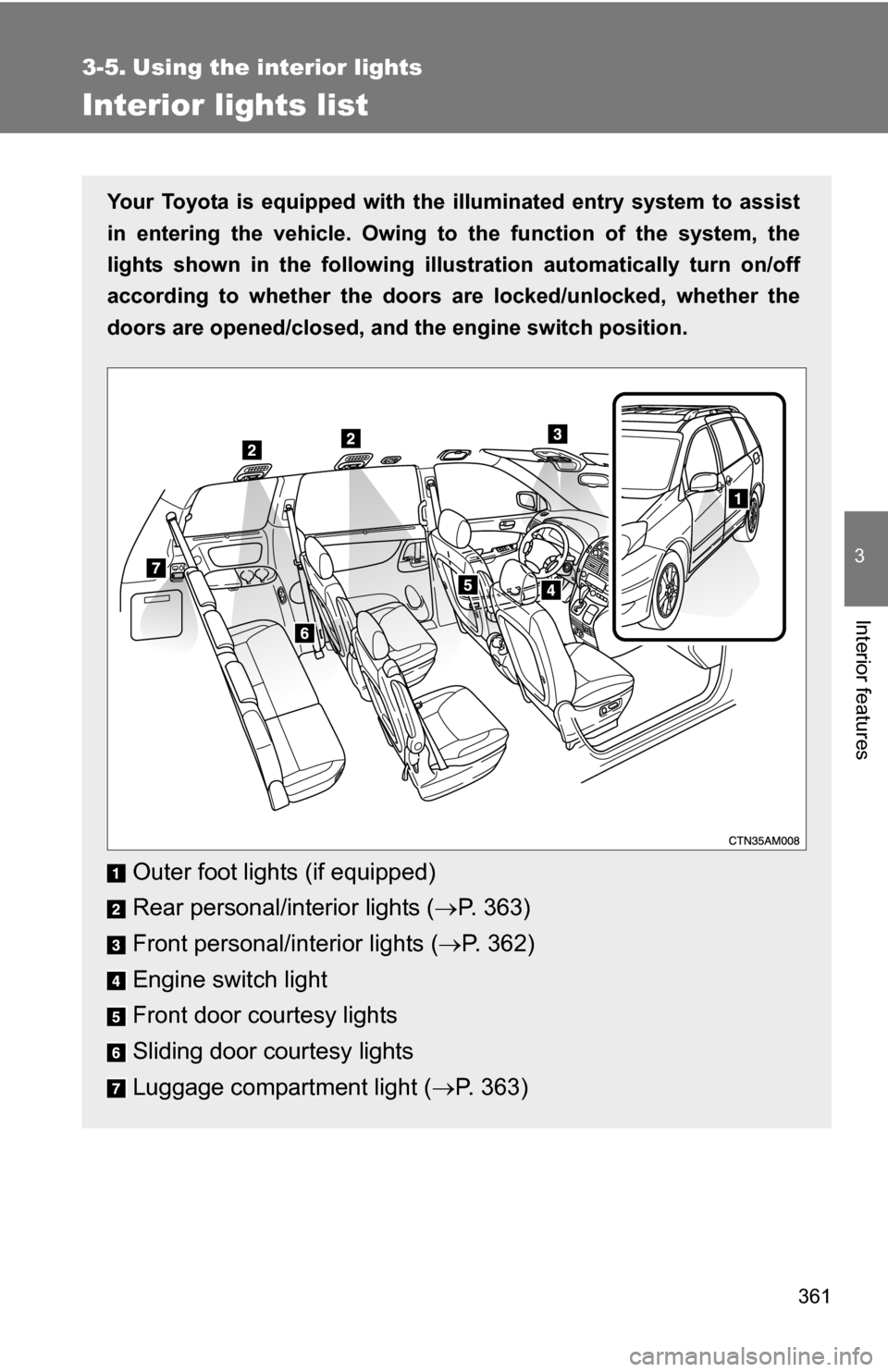

3-5. Using the interior lights
Interior lights list
Your Toyota is equipped with the illuminated entry system to assist
in entering the vehicle. Owing to the function of the system, the
lights shown in the following illust ration automatically turn on/off
according to whether the doors are locked/unlocked, whether the
doors are opened/closed, and th e engine switch position.
Outer foot lights (if equipped)
Rear personal/interior lights (P. 363)
Front personal/interior lights ( P. 362)
Engine switch light
Front door courtesy lights
Sliding door courtesy lights
Luggage compartment light ( P. 363)

362 3-5. Using the interior lights
Personal/interior light main switchOff
The front personal light function
can still be turned on and off.
Door position
The personal/interior lights and
luggage compartment light come
on when a door is opened. They
turn off when the doors are
closed.
On
The personal/interior lights can-
not be individually turned off.
Personal/interior lightsFront On/off
Personal/interior light main switch and personal/interior lights

363
3-5. Using the interior lights
3
Interior features

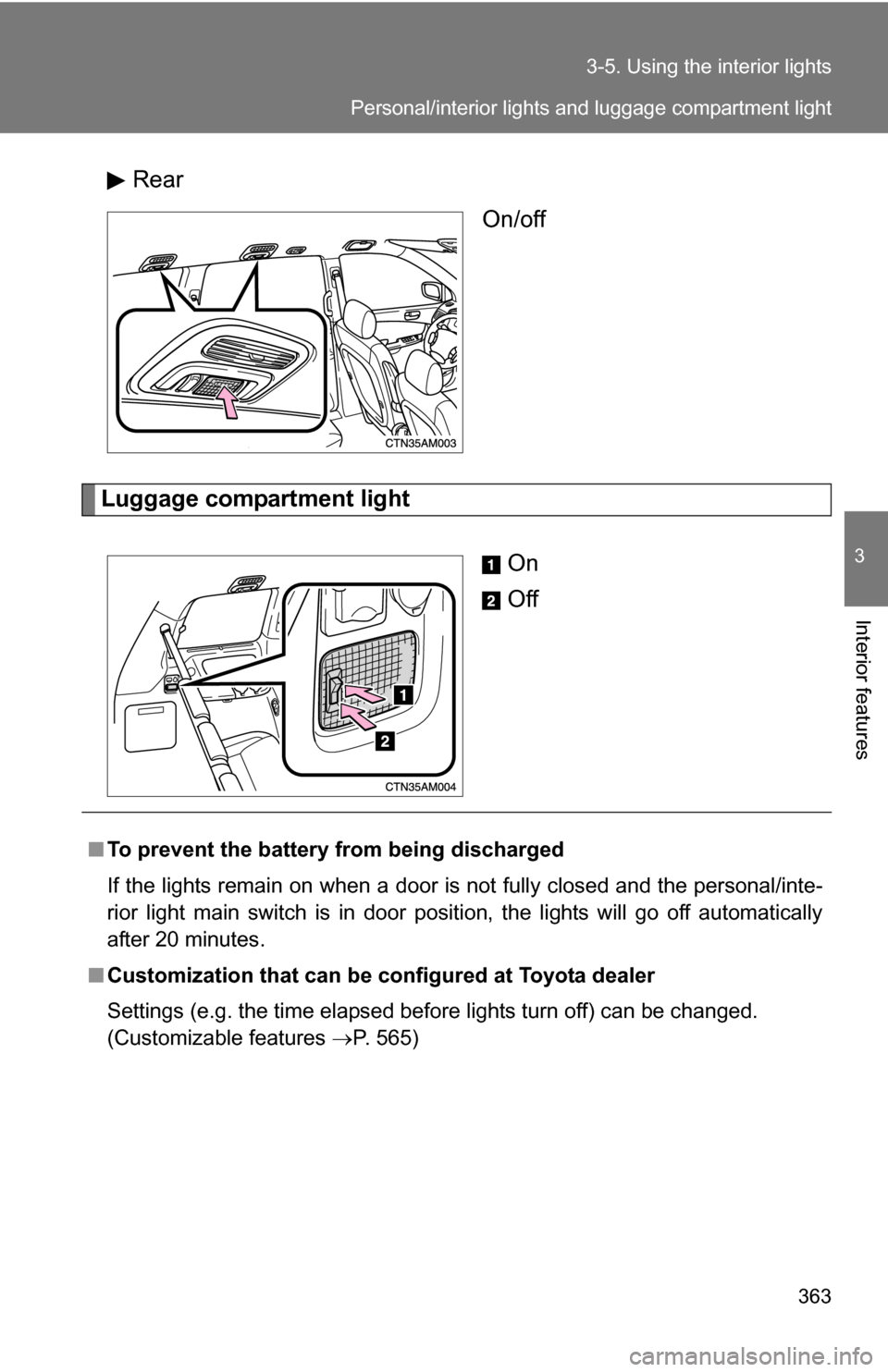

Rear
On/off
Luggage compartment light
On
Off
■To prevent the battery from being discharged
If the lights remain on when a door is not fully closed and the personal/inte-
rior light main switch is in door position, the lights will go off automatically
after 20 minutes.
■ Customization that can be co nfigured at Toyota dealer
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features P. 565)
Personal/interior lights and luggage compartment light

364
3-6. Using the storage features

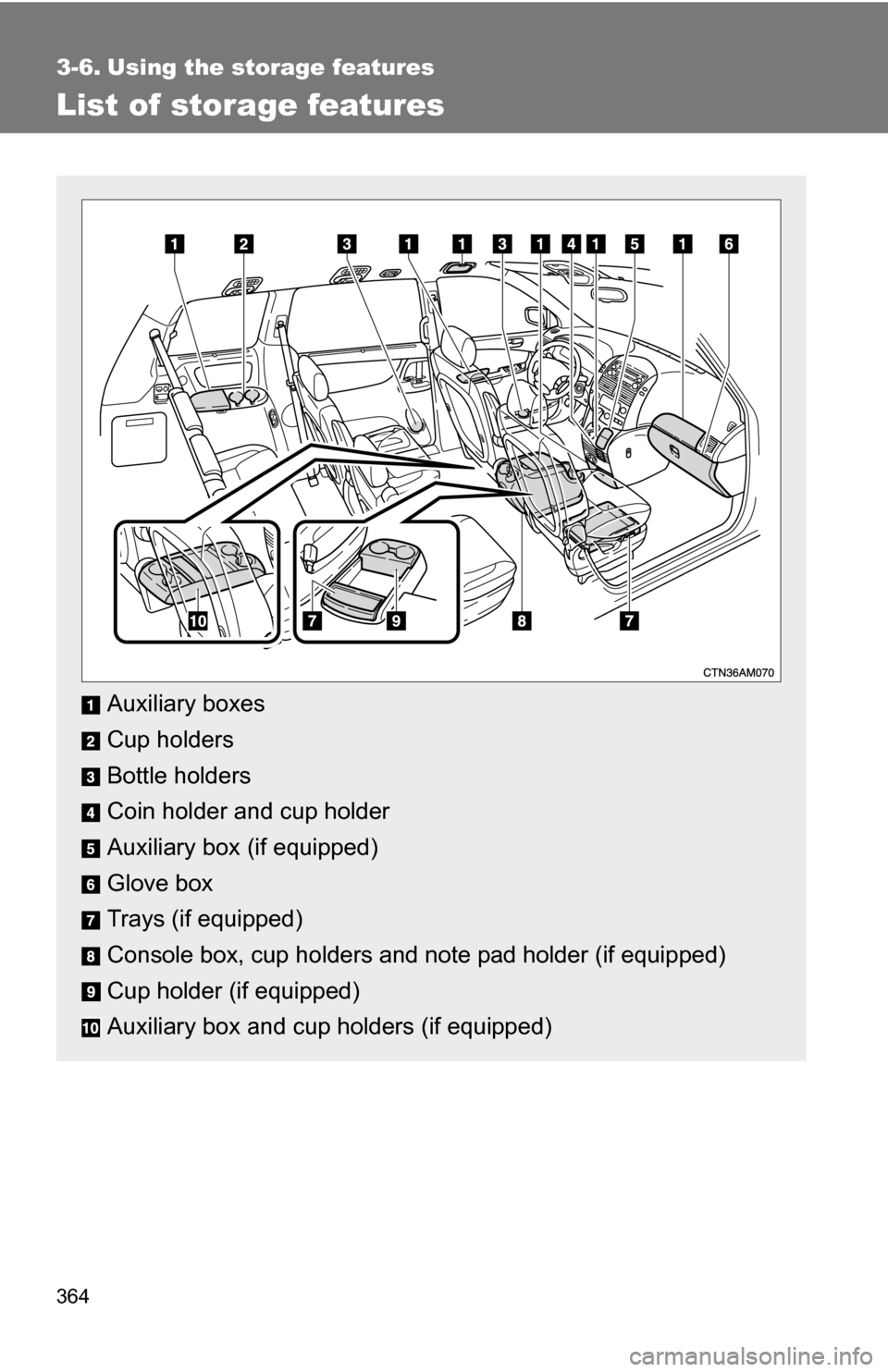

List of storage features
Auxiliary boxes
Cup holders
Bottle holders
Coin holder and cup holder
Auxiliary box (if equipped)
Glove box
Trays (if equipped)
Console box, cup holders and note pad holder (if equipped)
Cup holder (if equipped)
Auxiliary box and cup holders (if equipped)

365
3-6. Using the
storage features
3
Interior features

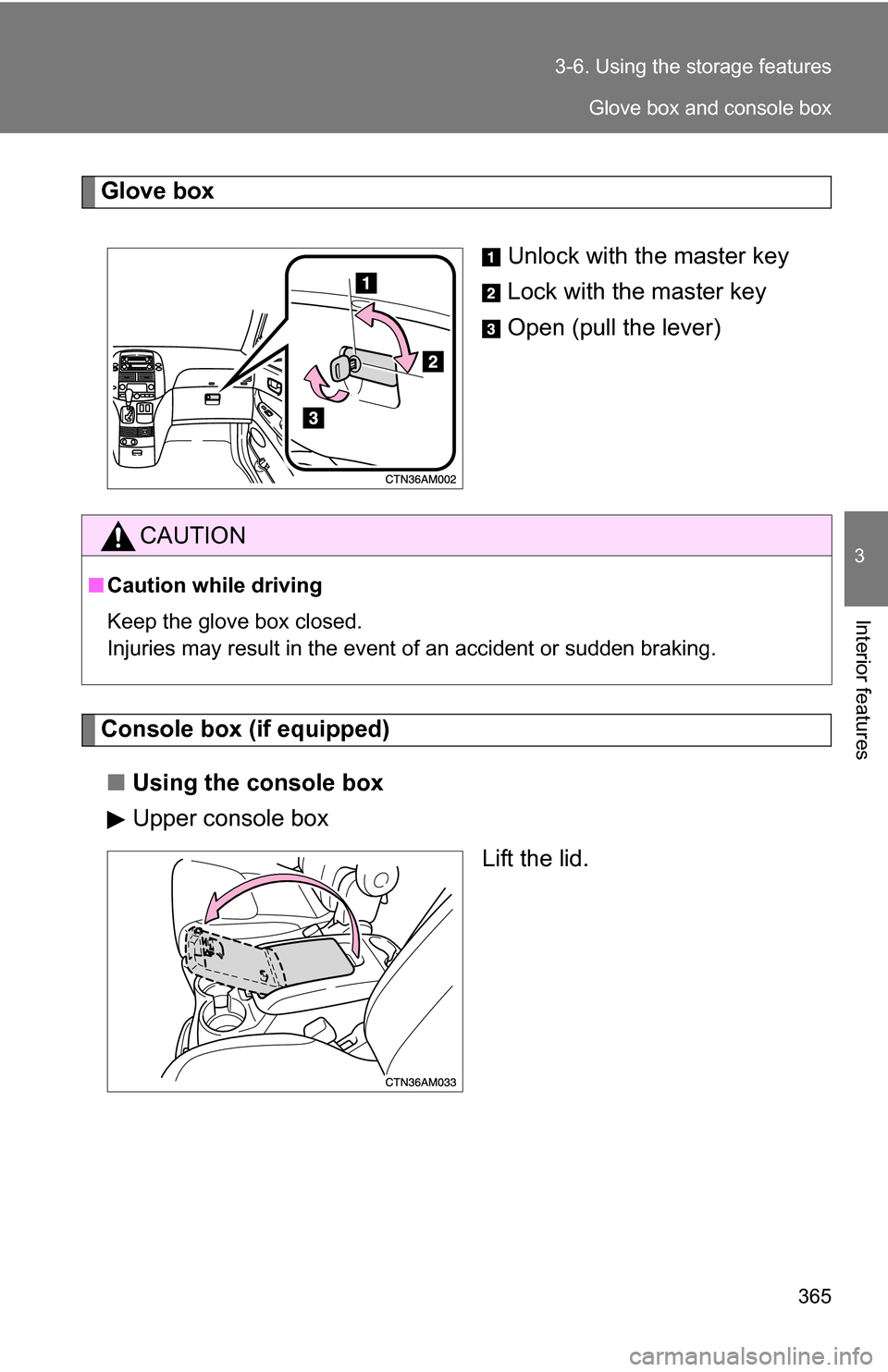

Glove box
Unlock with the master key
Lock with the master key
Open (pull the lever)
Console box (if equipped)■ Using the console box
Upper console box
Lift the lid.
CAUTION
■Caution while driving
Keep the glove box closed.
Injuries may result in the event of an accident or sudden braking.
Glove box and console box

366 3-6. Using the storage features

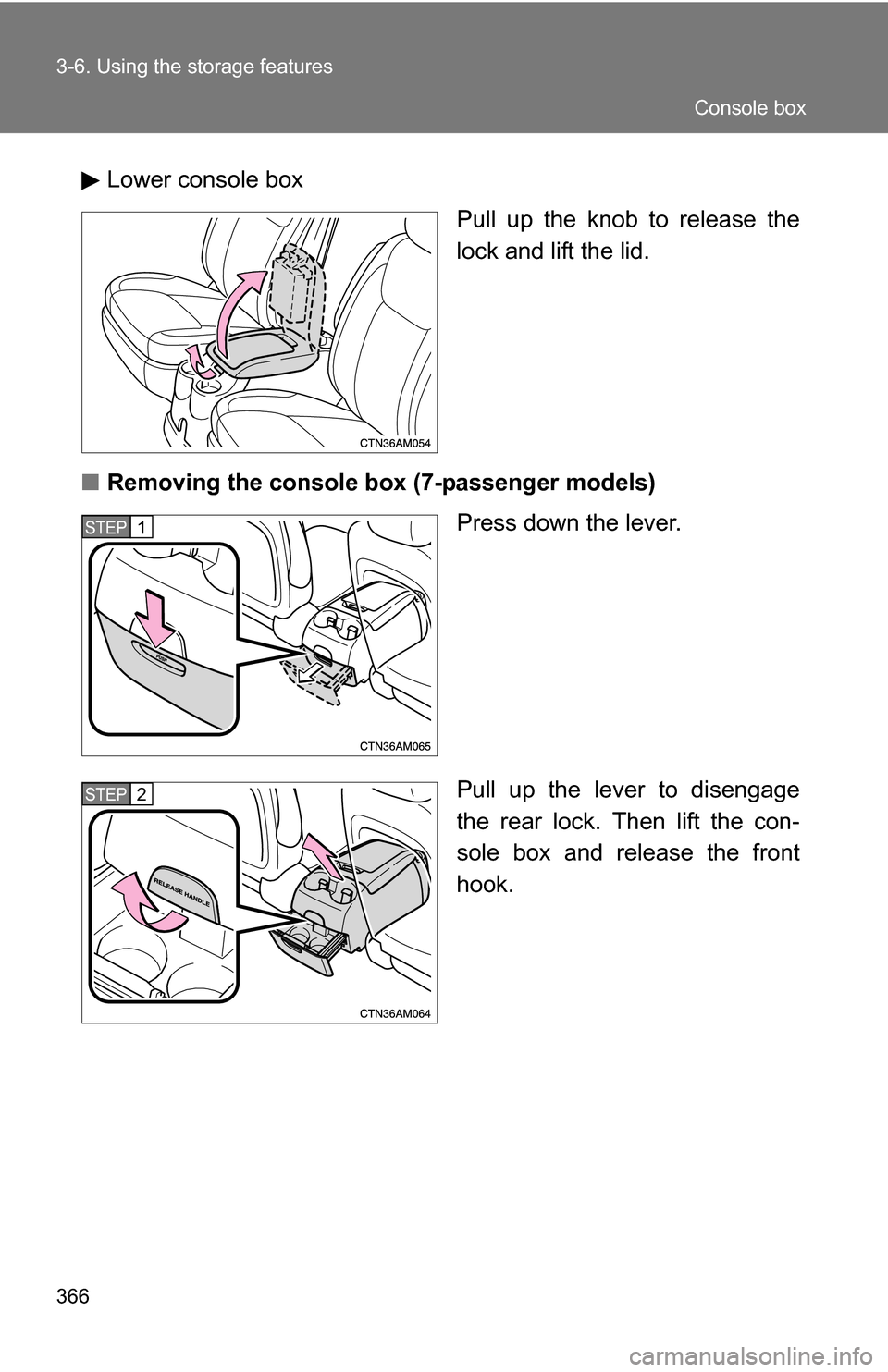

Lower console boxPull up the knob to release the
lock and lift the lid.
■ Removing the console box (7-passenger models)
Press down the lever.
Pull up the lever to disengage
the rear lock. Then lift the con-
sole box and release the front
hook.
STEP1
STEP2
Console box

367
3-6. Using the
storage features
3
Interior features

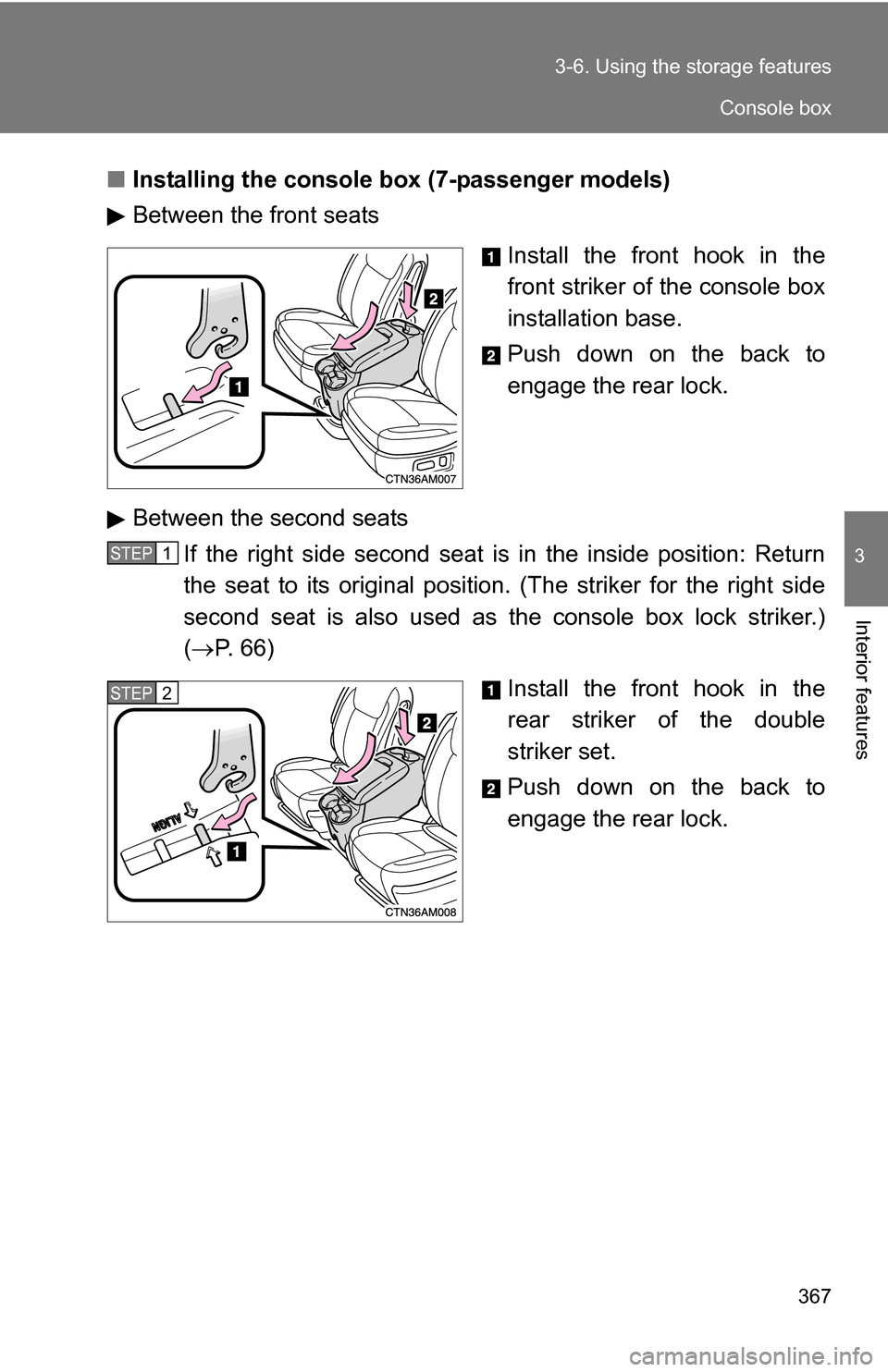

■Installing the console box (7-passenger models)
Between the front seats
Install the front hook in the
front striker of the console box
installation base.
Push down on the back to
engage the rear lock.
Between the second seats If the right side second seat is in the inside position: Return
the seat to its original position. (The striker for the right side
second seat is also used as the console box lock striker.)
(  P. 6 6 )
Install the front hook in the
rear striker of the double
striker set.
Push down on the back to
engage the rear lock.
STEP1
STEP2
Console box

368 3-6. Using the storage features

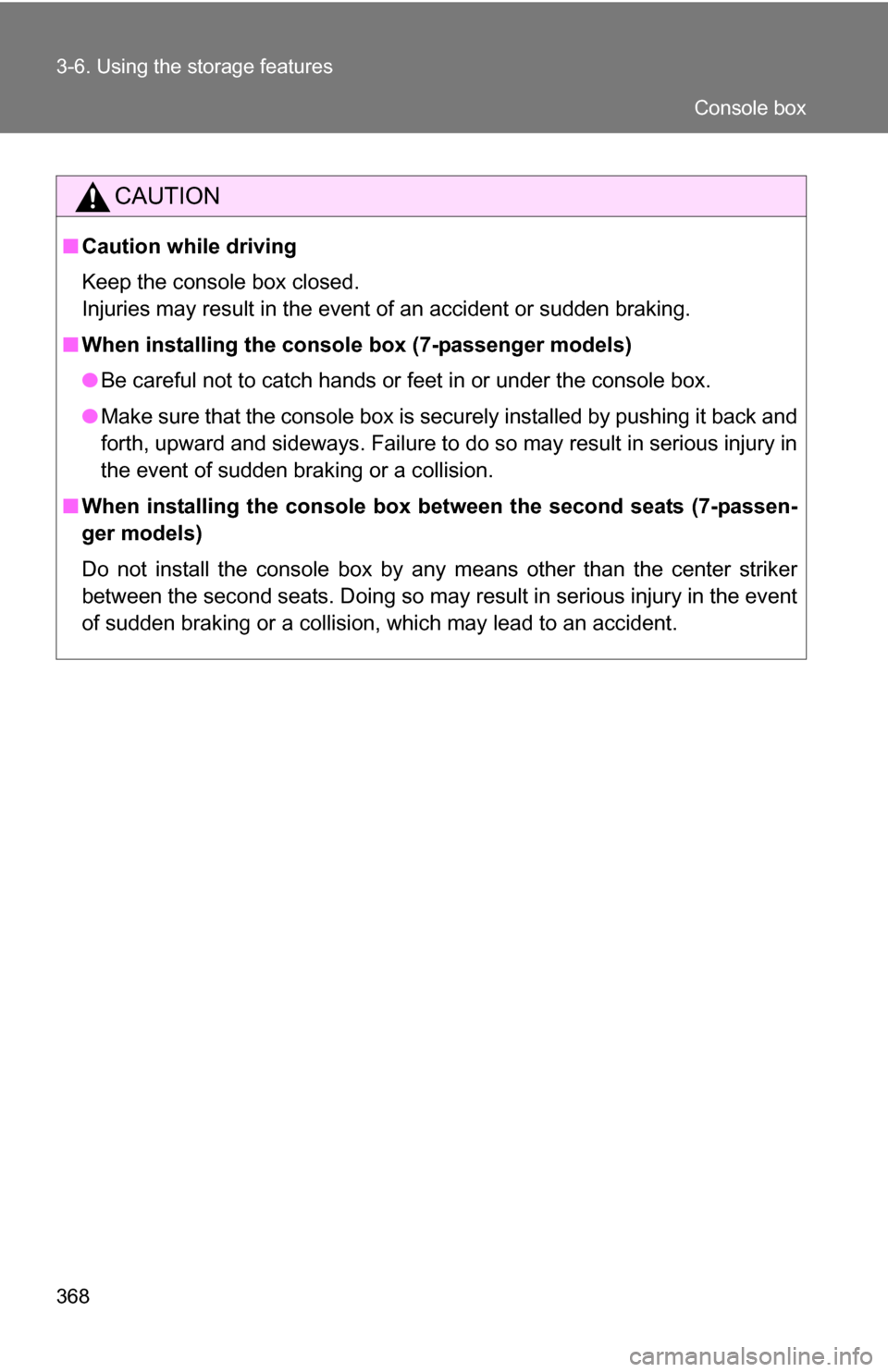

CAUTION
■Caution while driving
Keep the console box closed.
Injuries may result in the event of an accident or sudden braking.
■ When installing the console box (7-passenger models)
●Be careful not to catch hands or feet in or under the console box.
● Make sure that the console box is securely installed by pushing it back and
forth, upward and sideways. Failure to do so may result in serious injury in
the event of sudden braking or a collision.
■ When installing the console box between the second seats (7-passen-
ger models)
Do not install the console box by any means other than the center striker
between the second seats. Doing so may result in serious injury in the event
of sudden braking or a collision, which may lead to an accident.
Console box

369
3-6. Using the
storage features
3
Interior features

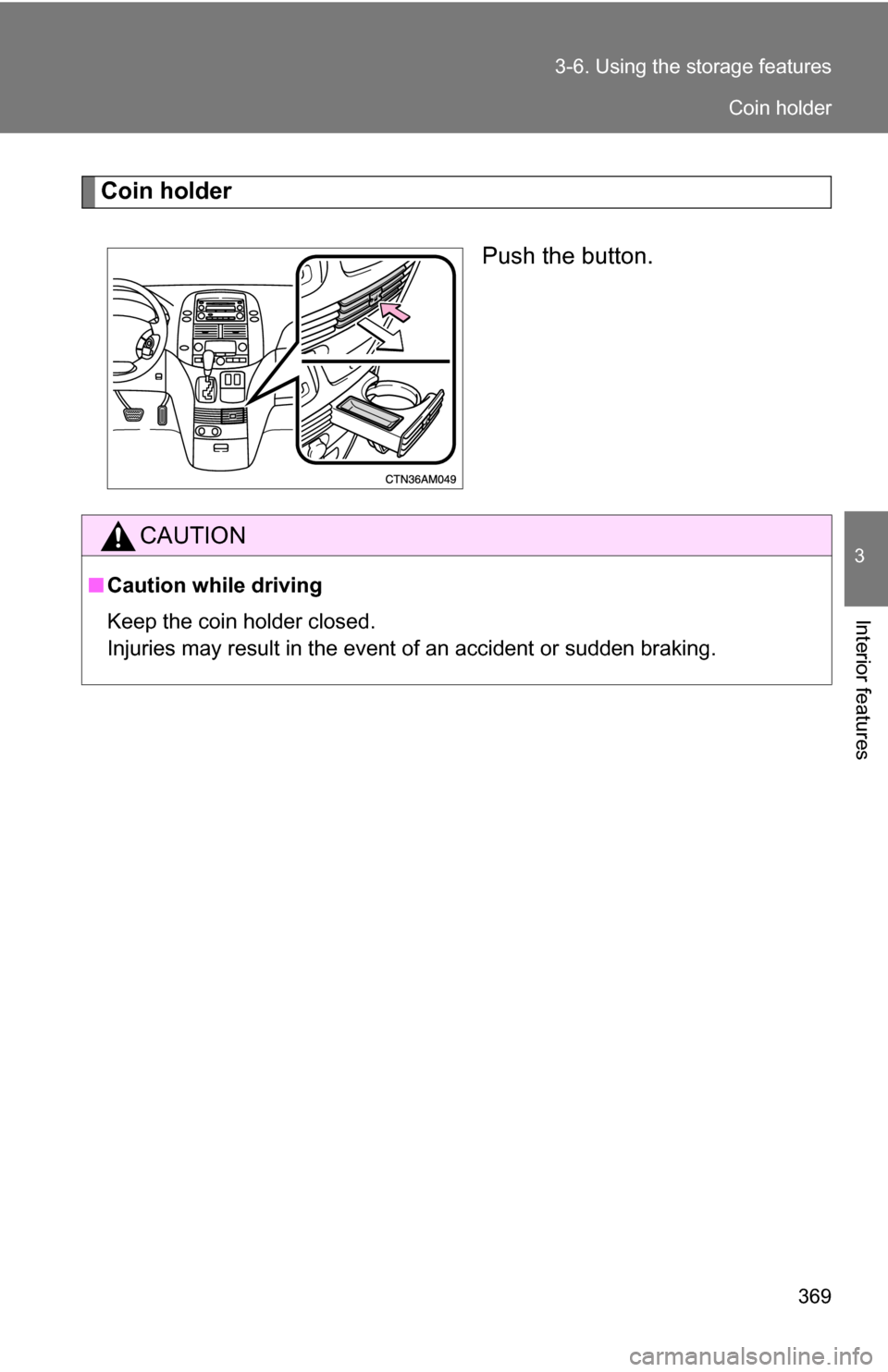

Coin holder
Push the button.
CAUTION
■Caution while driving
Keep the coin holder closed.
Injuries may result in the event of an accident or sudden braking.
Coin holder

370 3-6. Using the storage features

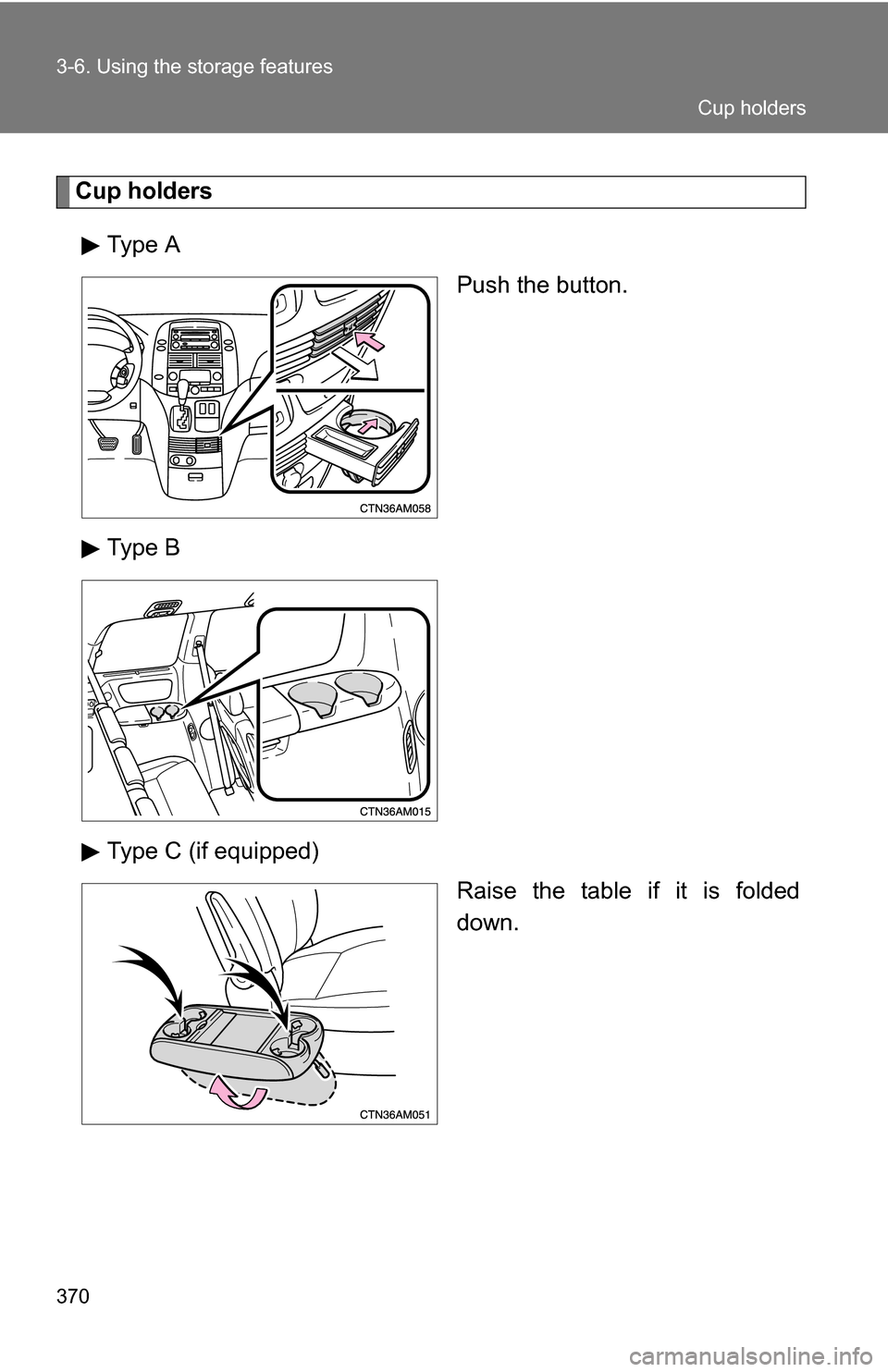

Cup holdersType A Push the button.
Type B
Type C (if equipped) Raise the table if it is folded
down.
Cup holders
