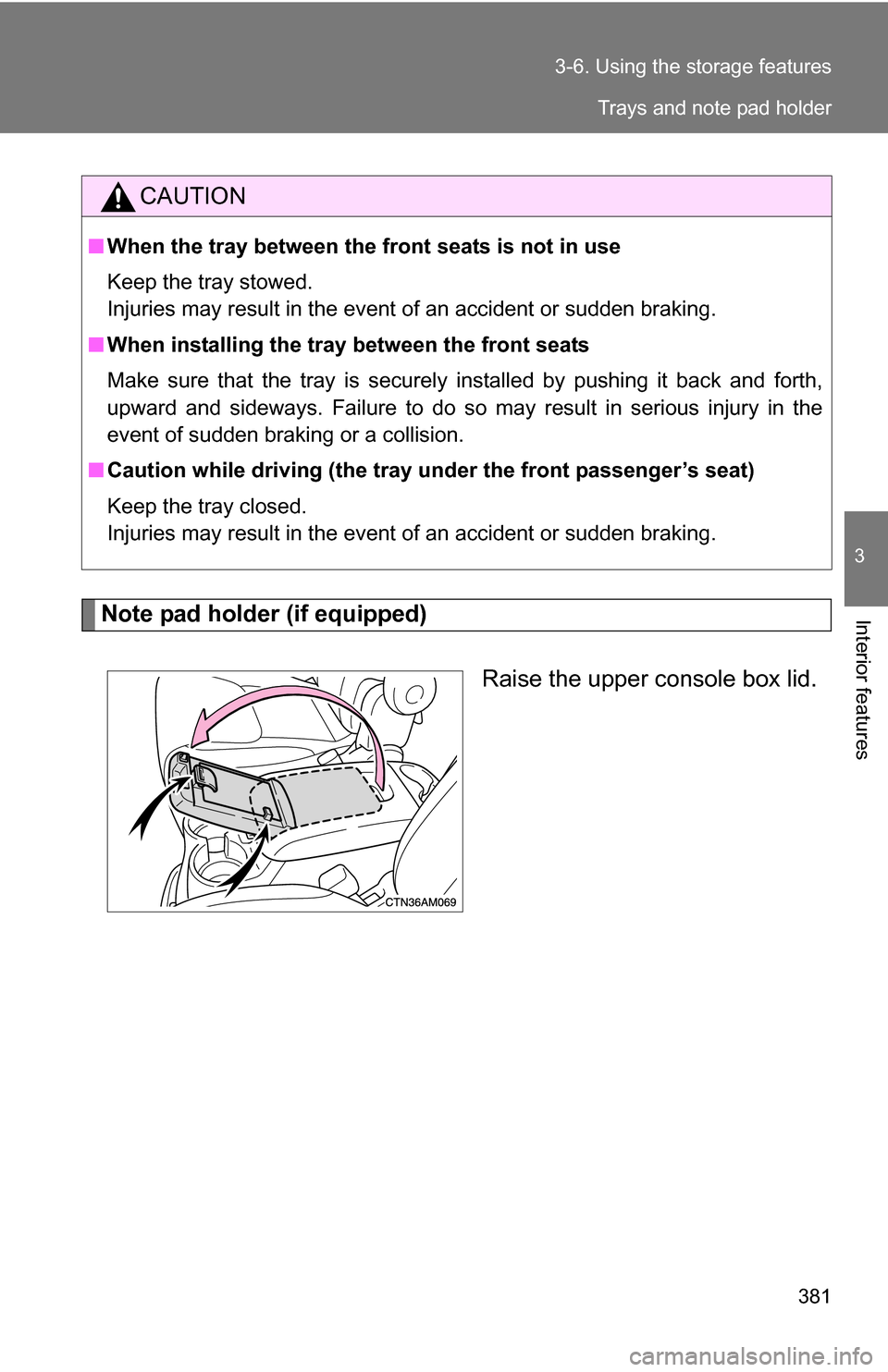

TOYOTA SIENNA 2009 XL20 / 2.G Owners Manual

381
3-6. Using the
storage features
3
Interior featuresNote pad holder (if equipped)
Raise the upper console box lid.
CAUTION
■When the tray between the front seats is not in use
Keep the tray stowed.
Injuries may result in the event of an accident or sudden braking.
■ When installing the tray between the front seats
Make sure that the tray is securely installed by pushing it back and forth,
upward and sideways. Failure to do so may result in serious injury in the
event of sudden braking or a collision.
■ Caution while driving (the tray under the front passenger’s seat)
Keep the tray closed.
Injuries may result in the event of an accident or sudden braking.
Trays and note pad holder

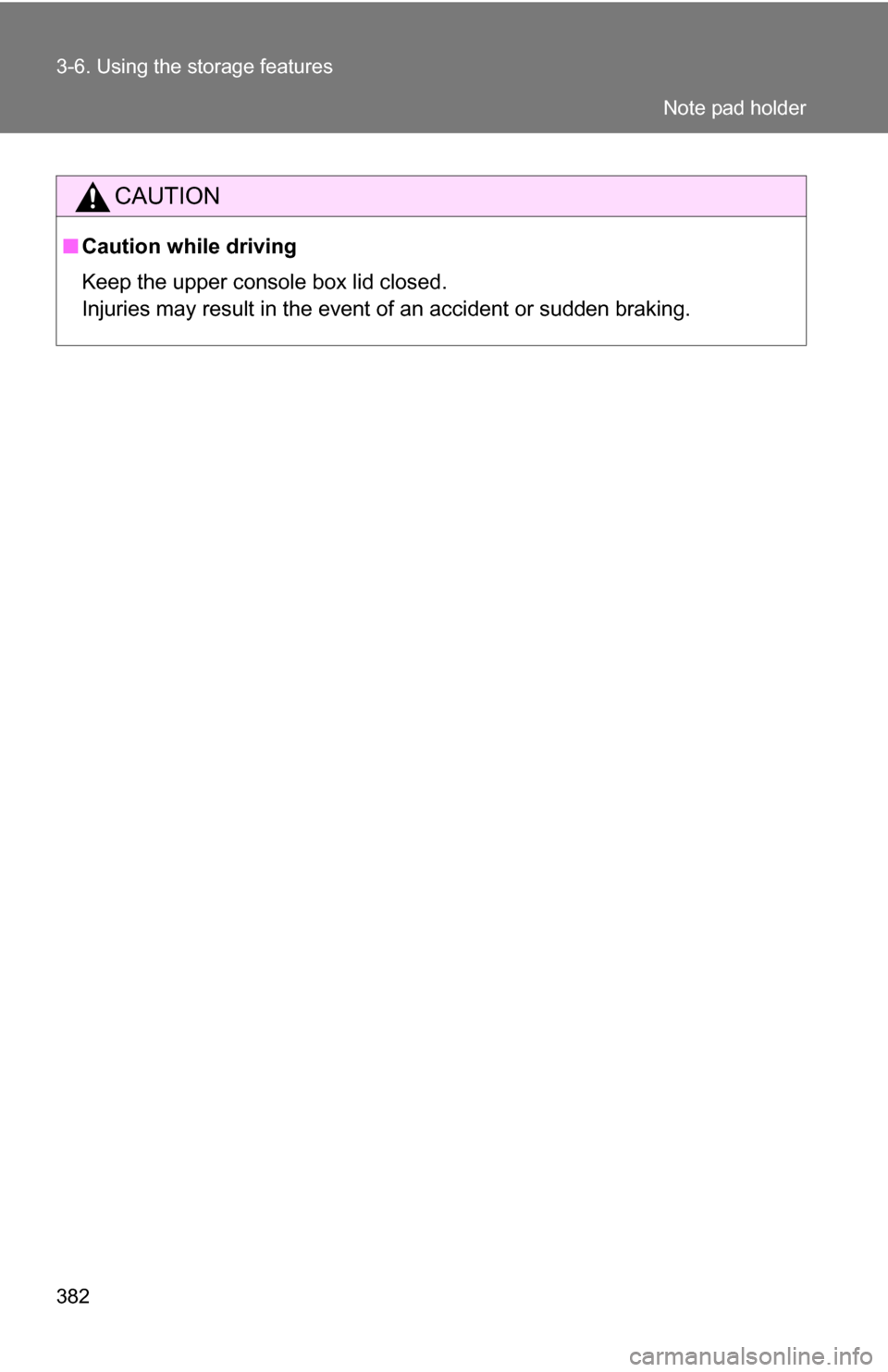

382 3-6. Using the storage features
CAUTION
■Caution while driving
Keep the upper console box lid closed.
Injuries may result in the event of an accident or sudden braking.
Note pad holder

383
3
Interior features
3-7. Other interior features

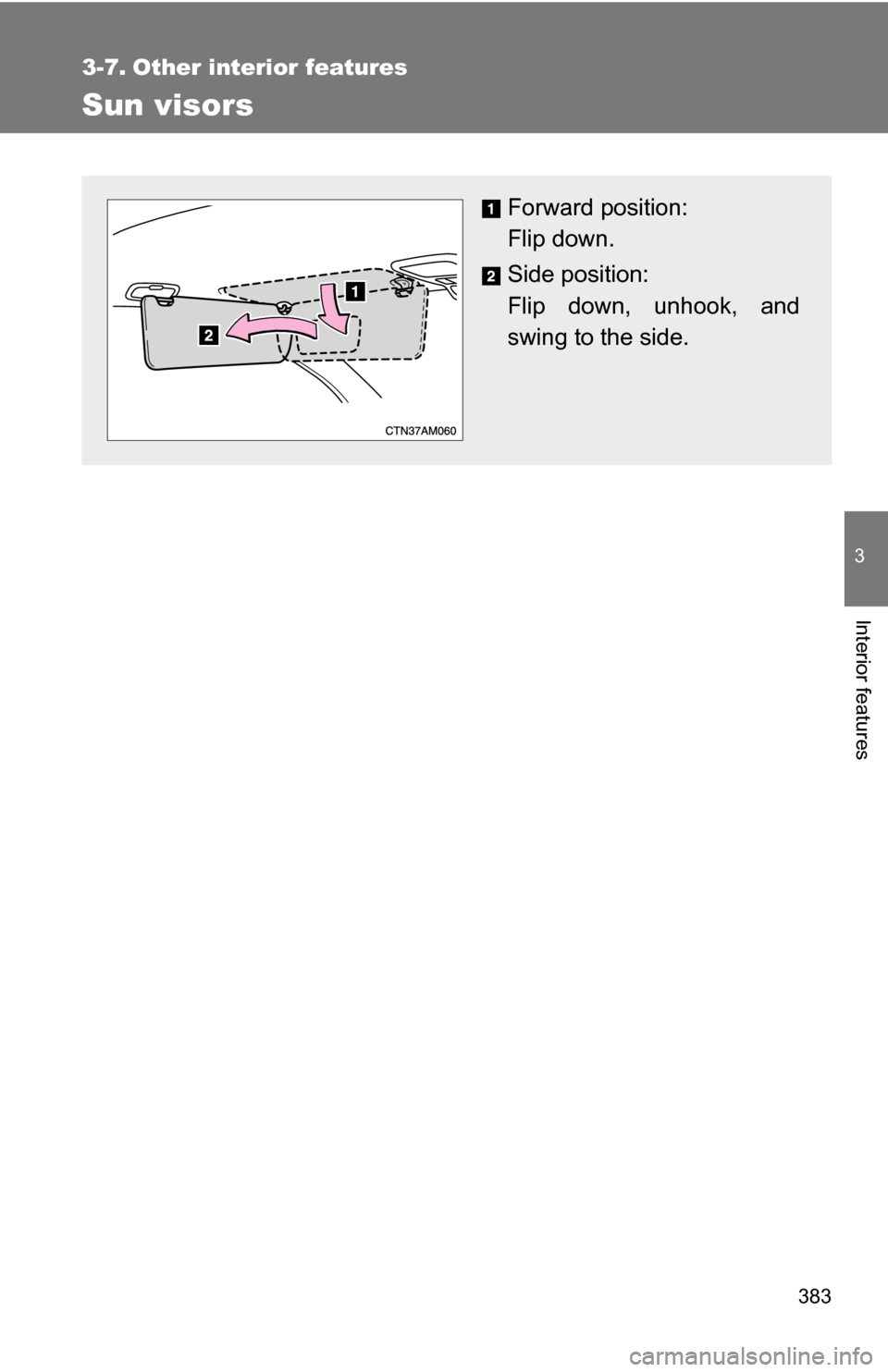

Sun visors
Forward position:
Flip down.
Side position:
Flip down, unhook, and
swing to the side.

384
3-7. Other interior features

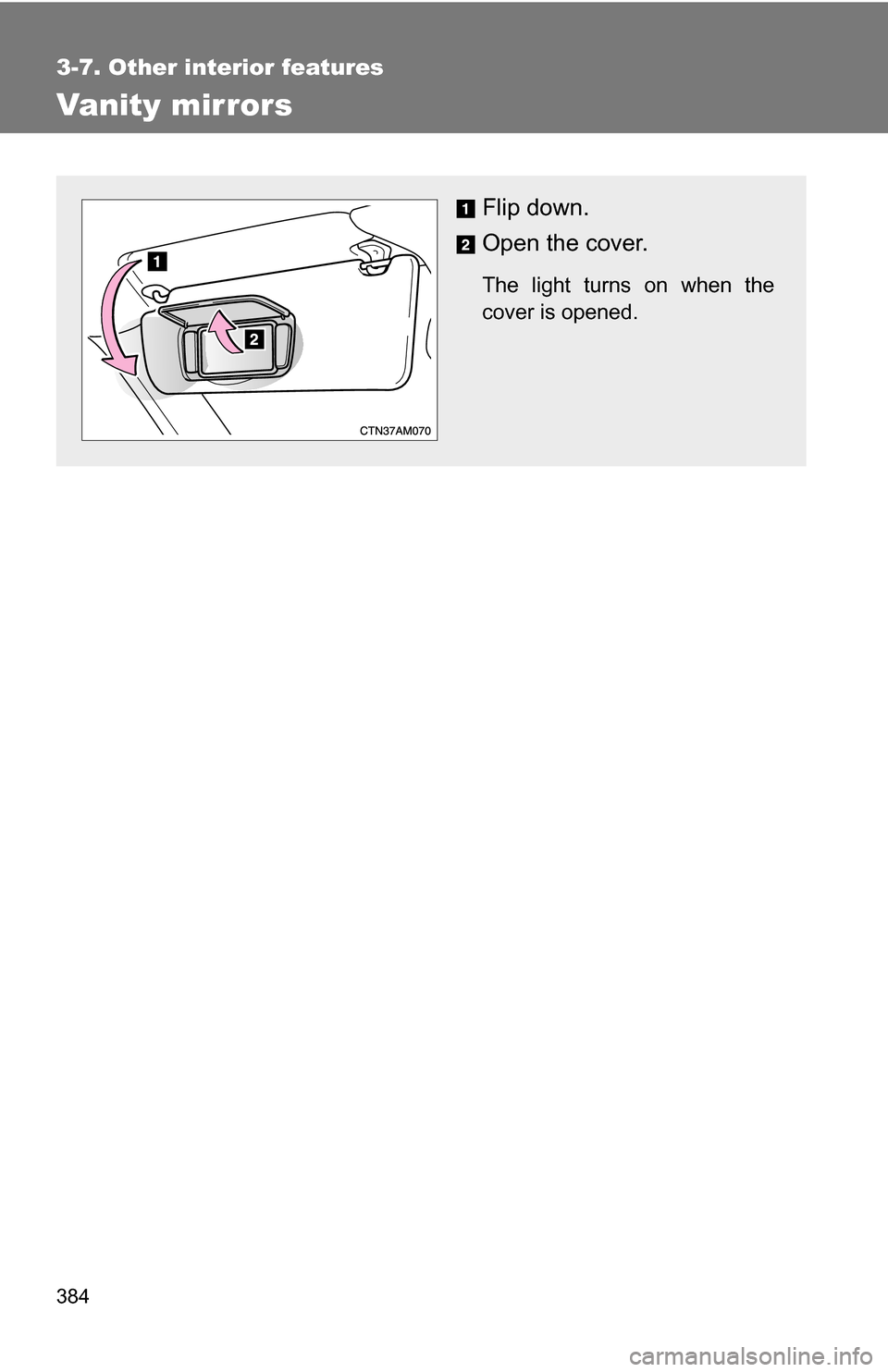

Vanity mirrors
Flip down.
Open the cover.
The light turns on when the
cover is opened.

385
3-7. Other interior features
3
Interior features

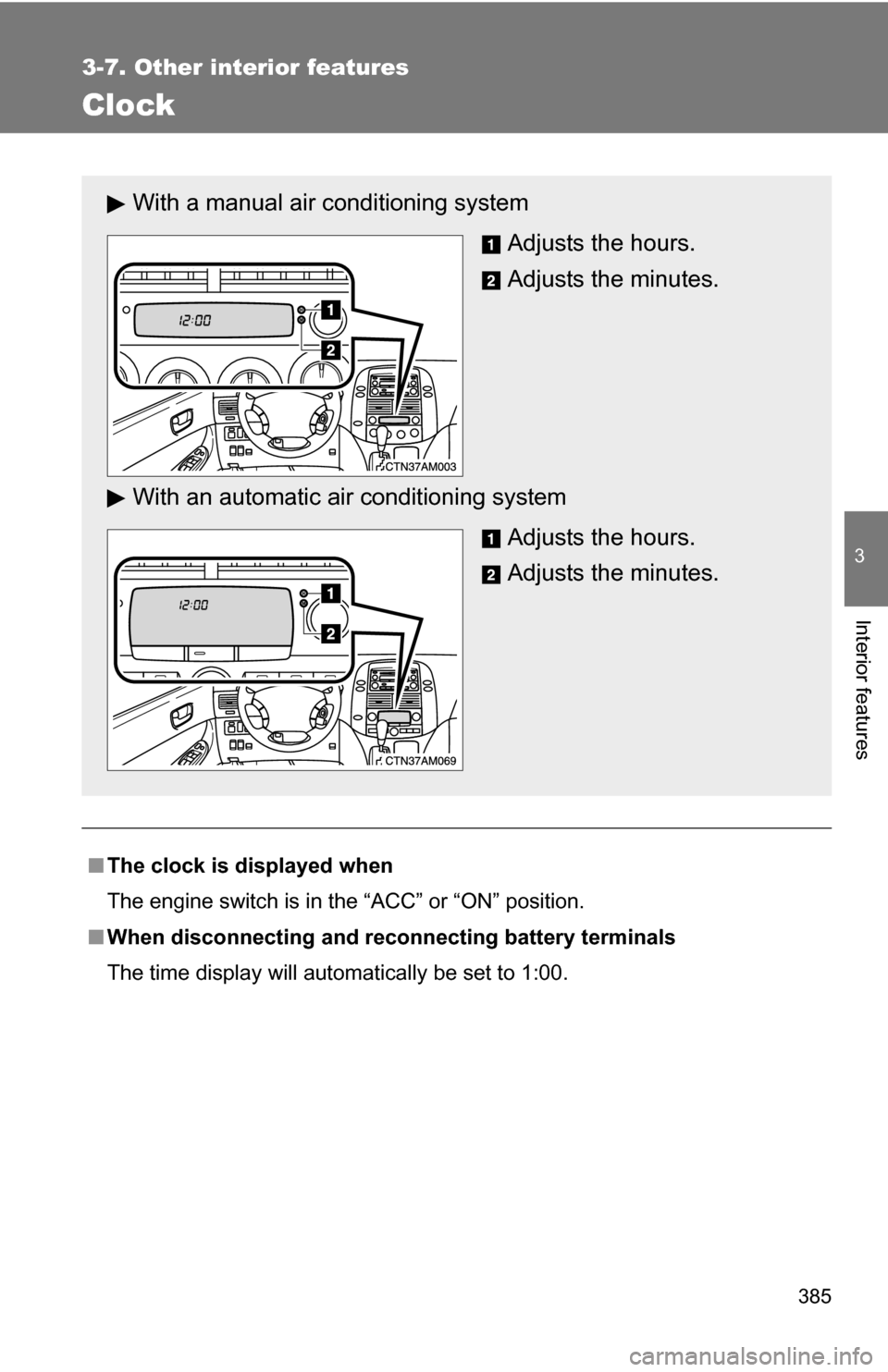

Clock
■The clock is displayed when
The engine switch is in the “ACC” or “ON” position.
■ When disconnecting and reco nnecting battery terminals
The time display will automatically be set to 1:00.
With a manual air conditioning system
Adjusts the hours.
Adjusts the minutes.
With an automatic ai r conditioning system
Adjusts the hours.
Adjusts the minutes.

386
3-7. Other interior features

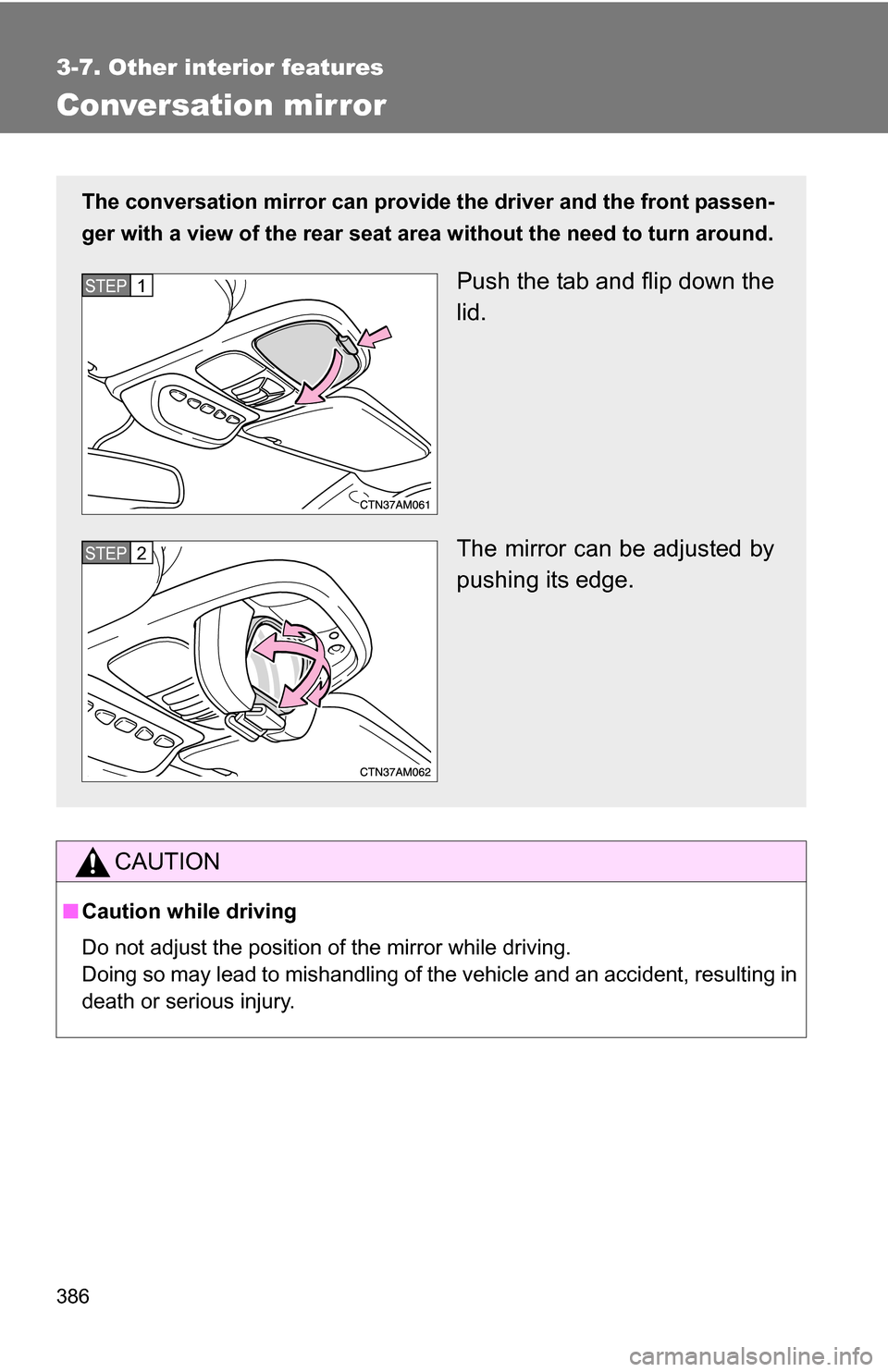

Conversation mirror
CAUTION
■Caution while driving
Do not adjust the position of the mirror while driving.
Doing so may lead to mishandling of the vehicle and an accident, resulting in
death or serious injury.
The conversation mirror can provide the driver and the front passen-
ger with a view of the rear seat area without the need to turn around.
Push the tab and flip down the
lid.
The mirror can be adjusted by
pushing its edge.STEP1
STEP2

387
3-7. Other interior features
3
Interior features

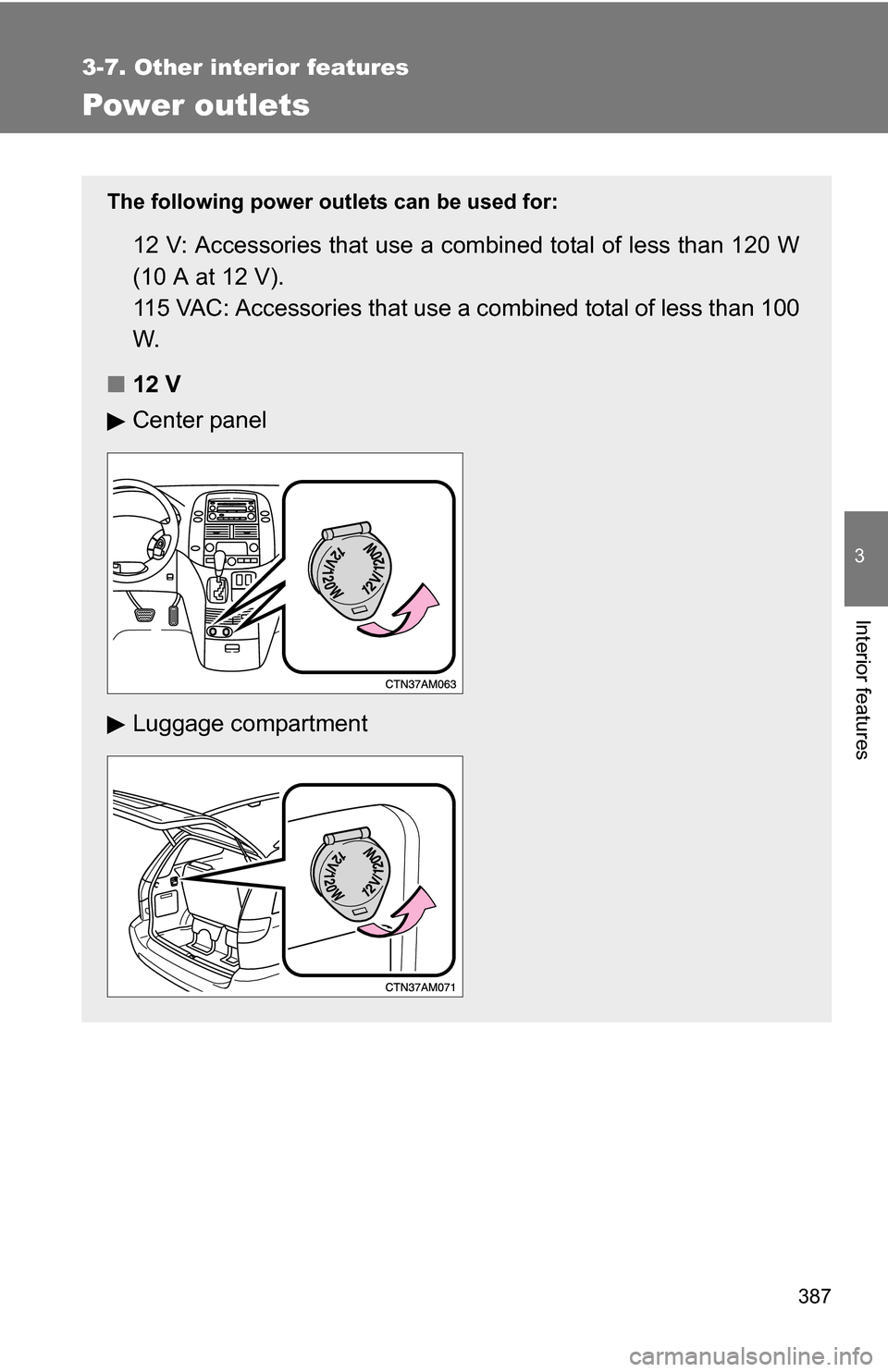

Power outlets
The following power outlets can be used for:
12 V: Accessories that use a combined total of less than 120 W
(10 A at 12 V).
115 VAC: Accessories that use a combined total of less than 100
W.
■ 12 V
Center panel
Luggage compartment

388 3-7. Other interior features

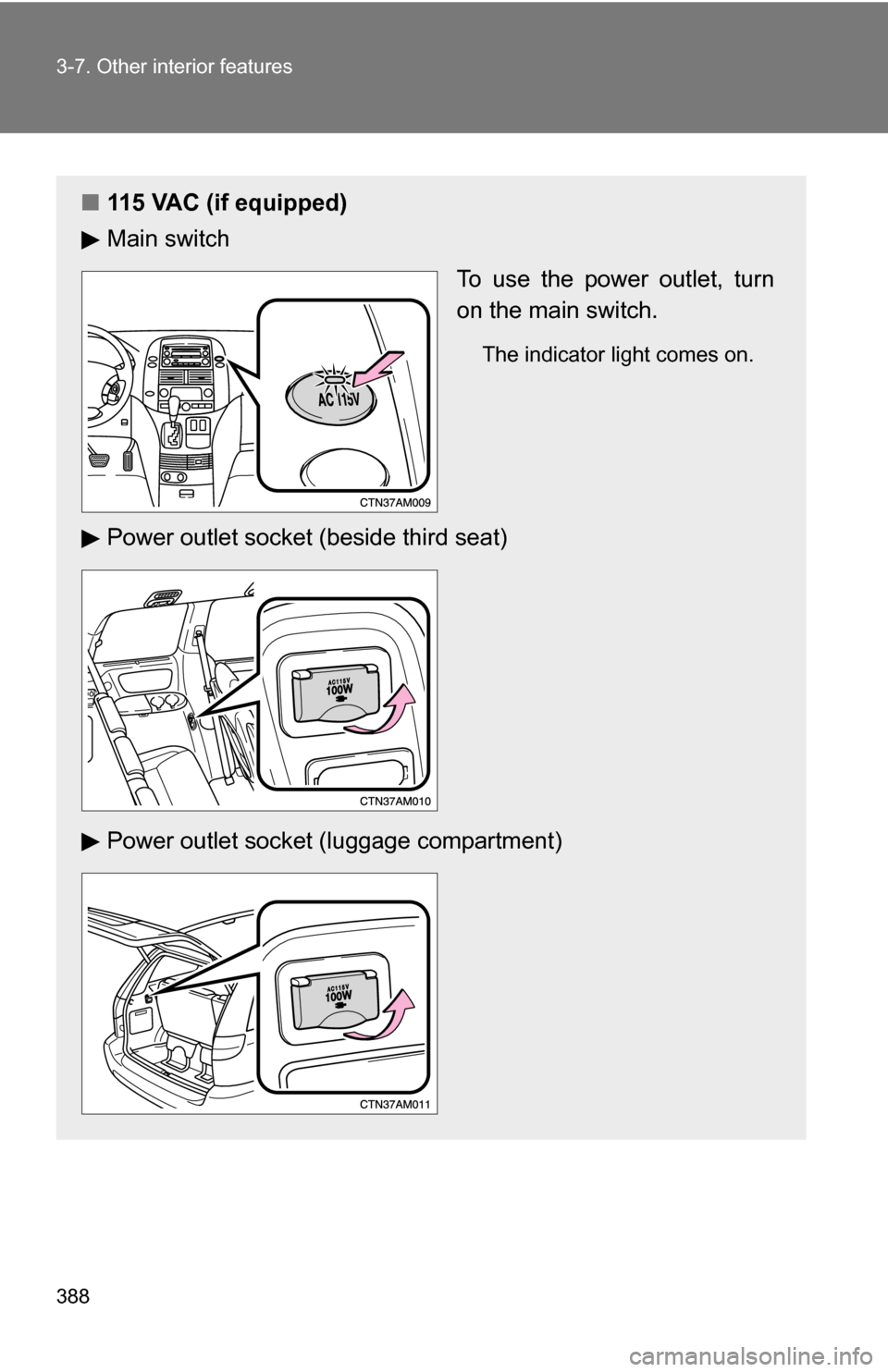

■115 VAC (if equipped)
Main switch
To use the power outlet, turn
on the main switch.
The indicator light comes on.
Power outlet socket (beside third seat)
Power outlet socket (luggage compartment)

389
3-7. Other interior features
3
Interior features
■

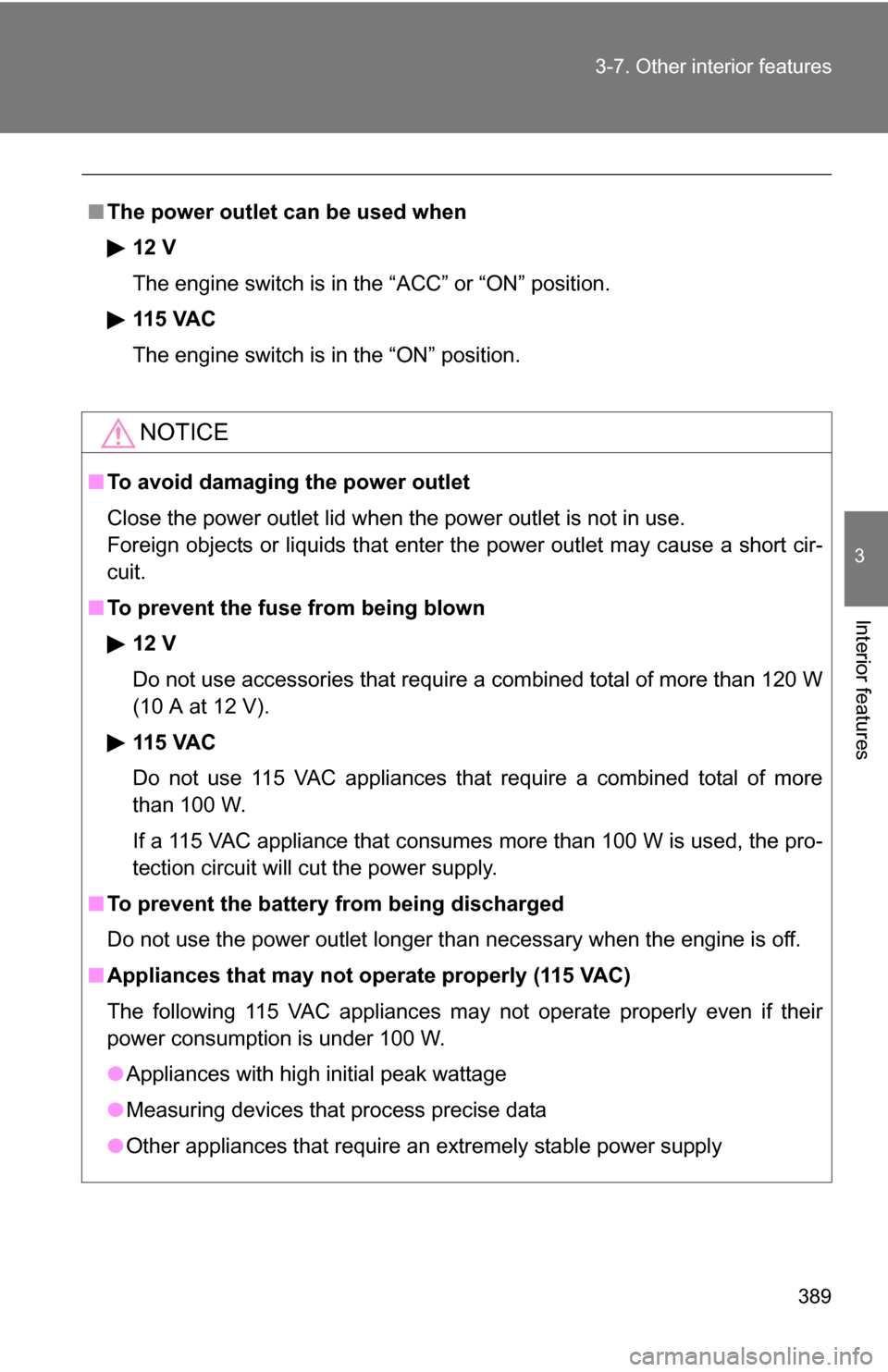

The power outlet can be used when
12 V
The engine switch is in the “ACC” or “ON” position.
115 VAC
The engine switch is in the “ON” position.
NOTICE
■To avoid damaging the power outlet
Close the power outlet lid when the power outlet is not in use.
Foreign objects or liquids that enter the power outlet may cause a short cir-
cuit.
■ To prevent the fuse from being blown
12 V
Do not use accessories that require a combined total of more than 120 W
(10 A at 12 V).
115 VAC
Do not use 115 VAC appliances that require a combined total of more
than 100 W.
If a 115 VAC appliance that consumes more than 100 W is used, the pro-
tection circuit will cut the power supply.
■ To prevent the battery from being discharged
Do not use the power outlet longer than necessary when the engine is off.
■ Appliances that may not operate properly (115 VAC)
The following 115 VAC appliances may not operate properly even if their
power consumption is under 100 W.
●Appliances with high initial peak wattage
● Measuring devices that process precise data
● Other appliances that require an extremely stable power supply

390
3-7. Other interior features

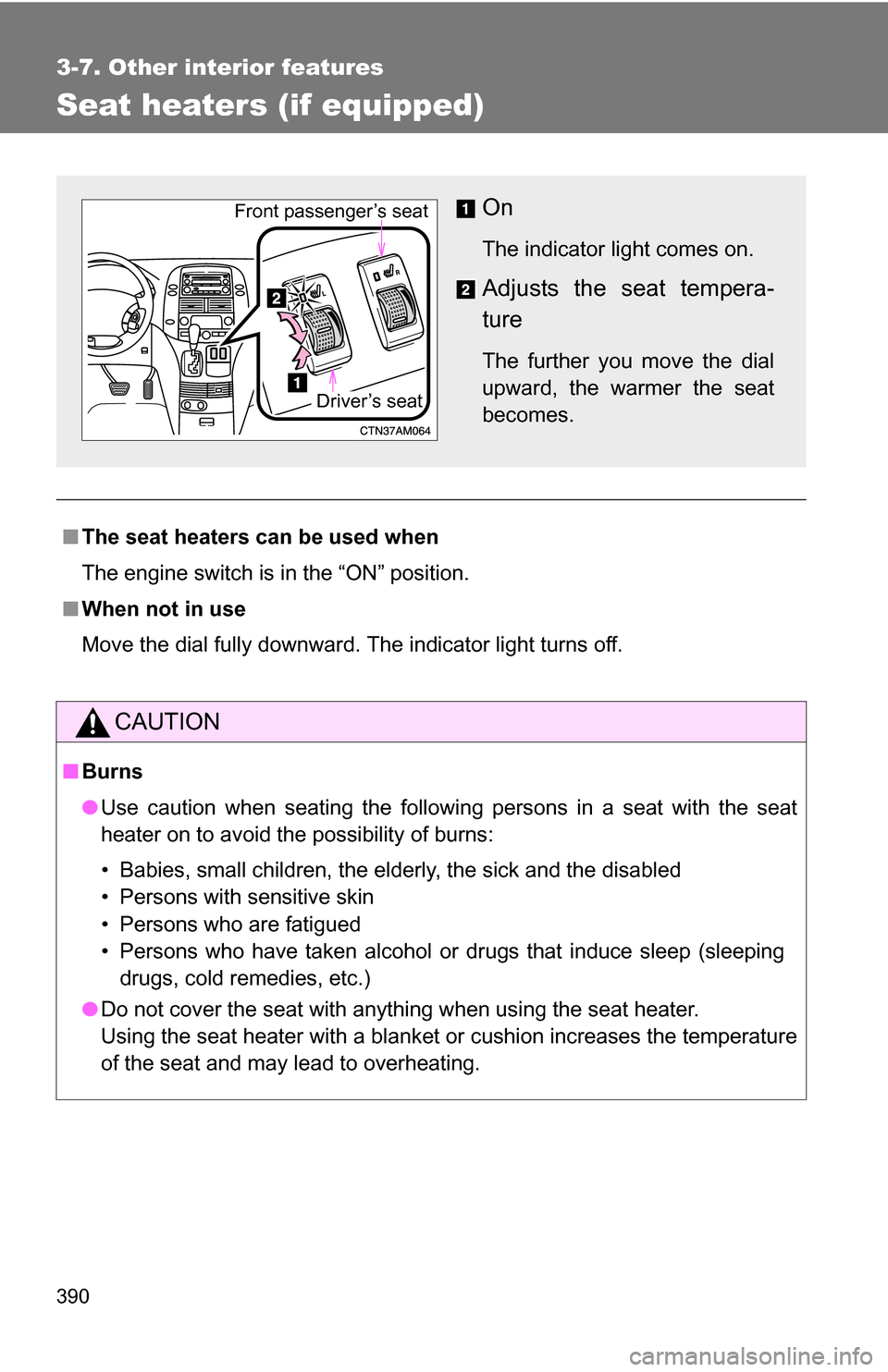

Seat heaters (if equipped)
■The seat heaters can be used when
The engine switch is in the “ON” position.
■ When not in use
Move the dial fully downward. The indicator light turns off.
CAUTION
■Burns
●Use caution when seating the following persons in a seat with the seat
heater on to avoid the possibility of burns:
• Babies, small children, the elderly, the sick and the disabled
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping
drugs, cold remedies, etc.)
● Do not cover the seat with anything when using the seat heater.
Using the seat heater with a blanket or cushion increases the temperature
of the seat and may lead to overheating.
On
The indicator light comes on.
Adjusts the seat tempera-
ture
The further you move the dial
upward, the warmer the seat
becomes.
Front passenger’s seat
Driver’s seat
