651
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
Hood

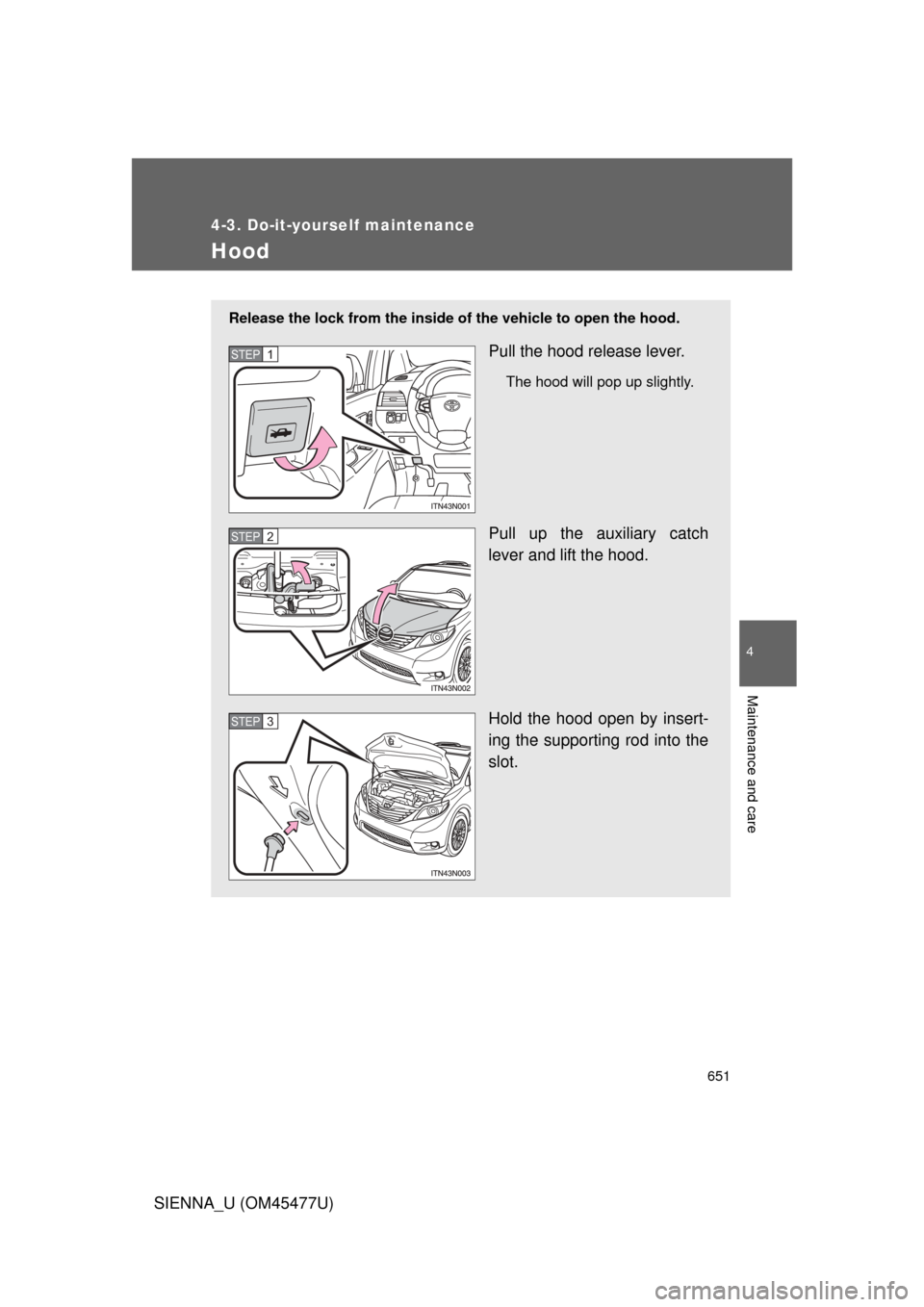

Release the lock from the inside of the vehicle to open the hood.
Pull the hood release lever.
The hood will pop up slightly.
Pull up the auxiliary catch
lever and lift the hood.
Hold the hood open by insert-
ing the supporting rod into the
slot.
STEP1
STEP2
STEP3
Page 652 of 860
652 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
CAUTION
■Pre-driving check
Check that the hood is fully closed and locked.
If the hood is not locked properly, it may open while the vehicle is in motion
and cause an accident, which may result in death or serious injury.
■ After installing the support rod into the slot
Make sure the rod supports the hood securely from falling down on to your
head or body.
NOTICE
■When closing the hood
Be sure to return the support rod to its clip before closing the hood. Closing
the hood with the support rod up could cause the hood to bend.
Page 653 of 860
653
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)

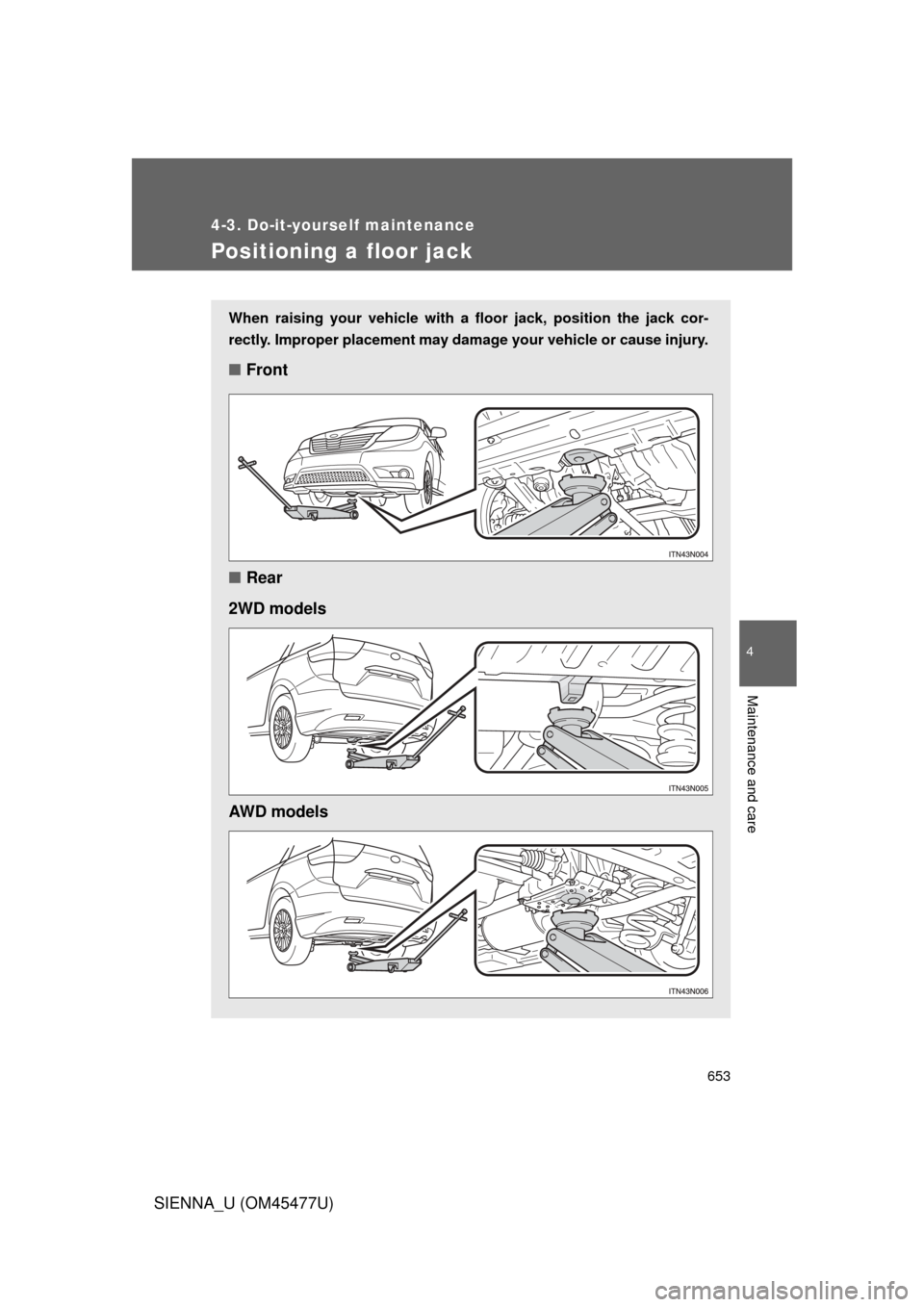

Positioning a floor jack
When raising your vehicle with a floor jack, position the jack cor-
rectly. Improper placement may damage your vehicle or cause injury.
■Front
■ Rear
2WD models
AWD models
Page 654 of 860

654 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
CAUTION
■When raising your vehicle
Make sure to observe the following precautions to reduce the possibility of
death or serious injury:
● When using a floor jack, follow the instructions of the manual provided with
the jack.
● Do not use the jack that was supplied with your vehicle.
● Do not put any part of your body underneath the vehicle when it is sup-
ported only by the floor jack.
● Always use floor jack and/or automotive jack stands on a solid, flat level
surface.
● Do not start the engine while the vehicle is supported by the floor jack.
● Stop the vehicle on level, firm ground, firmly set the parking brake and shift
the shift lever to P.
● Make sure to set the floor jack properly at the jack point.
Raising the vehicle with an improperly positioned floor jack will damage
the vehicle and may cause the vehicle to fall off the floor jack.
● Do not raise the vehicle while someone is in the vehicle.
● When raising the vehicle, do not place any objects on top of or underneath
the floor jack.

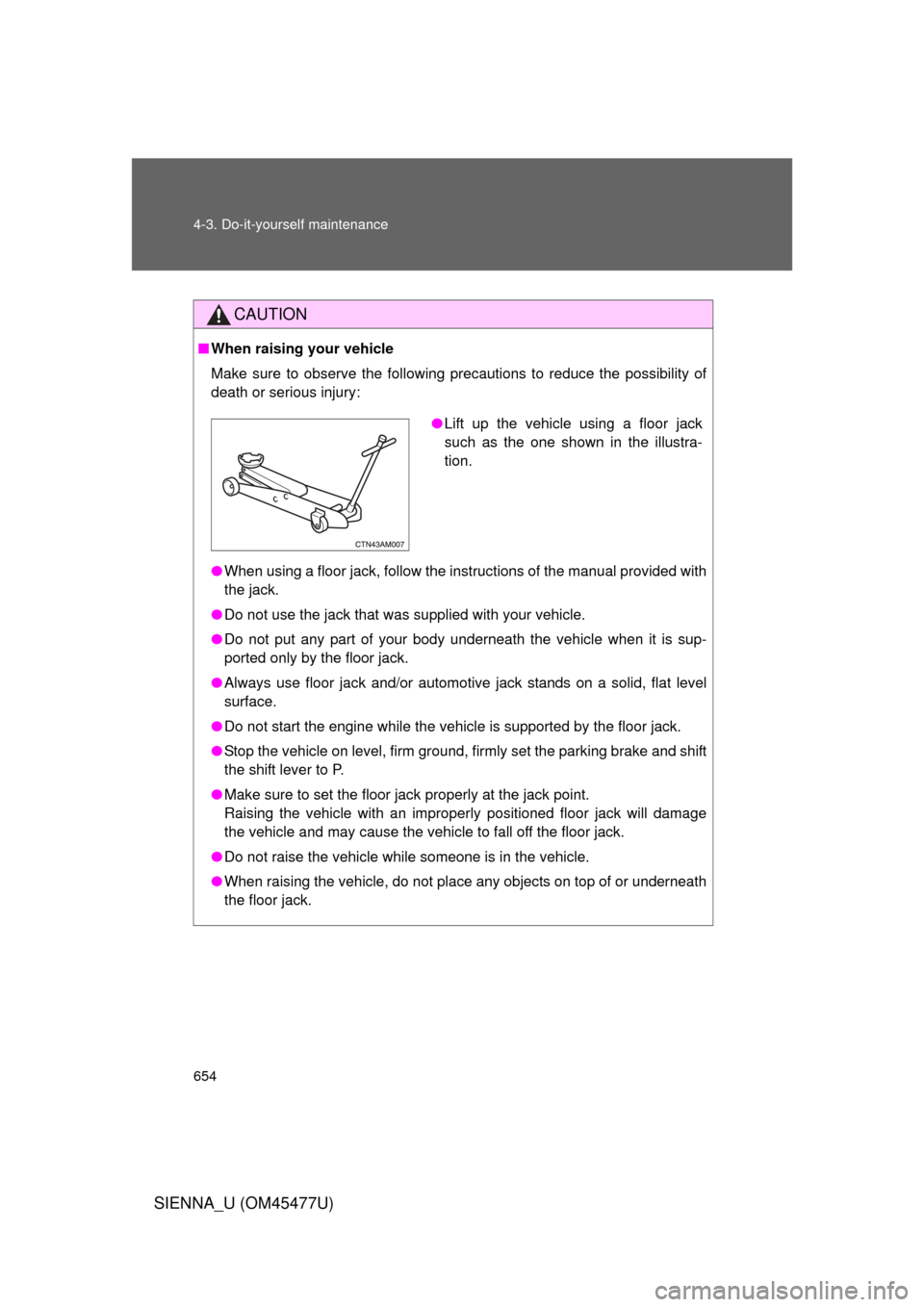

●Lift up the vehicle using a floor jack
such as the one shown in the illustra-
tion.
Page 655 of 860
655
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
Engine compar tment
1AR-FE engine
Washer fluid tank (P. 671)
Engine oil level dipstick ( P. 657)
Engine oil filler cap ( P. 659)
Engine coolant reservoir ( P. 662)Brake fluid reservoir
( P. 665)
Fuse box ( P. 696)
Battery ( P. 667)
Electric cooling fans
Condenser ( P. 664)
Radiator ( P. 664)
Page 656 of 860
656 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)

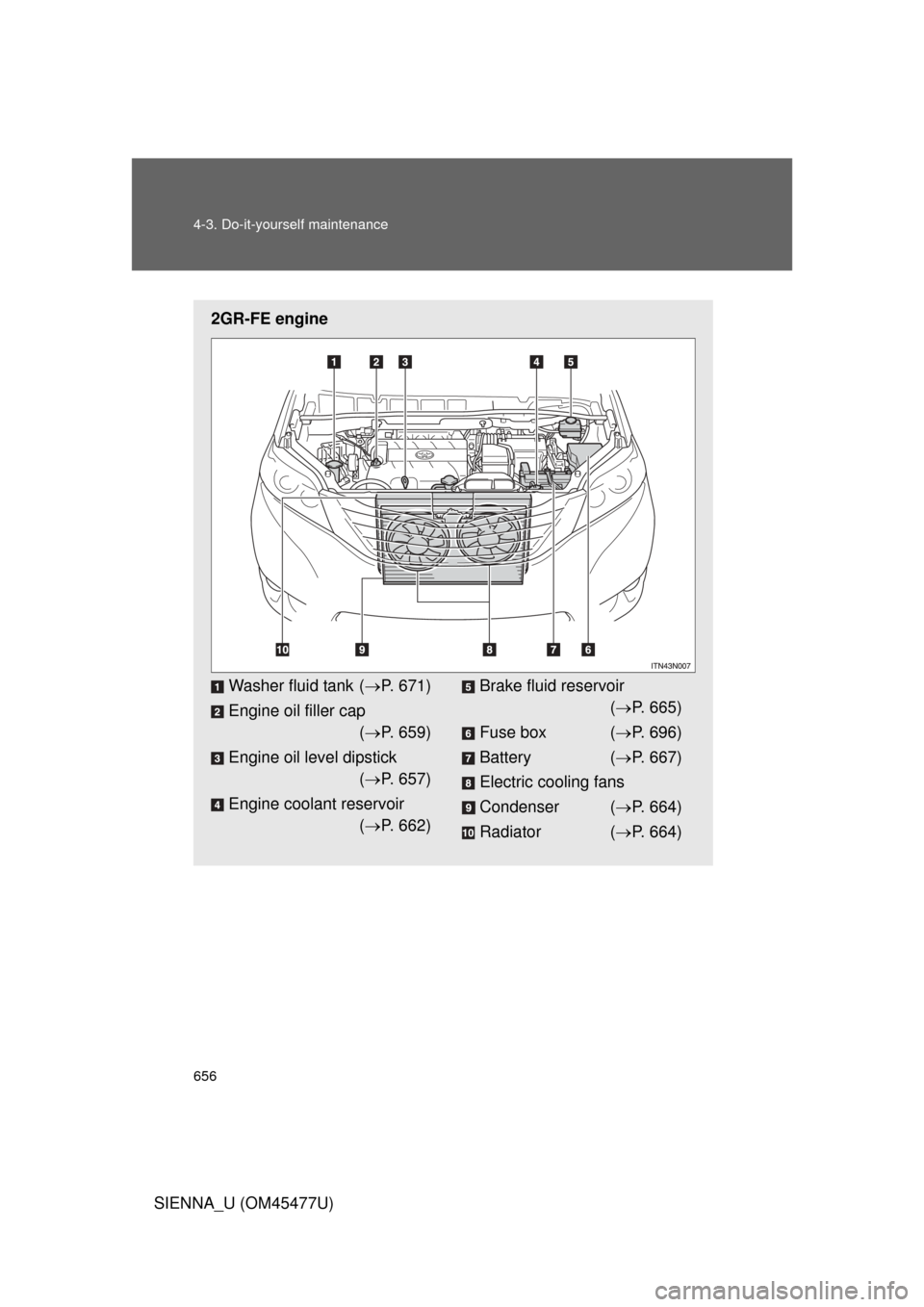

2GR-FE engine
Washer fluid tank (P. 671)
Engine oil filler cap ( P. 659)
Engine oil level dipstick ( P. 657)
Engine coolant reservoir ( P. 662)Brake fluid reservoir
( P. 665)
Fuse box ( P. 696)
Battery ( P. 667)
Electric cooling fans
Condenser ( P. 664)
Radiator ( P. 664)
Page 657 of 860
657
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
Engine oil
With the engine at operating temperature and turned off, check the oil
level on the dipstick.

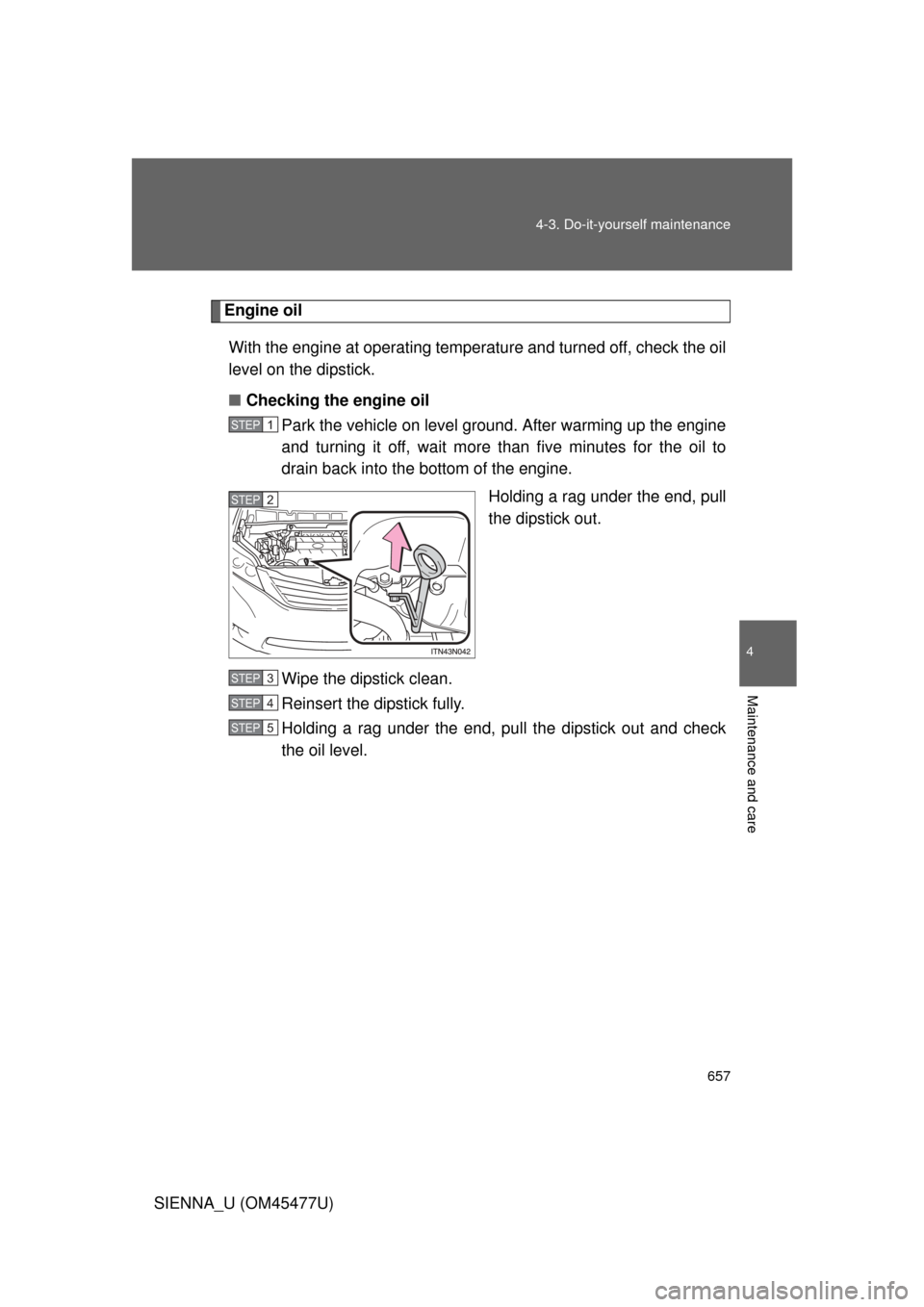

■ Checking the engine oil
Park the vehicle on level ground. After warming up the engine
and turning it off, wait more than five minutes for the oil to
drain back into the bottom of the engine.
Holding a rag under the end, pull
the dipstick out.
Wipe the dipstick clean.
Reinsert the dipstick fully.
Holding a rag under the end, pull the dipstick out and check
the oil level.
STEP1
STEP2
STEP3
STEP4
STEP5
Page 658 of 860
658 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)Wipe the dipstick and reinsert it fully.

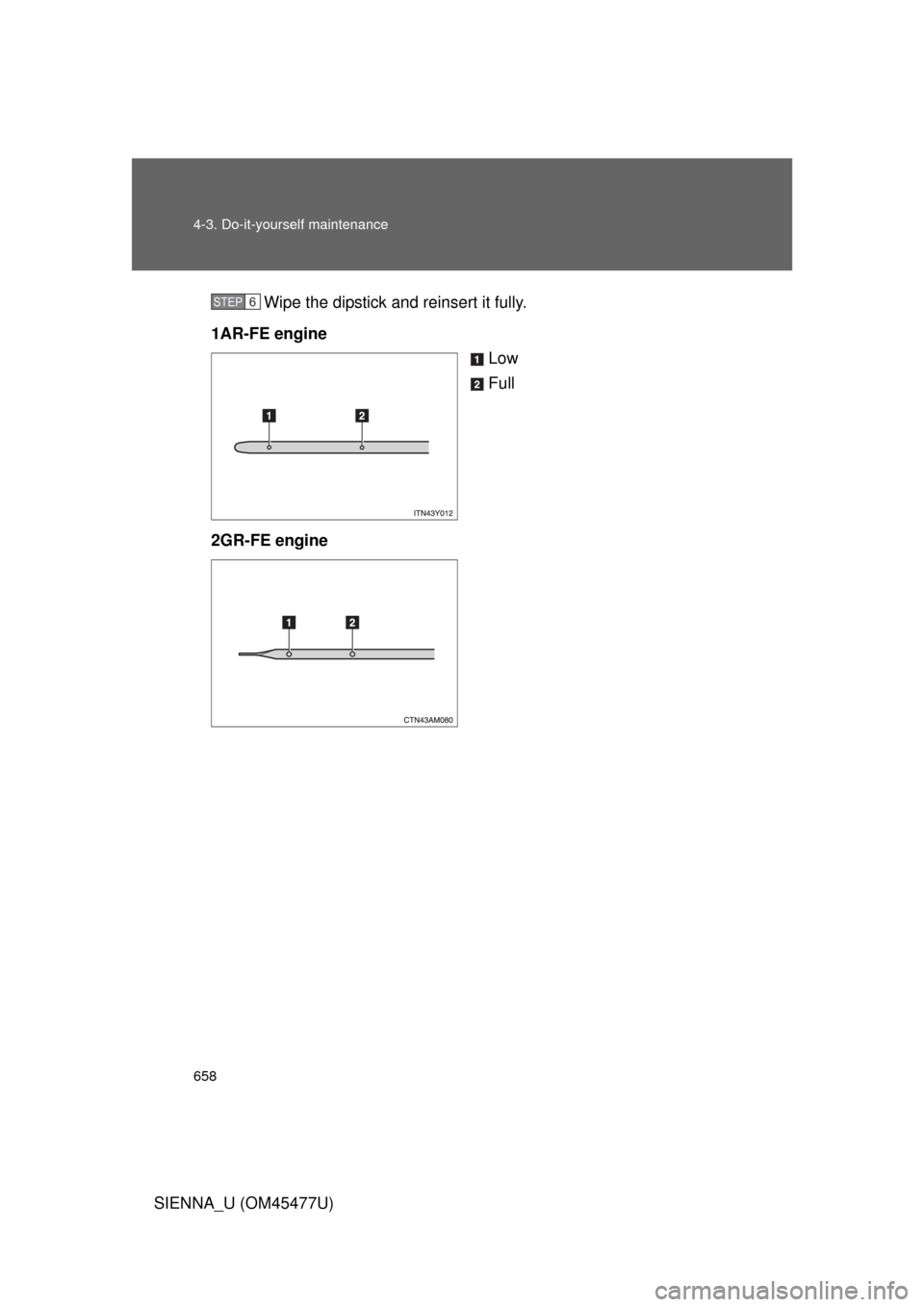

1AR-FE engine Low
Full
2GR-FE engine
STEP6
Page 659 of 860
659
4-3. Do-it-yourself maintenance
4
Maintenance and care
SIENNA_U (OM45477U)
■
Adding engine oil
If the oil level is below or near
the low level mark, add engine
oil of the same type as that
already in the engine.

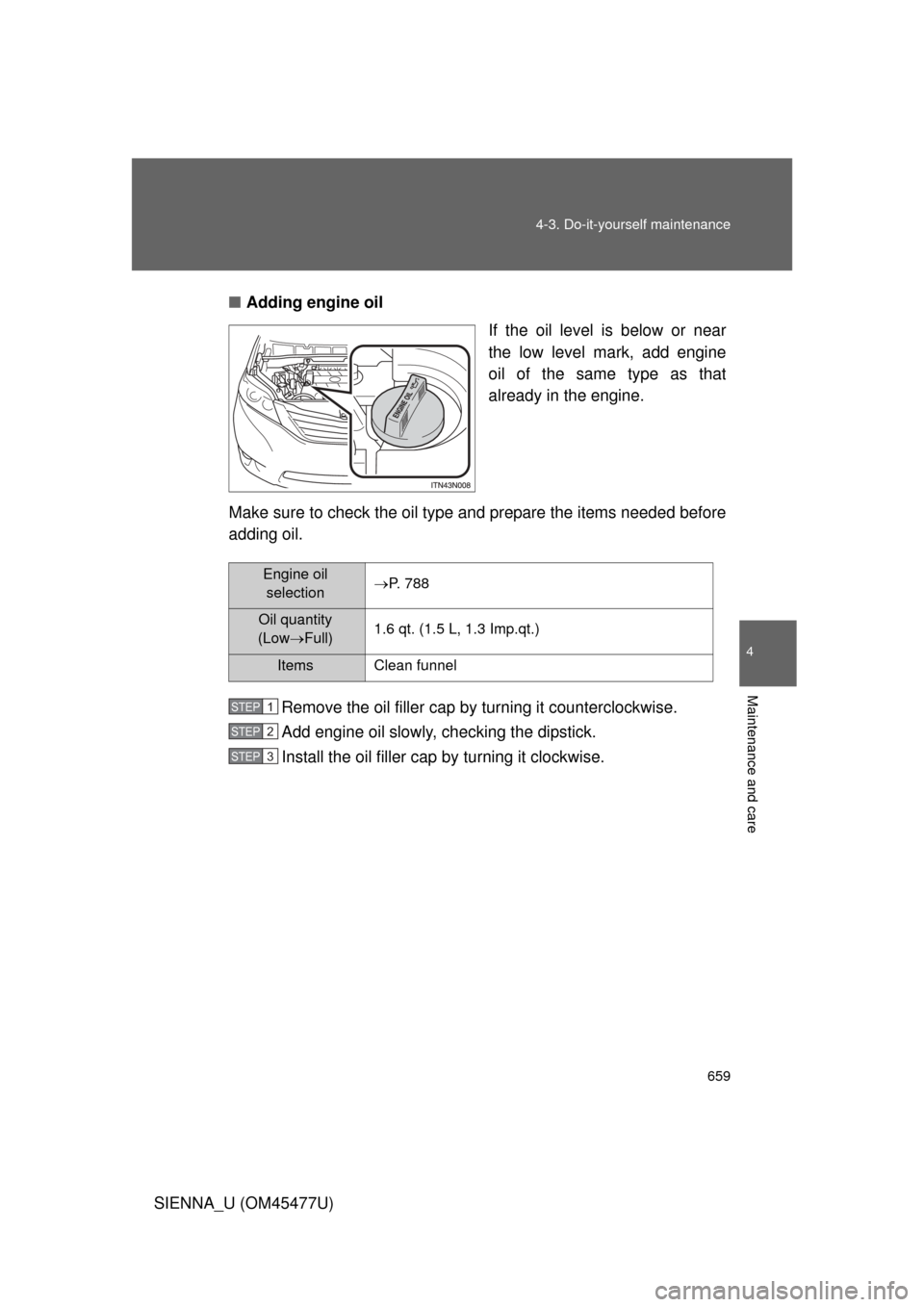

Make sure to check the oil type and prepare the items needed before
adding oil.
Remove the oil filler cap by turning it counterclockwise.
Add engine oil slowly, checking the dipstick.
Install the oil filler cap by turning it clockwise.
Engine oil
selection P. 788
Oil quantity
(Low Full) 1.6 qt. (1.5 L, 1.3 Imp.qt.)
Items Clean funnel
STEP1
STEP2
STEP3
Page 660 of 860
660 4-3. Do-it-yourself maintenance
SIENNA_U (OM45477U)
■Engine oil consumption
● The amount of engine oil consumed depends on the oil viscosity, the
quality of the oil and the way the vehicle is driven.
● More oil is consumed under driving conditions such as high speeds and
frequent acceleration and deceleration.
● A new engine consumes more oil.
● When judging the amount of oil consumption, keep in mind that the oil
may have become diluted, making it difficult to judge the true level accu-
rately.
● Oil consumption: Max. 1.1 qt./600 miles, 0.9 Imp.qt./600 miles (1.0 L per
1000 km)
● If your vehicle consumes more than 1.1 qt. (1.0 L, 0.9 Imp.qt.) every
600 miles (1000 km), contact your Toyota dealer.
