6Interior features
6-1. Using the air conditioning system and defogger
Front automatic air conditioning system ........ 412
Rear automatic air conditioning system ........ 421
Heated steering wheel/seat heaters .......... 424
• Heated steering wheel ............................ 425
• Seat heaters ................. 426
6-2. Using the interior lights Interior lights list ................ 427• Personal/interior light
main switch ................... 428
• Personal/interior lights ............................. 428
• Rear ceiling lights ......... 429 6-3. Using the storage features
List of storage features ..... 430• Glove boxes .................. 431
• Console box .................. 432
• Cup holders .................. 434
• Bottle holders ................ 436
• Door pockets................. 437
• Auxiliary boxes.............. 438
Luggage compartment features ........................... 441
6-4. Using the other interior features
Other interior features ....... 443 • Sun visors ..................... 443
• Vanity mirrors................ 443
• Clock ............................. 444
• Conversation mirror ...... 444
• Power outlets ................ 445
• Armrests ....................... 448
• Assist grips ................... 449
• Rear side sunshades .... 450
• Grocery bag hooks ....... 451
Garage door opener.......... 452
Compass ........................... 457
Safety Connect ................. 461

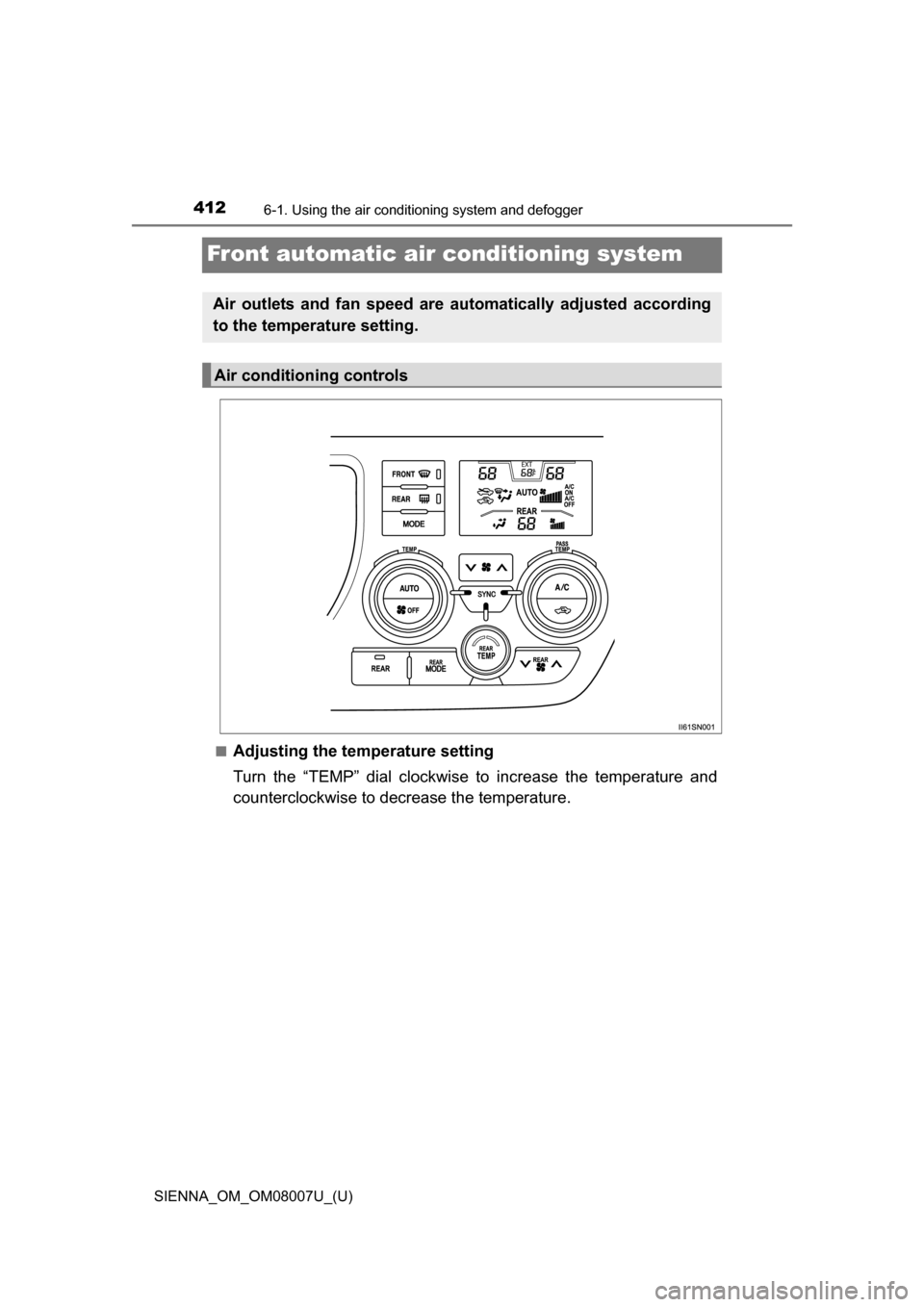

Page 412 of 672

412
SIENNA_OM_OM08007U_(U)
6-1. Using the air conditioning system and defogger
Front automatic air conditioning system
■Adjusting the temperature setting
Turn the “TEMP” dial clockwise to increase the temperature and
counterclockwise to decrease the temperature.
Air outlets and fan speed are automatically adjusted according
to the temperature setting.
Air conditioning controls

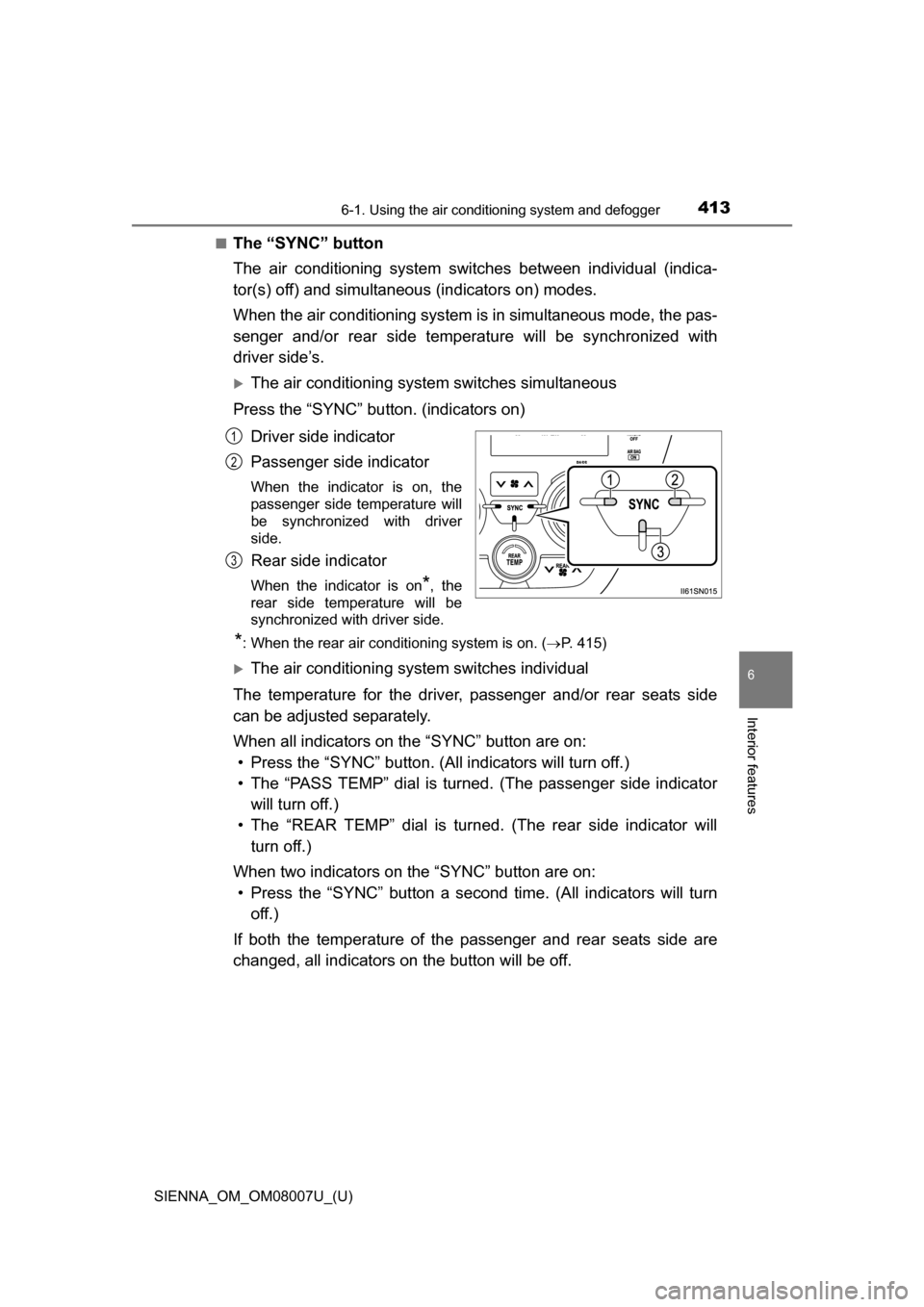

Page 413 of 672

SIENNA_OM_OM08007U_(U)
4136-1. Using the air conditioning system and defogger
6
Interior features
■The “SYNC” button
The air conditioning system swit ches between individual (indica-
tor(s) off) and simultaneous (indicators on) modes.
When the air conditioning system is in simultaneous mode, the pas-
senger and/or rear side temperat ure will be synchronized with
driver side’s.
The air conditioning system switches simultaneous
Press the “SYNC” bu tton. (indicators on)
Driver side indicator
Passenger side indicator
When the indicator is on, the
passenger side temperature will
be synchronized with driver
side.
Rear side indicator
When the indicator is on*, the
rear side temperature will be
synchronized with driver side.
*: When the rear air conditioning system is on. ( P. 415)
The air conditioning system switches individual
The temperature for the driver, passenger and/or rear seats side
can be adjusted separately.
When all indicators on the “SYNC” button are on: • Press the “SYNC” button. (All indicators will turn off.)
• The “PASS TEMP” dial is turned. (The passenger side indicator will turn off.)
• The “REAR TEMP” dial is turned. (The rear side indicator will turn off.)
When two indicators on the “SYNC” button are on: • Press the “SYNC” button a second time. (All indicators will turn
off.)
If both the temperature of the passenger and rear seats side are
changed, all indicators on the button will be off.
1
2
3
Page 414 of 672

4146-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)■
Adjusting the fan speed setting
Press “
” on to increase the fan speed and “ ” to
decrease the fan speed.
Press to turn the fan off.
■
Change the airflow mode
To change the air outlets, press
the “MODE” button.
The air outlets used are
switched each time the button is
pressed.
Air flows to the upper
body.
Air flows to the upper body
and feet.
Air flows to the feet.
Air flows to the feet and
the windshield defogger
operates.1
2
3
4

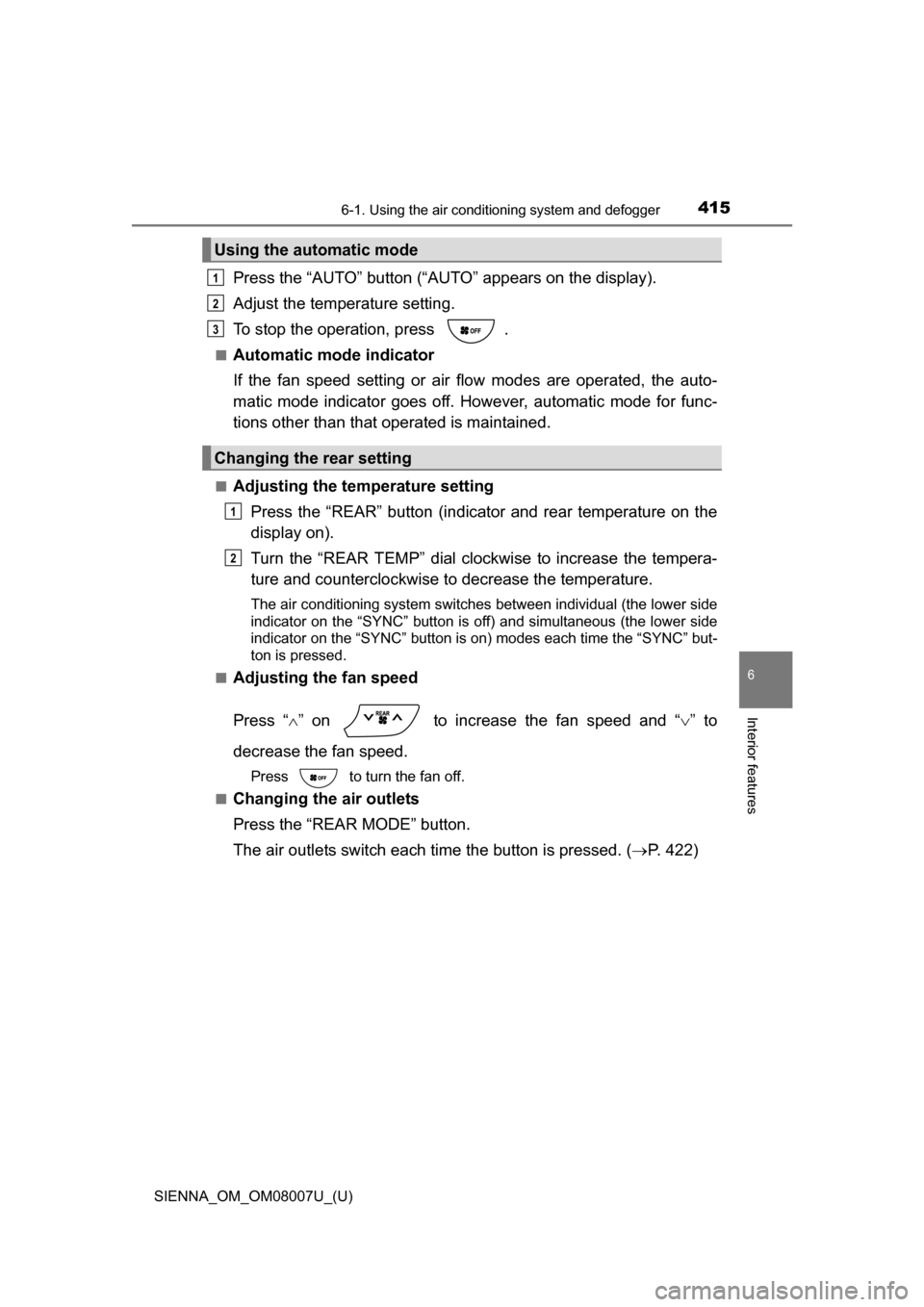

Page 415 of 672

SIENNA_OM_OM08007U_(U)
4156-1. Using the air conditioning system and defogger
6
Interior features
Press the “AUTO” button (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press .
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
■Adjusting the temperature setting
Press the “REAR” button (indicator and rear temperature on the
display on).
Turn the “REAR TEMP” dial clockwise to increase the tempera-
ture and counterclockwise to decrease the temperature.
The air conditioning system switches between individual (the lower side
indicator on the “SYNC” button is off) and simultaneous (the lower side
indicator on the “SYNC” button is on) modes each time the “SYNC” but-
ton is pressed.
■
Adjusting the fan speed
Press “ ” on to increase the fan speed and “ ” to
decrease the fan speed.
Press to turn the fan off.
■
Changing the air outlets
Press the “REAR MODE” button.
The air outlets switch each time the button is pressed. ( P. 422)
Using the automatic mode
Changing the rear setting
1
2
3
1
2
Page 416 of 672

4166-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)■
Switching between outside air and recirculated air modes
Press .
The mode switches between outside air mode ( appears on the
display) and recirculated air mode ( appears on the display) each
time the button is pressed.
■

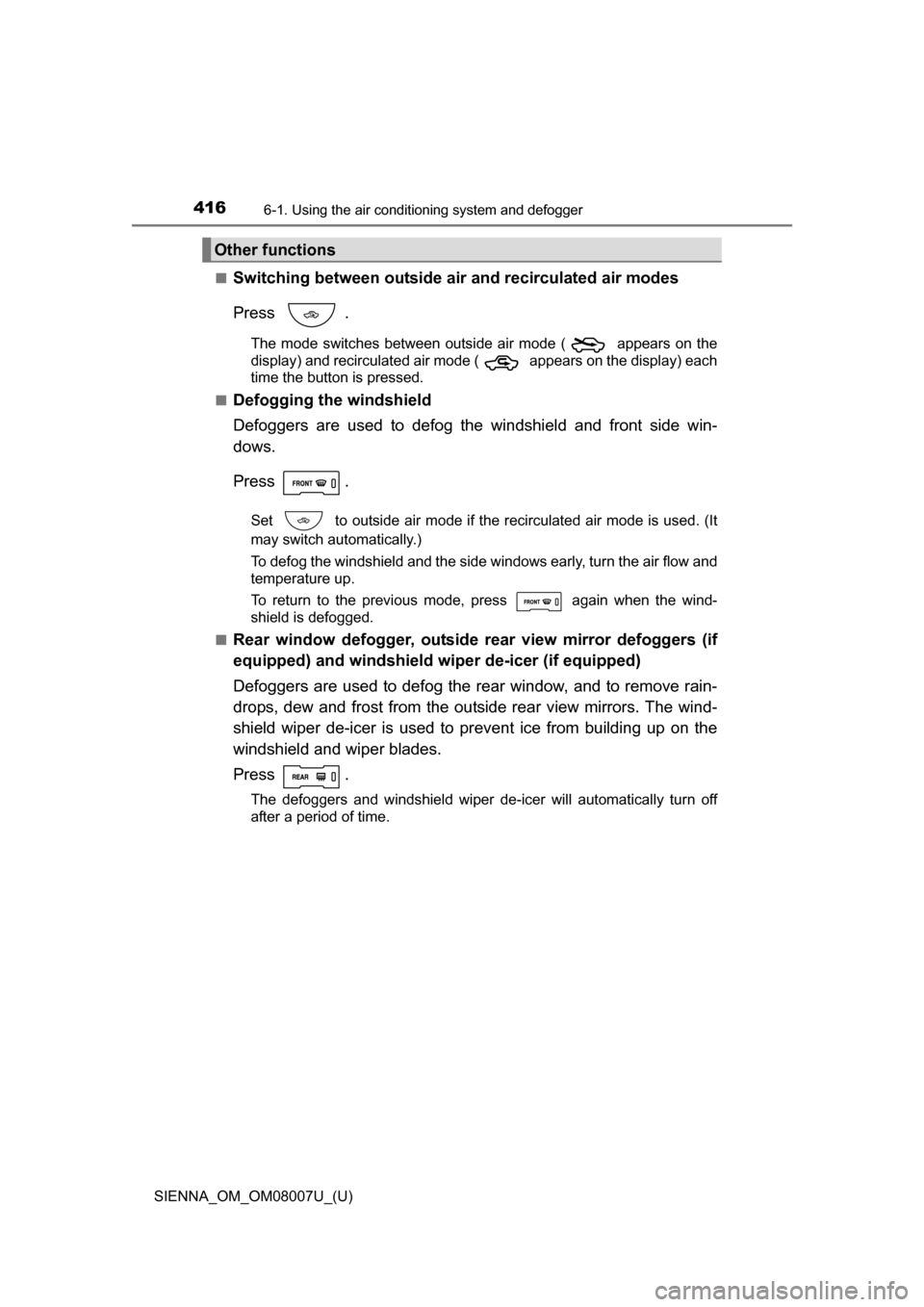

Defogging the windshield
Defoggers are used to defog the windshield and front side win-
dows.
Press
.
Set to outside air mode if the recirculated air mode is used. (It
may switch automatically.)
To defog the windshield and the side windows early, turn the air flow and
temperature up.
To return to the previous mode, press again when the wind-
shield is defogged.
■
Rear window defogger, outside rear view mirror defoggers (if
equipped) and windshield wi per de-icer (if equipped)
Defoggers are used to defog the rear window, and to remove rain-
drops, dew and frost from the outside rear view mirrors. The wind-
shield wiper de-icer is used to prevent ice from building up on the
windshield and wiper blades.
Press .
The defoggers and windshield wiper de-icer will automatically turn off
after a period of time.
Other functions

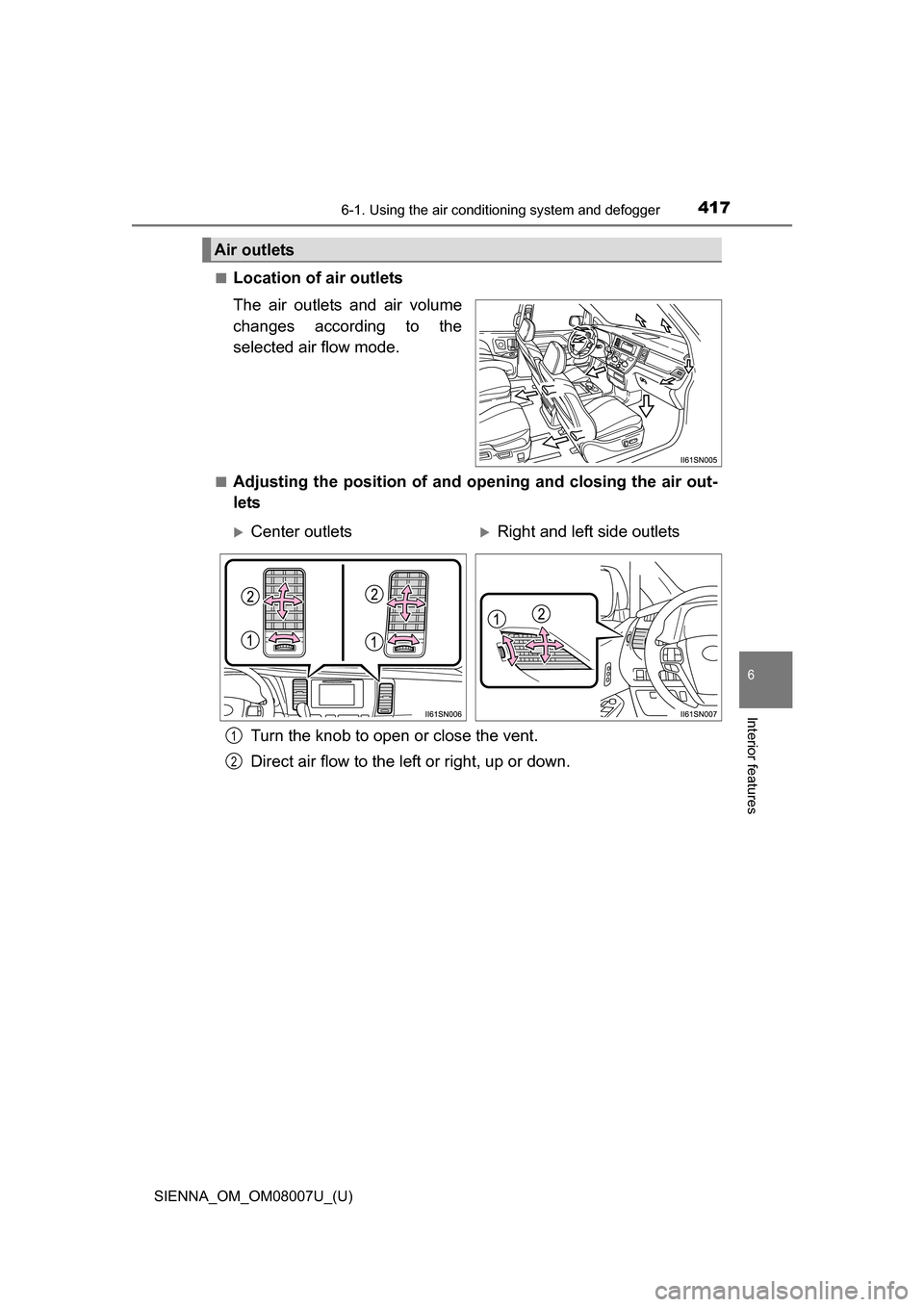

Page 417 of 672

SIENNA_OM_OM08007U_(U)
4176-1. Using the air conditioning system and defogger
6
Interior features
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
■Adjusting the position of and opening and closing the air out-
lets
Turn the knob to open or close the vent.
Direct air flow to the left or right, up or down.
Air outlets
Center outletsRight and left side outlets
1
2

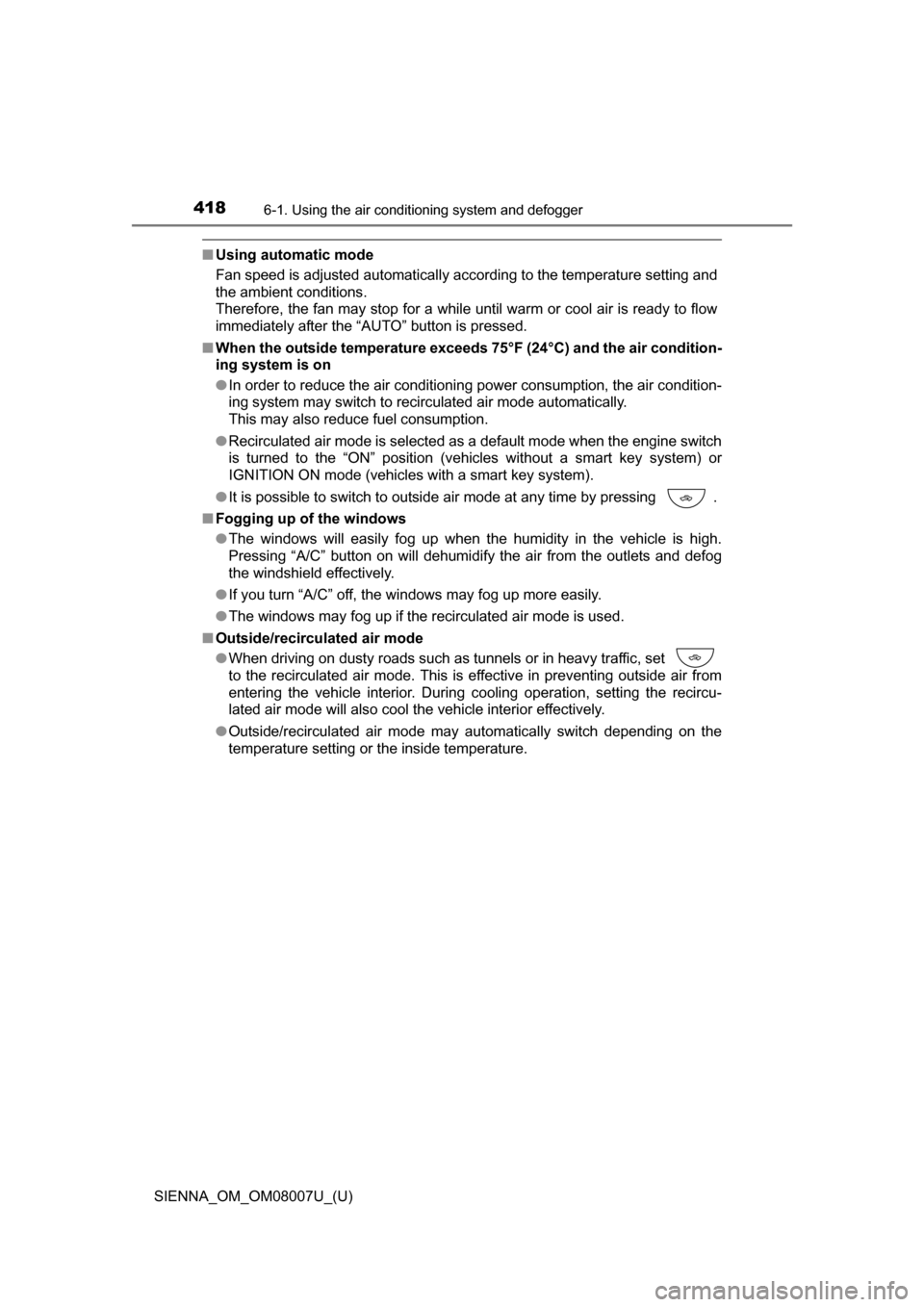

Page 418 of 672

4186-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)
■Using automatic mode
Fan speed is adjusted automatically according to the temperature setting and
the ambient conditions.
Therefore, the fan may stop for a while until warm or cool air is ready to flow
immediately after the “AUTO” button is pressed.
■ When the outside temperature exceeds 75°F (24°C) and the air condition-
ing system is on
●In order to reduce the air conditioning power consumption, the air condition-
ing system may switch to recirculated air mode automatically.
This may also reduce fuel consumption.
● Recirculated air mode is selected as a default mode when the engine switch
is turned to the “ON” position (vehicles without a smart key system) or
IGNITION ON mode (vehicles with a smart key system).
● It is possible to switch to outside air mode at any time by pressing .
■ Fogging up of the windows
●The windows will easily fog up when the humidity in the vehicle is high.
Pressing “A/C” button on will dehumidify the air from the outlets and defog
the windshield effectively.
● If you turn “A/C” off, the windows may fog up more easily.
● The windows may fog up if the recirculated air mode is used.
■ Outside/recirculated air mode
●When driving on dusty roads such as tunnels or in heavy traffic, set
to the recirculated air mode. This is effective in preventing outside air from
entering the vehicle interior. During cooling operation, setting the recircu-
lated air mode will also cool the vehicle interior effectively.
● Outside/recirculated air mode may automatically switch depending on the
temperature setting or the inside temperature.

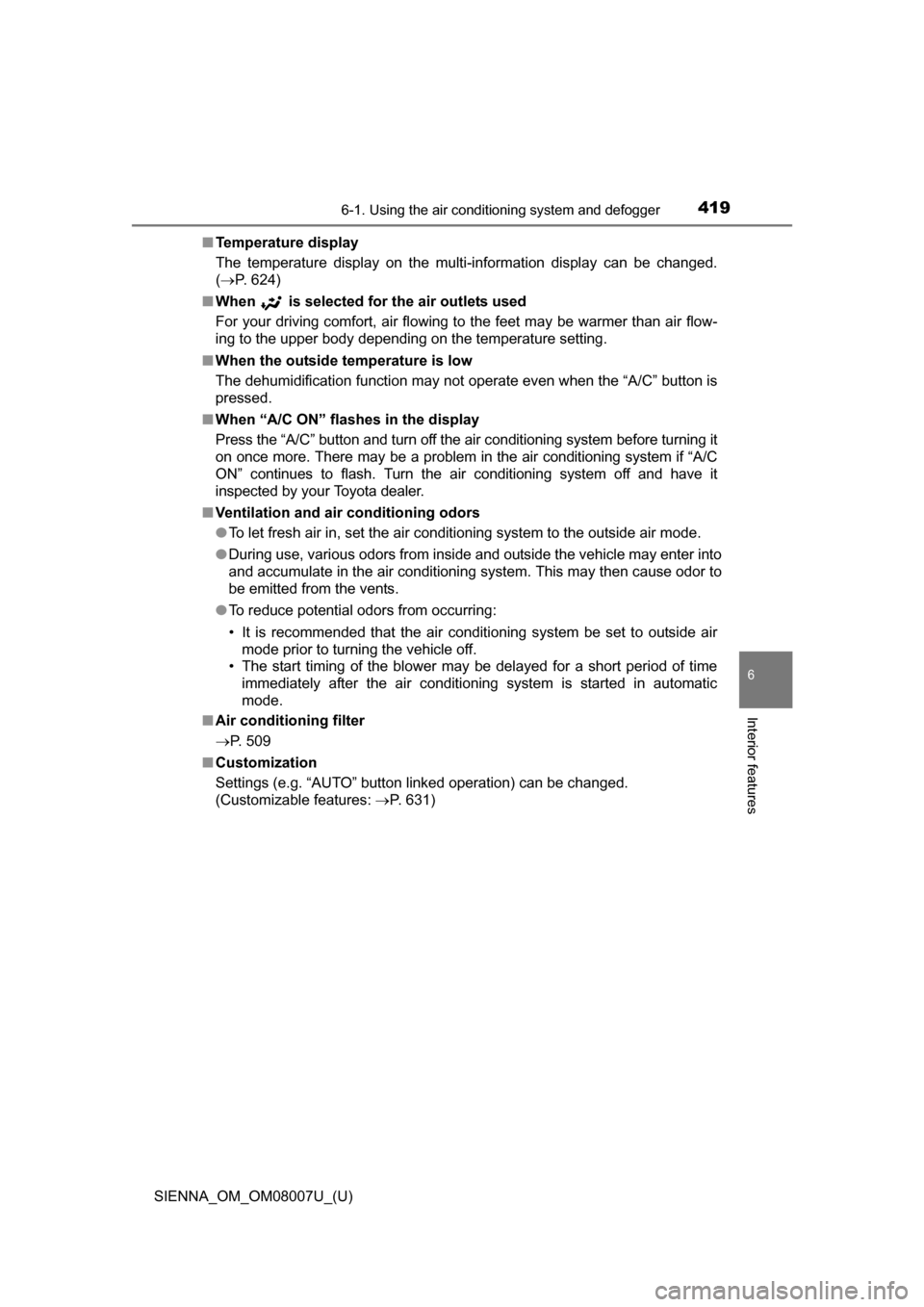

Page 419 of 672

SIENNA_OM_OM08007U_(U)
4196-1. Using the air conditioning system and defogger
6
Interior features
■Temperature display
The temperature display on the multi-information display can be changed.
( P. 624)
■ When
is selected for the air outlets used
For your driving comfort, air flowing to the feet may be warmer than air flow-
ing to the upper body depending on the temperature setting.
■ When the outside temperature is low
The dehumidification function may not operate even when the “A/C” button is
pressed.
■ When “A/C ON” flashes in the display
Press the “A/C” button and turn off the air conditioning system before turning it
on once more. There may be a problem in the air conditioning system if “A/C
ON” continues to flash. Turn the air conditioning system off and have it
inspected by your Toyota dealer.
■ Ventilation and air conditioning odors
●To let fresh air in, set the air conditioning system to the outside air mode.
● During use, various odors from inside and outside the vehicle may enter into
and accumulate in the air conditioning system. This may then cause odor to
be emitted from the vents.
● To reduce potential odors from occurring:
• It is recommended that the air conditioning system be set to outside air
mode prior to turning the vehicle off.
• The start timing of the blower may be delayed for a short period of time
immediately after the air conditioning system is started in automatic
mode.
■ Air conditioning filter
P. 509
■ Customization
Settings (e.g. “AUTO” button linked operation) can be changed.
(Customizable features: P. 631)

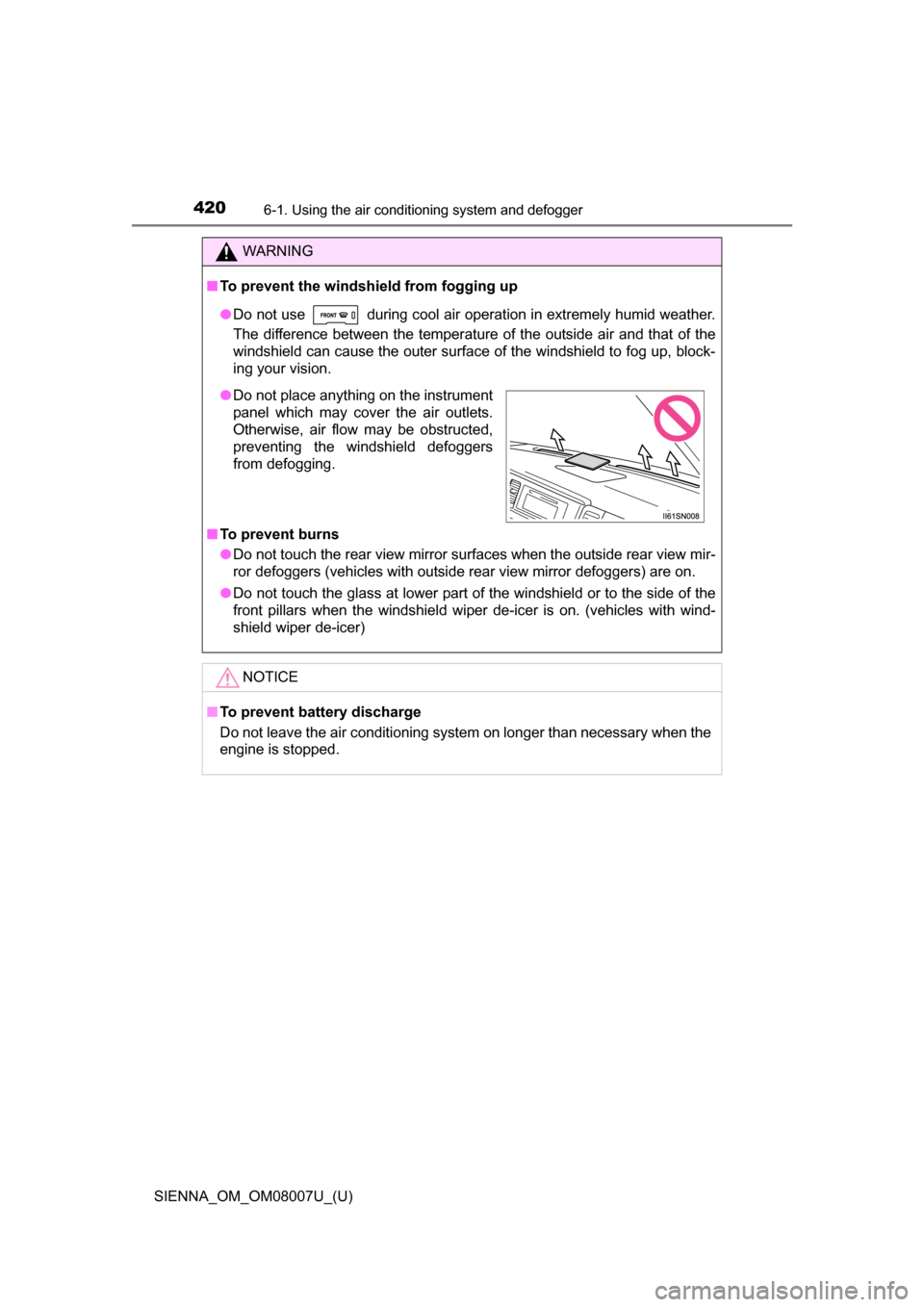

Page 420 of 672

4206-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)
WARNING
■To prevent the windshield from fogging up
●Do not use during cool air operat ion in extremely humid weather.
The difference between the temperature of the outside air and that of the
windshield can cause the outer surface of the windshield to fog up, block-
ing your vision.
■ To prevent burns
●Do not touch the rear view mirror surfaces when the outside rear view mir-
ror defoggers (vehicles with outside rear view mirror defoggers) are on.
● Do not touch the glass at lower part of the windshield or to the side of the
front pillars when the windshield wiper de-icer is on. (vehicles with wind-
shield wiper de-icer)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
●Do not place anything on the instrument
panel which may cover the air outlets.
Otherwise, air flow may be obstructed,
preventing the windshield defoggers
from defogging.
