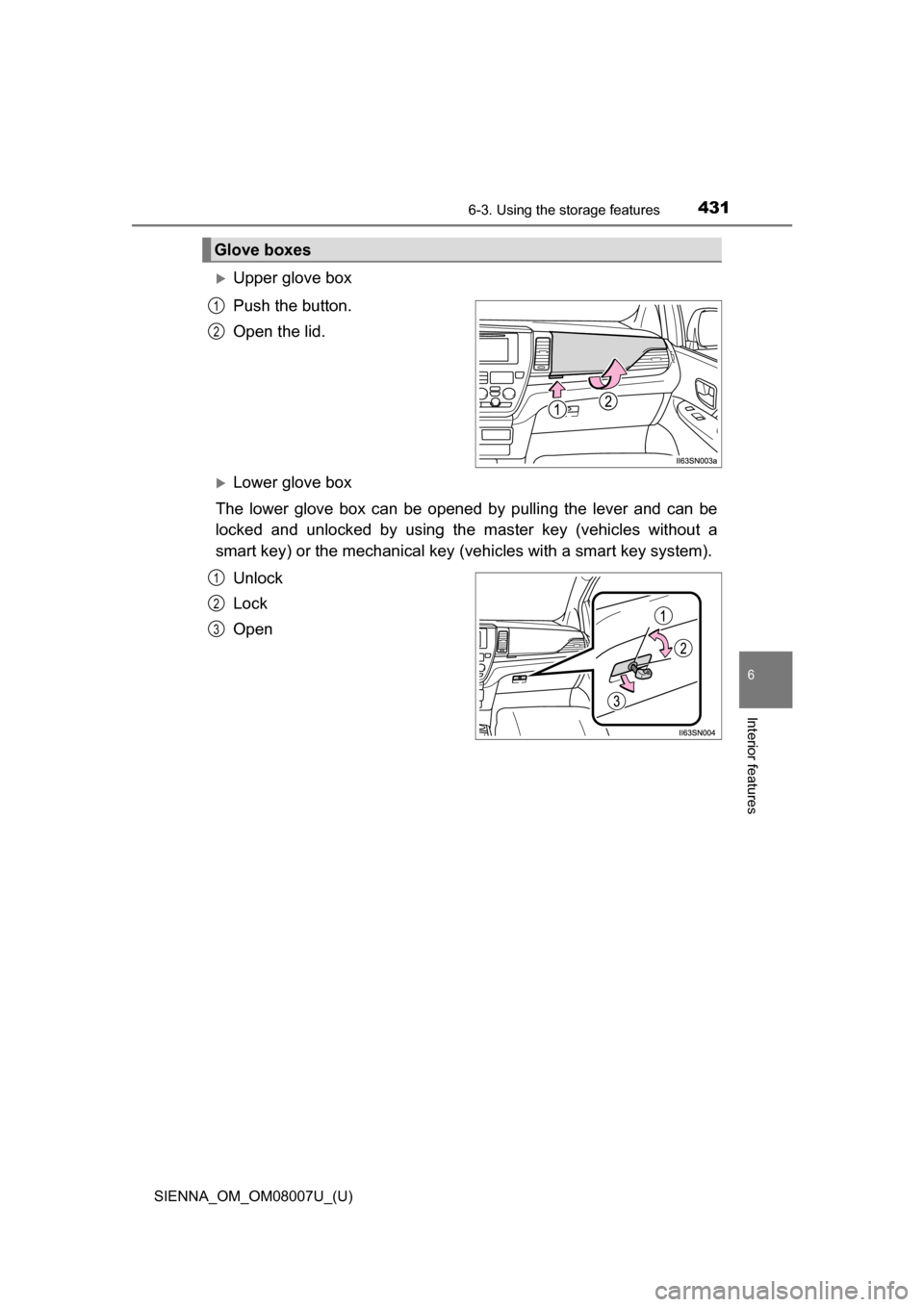

4316-3. Using the storage features
6
Interior features
Upper glove box
Push the button.
Open the lid.
Lower glove box
The lower glove box can be opened by pulling the lever and can be
locked and unlocked by using th e master key (vehicles without a
smart key) or the mechanical key (vehicles with a smart key system).
Unlock
Lock
Open
Glove boxes
1
2
1
2
3

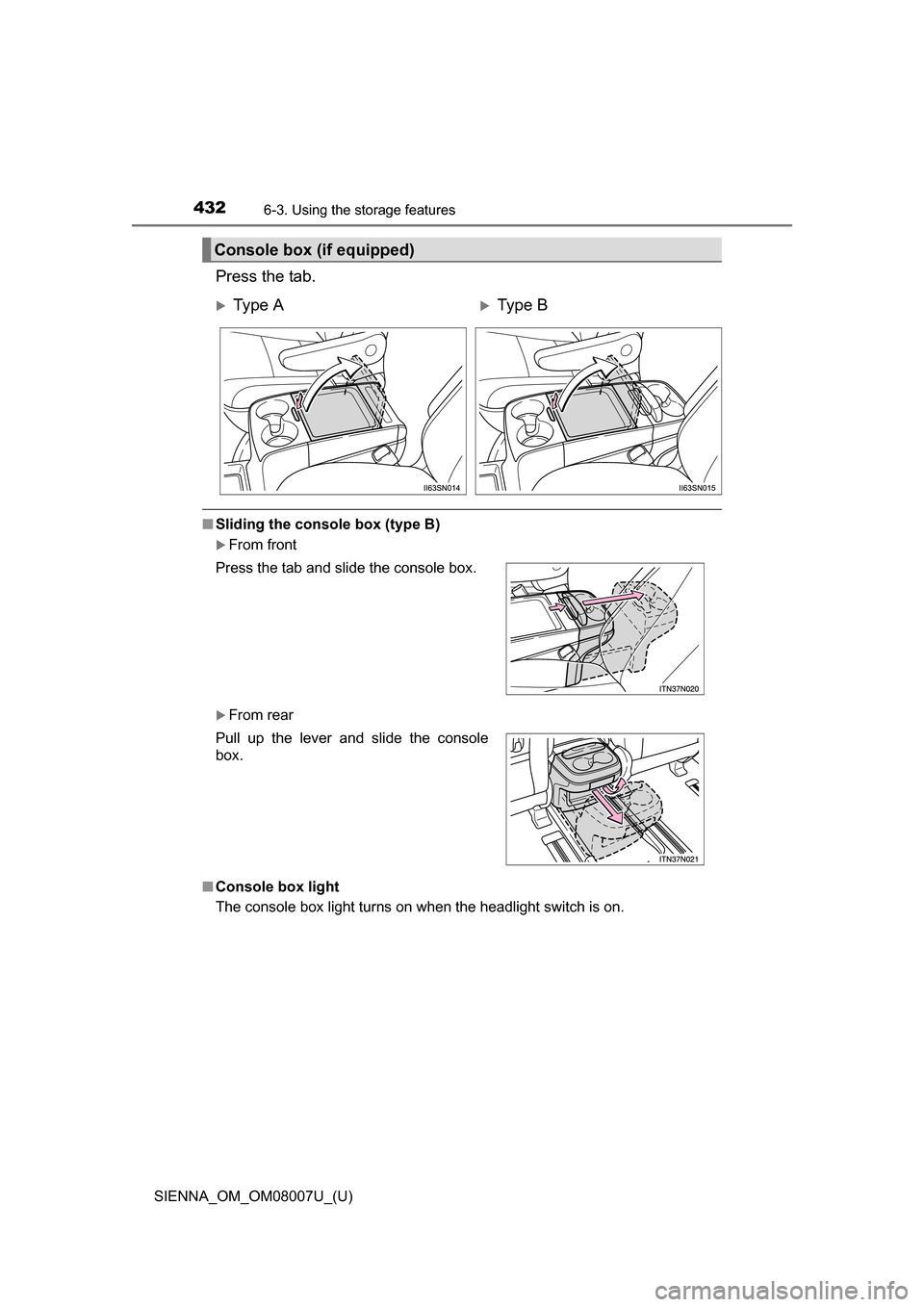

432
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
Press the tab.
■Sliding the console box (type B)
From front
From rear
■ Console box light
The console box light turns on when the headlight switch is on.
Console box (if equipped)
Ty p e AType B
Press the tab and slide the console box.
Pull up the lever and slide the console
box.

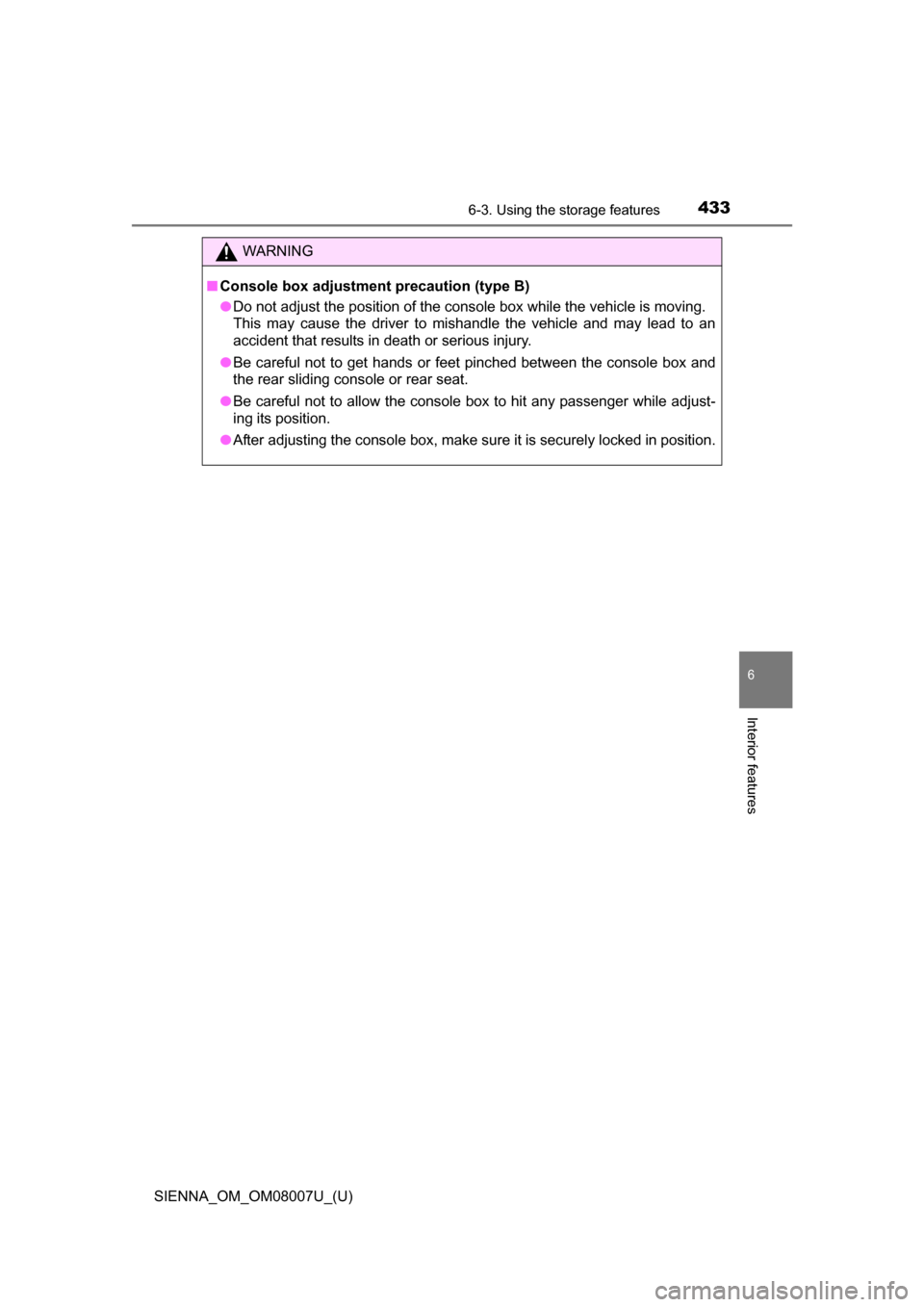

SIENNA_OM_OM08007U_(U)
4336-3. Using the storage features
6
Interior features
WARNING
■Console box adjustment precaution (type B)
● Do not adjust the position of the console box while the vehicle is moving.
This may cause the driver to mishandle the vehicle and may lead to an
accident that results in death or serious injury.
● Be careful not to get hands or feet pinched between the console box and
the rear sliding console or rear seat.
● Be careful not to allow the console box to hit any passenger while adjust-
ing its position.
● After adjusting the console box, make sure it is securely locked in position.

434
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features

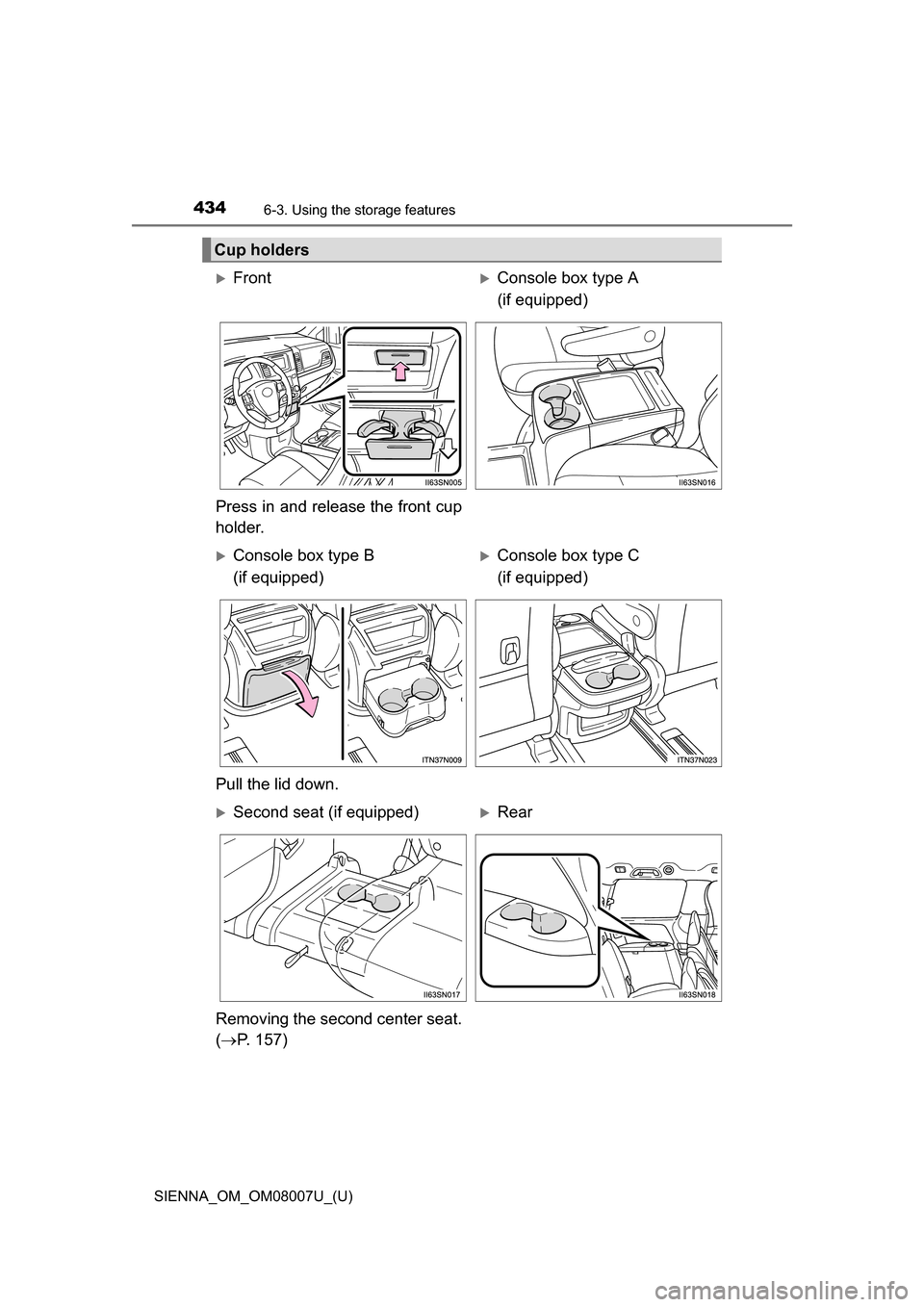

Cup holders
FrontConsole box type A
(if equipped)
Press in and release the front cup
holder.
Console box type B
(if equipped)Console box type C
(if equipped)
Pull the lid down.
Second seat (if equipped)Rear
Removing the second center seat.
(  P. 157)

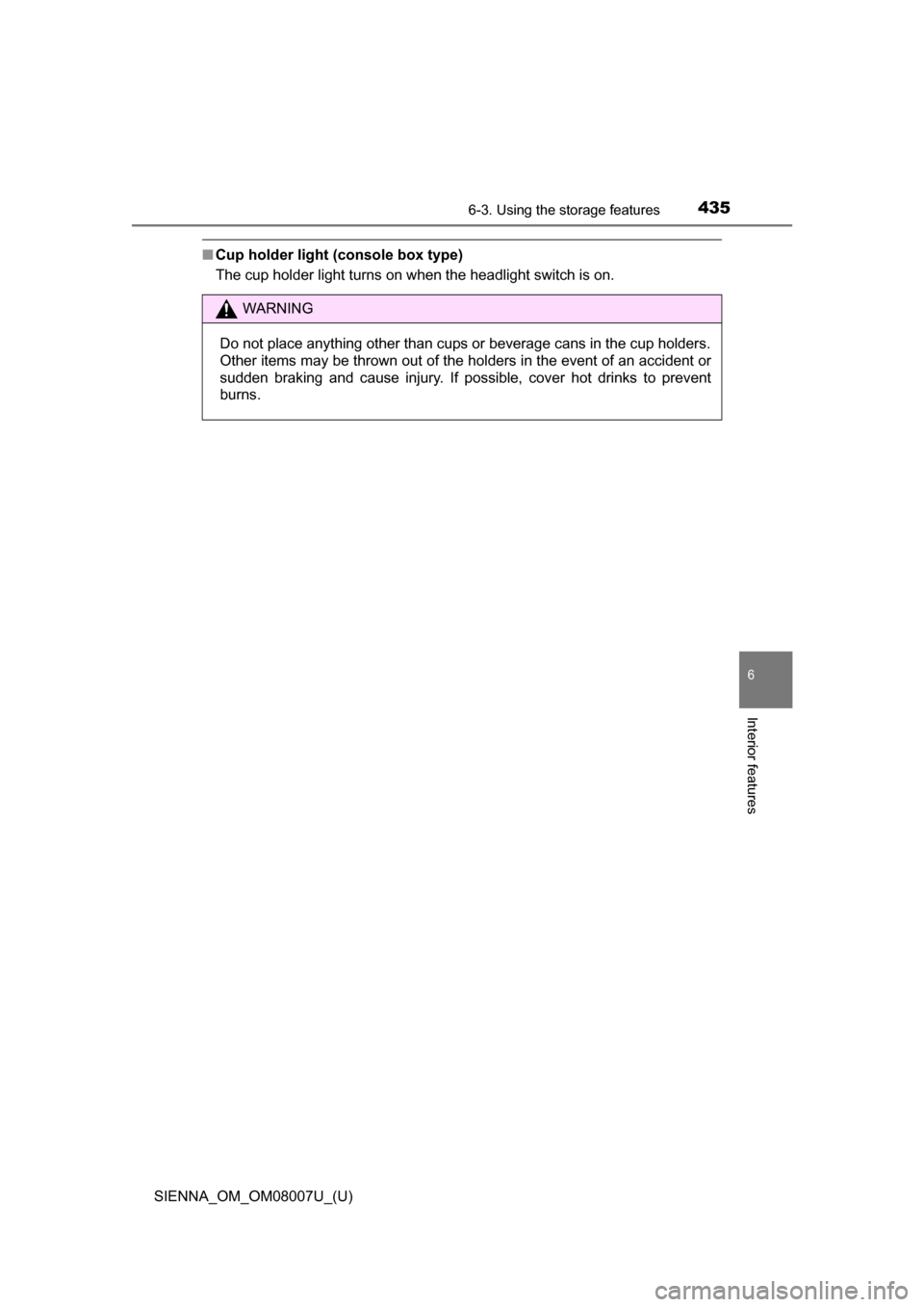

SIENNA_OM_OM08007U_(U)
4356-3. Using the storage features
6
Interior features
■Cup holder light (console box type)
The cup holder light turns on when the headlight switch is on.
WARNING
Do not place anything other than cups or beverage cans in the cup holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury. If possible, cover hot drinks to prevent
burns.

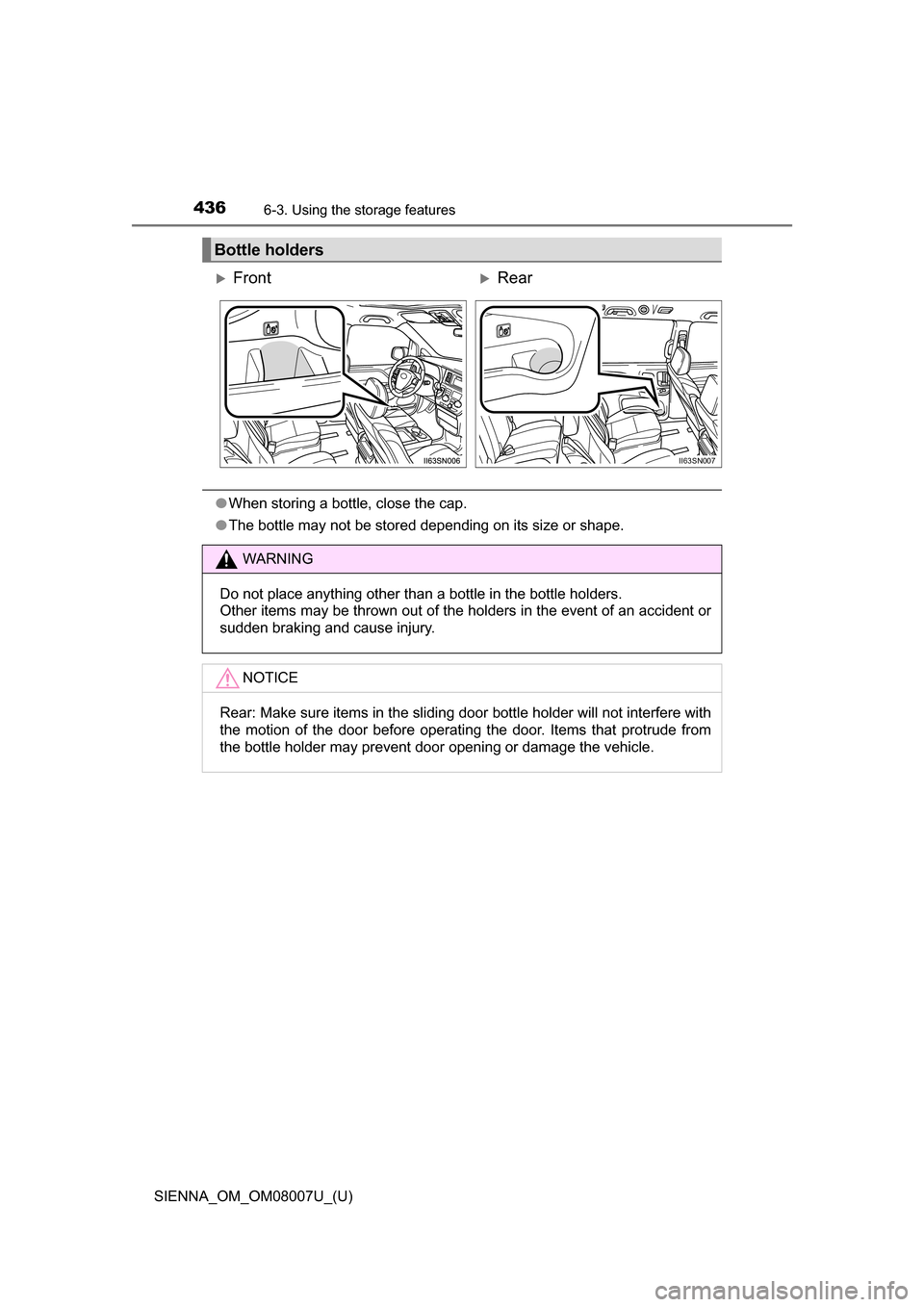

436
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
●When storing a bottle, close the cap.
● The bottle may not be stored depending on its size or shape.
Bottle holders
FrontRear
II63SN007
WARNING
Do not place anything other than a bottle in the bottle holders.
Other items may be thrown out of the holders in the event of an accident or
sudden braking and cause injury.
NOTICE
Rear: Make sure items in the sliding door bottle holder will not interfere with
the motion of the door before operating the door. Items that protrude from
the bottle holder may prevent door opening or damage the vehicle.

SIENNA_OM_OM08007U_(U)
4376-3. Using the storage features
6
Interior features

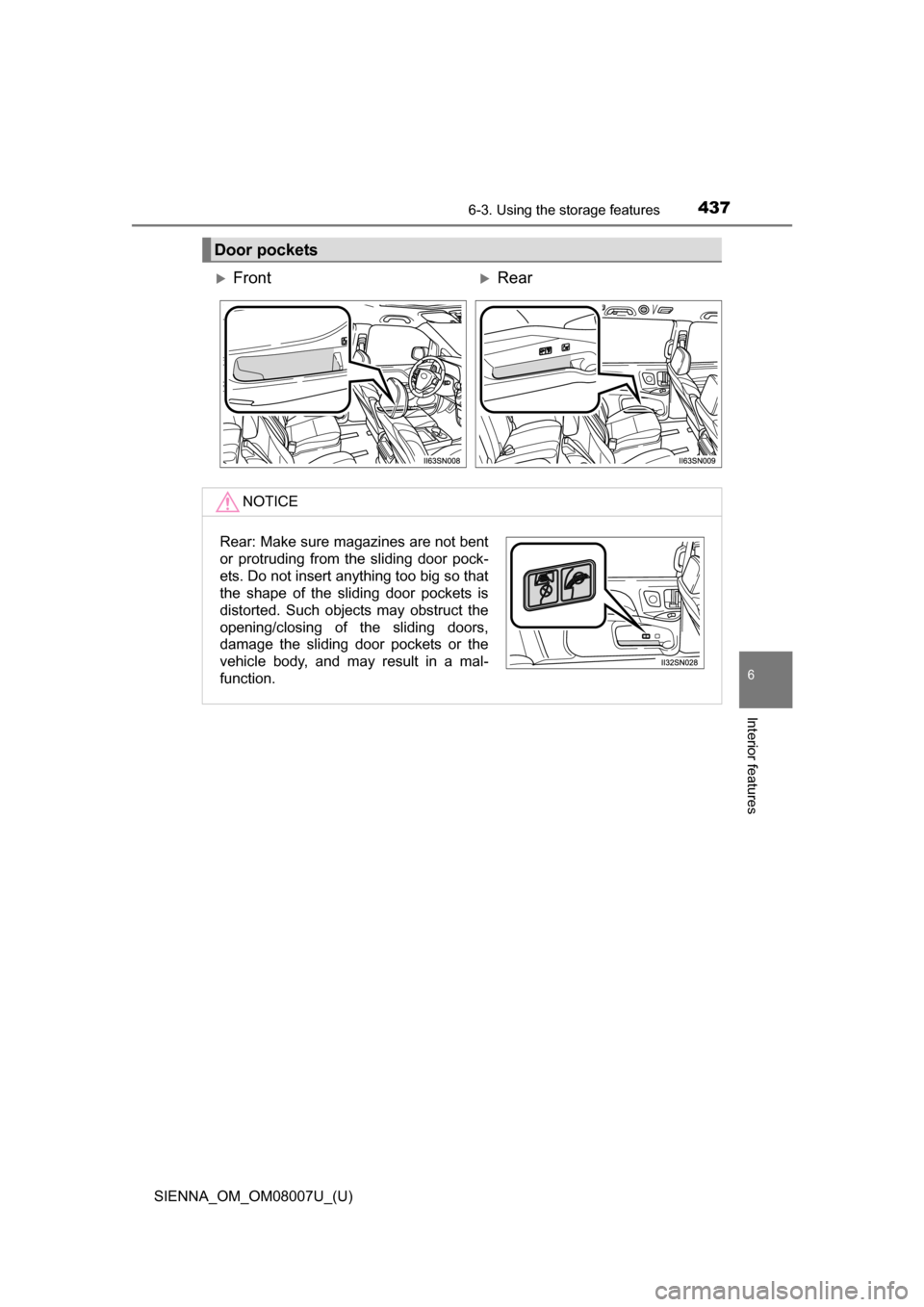

Door pockets
FrontRear
NOTICE
Rear: Make sure magazines are not bent
or protruding from the sliding door pock-
ets. Do not insert anything too big so that
the shape of the sliding door pockets is
distorted. Such objects may obstruct the
opening/closing of the sliding doors,
damage the sliding door pockets or the
vehicle body, and may result in a mal-
function.

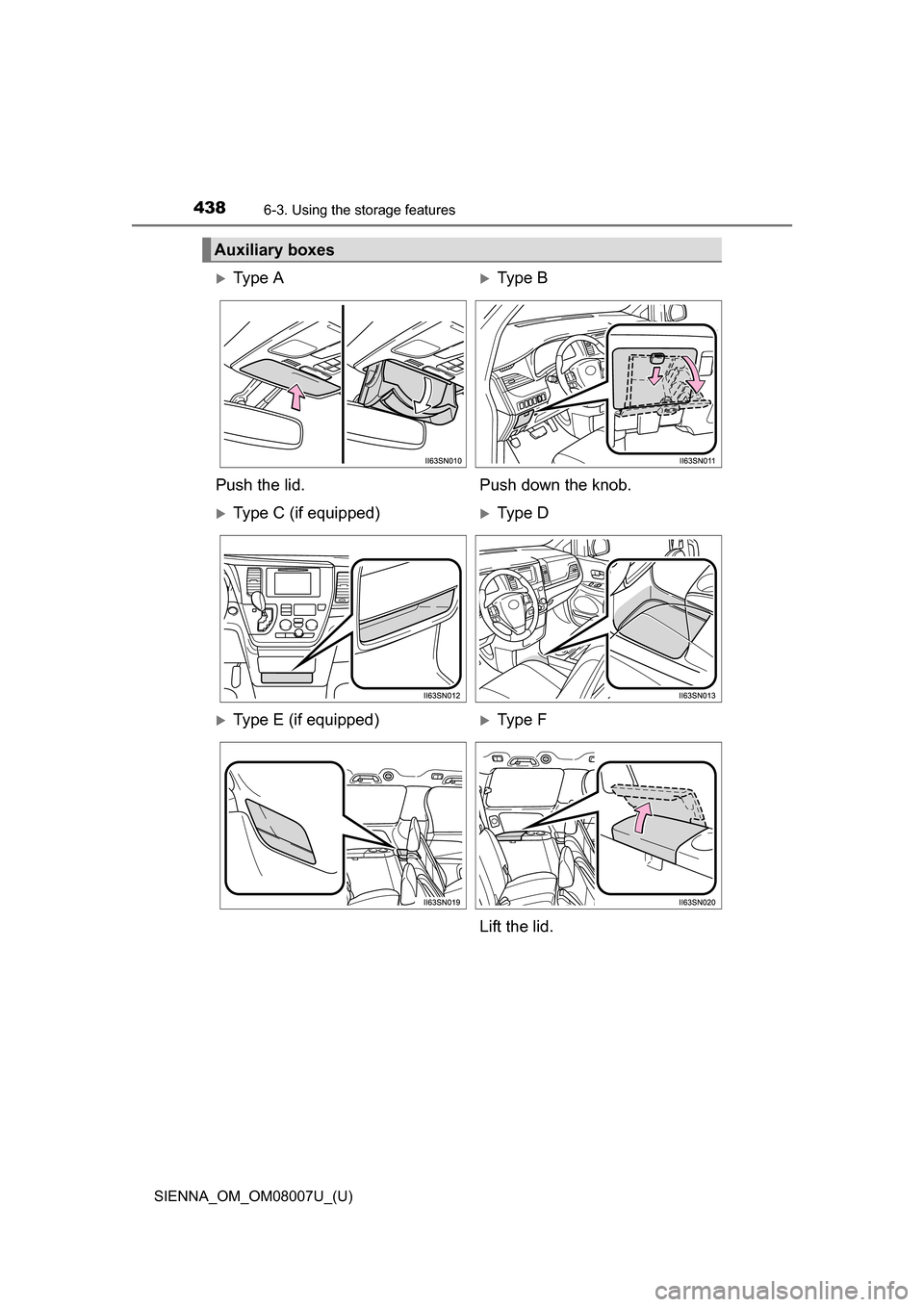

438
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
Auxiliary boxes
Ty p e AType B
Push the lid. Push down the knob.
Type C (if equipped)Type D
Type E (if equipped)Type F
Lift the lid.

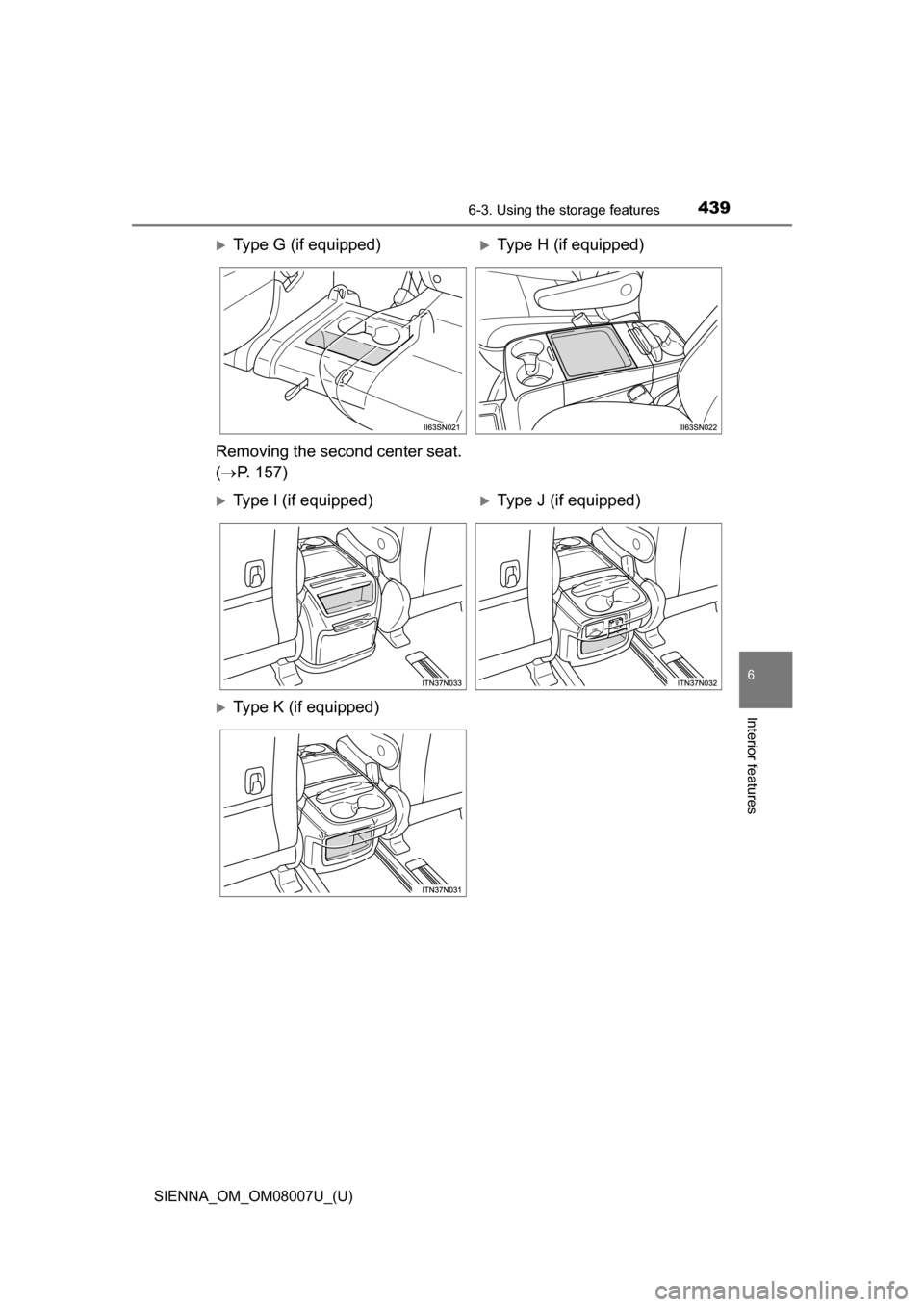

SIENNA_OM_OM08007U_(U)
4396-3. Using the storage features
6
Interior features
Type G (if equipped)Type H (if equipped)
Removing the second center seat.
(  P. 157)
Type I (if equipped)Type J (if equipped)
Type K (if equipped)

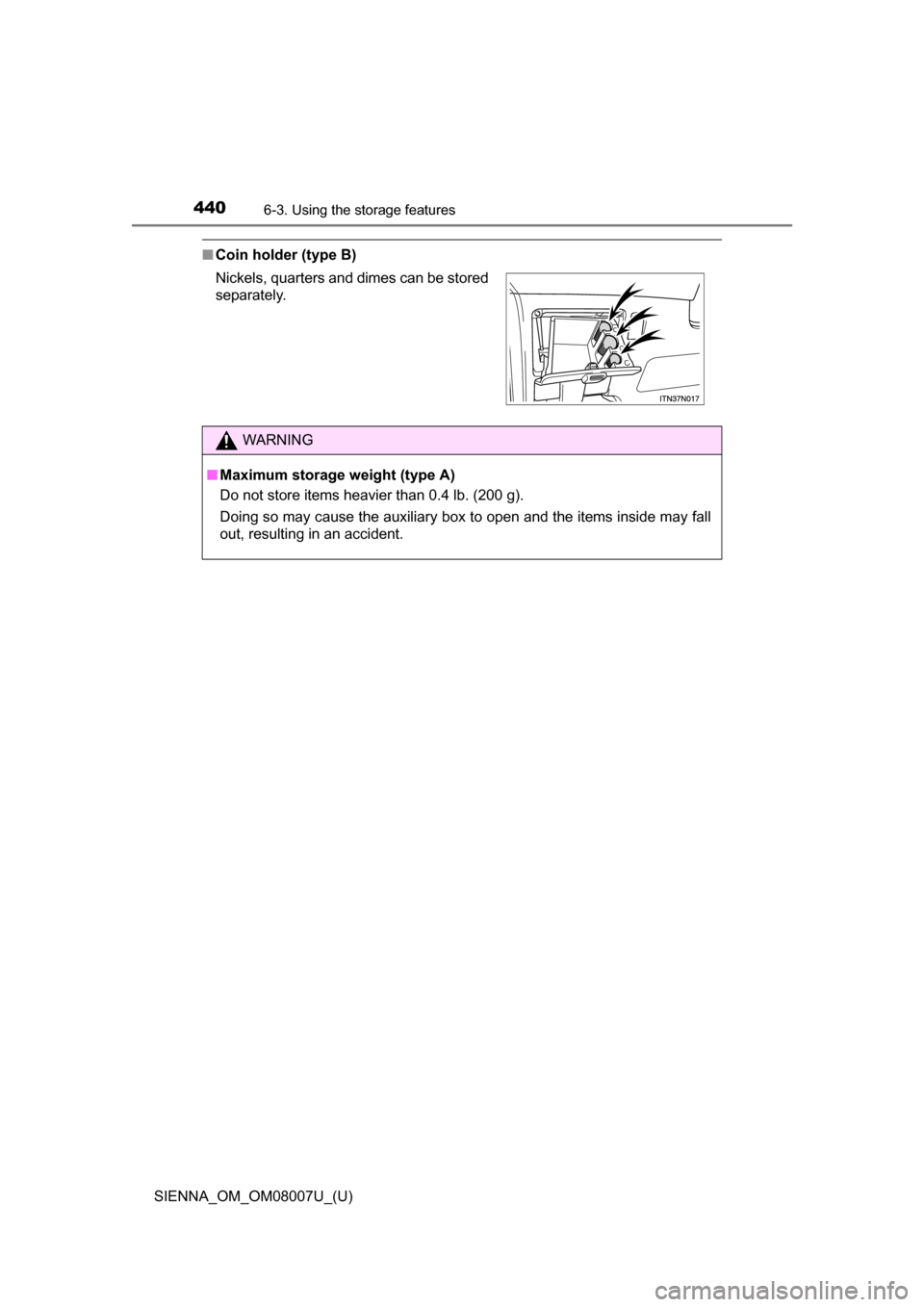

440
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features
■Coin holder (type B)
Nickels, quarters and dimes can be stored
separately.
WARNING
■Maximum storage weight (type A)
Do not store items heavier than 0.4 lb. (200 g).
Doing so may cause the auxiliary box to open and the items inside may fall
out, resulting in an accident.
