Page 421 of 672
421
SIENNA_OM_OM08007U_(U)
6-1. Using the air conditioning system and defogger
6
Interior features

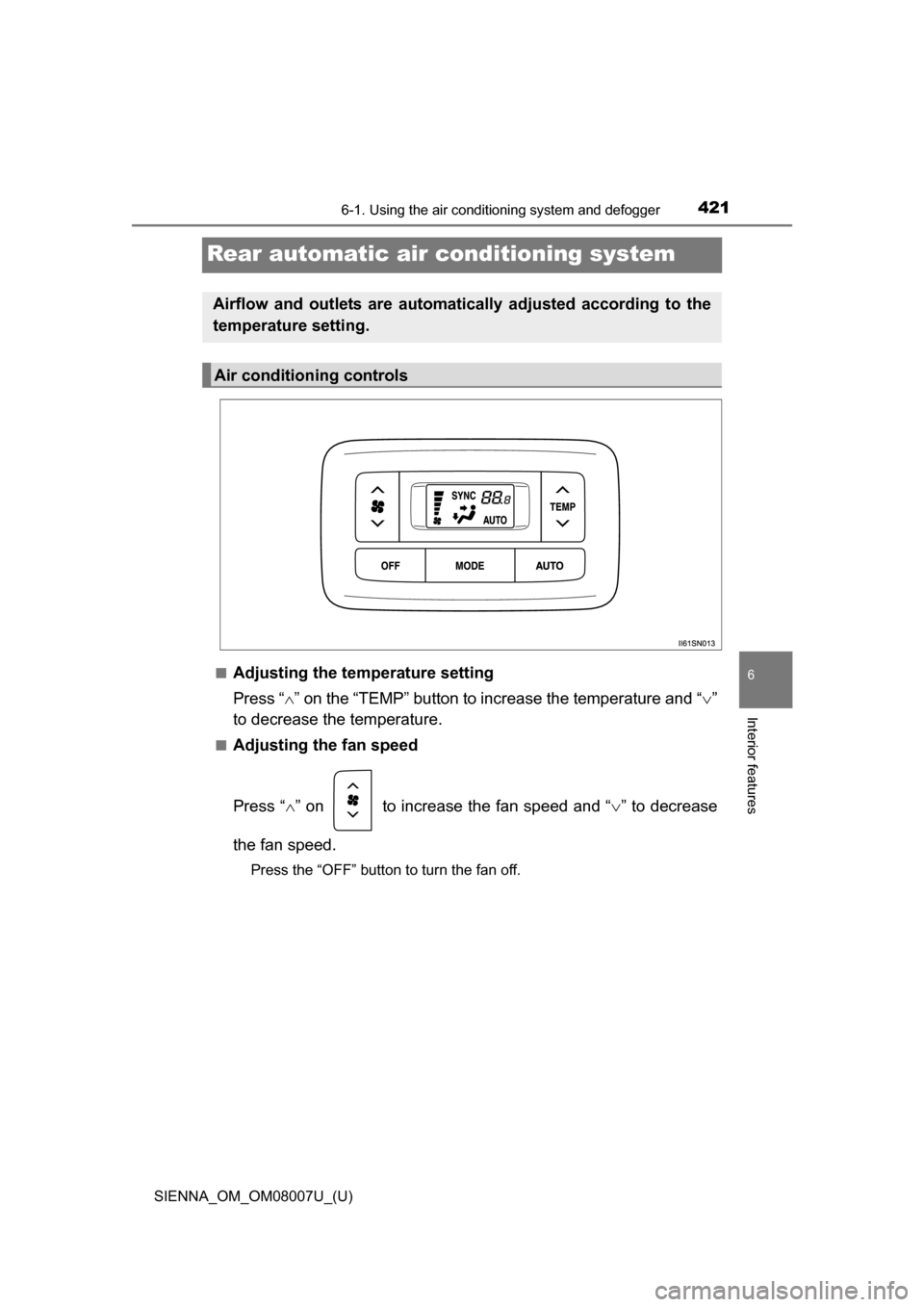

Rear automatic air conditioning system
■Adjusting the temperature setting
Press “” on the “TEMP” button to increase the temperature and “ ”
to decrease the temperature.
■Adjusting the fan speed
Press “ ” on to increase the fan speed and “ ” to decrease
the fan speed.
Press the “OFF” button to turn the fan off.
Airflow and outlets are automatically adjusted according to the
temperature setting.
Air conditioning controls
Page 422 of 672
4226-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)■

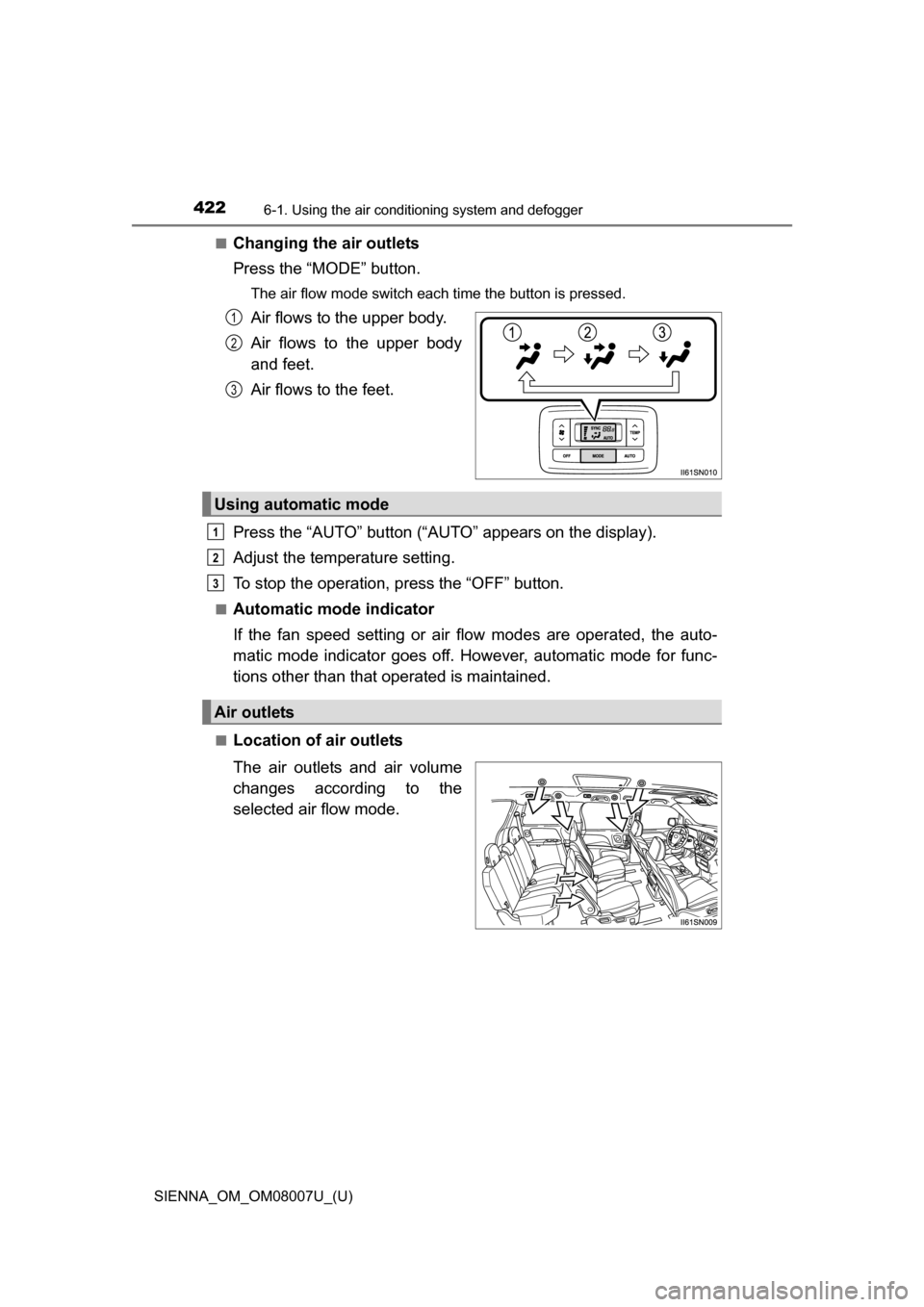

Changing the air outlets
Press the “MODE” button.
The air flow mode switch each time the button is pressed.
Air flows to the upper body.
Air flows to the upper body
and feet.
Air flows to the feet.
Press the “AUTO” button (“AUTO” appears on the display).
Adjust the temperature setting.
To stop the operation, press the “OFF” button.
■Automatic mode indicator
If the fan speed setting or air fl ow modes are operated, the auto-
matic mode indicator goes off. However, automatic mode for func-
tions other than that operated is maintained.
■Location of air outlets
The air outlets and air volume
changes according to the
selected air flow mode.
1
2
3
Using automatic mode
Air outlets
1
2
3
Page 423 of 672
SIENNA_OM_OM08007U_(U)
4236-1. Using the air conditioning system and defogger
6
Interior features

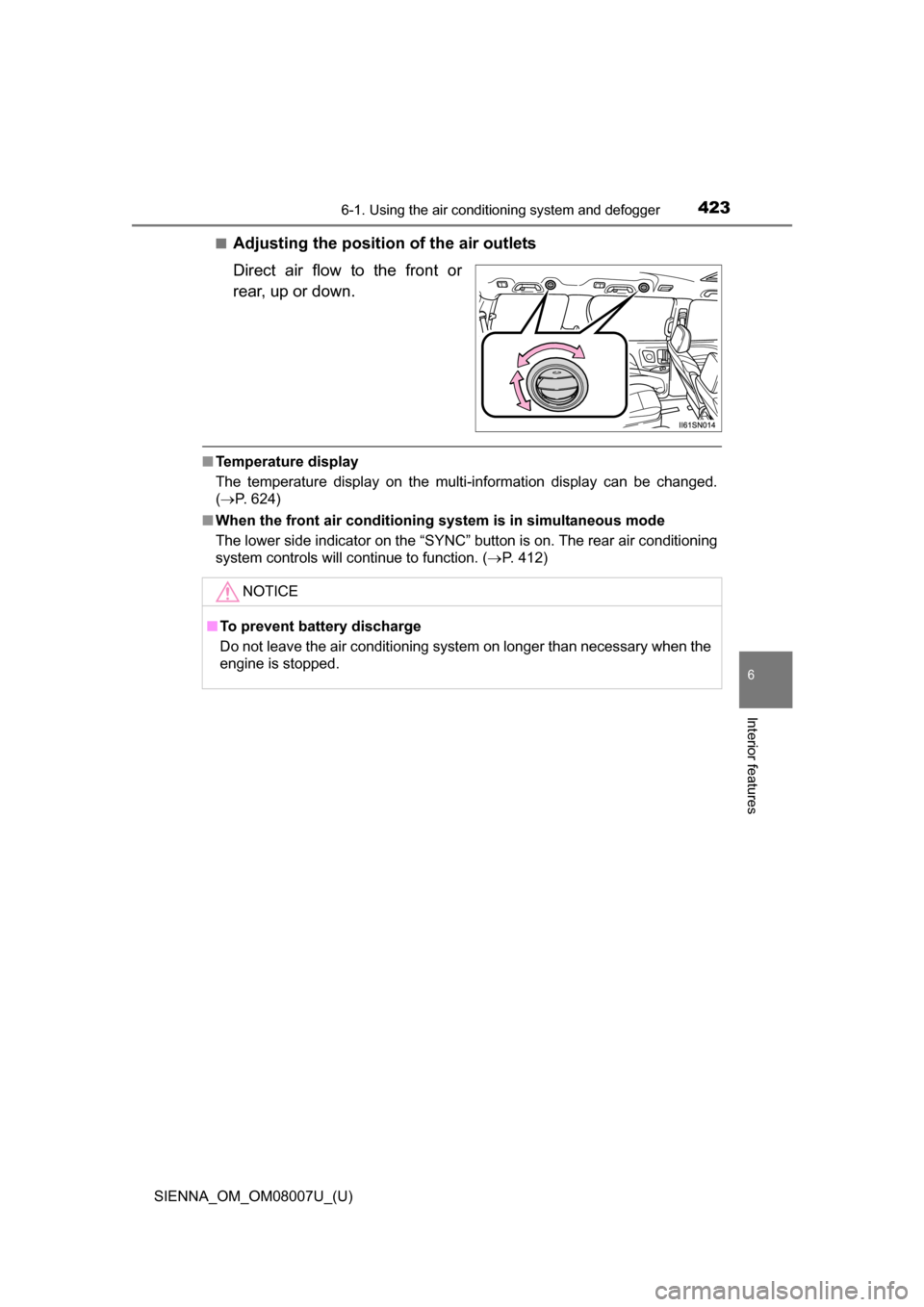

■Adjusting the position of the air outlets
Direct air flow to the front or
rear, up or down.
■Temperature display
The temperature display on the multi-information display can be changed.
( P. 624)
■ When the front air conditioning system is in simultaneous mode
The lower side indicator on the “SYNC” button is on. The rear air conditioning
system controls will continue to function. ( P. 412)
NOTICE
■To prevent battery discharge
Do not leave the air conditioning system on longer than necessary when the
engine is stopped.
Page 424 of 672

424
SIENNA_OM_OM08007U_(U)
6-1. Using the air conditioning system and defogger

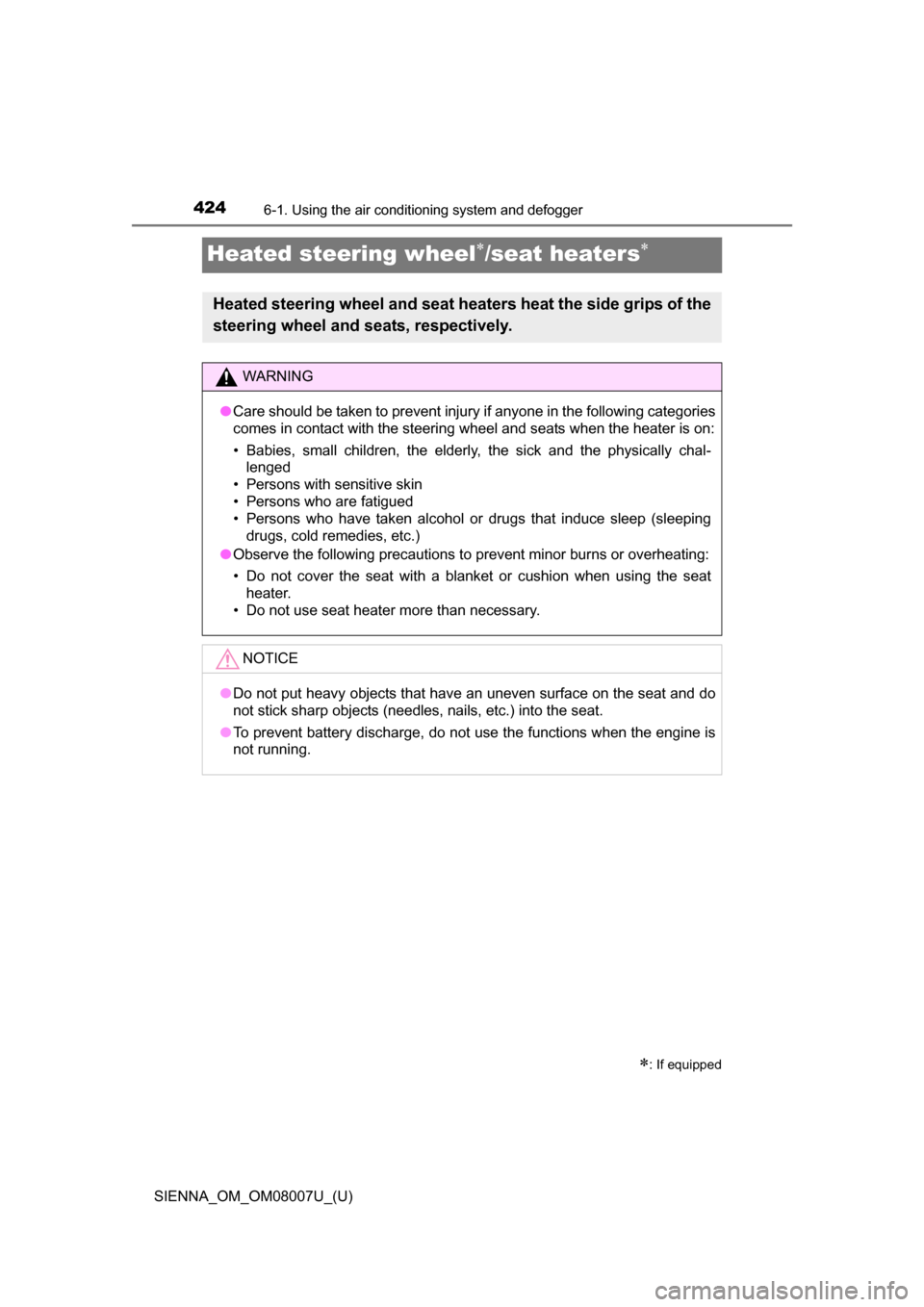

Heated steering wheel/seat heaters
: If equipped
Heated steering wheel and seat heaters heat the side grips of the
steering wheel and seats, respectively.
WARNING
●Care should be taken to prevent injury if anyone in the following categories
comes in contact with the steering wheel and seats when the heater is on:
• Babies, small children, the elderly, the sick and the physically chal-
lenged
• Persons with sensitive skin
• Persons who are fatigued
• Persons who have taken alcohol or drugs that induce sleep (sleeping drugs, cold remedies, etc.)
● Observe the following precautions to prevent minor burns or overheating:
• Do not cover the seat with a blanket or cushion when using the seat
heater.
• Do not use seat heater more than necessary.
NOTICE
● Do not put heavy objects that have an uneven surface on the seat and do
not stick sharp objects (needles, nails, etc.) into the seat.
● To prevent battery discharge, do not use the functions when the engine is
not running.
Page 425 of 672
SIENNA_OM_OM08007U_(U)
4256-1. Using the air conditioning system and defogger
6
Interior features

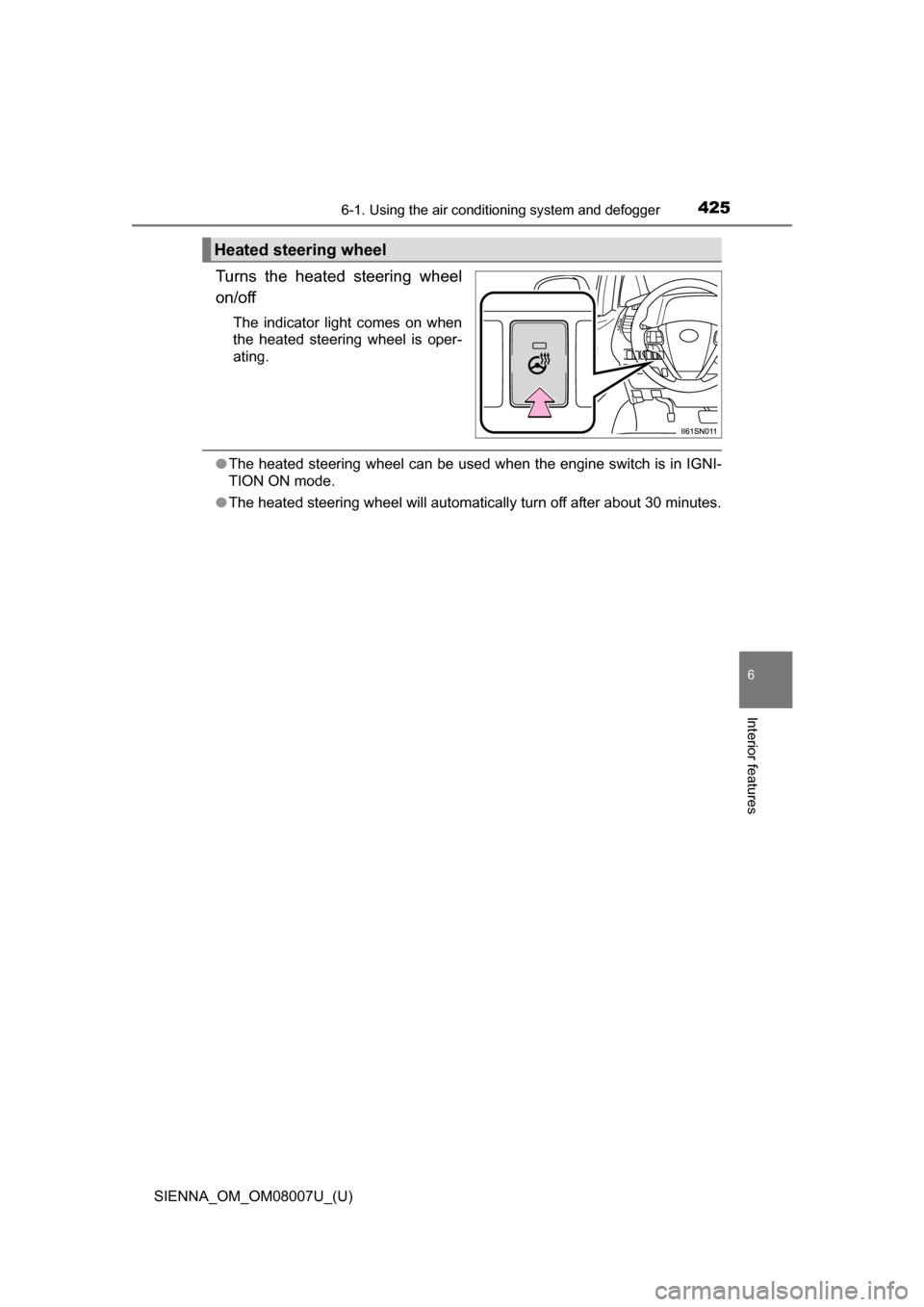

Turns the heated steering wheel
on/off
The indicator light comes on when
the heated steering wheel is oper-
ating.
●The heated steering wheel can be used when the engine switch is in IGNI-
TION ON mode.
● The heated steering wheel will automatically turn off after about 30 minutes.
Heated steering wheel

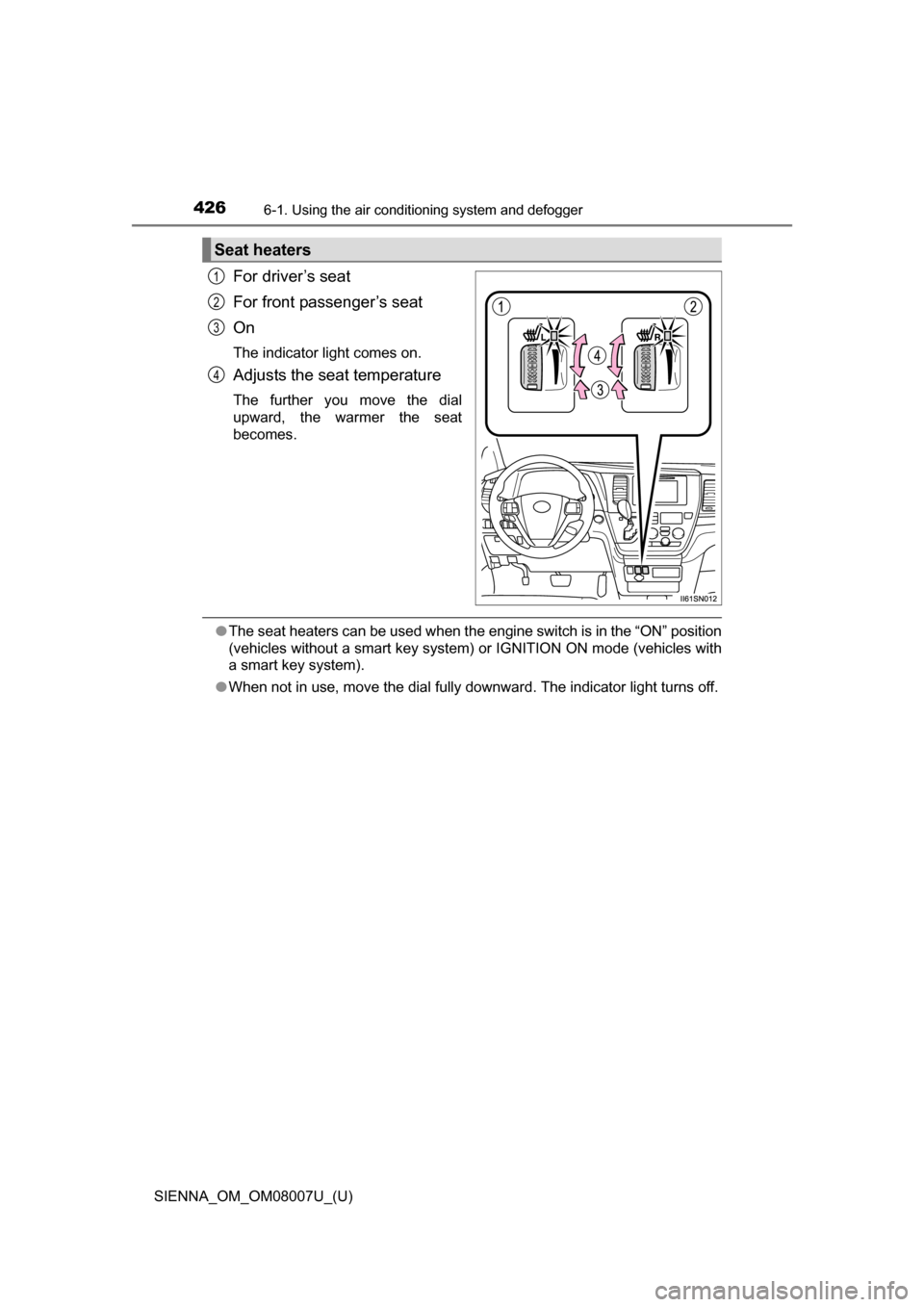

Page 426 of 672
4266-1. Using the air conditioning system and defogger
SIENNA_OM_OM08007U_(U)
For driver’s seat
For front passenger’s seat
On
The indicator light comes on.
Adjusts the seat temperature
The further you move the dial
upward, the warmer the seat
becomes.
●The seat heaters can be used when the engine switch is in the “ON” position
(vehicles without a smart key system ) or IGNITION ON mode (vehicles with
a smart key system).
● When not in use, move the dial fully downward. The indicator light turns off.
Seat heaters
1
2
3
4
Page 427 of 672
427
SIENNA_OM_OM08007U_(U)
6-2. Using the interior lights
6
Interior features

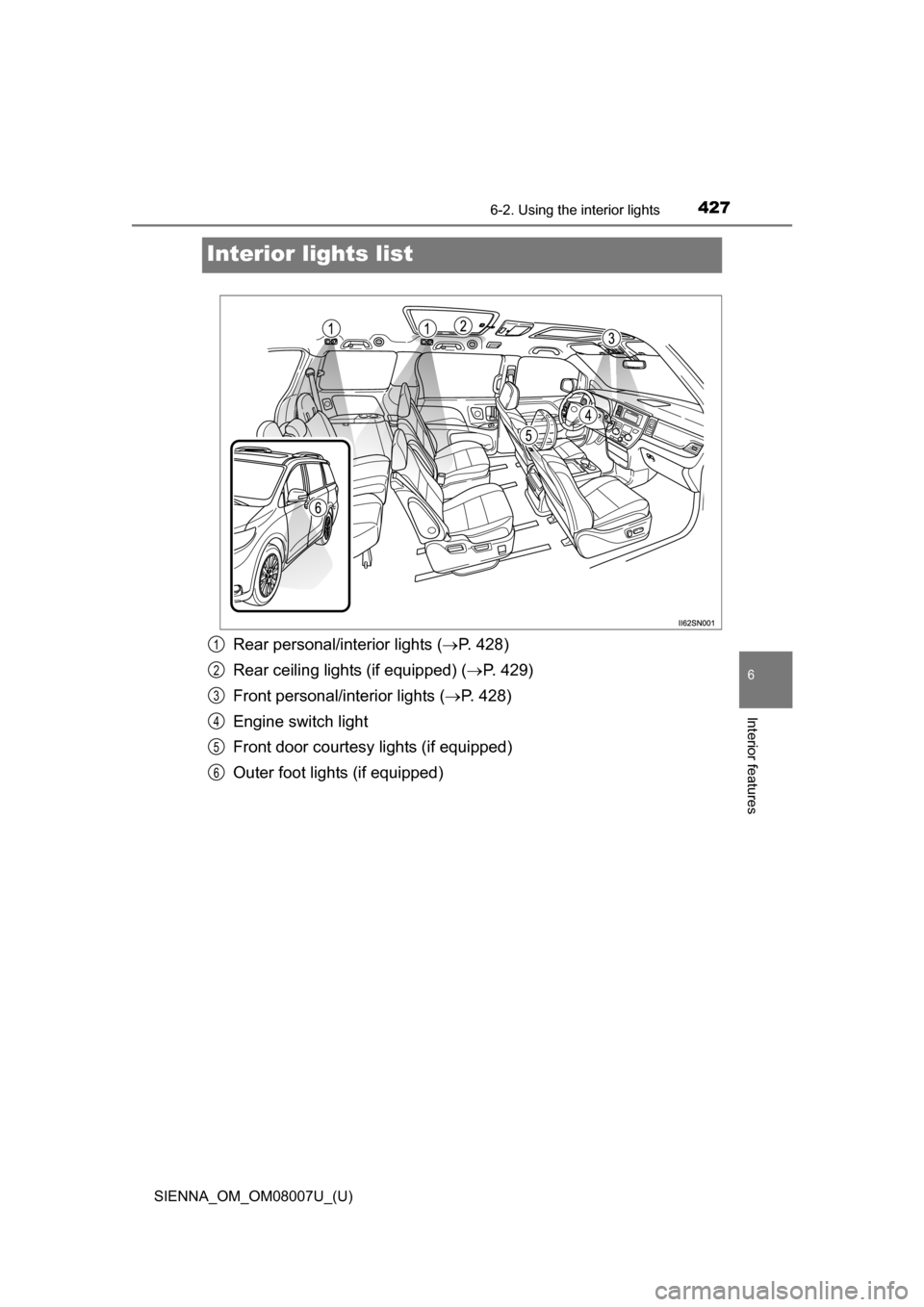

Interior lights list
Rear personal/interior lights ( P. 428)
Rear ceiling lights (if equipped) ( P. 429)
Front personal/interior lights ( P. 428)
Engine switch light
Front door courtesy lights (if equipped)
Outer foot lights (if equipped)1
2
3
4
5
6
Page 428 of 672
428
SIENNA_OM_OM08007U_(U)
6-2. Using the interior lights
Turns the lights on
Turns the door position on
Turns the lights off
■Front
Turns the light on/off
■Rear
Turns the light on/off
When the personal/interior light main switch is in the off position, the
rear personal lights will not turn on even if the switch is on.
Personal/interior light main switch
1
2
3
Personal/interior lights
Ty p e AType B
Page 429 of 672

SIENNA_OM_OM08007U_(U)
4296-2. Using the interior lights
6
Interior features

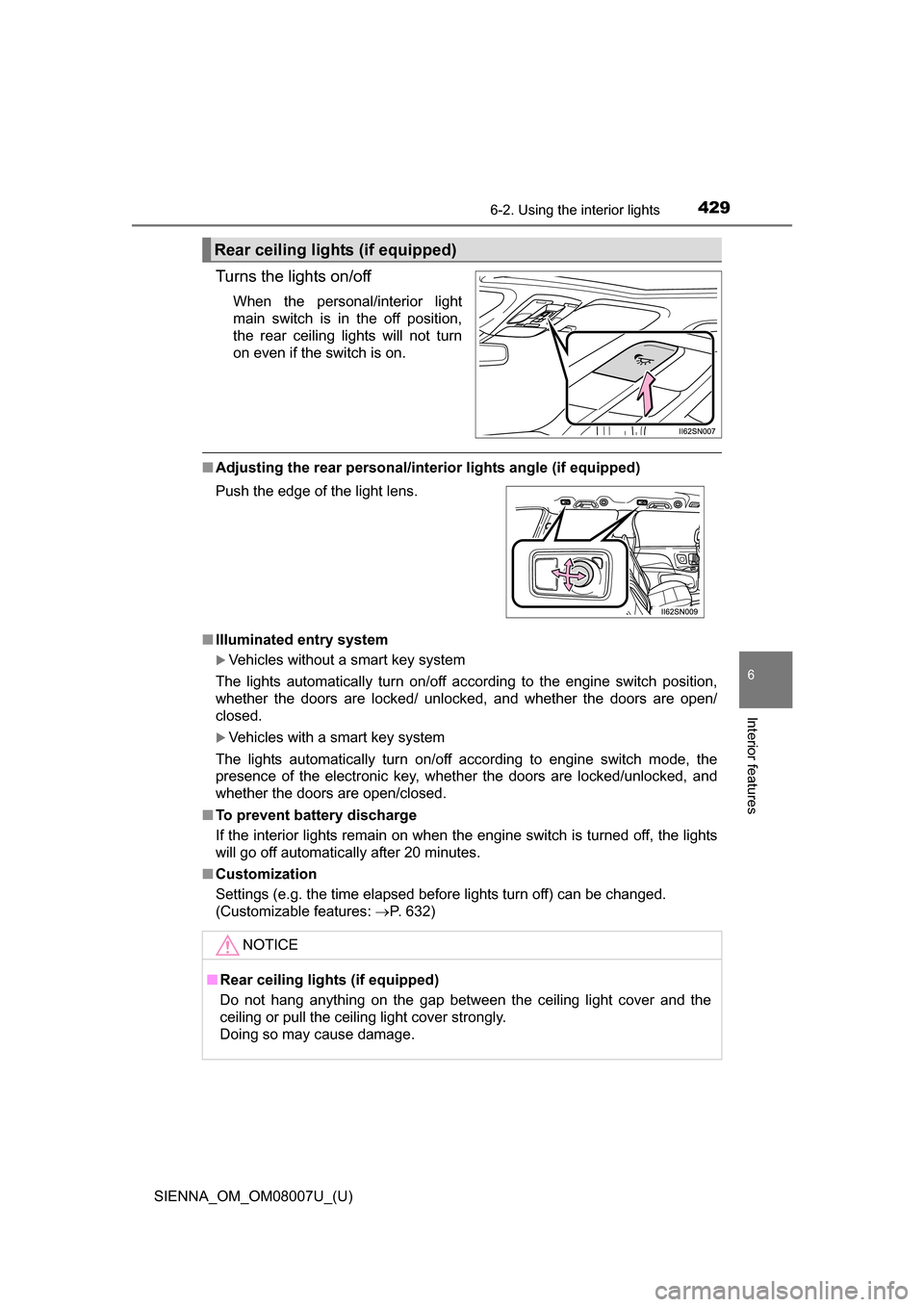

Turns the lights on/off
When the personal/interior light
main switch is in the off position,
the rear ceiling lights will not turn
on even if the switch is on.
■Adjusting the rear personal/interior lights angle (if equipped)
■ Illuminated entry system
Vehicles without a smart key system
The lights automatically turn on/off according to the engine switch position,
whether the doors are locked/ unlocked, and whether the doors are open/
closed.
Vehicles with a smart key system
The lights automatically turn on/off according to engine switch mode, the
presence of the electronic key, whether the doors are locked/unlocked, and
whether the doors are open/closed.
■ To prevent battery discharge
If the interior lights remain on when the engine switch is turned off, the lights
will go off automatically after 20 minutes.
■ Customization
Settings (e.g. the time elapsed before lights turn off) can be changed.
(Customizable features: P. 632)
Rear ceiling lights (if equipped)
Push the edge of the light lens.
NOTICE
■Rear ceiling lights (if equipped)
Do not hang anything on the gap between the ceiling light cover and the
ceiling or pull the ceiling light cover strongly.
Doing so may cause damage.
Page 430 of 672
430
SIENNA_OM_OM08007U_(U)
6-3. Using the storage features

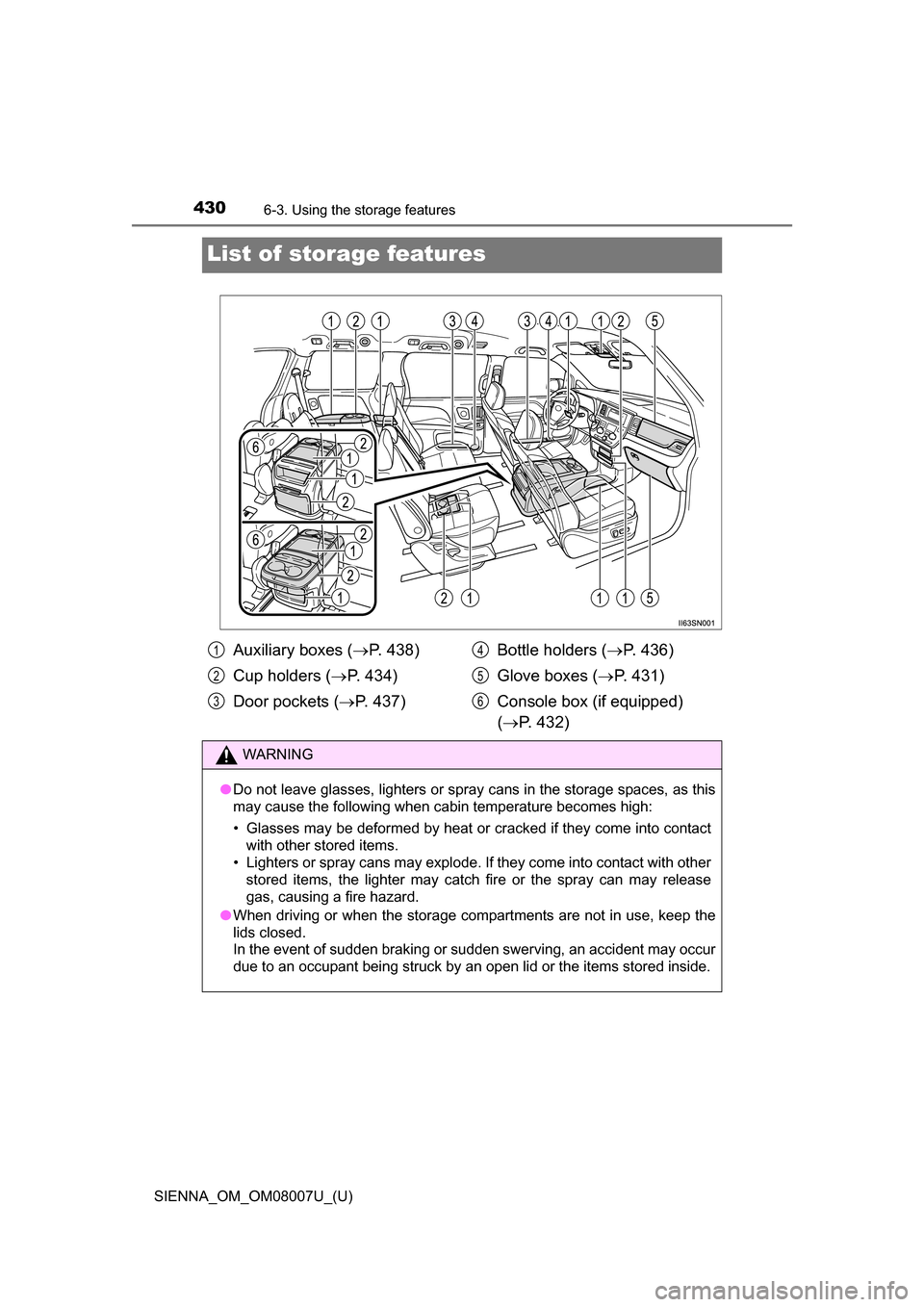

List of storage features
Auxiliary boxes ( P. 438)
Cup holders ( P. 434)
Door pockets ( P. 437) Bottle holders (
P. 436)
Glove boxes ( P. 431)
Console box (if equipped)
( P. 432)
WARNING
●Do not leave glasses, lighters or spray cans in the storage spaces, as this
may cause the following when cabin temperature becomes high:
• Glasses may be deformed by heat or cracked if they come into contact
with other stored items.
• Lighters or spray cans may explode. If they come into contact with other stored items, the lighter may catch fire or the spray can may release
gas, causing a fire hazard.
● When driving or when the storage compartments are not in use, keep the
lids closed.
In the event of sudden braking or sudden swerving, an accident may occur
due to an occupant being struck by an open lid or the items stored inside.
1
2
3
4
5
6
